USER MANUAL
Simulated Sinewave Inverter/Charger
V. 2.1

Table of Contents
1. Introduction.............................................................................................................................................1
2. Important Safety Warning (SAVE THESE INSTRUCTIONS)...................................................................1
3. Product Overview ...................................................................................................................................2
4. Installation...............................................................................................................................................2
5. Operation.................................................................................................................................................3
6. Trouble Shooting ....................................................................................................................................8
7. Specifications .........................................................................................................................................8

1
1. Introduction
Thank you for purchasing this power inverter. This simple power inverter is designed to power your home
appliances or precious 3C electronics. It also can handle motor-type loads with high surge power such as
vacuums, small freezers, or drills. With built-in AC charger, it can convert utility power to battery power and
provide continuous power to connected equipment during power failure.
2. Important Safety Warning (SAVE THESE INSTRUCTIONS)
Before using the inverter, please read all instructions and cautionary markings on the unit, this
manual and the batteries.
General Precaution-
CAUTION! The unit is designed for indoor use. Do not expose this unit to rain, snow or liquids of any type.
CAUTION! To reduce risk of injury, only use qualified batteries from qualified distributors or manufacturers.
Any unqualified batteries may cause damage and injury. Do NOT use old or overdue batteries. Please check the
battery type and date code before installation to avoid damage and injury.
WARNING! It's very important for system safety and efficient operation to use appropriate external battery
cable. To reduce risk of injury, external battery cables should be UL certified and rated for 105°C or higher. And
do not use copper cables less than 6AWG or 10AWG*2.
CAUTION! Do not disassemble the inverter. Contact with the qualified service center when service or repair is
required.
WARNING! Provide ventilation to outdoors from the battery compartment. The battery enclosure should be
designed to prevent accumulation and concentration of hydrogen gas at the top of the compartment.
CAUTION! Use insulated tools to reduce the chance of short-circuit when installing or working with the inverter,
the batteries, or other equipments attached to this unit.
CAUTION! For battery installation and maintenance, read the battery manufacturer's installation and
maintenance instructions prior to operating.
Personnel Precaution -
CAUTION! Careful to reduce the risk or dropping a metal tool on the batteries. It could spark or short circuit the
batteries and could cause an explosion.
CAUTION! Remove personal metal items such as rings, bracelets, necklaces, and watches when working with
batteries. Batteries can produce a short circuit current high enough to make metal melt, and could cause severe
burns.
CAUTION! Avoid touching eyes while working near batteries.
CAUTION! Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
CAUTION! NEVER smoke or allow a spark or flame in vicinity of a battery.
CAUTION! If a remote or automatic generator start system is used, disable the automatic starting circuit or
disconnect the generator to prevent accident during servicing.
Conventions used:
WARNING! Warnings identify conditions or practices that could result in personal injury;
CAUTION! Caution identify conditions or practices that could result in damaged to the unit or other
equipment connected.

2
3. Product Overview
4. Installation
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
Mounting the unit
The unit ONLY can be mounted vertically to a wall surface.
Please follow below steps:
1. Turn off the unit before mounting.
2. Select an appropriate mounting location. Mark four mounted ends as shown in chart.
3. Drill four marks by screws.
4. Mount the unit by positioning the key-hole slots over the mounting screws.
Connect External Battery
Step 1- Install a DC Breaker in a positive battery line. The rating of the DC Breaker must be according to the
inverter's battery current (100 Amp). Keep the DC breaker off.
Step 2 - Remove insulation sleeve 18 mm for positive and negative conductors.
Step 3- Connect battery cables to the external batteries.
Note: For the user operation safety, we strongly recommend that you should use tapes to isolate the battery
terminals before you start to operate the unit.
1) Single battery connection: When using a single battery, its voltage must be equal to the Nominal DC
Voltage of the unit
2) Multiple batteries in series connection(Refer to Fig. 3): All batteries must be equal in voltage and
amp hour capacity. The sum of their voltages must be equal to the nominal DC Voltage of the unit.
1. Power switch
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
(Please see the Operation section for the
details)
6. LCD display
7. AC input
8. AC output socket
9. Input circuit breaker
10. External battery connectors
11. DC fuse
Breaker

3
Fig 3
3) Multiple batteries in parallel connection(Refer to Fig. 4): Each battery's voltage must be equal to the Nominal
DC Voltage of the unit.
Fig 4
Step 4- Make sure to connect the polarity of battery side and the unit correctly.
Positive pole (Red) of battery to the positive terminal (+) of the unit.
Negative pole (Black) of battery to the negative terminal (-) of the unit.
Step 5-Take the DC breaker on.
5. Operation
Power On/Off
Once the inverter has been properly installed, press the power switch to turn on the unit. The unit will work
automatically in line mode or inverter mode according to input utility power's status. When press the power
switch again, the unit will be turned off.
LED Indicators, Function Keys & Audible Alarms
There are three indicators in the front panel of the unit.
LED Indicator
Messages
Green
Solid On
Output is available in bypass mode
Flashing
Output is powered by battery in inverter mode
Green
Solid On
Battery is fully charged.
Flashing
Battery is charging but not full.
Red
Solid On
Fault mode
Flashing
battery low or overload warning
Function Keys
Function Key Description
ESC
To exit setting mode
SCROLL
To go to next selection
ENTER
To confirm the selection in setting mode or enter setting mode

4
Audible Alarms
Buzzer Audible Alarm
Messages
Inverter Mode (Low-battery Voltage)
Buzzing every 1 seconds
110% overload warning
Buzzing every 0.5 second
Overcharge
Buzzing continuously
Fault mode
Buzzing continuously
LCD Display
Display
Function
Input source information
Indicates the AC input
Indicates input voltage, input frequency, PV voltage, charging current, battery voltage,
Configuration Program and Fault Information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: Flashing with warning code
Fault: Lighting with fault code
Output Information
Indicates the output voltage, load percentage, load in Watt and main board firmware
version.
Battery Information
Indicates the battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery mode,
charging status in line mode.
In AC mode, it will present battery charging status.
Status
Battery voltage
LCD Display
Constant
Current mode /
Constant
Voltage mode
< 11Vdc/pcs
4 bars will flash in turns.
11Vdc ~ 11.5Vdc/pcs
Bottom bar will be on and the other three
bars will flash in turns.
11.5Vdc ~ 12.5Vdc/pcs
Bottom two bars will be on and the other
two bars will flash in turns.
> 12.5Vdc/pcs
Bottom three bars will be on and the top
bar will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.
In battery mode, it will present battery capacity.
Battery Voltage
LCD Display
< 11Vdc/pcs
11.0Vdc ~ 11.5Vdc/pcs
11.5Vdc ~ 12.5Vdc/pcs
> 12.5Vdc/pcs
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-49%, 50-74%, and 75-100%.
0%~24%
25%~49%
50%~74%
75%~100%

5
Mode operation information
Indicates unit connects to the mains.
Indicates load is supplied by utilit y p o w e r.
Indicates the utility charger circuit is working.
Indicates the DC/AC inverter circuit is working.
LCD Setting
After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “SCROLL” button
to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit.
Setting Programs
Program Description Selectable option
00 Exit setting mode
Escape
01 AC input voltage
range
Wide (default)
If selected, acceptable AC input voltage range will
be within 90-280VAC.
Narrow
If selected, acceptable AC input voltage range will
be within 170-280VAC.
02 Battery type
AGM(Default)
Flooded
User-defined
03 Max AC charging
current
20A(default)
10A
04
Bulk charging (C.V
voltage)voltage
12V model default setting: 14.1V
24V model default setting: 28.2V
If self-defined is selected in program 02, this program can be set up.
Setting range is from 13.0V to 14.6V for 12Vdc model and increment of
each click is 0.1V. Setting range is from 26.0V to 29.2V for 24Vdc model
and increment of each click is 0.2V.
05 Floating charging
voltage
12V model default setting: 13.5V
24V model default setting: 27.0V

6
If self-defined is selected in program 02, this program can be set up.
Setting range is from 13.0V to 14.6V for 12Vdc model and increment of
each click is 0.1V. Setting range is from 26.0V to 29.2V for 24Vdc model
and increment of each click is 0.2V.
06 Low DC cut-off
voltage
1.2K default setting: 9.9V
2.4K default setting: 19.8V
Setting range is from 9.9V to 12.0V for 1.2K model and increment of each
click is 0.1V Setting range is from 19.8V to 24.0V for 2.4K model and
increment of each click is 0.2V. L o w D C c u t -off voltage will be fixed to
setting value no matter what percentage of load is connected.
Display Setting
The LCD display information will be switched in turns by pressing “SCROLL” key. The selectable information is
switched as below order: input voltage, input frequency, PV voltage, charging current, battery voltage, output
voltage, output frequency, load percentage, load in Watt, load in VA, load in Watt, DC discharging current, main
CPU Version and second CPU Version.
Selectable information
LCD display
Input voltage/Output voltage
(Default Display Screen)
Input Voltage=230V, output voltage=230V
Battery voltage / Load percentage
Battery voltage=25.5V
Load percent=70%
Battery voltage/ Load in watt
When load is lower than 1kW,
load in W will present xxxW
like below chart.
When load is larger than 1kW
(≧1KW), load in W will
present x.xkW
like below
chart.
Main CPU version checking
Main CPU version 00001.01

7

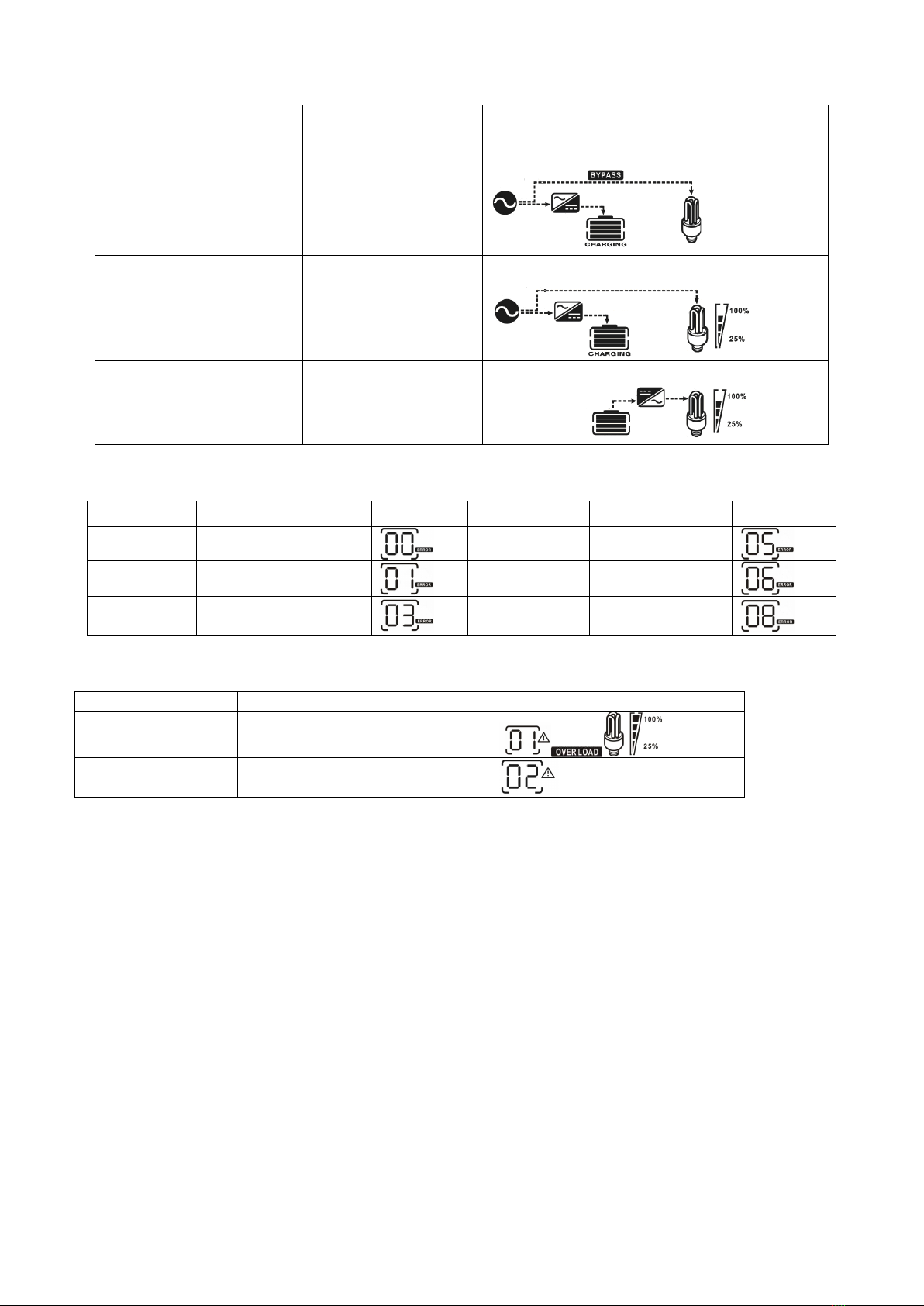

Operating Mode Description
Operation mode Description LCD display
Standby mode
Note:
*Standby mode: The inverter is
not turned on yet but at this
time, the inverter can charge
battery with AC bypass output.
Utility input bypass to
output, charger is
available and LCD
backlight is off
Charging by utility.
Line Mode
The unit will provide
output power from the
mains. It will also
charge the battery at
line mode.
Charging by utility.
Battery Mode
The unit will provide
output power from
battery.
Power from battery only.
Fault Reference Code
Fault Code
Fault Event
Icon on
Fault Code
Fault Event
Icon on
00 Output short circuit 05 Fan locked
01 Over load time out 06 Over temperature
03
Output voltage too
high
08 Over charge
Warning Indicator
Warning Code
Warning Event
Icon flashing
01 Over load
02 Battery low

8
6. Trouble Shooting
Use the table below to solve minor problems.
Problem LCD/LED/Buzzer Explanation / Possible cause What to do
When power fails,
the backup time is
shorten.
Battery low alarm
issue quickly.
Battery voltage is too low.
Charge the unit at least 8
hours.
Battery capacity is not full even
after charge the unit for at least 8
hours.
Check the date code of the
battery. If the batteries are
too old, replace the batteries.
Mains exist but the
unit works in
battery mode.
Input voltage is
displayed as 0 on the
LCD and green LED is
flashing.
Input protector is tripped
Check if AC breaker is tripped
and AC wiring
is connected
well.
Green LED is flashing. Insufficient quality of AC power.
(Shore or Generator)
1. Check if AC wires are too
thin and/or too long.
2. Check if generator (if
applied) is working well or if
input voltage range setting is
correct. (NarrowWide)
No LED display on
the front panel
when the utility
power is normal.
No LED display.
Battery is not connected well.
Check the external battery
cable and terminal. Make sure
all the battery connections to
the unit are all correct.
Battery defect.
Replace the batteries.
Buzzer beeps
continuously and
red LED is on.
Fault code 00 Output short circuited.
Check if wiring is connected
well and remove abnormal
load.
Fault code 01 Overload error. The inverter is
overload 110% and time is up.
Reduce the connected load by
switching off some
equipment.
Fault code 03 Output voltage too high Return to repair center.
Fault code 05 Fan fault Replace the fan.
If there is any abnormal situations occur, which doesn't list above, please call the service people immediately
for professional examine.
7. Specifications
MODEL 1.2K 2.4K
INPUT
Voltage
230 VAC
Voltage Range
90-280 VAC
OUTPUT
Voltage Regulation (Batt. Mode) +/-10%
Transfer Time
20 ms typical
Waveform
Simulated Sine Wave
BATTERY
Battery Voltage
12 VDC
24 VDC
Floating Charge Voltage
13.7 VDC ±0.5 VDC
27.4 VDC ±1 VDC
PHYSICAL
Dimension (DxWxH) mm
272 x 212 x 127
Net Weight (kgs)
4.5
4.8
