Resol FlowSol S User manual

*11206109* 11206109
Thank you for buying this RESOL product.
Please read this manual carefully to get the best performance from this unit.
Please keep this manual carefully.
FlowSol®S / S HE
www.resol.com
Manual
en
Installation
Operation
Commissioning
Manual for the
specialised craftsman

2
Subject to technical change. Errors excepted.
© 20170215_11206109_FlowSol_S_HE.monen.indd
Safety advice
Please pay attention to the following safety advice in order to avoid danger and
damage to people and property.
Instructions
Attention must be paid to the valid local standards, regulations and directives!
Information about the product
Proper usage
The pump station may only be used in the solar circuit of solar thermal systems in
compliance with the technical data specied in these instructions. Due to its design
the station must be mounted and operated as described in these instructions!
CE-Declaration of conformity
The product complies with the relevant directives and is therefore
labelled with the CE mark. The Declaration of Conformity is available
upon request, please contact RESOL.
Target group
These instructions are exclusively addressed to authorised skilled personnel.
Only qualied electricians should carry out electrical works.
Initial installation must be effected by qualied personnel named by the manufac-
turer. Contents
1 Overview .............................................................................................. 3
2 Mounting the station........................................................................... 4
3 Flushingandllingthesolarsystem.................................................. 4
4 Ball valve positions .............................................................................. 5
5 Draining the system............................................................................ 5
6 Non-return valve ................................................................................. 5
7 Flowmeter............................................................................................ 6
8 Maintenance......................................................................................... 6
9 Safety devices....................................................................................... 6
10 Accessories .......................................................................................... 7
11 Information about the pump ............................................................. 7
Description of symbols
WARNING! Warnings are indicated with a warning triangle!
ÎThey contain information on how to avoid the danger
described.
Signal words describe the danger that may occur, when it is not avoided.
• WARNING means that injury, possibly life-threatening injury, can occur.
• ATTENTION means that damage to the appliance can occur.
Note
Notes are indicated with an information symbol.
ÎArrows indicate instruction steps that should be carried out.
Disposal
• Dispose of the packaging in an environmentally sound manner.
• Dispose of old appliances in an environmentally sound manner. Upon request we
will take back your old appliances bought from us and guarantee an environmen-
tally sound disposal of the devices.

en
3
Wilo Yonos Para ST 15/7 min.
0
1
2
3
4
5
6
7
8
0510 15 20 25 30 35 40 45
0,0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
Wilo Yonos Para ST 15/7 max.
Delivery height (m)
Flow rate (l/min)
Pressure loss (bar)
FlowSol®S
Wilo ST 15/6 ECO max.
W
ilo ST 15/7 ECO max.
0
1
2
3
4
5
6
7
8
0 5 10 15 20 25 30 35 40 45
0,0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
Delivery height (m)
Flow rate (l/min)
Pressure loss (bar)
FlowSol®S
Pump characteristics / pressure loss characteristics
FlowSol®S standard pumps
FlowSol®S HE high-efciency pumps
1 Overview
• Pre-assembled pump station
• Integrated controller from the DeltaSol®BS or DeltaSol®CS
series
• Safety assembly with connection for the diaphragm-type expansion
vessel, safety valve and pressure gauge
• Fill and drain valves
• Wall mounting bracket and mounting material
• Standardorhigh-efciencypump
Technical data
Circulating pump:
FlowSol®S: Wilo ST 15/6 ECO or 15/7 ECO
FlowSol®S HE: Wilo Yonos PARA ST 15/7.0-PWM2
(ErP power consumption of the pump*: 23 W)
Safety valve: 6 bar
Pressure gauge: 0 … 10 bar
Flowmeter: 1 … 13 l/min
Non-return valves:
Opening pressure 40 mbar, openable
Connection to diaphragm-type expansion vessel: ¾'' ET, at sealing
Outlet safety valve: ¾'' IT
Connections to the solar pipes: ¾'' IT
Maximum temperature: 95 °C
Maximum pressure: 6 bar
Medium: Water with max. 50 % glycol
Dimensions: approx. 430 × 223 × 193 mm (with insulation)
Distance centres: 100 mm
Distance centre / wall: 67 mm
Material: Fittings: brass
Seals:AFM 34
Insulation: EPP foam
*50 % of the rated power consumption
Note
This pump station can be used with the heat transfer uids Tyfocor L, L
eco and LS.

en
4
2 Mounting the station
1
210
5
7
6
4
8 3
9
1 Wall mounting bracket
2 Back half of the insulation
3 Drain valve
4 Ball valve with integrated non-return valve
5 Fill valve
6 Pump
7 Pressure gauge
8 Flowmeter
9 Front half of the insulation
10 Safety valve 6 bar
ÎDetermine the mounting site of the station.
ÎMark the drill holes by means of the template enclosed, then drill and insert
wall plugs (see gure to the right).
ÎTake the station out of the packaging.
ÎRemove the front half of the insulation. Leave the pump station attached to the
back half of the insulation!
ÎFasten the pump station to the wall with the enclosed screws. For this pur-
pose, use a crosshead screw driver.
ÎConnect the pipework between pump station and store and collector re-
spectively.
Note
All connections are already tightened such that they usually do not have
to be tightened again. However, during commissioning of the system all
connections have to be checked for leaks (pressure test).
3 Flushingandllingthesolarsystem
WARNING! Scald danger!
Pressure surge damage!
If the medium enters strongly heated, empty collectors, pressure
surges caused by evaporation can occur.
ÎIn order to prevent the solar uid from vaporising
inside the collectors, do not ll or ush the system
during times of strong irradiation!
5
4
3
Beforeushingthesystem
ÎDisconnect the expansion vessel from the solar thermal system.
2.
ÎConnect the pressure hose of the lling and ushing station to the ll valve
(5) of the pump station.

en
5
ÎConnect the ushing hose of the lling and ushing station to the drain valve
(3) of the pump station.
ÎClose the ball valve of the pump station (4).
ÎOpen the ll valve (5) and the drain valve (3).
ÎSwitch on the lling pump of the lling and ushing station.
ÎFlush the solar thermal system for at least 15 minutes by means of the lling
and ushing station until the discharged solar uid is free of gas bubbles and
dirt particles.
ÎDuring ushing, bleed the solar thermal system several times until the dis-
charged solar uid (e. g. Tyfocor®, see chap. 10) is free of air bubbles.
ÎOpen the ball valve (4) of the pump station.
Afterushingthesystem
ÎConnect the expansion vessel to the solar thermal system
ÎClose the drain valve (3) of the pump station while the lling pump is running.
BAR
ÎIncrease system pressure (approx. 3.5-4 bar). The system pressure can be read
from the pressure gauge.
ÎClose the ll valve (5).
ÎSwitch off the lling pump.
ÎCheck the pressure gauge to see whether the system pressure reduces and
eliminate leaks where necessary.
ÎSlowly discharge the heat transfer uid by means of the drain valve (3) until
the operating pressure is set.
ÎRemove the hoses of the lling and ushing station and screw the caps onto
the ll and drain valves.Manually start the solar thermal pump at maximum
speed (see controller manual) and let the uid circulate for at least 15 minutes.
ÎBleed the solar thermal system several times.
ÎCheck the system pressure at the pressure gauge.
11.
%
ÎCheck the antifreeze ratio (not required if a ready -mix is used).
4 Ball valve positions
Ball valve closed, no uid ow
Ball valve open, uid ow in both directions possible
Ball valve in operating position, uid ow in ow direction only
5 Draining the system
ÎOpen the ball valve (4).
ÎOpen the air vent at the highest point of the system (above the collectors).
ÎOpen the drain valve.
6 Non-return valve
ÎThe non-return valve of the pump station is integrated into the ball valve
above the circulating pump. It has an opening pressure of 20 mbar.
ÎIn order to completely drain the system, the non-return valve has to be
opened. For this purpose, turn the handle of the ball valve by 45°.
ÎFor normal system operation, open the ball valve completely.
ÎIn order to avoid in-pipe-circulation, the ow line has to be equipped with a
thermosiphon or an additional non-return valve.

en
6
7 Flowmeter
The owmeter measures and indicates the ow rate with a range of 1-13 l/min.
For the device to function faultlessly, the system must be ushed and free of grit.
Read the ow rate from the upper edge of the oat.
8 Maintenance
In the case of maintenance (such as a replacement of the pump) proceed as follows:
ÎClose the ball valve (4).
ÎTurn the slot of the owmeter spindle by 90° anti-clockwise (see gure below).
The heat transfer uid can now be drained from the pump.
ÎOpen the drain valve (3).
If necessary, open the union nut at the pressure side.
ÎNow dismount the pump.
9 Safety devices
The pump station is equipped with a diaphragm safety valve which corresponds to
the relevant directives and regulations. For installation and operation, please pay
attention to the following advice:
• The safety valve has to be easily accessible. The efciency of the valve must not
be inuenced or disabled by barriers!
• The strainer or other restriction devices must not be mounted between collec-
tor (-eld) and safety valve!
• The diameter of the discharge pipe must correspond to the diameter of the
valve outlet; the maximum length must not exceed 2 m; more than 2 bends are
inadmissible. When these values are exceeded, you have to install a discharge
pipe with larger dimensions. Do not use more than 3 bends and pipes longer
than 4 m!
• If the discharge pipe leads into a drain pipe with a funnel, the diameter of the
drain pipe has to be at least twice as large as the valve inlet. The opening of
the discharge pipe must be inclined downwards. It must be routed such that
the opening can be seen but does not present any risk to a person standing or
passing by.
• We recommend placing a container below the discharge pipe. If the safety valve
opens, the uid will be collected and can be relled into the system when the
pressure is too low.

en
7

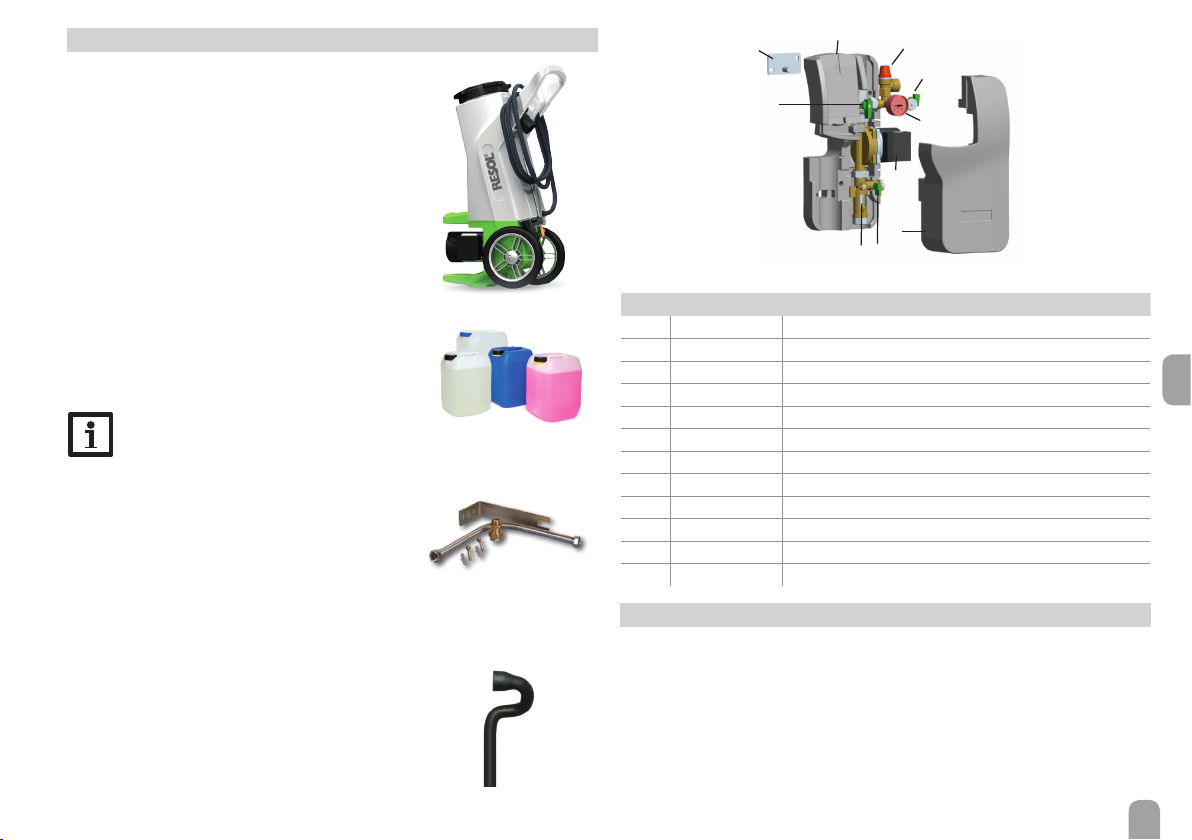

10 Accessories
SBS2000llingandushingstation
The SBS 2000 has been especially designed for pro-
fessionally lling and ushing solar thermal and heat-
ing systems. Its many thought-out details facilitate
transport, operation and cleaning, the attractive design
makes it the ideal companion for a professional per-
formance.
Heattransferuids
In our product portfolio, you will nd a range of heat
transfer uids for different applications, available as
readymix or concentrate.
Note
This pump station can be used with the heat transfer uids Tyfocor L, L
eco and LS.
Wall mounting for diaphragm-type expansion
vessel
Wall mounting for diaphragm-type expansion vessel
with screws and wall plugs, high grade steel corrugated
tube and connection thread ¾". Including quick release
valve coupling enabling removal of expansion without
draining down of the system.
ALS15 discharge hose
1.5 m hose for connection to the safety valve of the
FlowSol®S / S HE pump station.
See our full range of accessories on our website:
www.resol.com
4
1
2
11 4
3
7-9
10
6
5
12
Lists of spare parts
Pos. Art. no. Article
1 11200052 Wall mounting bracket
2 70001512 Back half of the insulation
3 70001511 Front half of the insulation
4 11200067 Drain valve
5 11200060 Ball valve with integrated non-return valve
6 11200058 Fill valve
7 28000610 Pump WILO ST 15/6
8 or 28000620 Pump WILO ST 15/7
9 or 11204195 Pump WILO Yonos Para ST 15/7 (HE Pump)
10 11200039 Pressure gauge (10 bar)
11 28000490 Flowmeter
12 11200054 Safety valve 6 bar
11 Information about the pump
Depending on the version, the station is equipped with different pumps. Data con-
cerning the pump in your station are available at the pump manufacturer under
www.wilointec.com.
Upon request we will provide you with further information.

Distributed by: RESOL - Elektronische Regelungen GmbH
Heiskampstraße 10
45527 Hattingen / Germany
Tel.: [phone] / 96 48 - 0
Fax: [phone] / 96 48 - 755
www.resol.com
[email protected]
Important note
The texts and drawings in this manual are correct to the best of our knowledge.As
faults can never be excluded, please note:
Your own calculations and plans, under consideration of the current standards and
directions should only be basis for your projects.We do not offer a guarantee for
the completeness of the drawings and texts of this manual - they only represent
some examples.They can only be used at your own risk. No liability is assumed for
incorrect, incomplete or false information and/ or the resulting damages.
Note
The design and the specications can be changed without notice.
The illustrations may differ from the original product.
Imprint
This mounting- and operation manual including all parts is copyrighted. Another
use outside the copyright requires the approval of RESOL – Elektronische Rege-
lungen GmbH. This especially applies for copies, translations, micro lms and the
storage into electronic systems.
© RESOL – Elektronische Regelungen GmbH
