Restwell Swivel Massage Chair Quick reference guide

Please read these instructions carefully before assembling or operating this
product. Ensure you are familiar with all of the safety and operating instructions.
Drive DeVilbiss Healthcare Ltd
Heathfield Lane, Birkenshaw, BD11 2HW
Web: www.restwell.co.uk
Swivel Massage Chair
Assembly & Operating Instructions
‘Restwell’ is part of the Drive DeVilbiss Group

Contents
Technical Specification
Important Safety Information
Parts
Hardware
Assembly
1 2
1
2
3
4
5
Massage Chair Functions
Care and Maintenance
Troubleshooting
Fair Wear and Tear Policy
Warranty
13
14
15
15
16
Please read all of these instructions fully before assembly or operation.
• Unpack and check that you have all of the parts and attachments shown.
• To avoid risk of suffocation to children or animals, dispose of the plastic bags correctly.
• Remove all packing materials and dispose of correctly.
• A ssembly is best carried out by 2 people.
• For indoor household use only.
• Ensure that only Drive parts are used on the armchair. Periodically visually inspect the
handset and power cord for signs of wear, chafing or cracks.
• When reclining the armchair, ensure that you will not collide with anybody behind you.
Please ensure that no children or pets are underneath the armchair before operating
the recline mechanism.
• Carelessness Causes Fire. Caution should be taken to avoid fire. Please ensure that
all cigarettes and matches are properly extinguished. Please be careful of other fire
hazards such electric and gas fires, etc nearby.
• The weight limit on the armchair is 21 stone (136 kg). Please ensure that only one
person uses the massage chair at any one time.
• Do not use the massage chair in dusty, humid or damp environments as this could
affect the electrical and mechanical parts of the armchair. The armchair may also be
sensitive to temperature changes. If possible, try to gradually change the environment
temperature. If this is not possible, do not use the armchair for the first hour after the
temperature change.
• Be careful with the cables on the massage chair. When plugging/unplugging parts,
always grip the connectors (not the cables). Ensure that cables are free, not taut or
wound around, and that there is no risk of cables being caught, snagged or chafed.
• Keep your body relaxed during the massage. If you require a more gentle massage
place a blanket or towel on the chair behind you.
• Please consult your doctor before using the massage chair if you are convalescing,
pregnant or have any of the following conditions:
Malignant tumour(s)
Heart disease
High fever
• If you suffer from any abnormal and/or serious pains when using the massage chair,
switch off the massage function and consult your doctor.
• If any of the following occur, switch off the massage chair and remove the power
supply from the mains:
The massage chair does not work or has got wet.
The fabric of the massage chair is damaged and parts are exposed.
Keep these instruction for future reference.
Important Safety Information
The Restwell range of massage armchairs are designed to be comfortable and stylish
whilst offering excellent value for money.
The armchairs come in a variety of fabrics and styles to suit most decors, and are made
to the highest quality and are CE marked.
The weight limit for this armchair is 21 stone (136kg).
Restwell is a brand of Drive DeVilbiss. Drive DeVilbiss is an ISO 9001 certified company.
For more details about our products please see your local dealer.
Introduction

1
18mm M6 Bolt x 2
2
25mm M6 Bolt x 2
3
M6 Lock nut x 2
4
35mm M8 Bolt x 10
6
Nut x 10
7
Adjuster knob x 2
8
M8 Washer x 2
9
Spacer x 2
10
16mm M6 Bolt x 8
11
35mm M6 Bolt x 4
12
55mm M8 Bolt x 2
13
70mm M6 Bolt x 4
14
Foot x 6
15
Bracket x 2
16
4, 5 & 6mm Allen keys
17
Spanner
5
M8 Washer x 12
Parts
3 4
A
B
C
D
E
F
G
H
I
J
K
L
M
Hardware
Tools Required:
Medium Phillips screwdriver
Backrest Chair legs Stool seat
Chair seat Chair base Stool legs
Inner armrests Bearing support Stool base
Armrests Handset holder Handset
Mains adaptor

65
Chair Assembly
With help turn the legs (E) over and position the chair base (F) onto the legs.
Line up the holes and bolt each leg to the base using 3 x 35mm bolts ( 4) and
washers (5). Tighten using the supplied allen key.
Push 3 x nuts (6) into each chair leg (E) as far as they will go.
Screw a 18mm bolt (1) into the hole on the inside of each leg (do not fully insert).
Step 1
Line up a bearing support (G) with a hole in the chair base (F) and push in, enough for
it to lock. Work your way around until all of the bearing supports are in position. Finally
work your way around again pushing all bearing supports are completely home.
Turn the backrest (A) and seat (B) onto their sides. Position the pivot plates on the base
of the backrest in-between the 2 pivots on the seat. Bolt together using the 2 x 25mm
bolts (2) and lock nuts (3). Loosely tighten using the supplied spanner and allen key.
Do not over tighten as the backrest MUST be able to pivot.
Line up the 2 white connectors from the backrest and seat and push together.
Step 2
Step 4
Step 3
Chair Assembly
1
E
E
6
1
6
F
E
E
F
E
4
5
4
5
4
5
A
B
AB
2
3
G
F
G
F

87

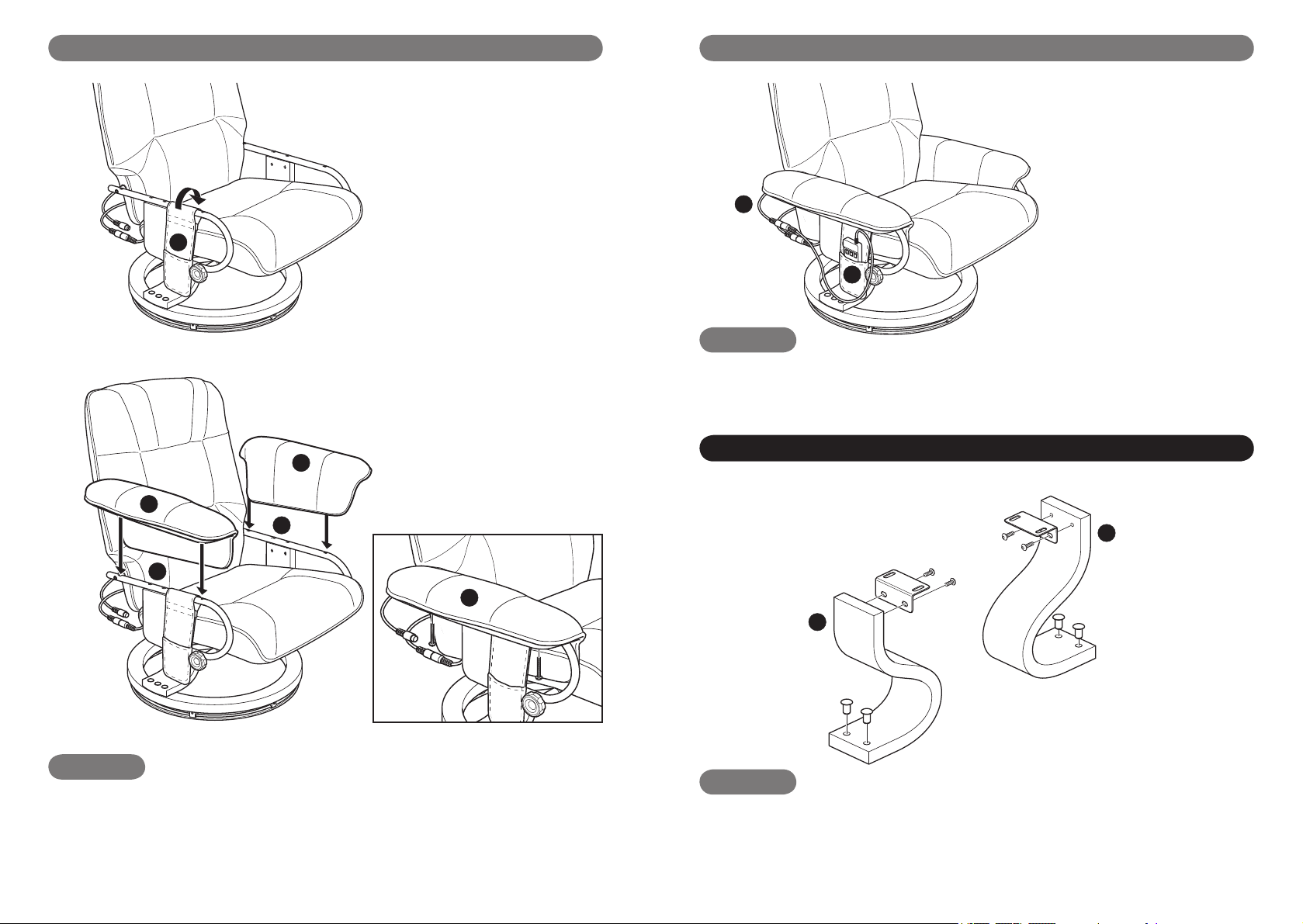

Slide the spacer (9) over the pin on the underside of the seat (B), make sure that the slot
fits over the bar, slide on the washer (8). Fit the inner armrest (C), bottom of the tube over
the pin and the top of the tube onto the backrest. Tighten the small phillips head screw
on the underside of the inner armrest (*). Screw the top end of the inner armrest (C) to
the backrest (A) using 1 x 55mm bolt (12), do not fully tighten at this time.
Screw fit the adjuster knob ( 7), through washer (5) and the inner armrest.
Turn the seat over and repeat with the other side.
Step 5 a: With help, slide the seat assembly into position on the base unit. The two pins on the
end of each inner armrest (C) slide into the holes on the front of the legs (E).
b: Position the inner armrests (C) on top of the legs (E), secure each inner armrest in
position using 2 x 70mm Phillips bolts ( 13).
Note: It may be necessary to adjust the ‘slot head screws (*)’ on the inside of the legs (E)
to get the 70mm bolts ( 13) to fit, the slots should be vertical and line up with the screws.
Finally, tighten the 55mm bolts (12) onto the backrest and the 18mm bolts ( 1) on the
inside of the legs (see step 1).
Step 6
a:
b:
Chair AssemblyChair Assembly
B
12
A
C
C
B
E
C
E
C
7
5
8
9
*12
1
13
*
