Retevis RB19 User manual

Model: RB19
US
Two Way radio

WARNINGS
Product safety and RF Exposure for two way radio:
Before using this two way radio, please read
the manual which contains important operating
instructions for safe usage, RF Energy Awa-
reness, control information and operational
instructions for compliance with RF Energy
Exposure limits in applicable national and
international standards, and also read the
operational instructions for safe use.
1

Features
UHF(462.5500-467.7125MHz) Super Receiving
Screen Display
Scanning
Monitoring
VOX
TOT
Keyboard Lockout
Power Display
Busy Channel Lockout
Power Saving Mode
Low Battery Warning
Voice Companding/Scrambling Function
Programming Encryption Function
Special Signaling 50 CTCSS/208 DCS
2

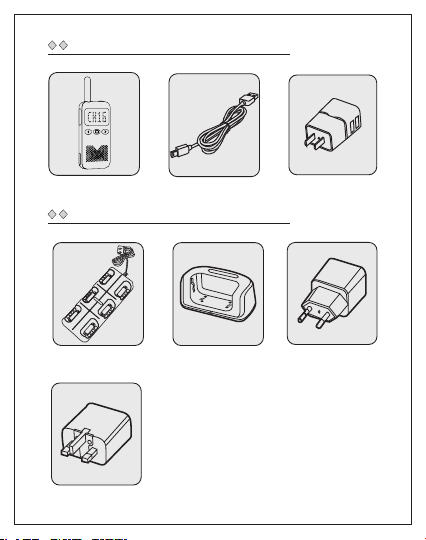

Standard Accessories
Radio Body USB Cable
Optional Accessories
Six-port Charger Desktop Charger
Adapter
EU Adapter
UK Adapter
3

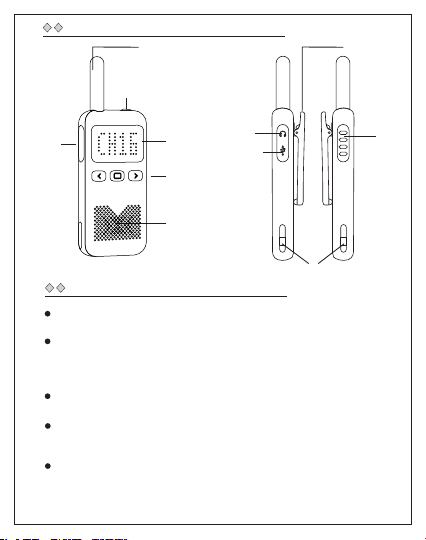

Function Operations
Antenna
Display
Screen
PTT
Speaker
Function
Keys
Power Key
Belt Clip
PTT
MIC/Speaker
port
USB Charging
Port
Desktop Charger Connector
Charging the Battery Pack
1.The battery is not charged in the factory,please charge the battery
under the environmental temperature 5—40℃ before using.
2.After purchasing or long-term storage(more than two months),
charging the battery for the first time can not reach its saturation
capacity,repeat charge/discharge for twice or three times to make
battery capacity achieve the best state.
3.Before charging,please power off the transceiver,using the
transceiver during charging may affect correct charging.
4.If the battery has been charged fully,please do not charge it again,
otherwise the service life of the battery may be shorten or may be
damaged.
5.If the service time is significantly reduced even after completely
correct charging,the battery can not be used any more,please
replace a new battery.
4

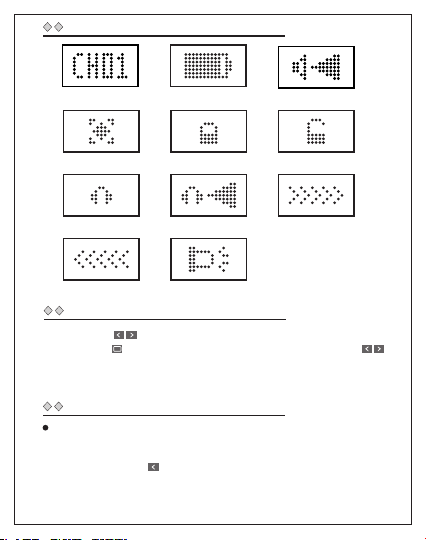

Icons
high power channel volume
scanning channel lockout unlocking
earphone earphone volume transmitting
receiving alarm
battery level
1.Short press keys to adjust the volume.
2.Short press key to switch to channel mode,then short press
keys to adjust the channels.
3.PTT: press this button whenever you wish to talk with the user of the
other radio.
Menu Opeartion
It is convenient for the user to search for calls from other channels.
When “Side Key 2” in the software is programmed to the scanning
function,long press key for two seconds to enter into the scanning
mode,the transceiver will start to scan with the current channel;
Operate it again to exit.
Functions Operation
Scanning:
5

Keyboard Lockout
Long press key to lock all buttons,operate it again to unlock.
Power Display
Short press power key to display the current battery level.
Monitoring
Long press key for two seconds to enter into the monitor mode,
release it to exit.
VOX
This function can be voice activated so the user doesn’t have to press
the PTT key.
When “VOX level” in the software is selected,short press key twice
to enter into the VOX mode,then short press key or key to turn
on/off the VOX.
Time Out Timer(TOT)
The purpose of the TOT is to prevent any single person from using a
channel for an extended period of time.An alarm will sound if the
transmission continues beyond the set time.The transceiver will stop
transmission if this occurs.To stop the alarm,release the PTT key and
the transceiver will return to standby.
Busy Channel Lockout
The function can prevent interference from other transceivers using
the same channel.
Battery Power Saving
If there is no signal or operation,the radio will reduce its power
consumption.The battery power-saving function activates when the
channel is unoccupied or has not been in operation.
Low Battery Warning
If the battery power falls to the predetermined value during
transmission,the transceiver will give out a voice prompt,please
charge in time.
Scrambling
It is a voice encryption mode which is different from sub audio.
.
Companding
It is a function setting which prevents the inter-channel interference.
6

CTCSS/DCS
The transceiver has 50 CTCSS and 208 DCS,also non-standard
subaudio can be programmed!
CDCSS Mode
It is valid only when you program the CDCSS on the channels.This
function has two selections: "normal signaling" and "special signaling".
Normal Signaling refers to the CDCSS codes on the channels is
ordinary codes,we can talk to each other with the same CDCSS;
Special Signaling refers to the CDCSS codes on the channels is
special processed codes.When the transceivers in one company are
programmed the same frequency with the same CDCSS and special
signaling,they can avoid the signal interferences from the other
companies’ transceivers.
UHF&VHF
Channel TX RX Power Subaudio
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
High
High
High
High
High
High
High
17
18
19
20
21
22
High
High
High
High
High
High
High
High
Low
Low
Low
Low
Low
Low
Low
462.5625 462.5625
462.5875
462.5875
462.6125
462.6125
462.6375462.6375
462.6625
462.6625
462.6875
462.6875
462.7125
462.7125
467.5625
467.5625
467.5875
467.5875
467.6125
467.6125
467.6375467.6375
467.6625
467.6625
467.6875
467.6875
467.7125
467.7125
462.5500
462.5500
462.7250462.7250
462.7000
462.7000
462.6750 462.6750
462.6500
462.6500
462.6250
462.6250
462.6000
462.6000
462.5750
462.5750
67.0
118.8
127.3
131.8
136.5
141.3
146.2
D243N
D116N
D065N
D053N
D051N
D047N
D032N
136.5
D731I
D606N
D243I
127.3
D332I
D743I
123.0
7

462.5500-467.7125MHz
DC3.7V
22
Internal Antenna
Co/Differ-frequency Simplex
Communication
Cathode
≤2W
FM(F3E)
≤5KHz
≤7.5μW
Per Octave 6dB
≤1000mA
＜0.16μV(12dB SINAD)
≥300mW
＜ 5%
≥60dB
≤300mA
≤20mA
Technical Parameters
SPECIFICATIONS
TRANSMITTER
RECEIVER
▲We May Change The Specifications For Technical
Improvement Without Prior Notice.
working temperature range
Ground Method
Frequency Range
Supply Power
Memory Channel
Antenna Configuration
Work Mode
-30°~+60°
Output Power
Modulation Mode
Max.Frequency Deviation
Sparious Radiation
Preemphasis Character
Emission Current
Sensitivity
Audio Power
Audio Distortion
Itermodulation
Interference Resistance
Receiving Current
Standby Current
8

RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR
PORTABLE TWO-WAY RADIOS
Local Government Regulations
Before using this radio, read this guide which
contains important operating instructions for safe
usage and rf energy awareness and control for
compliance with applicable standards and
regulations.
This two-way radio uses electromagnetic energy in the radio
frequency (RF) spectrum to provide communications between
two or more users over a distance. RF energy, which when used
improperly, can cause biological damage.
All Retevis two-way radios are designed, manufactured, and
tested to ensure they meet government-established RF exposure
levels. In addition, manufacturers also recommend specific
operating instructions to users of two-way radios. These
instructions are important because they inform users about RF
energy exposure and provide simple procedures on how to
control it.
Please refer to the following websites for more information on
what RF energy exposure is and how to control your exposure to
assure compliance with established RF exposure limits:http://ww-
w.who.int/en/
When two-way radios are used as a consequence of employment,
the Local Government Regulations requires users to be fully
aware of and able to control their exposure to meet occupational
ATTENTION!
9
