Revelo LIFT User manual

Owner’s Manual
visit www.revelo.ca/pages/manuals
for the latest updates
Designed in Canada
LIFT_Manual_0321_cs6.indd 1 2021-03-07 6:50 PM

Safety - Read This First!
1. Always make sure the stem, handlebar, seat
and wheels are fully tightened by making
sure the quick release levers are firmly
closed.
2. Make sure the quick release lever for the
folding hinge is securely closed. Refer to
the section on Folding.
3. Do not attach a front bicycle basket to the
handlebars or dangle any bags/objects
from the handlebar/stem system unless
they are designed to specifically work with
your LIFT.
4. Do not ride on surfaces where the wheels
or pedals could get caught (e.g. on train/
tram tracks, or potholes) and do not ride
directly into bumps or curbs.
5. Do not attempt any stunt riding (eg. jumps,
sharp turns, wheelies).
6. When adjusting the height of your saddle,
if the“Minimum Insertion”marking is
visible on the vertical post then insert the
post deeper into the frame.
7. Wear a regionally certified, properly fitted
bicycle helmet.
8. The total weight of the rider and backpack
must not exceed 100 kgs (220 lbs).
9. If your model came equipped with
handlebar ends, check that the grips are
tightly secured to the handlebar.
10. Tires should not be inflated past the
recommended pressure that is marked on
the sidewall.
11. For night riding, inspect that your bike
reflectors are not missing or damaged.
Always have your front and rear lights on
and wear reflective gear.
12. Obey all local and national traffic, helmet
laws and never ride while under the
influence of drugs or alcohol.
13. Before your first ride, practise riding in
a safe open area with a smooth surface
that is away from other pedestrians and
vehicles (eg. a vacant parking lot).
LIFT has a stem system that is different from other bicycles.
It is important that you read the “Setting Up The Stem” section!
Improper installation of the stem could result in
handlebar twisting while riding, loss of control, injury or death.
! !
LIFT_Manual_0321_cs6.indd 2 2021-03-07 6:50 PM

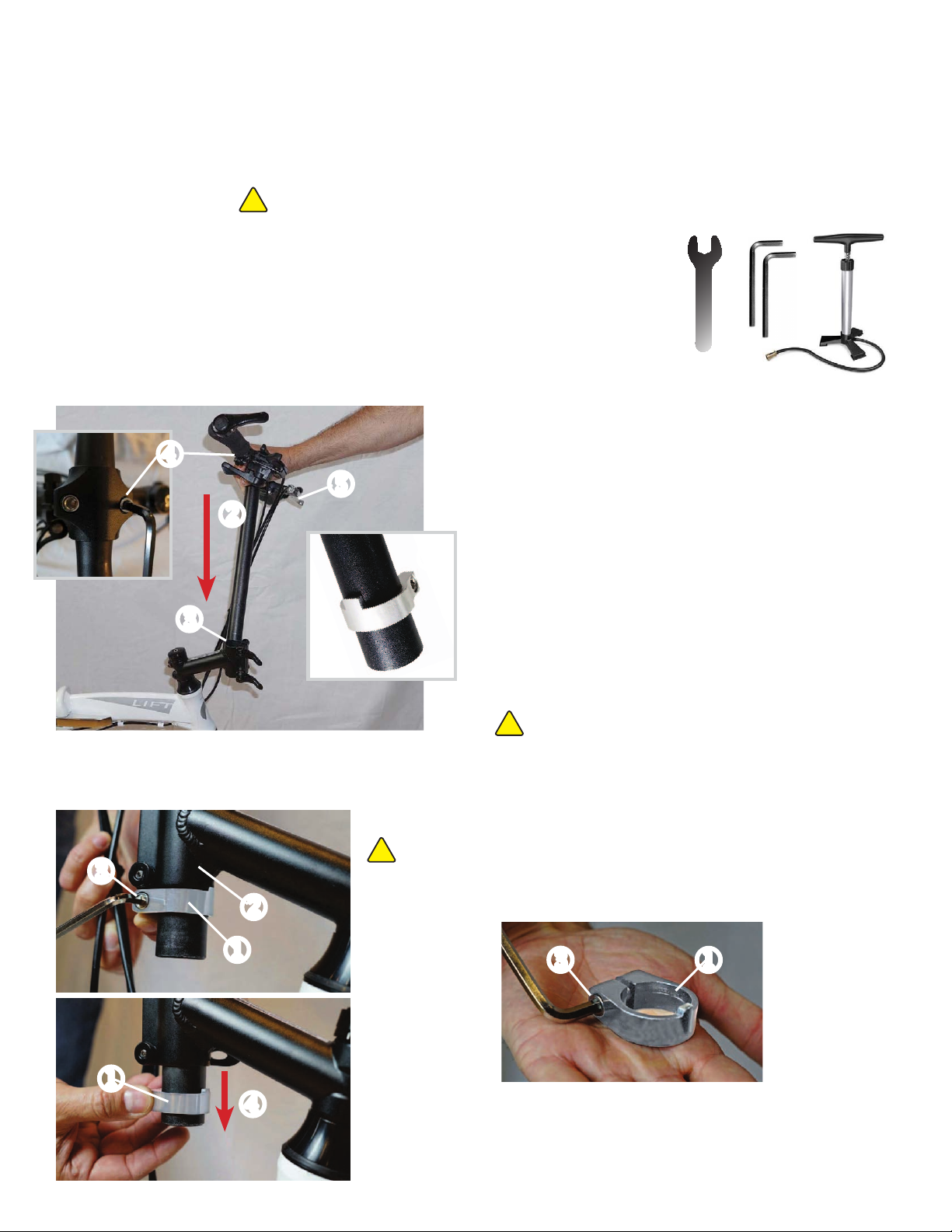

Assembly
This guide provides the basic information to get you going quickly before you ride.
If you are unsure of any aspect of LIFT, please bring your LIFT to a professional bicycle mechanic for final assembly.
Visit www.revelo.ca for additional information.
Tools You Need
Step 1: Attach Handlebar
If the handlebar is already attached,go to Step 2:
Setting Up The Stem.
If necessary, temporarily remove the stem collar j
from the handlebar post by loosening the pinch bolt
with an allen key.
Insert vertical handlebar post kdown into the
stem l. Loosen the handlebar post clamp m
to center the handlebar and rotate the handlebar
so the brake levers nare facing towards the front
of the bike.Tighten the handlebar clamp monce
the handlebar is properly positioned.
!Ensure cables are not twisted or pinched.
Step 2: Setting Up The Stem
!
The Stem Collar jallows for quick centering of the
handlebar and resists twisting by locking into the stem k.
Carefully follow all instructions to avoid handlebar twisting
during riding and potential injury.
2a: Remove Stem Collar
Using an allen key, loosen the pinch bolt lon the stem collar and
temporarily remove the collar jfrom the handlebar post m.
w
Some illustrations may not be exactly as shown.
!
v
y
u
v
w
u
u
x
NOTE: The stem
collar for 2021
and newer is silver.
Some illustrations
may show a black
stem collar but the
install is identical.
u
w
x
(1) Pedal wrench (models equipped with folding pedals require a 15mm wrench.
(2) 4mm allen key to adjust the stem collar. (3) 5mm allen key to adjust the
handlebar clamp and magnet plate. (4) Pump to inflate tires.
LIFT_Manual_0321_cs6.indd 3 2021-03-07 6:50 PM

Step 2: Setting Up The Stem (continued...)
2b: Set Handlebar Position for Riding
Open quick release levers n. Slide the handlebar to the
desired riding height and turn it until it is perpendicular to
the front wheel. Firmly close both quick release levers n.
If necessary, rotate the adjustment knob oclockwise to
increase clamping strength and counter-clockwise to loosen.
!Before every ride ensure the stem collar is fully mated and quick releases are firmly closed so
that the handlebar can not twist !
3
Test clamping pressure by placing the front wheel between your feet and
attempt to twist the handlebar. If handlebar twists, more clamping pressure is
required. (Use the adjustment knob to increase clamping pressure).
3Optimal clamping pressure typically leaves a small impression on the palm of
your hand or thumb.
2c: Identify Stem Collar Tooth & Notch
The stem collar tooth pis designed to mate into
a notch qin the stem (ensure there is no gap).
2d: Install Stem Collar
Slide the stem collar jback onto the handlebar post m
with the notched tooth pfacing towards the bike.
3
The handlebar can always be lowered for thin profile walking or folding as needed (refer to the
Folding and Carrying & Rolling sections). For instant height adjustment before riding, slide the
handlebar up until the stem collar locks into the stem.Then, firmly close both levers.
2e: Bolt Stem Collar
Mate the stem collar tooth pinto the stem notch q
(do not leave gap). Tighten pinch bolt l with allen key.
2f: Close Levers Before Riding
Ensure that both quick release levers nare firmly
closed prior to riding.
y
z
{|
u
x
{
{
|
w
y
LIFT_Manual_0321_cs6.indd 4 2021-03-07 6:50 PM

Step 4: Attach Seat
Open seat post lever jand insert seat post kinto frame l.
Tighten seat post clamp so that the lever is folded over and
closed.
If necessary, rotate the adjustment knob mclockwise to
increase clamping strength and counter-clockwise to loosen.
!Ensure seat post is inserted so that the minimum insertion
line is not visible above the clamp.
Step 3: Attach Pedals
Left Pedal: Insert pedal axle into crank arm threads and turn
axle counter-clockwise. Start by using fingers first then tighten
with a 15mm wrench.
Right Pedal: Insert pedal by turning axle clockwise.
!Pedals tighten opposite to each other. Left (L) pedal tightens
counter-clockwise.Right (R) pedal tightens clockwise.
(For models with Detachable Pedals, skip this section and refer
to the user manual included with the pedals for installation).
Push pedal inwards towards frame to release locking pegs j,
then rotate to fold k. Reverse procedure to unfold pedals.
Folding Pedal installation requires a 15mm wrench.
Using Your LIFT
Bike Fit
LIFT is incredibly
lightweight and built
for spontaneous living.
Go everywhere you
desire at any given
moment.
The LIFT’s design
allows for a fully
adjustable bike rider fit
from 147-186cm
(4’10”-6’2”) & up to
100 kgs (220lbs).
Revelo’s patented
THINstem rotating
handlebar system
provides instant rider
height adjustment and
a thin walking profile.
v
u
v
w
u
x
Step 5: Tighten Magnet Plate
Using a 5mm allen key, tighten the magnet plate so that the plate is perpendicular
to the ground. Test and adjust if needed by folding the bike following the“Z-fold”
instructions in the next section. The whole magnet should contact the plate for
maximum holding strength when the bike is folded and rolled.
LIFT_Manual_0321_cs6.indd 5 2021-03-07 6:51 PM

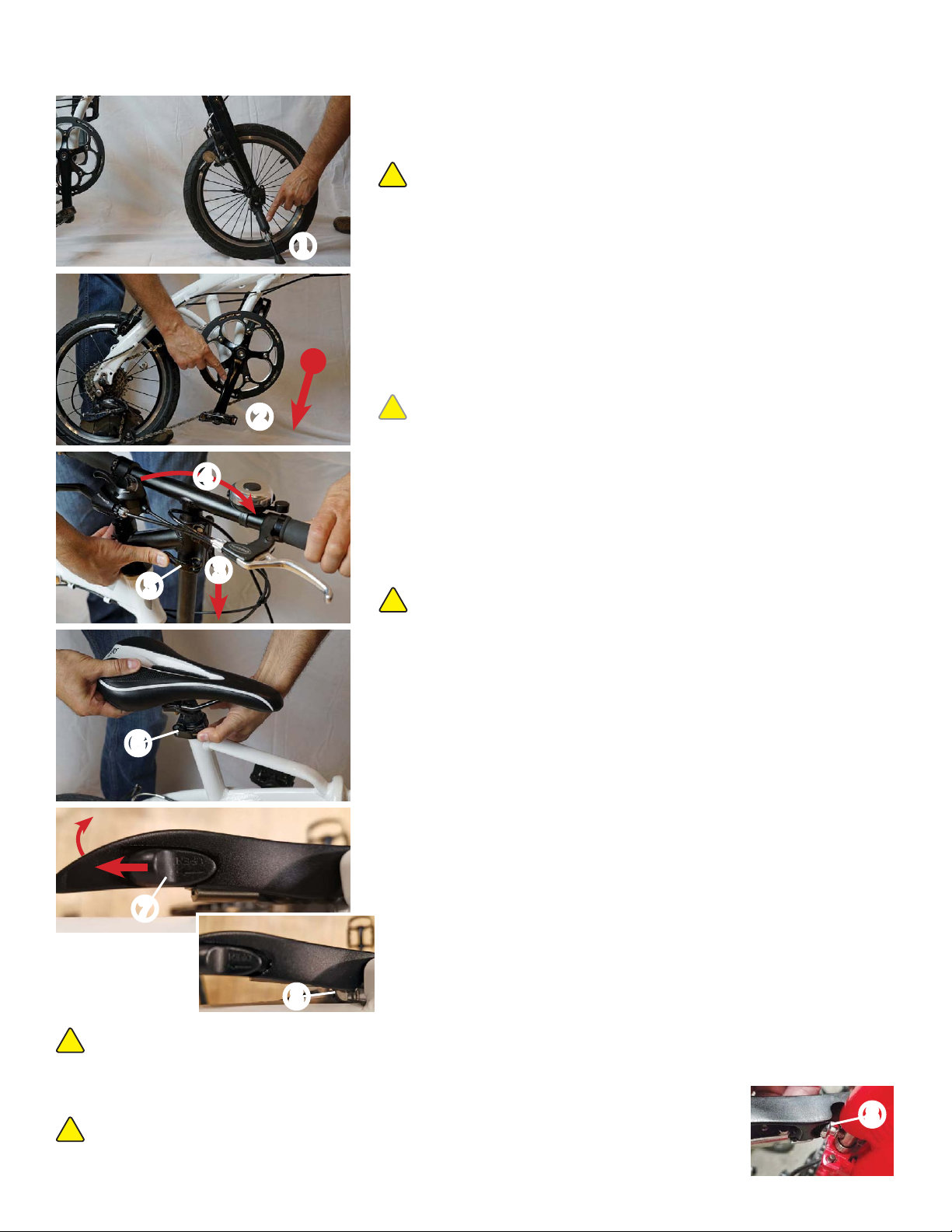

Folding
!During the “break-in” period, the frame hinge may exhibit
some stiffness.This will improve quickly with regular use.
LIFT is one of the fastest folding, easiest rolling and most
portable performance folding bikes on the market!
1: Open Fork Mounted Kickstand
Open the fork mounted kickstand jto the folding position.
2: Adjust Right Pedal Position
Set your right pedal kto the 7 o’clock position.This prevents
pedals from tangling with brake cables during folding.
3: Lower & Rotate Handlebar
Release both stem quick release levers then drop the
handlebar down ltowards the front tire. Pivot the handlebar
90° clockwise mthen lock into place with levers n.
4: Lower Seat
Lower the seat as much as possible.
Tighten seat post clamp o.
5: Unlock & Open Frame Lever
The frame is locked in place with a hinge clamp and lever.
To unlock, first position yourself to the left side of the bike.
Place your right palm over the lever then press the lever against
the frame while sliding the button pat the top of the lever
towards the front of the bike; simultaneously grab the lever
from below and pull the lever out away from the bike.
3Folding the pedals (or removing them if equipped with
detachable pedals) helps with the folding procedure.
!
The hinge clamp is factory set for optimal clamping. Over time, if opening/closing
the lever becomes difficult or loose, adjust the ball head screw qbehind the lever.
Rotating the screw clockwise will create a looser hinge and counter-clockwise to
tighten the hinge. Optimal clamping is one that provides a moderate“snap”.
When securely relocking the hinge, ensure that the ball head screw qbehind the lever is not visible.
!Do not pinch or over-twist cabling.
u
v
w
x
y
z
{
|
Locked
!
|
Un-Locked
LIFT_Manual_0321_cs6.indd 6 2021-03-07 6:51 PM

Folding (continued...)
Carrying & Rolling LIFT keeps you moving even after the ride:
Use the built-in
frame handle for
easy, convenient
transport.
9: Close Frame Lever
Flip the frame lever finwards for a compact,
tidy look.
8: Fold the Frame
With the frame lever open and handlebar locked in a 90° position:
Using your left hand, grab the handlebar r.
Using your right hand, grab the built-in frame handle sand lift the rear.
Pivot the frame in a “Z” fashion sto draw the rear wheel towards the front wheel until the magnets lock d.
With the crank facing
outward, loop one end
over the seat and the
other over the forward
most handle grip.
With LIFT unfolded,
pivot & lock the
handlebar at 90° to
create a thin walking
profile.
Standing left of LIFT,
grab the handlebar.
Tilt LIFT slightly back
on its rear wheel,
then roll as you walk.
Optional: Extend & lock
the seat, hold it and roll.
Frame Handle Shoulder Strap Thin Walking Profile 1 Wheel Fast Roll
}a
sd
3To disengage the frame magnets dfor unfolding,
while holding the frame it is sometimes helpful to
give the rear tire a slight kick.
d
f
LIFT_Manual_0321_cs6.indd 7 2021-03-07 6:53 PM

Thank you for choosing Revelo LIFT. Enjoy your ride!
03.21
#RideRevelo
If you are unsure of any aspect of LIFT, please bring your LIFT to a professional bicycle mechanic.
www.revelo.ca
Gears
Your multi-speed LIFT has a derailleur drive train. Low gears (down to 1) require less pedalling effort and are
ideal for steep hills. For flatter terrain and faster speed, shift to a higher gear (higher number).
!Only shift gears while the bike/rear wheel is moving forward and the chain is under tension.
Maintenance
LIFT has a warranty of 5 years on the frame and fork, and 1 year on non-wear items including quick releases and
frame hinge lever. In addition to regular bike maintenance and annual tune up, it is important to also maintain
(1) stem quick releases, and (2) the hinge locking system. Please refer to the videos in the tutorial section online:
“Maintaining the THINstem Quick Release” and “Operating the Revelo LIFT Frame Hinge”. Most routine
service below can be performed by the owner. Consult your local bicycle repair shop as required.
Clean the frame of dirt and debris as needed using
a soft, damp cloth, warm water and non-detergent
based soap. Do not use power washers. Relubricate
the chain with a chain lubricant only.
Periodically check to ensure that fastening
bolts have not loosened. Hand tighten with the
appropriate tool as necessary. Do NOT use
power tools to tighten any bolts.
Check brake pad wear. Adjust if they do not
properly hit the wheel rim.
Periodically check tire pressure as indicated on the
sidewall.
Check for missing spokes and for non-trued
(wobbly) wheels.
Check headset stiffness.While squeezing the front
brake, rock the bike back and forth. Clunking noises
could indicate a loose headset.
Check frame for any noticeable signs of fraying or
cracks.
Wheels
If your model is equipped with a Quick Release
wheelset, you may want to remove it occasionally
for eg. travel, storage or service.
Front Wheel
1. Disengage the brake quick-release mechanism
to move the brakes away from the rim.
2. Open the quick-release wheel lever by pulling
away from the wheel.
3. While holding the fork with one hand, pull the
wheel out from the fork dropouts.
Rear Wheel
1. Set the gear to its highest position.This moves the
chain and derailleur to the outermost position.
2. Disengage the brake quick-release mechanism to
move the brakes away from the rim.
3. Open the quick-release wheel lever by pulling
away from the wheel.
4. While standing behind the bike, use your right
hand to pull backward on the derailleur body.
5. Use your other hand and pull the wheel out from
the fork dropouts.
LIFT_Manual_0321_cs6.indd 8 2021-03-09 2:20 PM
