Revelo LIFT User manual

Owner’s Manual
www.revelo.ca
Designed in Canada
LIFT_Manual_0817.indd 1 2017-07-21 12:36 PM

Safety - Read This First!
1. Always make sure the stem, handlebar, seat
and wheels are fully tightened by making
sure the quick release levers are firmly
closed.
2. Make sure the quick release lever for the
folding hinge is securely closed. Refer to
the section on Folding.
3. Do not attach a front bicycle basket to the
handlebars or dangle any bags/objects
from the handlebar/stem system unless
they are designed to specifically work with
your LIFT.
4. Do not ride on surfaces where the wheels
or pedals could get caught (e.g. on train/
tram tracks, or potholes) and do not ride
directly into bumps or curbs.
5. Do not attempt any stunt riding (eg. jumps,
sharp turns, wheelies).
6. When adjusting the height of your saddle,
if the“Minimum Insertion”marking is
visible on the vertical post then insert the
post deeper into the frame.
7. Wear a regionally certified, properly fitted
bicycle helmet.
8. The total weight of the rider and backpack
must not exceed 100 kgs (220 lbs).
9. If your model came equipped with
handlebar ends, check that the grips are
tightly secured to the handlebar.
10. Tires should not be inflated past the
recommended pressure that is marked on
the sidewall.
11. For night riding, inspect that your bike
reflectors are not missing or damaged.
Always have your front and rear lights on
and wear reflective gear.
12. Obey all local and national traffic, helmet
laws and never ride while under the
influence of drugs or alcohol.
13. Before your first ride, practise riding in
a safe open area with a smooth surface
that is away from other pedestrians and
vehicles (eg. a vacant parking lot).
LIFT has a stem system that is different from other bicycles.
It is important that you read the “Setting Up The Stem” section!
Improper installation of the stem could result in
handlebar twisting while riding, loss of control, injury or death.
! !
LIFT_Manual_0817.indd 2 2017-07-21 12:36 PM

Assembly
This guide provides the basic information to get you going quickly before you ride.
If you are unsure of any aspect of LIFT, please bring your LIFT to a professional bicycle mechanic for final assembly.
Visit www.revelo.ca for additional information.
Tools You Need Allen key to adjust the stem collar.
For models equipped with folding pedals,
a 15mm wrench is required.
Step 1: Attach Handlebar
If the handlebar is already attached,go to Step 2:
Setting Up The Stem.
If necessary, temporarily remove the stem collar 
from the handlebar post by loosening the
pinch bolt with an allen key.
Insert vertical handlebar post down into the
stem with the brake levers facing towards
the front of the bike.
!Ensure cables are not twisted or pinched.

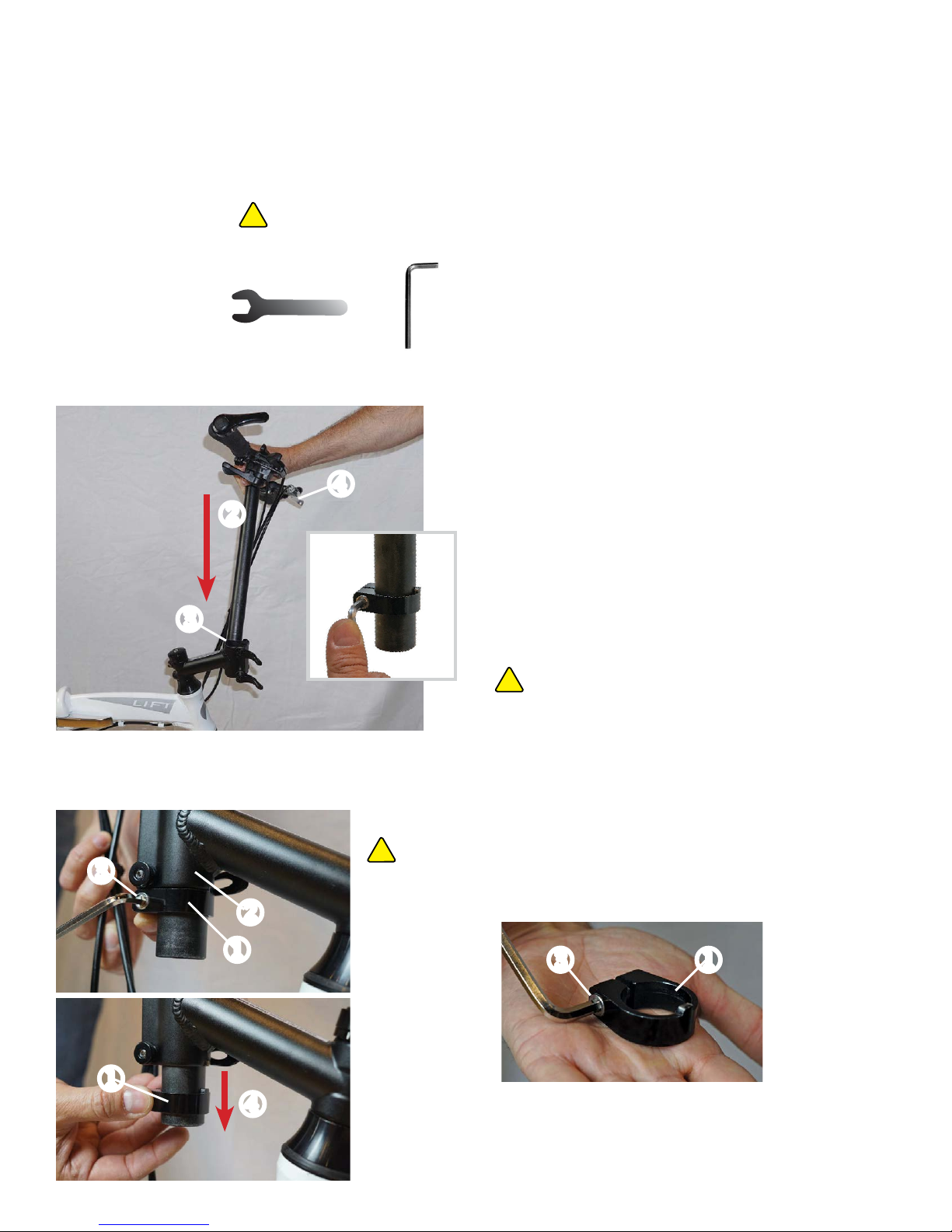

Step 2: Setting Up The Stem
!
The Stem Collar allows for quick centering of the
handlebar and resists twisting by locking into the stem .
Carefully follow all instructions to avoid handlebar twisting
during riding and potential injury.
2a: Remove Stem Collar
Using an allen key, loosen the pinch bolt on the stem collar and
temporarily remove the collar from the handlebar post .

Some illustrations may not be exactly as shown.
!










LIFT_Manual_0817.indd 3 2017-07-21 12:36 PM

Step 2: Setting Up The Stem (continued...)
2b: Set Handlebar Position for Riding
Open quick release levers . Slide the handlebar to the
desired riding height and turn it until it is perpendicular to
the front wheel. Firmly close both quick release levers .
If necessary, rotate the adjustment knob clockwise to
increase clamping strength and counter-clockwise to loosen.
!Before every ride ensure the stem collar is fully mated and quick releases are firmly closed so
that the handlebar can not twist !
✓
Test clamping pressure by placing the front wheel between your feet and
attempt to twist the handlebar. If handlebar twists, more clamping pressure is
required. (Use the adjustment knob to increase clamping pressure).
✓Optimal clamping pressure typically leaves a small impression on the palm of
your hand or thumb.
2c: Identify Stem Collar Tooth & Notch
The stem collar tooth is designed to mate into
a notch in the stem (ensure there is no gap).
2d: Install Stem Collar
Slide the stem collar back onto the handlebar post 
with the notched tooth facing towards the bike.
✓
The handlebar can always be lowered for thin profile walking or folding as needed (refer to the
Folding and Carrying & Rolling sections). For instant height adjustment before riding, slide the
handlebar up until the stem collar locks into the stem.Then, firmly close both levers.
2e: Bolt Stem Collar
Mate the stem collar tooth into the stem notch 
(do not leave gap). Tighten pinch bolt  with allen key.
2f: Close Levers Before Riding
Ensure that both quick release levers are firmly
closed prior to riding.










LIFT_Manual_0817.indd 4 2017-07-21 7:02 PM

Step 4: Attach Seat
Open seat post lever and insert seat post into frame .
Tighten seat post clamp so that the lever is folded over and
closed.
If necessary, rotate the adjustment knob clockwise to
increase clamping strength and counter-clockwise to loosen.
!Ensure seat post is inserted so that the minimum insertion
line is not visible above the clamp.
Step 3: Attach Pedals
Left Pedal: Insert pedal axle into crank arm threads and turn
axle counter-clockwise. Start by using fingers first then tighten
with a 15mm wrench.
Right Pedal: Insert pedal by turning axle clockwise.
!Pedals tighten opposite to each other. Left (L) pedal tightens
counter-clockwise.Right (R) pedal tightens clockwise.
(For models with Detachable Pedals,skip this section and refer
to the user manual included with the pedals for installation).
Push pedal inwards towards frame to release locking pegs ,
then rotate to unfold . Reverse procedure to fold pedals.
Folding Pedal installation requires a 15mm wrench.
Using Your LIFT
Bike Fit
LIFT is incredibly lightweight and built for
spontaneous living. Go everywhere you desire
at any given moment.
It’s unique power-curve frame design allows
for a fully adjustable, regular bike rider fit from
140-186cm (4’8”-6’2”) & up to 100 kgs (220 lbs).
The patent-pending pivot & lock “SideWalker”
stem system technology provides instant rider
height adjustment and a thin walking profile.






LIFT_Manual_0817.indd 5 2017-07-22 1:34 AM

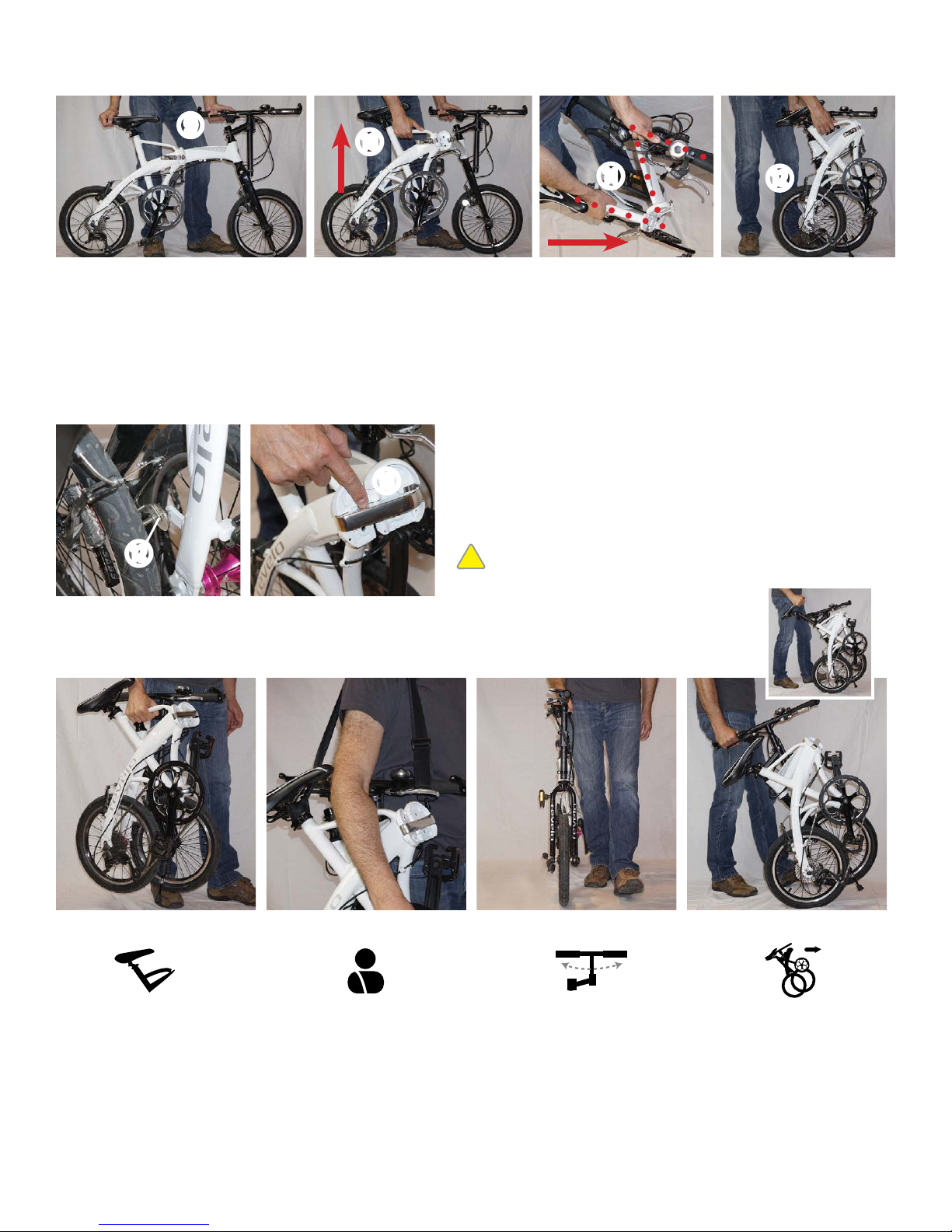

Folding
!During the “break-in”period, the frame hinge may exhibit
some stiffness.This will improve quickly with regular use.
LIFT is one of the fastest folding, easiest rolling and most
portable performance folding bikes on the market!

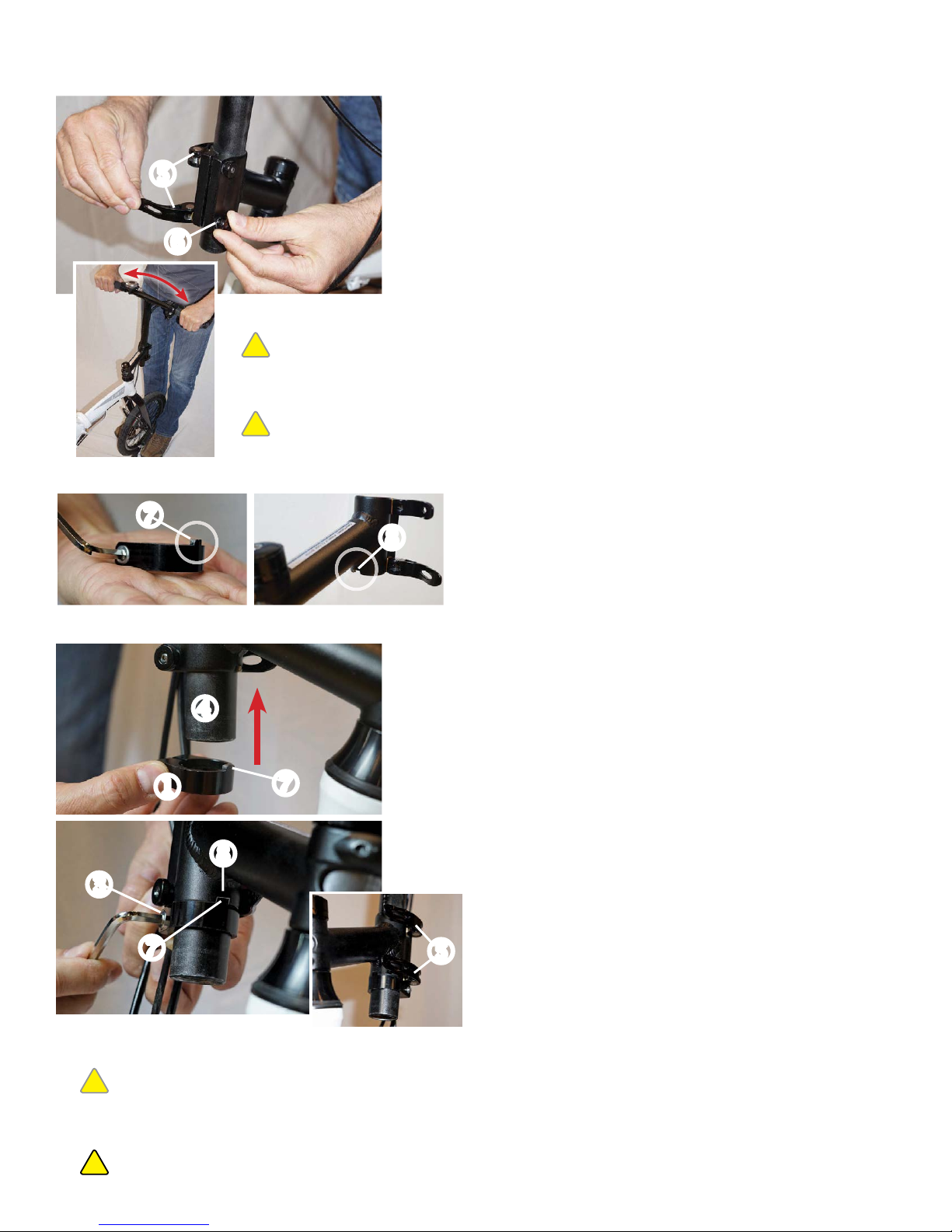

1: Open Fork Mounted Kickstand
Open the fork mounted kickstand to the folding position.
2: Adjust Right Pedal Position
Set your right pedal to the 7 o’clock position.This prevents
pedals from tangling with brake cables during folding.
3: Lower & Rotate Handlebar
Release both stem quick release levers then drop the
handlebar down towards the front tire. Pivot the handlebar
90° clockwise then lock into place with levers .
4: Lower Seat
Lower the seat as much as possible.
Tighten seat post clamp .
5: Unlock & Open Frame Lever
The frame is locked in place with a hinge clamp and lever.To
unlock, first position yourself to the left side of the bike. Place
the right palm of your hand over the frame lever and tuck your
index finger under the lever and behind the locking tab .
Pull the tab straight forward towards the front of the bike and
simultaneously pull the lever out away from the bike.
✓Folding the pedals (or removing them if equipped with
detachable pedals) helps with the folding procedure.
!Do not pinch or over-twist cabling.
!
The hinge clamp is factory set for optimal clamping. Over time, if opening/closing the lever
becomes difficult or loose, adjust the round head screw behind the lever.
Rotating the screw clockwise will create a looser hinge and counter-clockwise to tighten the
hinge. Optimal clamping is one that provides a moderate“snap”.
✓The frame lever should be fully swung open before folding the frame body.







LIFT_Manual_0817.indd 6 2017-07-21 12:37 PM

Folding (continued...)
Carrying & Rolling LIFT keeps you moving even after the ride:
Use the built-in
frame handle for
easy, convenient
transport.
9: Close Frame Lever
Flip the frame lever inwards towards the
magnetic retainer for a tidy, compact look.
✓To disengage the frame magnets for unfolding,
while holding the frame it is sometimes helpful to
give the rear tire a slight kick.
8: Fold the Frame
With the frame lever open and handlebar locked in a 90° position:
Using your left hand, grab the handlebar .
Using your right hand, grab the built-in frame handle and lift the rear.
Pivot the frame in a “Z”fashion to draw the rear wheel towards the front wheel until the magnets lock .
With the crank facing
outward, loop one end
over the seat and the
other over the forward
most handle grip.
With LIFT unfolded,
pivot & lock the
handlebar at 90° to
create a thin walking
profile.
Standing left of LIFT,
grab the handlebar.
Tilt LIFT slightly back
on its rear wheel,
then roll as you walk.
Optional: Extend & lock
the seat, hold it and roll.
Frame Handle Shoulder Strap Thin Walking Profile 1 Wheel Fast Roll




LIFT_Manual_0817.indd 7 2017-07-21 12:37 PM

Thank you for choosing Revelo LIFT. Enjoy your ride!
08.17
#RideRevelo
If you are unsure of any aspect of LIFT, please bring your LIFT to a professional bicycle mechanic.
www.revelo.ca
Gears
Your multi-speed LIFT will either have a derailleur drive train or an internal gear hub drive train.
Low gears (down to 1) require less pedalling effort and are ideal for steep hills.
High gears (up to 3, 8 or 10 depending on your model) are ideal for high speeds and flatter terrain.
!For Derailleurs: Only shift gears while the bike/
rear wheel is moving forward and the chain is
under tension.
!If gears fail to shift, check derailleur alignment
or if the chain has jammed or fallen off.
Maintenance
LIFT has a warranty of 5 years on frame and fork and 1 year on non-wear items.Most routine service below
can be performed by the owner. Consult your local bicycle repair shop as required.
Clean the frame of dirt and debris as needed using
a soft, damp cloth, warm water and non-detergent
based soap. Do not use power washers. Relubricate
the chain with a chain lubricant only.
Periodically check to ensure that fastening
bolts have not loosened. Hand tighten with the
appropriate tool as necessary. Do NOT use
power tools to tighten any bolts.
Check brake pad wear. Adjust if they do not
properly hit the wheel rim.
Periodically check tire pressure as indicated on the
sidewall.
Check for missing spokes and for non-trued
(wobbly) wheels.
Check headset stiffness.While squeezing the front
brake, rock the bike back and forth. Clunking noises
could indicate a loose headset.
Check frame for any noticeable signs of fraying or
cracks.
Wheels
If your model is equipped with a Quick Release
wheelset, you may want to remove it occasionally
for eg. travel, storage or service.
Front Wheel
1. Disengage the brake quick-release mechanism
to move the brakes away from the rim.
2. Open the quick-release wheel lever by pulling
away from the wheel.
3. While holding the fork with one hand, pull the
wheel out from the fork dropouts.
Rear Wheel
1. Set the gear to its highest position.This moves the
chain and derailleur to the outermost position.
2. Disengage the brake quick-release mechanism to
move the brakes away from the rim.
3. Open the quick-release wheel lever by pulling
away from the wheel.
4. While standing behind the bike, use your right
hand to pull backward on the derailleur body.
5. Use your other hand and pull the wheel out from
the fork dropouts.
LIFT_Manual_0817.indd 8 2017-07-21 7:03 PM
