Revere Coastal Elite User manual

Service Manual
Coastal Elite
Aero Elite
Offshore Elite
5323 Highway Avenue
Jacksonville, FL 32254
Tel: (904) 503 - 9733
Fax: (904) 503 - 9719
www.reveresurvival.com
Manual Number: 9101
Fourth Edition

REVISION RECORD
Oct 21/16
9101 RR - 1
RR
DOCUMENTING A REVISION
Record the Revision No. and Revision Date. Remove the old sheet and replace it with the revised copy.
Record the Insert Date and then initial in the Inserted By column.
Revisions made ONLY by Revere Survival Inc.
REV. No.
REV.
DATE
INSERTED
REV. No.
REV.
DATE
INSERTED
DATE
BY
DATE
BY
Original
June 2/08
A
July 13/11
B
Feb 20/13
C
Oct 21/16

June 2/08
RR - 2 9101
THIS PAGE INTENTIONALLY LEFT BLANK

LETTER OF TRANSMITTAL
RECORD THE INCORPORATION OF THIS REVISION ON THE REVISION RECORD.
RETAIN THIS LETTER OF TRANSMITTAL, FILE IT BEHIND THE REVISION RECORD.
Revere Survival Inc., Jacksonville, FL 32254
T. 904.503.9733 F. 904.503.9719
LT
10/21/2016
LT - 1
To: Holders of Manual No. 9101
Title: Offshore, Coastal, and Aero Elite
Service Manual
Revision No.: C
Date: 10/21/2016
Signed: Date: 10/21/2016
Director of Technical Services
Pages Affected
Revision Highlights
Description
CHAPTER 2:
2-3, 2-4, 2-7, 2-10, 2-13, 2-14, 2-15
CHAPTER 8:
8-22, 8-24 TO 8-27
CHAPTER 11:
11-9 TO 11-12, 11-15 TO 11-17, 11-19, 11-25, 11-35
CHAPTER 12:
12-3, 12-20
Added Aero Elite and part numbers
Added Aero Elite, changed section numbers
Added Aero Elite and part numbers
Added Aero Elite part numbers and pictures

SERVICE BULLETIN
Feb 20/13
9101 SB - 1
SB
All service bulletins which are incorporated into this manual are required to be recorded in this list.
All updates to this list will be made by the owner of the manual.
SERVICE
BULLETIN No. DATE TITLE/DESCRIPTION REV. No. DATE OF INCORPORATION
08/13 02/20/13 Protect crimps with heat shrink
sleeve to prevent corrosion A 02/20/13

June 2/08
SB - 2 9101
THIS PAGE INTENTIONALLY LEFT BLANK

SERVICE BULLETIN NO. 08/13
Feb 20/13
9101 SB - 1
7720 Philips Highway
Jacksonville, FL 32256
(T) 904.786.0033
(F) 904.786.0890
Title: Revere Elite Liferafts - Protect crimps with heat-shrink sleeve to prevent corrosion.
1. INTRODUCTION
This service bulletin is to advise service stations how to protect crimps on Revere containers. A
heat-shrink sleeve must be used to prevent discoloration and corrosion.
2. EMBODIMENT DATE
Mandatory at next service.
3. ACTION
To encapsulate crimps with heat-shrink sleeve, the following procedures should be observed:
3.1 Slide strap through the heat shrink sleeve. Keep the strap ID tag as close as possible to the
crimp - the maximum installed separation between these is 39.4in. (10mm) (See Figure 1)
3.2 Apply the tensioning tool to the strap at a point half way across the two rims. Operate the
handle to tension the strap until the base of the tensioning tool rests in the lower container
rim. Secure the strap with a crimp. (See Figures 1 and 2)
Note: The sleeve should be sitting loose in this temporary location. It must not be
snagged against the container and strap or between the crimp and strap.
3.3 Using scissors, carefully trim off the tail of the strap as close as possible to the crimp. The
maximum distance permitted between the end of the tail and the crimp is .59in. (15mm).
Caution:Use a hot air gun with the correct voltage.
Caution:A heat setting too hot will overheat the strap, weakening and/or burning
it in the process. Do not overheat the strap. Do not point the heat gun
directly at the strap. If any discolorations are noticed on the strap, it has
been overheated. In this case it must be cut off, discarded, and a
replacement fitted.

SERVICE BULLETIN NO. 08/13
Feb 20/13
9101 SB - 2
7720 Philips Highway
Jacksonville, FL 32256
(T) 904.786.0033
(F) 904.786.0890
Warning:Use extreme care with the hot air gun. Allow sufficient time for parts to
cool before handling directly. Air gun nozzle will remain hot after use.
3.4 With the heat gun at setting at HOT, apply heat evenly over the heat-shrink sleeve. The
sleeve should be heated evenly from both the left and the right hand sides. (See Figure 4)
3.5 Ensure that the entire crimp and tail are completely encapsulated and that the heat-shrink
sleeve overlaps in both directions by at least .2in. (5mm).
3.6 Using protective gloves, pinch the ends of the heat-shrink sleeve while it is cooling, to
ensure that they have sealed tight against the strap.

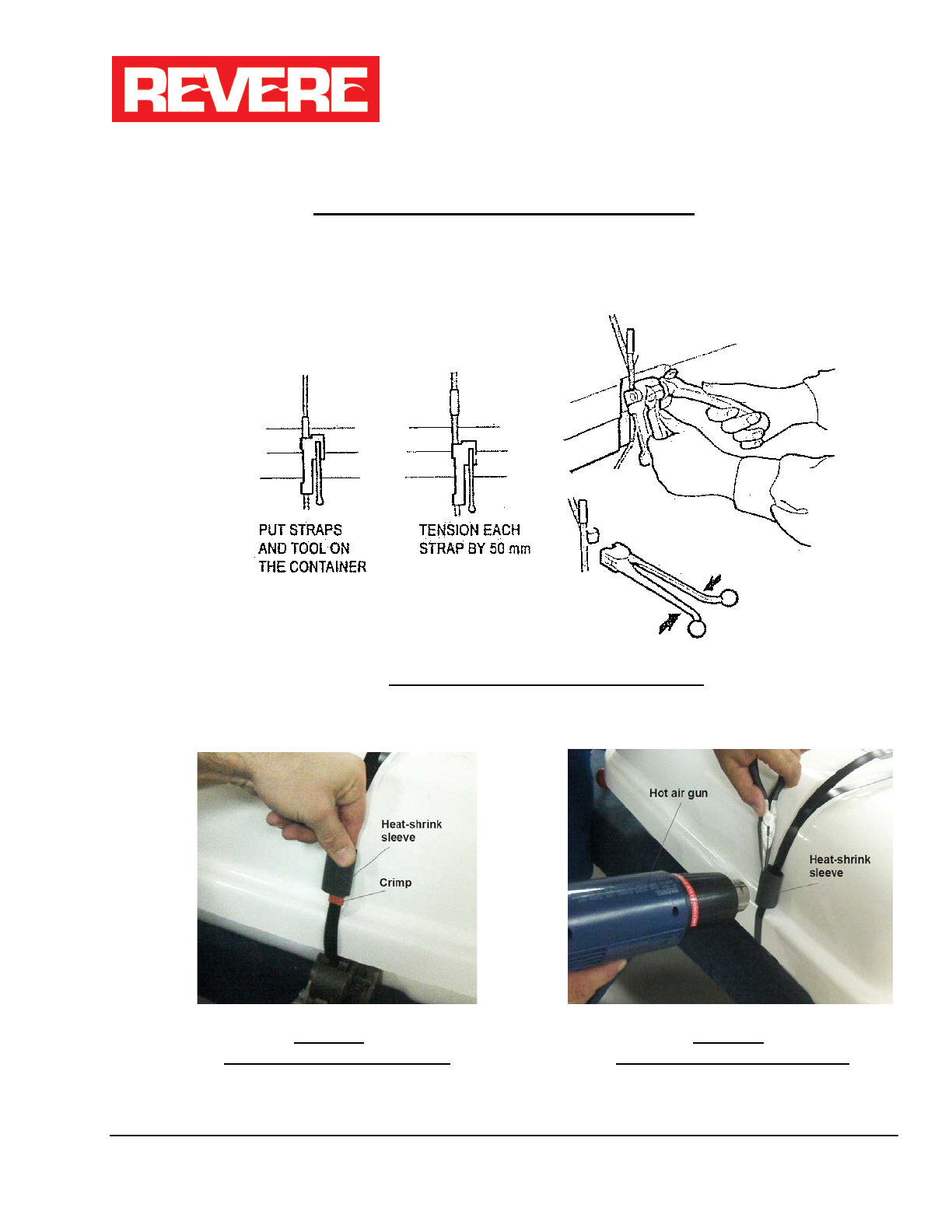

Figure 1 - Positioning Heat-Shrink Sleeve

SERVICE BULLETIN NO. 08/13
Feb 20/13
9101 SB - 3
7720 Philips Highway
Jacksonville, FL 32256
(T) 904.786.0033
(F) 904.786.0890

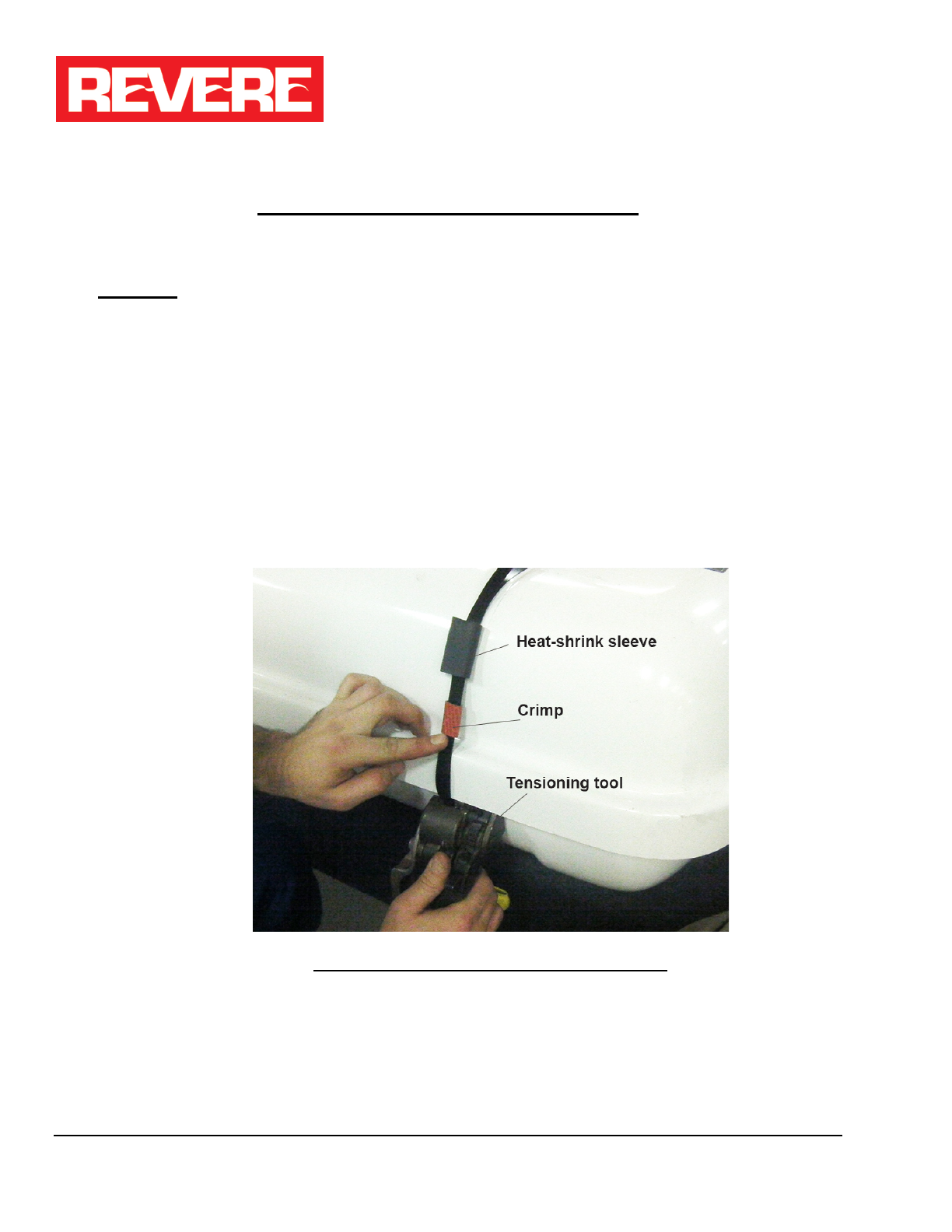

Figure 2 - Crimping Container Straps
Figure 3 Figure 4
Fitting Heat-Shrink Sleeve Sealing Heat-Shrink Sleeve

SERVICE BULLETIN NO. 08/13
Feb 20/13
9101 SB - 4
7720 Philips Highway
Jacksonville, FL 32256
(T) 904.786.0033
(F) 904.786.0890
3.7 When the joint is completed correctly, the adhesive inside the sleeve will be observable at
its cut edges, forming a seal with the strap. The finished joint should be positioned so that
the sleeve does not directly contact the container - otherwise it may wear out from
abrasion.
3.8 Repeat the process for all strap and crimp assemblies on the container.

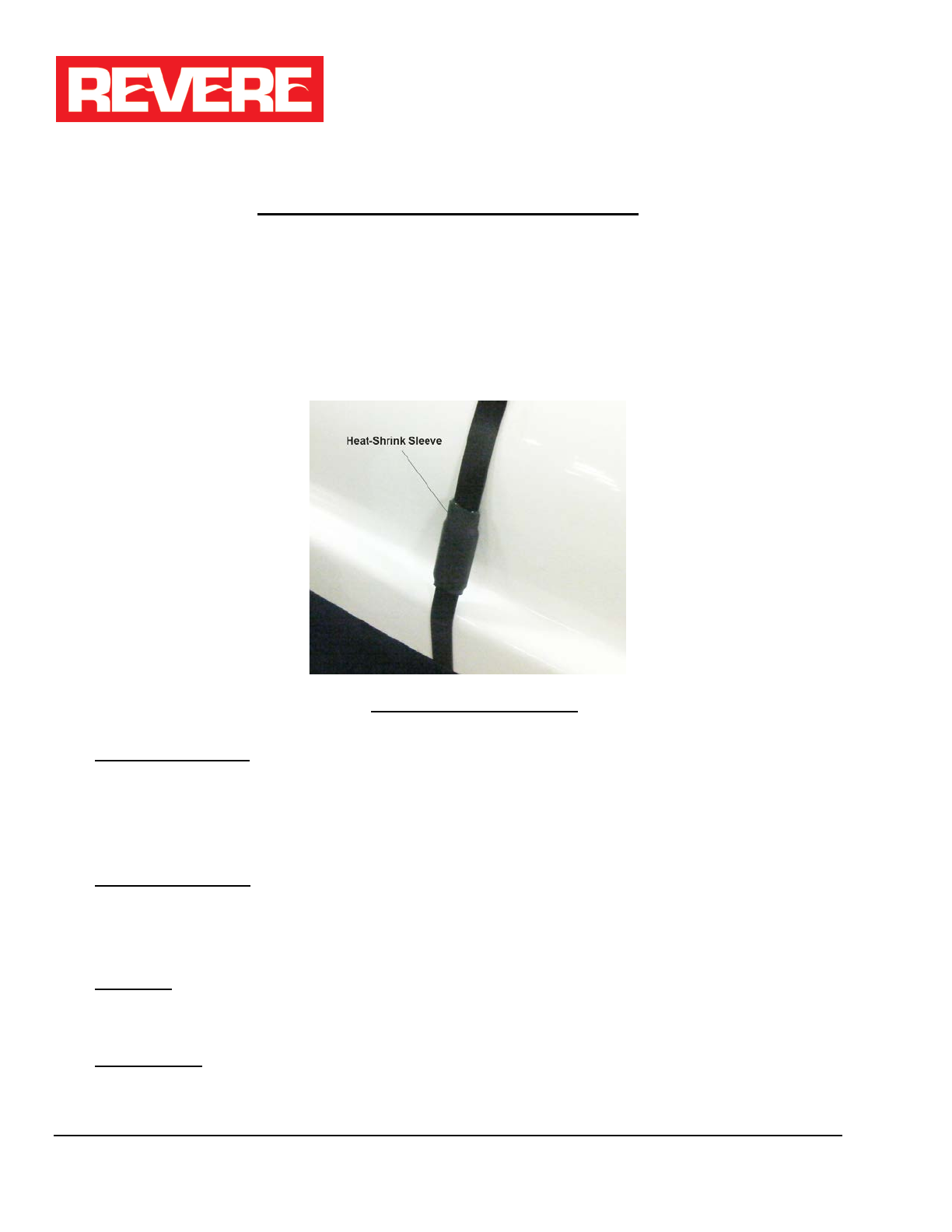

Figure 5 - Sealed Sleeve
4. PARTS REQUIRED
Part No.
Description
Qty.
40-50450001
Sleeve, Crimp Protection
A/R
5. TOOLS REQUIRED
Part No.
Description
Qty.
---
Hot Air Gun, 120V
1
6. TESTING
None
7. RECORDING
None

SERVICE BULLETIN NO. 08/13
TRANSMITTAL
Feb 20/13
9101 SB - 5
7720 Philips Highway
Jacksonville, FL 32256
(T) 904.786.0033
(F) 904.786.0890
This page transmits the issue of the above numbered Revere Service Bulletin, which consists of this
transmittal sheet plus four pages.
Title: Revere Elite Liferafts - Protect crimps with heat-shrink sleeve to prevent corrosion.
Service Bulletin Number 08/13 has technical approval by Revere Supply Company.
Signed: ______________________________ Date: 02/20/2013
Thomas Mastrella
Director of Liferaft Technologies
Revere Supply Company

LIST OF EFFECTIVE PAGES
