Revision Sawfly User manual

Revision Military Ltd., 7 Corporate Drive, Essex Junction VT 05452 USA revisionmilitary.com JUNE 2012

Sawfly®U.S. Military Eyewear System

As on the U.S. Army Authorized Protective Eyewear List (APEL)

USER INSTRUCTIONS

GENERAL DESCRIPTION

The Sawfly Military Eyewear System consists of interchangeable protective lenses that lock into an ultra comfortable, slim-line frame with adjustable

arms and head strap. The Sawfly Spectacle is available in three sizes: the small size fits up to a 6-7/8 hat size, the regular size fits 6-3/4 to 7-1/2hat

sizes and the large size fits 7-1/2 or larger hat sizes. If in doubt, try each size to confirm optimal fit.

OPTIONAL PRESCRIPTION (Rx) CARRIER

Your prescription lenses can be filled and inserted by your on-base Optometrist. The Rx Carrier must be fitted with high-impact polycarbonate lenses.

The RxCarrier clips securely to the nosepiece on the inside the Sawfly Eyewear System.

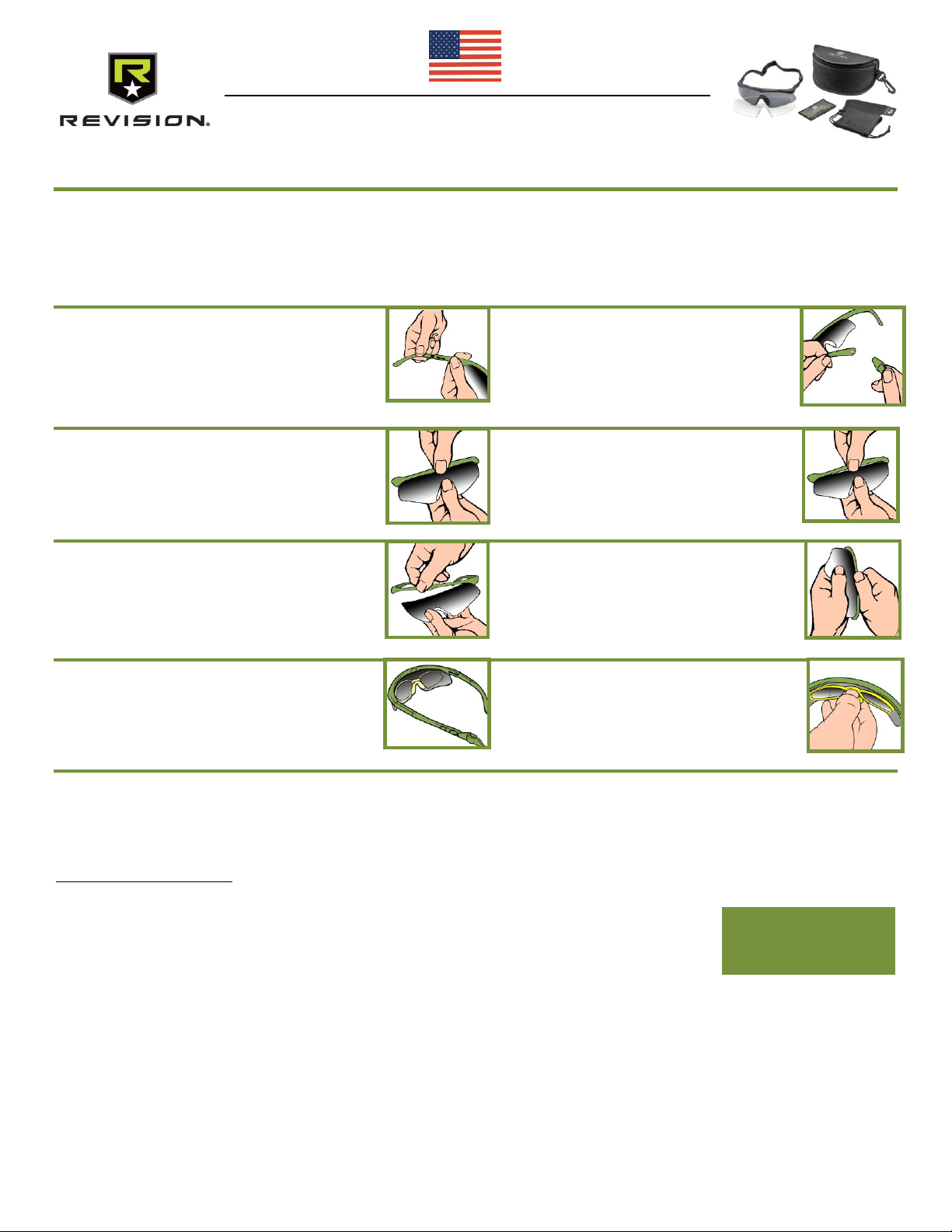

ADJUSTMENTS

The arms on your Sawfly System can be extended

to fit comfortably behind your ears.

To attach the head strap to the frame,

snap the plastic ends from the strap

into theholes at the end of the arms.

REMOVING THE LENS FROM THE FRAME:

Step 1

Hold the lens above the nosepiece with the thumb

and forefinger of one hand and the center of the

frame with the other.

Step 2

Pull the lens and frame apart.

Remove lens from the corners of the

frame.

INSTALLING THE LENS INTO THE FRAME:

Step 3

Insert corners of the lens into the frame, one corner

at a time.

Step 4

Firmly grasp center of frame and pull

over the center of the lens.

INSERTING YOUR PRESCRIPTION (Rx) CARRIER

The RxCarrier can be installed on the inside of your

protective eyewear system. It must be used with the

integrated Rxnosepiece which has been included in

your kit.

To insert your prescription carrier, align

the rectangular hole at the center of the

bridge of the RxCarrier with the

rectangular notch on the top of Rx

nosepiece. Gently push down until it

clicks into place.

CARE, CLEANING & MAINTENANCE

The lenses in your Sawfly Military Eyewear System have a scratch-resistant coating. To extend the life of the lens surfaces, clean and store your

eyewear when not in use. The lenses should be cleaned with water or eyewear cleaning spray and dried with the microfiber cleaning pouch.

Anti-Fog (AF) Cloth: The AF cloth should be used to prevent fogging of lenses and Rx.

To use: Prior to application of the anti-fog cloth, all loose sand and dirt should be cleaned by rinsing with water to avoid scratching of the lenses. Gently

wipe AF cloth over clean, dry interior surface ensuring good even coating. Store the AF cloth in the resealable polybag to extend the life of the cloth’s AF

performance. The cloth is reusable for over 25 applications if stored properly in its package. Replace the cloth as needed.

Sawfly Military Eyewear System

Small Size Kit: Model #4-0076-9827 NSN 4240-01-607-7512

Regular Size Kit: Model # 4-0076-9800 NSN 4240-01-527-4051

Large Size Kit: Model # 4-0076-9700 NSN 4240-01-527-4018

Small Clear Lens: Model # 4-0130-9100 NSN 4240-01-607-7602 (10 Pack)

Regular Clear Lens: Model # 4-0130-9100 NSN 4240-01-527-4052 (10 Pack)

Large Clear Lens: Model # 4-0131-9100 NSN 4240-01-527-4061 (10 Pack)

Small Smoke Lens: Model # 4-0130-9200 NSN 4240-01-607-7675 (10 Pack)

Regular Smoke Lens: Model # 4-0130-9200 NSN 4240-01-527-4053 (10 Pack)

Large Smoke Lens: Model # 4-0131-9200 NSN 4240-01-527-4063 (10 Pack)

RxCarrier: Model # 4-0133-9100 NSN 6540-01-527-4056 (10 Pack)

RxCarrier Model # 4-0135-9100 NSN 6540-01-597-6296 (25 Pack)

Kits include:

Slim-line frame with adjustable arms, adjustable elastic head strap to keep eyewear secure and stable during rigorous activity

Two polycarbonate lenses that each provide 100% UV protection:

oA clear lens with integrated Rxcarrier nosepiece –use for night time, indoors and low light levels

oA smoke lens with integrated Rxcarrier nosepiece –use during the day to block glare

Microfiber storage pouch –also ideal for cleaning the lenses

Storage case with belt clip to hold all pieces of eyewear

Multi-use AF Cloth that offers over 25 applications of temporary fog resistance

CAUTION

Avoid cleaner spray

contact with eyes

Revision Military Ltd., 7 Corporate Drive, Essex Junction VT 05452 USA revisionmilitary.com JUNE 2012

STANDARDS

The Sawfly meets the following standards and U.S. Military Requirements: ANSI Z87.1 and MIL-PRF-31013, clause 3.5.1.1.

Marking Significance:

WARNING

READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS EYEWEAR. FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS MAY RESULT IN

SERIOUS PERSONAL INJURY, INCLUDING BLINDNESS OR DEATH.

1. Do not use this eyewear until a snug and secure fit has been obtained. Assure that this eyewear fits securely at all times.

2. Do not make any modifications to this eyewear.

3. Do not use this eyewear for paintball, airsoft or simulation training. Impact from a paintball or similar training ammunition can cause permanent damage to

your eyes, even if you are wearing this eyewear.

4. Do not use this eyewear for protection against laser light unless using laser specialty lenses. Laser light can cause permanent damage to your eyes even if

you are wearing this eyewear.

5. Do not use spectacles for chemical splash or chemical vapor exposure protection.

6. Do not use ammonia, alkaline cleaners, and abrasive cleaning compounds or solvents when cleaning eyewear lenses. Use of certain solvents may lower the

impact resistance of the eyewear.

7. Exposure to or contact with chemical vapors or liquids may cause surface cracks or other damage.

8. Materials that may come into contact with the wearer’s skin could cause allergic reactions to susceptible individuals.

9. Examine this eyewear frequently and replace it immediately if there is any sign of scratches (lens) or damage.

10. Eye protection (such as this) against high speed particles worn over standard ophthalmic spectacles may transmit impacts, creating a hazard to the wearer.

11. Do not use this eyewear in an industrial setting without first referring to ANSI Z87.1 standard, your supervisor, or a safety specialist to insure that you are

wearing proper protection. Some operations may require machine guards, goggles, face shields, special filter lenses or other safety equipment.

12. Protective devices do not provide unlimited protection. Eye and face protective devices are not substitutes for machine guards and other engineering

controls. Personal eye and face protective devices alone should not be relied on to provide complete protection against hazards, but should be used in

conjunction with the machine guards, engineering controls, and sound manufacturing and personal safety practices.

13. This eyewear is not designed to protect the wearer from all injury in the event of an impact with a hard object or if the lens is not properly secured in the

frame.

14. Revision does not recommend the following uses of tinted lenses: Night time driving or direct viewing of the sun or other artificial light source. Smoke lenses

are not recommended for industrial protection such as welding, brazing, or cutting operations.

15. Tinted lenses, such as the high-contrast yellow lenses, are typically designed for use for specific visual tasks. Use care in selecting and using tinted lenses

where color recognition is important as some tinted lenses can alter color perception.

LIMITED WARRANTY

1. WHAT DOES THIS WARRANTY COVER?This warranty covers manufacturing defects in your new Revision Eyewear System. The system has been thoroughly

tested and inspected before shipment. The lenses, made from high-grade, optical quality polycarbonate, provide superior impact resistance, durability, and

100% UV protection, and are scratch-resistance coated, but SCRATCHED LENSES ARE NOT A MANUFACTURING DEFECT.

2. HOW LONG DOES COVERAGE LAST?For all components of your Revision Eyewear System EXCEPT the blank optical adaptor lenses, this warranty lasts for a

period of three years from the date of purchase as long as you (the original purchaser or recipient) own your Revision Eyewear System. Coverage

terminates if you sell or otherwise transfer your Revision eyewear. For the blank RxCarrier ONLY, coverage terminates upon fulfillment, modification or

alteration by an Optician or anyone else.

3. WHAT WILL REVISION DO?Revision will replace any defective component of your Revision Eyewear System. You will not be charged for replacement

components but you are responsible for the cost of shipping the defective component to Revision and for a processing fee of $9.95.

4. HOW DO YOU MAKE A WARRANTY CLAIM?If a defect develops in any component of your Revision kit under normal use, send the defective component along

with proof of purchase and a check or money order for the processing fee of $9.95 via insured mail, or overnight courier, delivery pre-paid, to Revision

Military at:

Revision Military Ltd., Customer Service Dept., 7 Corporate Drive, Essex Junction, VT 05452

5. WHAT DOES THIS WARRANTY NOT COVER?This warranty does not cover scratched lenses, loss, or components that have been damaged by abuse, misuse, or

accident. Also, this warranty does not cover any damage to the Rx Carrier (or lenses) that arises after it has been fulfilled, modified or altered by an Optician

or anyone else.

6. WHAT DAMAGES ARE AVAILABLE? REVISION makes no express or implied representations, warranties or guarantees about the merchantability or the fitness

for a particular purpose of REVISION eyewear or the ability of REVISION eyewear to meet the requirements of the person wearing the eyewear. There are

no warranties except for those in this document. Damages for breach of implied or written warranty on the Revision Eyewear System are limited to

replacement of defective components, which is the exclusive remedy.

IN NO EVENT SHALL REVISION MILITARY LTD. BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING

DAMAGES FOR PERSONAL INJURIES, WHETHER SUCH DAMAGES ARE ALLEGED IN TORT, CONTRACT, INDEMNITY OR OTHERWISE, EVEN IF

REVISION MILITARY HAS BEEN APPRAISED OF THE POSSIBILITY OF SUCH DAMAGES.

7. HOW DO IGET INFORMATION ABOUT LOST COMPONENTS?Replacement information is available by calling Revision Military’s Customer Care Department at

1-802-879-7002 or by emailing customercare@revisionmilitary.com.

8. HOW DOES STATE LAW APPLY?This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Some

jurisdictions do not allow the exclusion of or limitation of incidental damages, so the limitations or exclusions in this warranty may not apply to you.

Patents 7,648,233, 7,641,333, 7,490,935
