RHINOMOTIVE Pro R3102 User manual

USER MANUAL

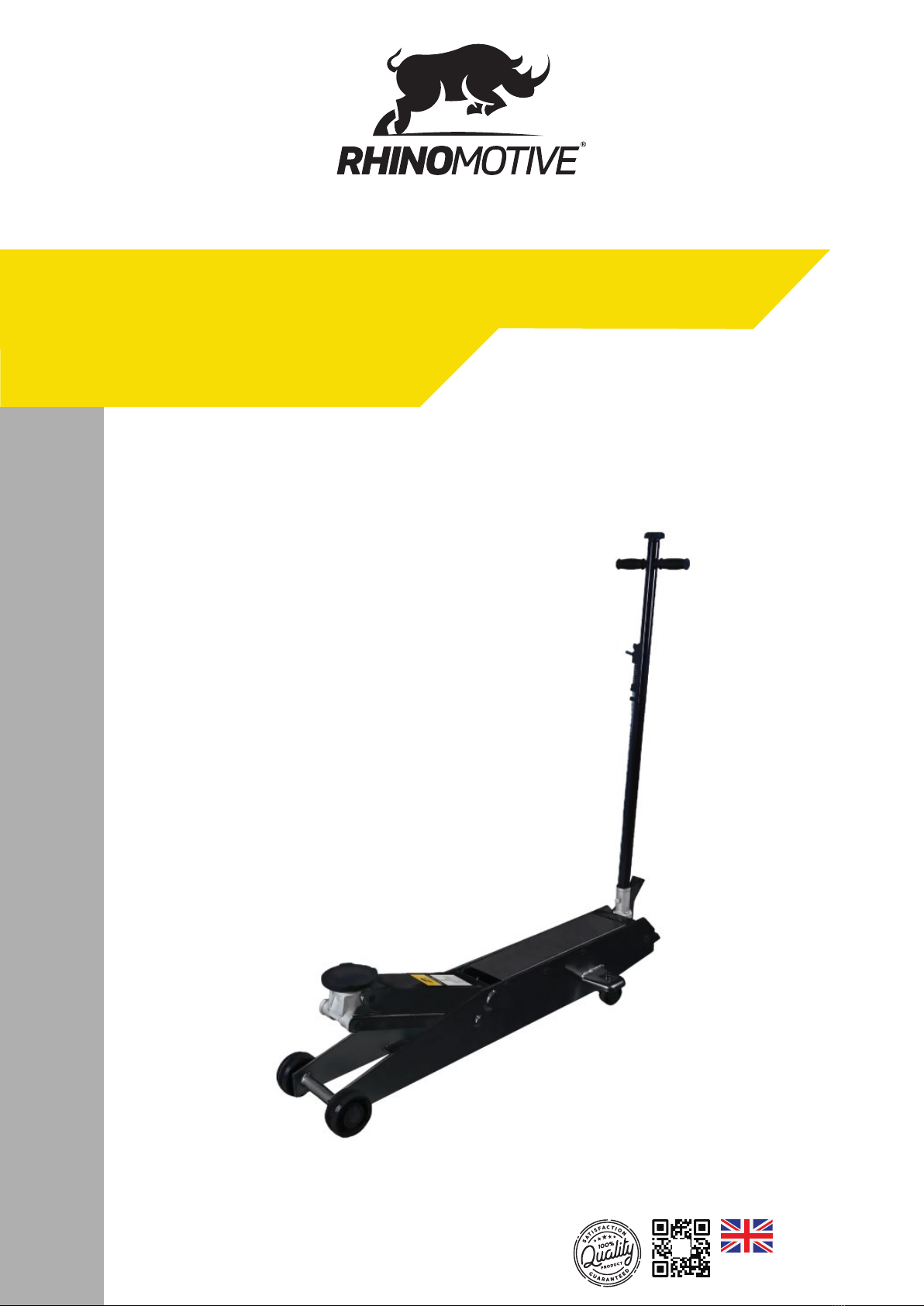

HYDRAULIC CROCODILE
JACK - 10 TONS
Scan QR Code
RHINOMOTIVE LTD - UK
71-75 Shelton Street, London, United Kingdom
www.rhinomotive.com
PN: R3102

1. ASSEMBLY
2. CHECK OIL LEVEL
3. BLEED THE HYDRAULIC SYSTEM
1. Insert the shaft of the handle into the handle socket.
2. Tighten the clamp bolt shown to lock the handle in position.
3. LOCKING/RELEASING THE HANDLE To lock the handle in the upright position, put the handle lock in to the
‘Locked’ position as shown.
1. With the handle in a vertical position, turn the knob on the handle counterclockwise to open the release valve.
2. Push the saddle to its lowest position.
3. Loosen the two bolts shown and lift off the cover.
4. Lever off the filler cap using a flat screwdriver.
• Oil must be up to the edge of the hole.
5. Top up if necessary
1. During transportation, air can get into the hydraulic system which will cause the ram to feel “spongy”.
2. Turn the knob on the handle counterclockwise to open the release valve.
3. Pump the foot pedal 10 times to purge the air from the hydraulic system.
• The jack is now ready to use.
2/6 www.rhinomotive.com
4. POSITIONING THE JACK
1. Put the handle lock in to the ‘Locked’ position as shown.
2. Turn the knob on the handle counterclockwise to open the release valve.
3. Put the saddle directly below the lifting point of the vehicle (see the manufacturers handbook for the locations).
NOTE:
• Make sure that the load is stable and on solid level ground.
• Use suitable wheel chocks to stop the vehicle from moving.
• Make sure that there is no obstruction that will prevent a clean lift.
•Make sure that all personnel are in a safe position before you lift the vehicle.
PN CAPACITY LIFTING HEIGHT MIN HEIGHT MAX HEIGHT
R3102 10 TON 400 MM 170 570
=
<= >

3/6
www.rhinomotive.com
5. OPERATING INSTRUCTIONS
TO LIFT:
1. Turn the knob on the handle clockwise to close the release valve.
2. Put the handle lock in to the ‘Unlocked’ position as shown.
3. Operate the jack by pumping the jack handle or foot pedal.
• Make sure that the saddle is in full contact with the lifting point and that there is nothing that will prevent a
clean lift.
4. Put axle stands below the support points on the vehicle.
• Make sure that the axle stand is centered below the support point and are stable before full weight of the
vehicle is taken on it.
• Make sure that the axle stands are in good condition and that they can hold the load.
• Ensure that the axle stands cannot move when supporting the load.
• DO NOT jerk the handle, make sure that it lowers slowly and in a controlled manner on to the axle stands

4/6 www.rhinomotive.com
6. MAINTENANCE
7. CHANGING THE OIL
8. STORAGE
1. When the jack is not in use, keep the ram fully lowered and the release valve closed.
2. Keep the jack clean and apply lubricating oil to all pivot points every three months.
3. Frequently check oil level.
4. Check the pump piston and piston rod periodically for signs of corrosion. Clean exposed areas with a clean
oiled cloth.
5. Change the oil once a year as follows.
1. Lower the saddle fully.
2. Loosen the two cover screws and lift off the cover.
3. Lever off the filler plug using a flat screwdriver.
4. Lay the jack on its side to drain the oil into a suitable container.
5. Dispose of the oil in accordance with local regulations.
6. Fill with high quality hydraulic oil.
•Oil must be up to the edge of the hole.
7. Replace the oil filler cap.
Store in a dry place with the ram fully lowered. If stored for long periods, inspect at least once a year, clean and re-oil.
TO LOWER:
1. Lift the vehicle to remove the weight from any supports.
2. Remove the axle stands or other supports from below the vehicle.
3. SLOWLY turn the knob on the handle counterclockwise to open the release valve.
NOTE: This operation must be done very slowly and in full control. DO NOT let the load lower suddenly, this
could damage internal components.
4. Remove the jack from below the vehicle.
NOTE: The jack can move slightly during operation. It is important that the area is clean and free from all debris.
9. SAFETY INSTRUCTIONS
1. This jack is for lifting only, do not move a load using the jack as a dolly.
2. Do not use to lift people.
3. Always inspect the jack before use. Make sure that all parts are in good condition and operating smoothly, and
that no cracks or distortion is apparent.
4. Make sure that the jack is on a firm solid base, and there is no possibility of it slipping when under load.
5. Make sure the load is taken by the full saddle and that the point of lift on the load, is strong enough to support the
load adequately.
6. Do not work under the raised vehicle until it is supported by suitable means e.g. axle stands, NEVER rely on the
jack to support the vehicle by itself.

5/6
www.rhinomotive.com
11. PARTS LIST
7. Never push a load off the jack.
8. Ensure that all personnel are well clear of a load being raised or lowered.
9. Do not try to lift more than the rated load for the jack, (See “Specifications” on page 2.)
10. Do not use the jack if an oil leak is apparent.
11. Consult the vehicle handbook to determine the correct lifting points.
12. It is necessary that the operator watch the jack and the load during operation.
13. Check the condition of the labels regularly and replace as required.
14. The jack must be maintained and repaired in accordance with these instructions. Such maintenance and repair
must be carried out by qualified persons.
15. Do not make any adjustments or modifications to this jack or any valves on the jack
10. TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Jack will not lift the rated load Low oil level See “Changing the Oil” instructions
Release valve not closed Turn the release knob fully clockwise
Air in the hydraulic system See “BLEED THE HYDRAULIC SYSTEM” instructions
Jack lower when under load Release valve not fully closed Turn the release knob fully clockwise
Air in the hydraulic system See “BLEED THE HYDRAULIC SYSTEM” instructions
Pump feels Spongy Low oil level See “Changing the Oil” instructions
Air in the hydraulic system See “BLEED THE HYDRAULIC SYSTEM” instructions
Handle raises or flies back under load Air in the hydraulic system See “BLEED THE HYDRAULIC SYSTEM” instructions
Jack will not lift full height Low oil level See “Changing the Oil” instructions
Air in the hydraulic system See “BLEED THE HYDRAULIC SYSTEM” instructions
Jack will not lower completely Return spring may be faulty Should be checked by a professional
DRAWING

6/6 www.rhinomotive.com
Scan QR Code
Ref. Description QTY Ref. Description QTY
1Tray 1 39 Connecting Axle 1
2 Bracket 1 40 Press hand 1
3 Check Ring 2 41 Screw 1
4 Bracket Axle 1 42 R-Pin 2
5 Check Ring 2 43 Pin 1
6 Connecting Bar 2 44 Footstep 1
7 Front Axle 1 45 Spring 1
8 Washer 4 46 Connecting Bar 1
9 Quill Roller 1 47 Pin 1
10 Front Wheel 2 48 Screw 1
11 Spring Collar 2 49 O-ring 1
12 Spring Collar 2 50 Screw 1
13 Rise Arm 1 51 Pressure Spring 1
14 Oil Cup 1 52 Cone Valve 1
15 Connector Sleeve 1 53 High Pressure Screw 1
16 Screw 1 54 Metal Pad 1
17 Spring 2 55 Ball (Diameter:9) 1
18 Connector Axle 1 56 Ball (Diameter:6) 2
19 Wallboard 1 57 Oil Seal 1
20 Check Ring 1 58 Unloading Valve 1
21 Spacer Sleeve 2 59 Pin 1
22 O-ring 1 60 Connecting Spring Axle 1
23 Piston Rod 1 61 Pump Cylinder 1
24 Piston Top 1 62 Bowl Shape-Ring 1
25 Nylon-Bowl-Ring 1 63 PTFE Ring 1
26 O-ring 1 64 Mandril 1
27 Screw 1 65 Hand Wheel 1
28 Rubber Pad 1 66 Hand Sleeve 2
29 Cove Board 1 67 Washer 1
30 Screw 2 68 Screw 1
31 Rise Arm Axe 1 69 Check Ring 2
32 Connecting Axle 2 70 Spring 1
33 Bolt M10*25 4 71 Handle 1
34 Caster 2 72 Stop Lever 1
35 Washer (Diameter:16) 2 73 Pin 3
36 Lock Washer 2 74 Fix Shaft 1
37 Nut M16 2 75 Mandril 1
38 Check Ring 2
PARTS LIST
