RHOX LGT-362LC User manual

Caution: Please read through the instructions carefully. Before starting
this project, remove the system’s positive and negative connections
from the battery or battery pack. This kit is designed for a 12V
operation only. Operating this kit at a higher voltage will void any and
all warranties. Look behind each drill location BEFORE YOU DRILL.
Installer is responsible for damage (i.e. drilling into a wiring harness,
battery, fuel tank etc.).
LGT-362LC
E-Z-Go RXV 2016+
SS Complete Light Kit, LED Bulbs
Installation Instructions

Page 2
Table of Contents
1) Headlight & Taillight Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
2) Wire Harness Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
3) Headlight Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
4) Taillight Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
5) Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Tools Needed for Installation
- Screwdriver (Phillips)
- Sockets & Open Ended Wrenches (1/2”)
- Torx Bit (T-30)
- Drill, Drill Bits & Hole Saws (1/2”)
- Wire Cutters
- Jig Saw or Rotary Tool
- Sandpaper or File
Before You Start
1. Turn Key OFF.
2. Place Tow/Run Switch in Tow if equipped.
3. Remove the system’s positive and negative connections from the battery or battery
pack.
4. Engage the parking brake.

To Passenger Side
Taillight
Page 3
Wire Harness Overview
Push-Pull Switch
Fuse
To Driver Side
Taillight
-12V
To Ground
+12V
To Positive
Driver Head and
Marker Light
Passenger Head
and Marker Light
Need brake lights, turn signal switch or a horn?
Add LGT-699 harness for complete plug and play accessory compatibility.

Headlight & Taillight Preparation
Headlight Preparation
1. Cut out the headlight template following the guidelines.
2. Place the template on the driver side front
cowl and align it with the cowl mold lines
and emblem. Secure with painter’s tape.
3. Trace the inside contour of the template
using a marking device.
NOTE: To prevent chipped paint on a
painted cowl, tape over the drawn line.
Redraw over the tape using the template.
4. Using a jig saw or rotary tool, cut out the
INSIDE of the marked area. Test fit the
headlight and make any adjustments
before removing the tape. Once the light
fits, remove the tape and sand any rough
edges.
5. Flip the template over and repeat Steps
2-4 for the passenger’s side.
Taillight Preparation
1. Cut out the included taillight template
following the guidelines.
2. Use painter’s tape to tape the template to
the driver side rear body of the cart. Align
the template with the body lines and edge
of bagwell as indicated on the template.
3. Use a marking device to trace the inside
contour of the template onto the body.
NOTE: To prevent the paint from chipping,
lay painter’s tape down first and trace over
the tape.
4. Use a jigsaw or rotary tool to cut out the
INSIDE of the marked area. Test fit the
taillight. If needed, make any modifications
and retest. Once it is fitted properly, remove
the tape and sand any rough edges.
5. Flip the template over and complete Steps
2-4 for the passenger taillight.
Page 4

Page 5
Wire Harness Installation
1. Completely remove the front seat bottom assembly.
2. Lay the harness parallel to the driver side of the cart to help with orientation of the
harness before installation.
3. From underneath the
driver side of the cart,
gently run the rear portion
of the harness (taillight &
battery connections)
through the opening in
the side of the battery
compartment.
4. Set the battery leads to
the side. They will be
connected after installation
of the harness and lights.
5. Feed the rear portion
of the harness
through the cart so
the taillight
connections reach
the holes in the rear
body. The shorter
cable will rest on top
of the driver side
fender. Route the
longer cable behind
the battery
compartment and
over the passenger
side rear fender.
6. Make sure the taillight leads reach the holes in
the body.
Once the leads are in position, lock them into
place on top of the fender with the wire keepers
and route them through the notch.
Fasten the lead at the taillight to the frame with
cable ties.
TO BATTERY
COMPARTMENT
12V Connections
TO REAR
Taillight
Connections

Page 6
7. Secure the passenger taillight cable to the rail of the frame with cable ties using the
pre-drilled holes in the frame. The harness should run below or behind the cross
frame so it is not pinched by the seat or body.
8. Disconnect the push-pull switch
at the 4-pin connector.
9. Route the front portion
of the harness under
the driver side of the
cart, towards the dash
compartment. Loosely
secure with cable ties.
10. Locate the rectangular hole in the
bottom of the splash guard (red
arrow). Use a utility knife to enlarge
the hole enough to fit the harness.
11. Keeping the harness on the inside
of the steering column, route the
harness through the hole in the
splash guard, one connector at a
time.
12. Make sure the headlight leads reach
the holes in the front cowl. Make
sure the push-pull switch connector
reaches the area behind the dash.
13. Remove the (4) Torx screws that hold in the front
dash.
NOTE: The same Torx screws hold on the front cowl.
Use caution not to damage the cowl.
14. Reconnect the push-pull switch to the 4-pin
connector on the harness.
15. Tighten any cable ties left loose in this section.
To
Splash
Guard
TO DASH
Push-Pull
Switch
Headlight
Connectors

Push-Pull Switch Installation
1. Measure 2” from the left side of the dash and
1-1/2” down from the top of the dash. Use a
marking device to mark the drill location.
2. Drill a 1/2” hole at the marked location. File
rough edges.
3. Remove the knob, retaining nuts and lock washer
from the push-pull switch and insert the shaft of
the switch into the newly drilled hole.
4. Secure using the lock washer and retaining nuts.
Reattach the knob.
5. Reinstall the front dash using the Original Hardware.
Headlight Installation
1. Insert the headlights from outside of the
front cowl. The tension clips (yellow) will
remain behind the cowl, keeping the
lights in place.
2. Connect the headlight connectors on the
harness to the matching connectors on
the headlights.
3. Secure any loose wires with cable ties.
Taillight Installation
1. Connect the taillights to the taillight leads
on the main harness.
2. Insert the taillight assemblies into the holes
cut out earlier. Once in place, secure with
the (8) Included Screws.
3. Secure the taillight wires to the frame with
cable ties so they are safely out of the way
of the tires.
Page 7

Page 8
Power Connections
NOTE: Complete this section once the lights, wire harness and push-pull switch have
been installed.
CAUTION: This light kit is designed for 12V DC operation only. Please be advised that
operating this light kit at a voltage over 12V DC can damage components and will void
any and all warranties.
1. Verify the cart is in the TOW position (if equipped) and the key is OFF.
2. Verify any exposed wires and the push-pull switch are not touching the frame or any
metal parts on the cart.

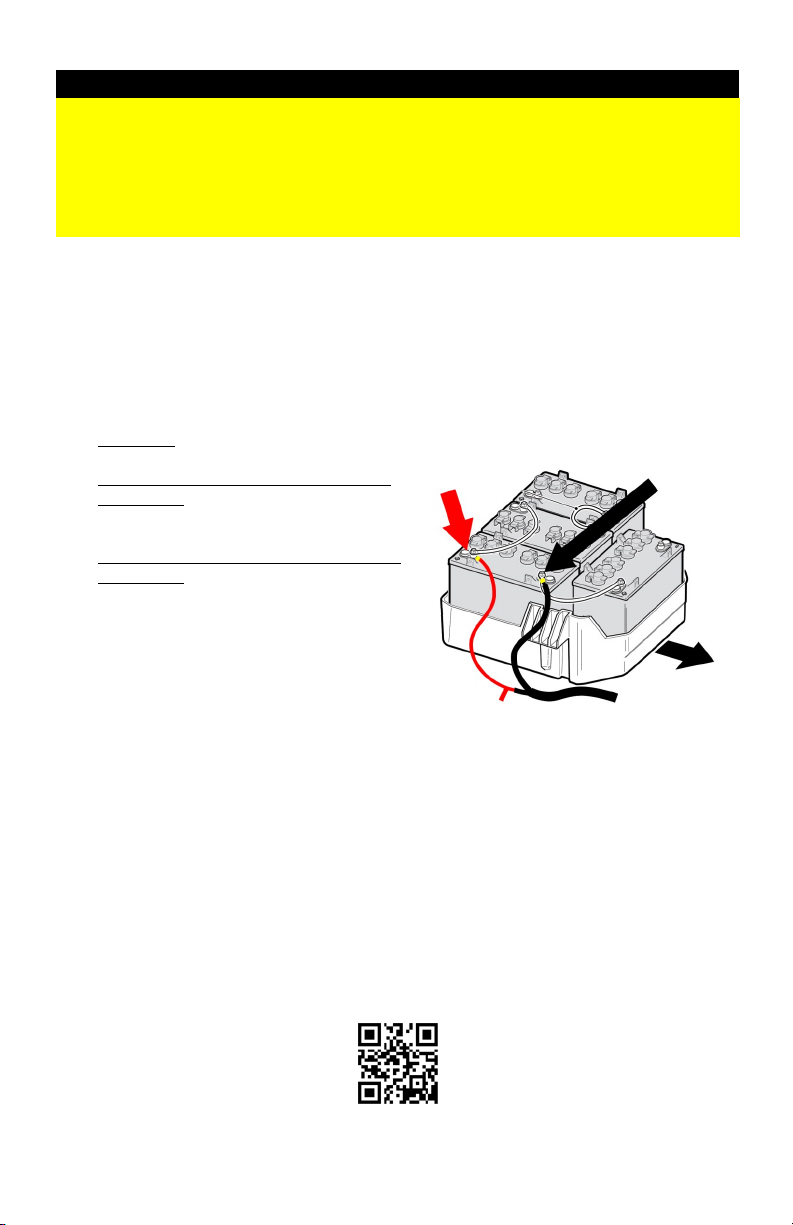

3. Connect the positive and negative battery connections from the light kit’s harness to
the batteries. Tighten the nuts but do not over tighten. Over tightening can destroy
the battery posts. A 48V battery pack is shown with 12V batteries.
Gas Carts: Connect the wires to the 12V battery.
48V Electric Carts with 8V Batteries for
12V Output: A voltage reducer is
required to reduce the voltage to 12V.
48V Electric Carts with 12V Batteries for
12V Output: A voltage reducer is
recommended to reduce the voltage to
12V but (1) 12V battery can also be used
as shown.
Note: Light sparks can be normal when
connecting the batteries, but a bright
arching flash indicates there is a short in
the system. Always test the batteries
with a voltage meter as each
configuration may vary.
4. Put the cart in the RUN position (if equipped) and turn the key ON.
5. Turn the lights ON and test them to make sure they function properly.
6. Secure any loose wires with cable ties.
Your RXV Light Kit is now complete.
Please enjoy safely!
