1. Machine Overview
1.1 Safety Instruction
This product is used for counting banknotes. Our company does not assume any responsibility for
any loss arising from the application of this product for any purpose other than the above without our
company's permission, and for any loss caused by any modification of this product not by our company
or by any agents not authorized by our company.If you need to install or transport this product, please
consult your local agent to reduce (avoid) product damage due to installation errors or transportation
shocks.
Please read this manual carefully before using, so as to operate the product accurately. Please
contact your local agent if you encounter any problem.
We reserve the right to change the contents of this instruction manual at any time without notice.
NOTE：
 This product is used for counting banknotes described in the specification. Please do not use this
product for any other purposes.
 This product is only used in corresponding countries or regions and may not be used in other
countries or regions due to the difference between power supply specifications and safety
standards.
 Please understand that the contents of this manual are subject to change without prior notice.
 The appearance and technical specifications of this product are subject to change without prior
notice. Therefore, the actual product may be different from the instructions in this manual.
 This product may not be changed or modified in any form without the explicit written authorization of
our company.
 Please contact your nearest sales store or our designated distributor if you need to install this
product.
 This machine is specially designed for indoor use. Please do not install or use it outdoors.
 Please do not install it in places that cannot bear the weight of this product or in places that are
inclined or uneven.
 Do not use or place combustible materials, inflammables and volatile items such as thinners
around/inside this product.
 Do not bend the power cord excessively, or place heavy or sharp objects on top of the machine.

BC-55 User Manual V1.7
4
 Do not use this product in an excessively humid environment.
 Please avoid strong light and strong magnetic field interference.
 When the machine is not in use, please turn off the machine switch. Prevent curtains and various
entangled materials from getting caught in the machine.
 When cleaning the machine, turn off the machine switch.
1.2 Installation Instruction

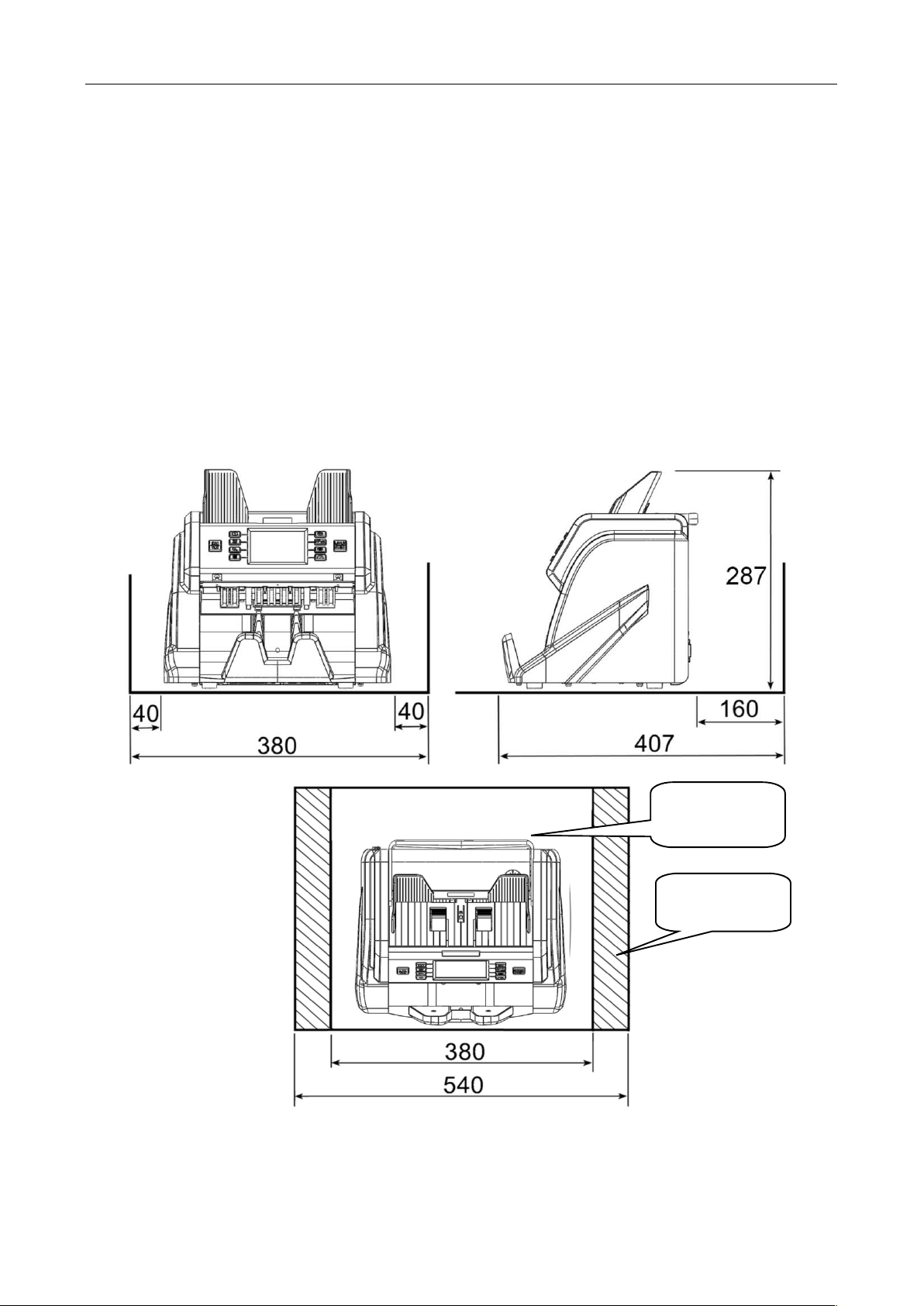

As shown in the Figure 1, please stay away from the surrounding walls and reserve sufficient
operation space for placement of banknotes, opening or closing of the cover plate, as well as for
maintenance.
Unit（mm）
Figure 1
Installation
space
Maintenance
space

BC-55 User Manual V1.7
5

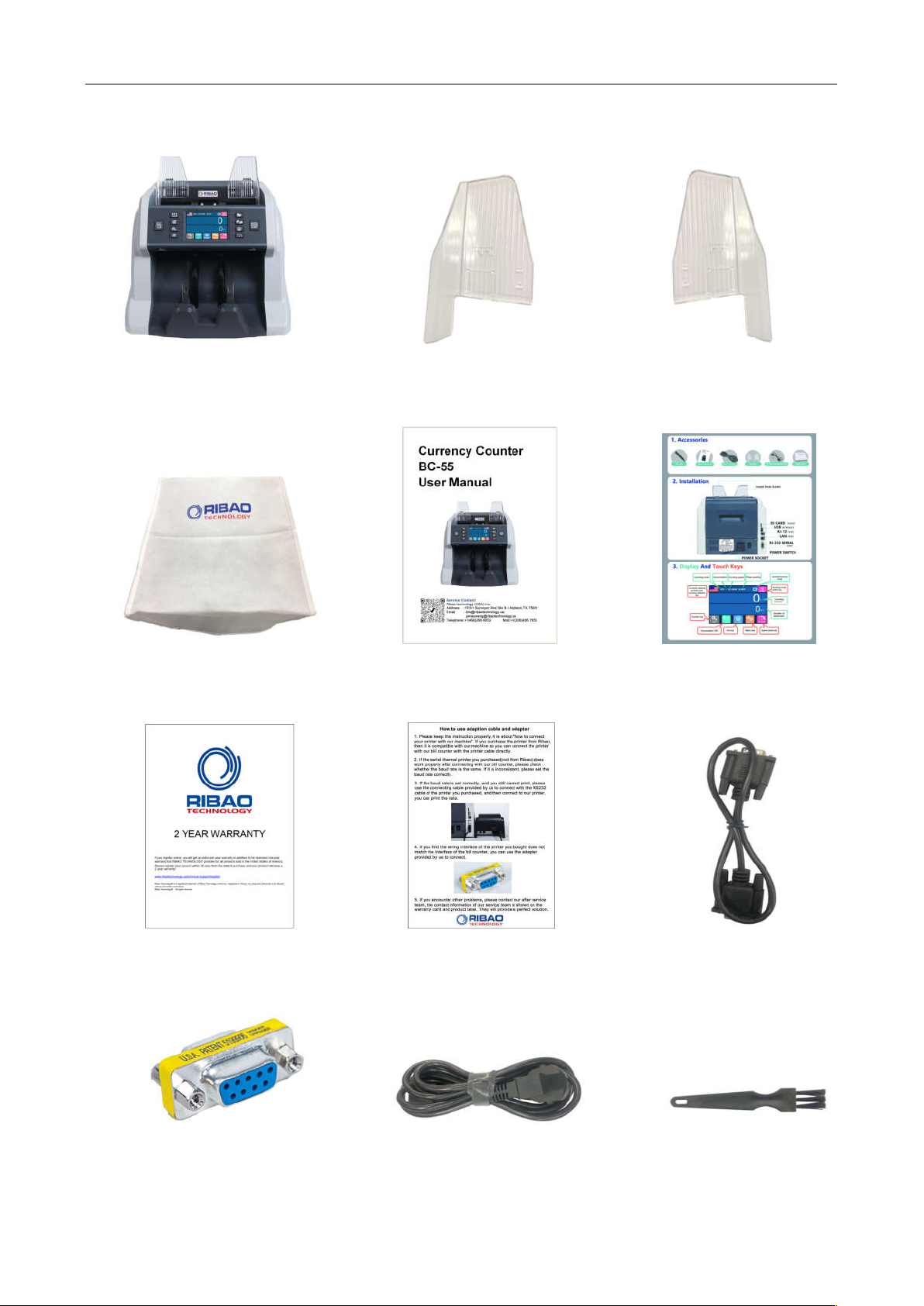

1.3 Machine & Accessories
Machine Note guider(left) Right guider(right)
Dust cover User manual Simple manual
Warranty card Manual for printer cable DB9 cable
DB9 adaptor Power cable Clean brush

BC-55 User Manual V1.7
6

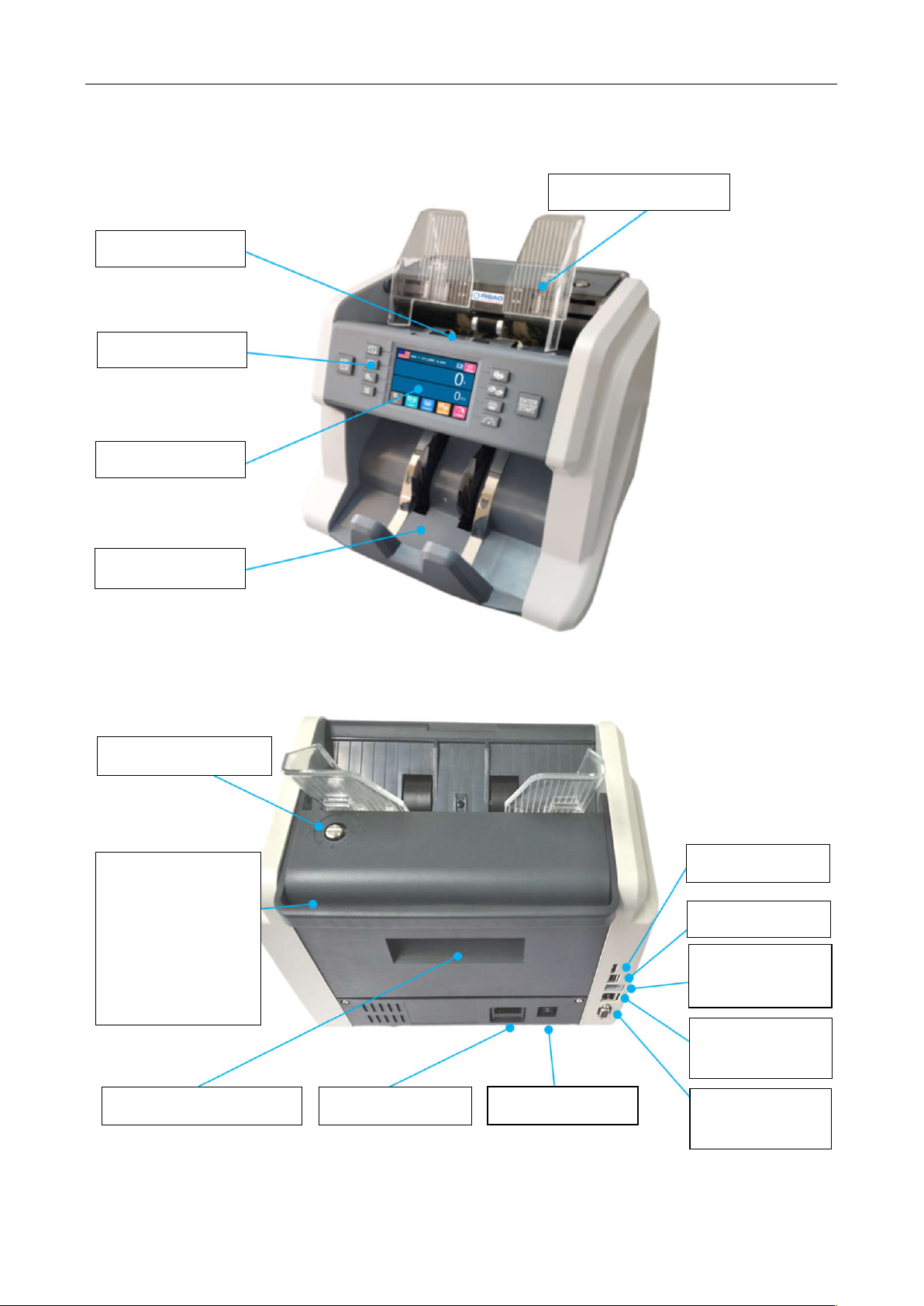

1.4 Appearance
1.4.1 Front Appearance
1.4.2 Back Appearance
Stacker
Hopper
Note Guider
Display
Key
SD card slot
USB slot
RJ12:Connect
external display
LAN port:
Connect PC
Serial port:
connect PC
Power jack
Rear lid open button Power switch
Handle:Use when
transporting the
machine, and place
it behind the
machine when
counting money.
Feed gap knob

BC-55 User Manual V1.7
7
1.5 Technical Parameters
Overall dimensions
(length×width×height)
300mm×247mm×287mm
Weight About 7KG
Capacity of banknote inlet 600
Capacity of banknote receiving
port
200
Display 3.5 inch TFT touch screen
Interface RS-232/LAN/RJ12/SD/USB
Currency support capacity
the standard software includes 5 currencies, if you need more
currencies, please call us or contact us by email.
Countable Note Size
Length: 100mm~180mm
Width: 50mm~90mm
Countable Note thickness 0.05mm~0.12mm
Counting speed
800/1000/1200pcs/minute (MIX, SDC mode)
800/1000/1200/1500pcs/min (CNT mode)
Counting mode MIX, SDC, CNT
Batch number 0~200
Counterfeit detection function UV/MG/MT/IR
Power requirement
AC 220V 50Hz ±10%
AC 110V 60Hz ±10%
Noise during operation 60-75DB
Power consumption
≤15W standby
≤50W operation
Use environment
Ambient temperature (0~40℃)/humidity (40~90%)
Air pressure (70-106kpa)
Storage environment
Ambient temperature (-40~55℃)/humidity (10~95%)
Air pressure (70-106kpa)

BC-55 User Manual V1.7
8
1.6 Start-up
Reminder: To ensure smooth counting please install the left and right Note Guider in the box. Please
check below Figure 2.
Figure 2
1) Take out the left Note Guider, install the click into the rail of the Note Guider, and press the Note
Guider until you hear a clicking sound, it means the Note Guider is installed in position, as shown in the
Figure 3.
Figure 3
2) Then take out the right Note Guider, intall it in the same way. After you finish both, the machine looks
like this:
Figure 4

BC-55 User Manual V1.7
9

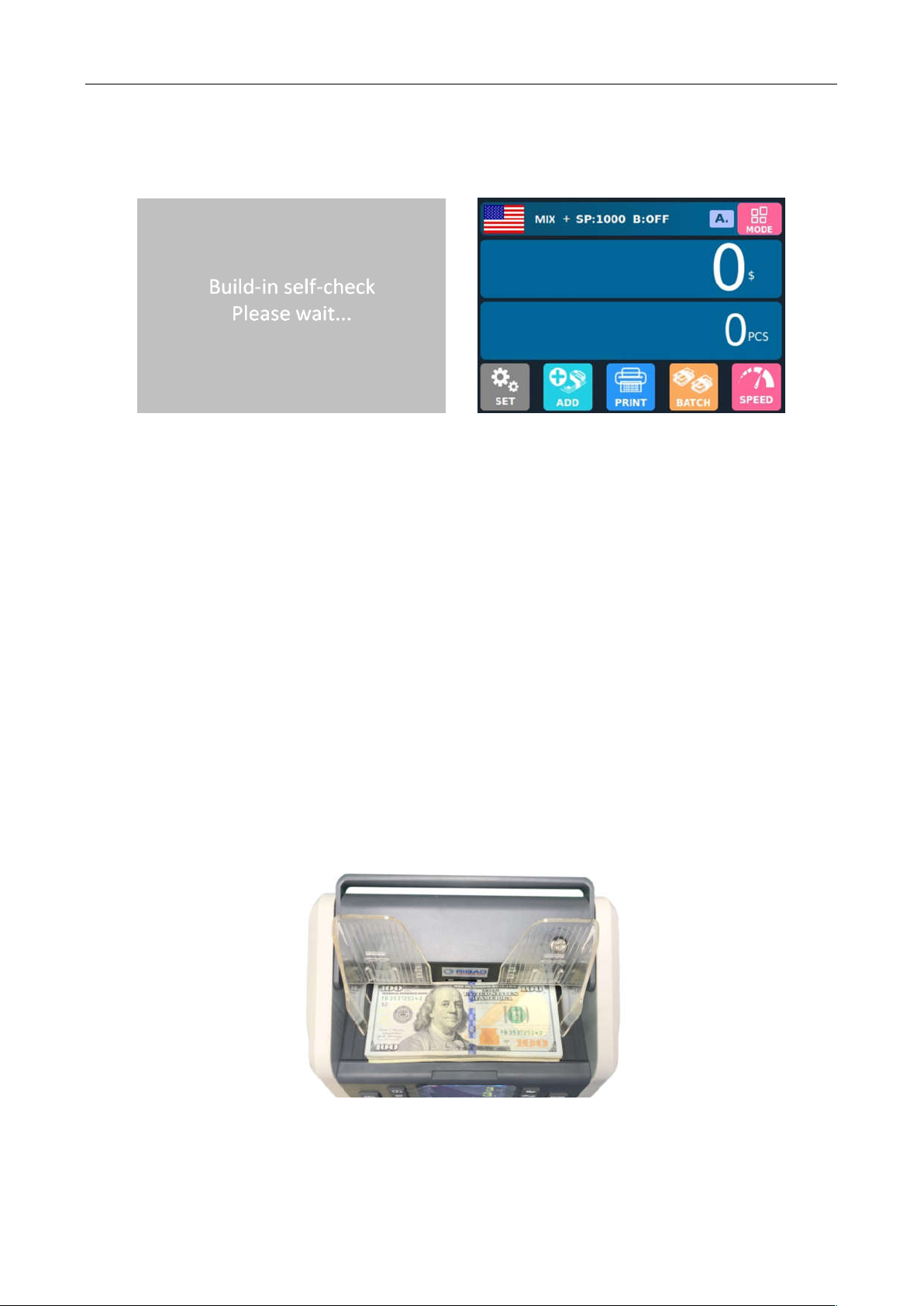

3) Connect the machine to the power supply and turn on the power switch. First, the machine enters the
loading interface. After loading, the machine enters the self-check interface, as shown in Figure 5 below.
The machine will enter the main interface after self-checking succeeds, as shown in Figure 6 below:
Figure 5 Figure 6
1.7 Notes Placement
1) Please put the handle of the machine on the back of the machine first.
2) The banknotes to be counted should be sorted according to size and then put into the hopper. The
banknotes counted should be pre-arranged and straightened out when they encounter folds, folds, and
arches, which can increase the one-time pass rate.
3) During the banknote counting process, the note guider should be limited according to the maximum
size of currently counted notes to ensure that the banknotes can be accurately identified by the relevant
sensors. Taking US dollors as an example, please arrange the banknotes first, and then limit the note
guider according to the largest size banknote. Finally, put the banknotes into the hopper and start
counting, as shown in Figure 7:
Figure 7

BC-55 User Manual V1.7
10
1.8 Counting error code
Error reporting code Reason for error
51 White light image, image denomination not recognized
151-159
Infrared images, each code represents a counterfeit detection point with
inconsistent characteristics
202 Ultraviolet emission abnormal
203 Ultraviolet projection abnormal
351 Big magnetic number (BM)
463 Inconsistent edge magnetic characteristics (number)
471-482
Magnetic image abnormal, divided according to the magnetic head in
which abnormal signals appear
501 Serial number error
551, 555 Reject (tilt)
552 Reject (damage)
553, 556 Reject (chained)
554 Reject (incompletion)
557 Reject (sticked)
901 Different denominations, different from the first denomination

BC-55 User Manual V1.7
11
2. Function Introduction
2.1 Function Introduction
2.1.1 Display Interface and Touch Screen Description
Figure 8
2.1.2 Operating Instructions for Function Keys
Return key, to return to the previous interface when the function is set; Clear key.
Currency selection key.
Mode switch key.
Function key.
Counting information check key.
Accumulation function switch key.
Preset switch key.
Data printing key.
Speed switch key.
Start key, start the machine manually; Save key after selecting and entering, confirming or
modifying the function.
1. Currently selected currency and
currency selection key
2. Counting mode
3. Accumulation
4. Counting speed
5. Preset quantity
6. Automatic/manual mode
7. Counting mode switch
8. Counting amount
9. Number of banknotes counted
10. Speed switch key
11. Function key
12. Accumulative function key
13. Print key
14. Batch key

BC-55 User Manual V1.7
12
2.1.3 Manual/Automatic Setting
The “ ” key in the upper right corner of the display is the manual/automatic switch key. Touch it
and the mode will be changed.
Automatic mode: the word “ ” will appear in the upper right corner. The machine will count the
banknotes automatically when they are put into the banknote hopper, as shown in Figure 9.
Manual mode: the words “ ” will appear in the upper right corner. The machine will count the
banknotes when they are put into the banknote hopper. After pressing START, the machine will count the
banknotes.
Figure 9

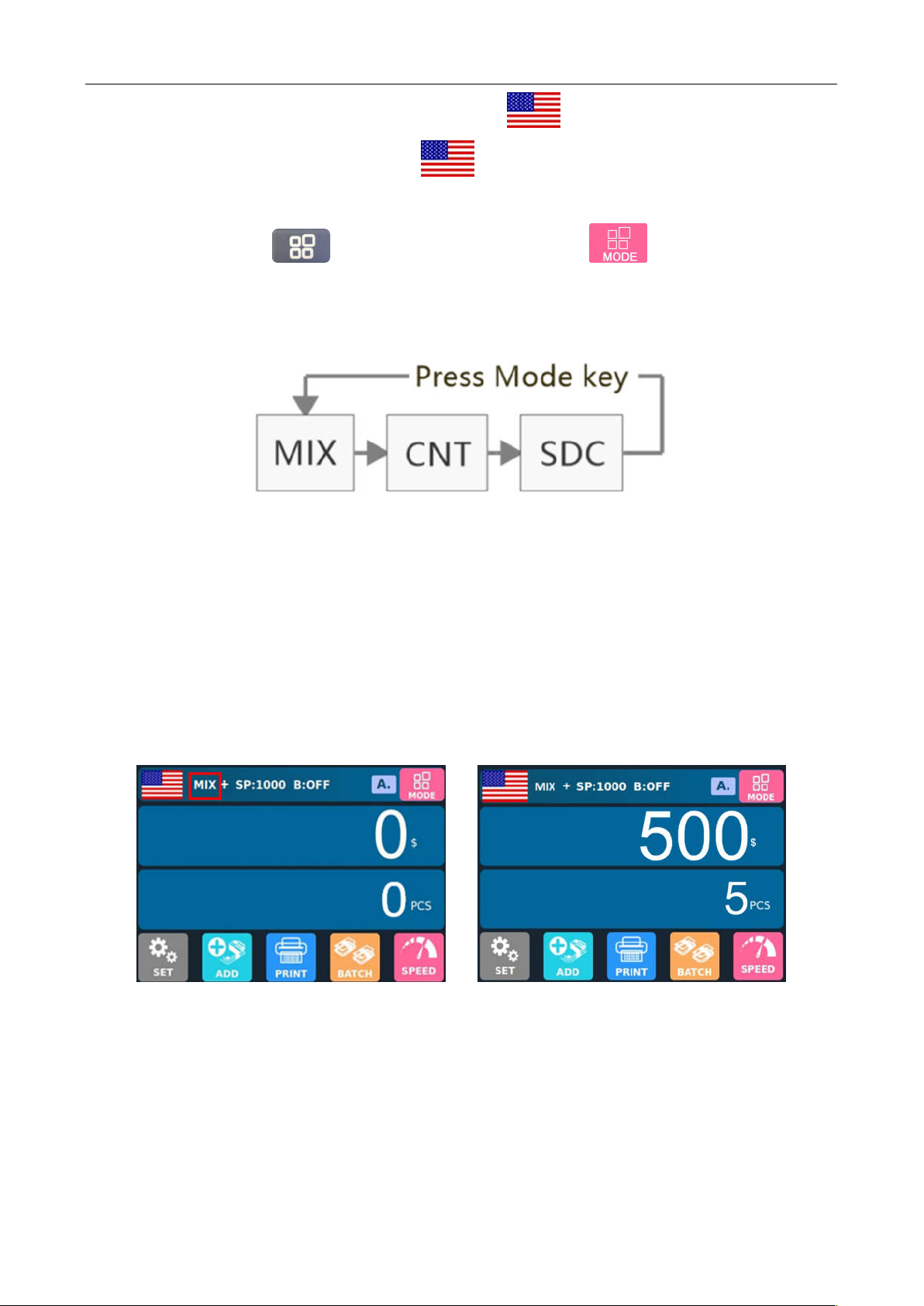

2.1.4 Selection of Counting Mode
2.1.4.1 Single Currency Counting Mode
The currencies of different countries can be selected by pressing the “ ” key on the keyboard
plate or touching the “ ” flag pattern in the upper left corner of the display, as shown in Figure 10
below:
Figure 10

BC-55 User Manual V1.7
13

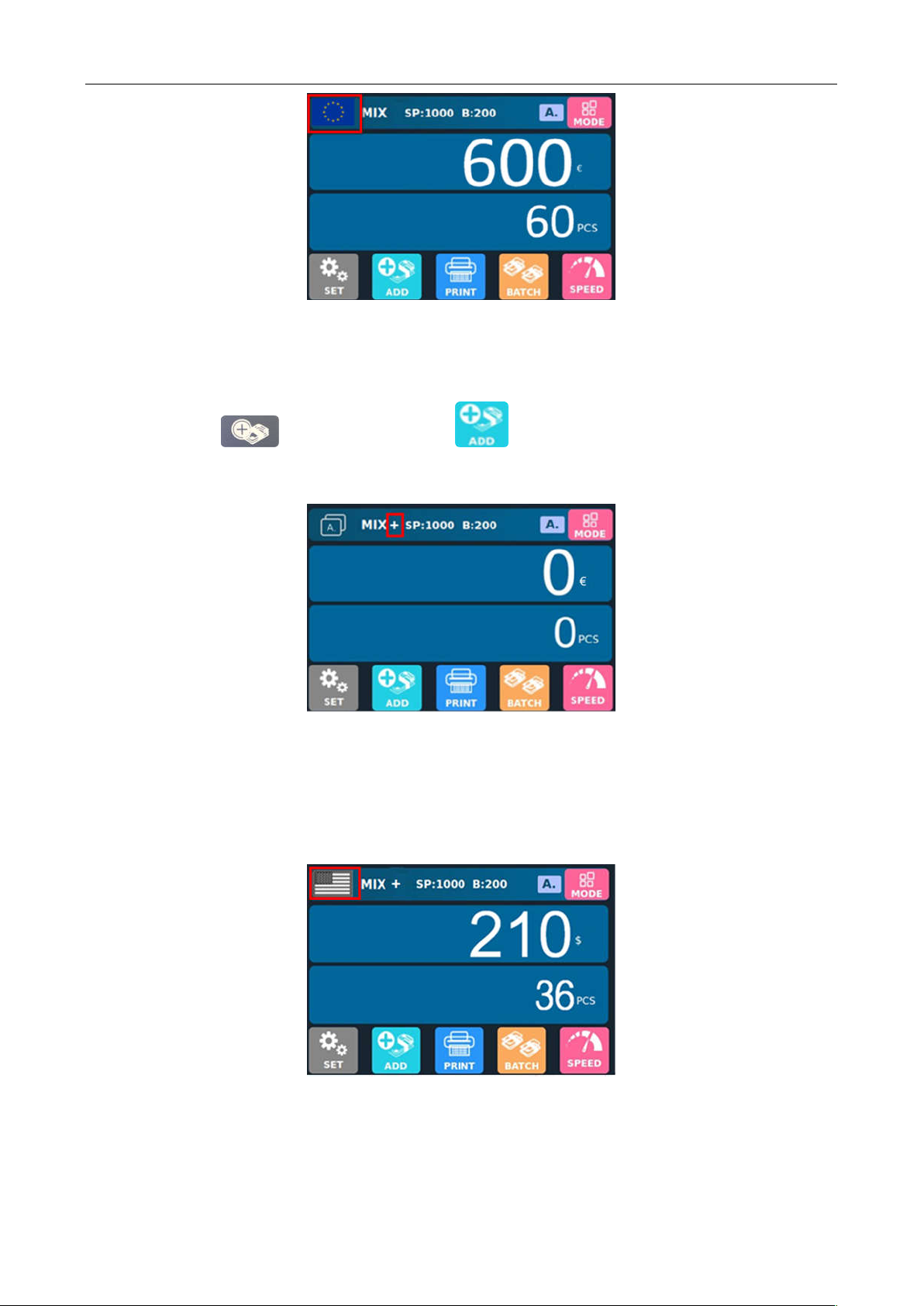

Take US dollors as an example. After the touch of “ ” key, the display returns to the main
interface, and the top left corner displays the “ ” flag graphic, indicating that the machine is in the
mode of counting US dollors.
By pressing the key “ ” of the keypad or touching the key “ ” on the upper right corner
of the display screen, three counting modes can be cyclically switched, and the three counting modes
will be cyclically switched according to the MIX-CNT-SDC sequence.
Figure 11
2.1.4.1.1 <MIX> Mix Counting Mode
The following figure 12 and figure 13 shows the interface of the machine in MIX Counting Mode. In
this mode, the machine will count the banknotes of all denominations of US dollors, and count and save
the detailed information of the counted banknotes at the same time, including the total amount and the
total number of banknotes in stacker, so as to facilitate users to check. In this mode, the machine has
three counting speed (800/1000/1200 pcs/minute) options.
Figure 12 Figure 13
2.1.4.1.2 <CNT> Count Mode
The following figure 14 and figure 15 shows the interface of the machine in CNT Count Mode. This
mode does not limit currency, and only counts the number of banknotes; It only works with double note

BC-55 User Manual V1.7
14
detection function and no other counterfeit detection function. In this mode, the machine has four
counting speed (800/1000/1200/1500 sheets/minute) options.
Figure 14 Figure 15
Note: In MIX Counting Mode and SDC Single Counting Mode, the machine has the functions of
image acquisition, magnetic detection, ultraviolet detection and double note detection. While in CNT
Counting Mode, there is only a double note detection function.
2.1.4.1.3 <SDC> Single Counting Mode
The following figure 16 and figure 17 shows the interface of the machine in SDC Single Counting
Mode. In this mode, the machine will count the banknotes of the same denomination of US dollors with
the first banknote counted as a reference, and count and save the detailed information of the counted
banknotes at the same time, including the total amount and the total number of banknotes in the stacker,
so as to facilitate users to check. In this mode, the machine has three counting speed (800/1000/1200
sheets/minute) options.
Figure 16 Figure 17

BC-55 User Manual V1.7
15
2.1.4.2 Automatic Recognition Mode
Automatic recognition: Refers to the automatic recognition of banknote counting mode. In the
process of counting banknotes, the machine uses the first banknote passing through the sensor as the
judgment rule to recognize banknotes of all denominations of the same country. When banknotes from
other countries are recognized, the machine will alarm and stop. At this time, banknotes from other
countries need to be taken out, and the machine will continue counting. The machine can only recognize
the currency of the country displayed in the program.
Press the key “ ” or the flag “ ” on upper left corner of the display to enter the currency
selection interface, as shown in the following Figure 20:
Figure 10 Figure 20
In the automatic recognition mode, there is only one MIX Counting Mode, and the display of
machine counting information will be different when the accumulation function is off and on.
When the accumulation function is off, the machine will only record and display the details of the
current counting after each counting.
When the accumulation function is on, the machine will accumulate and count the details of current
and previous counting after each counting.
2.1.4.2.1 Accumulation Function Off
1) There is no sign “+” between “MIX” and “Speed: at the top of the display, indicating that the
accumulation function is off at this time. as shown in the following Figure 21.

BC-55 User Manual V1.7
16
Figure 21
2) Example: Put a handful of US dollars into the machine to count. The interface of the machine displays
as follows at the end of counting: The flag in the upper left corner is identified as US dollars. as shown in
the following Figure 22.
Figure 22
3) Take out the US dollars in the stacker, then put the Euro into the machine to count. The machine
interface displays as follows at the end of counting: The flag in the upper left corner is identified as Euro.
as shown in the following Figure 23.
Figure 23
4) After the banknotes in the stacker are taken out, the machine will only display the total number and
total amount of banknotes counted for the current time, and will not display the details of the previous US
dollors, as shown in the following Figure 24.

BC-55 User Manual V1.7
17
Figure 24
2.1.4.2.2 Accumulation Function On
1) Press the key “ ” or click on the button “ ” at bottom of the screen, and a symbol “+”
will appear at the top of the display. as shown in the following Figure 25.
Figure 25
2) Example: Put the US dollors into the machine for counting first, and the machine interface displays as
follows at the end of counting: The flag in the upper left corner is identified as US dollors, as shown in the
following Figure 26.
Figure 26

BC-55 User Manual V1.7
18
3) Take out the US dollors in the stacker, then put the euro into the machine to count. The machine
interface displays as follows at the end of counting: The flag in the upper left corner is identified as euro.
as shown in the following Figure 27.
Figure 27
4) After the banknotes in the stacker are taken out, the machine will count and accumulate the details of
the previous and current counting, and the following interface will appear:
Figure 28
5) After the banknotes are put in again, the upper left corner of the machine will still recognize the
banknote type and change the flag icon. After the banknotes in the stacker are taken out, the machine
will continue to accumulate the banknote counting details. If we put in US dollors for banknote counting,
then put in Pounds, CAD, euro, and finally take out the banknotes in the stacker, the machine will display
the following interface:
Figure 29

BC-55 User Manual V1.7
19
2.1.4.3 Multi-currency Mix Counting Mode
Multi-currency Mix Counting: Banknotes from multiple countries are mixed together and put into
a machine to count. The machine can recognize all the currencies displayed on display.
1) Press the key “ ” or the flag “ ” on upper left corner of the display to enter the
currency selection interface, as shown in the following figure 10，then Click on the Multi-country Mix
Counting Mode " ", and the display screen will be automatically adjusted to the main interface
after selection, as shown in the following figure 30:
Figure 10 Figure 30
2) Example: Put a handful of banknotes (including US dollars,Euro,pounds,CAD) into the machine to
count. Details of counting after counting are shown in the following figure 31:
Figure 31
2.1.5 Counting Speed Setting and Function Description
There are four counting speed options: 1500, 1200, 1000 and 800 (Note: 1500 is only optional in
CNT Counting Mode). The default speed is 1200 in the three modes. If setting is required, different
counting speeds can be switched by pressing the “ ” key or touching the “ ” key in any
