Richelieu 721ELOCKG2900 User manual

DOWNLOAD NOW
USER MANUAL
GLASS DOOR LOCK
WELCOME
Fingerprint Password tuya App
RFID Card Remote Control
(Optional)

INDEX
Introduction
Lock Structure
Product Features & Packing Details
Technical Specification
Installation Steps
Operation Steps
FAQ

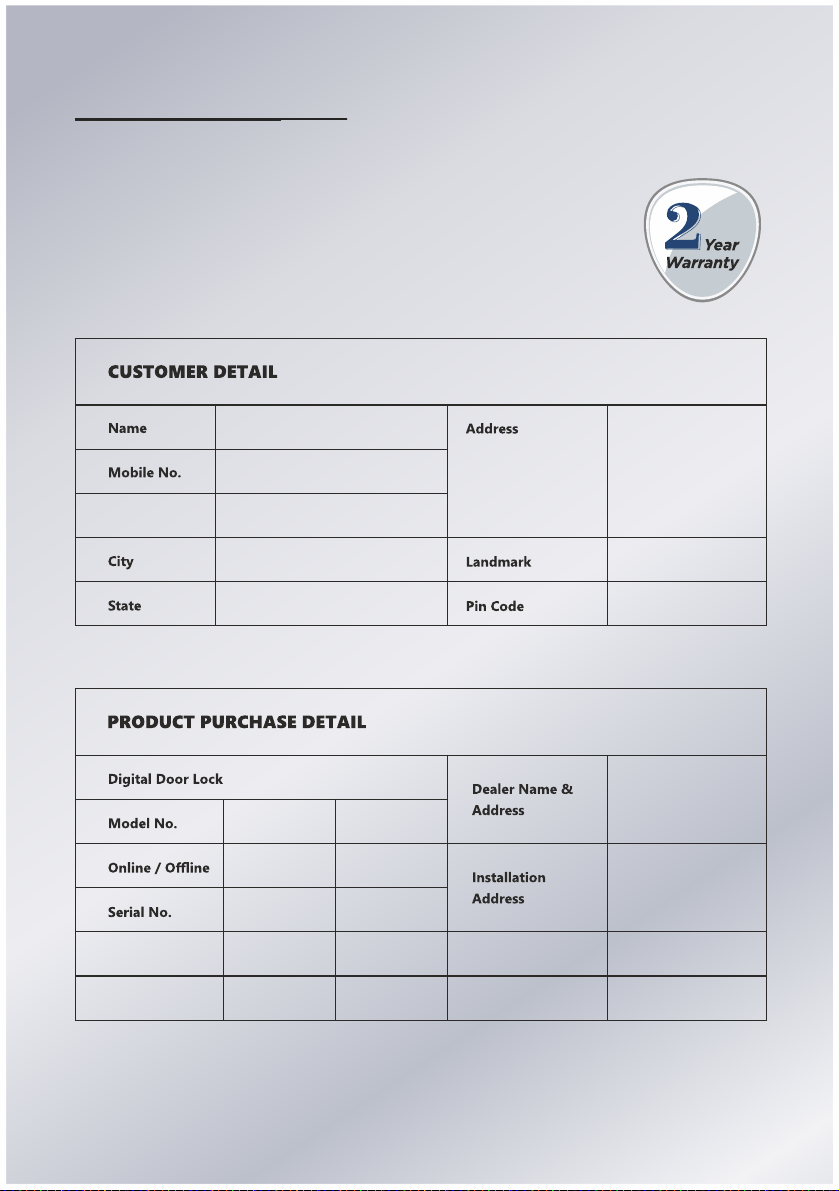

Warranty Card
3
4
5
1-2
6-8
11
9-10
12-13

INTRODUCTION
CAUTION
The image contained in this manual is a reference used for description and instruction,
and its types and colors may differ following the product model.
Since the product is a keyless door lock, a part of the door lock may get damaged in
case of malfunction. Therefore, the user needs to be familiar with the manual closing and
opening of the device in an emergency.
1. Voltage: DC6V
2. Be cautious that reverse installation of batteries may cause liquid leakage or a burst.
3. When the battery is discharged, replace all batteries and DO NOT use used batteries with a new
one.
4. Sensor operation temperature: 60°C (+10°C).
1
- Necessary safety measures must be ensured before starting the installation to prevent damage to assets and personnel.
- Accuracy of the door preparation is a critical parameter for the proper door installation, Lock functioning, and security of the
product.
- Any deviation from the given specs and misalignments etc., can cause performance and security breaches.
- The product images shown in this document are for reference & representation purposes only & the actual product may differ from
these.
- Check for leveling & alignment of doors before installation of the product.

2
INTRODUCTION
CAUTION
- Necessary safety measures must be ensured before starting the installation to prevent damage to assets and personnel
This product must be installed by an iLockey professional. In case of defects resulting from installation by other than
an iLockey professional, the Product warranty will be void. iLockey reserves the right to charge on out-of-warranty
products.
.
- Accuracy of the door preparation is a critical parameter for the proper door installation, Lock functioning, and security of the
product.
- Any deviation from the given specs and misalignments etc., can cause performance and security breaches.
- The product images shown in this document are for reference & representation purposes only & the actual product may differ from
these.
- Check for leveling & alignment of doors before installation of the product.
- Admin/Master should always be used by the primary owner of the house and can be activated or deactivated by him only.
- Always change the default factory password in the applicable models immediately after the installation is complete.
- Inserting batteries in the wrong direction or wrong polarity in the battery compartment may lead to fluid tears or ruptures, so
always make sure you insert the batteries as per the correct polarity, which matches the product’s polarity (+/-).
- Always keep the Master Passcode safe, and in the case of forgotten Master Passcode, please get in touch with our helpline number
for further assistance.
- Always use a soft and dry cloth to clean the product.
- Replace all old batteries with a new ones when changing batteries. Using old batteries in combination with the new ones can cause
the product to malfunction.
- Use Alkaline batteries only.
- Using rechargeable batteries may cause product malfunction.
- Do not Dismantle the product by yourself. Always take the help of the certified service technician for dismantling the product as
improper handling may cause damage to the product resulting in malfunctioning of it.
- Do not insert batteries with reversed polarities. Always check and ensure proper polarity of batteries in line with Product Polarity
while inserting it into the product as any mismatch can result in liquid leakage or rupture.
- Do not install, disassemble or repair the product without the help of a certified service technician.
- Do not give excessive impact force on the product.
- Do not directly spray water when cleaning the product. Water coming through into the product causes malfunction or abnormal
operation.
- Do not install the product in an area exposed to the external environment.
- Do not let dew condensation enter the product as it may cause product malfunction if a certain level of moisture enters into it, so
make sure to remove any source of dew condensation through periodic ventilation or paper weather stripping.
- Please read all the safety & operating instructions before the product installation.
- To ensure continuous access security, change your PIN code regularly.
- Only use new batteries & beware of potential battery leakage, which may cause damage/malfunction to the product.
- Replace all batteries when prompted by the automatic low battery indication and do not re-use any of the batteries.
- Installation must be done by an iLockey service professional.
- Disassembly or attempted repair, rework or reverse engineering is prohibited without written consent & approval of iLockey
except for the normal installation of the product by a designated service professional.
- Clean the product only with a dry microfiber cloth.
- Do not insert or press any of the buttons with Pin or sharp objects.
- This product has not been tested for external use. Avoid any contact with water.
- This product was designed for use in weather-protected outdoor and indoor areas and domestic application only.
- Do not expose the product to strong shocks or vibration.
- Keep the filled-out warranty certificate and invoice, as it is required for processing all warranty requests.
- The information in this user guide is subject to change without notice.
User Instruction
- Necessary safety measures must be ensured before starting the installation to prevent damage to assets and personnel.
- Accuracy of the door preparation is a critical parameter for the proper door installation, Lock functioning, and security of the
product.
- Any deviation from the given specs and misalignments etc., can cause performance and security breaches.
- The product images shown in this document are for reference & representation purposes only & the actual product may differ from
these.
- Check for leveling & alignment of doors before installation of the product.
Special Note Before Installation
Do’s
Don ‘t’s

INTRODUCTION OPERATION FAQ APPENDIX
3
Technical Specification
<
Fingerprint Speed 0.3S
Working Voltage 4 pcs (1.5V “AA”) alkaline batteries
< 0.0001%
Left and right interchange
Zinc alloy/ABS
200 Pcs
0.96 inch
Less than 10ua
Fingerprint, RFID Card, Passw
Tuya App, Remote Control (Optional)
1-1.5 Seconds
-20° - 50°
10% - 95%
Factory Master Password : 123456 a
configuration, it will be invalid
9
8-12mm
PWD+ RFID card (1000)Pcs
Glass Door Lock
2.2kg
Misidentification
Rate
Opening Method
Lock Material
Fingerprint Capacity
Display Size
Unlock Way
Unlock Time
Working Temperature
Working Humidity
Factory Passcode
Product Color Black
Administrator
capacity
User Capacity
Door Application
Product Weight
Remote Capacity 50 pcs
Static power
consumption
Suitable door
thickness

4
Lock Structure
(7) Door Bell
2. Keypad & RFID Card
1. Display
3. Fingerprint
4. Battery Cover
5. Mechanical Knob
6. Emergency Power Supply
7. Door Bell
(2) Keypad & RFID Card
(3) Fingerprint
(4) Battery Cover
(1) Display
(5) Mechanical Knob
(6)Emergency
Power Supply
9:49
171mm
35mm 70mm 43mm 20mm
Welcome

5INTRODUCTION OPERATION FAQ APPENDIX
PRODUCT FEATURES
1) Micro USB emergency power supply: Incase of emergency the product could be
operated by USB through power bank.
2) Fingerprint: use registered fingerprint to open the lock.
3) Digital keypad/RFID card indication area: use registered password or RFID card to open
the lock.
4) Reset button: use reset button for factory setting or initialization settings.
5) Smart freeze & auto secure: more than 5 times wrong password in 5 minutes, the keypad
will be locked for 90sec, the lock will not respond to any operation within the 90 seconds.
6) Anti-theft password; enter the password as follows when opening the door: XXX
password XXX. you can add some irrelevant digits before and after the password, and then
press # to confirm. the actual password must be included.
7) Door bell: when lights on can be used as #, lights off can be used as a bell.
8) Passage Mode: when you need to open/close the doors frequently.
9) Low battery alarm: when the voltage is lower than 4.8V, the alarm is activated each time
the lock is unlocked. the lock could be unlocked 100 times, after the first alarm.
10) Access records query: you can check access records anytime in Ozolife app.
10. Packing Details
Name QTY
Front Panel 1pc
Rear Panel
1pcs
User Manual
1pcs
RFID card
2pc
4pc
Mounting Plate
Opposite Pull Screw
2pcs
Strike plate(Glass to Wall)
Strike box(Glass to Glass)
M4 screws(Glass to Glass)
1pcs
1pcs
8pcs

6INTRODUCTION OPERATION FAQ APPENDIX

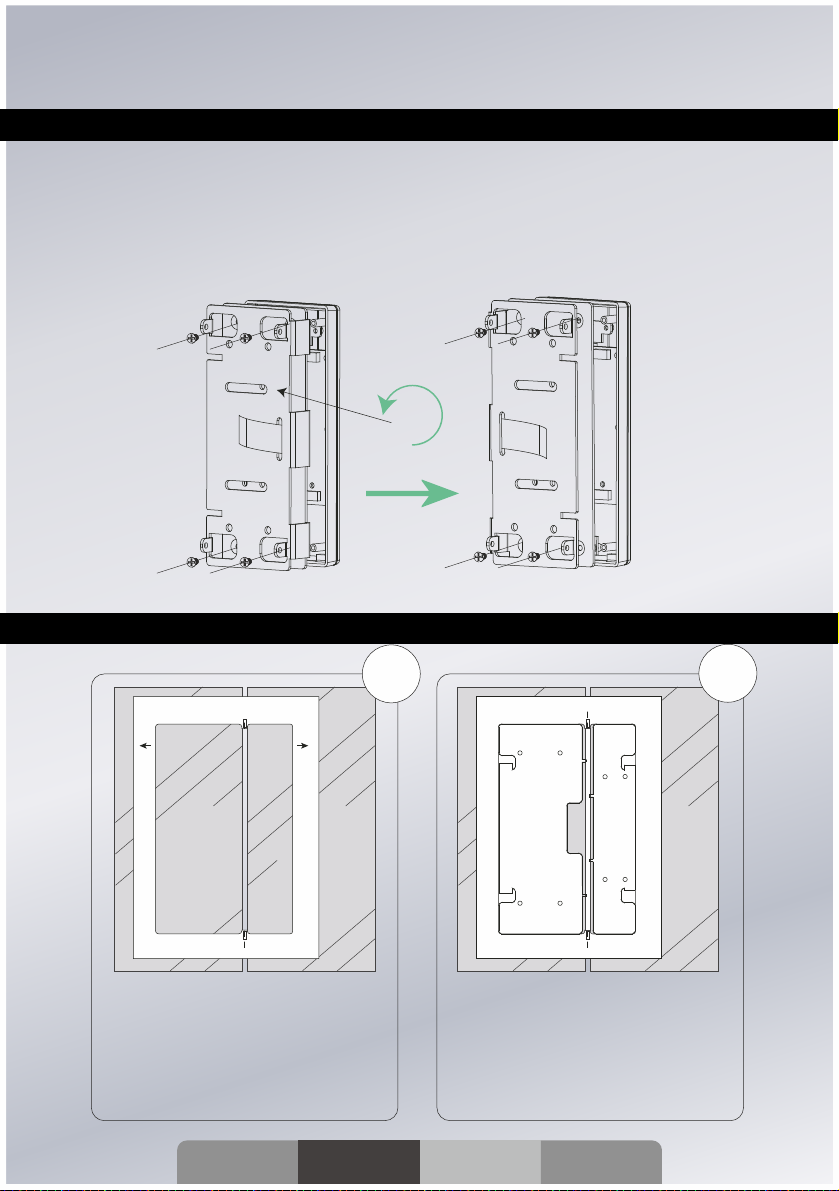

The reversing method of frameless glass door
Remove the 4 fixing screws on the front panel, rotate the U-shaped bracket by
180°, and then tighten the 4 screws.
Frameless glass door installation
Glass door seam should be more than 2mm
Please stick to the side if the door seam is allowed. Please stick to the side if the door seam is allowed.
Adhesive positioning plate
Glass door centerline
180°
12
fixing template of adhesive plate to
the door (door seam is aligned with
door seam line of template door)
Remove the adhesive tape from the
adhesive plate, and attach it to the
middle blank and press it tightly
(the small feet of the adhesive plate
are close to the door tightly)
Adhesive posioning plate
Aer cleaning the glass, aach the

7INTRODUCTION OPERATION FAQ APPENDIX
Note:
1. The template must be used for the position fixed plate. The door joint should not
be less than or equal to 4 mm.
2. The thickness of the glass is 10-12 mm.
1 2
Cable assembly
and disassembly
Flip up the buckle,maximum 90° Take out the cables
34
Firstly push the U clip from the side
of the glass door and screw up 4
fixing screws.
(The side lock fixing is as above)
Plug in the cables and cover the
back panel and then screw up 4
fixing screws.
(The side lock fixing is as above)

8INTRODUCTION OPERATION FAQ APPENDIX
Installation of framed door with holes such as wooden doors and aluminum alloys doors.
The installation of single opening (blade)
1
12
Arrow points to
the outside
Safe opening area
2
Install the main lock (installation
method is the same as above), and
then unscrew the lock tongue to
mark it when the door is closed
naturally.
According to the size requirements,
please open holes on the door and
fix the main lock through cables
and screws, and finally fix the back
panel by screws.
The side lock should be fixed
directly with self tapping screws or
rivet and also the back panel
should be fixed with screws.
Note:When the blade is installed, its
triangle direction must point to the
outside (the hole should be opened
according to the size of opening
drawing)

INTRODUCTION OPERATION FAQ APPENDIX
9

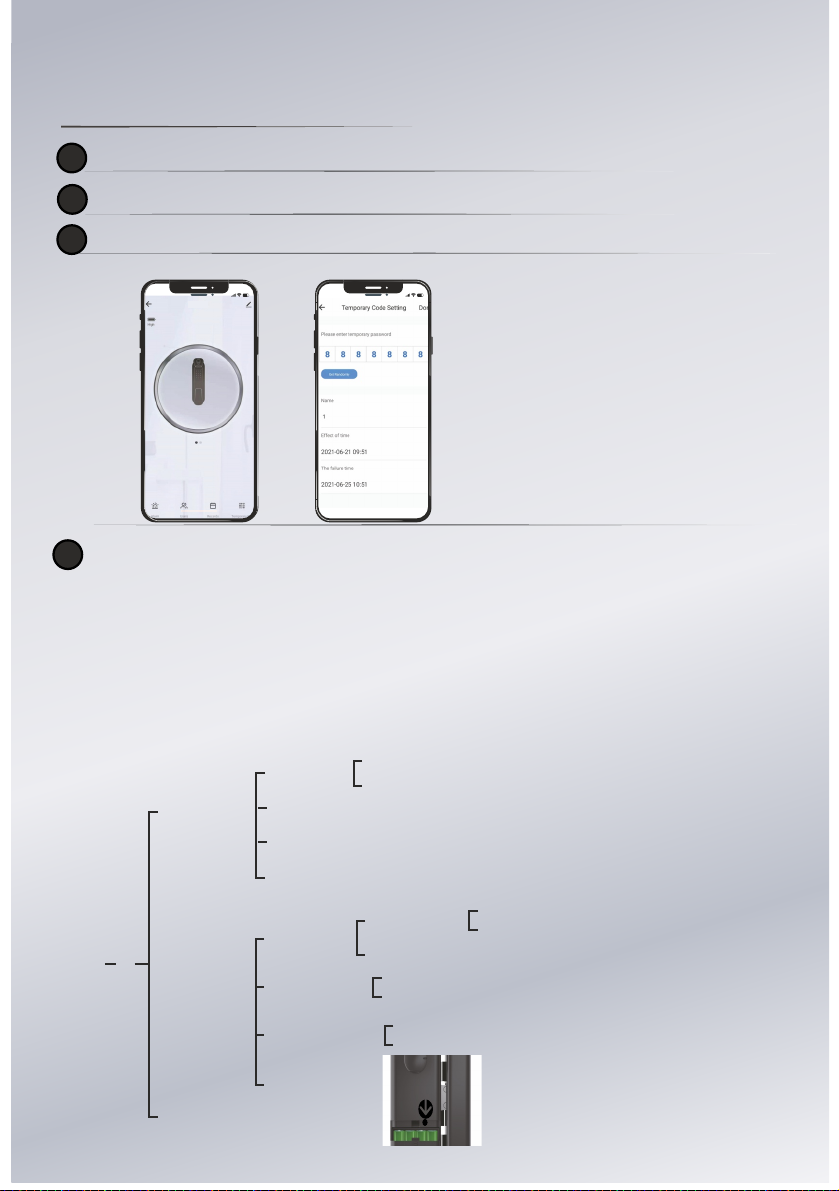

How To Pair The Lock With Tuya smart App:
1
2
Search Tuya smart app from the App store and register.
Open App and access it and follow below way add lock (Auto connection/add manually)
Auto connection.
ADD LOCK
3Add Manually
4Wake-up the keypad then press # then enter registered admin (password) with #
or fingerprint or RFID card. then press 2 for “System setting” then press 3 for
“RF device” then press 1 for “RF device ON”

10
1
2
After adding temporary code, need to try on lock then finished.
Max. Support 10 groups of code, and code can be edited or deleted.
3Temporary codes can be settled down by period.
5Remote unlocking: Press bell icon when keypad is off then unlock the
door through tuya app
ADD TEMPORARY CODE SETTING
How To Add Remote Control (Oponal)
Wake-up the keypad then press # then press 1 for “Manage user’ then press 1for
“Add user” then press 1 for “Add admin”and also press remote lock button for adding
remote
How To Operate Lock:
2
(1)Turn on the RF device
(2)Turn off the RF device ( the remote control cannot be used
(1)English
Please touch to wake up the screen and then press #
Enter administrator verification
Reset button
In the power-on state,
press and hold the
Reset button, and
release it after the voice
prompt "Clear success-
fully".
Note: In the initial state of the door lock,
any fingerprint password can be
unlocked. To prevent others from setting
the unlocking information by mistake,
please add the administrator password
and fingerprint in time。
-
Enter password,fingerprint,card,wireless device or its number
Enter administrator verification
Input # turn backwards, input* forward
(1) Set the automatic lock
(1) Set the lock mode
(2) Set the unlocking hold time enter the unlocking hold time
(1) Increase the volume
(2) Decrease the volume
(2) Set the manual lock
(1) Add user
(1) User management
System settings
(3) Language setting
(2) Delete user
(3) Clear
(4) Record query
(1) Set parameters
(2) Adjust the volume
(3) Switch wireless device
(4) Adjust time
1) Add an administrative use enter the password, fingerprint, card or wireless device
2) Add a normal user enter the password, fingerprint, card or wireless device

11
FAQs
How to read operation records?
1
Select “Opening record” option on lock main interface
After installation, touch sensing keyboard or screen not responding.
2
a) First check that the positive and negative electrodes of the battery have been installed upside down.
b) Check whether the battery has enough power.
c) Remove the back panel body and see if it's connected with the front panel.
d) Remove the lock and check whether the connecting wires of lock body are not squeezed or twisted.
Unable to register fingerprint.
3
a) Check the fingers for dirt or wear. Also check the fingerprint sensor on the lock for dirt and oil stains, etc.
b) Check if the fingerprint sensor is working properly (Press any fingerprint on sensor to see if there is any
response.
Why is the smart lock consuming power faster than usual?
4
a) Large standby power consumption.
b) Short circuit.
After how many incorrect password attempts will the lock go in auto secure mode?
For how long it will be in auto secure mode?
5
Every time you enter a wrong password more than 5 times in a row, the keyboard is locked for 90 seconds.

12
WARRANTY CARD
Invoice No.
Total Quantity
E-Mail ID

13

Special Instructions:
• Please replace the battery as soon as the low voltage alarm signals it.
• Read this manual carefully before installation and keep it safe, for future reference.
