Ricoh PRO C9100 Service manual

Technical Bulletin PAGE: 1/8
Reissued: 21-Nov-16
Model: Leo-C1a/C1b (D194/D195)
Date: 23-Feb-15
No.: RD777001b
RTB Reissue
The items in bold and italics were corrected or added.
Supplementary Explanation on the Adjustments to Prevent No-feed and
Double-feed Jams in the Vacuum Feed LCIT
The vacuum feed LCIT is capable of feeding a versatile range of media, but is also
susceptible to paper curl by the nature of its mechanism of blowing air to separate the
sheets. This bulletin provides explanations on the adjustments to prevent double-feed and
no-feed jams, especially caused by paper curl. The main jam codes are as follows:
Jam type
Jam location
Jam code
No-feed
Upper Tray of 1st LCIT
J430
Lower Tray of 1st LCIT
J431
Upper Tray of 2nd LCIT
J445
Lower Tray of 2nd LCIT
J446
Upper Tray of 3rd LCIT
J460
Lower Tray of 3rd LCIT
J461
Jam type
Jam location
Jam code
Double-feed
Upper Tray of 1st LCIT
J470
Lower Tray of 1st LCIT
J471
Upper Tray of 2nd LCIT
J485
Lower Tray of 2nd LCIT
J486
Upper Tray of 3rd LCIT
J500
Lower Tray of 3rd LCIT
J501
Subject: Adjustments in Vacuum Feed LCIT to prevent no-feed
and double-feed jams
Prepared by: Shinnosuke Sasaki
From: 1st PP Tech Service Sec., PP Tech Service Dept.,
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2

Technical Bulletin PAGE: 2/8
Reissued: 21-Nov-16
Model: Leo-C1a/C1b (D194/D195)
Date: 23-Feb-15
No.: RD777001b

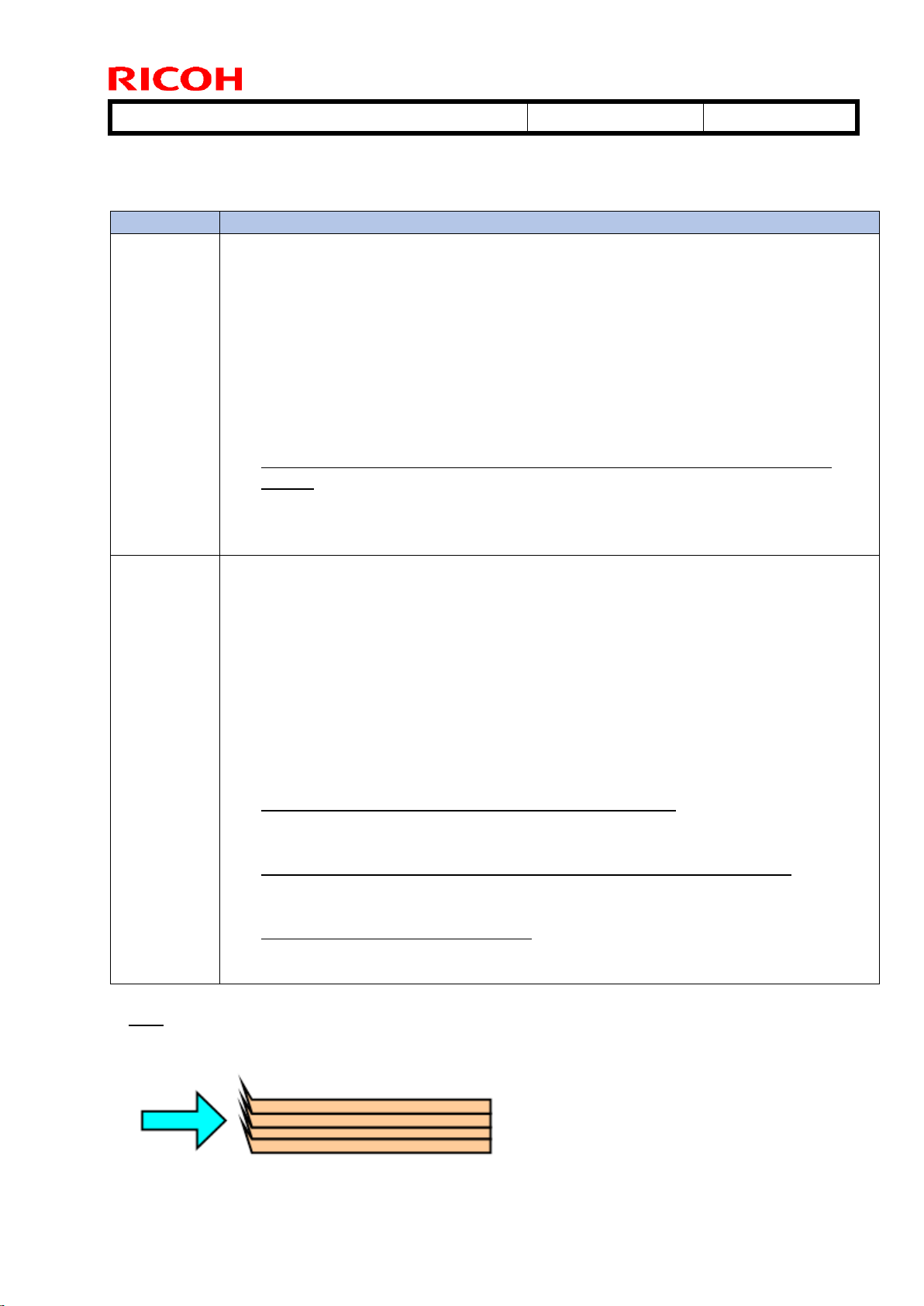

Adjustments
Code
Action
J430
J431
J445
J446
J460
J461
Do the following.
1. Fan and decurl the paper, as shown.
2. Set No. 118 [Paper Feed Mode (Adjust Fan Level)] in Advanced
Settings to [Moderate Nonfdg Red. (Higher)].
3. If the above does not solve the jam, change the setting to [Max
Nonfdng Reduc. (Highest)].
If none of the above solves the jam, do the following.
If dog ears occur on the jammed paper, and you are printing onto thin
paper:
Set No. 117 [Switch Paper Load Upper Limit] in Advanced Settings to
[High].
J470
J471
J485
J486
J500
J501
Do the following.
1. Make sure the Paper Size has been set correctly, and then fan/decurl
the paper.
2. Set No.118 [Paper Feed Mode (Adjust Fan Level)] to [Moderate Dble
Fd Red. (Lower)].
If the above does not solve the jam, change this setting to [Max Dble Fd
Reduc. (Lowest)].
If none of the above solves the jam, do the following.
If the paper curl is too strong, even after decurling.
1. Set No.116 [Side Fan Shutter] to [Active].
If you are using paper with high porosity such as recycled paper:
1. Increase No. 114 [Vacuum Fan] in Advanced Settings by +10%.
If you are using small envelopes:
1. Decrease No.111 [Updraft Fan] to [0].
Tips
Burrs on the paper edges may disturb the air flow and cause feeding problems. Fan the
paper to remove the burrs.

Technical Bulletin PAGE: 3/8
Reissued: 21-Nov-16
Model: Leo-C1a/C1b (D194/D195)
Date: 23-Feb-15
No.: RD777001b

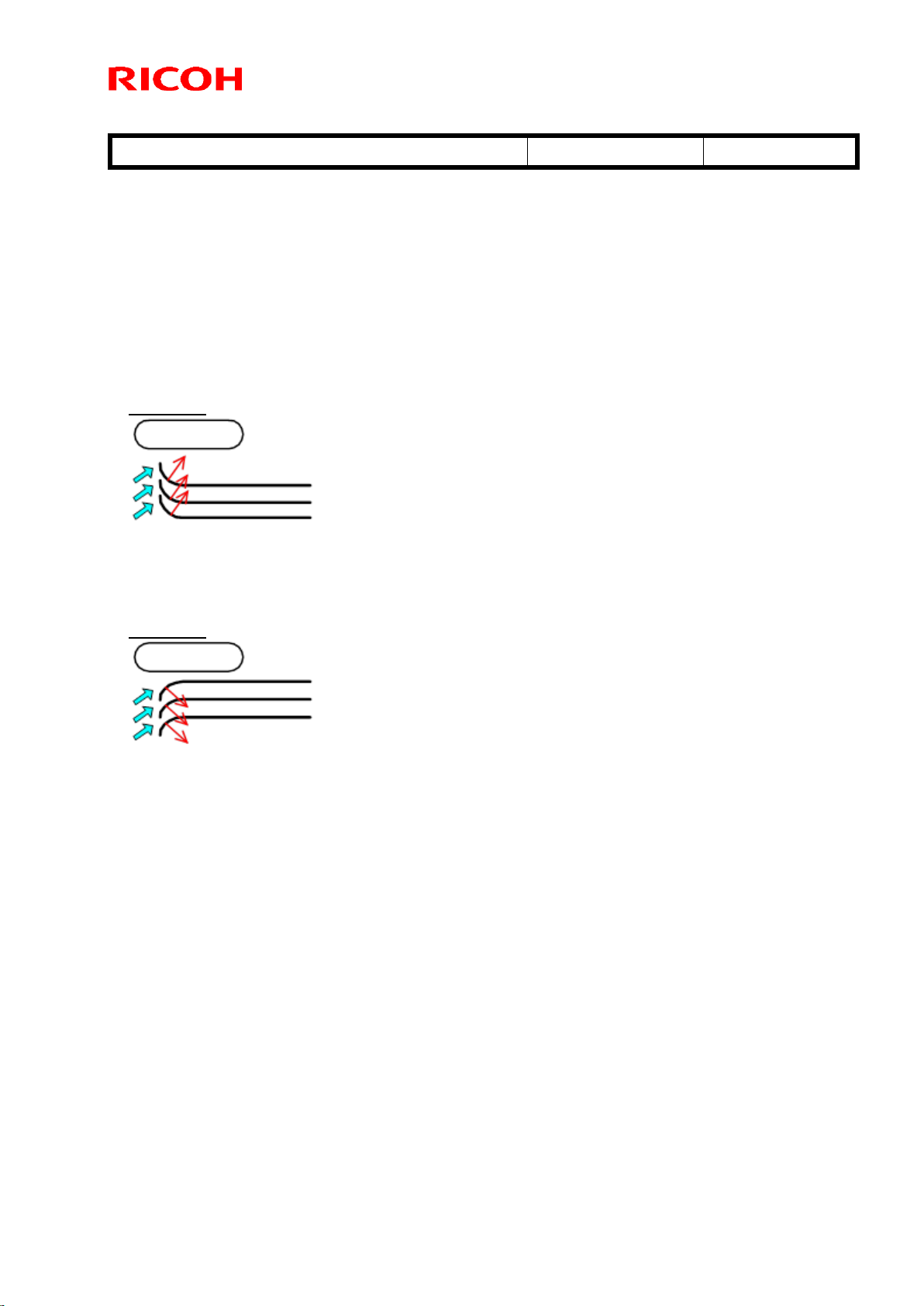

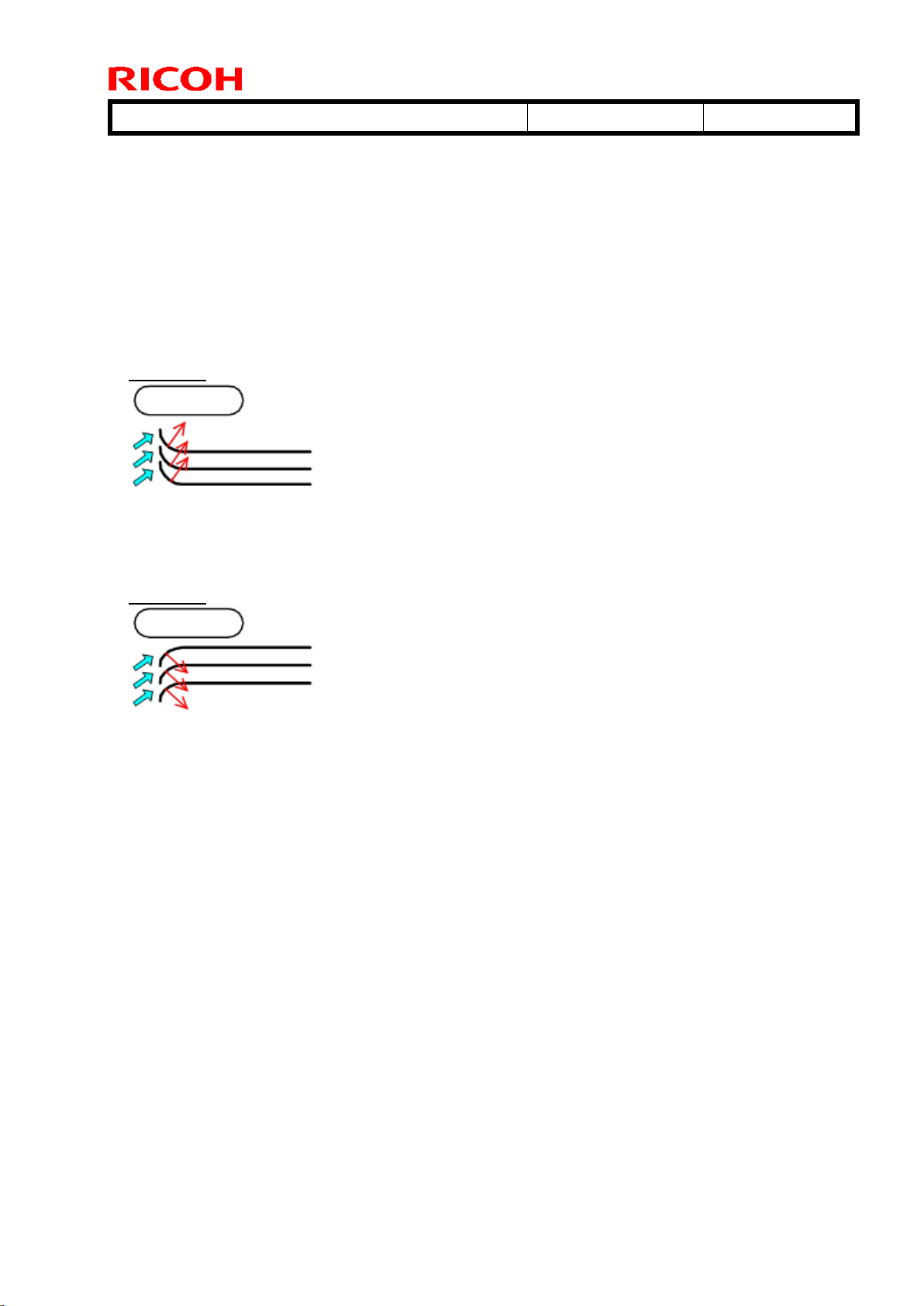

Idea behind the adjustment

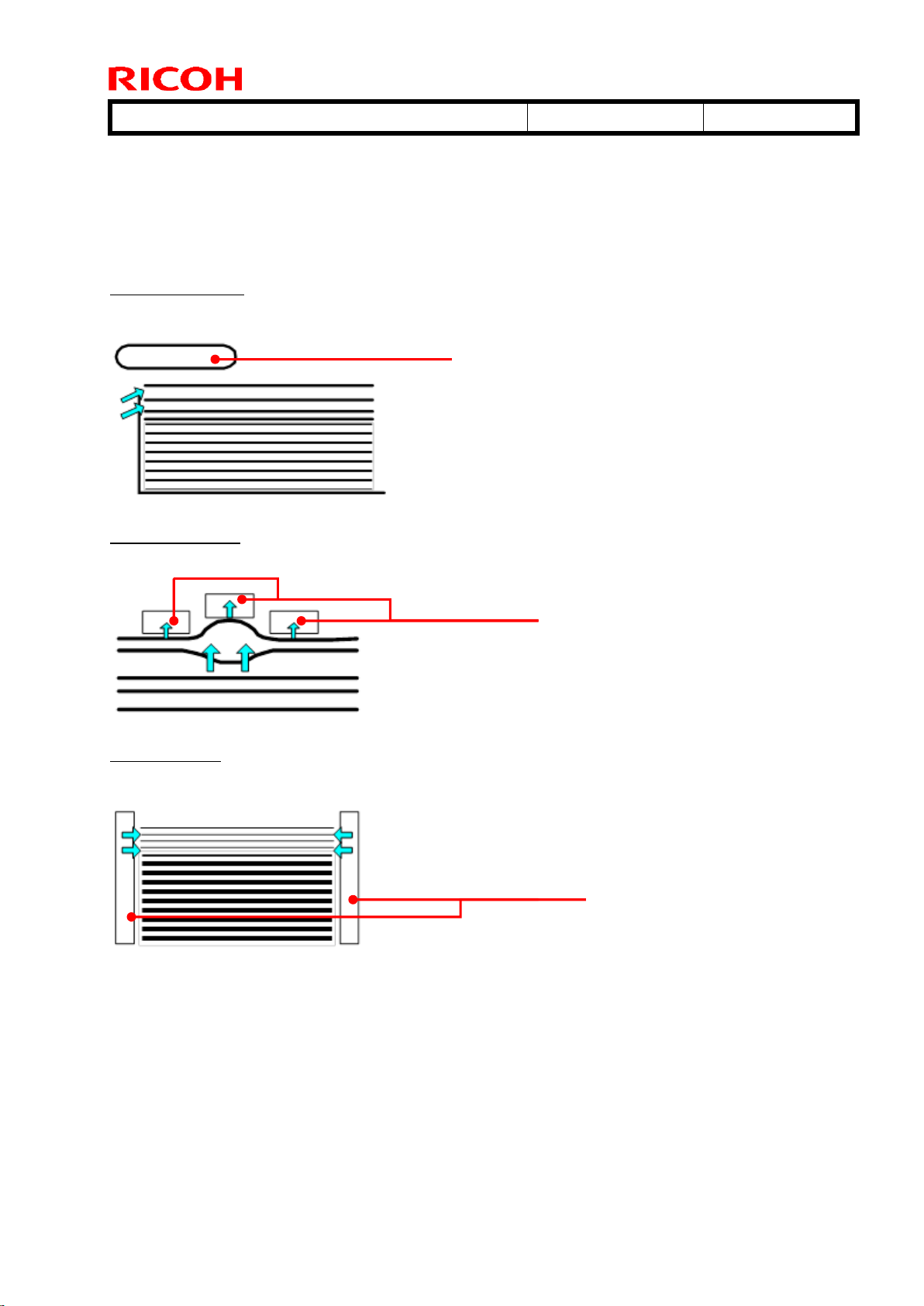

The Vacuum Feed LCIT blows air to the leading and side edges of the paper to separate
the topmost sheet from the stack, sucks up the sheet, and feeds with the belt. Paper with
large curls hinders this function and affects the feed performance.
Face-curl increases the risk of double-feeds, because the air flow pushes up the paper.
Face-curl
Back-curl increases the risk of no-feeds, because the air flow presses down the paper.
Back-curl
In both cases, reducing the air flow improves the situation as the force applied to the paper
reduces. For no-feed jams, increasing the vacuum power can also produce good results.

Technical Bulletin PAGE: 4/8
Reissued: 21-Nov-16
Model: Leo-C1a/C1b (D194/D195)
Date: 23-Feb-15
No.: RD777001b
Adjustments in Advanced Settings for Custom Paper
The following are the adjustments available in the Advanced Settings for Customer Paper.

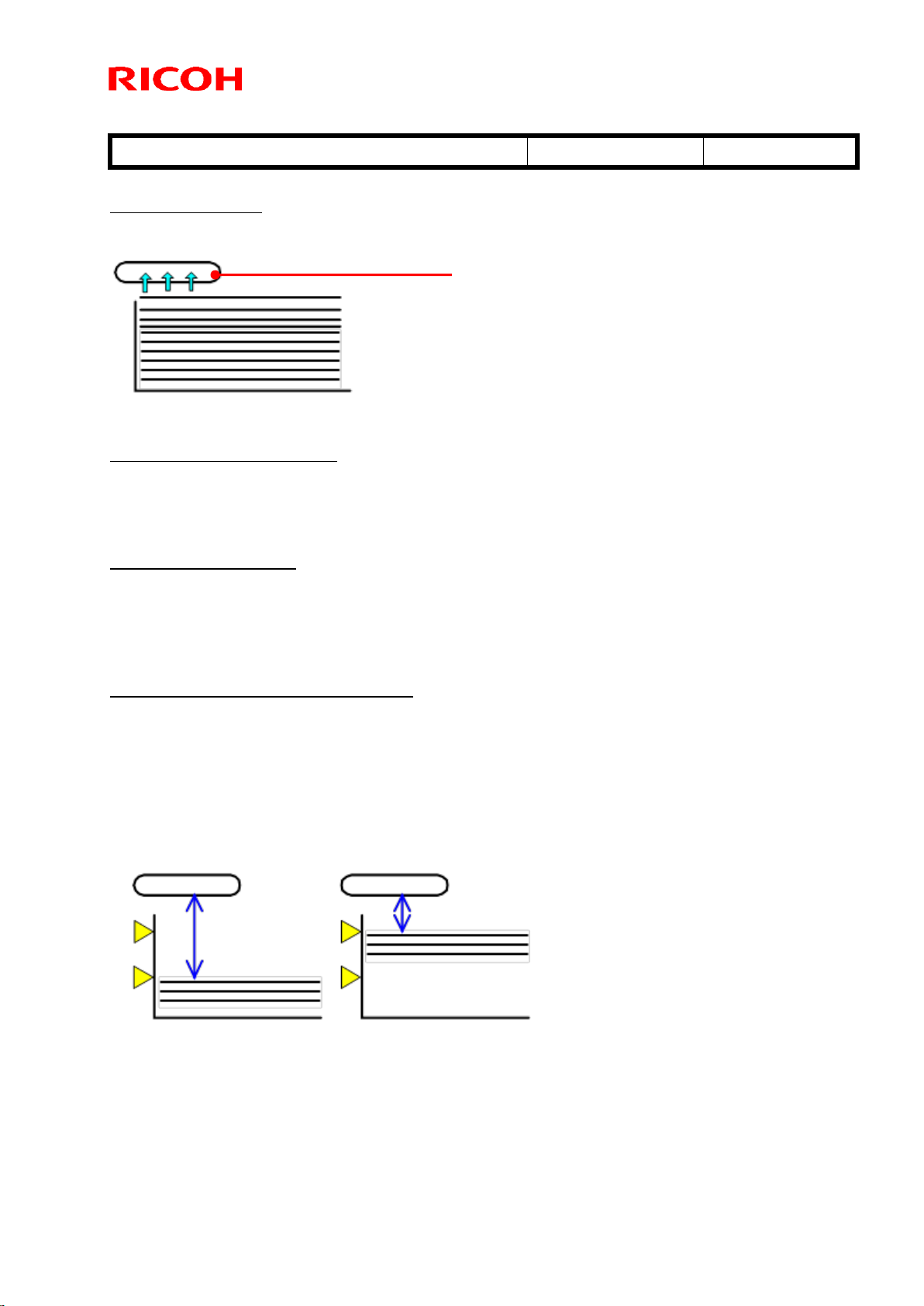

111 [Up Draft Fan]
Function: Blows air to the leading edge to float the paper.
112 [Blower Fan]
Function: Blows air in between the topmost sheet and the stack to separate the sheet.
113 [Side Fan]
Function: Blows air from both side fences to float the paper.
Feed Belt
Feed Belt
Side Fence

Technical Bulletin PAGE: 5/8
Reissued: 21-Nov-16
Model: Leo-C1a/C1b (D194/D195)
Date: 23-Feb-15
No.: RD777001b

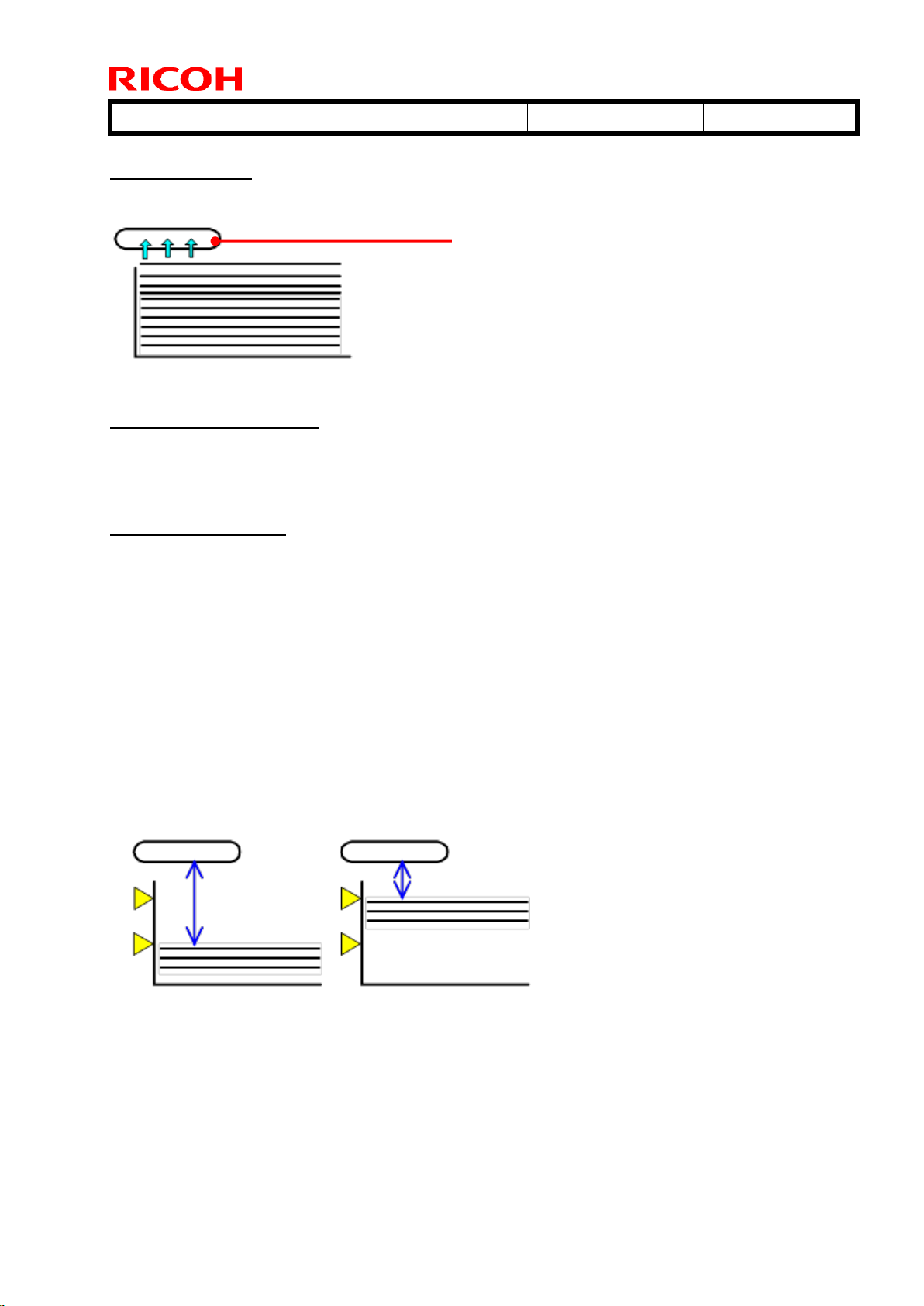

114 [Vacuum Fan]
Function: Sucks up the floating paper to the feed belt.
115 [Up Draft Fan Shutters]
Function: Blocks the air flow from the updraft and blower fans immediately before feeding
to positively separate the topmost sheet from the stack.
116 [Side Fan Shutter]
Function: Blocks the air flow from the side fans immediately before feeding to positively
separate the topmost sheet from the stack. This function is disabled by default,
because it delays suction of the succeeding sheet and may cause a no-feed jam.
117 [Switch Paper Load Upper Limit]
Function: Controls the position of the topmost sheet according to paper weight.
Weight 3 or lighter (thinner)
The position is set to LOW, because light paper tends to easily float.
Weight 4 or heavier (thicker)
The position is set to HIGH, because heavy paper does not easily float.
Feed Belt

Technical Bulletin PAGE: 6/8
Reissued: 21-Nov-16
Model: Leo-C1a/C1b (D194/D195)
Date: 23-Feb-15
No.: RD777001b
118 [Paper Feed Mode (Adjust Fan Level)]
Function: Enables easy adjustment of the updraft fans and side fans together. For
example, selecting “Moderate Nonfdg Red. (Higher)” will increase the fan power
10% for both fans.
Selection
Updraft fans
Side fans
Max Double Feed Reduce (Lowest)
x - 20
y - 20
Moderate Double Feed Red (Lower)
x - 10
y - 10
Standard (No Adjustment)
Moderate No-feed Reduce (Higher)
x + 10
y + 10
Maximum No-feed Reduce (Highest)
x + 20
y + 20
x = current value of 111 [Up Draft Fans]
y = current value of 113 [Side Fans]
Although the fan power can be adjusted within the range 0% ~ 100%, the actual fan duties
do not go below 20%. If set to a value lower than 20%, the vacuum, side and blower fans
will operate at 20% and the updraft fan will be inactivated.
This is because fan operation becomes unstable below 20%.

Technical Bulletin PAGE: 7/8
Reissued: 21-Nov-16
Model: Leo-C1a/C1b (D194/D195)
Date: 23-Feb-15
No.: RD777001b
Appendix 1: Available adjustments
Thickness
Weight
[gsm]
Adjustment Items
Default
Small sizes
(139.7mm~
147.9mm)
Large sizes
(148.0mm~)
8 and 9
300.1~400
119
2-Tray LCT: Updraft Fan Level
0%
90%
120
2-Tray LCT: Blower Fan Level
70%
70%
121
2-Tray LCT: Side Fan Level
90%
90%
122
2-Tray LCT: Vacuum Fan Level
80%
80%
123
2-Tray LCT: Updraft Fan Shutter
Active
Active
124
2-Tray LCT: Side Fan Shutter
Inactive
Inactive
125
2-Tray LCT: Paper Feed Position
HIGH
HIGH
5 ~ 7
63.1~300
119
2-Tray LCT: Updraft Fan Level
0%
70%
120
2-Tray LCT: Blower Fan Level
70%
70%
121
2-Tray LCT: Side Fan Level
70%
70%
122
2-Tray LCT: Vacuum Fan Level
80%
80%
123
2-Tray LCT: Updraft Fan Shutter
Active
Active
124
2-Tray LCT: Side Fan Shutter
Inactive
Inactive
125
2-Tray LCT: Paper Feed Position
HIGH
HIGH
4
105.1~163
119
2-Tray LCT: Updraft Fan Level
0%
50%
120
2-Tray LCT: Blower Fan Level
70%
70%
121
2-Tray LCT: Side Fan Level
70%
50%
122
2-Tray LCT: Vacuum Fan Level
80%
80%
123
2-Tray LCT: Updraft Fan Shutter
Active
Active
124
2-Tray LCT: Side Fan Shutter
Inactive
Inactive
125
2-Tray LCT: Paper Feed Position
HIGH
HIGH
3
80.1~105
119
2-Tray LCT: Updraft Fan Level
0%
50%
120
2-Tray LCT: Blower Fan Level
70%
70%
121
2-Tray LCT: Side Fan Level
70%
50%
122
2-Tray LCT: Vacuum Fan Level
80%
80%
123
2-Tray LCT: Updraft Fan Shutter
Active
Active
124
2-Tray LCT: Side Fan Shutter
Inactive
Inactive
125
2-Tray LCT: Paper Feed Position
HIGH
LOW
2
63.1~80
119
2-Tray LCT: Updraft Fan Level
30%
40%
120
2-Tray LCT: Blower Fan Level
40%
70%
121
2-Tray LCT: Side Fan Level
30%
40%
122
2-Tray LCT: Vacuum Fan Level
80%
80%
123
2-Tray LCT: Updraft Fan Shutter
Active
Active
124
2-Tray LCT: Side Fan Shutter
Inactive
Inactive
125
2-Tray LCT: Paper Feed Position
LOW
LOW
1
52.3~63
119
2-Tray LCT: Updraft Fan Level
30%
30%
120
2-Tray LCT: Blower Fan Level
40%
70%
121
2-Tray LCT: Side Fan Level
30%
30%
122
2-Tray LCT: Vacuum Fan Level
80%
80%
123
2-Tray LCT: Updraft Fan Shutter
Active
Active
124
2-Tray LCT: Side Fan Shutter
Inactive
Inactive
125
2-Tray LCT: Paper Feed Position
LOW
LOW

Technical Bulletin PAGE: 8/8
Reissued: 21-Nov-16
Model: Leo-C1a/C1b (D194/D195)
Date: 23-Feb-15
No.: RD777001b
Appendix 2: Components
Feed belt
Vacuum fan
Side fans
Updraft fans
Blower fan
Paper stack surface detection
sensor for weight 4 or heavier paper
Updraft fan shutters
Blower fan shutter
Paper stack surface detection
sensor for weight 3 or lighter paper

Technical Bulletin PAGE: 1/1
Model: Vacuum Feed LCIT RT5100
Date: 29-Jul-15
No.: RD077002
The following part was missing from the parts catalog. Please add to your parts catalog.
Old p/n
New p/n
Description
Q’ty
Int
Note
-
D7771115
BRACKET:COUPLING
1
-
Add
This bracket is used for connecting the Vacuum Feed LCIT5100, and attaches to the right side of
the Mainframe.
Subject: Part Catalog Correction Vacuum Feed LCIT RT5100
–Joint bracket
Prepared by: Takezoh Miyamoto
From: 1st PP Tech Service Sec., PP Tech Service Dept.,
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2
p/n: D7771115
p/n: D7771115

Technical Bulletin PAGE: 1/8
Model: BR-C1/BR-P1
Date: 28-Sep-15
No.: RD777003
Supplementary Explanation on the Adjustments to Prevent No-feed and
Double-feed Jams in the Vacuum Feed LCIT
The vacuum feed LCIT can feed a wide range of media, but is also susceptible to paper
curl by the nature of its mechanism of blowing air to separate the sheets. This bulletin
provides explanations on the adjustments to prevent double-feed and no-feed jams,
especially caused by paper curl. The main jam codes are as follows:
Jam type
Jam location
Jam code
No-feed
Upper Tray of 1st LCIT
J430
Lower Tray of 1st LCIT
J431
Upper Tray of 2nd LCIT
J445
Lower Tray of 2nd LCIT
J446
Jam type
Jam location
Jam code
Double-feed
Upper Tray of 1st LCIT
J470
Lower Tray of 1st LCIT
J471
Upper Tray of 2nd LCIT
J485
Lower Tray of 2nd LCIT
J486
Subject: Adjustments in Vacuum Feed LCIT to prevent no-feed
and double-feed jams for BR-C1/P1
Prepared by: J. Ohno
From: 1st PP Tech Service Sec., PP Tech Service Dept.,
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2

Technical Bulletin PAGE: 2/8
Model: BR-C1/BR-P1
Date: 28-Sep-15
No.: RD777003
Adjustments
Code
Action
J430
J431
J445
J446
Do the following.
1. Fan and decurl the paper.
2. Set No. 41 [Paper Feed Mode (Adjust Fan Level)] in Advanced
Settings to [Moderate Nonfdg Red. (Higher)].
3. If the above does not solve the jam, change the setting to [Max
Nonfdng Reduc. (Highest)].
If none of the above solves the jam, do the following.
If dog ears occur on the jammed paper, and you are printing onto thin
paper:
Set No. 40 [Switch Paper Load Upper Limit] in Advanced Settings to
[High].
J470
J471
J485
J486
Do the following.
1. Make sure the Paper Size has been set correctly, and then fan/decurl
the paper.
2. Set No.41 [Paper Feed Mode (Adjust Fan Level)] to [Moderate Dble
Fd Red. (Lower)].
If the above does not solve the jam, change this setting to [Max Dble Fd
Reduc. (Lowest)].
If none of the above solves the jam, do the following.
If the paper curl is too strong, even after decurling:
1. Set No.39 [Side Fan Shutter] to [Active].
If you are using paper with high porosity such as recycled paper:
1. Increase No. 37 [Vacuum Fan] in Advanced Settings by +10%.
If you are using small envelopes:
1. Decrease No.34 [Updraft Fan] to [0].
Tips
Burrs on the paper edges may disturb the air flow and cause feeding problems. Fan the
paper to remove the burrs.

Technical Bulletin PAGE: 3/8
Model: BR-C1/BR-P1
Date: 28-Sep-15
No.: RD777003
Idea behind the adjustment
The Vacuum Feed LCIT blows air to the leading and side edges of the paper to separate
the topmost sheet from the stack, sucks up the sheet, and feeds it with a belt. Paper with
large curls hinders this function and affects the feed performance.
Face-curl increases the risk of double-feeds, because the air flow pushes up the paper.
Face-curl
Back-curl increases the risk of no-feeds, because the air flow presses down the paper.
Back-curl
In both cases, reducing the air flow improves the situation because the force applied to the
paper is reduced. For no-feed jams, increasing the vacuum power can also produce good
results.

Technical Bulletin PAGE: 4/8
Model: BR-C1/BR-P1
Date: 28-Sep-15
No.: RD777003
Adjustments in Advanced Settings for Custom Paper
The following are the adjustments available in the Advanced Settings for Custom Paper.
34 [Updraft Fan]
Function: Blows air to the leading edge to float the paper.
35 [Blower Fan]
Function: Blows air in between the topmost sheet and the stack to separate the sheet.
36 [Side Fan]
Function: Blows air from both side fences to float the paper.
Feed Belt
Feed Belt
Side Fence

Technical Bulletin PAGE: 5/8
Model: BR-C1/BR-P1
Date: 28-Sep-15
No.: RD777003
37 [Vacuum Fan]
Function: Sucks up the floating paper to the feed belt.
38 [Updraft Fan Shutters]
Function: Blocks the air flow from the up draft and blower fans immediately before feeding
to positively separate the topmost sheet from the stack.
39 [Side Fan Shutter]
Function: Blocks the air flow from the side fans immediately before feeding to positively
separate the topmost sheet from the stack. This function is disabled by default,
because it delays suction of the succeeding sheet and may cause a no-feed jam.
40 [Switch Paper Load Upper Limit]
Function: Controls the position of the topmost sheet according to paper weight.
Weight 3 or lighter (thinner)
The position is set to LOW, because light paper tends to float easily.
Weight 4 or heavier (thicker)
The position is set to HIGH, because heavy paper does not float easily.
Feed Belt

Technical Bulletin PAGE: 6/8
Model: BR-C1/BR-P1
Date: 28-Sep-15
No.: RD777003
41 [Paper Feed Mode (Adjust Fan Level)]
Function: Enables easy adjustment of the up draft fans and side fans together. For
example, selecting “Moderate Nonfdg Red. (Higher)” will increase the fan power
10% for both fans.
Selection
Up draft fans
Side fans
Max Double Feed Reduce (Lowest)
x - 20
y - 20
Moderate Double Feed Red (Lower)
x - 10
y - 10
Standard (No Adjustment)
-
-
Moderate No-feed Reduce (Higher)
x + 10
y + 10
Maximum No-feed Reduce (Highest)
x + 20
y + 20
x = current value of 34 [Updraft Fans]
y = current value of 36 [Side Fans]
Although the fan power can be adjusted within the range 0% ~ 100%, the actual fan duties
do not go below 20%. If set to a value lower than 20%, the vacuum, side and blower fans
will operate at 20% and the up draft fan will be inactivated.
This is because fan operation becomes unstable below 20%.

Technical Bulletin PAGE: 7/8
Model: BR-C1/BR-P1
Date: 28-Sep-15
No.: RD777003
Appendix 1: Available adjustments
Thickness
Weight
[gsm]
Adjustment Items
Default
Small sizes
(139.7mm~
147.9mm)
Large sizes
(148.0mm~)
8
300.1~350
34
Updraft Fan
0%
90%
35
Blower Fan
70%
70%
36
Side Fan
90%
90%
37
Vacuum Fan
80%
80%
38
Updraft Fan Shutter
Active
Active
39
Side Fan Shutter
Inactive
Inactive
40
Switch Paper Load Upper Limit
HIGH
HIGH
5 ~ 7
163.1~300
34
Updraft Fan
0%
70%
35
Blower Fan
70%
70%
36
Side Fan
70%
70%
37
Vacuum Fan
80%
80%
38
Updraft Fan Shutter
Active
Active
39
Side Fan Shutter
Inactive
Inactive
40
Switch Paper Load Upper Limit
HIGH
HIGH
4
105.1~163
34
Updraft Fan
0%
50%
35
Blower Fan
70%
70%
36
Side Fan
70%
50%
37
Vacuum Fan
80%
80%
38
Updraft Fan Shutter
Active
Active
39
Side Fan Shutter
Inactive
Inactive
40
Switch Paper Load Upper Limit
HIGH
HIGH
3
80.1~105
34
Updraft Fan
0%
50%
35
Blower Fan
70%
70%
36
Side Fan
70%
50%
37
Vacuum Fan
80%
80%
38
Updraft Fan Shutter
Active
Active
39
Side Fan Shutter
Inactive
Inactive
40
Switch Paper Load Upper Limit
HIGH
LOW
2
63.1~80
34
Updraft Fan
30%
40%
35
Blower Fan
40%
70%
36
Side Fan
30%
40%
37
Vacuum Fan
80%
80%
38
Updraft Fan Shutter
Active
Active
39
Side Fan Shutter
Inactive
Inactive
40
Switch Paper Load Upper Limit
LOW
LOW
0 ~ 1
40~63
34
Updraft Fan
30%
30%
35
Blower Fan
40%
70%
36
Side Fan
30%
30%
37
Vacuum Fan
80%
80%
38
Updraft Fan Shutter
Active
Active
39
Side Fan Shutter
Inactive
Inactive
40
Switch Paper Load Upper Limit
LOW
LOW

Technical Bulletin PAGE: 8/8
Model: BR-C1/BR-P1
Date: 28-Sep-15
No.: RD777003
Appendix 2: Components
Feed belt
Vacuum fan
Side fans
Up draft fans
Blower fan
Paper stack surface detection
sensor for weight 4 or heavier paper
Up draft fan shutters
Blower fan shutter
Paper stack surface detection
sensor for weight 3 or lighter paper

Technical Bulletin PAGE: 1/5
Model: Vacuum Feed LCIT
Date: 28-Oct-15
No.: RD777004
Subject: Troubleshooting banner sheet skew
Prepared by: S. Sasaki
From: 1st Tech Service Sect., PP Tech Service Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2
Tier 0.5
SYMPTOM
Skew occurs when a banner sheet is fed from the Vacuum Feed LCIT.
Note
Thicker paper (Weight 5 or thicker) tends to be more affected by the skew.
CAUSE
The skew of the banner sheet cannot be corrected efficiently with the skew adjustment
gate, because the trailing edge of the banner sheet is still held by rollers when the leading
edge reaches the adjustment gate.
Skew Adjustment Gate
Rollers

Technical Bulletin PAGE: 2/5
Model: Vacuum Feed LCIT
Date: 28-Oct-15
No.: RD777004
SOLUTION
Apply the skew adjustment plates under the connection pins on the mainframe following
the procedure described in this document, in order to adjust the angle with which the LCIT
is connected to the mainframe.
8 adjustment plates come with the Vacuum Feed LCIT. Adding 1 adjustment plate will
correct approx 0.25mm/100mm of skew. Up to 4 plates can be inserted under the pin,
which means approx 1.0mm/100mm of skew can be corrected.
You can also procure the plate and screw as a service part to fasten it.
D7771116 ADJUSTING PLATE:BRACKET:COUPLING
09545014N SCREW - M5X14
Procedure
1. Register the banner paper in use as a custom paper type.
2. Only Andromeda: Change 013: [Deactivate Image Position Adjustment] to “ON” to
turn off the image position adjustment.
NOTE: It is turned off in Leo by default.

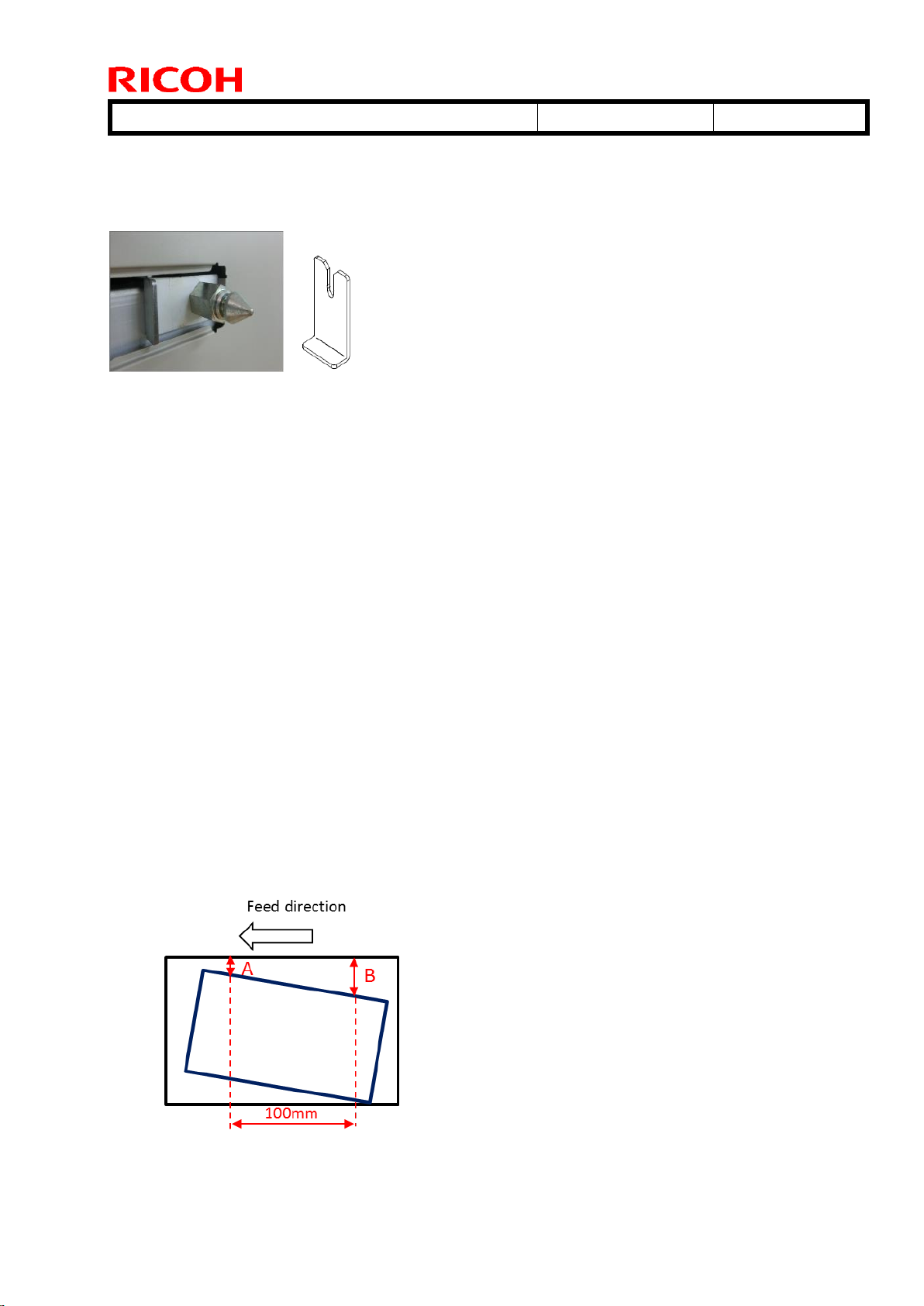

3. Print trim patterns to check the skew amount with the following procedure.
3-1. Enter SP mode and select [14: Trimming Area] in SP 2-109-003 (Test Pattern -
Pattern Selection).
3-2. Print 3 sheets of the test pattern.
3-3. Check the skew direction and measure the distance A and B.

Technical Bulletin PAGE: 3/5
Model: Vacuum Feed LCIT
Date: 28-Oct-15
No.: RD777004
4. Insert the skew adjustment plates under the connection pins. Apply them on either the
operator side or the non-operator side depending on skew direction. Applying a plate
will correct 0.25mm/100mm of skew. Apply up to 4 pieces under a pin depending on
the skew amount measured in the previous step.
Apply them on either the operator side or the non-operator side depending on skew
direction.
