RIDGID SeeSnake MINIPak User manual

SeeSnake®MINI Pak
•Français – 17
•Castellano – pág. 27
SeeSnake®MINIPak Manual
WARNING!
Read this Operator’s Manual
carefully before using this
tool. Failure to understand
and follow the contents of
this manual may result in
electrical shock, fire and/or
serious personal injury.

Ridge Tool Company
ii
Table of Contents
Recording Form for Machine Serial Number..............................................................................................................1
Safety Symbols..............................................................................................................................................................2
General Safety Rules
Work Area Safety........................................................................................................................................................2
Electrical Safety ..........................................................................................................................................................2
Personal Safety ..........................................................................................................................................................2
Equipment Use and Care............................................................................................................................................3
Battery Tool Use and Care ........................................................................................................................................3
Service........................................................................................................................................................................3
Specific Safety Information..........................................................................................................................................3
MINI
Pak Safety ..........................................................................................................................................................4
Description, Specifications and Standard Equipment
Description..................................................................................................................................................................4
Specifications..............................................................................................................................................................4
Standard Equipment ..................................................................................................................................................5
Optional Equipment ....................................................................................................................................................5
MINI

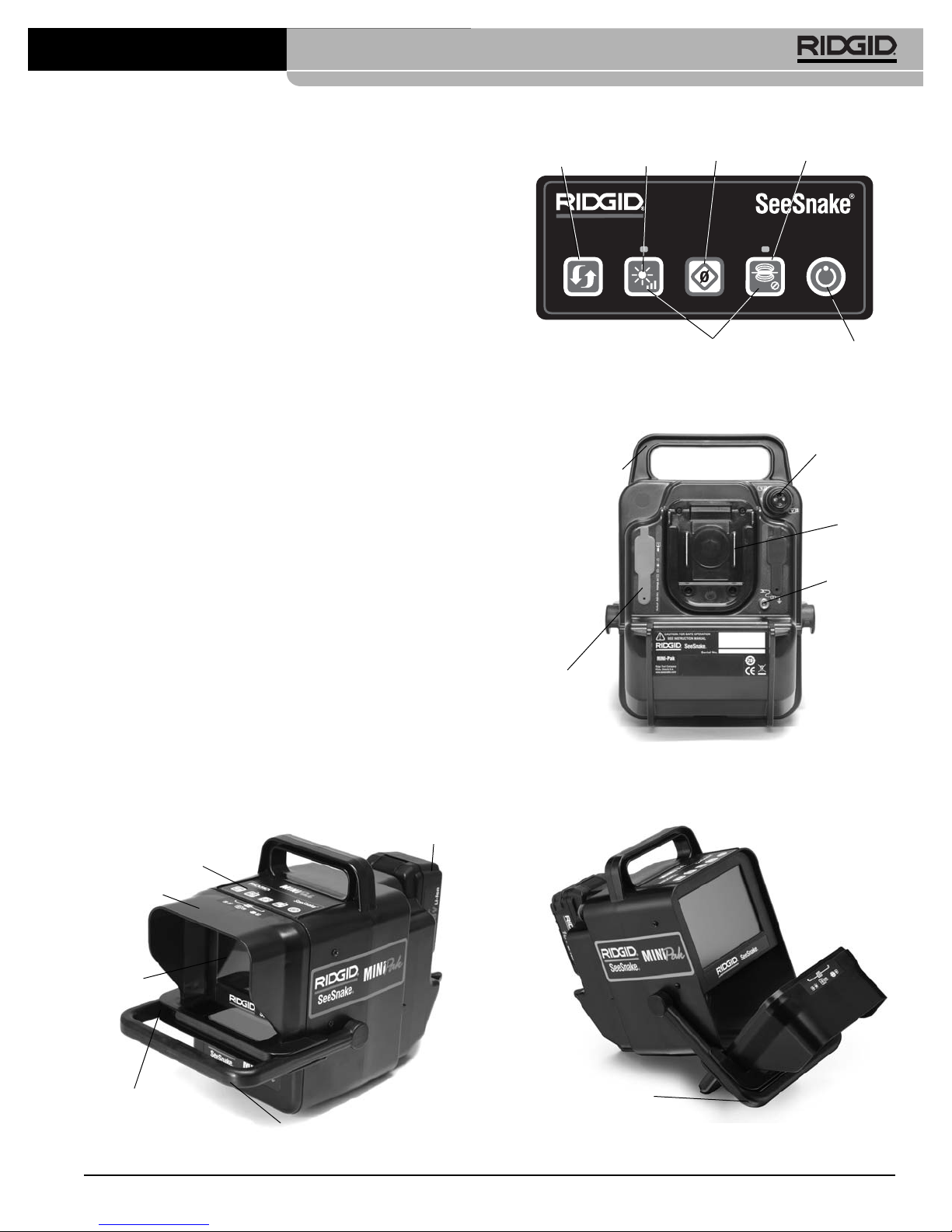

Pak Components ..................................................................................................................................................5

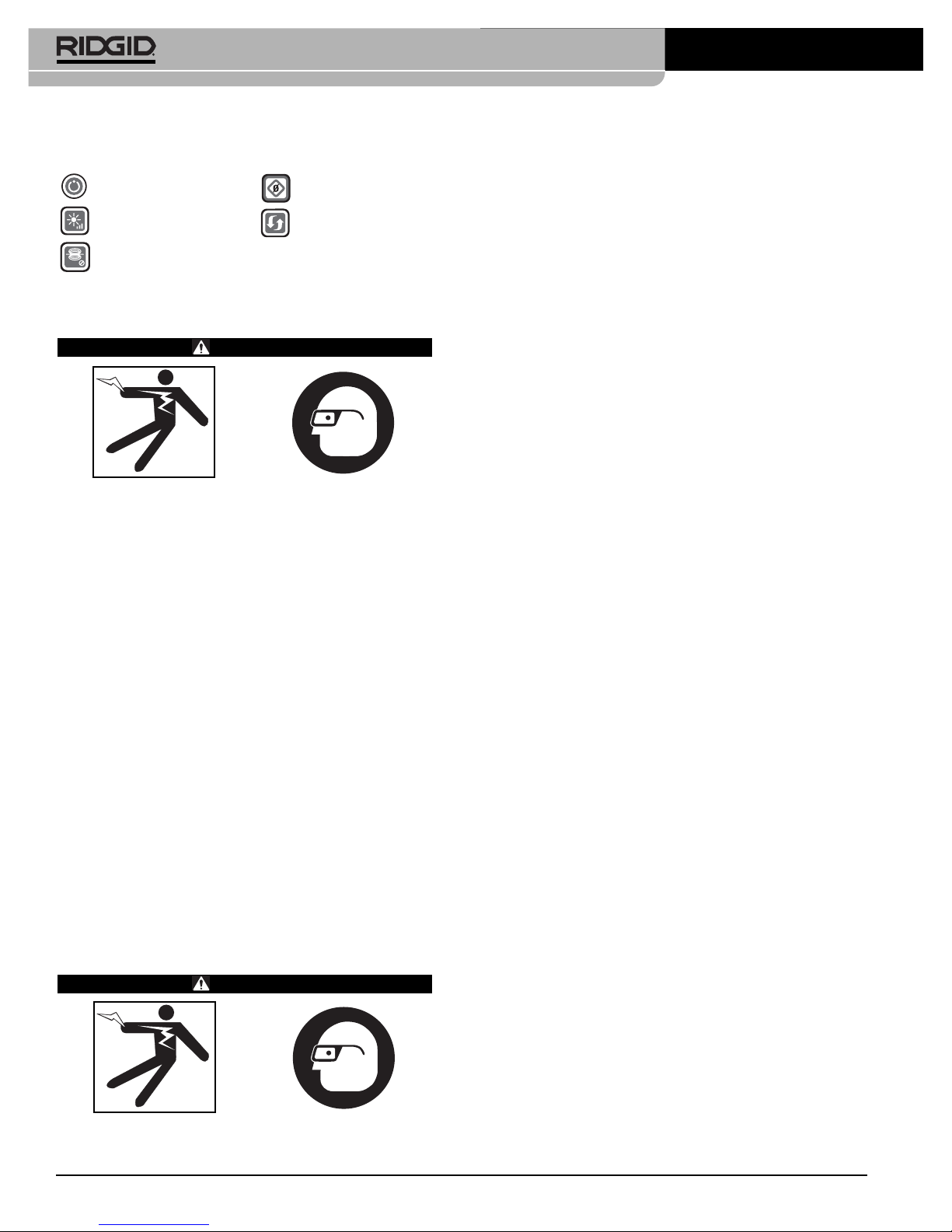

Icon Legend ..................................................................................................................................................................6
Pre-Operation Inspection ............................................................................................................................................6
Work Area and Equipment Set Up ..............................................................................................................................6
MINI Pak Placement ....................................................................................................................................................6
Front Cover/Tilt Stand ................................................................................................................................................6
Connecting The MINI Pak ............................................................................................................................................7
Connection Icons ........................................................................................................................................................7
Powering The SeeSnake MINI Pak ............................................................................................................................8
Operating Instructions..................................................................................................................................................8

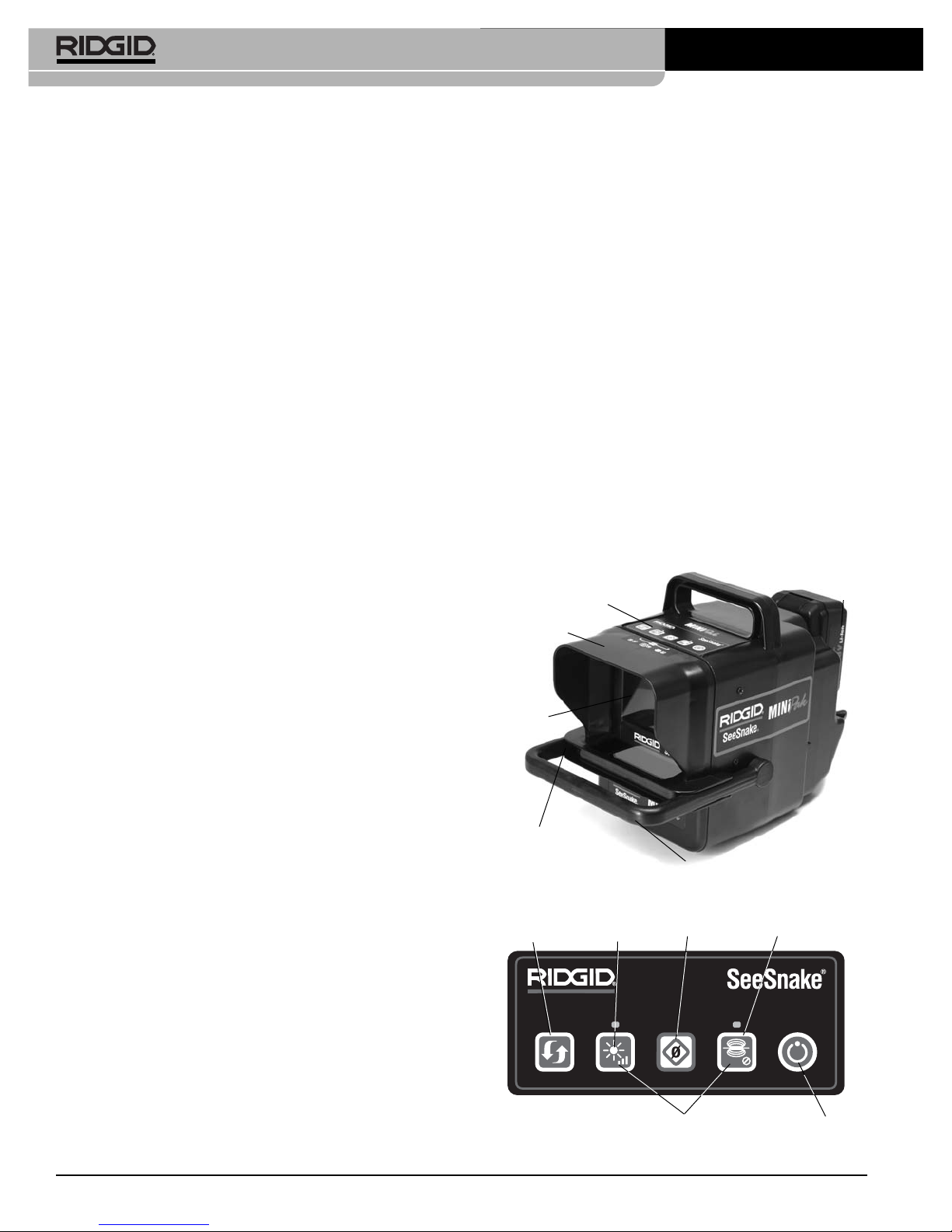

Starting Up..................................................................................................................................................................9
Inspecting The Line ....................................................................................................................................................9
Locating The Camera Using The Sonde ....................................................................................................................9
Line Tracing The SeeSnake Pushrod ......................................................................................................................10
Monitor Settings........................................................................................................................................................10
Maintenance Instructions ..........................................................................................................................................11
Cleaning....................................................................................................................................................................11
Accessories ................................................................................................................................................................11
Transport And Storage ..............................................................................................................................................11
Service And Repair ....................................................................................................................................................11
Disposal ......................................................................................................................................................................11
Battery Disposal..........................................................................................................................................................11
Troubleshooting..........................................................................................................................................................12
Lifetime Warranty ........................................................................................................................................Back Cover
SeeSnake®MINI Pak

SeeSnake®MINI Pak
SeeSnake®MINI Pak
SeeSnake®MINI Pak
Record Serial Number below and retain product serial number which is located on nameplate.
Serial
No.

Ridge Tool Company
2
SeeSnake®MINI Pak
General Safety Rules
WARNING
Read all safety warnings and instructions. Failure to follow
the warnings and instructions may result in electric shock,
fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
Work Area
•Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate equipment in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases, or dust. Equipment can create sparks
which may ignite the dust or fumes.
•Keep children and by-standers away while oper-
ating equipment. Distractions can cause you to lose
control.
Electrical Safety
•Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges and refrig-
erators. There is an increased risk of electrical shock
if your body is earthed or grounded.
•Do not expose equipment to rain or wet condi-
tions. Water entering equipment will increase the risk
of electrical shock.
•Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the equipment.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
•If operating equipment in a damp location is un-
avoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces
the risk of electric shock.
•Keep all electrical connections dry and off the
ground. Do not touch equipment or plugs with
wet hands. This reduces the risk of electrical shock.
Personal Safety
•Stay alert, watch what you are doing and use com-
mon sense when operating equipment. Do not
use equipment while you are tired or under the in-
fluence of drugs, alcohol or medication. A moment
of inattention while operating equipment may result in
serious personal injury.
•Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
•Do not overreach. Keep proper footing and balance
at all times. This enables better control of the equip-
ment in unexpected situations.
•Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
Safety Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety
information. This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE indicates information that relates to the protection of property.
This symbol means read the operator’s manual carefully before using the equipment. The operator’s manual contains important
information on the safe and proper operation of the equipment.
This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce
the risk of eye injury.
This symbol indicates the risk of electrical shock.
NOTICE
DANGER
WARNING
CAUTION

Ridge Tool Company 3
SeeSnake®MINI Pak
Equipment Use and Care
•Do not force equipment. Use the correct equipment
for your application. The correct equipment will do the
job better and safer at the rate for which it is designed.
•Do not use equipment if the switch does not turn it
ON and OFF. Any equipment that cannot be con-
trolled with the switch is dangerous and must be re-
paired.
•Disconnect the plug from the power source and/or
the battery pack from the equipment before making
any adjustments, changing accessories, or storing.
Such preventive safety measures reduce the risk of in-
jury.
•Store idle equipment out of the reach of children
and do not allow persons unfamiliar with the equip-
ment or these instructions to operate the equip-
ment. Equipment can be dangerous in the hands of
untrained users.
•Maintain equipment. Check for misalignment or bind-
ing of moving parts, missing parts, breakage of parts
and any other condition that may affect the equip-
ment’s operation. If damaged, have the equipment
repaired before use. Many accidents are caused by
poorly maintained equipment.
•Use the equipment and accessories in accordance
with these instructions, taking into account the
working conditions and the work to be performed.
Use of the equipment for operations different from
those intended could result in a hazardous situation.
•Use only accessories that are recommended by
the manufacturer for your equipment. Accessories
that may be suitable for one piece of equipment may
become hazardous when used with other equipment.
•Keep handles dry and clean; free from oil and
grease. Allows for better control of the equipment.
Battery Tool Use And Care
•Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
•Use equipment only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
•Do not probe battery with conductive objects.
When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
•Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acciden-
tally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
•Use and store batteries and chargers in dry, ap-
propriate temperature areas. Extreme temperatures
and moisture can damage batteries and result in leak-
age, electrical shock, fire or burns.
See charger man-
ual for more information.
•Do not cover charger while in use. Proper ventilation
is required for correct operation. Covering charger in
use could result in fire.
•Properly dispose of batteries. Exposure to high
temperatures can cause the batteries to explode, so do
not dispose of in a fire. Some countries have regula-
tions concerning battery disposal. Please follow all
applicable regulations.
Service
•Have your equipment serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the equipment is main-
tained.
• Remove the batteries and refer servicing to qualified
service personnel under any of the following conditions:
• If liquid has been spilled or objects have fallen into
product;
• If product does not operate normally by following
the operating instructions;
• If the product has been dropped or damaged in
any way; or,
• When the product exhibits a distinct change in
performance.
Specific Safety Information
WARNING
This section contains important safety information that is
specific to this equipment.
Read these precautions carefully before using the MINI
Pak
to reduce the risk of electrical shock or other serious per-
sonal injury.
SAVE THESE INSTRUCTIONS!
Keep this manual with the machine for use by the operator.

Ridge Tool Company
4
SeeSnake®MINI Pak
If you have any question concerning this Ridge Tool
product:
– Contact your local RIDGID®distributor.
– Visit www.RIDGID.com or www.RIDGID.eu to find
your local Ridge Tool contact point.
– Contact Ridge Tool Technical Services Department
at [email protected], or in the U.S.
and Canada call [phone].
MINI Pak Safety
•An improperly grounded electrical outlet can cause
electrical shock and or severely damage equip-
ment. Always check work area for a properly grounded
electrical outlet. Presence of a three prong or GFCI out-
let does not insure that the outlet is properly grounded.
If in doubt, have the outlet inspected by a licensed elec-
trician.
•Power the MINI
Pak only with a specifically desig-
nated battery or a double insulated power supply.
•Do not operate this equipment if operator or ma-
chine is standing in water. Operating machine while
in water increases the risk of electrical shock.
•The MINI Pak is not waterproof. Only the camera
and push cable are waterproof. Do not expose the
equipment to water or rain. This increases the risk of
electrical shock.
•Do not use where a danger of high voltage contact
is present. The equipment is not designed to pro-
vide high voltage protection and isolation.
•Read and understand this operator’s manual, the
reel operators’ manual, and the instructions for any
other equipment in use and all warnings before op-
erating the MINI Pak .Failure to follow all instruction
may result in property damage and/or serious per-
sonal injury.
•Always use appropriate personal protective equip-
ment while handling and using equipment in drains.
Drains may contain chemicals, bacteria and other sub-
stances that may be toxic, infectious, cause burns or
other issues. Appropriate personal protective equip-
ment always includes safety glasses, and may include
equipment such as drain cleaning gloves or mitts, latex
or rubber gloves, face shields, goggles, protective
clothing, respirators and steel toed footwear.
•If using drain cleaning equipment at the same time
as using drain inspection equipment, only wear
RIDGID Drain Cleaning Gloves. Never grasp the ro-
tating drain cleaning cable with anything else, including
other gloves or a rag. They can become wrapped
around the cable, causing hand injuries. Only wear
latex or rubber gloves under RIDGID Drain Cleaner
Gloves. Do not use damaged drain cleaning gloves.
•Practice good hygiene. Use hot, soapy water to wash
hands and other exposed body parts exposed to drain
contents after handling or using drain inspection equip-
ment. Do not eat or smoke while operating or han-
dling drain inspection equipment. This will help prevent
contamination with toxic or infectious material.
Description, Specifications And
Standard Equipment
Description
The SeeSnake®MINI Pak is a modern, hand-portable
monitor and camera control unit for use with a SeeSnake
Pipe Inspection diagnostic system.
The MINI Pak is designed to easily connect with a
SeeSnake reel and camera and provide a clear image of
the camera’s field of view. It provides readily accessible
controls for adjusting the camera and the display, and for
controlling the 512 Hz in-line Sonde built in to most
SeeSnake cameras, which allows the operator to locate
the camera when it is underground. The MINI Pak also en-
ables the operator to connect an external transmitter to the
SeeSnake cable and use a standard locator to line-trace
the path of the SeeSnake cable in a pipe.
The MINI Pak is used in conjunction with any SeeSnake
reel configuration (see Figure 8) . Other auxiliary equip-
ment used with the SeeSnake MINI Pak includes:
• Rechargeable batteries (Ridge CAT # 32743).
• A RIDGID locator/receiver (such as the SR-20, the
SR-60, the Scout™ or the NaviTrack®II).
• A RIDGID transmitter (such as the ST-510, the ST-305,
the ST-33Q, the NaviTrack®Brick or the NaviTrack®10-
watt transmitter).
• The Count Plus Cable Counter cable-measurement
system, normally built into SeeSnake pipe inspection
systems.
Specifications
Weight ...........................4.25 lbs (1.93kg) w/o Battery
Dimensions:
Depth...........................14" (35.5 cm)
Width ...........................7.6" (19.2 cm)
Height..........................10" (26.8 cm)
Power Source................100-240VAC/50-60Hz, AC or
18 VDC Rechargeable Battery
Battery Type..................18 V Li-Ion, 2.2 Ah
Power Rating.................14-16 VDC 25W

Ridge Tool Company 5
SeeSnake®MINI Pak
Figure 1 – MINI Pak Components
Monitor
MINI
Pak Keypad
Front Cover
Front Cover Handle
Front Cover Release
Operating Environment:
Temperature................32°F to 104°F (0°C to 40°C)
Humidity ......................5% to 95% RH
Storage Temperature....14°F to 158°F (-10°C to 70°C)
Altitude ........................13120 feet (4000 meters)
LCD Display:
Resolution ...................320 x 240
Size of LCD Panel.......5.7" (144.8 mm)
Dot Pitch........................0.36 mm H x 0.12mm x 3
(R,G,B) W
Display Size (H x V).....4.6" x 3.47"
(117.8 mm x 88.2 mm)
Contrast Ratio .............350:1
Brightness ...................500 cd/m2
Standard Equipment
• MINI Pak
• 100-220VAC to 15VDC Power Converter and Supply
• Operator’s Manual
• Instructional DVD
Optional Equipment Cat # (US) Cat # (EU)
18 V Li-Ion Rechargeable Battery 32743 28218
Battery Charger 32068 32073
Dual Battery Kit with Charger 32648 32693
Single Battery Kit with Charger 32708 32713
The MINIPak is protected under U.S. and international
patents.

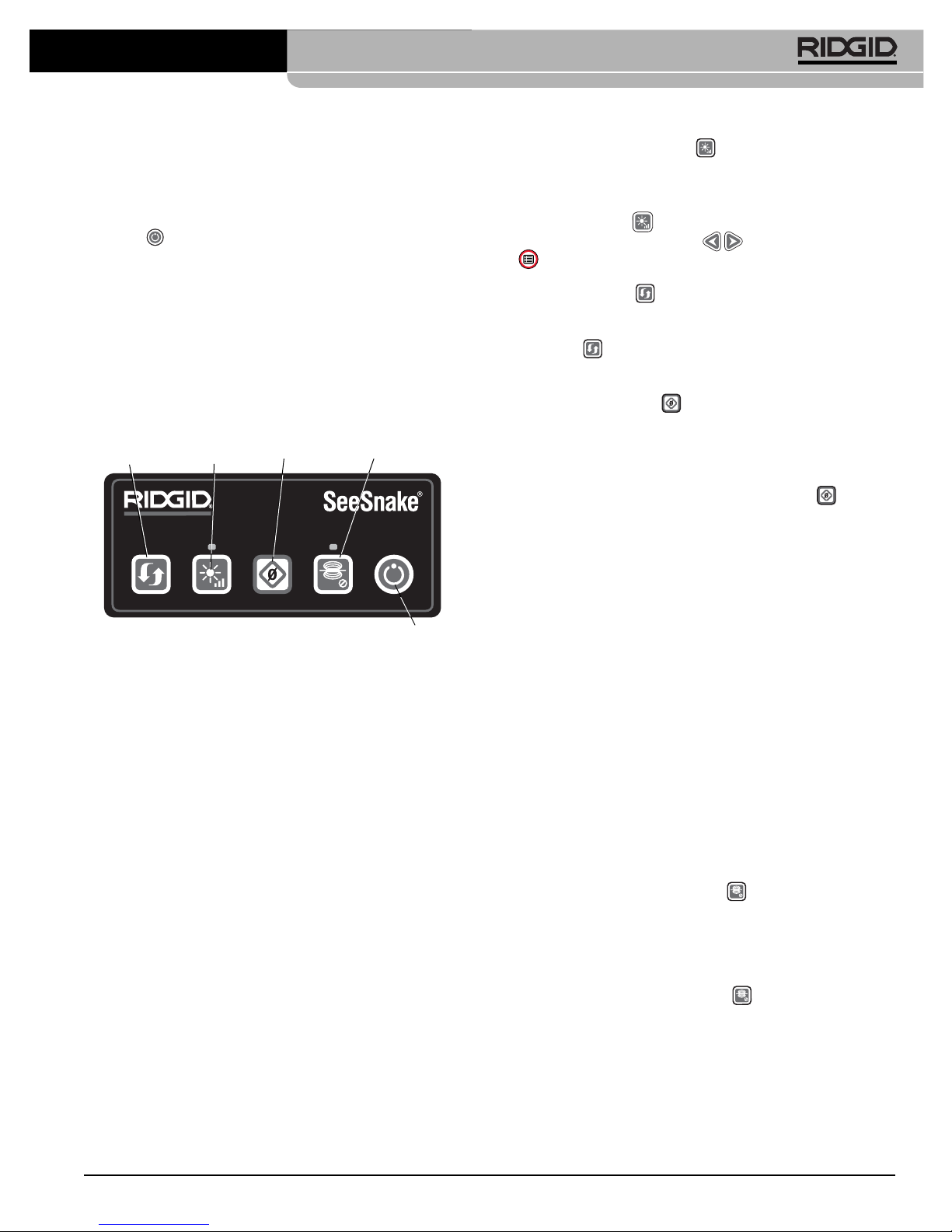

Figure 2 – MINI Pak Keypad
Power Key
Menu Key Combination
(Dimmer + Sonde)
Image Flip
Key Sonde Key
Brightness
Key Zero Key
MINI Pak Components
Figure 3 – Rear View
Battery
Dock
Carrying Handle
SeeSnake
System
Connector
Transmitter
Clip-on
Terminal
DC Jack and
Video Port
Figure 4 – Tilt-Stand
Front Cover/Tilt-Stand
Battery

electrical shock, fire, and other causes, and to pre-
vent damage to the MINI
Pak .
1. Check work area for:
• Adequate lighting.
• Flammable liquids, vapors or dust that may ignite.
If present, do not work in area until sources have
been identified and corrected. The MINI Pak is not
explosion proof. Electrical connections can cause
sparks.
• Clear, level, stable dry place for operator. Do not use
the machine while standing in water.
• Clear path to electrical outlet, that does not contain
any potential sources of damage for the power
cord, when using external power.
2. Inspect the work to be done if possible, determine the
drain access point(s), size(s) and length(s), pres-
ence of drain cleaning chemicals or other chemi-
cals, etc. If chemicals are present, it is important to
understand the specific safety measures required to
work around those chemicals. Contact the chemi-
cal manufacturer for required information.
3. Determine the correct equipment for the application.
The SeeSnake MINI Pak is made to view inspec-
tions done with an inspection camera. Inspection
equipment for other applications can be found by
consulting the Ridge Tool Catalog, online at
www.RIDGID.com or www.RIDGID.eu.
4. Make sure all equipment has been properly inspected.
5. Evaluate the work area and determine if any barriers
are needed to keep bystanders away. Bystanders can
distract the operator during use. If working near traf-
fic, erect cones or other barriers to alert drivers.
6. If needed, remove fixture (water closet, sink, etc.)
to allow access.
MINI Pak Placement
Place the MINI Pak to allow easy access and viewing
while manipulating the camera and pushrod for an in-
spection. Make sure that the location is not wet and will not
let the MINI Pak and other equipment get wet during use.
The MINI Pak is not waterproof and exposure to wet con-
ditions can cause electrical shock or equipment dam-
age.
Place camera and reel as instructed in their Operator’s
Manual. Ensure the MINI Pak and cable reel are stable.
Front Cover/Tilt Stand
The MINI Pak front cover protects the unit during trans-
portation and storage. When operating in its horizontal po-
sition (not tilted), the front cover helps to reduce glare.
Pre-Operation Inspection
WARNING
Before each use, inspect your SeeSnake MINI Pak
and correct any problems to reduce the risk of se-
rious injury from electrical shock or other causes
and prevent machine damage.
1. Confirm that the power is off, any external power
and cords are disconnected, and the battery is re-
moved. Inspect the cords, cables and connectors
for damage or modification.
2. Clean any dirt, oil or other contamination from the
SeeSnake MINI Pak to aid in inspection and to prevent
the unit from slipping from your grip while transporting
or using.
3. Inspect the MINI Pak for any broken, worn, missing,
misaligned or binding parts, or any other condition
which might prevent safe, normal operation.
4. Inspect any other equipment being used per its in-
structions to make sure it is in good usable condition.
5. If any problems are found, do not use the unit until the
problems are corrected.
Work Area and Equipment
Set Up
WARNING
Set up the MINI Pak and work area according to
these procedures to reduce the risk of injury from
Ridge Tool Company
6
SeeSnake®MINI Pak
Power Key
Dimmer Key
Sonde Key
Zero Key
Image Flip Key
Icon Legend

the connectors, align the guide pin to the guide socket,
push the connector straight in and tighten the outer
locking sleeve.
NOTE! A guide ridge molded into the top of the cable
connector will point up when the plug is correctly
aligned.
When connecting/disconnecting the SeeSnake
system cable, turn only the locking sleeve. To prevent
damage, do not bend or twist the connector or cable.
External Monitor
4. The MINI
Pak may be used with an external SeeSnake
monitor by connecting an RCA cable from the Video
Out port on the external monitor. Connect the other
end of the cable to the yellow MINI Pak video input
port on the back of the MINI Pak , marked with .
Ridge Tool Company 7
SeeSnake®MINI Pak
NOTICE
If desired, the front cover and its handle can be used as
a tilt stand for easier viewing.
1. Tilt the unit back slightly and then pull forward on
the front cover latch to free the rotating front cover.
2. Rotate the front cover and front cover handle toward
the bottom of the unit until it latches in place.

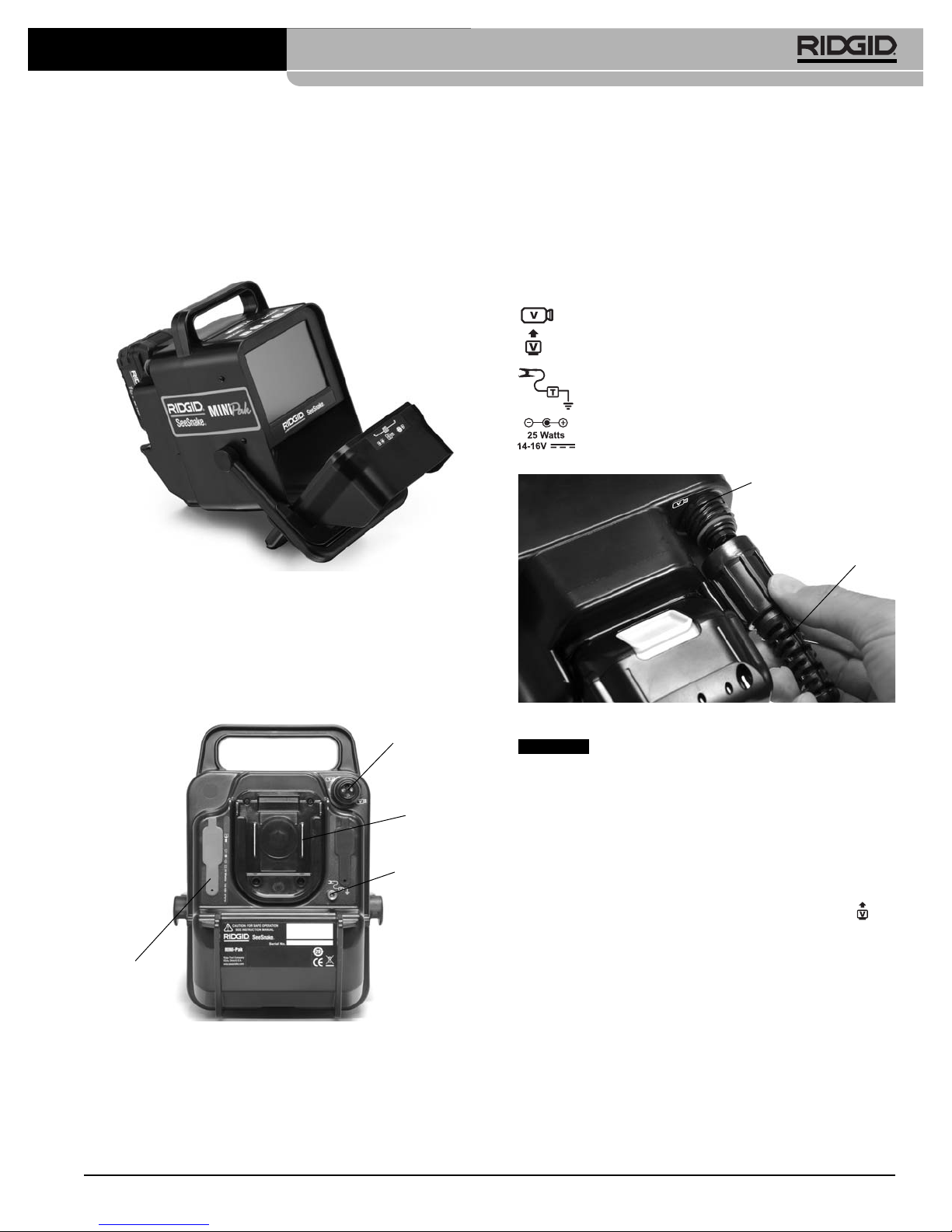

Figure 5 – MINI Pak with Tilt Stand Deployed
3. To return the front cover to its horizontal position,
squeeze the front cover handle and latch together to
release, and rotate upward until it latches in posi-
tion.
Connecting the MINI Pak
Figure 6 – DVD Pak Connections
SeeSnake System Cable
Unwrap the SeeSnake System Cable from its holder
and match the System Cable plug to the matching
SeeSnake System Connector on the MINI Pak . To join
Battery
Dock
Transmitter
Clip-on
Terminal
DC Jack and
Video Port
SeeSnake System Connector
Connection Icons
Video In Plug
Transmitter Clip-on Terminal
MINI Pak Power Jack
Figure 7 – Connecting System Plug To CCU
SeeSanke
System
Connector
SeeSnake System
Connector
Guide
Ridge

Ridge Tool Company
8
SeeSnake®MINI Pak

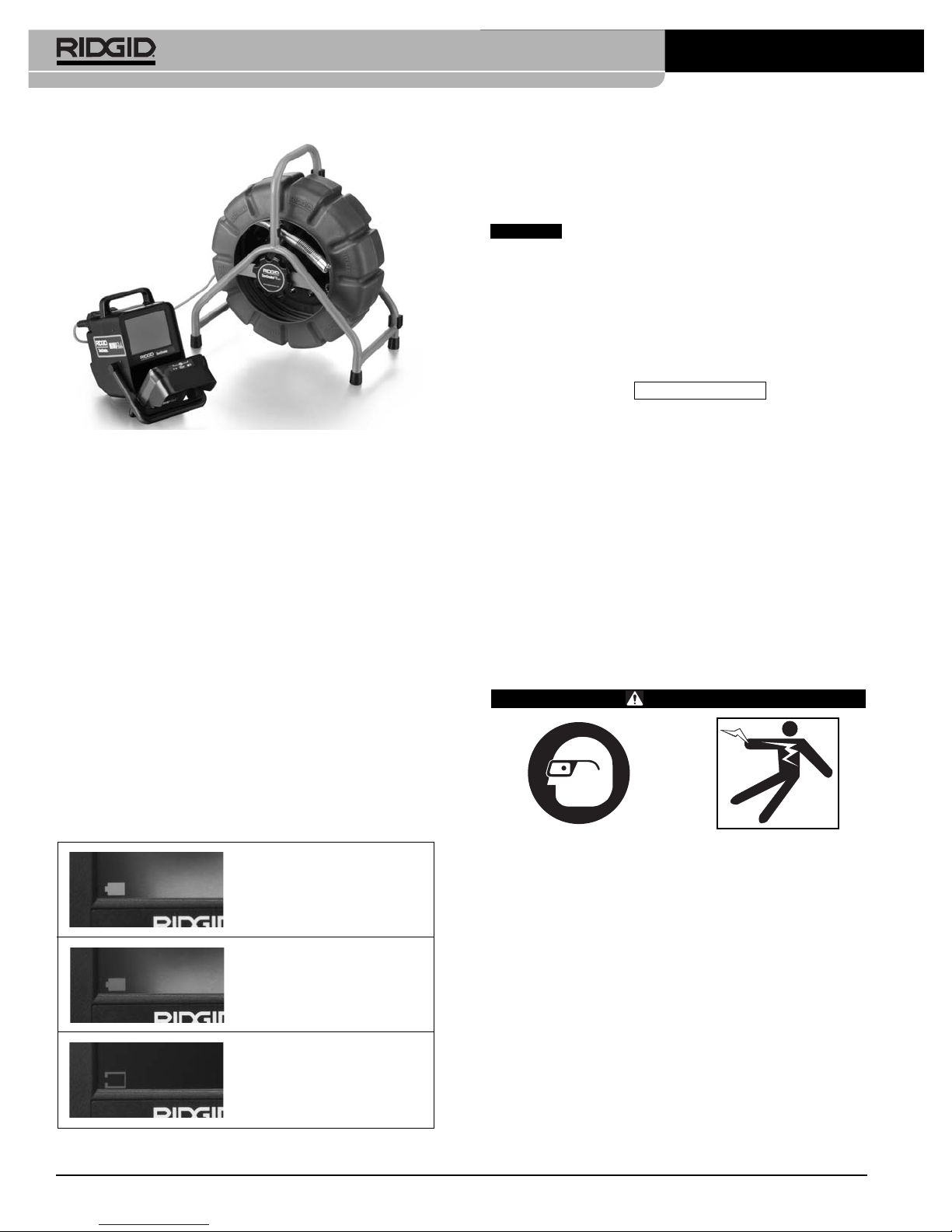

Figure 8 – MINI Pak with SeeSnake
Powering The SeeSnake MINI Pak
The SeeSnake MINI Pak can either be powered with
RIDGID Li-Ion rechargeable battery or plugged in to
an outlet using a supplied AC/DC power converter.
Battery power is the preferred powering method to re-
duce the risk of electrical shock. Additionally, the
power converter is not rated for outdoor use and
should only be used indoors.
Battery Power
With dry hands, slide a fully charged battery onto the bat-
tery dock on the back of the MINI Pak . Make sure that the
battery locks onto the dock. See the Battery Charger op-
erator’s manual for more information.
Batteries supplied for the MINI Pak are rated at 2.2 amp-
hours. When fully charged, depending on use (recording
time, etc.) the MINI Pak will run for approximately 5 hours
(actual time may vary). Battery Status on screen indicator
indicates battery charge level (Figure 9) .
Figure 9 – Battery Charge Level
Outlet Power
For plug in operation, a double insulated AC/DC power
supply is supplied to reduce wall outlet voltage to the cor-
rect voltage for the MINI Pak .
The external power supply is intended for in-
door use only.
To power the system up with the power cord, locate
the power supply. The power supply cord has two sec-
tions, one of which plugs into a standard 110-120V two-
bladed outlet (US) at one end and plugs into a power
supply at the other end. The second section runs from
the power supply to the back of the MINI
Pak and plugs
into the jack marked 25 Watts—14-16V at the left side
of the back of the unit
(Figure 6) .
With dry hands, connect the two sections together and in-
sert the jack plug into the jack on the back of the MINI
Pak .
Route the cord along a clear path and with dry hands plug
the power supply into a matching outlet. If using an ex-
tension cord ensure it is of adequate wire gauge. For
cords of 25 feet, a minimum gauge of 18AWG is re-
quired. For cords greater than 25 feet, a minimum gauge
of 16 AWG is required.
To remove all power to the unit, unplug the power
plug and remove the battery.
Operating Instructions
WARNING
Always wear eye protection to protect your eyes
against dirt and other foreign objects.
When inspecting drains that might contain hazard-
ous chemicals or bacteria, wear appropriate pro-
tective equipment, such as latex gloves, goggles,
face shields or respirators, to prevent burns and in-
fections.
Do not operate this equipment if operator or ma-
chine is standing in water. Operating machine while
in water increases the risk of electrical shock.
Rubber soled, non-slip shoes can help prevent slip-
ping and electric shock, especially on wet surfaces.
Follow operating instructions to reduce the risk of
injury from electrical shock and other causes.
NOTICE
Fully charged
(Green Icon)
Low on charge
(Red Icon)
Shut-down warning
(flashes and beeps)

Starting Up
1. Check that the unit is properly set up.
2. Place the camera head into the reel’s guide hoop and
turn the MINI Pak ’s power on by pressing the Power
Key . After booting, you should see the words
“CountPlus” (if your unit includes a CountPlus dis-
tance counter) and a version number on the monitor
screen. If you do not see an image on the monitor
after boot-up (about 5 seconds), check to make sure
its power is turned on and the system cable is cor-
rectly connected and secured.
3. The MINI Pak screen will remain blue if the MINI Pak
does not detect any video data from the camera. If
screen remains blue check the connections.
Figure 10 – MINI Pak Controls
Image Flip Key: Flips the camera image on the display
screen 180° each time it is pressed.
Dimmer Key: Adjusts camera LED brightness.
Zero Key: Sets a temporary zero-point for measuring in-
termediate distances. Long press (> 2 sec) resets both the
system counter and any temporary counter to zero
(CountPlus Only).
Sonde Key: Powers the built-in 512 Hz Sonde ON or
OFF.
Power Key: Powers the camera, camera control unit
and display ON or OFF.
Once the start-up instructions above are complete, the
display should be showing a view from the camera
head. Monitoring the camera is simply a matter of watch-
ing the screen as you push the camera through the
pipe.
Inspecting The Line
1. Power up the MINI Pak if it is OFF.
2. Put the camera head in the line.
3. Proceed with pipe inspection as described in your
SeeSnake manual.
Brightness Adjustment
You may find you need to increase or decrease the
camera LED brightness while inspecting the inside of a
line, depending on conditions. To do so simply press the
Brightness Key and raise or lower the brightness
level using the Arrow Key . Press the Menu Key
when done.
Image Rotation
While doing an inspection the camera may become ro-
tated in the line and present an inverted image. The
Flip Key will rotate the image on the screen (flip it
vertically) for easier viewing.
Count Plus Control
If you are using a SeeSnake reel equipped with the
Count Plus distance counter, the measured distance will
appear on the display. If you want to set an interim zero-
point to measure distance from some location (such as a
junction or pipe-head) pressing the Zero Key will start
a temporary distance count, with the number displayed in
square brackets [0.0]. A second short press will return to
the main count. A long press (3 seconds) will re-zero
the main distance counter.
For details on using the Count Plus see the Count Plus
manual. Count Plus parameters such as date and time are
set using the Count Plus menu key and going to the
Count Plus Tools menu. Count Plus text overlays are man-
aged with the Count Plus keypad as described in the
Count Plus Operator's Manual.
Locating The Camera Using The Sonde
Many SeeSnake pipe inspection systems have a built-in
Sonde which transmits a locatable 512 Hz signal. When
the Sonde is turned on, a locator such as the RIDGID
SR-20, SR-60, Scout™ or NaviTrack®II set to 512 Hz will
be able to detect it, allowing you to detect the camera’s lo-
cation underground.
To turn the SeeSnake Sonde ON while using the
MINI Pak, press the Sonde Key . A Sonde icon will ap-
pear on the display while the Sonde is ON. The display
may also show some lines of interference from the
Sonde’s transmission.
These will vanish when the Sonde is turned OFF by
again pressing the Sonde Key .
The most workable approach to tracking the Sonde is to
run the pushrod into the pipe about five or ten feet (1.5
to 3 meters) and use the locator to find the Sonde’s
position. If desired, you can then extend the pushrod a
similar distance further down-pipe and locate the Sonde
again starting from the previous located position. To
Ridge Tool Company 9
SeeSnake®MINI Pak
Power Key
Image Flip
Key Sonde Key
Brightness
Key Zero Key

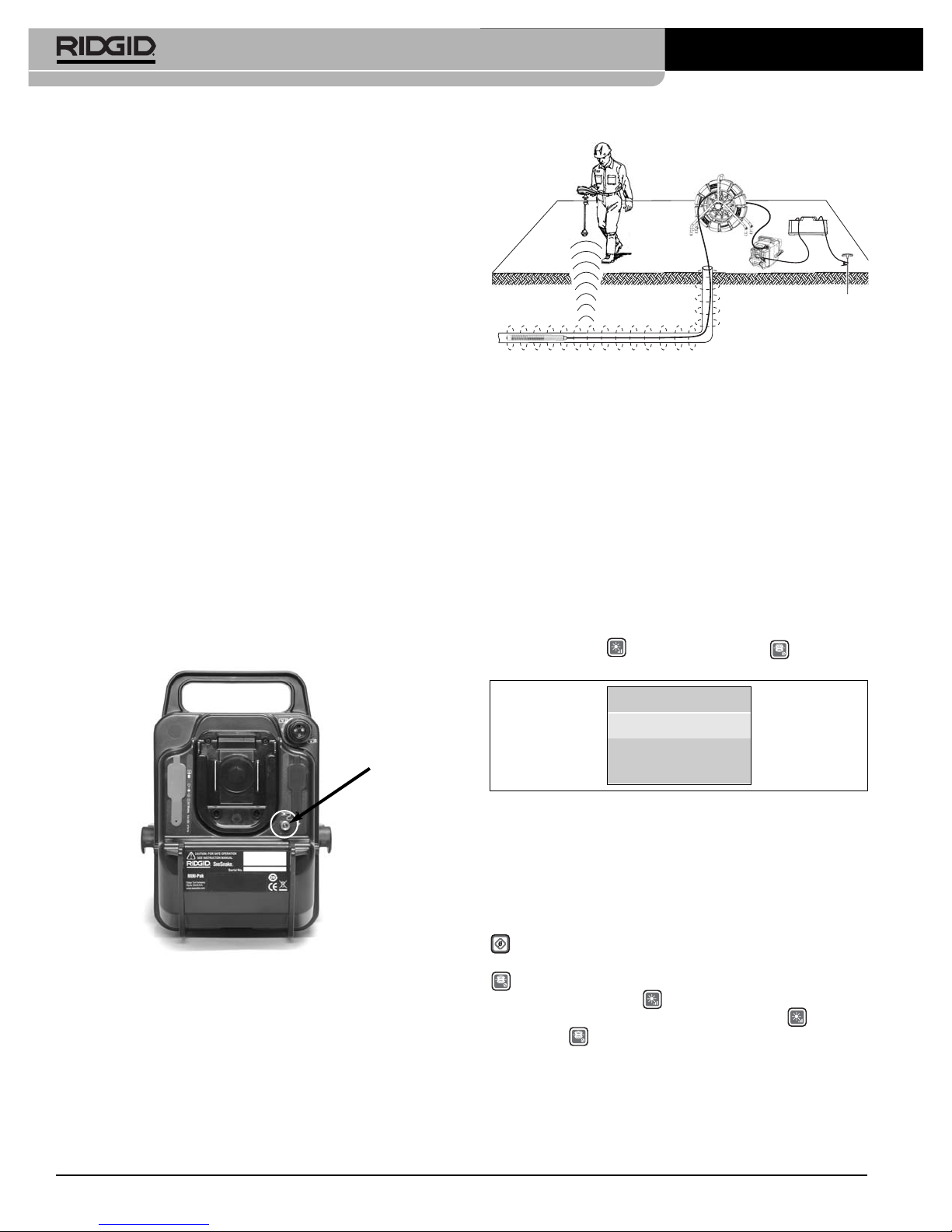

Figure 12 – Line Tracing the Pushrod
If you don’t have the SimulTrace™ feature, use a line
transmitter and a locator to line-trace the pushrod. When
the signal fades, switch the locator to Sonde mode at the
frequency of the in-line Sonde, usually 512 Hz. Pick the
signal up from where the line-trace frequency started to
weaken and zero in on the in-line Sonde. Because lo-
cating frequencies from transmitters can cause distor-
tion of the image on the monitor, it is best to turn Sonde
and line transmitters off while inspecting the interior of a
line and turn them on only when ready to do a locate.
Monitor Settings
For more detailed control of the monitor display, press
the Dimmer Key and the Sonde Key simultane-
ously. A menu of display control options will appear:
Color
Contrast
Brightness
Units
Figure 13 – Display Control Menu
A count-down display will appear and count from 10 to 1
while a menu item is displayed. The count will reset to 10
each time a key is pressed to change a menu item or set-
ting.
Scroll through the options by pressing the Zero Key
until the desired option is highlighted. To increase the
setting of the highlighted option, press the Sonde Key
. To decrease the value of the highlighted option,
press the Dimmer Key . When all three options are set
to your satisfaction, press the Dimmer Key and the
Sonde Key simultaneously to return to the normal dis-
play.
Ridge Tool Company
10
SeeSnake®MINI Pak
locate the Sonde, turn the locator on and set it to Sonde
mode. Scan in the direction of the Sonde’s probable lo-
cation until the locator detects the Sonde. Once you
have detected the Sonde, use the locator indications to
zero in on its location precisely. For detailed instructions
on Sonde locating, consult the Operator’s Manual for the
locator model you are using.
Line Tracing The SeeSnake Pushrod
In addition to being able to trace a Sonde built into the
system camera, the MINI Pak also enables you to trace the
line of the SeeSnake push cable underground, using a
standard RIDGID locator such as the NaviTrack®II, the
Scout™, the SR-20 or the SR-60. To line-trace the
SeeSnake push cable, simply connect a line transmitter
with one connector well-grounded using the grounding
stake, and the other connector clipped to the MINI Pak ’s
Transmitter Clip-on Terminal. The Transmitter Clip-on
Terminal is a metal lug located just to the right of the bat-
tery. (See Figure 11.)
Set the line transmitter and the locator to the same fre-
quency, such as 33 kHz and use the locator to trace the
line (Figure 12). The camera’s built-in Sonde may be on
at the same time, and if your locator is equipped with
SimulTrace™ capability, you can follow the pushrod all the
way to the camera’s location and then detect the Sonde in
the camera as you approach it above ground.
Figure 11 – MINIPak Transmitter Clip-on Terminal

Ridge Tool Company 11
SeeSnake®MINI Pak
The Color, Contrast, and Brightness choices increase
and decrease the value of the appropriate display char-
acteristic on a sliding scale.
The Units option toggles between Auto-detection, Feet,
and Meters for the unit of measurement used in display-
ing distance counts. Auto-detection (Compact reel only)
detects the type of camera (NTSC or PAL) and auto-
matically sets the units to feet (NTSC) or meters (PAL).
Maintenance Instructions
Cleaning
WARNING
Make sure all cords and cables are disconnected
and the battery removed prior to cleaning the
MINI
Pak to reduce the risk of electrical shock.
Do not use liquid or abrasive cleaners on the MINI Pak .
Clean the MINI Pak with damp cloth. Only use cleaners ap-
proved for use on LCD screens to clean the screens.
Do not allow any liquid to enter the MINI Pak .
Accessories
WARNING
The following accessories have been designed to
function with the MINI
Pak . Other accessories suit-
able for use with other equipment may become
hazardous when used with the MINI
Pak . To reduce
the risk of serious injury, only use accessories
specifically designed and recommended for use
with the MINI
Pak , such as those listed below.
Transport And Storage
Remove batteries before shipping. Do not expose to
heavy shocks or impacts during transport. If storing for an
extended period, remove batteries. Store within temper-
ature range of 14°F to 158°F (-10°C to. 70°C).
Store electrical devices in a dry place to reduce the risk of
electrical shock.
Protect against excessive heat. The unit should be situ-
ated away from heat sources such as radiators, heat
registers, stoves or other products (including amplifiers)
that produce heat.
Service And Repair
WARNING
Improper service or repair can make the MINI Pak
unsafe to operate.
Service and repair of the MINI Pak must be performed by
a RIDGID Independent Authorized Service Center.
For information on your nearest RIDGID Independent
Service Center or any service or repair questions:
• Contact your local RIDGID distributor.
• Visit www.RIDGID.com or www.RIDGID.eu to find
your local Ridge Tool contact point.
• Contact Ridge Tool Technical Services Department
at [email protected], or in the U.S. and
Canada call [phone].
Disposal
Parts of the unit contain valuable materials and can be re-
cycled. There are companies that specialize in recycling
that may be found locally. Dispose of the components in
compliance with all applicable regulations. Contact your
local waste management authority for more information.
For EC Countries: Do not dispose of
electrical equipment with household
waste!
According to the European Guideline
2002/96/EC for Waste Electrical and
Electronic Equipment and its implemen-
tation into national legislation, electrical equipment that is
no longer usable must be collected separately and dis-
posed of in an environmentally correct manner.
Battery Disposal
For USA and Canada: The RBRC™
(Rechargeable Battery Recycling Cor-
poration) Seal on the battery packs
means that RIDGID has already paid
the cost of recycling the lithium-ion
battery packs once they have reached
the end of their useful life.
RBRC™, RIDGID®, and other battery suppliers have de-
veloped programs in the USA and Canada to collect and
Catalog # Description
US EU
32743 28218 18 V Li-Ion rechargeable battery
32068 32073 Battery charger
32648 32693 Dual battery kit with charger
32708 32713 Single battery kit with charger
Various RIDGID SeekTech®or NaviTrack®Locator
Various RIDGID SeekTech®or NaviTrack®
Transmitters

Ridge Tool Company
12
recycle rechargeable batteries. Normal and recharge-
able batteries contain materials that should not be di-
rectly disposed of in nature, and contain valuable materials
that can be recycled. Help to protect the environment
and conserve natural resources by returning your used
batteries to your local retailer or an authorized RIDGID ser-
vice center for recycling. Your local recycling center can
also provide you with additional drop off locations.
RBRC™ is a registered trademark of the Rechargeable
Battery Recycling Corporation.
For EC countries: Defective or used battery packs/bat-
teries must be recycled according to the guideline
2006/66/EC.
SeeSnake®MINI Pak
Camera video image not
seen.
MINI Pak screen is a
steady blue with no
image.
Screen display indicates
MINI
Pak battery is low.
Count accuracy seems
unreliable.
(CountPlus)
The symbol “+” appears
after the on-screen dis-
tance measurement.
(CountPlus)
Low Battery warning ap-
pears on screen.
(CountPlus)
No power to SeeSnake.
Connections faulty.
Batteries Low.
No video signal.
MINI Pak 18 V batteries low.
Settings incorrect for reel or cable being used.
Counting from a zero point other than the one in-
tended.
Physical cable measurement has exceeded the
cable parameter in settings.
CountPlus Battery dead or near-dead.
Check power is correctly plugged in.
Check Power Key on MINI Pak by pressing.
Check alignment and pins of connection to MINI
Pak
unit from SeeSnake.
Check orientation, seating, and pin condition in the
SeeSnake System connection. Clean if needed.
Recharge batteries; use power supply until bat-
teries are charged.
Re-seat SeeSnake system cable connection.
Recharge or replace MINI Pak batteries. Switch to
external power.
Verify the CountPlus settings are correct for the
SeeSnake cable length, cable diameter and reel
type you are using.
Confirm you are measuring from the intended
zero-point. Reset zero-point using Zero Key
(See
page 9).
Verify the actual length of your installed cable; re-set
the reel and cable settings for the correct reel type
and actual cable size as described in the CountPlus
manual.
Replace 3-volt battery in the CountPlus (CR2450).
PROBLEM PROBABLE FAULT LOCATION SOLUTION
Chart 1 Troubleshooting

SeeSnake®MINI Pak
SeeSnake®MINI Pak
AVERTISSEMENT
Familiarisez-vous bien avec le
mode d’emploi avant d’utiliser
l’appareil. L’incompréhension ou
le non-respect des consignes ci-
après augmenteraient les risques
de choc électrique, d’incendie
et/ou d’accident grave.
SeeSnake®MINI Pak
Pour future référence, enregistrez ci-dessous le numéro de série indiqué sur la plaque signalétique de l’appareil.
Nº de
série

Ridge Tool Company
14
Table des matières
Fiche d’enregistrement du numéro de série de l’appareil ......................................................................................13
Symboles de sécurité ................................................................................................................................................15
Consignes générales de sécurité
Sécurité des lieux......................................................................................................................................................15
Sécurité électrique ....................................................................................................................................................15
Sécurité individuelle..................................................................................................................................................15
Utilisation et entretien du matériel ............................................................................................................................15
Utilisation et entretien des piles ................................................................................................................................16
Service après-vente..................................................................................................................................................16
Consignes de sécurité spécifiques ..........................................................................................................................17
Sécurité du MINI
Pak ................................................................................................................................................17
Description, caractéristiques techniques et équipements de base
Description................................................................................................................................................................18
Caractéristiques techniques......................................................................................................................................18
Équipements de base ..............................................................................................................................................18
Accessoires disponibles............................................................................................................................................18
Composants du MINI
Pak ............................................................................................................................................18
Icônes ..........................................................................................................................................................................19
Contrôle préalable ......................................................................................................................................................19
Préparation des lieux et du matériel..........................................................................................................................19
Positionnement du MINI Pak ....................................................................................................................................20
Couvercle avant et support basculant ......................................................................................................................20
Raccordement du MINI Pak ......................................................................................................................................20
Icônes de branchement ............................................................................................................................................21
Mise en route du SeeSnake MINI Pak ......................................................................................................................21
Consignes d’utilisation ..............................................................................................................................................22
Mise en route ............................................................................................................................................................22
Inspection des canalisations ....................................................................................................................................22
Localisation de la caméra à l’aide de la sonde ........................................................................................................23
Traçage du câble SeeSnake à l’intérieur d’une conduite..........................................................................................23
Paramètres du moniteur ..........................................................................................................................................24
Consignes d’entretien ................................................................................................................................................24
Nettoyage..................................................................................................................................................................24
Accessoires ................................................................................................................................................................24
Transport et stockage ................................................................................................................................................25
Révisions et réparations ............................................................................................................................................25
Recyclage ....................................................................................................................................................................25
Recyclage des piles ....................................................................................................................................................25
Dépannage ..................................................................................................................................................................26
Garantie à vie ..........................................................................................................................................Page de garde
Traduction de la notice originale
SeeSnake®MINI Pak

Consignes générales de sécurité
AVERTISSEMENT
Familiarisez-vous avec l’ensemble du mode d’emploi. Le
non-respect des consignes d’utilisation et de sécurité
ci-après augmenterait les risques de choc électrique,
d’incendie et/ou de grave blessure corporelle.
CONSERVEZ L’ENSEMBLE DES
INSTRUCTIONS ET AVERTISSEMENTS
POUR FUTURE REFERENCE !
Sécurité des lieux
•Assurez-vous de la propreté et du bon éclairage
des lieux. Les zones encombrées ou mal éclairées
sont une invitation aux accidents.
•N’utilisez pas d’appareils électriques en présence
de matières explosives telles que liquides, gaz ou
poussières combustibles. Les appareils électriques
produisent des étincelles susceptibles d’enflammer
les poussières et émanations combustibles.
•Eloignez les enfants et les curieux lors de l’utili-
sation d’un appareil électrique. Les distractions
risquent de vous faire perdre le contrôle de l’appareil.
Sécurité électrique
•Evitez tout contact physique avec les objets reliés
à la terre tels que canalisations, radiateurs, cuisi-
nières et réfrigérateurs. Tout contact avec la terre
augmenterait les risques de choc électrique.
•N’exposez pas l’appareil à la pluie ou aux intem-
péries. Toute pénétration d’eau à l’intérieur d’un ap-
pareil électrique augmenterait les risques de choc
électrique.
•Ne maltraitez pas le cordon d’alimentation de l’ap-
pareil. Ne jamais utiliser le cordon pour trans-
porter, tirer ou débrancher l’appareil. Éloignez le
cordon des sources de chaleur, des matières
huileuses, des objets tranchants et des mécan-
ismes. Les cordons d’alimentation endommagés ou
tortillés augmentent les risques de choc électrique.
•Lorsqu’il est inévitable de travailler dans des en-
droits mouillés, utilisez une source d’alimentation
protégée par disjoncteur différentiel (GFCI). La
présence d’un disjoncteur différentiel limite les risques
de choc électrique.
•Maintenez toutes connexions électriques au sec et
en élévation. Ne pas toucher le matériel et ses
fiches électriques avec les mains mouillées. Cela
limitera les risques de choc électrique.
Sécurité individuelle
•Soyez attentif, faites attention à ce que vous faites
et faites preuve de bon sens. N’utilisez pas d’appareil
électrique lorsque vous êtes sous l’influence de dro-
gues, de l’alcool ou de médicaments. Lors de l’utilisa-
tion d’un appareil électrique, un instant d’inattention
risque d’entraîner de graves lésions corporelles.
Symboles de sécurité
Des symboles et mots clés spécifiques, utilisés à la fois dans ce mode d’emploi et sur l’appareil lui-même, servent à signaler
d’importants risques de sécurité. Ce qui suit permettra de mieux comprendre la signification de ces mots clés et symboles.
Le terme DANGER signifie une situation dangereuse potentielle qui, faute d’être évitée, provoquerait la mort ou de
graves blessures corporelles.
Le terme AVERTISSEMENT signifie une situation dangereuse potentielle qui, faute d’être évitée, serait sus-
ceptible d’entraîner la mort ou de graves blessures corporelles.
DANGER
Ridge Tool Company 15
SeeSnake®MINI Pak
Ce symbole sert à vous avertir aux dangers physiques potentiels. Le respect des consignes qui le suivent vous permettra d’éviter
les risques de blessures graves ou mortelles.
AVERTISSEMENT
Ce symbole signifie un risque de choc électrique.
Ce symbole indique la nécessité de lire le manuel soigneusement avant d’utiliser le matériel. Le mode d’emploi renferme
d’importantes informations concernant la sécurité d’utilisation du matériel.
Ce symbole indique le port obligatoire de lunettes de sécurité intégrales lors de la manipulation ou utilisation du matériel.
CAUTION Le terme CAUTION signifie une situation dangereuse potentielle qui, faute d’être évitée, serait susceptible d’entraîner
des blessures corporelles légères ou modérées.
Le terme AVIS signifie des informations concernant la protection des biens.
AVIS IMPORTANT

Ridge Tool Company
16
SeeSnake®MINI Pak
•Prévoyez les équipements de protection individu-
elle nécessaires. Portez systématiquement une pro-
tection oculaire. Le port d’un masque à poussière, de
chaussures de sécurité antidérapantes, d’un casque de
chantier ou de protecteurs d’oreilles s’impose lorsque
les conditions l’exigent.
•Ne vous mettez pas en porte-à-faux. Maintenez
une bonne position de travail et un bon équilibre à
tout moment. Cela vous permettra de mieux con-
trôler l’appareil en cas d’imprévu.
•Habillez-vous de manière appropriée. Ne portez ni
vêtements flottants, ni bijoux. Eloignez vos che-
veux, vos vêtements et vos gants des mécanismes
de l’appareil. Les vêtements flottants, les bijoux et les
cheveux longs risquent d’être entraînés par le mé-
canisme.
Utilisation et entretien du matériel
•Ne forcez pas le matériel. Prévoyez le matériel ap-
proprié en fonction des travaux envisagés. Le
matériel approprié fera le travail plus efficacement et
avec un plus grand niveau de sécurité lorsqu’il tourne
au régime prévu.
•N’utilisez pas de matériel électrique dont l’inter-
rupteur ne contrôle pas la mise en marche ou
l’arrêt. Tout appareil électrique qui ne peut pas être
contrôlé par son interrupteur est dangereux et doit
être réparé.
•Débranchez l’appareil et/ou retirez son bloc-piles
avant de le régler, de changer ses accessoires ou
de le ranger. De telles mesures préventives limiteront
les risques de blessure.
•Rangez tout appareil non utilisé hors de la portée
des enfants et des individus qui n’ont pas été fa-
miliarisés avec ce type de matériel ou son mode
d’emploi. Les appareils électriques peuvent devenir
dangereux s’ils tombent entre les mains d’utilisateurs
non initiés.
•Veillez à l’entretien de l’appareil. Examinez-le pour
signes de désalignement, de grippage, d’absence ou de
bris de ces composants, et de toute autre anomalie qui
risquerait de nuire à son bon fonctionnement. Le cas
échéant, faire réparer l’appareil avant de l’utiliser. De
nombreux accidents sont provoqués par des appareils
mal entretenus.
•Servez-vous de l’appareil et de ses accessoires
selon les consignes ci-présentes en tenant compte
des conditions de travail et des travaux envisagés.
L’utilisation de ce matériel à des fins autres que celles
prévues pourrait s’avérer dangereux.
•Utilisez exclusivement les accessoires prévus par
le fabricant pour votre type d’appareil particulier.
Toute tentative d’adaptation d’accessoires prévus
pour d’autres types d’appareil pourrait s’avérer dan-
gereuse.
•Maintenez les poignées de l’appareil en bon état de
propreté et éliminez la moindre trace d’huile ou de
graisse. Cela permettra de mieux tenir l’appareil.
Utilisation et entretien des piles
•Utilisez exclusivement le chargeur prévu par le
fabricant pour recharger les bloc-piles. L’emploi
d’un chargeur prévu pour d’autres types de piles aug-
menterait les risques d’incendie.
•N’utilisez que le modèle de bloc-piles spécifique-
ment désigné pour cet appareil. L’emploi de tout
autre type de bloc-piles augmenterait les risques de
blessure et d’incendie.
•N’introduisez aucun objet conducteur d’électricité
dans le bloc-piles. Lorsqu’il ne sert pas, éloignez-
le de tout objet métallique (trombones, pièces de
monnaie, clés, clous, vis et autres) qui serait sus-
ceptible de ponter les deux bornes du bloc-piles.
Un court-circuit entre les deux bornes du bloc-piles
pourrait provoquer des brûlures ou un incendie.
•En cas de suintement de l’électrolyte du bloc-
piles suite à un traitement abusif, évitez tout con-
tact celui-ci. En cas de contact cutané, rincez la
peau à l’eau courante. En cas de contact oculaire,
faites de même, puis consultez en plus un méde-
cin. Ce type d’électrolyte est susceptible de provoquer
des irritations et des brûlures.
•Utilisez et stockez le bloc-piles et le chargeur dans
les limites de température et d’humidité précon-
isées. Les extrêmes de température et d’humidité
peuvent endommager les piles au point de provoquer
des fuites d’électrolyte, des chocs électriques, des in-
cendies et des brûlures. Consultez le mode d’emploi du
chargeur pour de plus amples détails.
•Ne pas recouvrir le chargeur lorsqu’il fonctionne.
Une ventilation adéquate est essentielle à son bon
fonctionnement. Le recouvrement du chargeur pourrait
provoquer un incendie.
•Recyclez les piles de manière appropriée. Dans
la mesure où une température trop élevée risque déjà
de le faire exploser le bloc-piles, ne jamais l’incinérer.
Certains pays disposent d’une réglementation visant le
recyclage des piles. Le cas échéant, veuillez respecter
l’ensemble des textes applicables.

Ridge Tool Company 17
SeeSnake®MINI Pak
Révisions
•Confiez les révisions de votre matériel a un ré-
parateur qualifié utilisant exclusivement des pièces
de rechange identiques à celles d’origine. Cela as-
surera la sécurité intrinsèque du matériel.
• Dans les cas suivants, retirez le bloc-piles de l’ap-
pareil et confiez sa révision à un réparateur qualifié :
• Introduction accidentelle de liquides ou d’objets à
l’intérieur du produit.
• Fonctionnement anormal du produit sous condi-
tions d’utilisation prévues
• Chute ou autre cause quelconque ayant pu en-
dommager le produit
• Changement distinct dans le fonctionnement du
produit.
Consignes de sécurité
spécifiques
AVERTISSEMENT
La section suivante contient d’importantes consignes de
sécurité qui s’adressent spécifiquement à ce type de
matériel.
Afin de limiter les risques d’incendie et de choc électrique
ou autres blessures graves, lisez le mode d’emploi
soigneusement avant d’utiliser le MINI
Pak.
CONSERVEZ CES INSTRUCTIONS !
Gardez ce mode d’emploi avec l’appareil pour qu’il soit à la
disposition de tout utilisateur éventuel.
En cas de questions concernant ce produit Ridge Tool :
– Consultez votre distributeur RIDGID.
– Consultez les sites www.RIDGID.com ou
www.RIDGID.eu pour localiser le représentant
Ridge Tool le plus proche.
– Consultez les services techniques de Ridge Tool
par mail adressé à [email protected], ou, à
partir des États-Unis et du Canada, en composant le
[phone].
Sécurité du MINI Pak
•Toute prise électrique ayant une prise de terre
défectueuse est susceptible de provoquer des
chocs électriques et/ou d’endommager le matériel.
Assurez-vous de la bonne mise à la terre de la prise de
courant utilisée. La simple présence d’une barrette
de terre ou d’un disjoncteur différentiel ne garantit
pas une bonne mise à la terre. En cas de doute, faire
contrôler la prise par un électricien professionnel.
•N’utilisez que les pile prévus pour le MINI Pak ou
une alimentation sur secteur à double isolation.
•Ne pas utiliser ce matériel lorsque lui ou son util-
isateur a les pieds dans l’eau. La présence d’eau
augmente les risques de choc électrique.
•Le MINI Pak n’est pas étanche. Seuls la caméra et le
câble d’avancement le sont. N’exposez pas ce
matériel à la l’eau ou à la pluie. Cela augmenterait les
risques de choc électrique.
•Ne pas utiliser ce matériel en présence d’un risque
de contact avec une source de haute tension. Ce
matériel n’est pas conçu pour assurer une protection ou
isolation contre la haute tension.
•Avant d’utiliser le MINI Pak, familiarisez-vous avec
son mode d’emploi, ainsi que ceux du moniteur et
de tout autre matériel associé. Le non-respect de
l’ensemble de ces consignes pourrait entraîner des
dégâts matériels et/ou de graves blessures corporelles.
•Prévoir systématiquement les équipements de pro-
tection individuelle appropriés lors de la manipu-
lation ou utilisation de ce matériel sur les conduites
d’évacuation. Les canalisations d’évacuation peuvent
renfermer des produits chimiques, des bactéries ou
autres substances potentiellement toxiques, infec-
tieuses, irritantes ou autrement dangereuses. Les
équipements de protection individuelle appropriés com-
prennent systématiquement les lunettes et de sécurité,
voire éventuellement des équipements supplémen-
taires tels que gants ou mitaines de curage, gants en
latex ou caoutchouc, visières intégrales, lunettes fer-
mées, vêtements de protection, appareils respiratoires
ou chaussures de sécurité blindées.
•Lors de l’utilisation simultanée d’un dégorgeoir et
du système d’inspection, portez exclusivement
des gants de curage RIDGID. Ne jamais tenter de tenir
un câble de dégorgeoir avec autre chose, y compris
avec d’autres types de gants ou un chiffon. Ceux-ci
risquent de s’entortiller autour de câble et de blesser vos
mains. Ne portez des gants en latex ou en caoutchouc
que sous les gants de curage RIDGID. N’utilisez pas de
gants de curage endommagés.
•Respectez les normes d’hygiène d’usage. Après
chaque intervention, lavez vos mains et autres par-
ties du corps exposées au contenu des évacuations
avec de l’eau chaude savonneuse. Ne pas manger
ou fumer lors de la manipulation ou utilisation du
matériel d’inspection. Cela aidera à éviter les risques de
contamination par contact avec des substances tox-
iques ou infectieuses.

Ridge Tool Company
18
SeeSnake®MINI Pak
Figure 1 – Composants du MINI Pak
Moniteur
Clavier MINI
Pak
Couvercle
Poignée du couvercle
Loquet du couvercle
Description, caractéristiques
techniques et équipements de
base.
Description
Le SeeSnake®MINI Pak est une unité de commande de
caméra et de moniteur à la fois moderne, compacte et
portable pour système d’inspection de conduites
SeeSnake.
Le MINI Pak se branche en toute simplicité sur une caméra
à enrouleur SeeSnake et permet de visualiser l’image
globale transmise par sa caméra. Il met à portée de main
les réglages de caméra et de moniteur, ainsi que les
commandes de la sonde 512 Hz qui équipe la majorité des
caméras SeeSnake et qui permet la localisation souter-
raine de la caméra. Le MINI Pak permet également la
connexion d’un transmetteur externe au câble SeeSnake
et l’utilisation d’un localisateur standard pour le traçage du
câble SeeSnake à l’intérieur des canalisations.
Le MINI Pak est compatible avec l’ensemble des config-
urations SeeSnake (Figure 8). Les autres accessoires
adaptés au SeeSnake MINI Pak comprennent :
• Piles rechargeables (référence Ridgid 32743)
• Localisateurs/récepteurs RIDGID SR-20, SR-60,
ScoutTM ou NaviTrack®II
• Transmetteurs RIDGID ST-510, ST-305, ST-33Q,
NaviTrack®Brick ou NaviTrack®10 watts.
• Le système de mesure d’avancement du câble
Count Plus Cable Counter normalement intégré aux
systèmes d’inspection SeeSnake.
Caractéristiques techniques
Poids .............................1,930 kg (4,25 lbs) sans piles
Dimensions :
Profondeur...................355 mm (14")
Largeur........................192 mm (7,6")
Hauteur........................268 mm (10")
Alimentation...................Secteur 100-240V, 50-60Hz
ou pile rechargeable 18V
Pile ................................Li-ion 18V, 2,2 Ah
Puissance nominale ......14-16V, 25W
Critères de fonctionnement :
Température................0 à 40 ºC (32 à 104 ºF)
Humidité relative..........5 à 95 %
Température de
stockage........................–10 à 70 ºC (14 à 158 ºF)
Altitude ........................4000 m (13120 pieds)
Affichage LCD :
Résolution ...................320 x 240
Panneau LCD..............144,8mm (5,7") Figure 2 – Clavier du MINI
Pak
Touche
marche/arrêt
Touche menu combinée
(veilleuse + sonde)
Touche de
retournement
d’image Touche sonde
Touche
d’éclairage
Touche de
remise à zéro
Composants du MINI Pak
Pile
Points.............................H=0,36 mm x L=0,12 mm x 3
(R,G,B)
Écran (H x V)...............117,8 mm x 88,2 mm
(4,6" x 3,47")
Rapport de contraste....350:1
Éclairage .....................500 cd/m2
Equipements de base
• MINI Pak
• Convertisseur 100 – 220 V / 15 V
• Mode d’emploi
• Instructions sur DVD
Accessoires Réf. (USA) Réf. (EU)
Pile rechargeable Li-ion de 18 V 32743 28218
Chargeur 32068 32073
Kit 2 piles avec chargeur 32648 32693
Kit 1 pile avec chargeur 32708 32713
Le MINI Pak est protéger par plusieurs brevets et brevets
en instance US et internationaux.
