Planmeca Prostyle Intra User manual

Prostyle Intra
USER'S MANUAL
Publication part number 688092
Version 20
Published 2001-08
En

Prostyle Intra TOC - 1
TABLE OF CONTENTS
User's manual
1 INTRODUCTION ....................................................................................................................................1
2 SYMBOLS ..............................................................................................................................................2
3 CHECK LIST BEFORE USING THE X-RAY UNIT .......................................................................................3
4 MAIN PARTS ..........................................................................................................................................4
5 CONTROL PANEL ..................................................................................................................................6
5.1 Displays ........................................................................................................................................................ 6
5.2 Keys and indicator lights .............................................................................................................................. 7
6 PREPARATIONS FOR THE EXPOSURE ....................................................................................................9
6.1 Switching the unit on ................................................................................................................................... 9

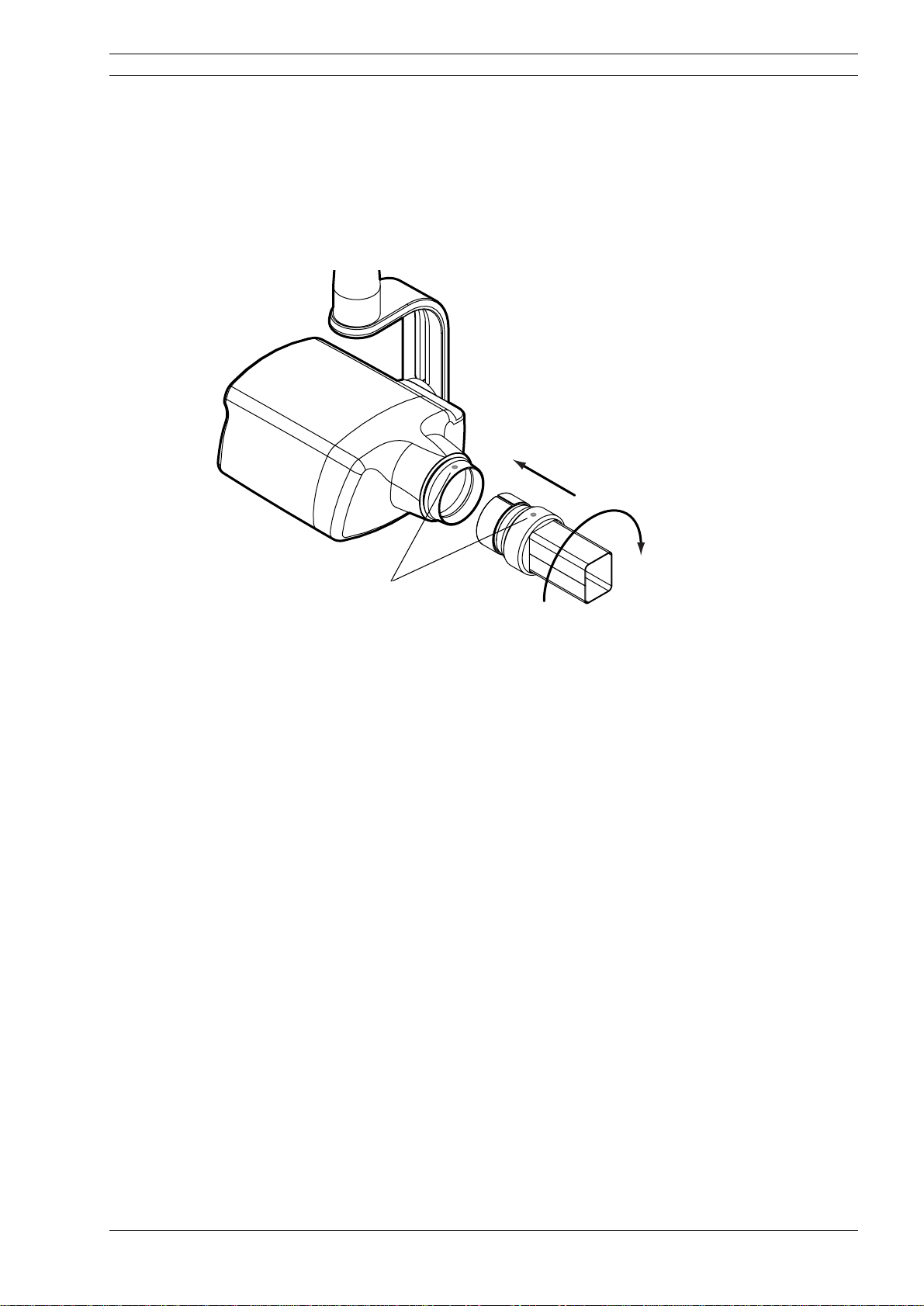

6.2 Selecting the cone ........................................................................................................................................ 9
6.3 Selecting the exposure parameters ............................................................................................................. 12

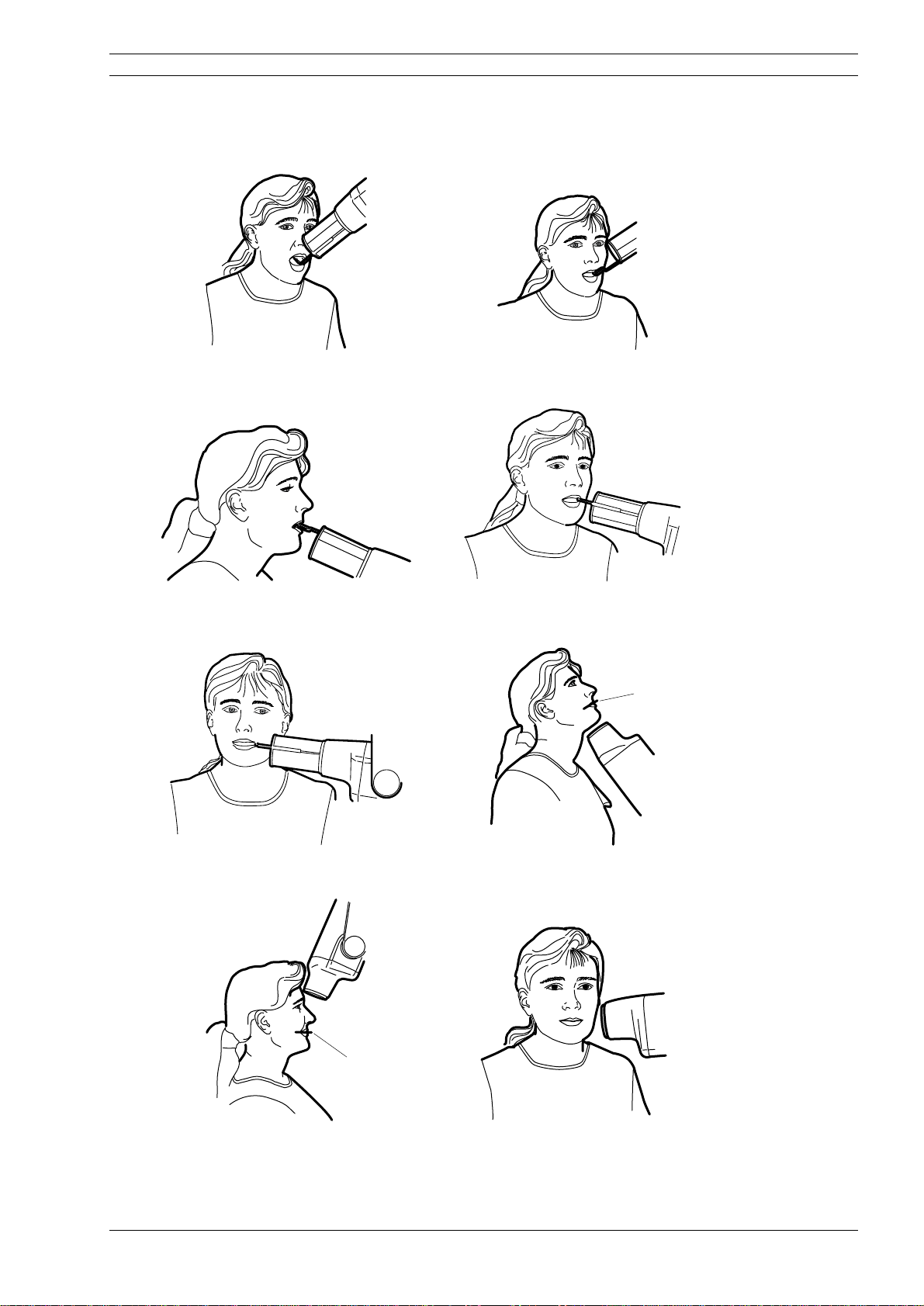

7 POSITIONING THE PATIENT .................................................................................................................13
7.1 Positioning the film/sensor ......................................................................................................................... 13
7.2 Positioning the cone ................................................................................................................................... 14
8 TAKING AN EXPOSURE .......................................................................................................................16
9 EXPOSURE VALUES .............................................................................................................................17
9.1 Default exposure values ............................................................................................................................. 17
9.2 Preprogrammed settings values .................................................................................................................. 18
10 PROGRAMMING THE EXPOSURE VALUES .........................................................................................19
10.1 Programming the default exposure and density values .............................................................................. 19
10.2 Programming the preprogrammed settings ................................................................................................ 20
11 MAINTENANCE ...................................................................................................................................22
11.1 Cleaning ..................................................................................................................................................... 22
11.2 Preventive maintenance ............................................................................................................................. 22
12 EXPOSURE VALUE TABLES ..................................................................................................................23
13 ERROR CODES ....................................................................................................................................25
14 DISPOSAL OF THE UNIT .......................................................................................................................26
15 TECHNICAL SPECIFICATIONS ............................................................................................................27

TABLE OF CONTENTS
TOC - 2 Prostyle Intra User's manual
Planmeca pursues a policy of continual product development. Although every
effort is made to produce up-to-date product documentation this publication
should not be regarded as an infallible guide to current specifications. We re-
serve the right to make changes without prior notice.
COPYRIGHT PLANMECA 2001-08
PUBLICATION PART NUMBER 688092 revision 20
The manufacturer, assembler, and importer are responsible for the safety, reli-
ability and performance of the unit only if:
- installation, calibration, modification and repairs are carried out by qualified
authorized personnel
- electrical installations are carried out according to the appropriate require-
ments such as IEC364
- equipment is used according to the operating instructions.

Prostyle Intra X-ray Unit 1
INTRODUCTION
User's manual
1 INTRODUCTION
This manual describes how to use the PLANMECA
Prostyle Intra x-ray unit and the Prostyle Intra equip-
ped with Dixi digital x-ray system. Please read this
manual carefully before using the equipment.
Note, that if you use the Dixi digital intra x-ray system,
you need a PC with a Planmeca Dimaxis imaging soft-
ware to save, view and modify the radiographs. The
Dimaxis software has a separate manual, which should
be used in conjunction with this manual.
NOTE This manual is valid for software revisions 1.20 or la-
ter.
NOTE The use of Prostyle Intra x-ray unit is allowed only
under supervision of dental care professional.
CAUTION The x-ray unit may be dangerous to both patient and
operator unless safe exposure values are used and
correct operating procedures are observed.
Prostyle Intra x-ray unit fulfills the requirements of Di-
rective 93/42/EEC.
All key illustrations indicate that the key should be
pressed or, where indicated, pressed and held down.
Pressing a key will either switch a function on or off,
depending on the original setting, or change the indica-
ted value.
The display values shown in this manual are only
examples and should not be interpreted as recommen-
ded values unless otherwise stated.
NOTE Electromagnetic interference between the equipment
and other devices can occur in very extreme condi-
tions. Do not use the equipment in close conjunction
with sensitive devices, or devices creating high elec-
tromagnetic disturbances.
0537
s
0.80

SYMBOLS
2 Prostyle Intra X-ray Unit
User's manual

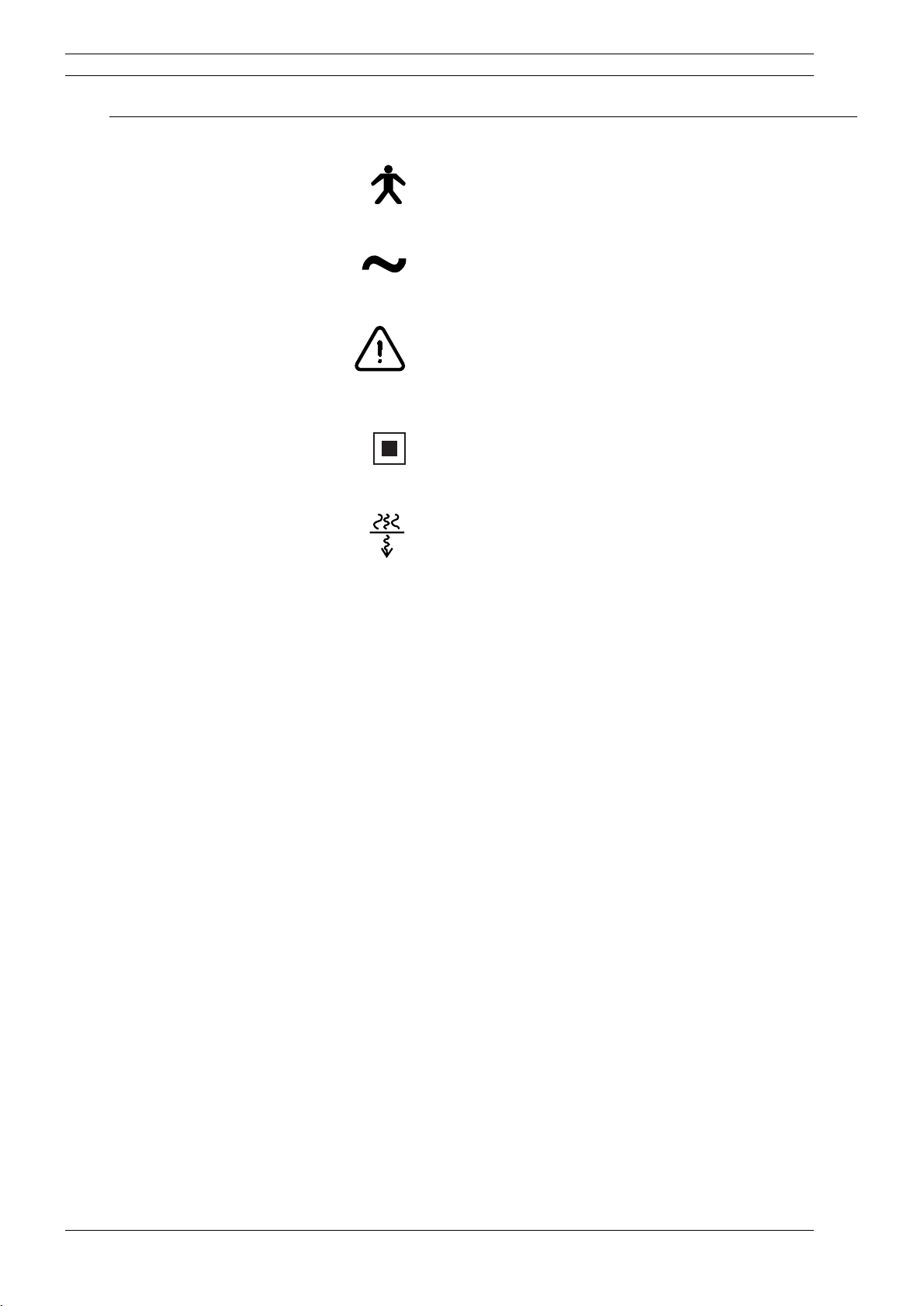

2 SYMBOLS
Type B equipment (Standard IEC 601-1).
Alternating current (Standard IEC-417).
Attention, consult accompanying documents (Standard
IEC 601-1).
Intermediate focal spot (Standard IEC-417).
Radiation filter or filtration (Standard IEC-417).

Prostyle Intra X-ray Unit 3
CHECK LIST BEFORE USING THE X-RAY UNIT
User's manual
3 CHECK LIST BEFORE USING THE X-RAY UNIT
NOTE IT IS VERY IMPORTANT THAT THE PLACE
WHERE THE UNIT IS TO BE USED AND THE
POSITION FROM WHICH THE USER IS TO
OPERATE THE UNIT ARE CORRECTLY SHIEL-
DED. SINCE RADIATION SAFETY REQUIRE-
MENTS VARY FROM COUNTRY TO COUNTRY
AND STATE TO STATE IT IS THE RESPONSIBI-
LITY OF THE USER TO ENSURE THAT ALL LO-
CAL SAFETY REQUIREMENTS ARE MET.
• Make sure that you are fully acquainted with the app-
ropriate radiation protection measures and this user’s
manual before using the unit.
• Always use fresh film. Store and handle the film ac-
cording to the manufacturer’s instructions.
• Make sure that the film processor is in working order
and is ready for use.
• Make sure that you are using the correct film process-
ing chemicals for the film you are using.
• Make sure that the processing chemicals you are using
are fresh and are at the correct processing temperatures
and concentrations.

MAIN PARTS
4 Prostyle Intra X-ray Unit
User's manual
4 MAIN PARTS
One end of the control panel cable is connected to the
terminal at the under-side of the generator box, and the
other end to the control panel.
CAUTION Do not connect any other equipment to the control
panel’s terminal.
Prostyle
Support arm
Generator box Control panel Tube head
Scale for cone angle
SELECT
CAUTION: X-RAYS
ATTENTION: RAYONS-X
READY
PRET
8mA
kV
s

Prostyle Intra X-ray Unit 5
MAIN PARTS
User's manual
Horizontal tube head stiffness adjustment screw
Adjust the stiffness of the tube head horizontal move-
ment by turning the adjustment screw on the support
axle manually or with a wrench tool.
The stiffness of the tube head horizontal movement
has been preadjusted at the factory, and can be chan-
ged by the user, if necessary.
Turn the adjustment screw 0,5 - 1 rounds clockwise if
you want to tighten the tube head and 0,5 - 1 rounds
counterclockwise to loosen it.
NOTE Do not turn the adjustment screw too much counter-
clockwise to avoid the screw to come loose.
intra_stiffness.eps
Horizontal tube head stiffness adjustment screw

CONTROL PANEL
6 Prostyle Intra X-ray Unit
User's manual
5 CONTROL PANEL
5.1 Displays
kV display
The selected kV value is shown on the kV display.
There are eight different values that can be selected:
50, 52, 55, 57, 60, 63, 66 and 70 kV.
The used mA value, 8 mA, is shown above the kV dis-
play.
NOTE The kV range can be 50-60, 55-70, 60-70, 66-70 or 70
depending on the local requirements.
Time display
The selected exposure time is shown on the time dis-
play. After taking an exposure a waiting time starts to
flash on the time display which indicates the delay be-
fore the next exposure can be taken.
In the digital imaging mode the exposure time is
shown with prefix c, and the exposure time is always
less than one second, i.e. the maximum exposure time
is 0.80 seconds.
CAUTION: X-RAYS
ATTENTION: RAYONS-X
READY
PRET
8 mA
kV
s
C
SELECT
Preprogrammed setting
Adult/child selection key
Select key
Exposure key
Parameter adjustment keys
Ready indicator light
kV display
Time display
Exposure warning
indicator light
and indicator light
keys and indicator lights
66
0.25
Digital imaging mode
selection (C-) key
8 mA
kV
70
s
0.32
s
c.20

Prostyle Intra X-ray Unit 7
CONTROL PANEL
User's manual
If the density selection mode is selected, the density
value, indicated with “d”, is shown on this display. In
the digital imaging mode the density selection mode is
indicated with “c”.

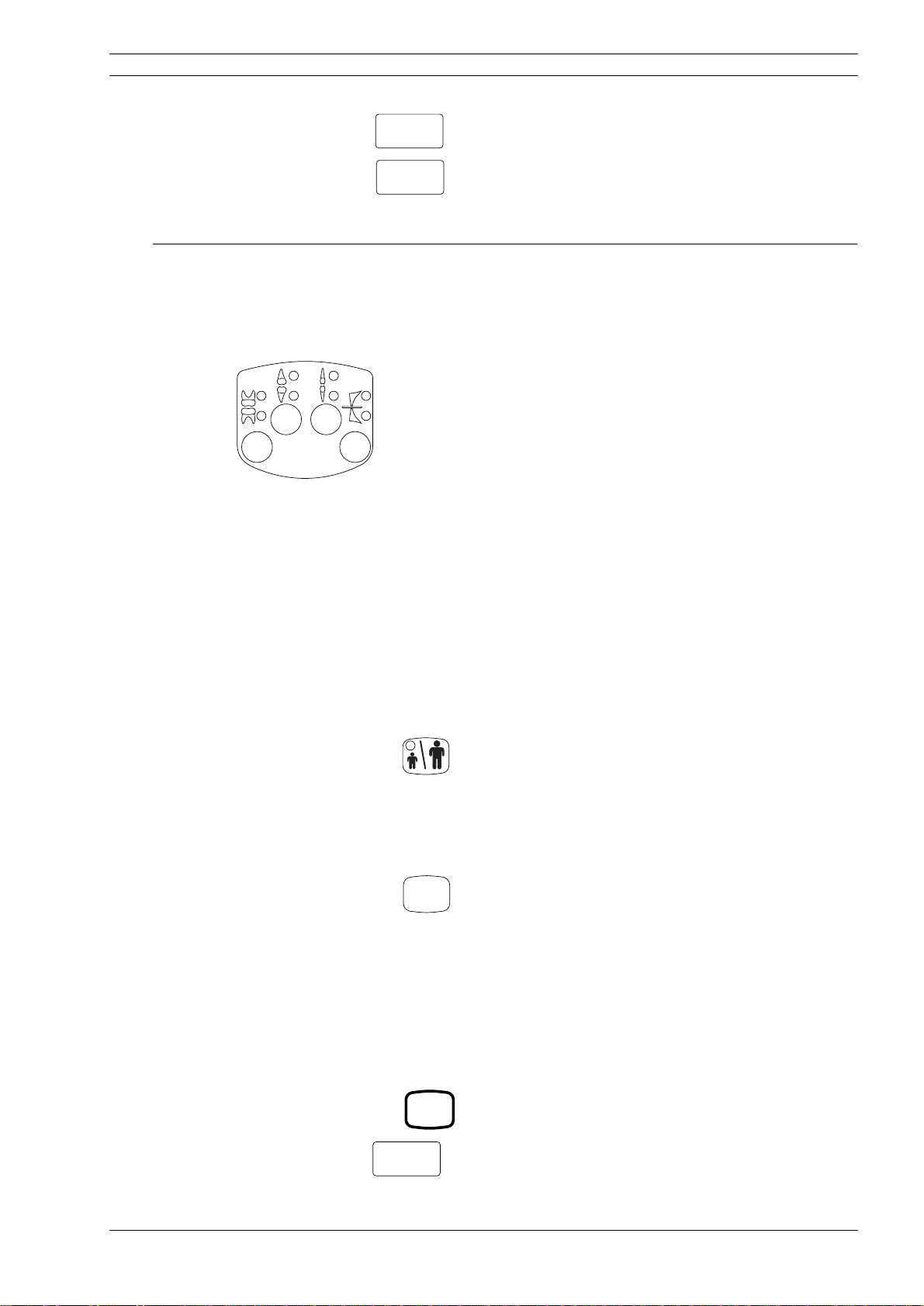

5.2 Keys and indicator lights
Preprogrammed setting keys and indicator lights
The unit is preprogrammed with exposure parameters -
time and kV values - which can be selected by pressing
these keys. There are nine sets of parameters for both
the child mode and the adult mode: one for each expo-
sure region and one default exposure values, which are
in use when an exposure region is not selected.
The selections that can be made are: molars, premolars
& canines, incisors and occlusal exposure.
Press the desired key once to select the projection of
the maxilla, and press the key twice to select the pro-
jection of the mandible. The indicator light of the se-
lected projection will come on.
Pressing the key a third time will recall the default ex-
posure values.
The preprogrammed settings can be changed by the
user, see section 10 “PROGRAMMING THE EXPO-
SURE VALUES” on page19.
Adult/child mode selection key and indicator light
Press the adult/child mode selection key once to select
the child mode. The indicator light will come on.
Press the key again to return to the adult mode. The in-
dicator light will go out.
Select key
Press the select key briefly to select the parameter - kV
or exposure time - to be changed.
Press and hold down the select key until you have
heard two signal tones (about 4 seconds) to enter the
program mode. In the programming mode also the
density can be selected, refer to the section 10.1 “Pro-
gramming the default exposure and density values” on
page 19.
Digital imaging mode selection (C-)key
Press the C-key for 2 seconds to enter the digital imag-
ing mode. The exposure time with prefix “c” appears
on the time display. All the keys function as in the nor-
mal mode, only the density scale (0 ... -9) is different
than in the normal mode (5 ... -5).
s
d 3
s
c-3
Molars
Premolars Incisors
Occlusal
exposure
and canines
SELECT
C
s
c.20

CONTROL PANEL
8 Prostyle Intra X-ray Unit User's manual

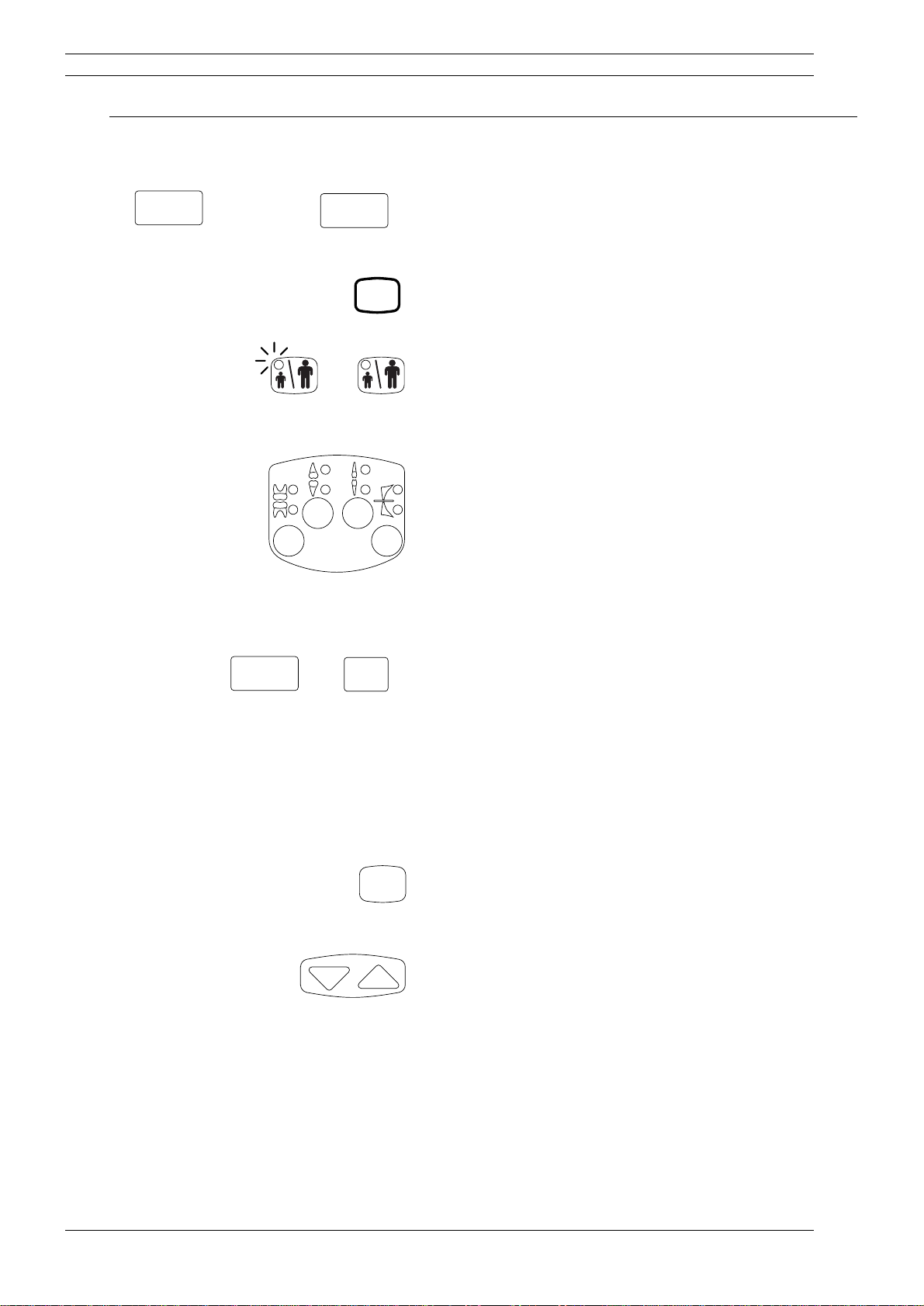

Parameter adjustment keys
Press the parameter adjustment keys to change the va-
lue of the selected parameter. The up key increases the
value and the down key decreases it.
Ready indicator light
The ready indicator light will come on when the unit is
ready to take an exposure. The waiting time between
exposures is 15 times exposure time, but always at
least 6 seconds.
Exposure key
When you take an exposure you must press and hold
down the exposure key for the duration of the exposu-
re.
Exposure warning indicator light
The exposure warning light will come on when you ta-
ke an exposure. You will also hear an audible warning
sound during the exposure.
updown
READY
PRET

Prostyle Intra X-ray Unit 9
PREPARATIONS FOR THE EXPOSURE
User's manual
6 PREPARATIONS FOR THE EXPOSURE
6.1 Switching the unit on
The on/off switch is located under the generator box.
When the unit is switched on it will carry out an auto-
matic self-test during which the Display CPU software
version is shown on the kV display, and the Tube head
CPU software version on the time display.
After the self-test is completed the default exposure
values will appear on the displays.
The default exposure values can be reprogrammed by
the user, see section 10.1 “Programming the default
exposure and density values” on page 19.
NOTE There are two sets of default exposure values: one for
the adult mode and the other for the child mode. The
unit is always in the adult mode when it is switched
on.
6.2 Selecting the cone
Select the cone to be used in the exposure. It is recom-
mended to use the long cone in order to keep the absor-
bed dose to the patient as low as possible.
Long 30 cm (12”)cone
The long cone is attached into its position by pushing it
into the short cone and rotating it so that the red point
on the short cone and the black point on the long cone
are in line.
CAUTION:X-RAYS
ATTENTION:RAYONS-X
READY
PRET
8mA
kV
s
SELECT
Prostyle
INTRA
On/off switch
8 mA
kV
s
0.16 70
Attach/remove: red
points in line.
In position: red and
black points in line.

PREPARATIONS FOR THE EXPOSURE
10 Prostyle Intra X-ray Unit User's manual
HAWE film holder
The rectangular collimator can be attached to the long
cone either before the film holder or after it. When the
collimator is attached before the film holder, the film
holder rotates when the collimator is rotated.
When attaching the film to the holder make sure that
the film is in the same direction as the rectangular col-
limator.
NOTE The exposure values must be selected according to
the cone used in the exposure, refer to the section 9
“EXPOSUREVALUES”onpage17.
NOTE The film holder can be used with the long cone only.
RINN film holder
NOTE The RINN film holder can be used only with the
green RINN compatible rectangular collimator.
Attach the RINN compatible rectangular collimator to
the long cone and then attach the film holder to the col-
limator.
Film holder
Rectangular collimator
Film holder
Rectangular collimator
Film and collimator sides
in the same direction
RINN compatible
rectangular collimator
RINN film holder

Prostyle Intra X-ray Unit 11
PREPARATIONS FOR THE EXPOSURE
User's manual
Long rectangular cone
Push the rectangular cone into the short cone so that
the red dots on the short cone and on the rectangular
cone are in line (1), and rotate the cone 180°, until the
black dot on the rectangular cone and the red dot on
the short cone are in line (2). The cone can be now ro-
tated in its position ±90°.
The rectangular cone can be removed when the red
dots on the short cone and on the rectangular cone are
in line.
180°
1.
2.
trotonen 310197
Red points

PREPARATIONS FOR THE EXPOSURE
12 Prostyle Intra X-ray Unit User's manual
6.3 Selecting the exposure parameters
The preprogrammed exposure values are shown on
section 9 “EXPOSURE VALUES” on page17.
Check that you are in the desired mode: in the normal,
film-based imaging mode or in the digital imaging mo-
de.
The imaging mode can be changed by pressing the C-
key for two seconds.
Select the adult or child mode. Note, that the indicator
light is on when the child mode is selected.
Select the exposure region with the preprogrammed
setting keys. Press the desired key once to select the
projection of the maxilla, and press the key twice to se-
lect the projection of the mandible. The indicator light
of the selected projection will come on.
The preprogrammed time and kV values appear on the
respective displays.
NOTE The bite-wing exposures are taken with the default
exposure values. Pressing the preprogrammed set-
tings key a third time will recall these values.
The preprogrammed time and kV values can be tempo-
rarily changed with the parameter adjustment keys.
This will not affect the preprogrammed values.
Select the parameter to be adjusted with the select key.
When the parameter value is flashing on the kV dis-
play, the anode voltage can be changed with the para-
meter adjusting keys.
When the parameter value on the kV display is not
flashing, the exposure time value can be changed with
the parameter adjusting keys.
NOTE After adjusting the kV value the unit will return auto-
matically to the time adjustment mode after 5 seconds
time.
s
0.20
s
c.20 Film-based
imaging mode
Digital
imaging mode
C
Child Adult
s
8 mA
kV
0.20 70
SELECT

Prostyle Intra X-ray Unit 13
POSITIONING THE PATIENT
User's manual
7 POSITIONING THE PATIENT
Ask the patient to sit down. Place a protective lead ap-
ron over the patient’s chest.
7.1 Positioning the film/sensor
NOTE The standard cone is suitable for the bisecting angle
technique, and the long cone is used for the parallel-
ing technique.
Bisecting angle technique
The patient holds the film or sensor in place with his
finger. The x-ray beam is directed perpendicularly to-
wards an imaginary line which bisects the angle bet-
ween the film plane and the long axis of the tooth.
Paralleling technique
The film or sensor is placed to a film holder which is
used to align the film parallel to the long axis of the
tooth.
Film or
Long axis
of the tooth
sensor
Film or
Long axis
of the tooth sensor

POSITIONING THE PATIENT
14 Prostyle Intra X-ray Unit User's manual
Bite-wing exposures
In the bite-wing exposures the patient closes the teeth
during the exposure on the film’s tab or on the film/
sensor holder.
Occlusal exposures
In the intraoral occlusal exposures the film or sensor is
positioned between patients upper and lower teeth.
7.2 Positioning the cone
The angle of the cone is indicated on the scale located
on the vertical joint of the tube head.
Select the cone angle from the table below.
Table 1:Angle of inclination of the exposure cone to the horizontal plane
Teeth Angle of
inclination
Maxilla Molars +35°
Premolars and
canine teeth +45°
Incisors +55°
Occlusal exposure +75°
Mandible Occlusal exposure -60°
Incisors -20°
Premolars and
canine teeth -10°
Molars -5°
Bite-wing exposure 5°
Scale for the cone angle

Prostyle Intra X-ray Unit 15
POSITIONING THE PATIENT
User's manual
Position the cone according to the figures below.
Maxillary anterior Maxillary molar
Mandibular anterior Mandibular canine
Mandibular molar
Maxillary occlusal
Mandibular occlusal
Bite-wing
Film
Film

TAKING AN EXPOSURE
16 Prostyle Intra X-ray Unit User's manual
8 TAKING AN EXPOSURE
Ask the patient to remain as still as possible. Move as
far away from the x-ray tube as the length of the cable
from the control panel permits.
No one, except the patient may remain in the radiation
area while the exposure is taken. Maintain visual con-
tact with the patient and the unit during the exposure.
Check that the ready light is on.
Press and hold the exposure key on the control panel
for the duration of the exposure.
The exposure warning light will come on. You will al-
so hear an audible warning sound during the exposure.
READY
PRET
SELECT
CAUTION: X-RAYS
ATTENTION: RAYONS-X
READY
PRET
8 mA
kV
s
