RIDGID micro IR-200 User manual

999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
RIDGE TOOL COMPANY
Table of Contents
Recording Form for Machine
Serial Number
.........................1
Safety
Symbols.........................................................................2
General Safety Rules
Work Area Safety....................................................................3
Electrical Safety......................................................................3
Personal Safety.......................................................................3
Equipment Use and Care .......................................................3
Service....................................................................................4
Specific Safety Information
Infrared Thermometer Safety..................................................4
Description, Specifications and Standard Equipment
Description..............................................................................4
Specifications
.........................................................................4 Parts
.......................................................................................6 LCD
Display Icons..................................................................6
Standard
Equipment...............................................................6 Laser
Classification .................................................................7
FCC
Statement..........................................................................7
Electromagnetic Compatibility
(EMC)....................................7
P.
1
P.
13
P.
27
P.
41
P.
55
P.
69
P.
83
P.
97
P.
111
P.
125
P.
139
P.
153
P.
167
P.
181
P.
195
P.
209
P.
223
P.
237
P.
251
P.
265
P.
279
P.
293
P.
307
EN
FR
ES
DE
NL
IT
PT
SV
DA
NO
FI
PL
CZ
SK
RO
HU
EL
HR
SL
SR
RU
TR
KK
micro
IR-200

Changing/Installing
Batteries..................................................7 Pre-Operation
Inspection.........................................................8
Set-Up and Operation
Set-Up ....................................................................................9
Operation
Turning ON and OFF (Taking
Measurements)......................10 micro IR-200 Controls
Continuous Measurement (Scanning) Mode ........................10
Laser Enabled/Disabled........................................................10
Backlight
...............................................................................11
II Menu Button Use ..................................................................11
High Alarm
............................................................................11 Low
Alarm.............................................................................11
Temperature Display Units-
C/F.............................................11
Emissivity..............................................................................1
1
Cleaning...................................................................................1
1
Storage
....................................................................................11
Service and
Repair.................................................................12 Disposal
..................................................................................12 Battery
Disposal.....................................................................12 EC
Declaration of Conformity ......................Inside Back Cover
Lifetime Warranty.....................................................Back
Cover
*Original Instructions - English

999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
micro IR-200 Non-Contact Infrared
Thermometer

micro IR-200
Non-Contact
Infrared Thermometer
Record Serial Number below and retain product serial number which is located on
nameplate.
Serial
No.
micro IR-200

999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
WARNING!
Read this Operator’s
Man ual carefully
before using this tool.
Failure to understand
and follow the
contents of this
manual may result in
electrical shock, fire
and/or serious person
al injury.

2 999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
NOTICE
DANGER
WARNING
CAUTION
Safety Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety information.
This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE indicates information that relates to the protection of property.
This symbol means read the operator’s manual carefully before using the equipment. The operator’s manual contains important
information on the safe and proper operation of the equipment.
This symbol means this device contains a Class 2 Laser.
This symbol means do not stare into the laser beam.
This symbol warns of the presence and hazard of a laser beam.

999-995-066.09_REV. E 3
micro IR-200 Non-Contact Infrared Thermometer
General Safety Rules
WARNING
Read all safety warnings and in structions. Failure to follow the warn
ings and instructions may result in electric shock, fire and/or serious
injury.
SAVE THESE INSTRUCTIONS!
Work Area Safety
•Keep your work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate equipment in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. E quipment can create sparks which may ignite the dust
or fumes.
•Keep children and by-standers a way while operating
equipment. Distrac tions can cause you to lose control.
Electrical Safety
•Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. There
is an in creased risk of electrical shock if your body is earthed
or grounded.
•Do not expose equipment to rain or wet conditions. Water
en tering equipment will increase the risk of electrical shock.
Personal Safety
•Stay alert, watch what you are doing and use common
sense when operating equipment. Do not use equipment
while you are tired or under the influence of drugs, alcohol
or medication.A moment of inattention while operating
equipment may result in serious personal injury.
•Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
•Do not overreach. Keep proper footing and balance at all
times.This enables better control of the power tool in
unexpected situations.
Equipment Use and Care
•Do not force equipment. Use the correct equipment for
your application. The correct equipment will do the job better
and safer at the rate for which it is designed.
•Do not use equipment if the switch does not turn it ON and
OFF. Any tool that cannot be controlled with the switch is
dangerous and must be repaired.
•Disconnect the batteries from the equipment before
making any adjustments, changing accessories, or
storing. Such preventive safety measures reduce the risk of
injury.
•Store idle equipment out of the reach of children and do
not allow persons unfamiliar with the equipment or these

4 999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
instructions to operate the equipment. Equipment can be
dangerous in the hands of untrained users.
•Maintain equipment. Check for misalignment or binding of
moving parts, missing parts, breakage of parts and any other
condition that may affect the equipment’s operation. If
damaged, have the equipment repaired before use. Many
accidents are caused by poorly maintained equipment.
•Use the equipment and accessories in accordance with
these instructions, taking into account the working
conditions and the work to be performed. Use of the
equipment for operations different from those intended could
result in a hazardous situation.
•Use only accessories that are recommended by the
manufacturer for your equipment. Accessories that may be
suitable for one piece of equipment may become hazardous
when used with other equipment.
•Keep handles dry and clean; free from oil and
grease.Allows for better control of the equipment.
Service
• Have your equipment serviced by a qualified repair person
using on ly identical replacement parts. This will ensure that
the safety of the tool is maintained.
Specific Safety Information
This section contains important safety information that is specific to
this tool.
Read these precautions carefully before using the RIDGID® micro IR-200
Non-Contact Infrared Thermometer to reduce the risk of eye injury or
other serious personal injury.
SAVE THESE INSTRUCTIONS!
Keep this manual with the tool for use by the operator.
Infrared Thermometer Safety
•Do not look into the laser beam. Looking into the laser beam
may be hazardous to the eyes. Do not look at the laser beam
with optical aids (such as binoculars or telescopes).
•Do not direct the laser beam towards other people. Make
sure the laser is aimed above or below eye level. Laser beams
may be hazardous to the eyes.
•Do not use this device for personal inspection or medical
use in any way. This is not a medical device. This could cause
personal injury.
•Take appropriate precautions when working near
electrical, moving or hot parts. Close contact may cause
electrical shock, entanglement, burns and other serious injury.
Protective equipment may be required.
CAUTION Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
If you have any question concerning this RIDGID® product:
•Contact your local RIDGID distributor.
WARNING

999-995-066.09_REV. E 5
micro IR-200 Non-Contact Infrared Thermometer
•Visit RIDGID.com to find your local RIDGID contact point.
•Contact Ridge Tool Technical Service Department at
[e-mail], or in the U.S. and Canada
call (800) 5193456.
Description, Specifications
And Standard Equipment
Description

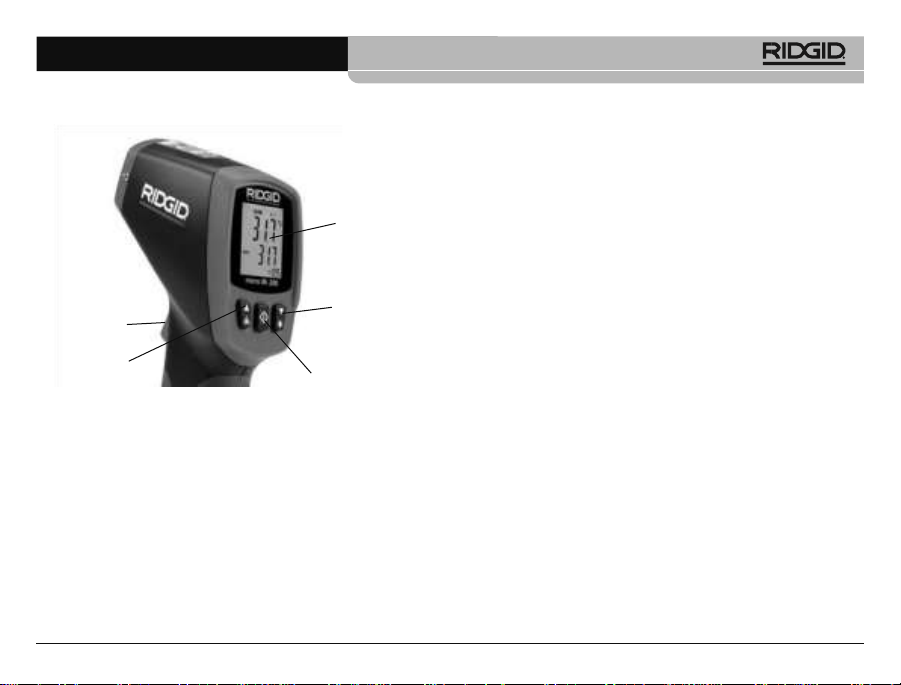

The RIDGID® micro IR-200 Non-Contact Infrared Thermometer
provides simple, quick, and accurate surface temperature
readings at the push of a button. You simply squeeze the trigger
and point the ultra-sharp dual class II lasers at the surface being
measured. The micro IR-200 provides an immediate
temperature measurement on a clear, easy-to-read backlit LCD
display. In addition to numerous other uses, this rugged,
compact instrument enables professional tradesman to
diagnose heating and ventilation problems, perform preventative
monitoring of electrical motors and systems, troubleshoot steam
traps and quickly check fuses or circuit breakers for overheating
without contact.
The micro IR-200 uses optics to sense emitted, reflected and
transmitted energy, which is collected and focused onto a
detector. The unit’s electronics translate the information into a
temperature reading, which is displayed. Lasers are used to
assist in aiming.
Specifications
Temperature Range......................-58°F to 2192°F
(-50°C to 1200°C)
Distance To Spot Ratio .................30 to 1
Measuring Accuracy .....................-58°F ~68°F (-50°C ~20°C) :
±4.5°F (2.5°C)
68°F ~1472°F (20°C ~800°C)
±1.0% or ±1.8°F (1.0°C)
Repeatability...................................-58°F ~68°F (-50°C ~20°C) :
±2.3°F (1.3°C)
68°F ~1472°F (20°C ~800°C)
±0.5% or ±0.9°F (0.5°C)
Response Time ..............................150ms
Spectral Response.........................8~14um
Emissivity .......................................Adjustable, 0.10 - 1.00
Over Range Indication ...................LCD will show “----”
Diode Laser ..................................Output <1mW, Wavelength
630~670nm, Class 2 Laser
Product
Temperature Display.....................Current Temperature, MAX
Temperature
Measuring Units............................Fahrenheit, Celsius
Operating Temperature.................32°F to 122°F (0°C to 50°C)
Storage Temperature ....................14°F to 140°F (-10°C to 60°C)
Display Resolution ..........................0.1°F (0.1°C)
Relative Humidity..........................10%~90% RH Operating,
<80% RH Storage
Batteries........................................ 9V Battery (1), NEDA 1604A
or IEC 6LR61, or Equivalent
IP Rating.......................................IP54
Weight...........................................0.6 lbs (0.3 kg)

6 999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
Features
•Rapid Detection Function
•Dual Class II Laser Sighting
•Automatic Data Hold
•MAX Temperature Displays
•Backlight LCD Display
•Trigger Lock
•Set High and Low
Alarms
•Adjustable Emissivity
•Precise Non-Contact Measurements
•Automatic Selection Range and Display Resolution 0.1°F
(0.1°C)
Figure 1 –micro IR-200 Non-Contact Infrared Thermometer

999-995-066.09_REV. E 7
micro IR-200 Non-Contact Infrared Thermometer
Data Hold Laser Enable Lock

8 999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
Standard Equipment
•micro IR-200 • Battery 1 x 9V
•Carrying Case • Operator's Manual
NOTICE This equipment is used to make temperature
measurements. Incorrect use or improper application may result
in incorrect or inaccurate measurements. Selection of
appropriate measurement methods for the conditions is the
responsibility of the user.
Laser Classification
The RIDGID micro IR-200 generates a visible laser
beam that is emitted from the front of the device.
The device complies with class 2 lasers according to: IEC
608251:2007
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Consult the dealer or an experienced radio/TV technician
forhelp.
Electromagnetic Compatibility (EMC)
The term electromagnetic compatibility is taken to mean the
capability of the product to function smoothly in an environment
where electromagnetic radiation and electrostatic discharges
are present and without causing electromagnet interference to
other equipment.
NOTICE The RIDGID micro IR-200 conforms to all applicable
EMC standards. However, the possibility of it causing
interference in other devices cannot be precluded.

999-995-066.09_REV. E 9
micro IR-200 Non-Contact Infrared Thermometer
Figure 4 –Removing Battery Compartment
Changing/Installing Batteries
The micro IR-200 is supplied without a battery installed. If the
battery indicator (Figure 3) displays , the battery needs to
be replaced. Remove the battery prior to long term storage to
avoid battery leakage.
1. Squeeze the battery clips and remove battery compartment
from the thermometer (See Figure 4). If needed, remove
battery.

10 999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
Before each use, inspect your infrared thermometer and correct any
problems to reduce the risk of injury or incorrect measurements.
Do not look into the laser beam. Looking into the laser beam may be
hazardous to the eyes.
1. Clean any oil, grease or dirt from equipment. This aids
inspection.
2. Inspect the micro IR-200 for any broken, worn, missing,
misaligned or binding parts, or any other condition which may
prevent safe and normal operation.
2. Install 9V alkaline battery (6LR61), observing the correct polar- 3. Check that the warning labels are present, firmly attached and
ity as indicated on the battery compartment. readable. (See Figure 6.)
properly serviced.

999-995-066.09_REV. E 11
micro IR-200 Non-Contact Infrared Thermometer
Set-Up and Operation
Do not look into the laser beam. Looking into the laser beam may be
hazardous to the eyes. Do not look at the laser beam with optical aids
(such as binoculars or telescopes).
Do not direct the laser beam towards other people. Make sure the laser
is aimed above or below eye level. Laser beams may be hazardous to
the eyes.
Take appropriate precautions when working near electrical, moving or
hot parts. Close contact may cause electrical shock, entanglement,
burns and other serious injury. Protective equipment may be required.
Set up and operate the infrared thermometer according to these
procedures to reduce the risk of injury or incorrect measurements.
Set-Up
1. Check for an appropriate work area as indicated in the
General Safety Section.
2. Inspect the object being measured to and confirm that you
havecorrect equipment for the application. See the
Specifications section for range, accuracy and other
information.
There are a variety of factors that can affect the accuracy of
the micro IR-200, including:
Field of view –The micro IR-200 uses two lasers to project
points on either side of the area to be measured. These
points indicate the approximate diameter of the area (the
“Spot”) that the temperature is being measured in. As the
micro IR-200 moves further (D) away from the surface, that
area and spot size (S) increases. The area is approximately
1/30 times the distance to the surface. (See Figure 7.)
Figure 7 –Field Of View
The spot should always be smaller than the surface. The
smaller the surface, the closer the micro IR-200 should be to
the surface. For the best accuracy, the surface should be
twice as large as the spot.
Emissivity –Emissivity is a term use to describe energy
emitting characteristics of materials and has a value ranging
from 0 to 1. The micro IR-200 allows adjustment of the
emissivity value from 0.10 to 1.00 to calculate temperatures.
If the emissive property of a surface is unknown, an
emissivity of 0.95 can be appropriate for many applications,
such as painted surfaces. Values of emissivity for common
materials are included in Figure 8.
WARNING

12 999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
Material
Emissivity
Material
Emissivity
Aluminum,
polished
Asphalt
Brick
Concrete, rough
Copper, polished
Glass
Limestone
Marble, polished
0.05
0.88
0.90
0.91
0.04
0.95
0.92
0.90
Paint
Paper, white
Plaster, rough
Rubber
Steel, galvanized
Steel, oxidized
Water
0.95
0.90
0.89
0.93
0.28
0.88
0.96
Figure 8 –Emissivity Values of Common Materials
Temperature –While the micro IR-200 compensates for
variation from ambient temperature, large changes in
ambient and measured temperatures can reduce accuracy.
When significant changes in ambient temperature (more than
30°F or 17°C) are encountered, allow fifteen minutes for the
micro IR-200 to adjust for best accuracy.
Obstructions –Steam, dust, smoke and other obstructions
like glass or plastic between the micro IR-200 and the surface
being measured can decrease accuracy. These obstruct the
unit optics or give false readings (measure the temperature
of the glass instead of the surface). Do not use when
obstructions are present.
3. Make sure that all equipment has been properly inspected.
Operation
Turning ON and OFF (Taking Measurements)
1. Hold the micro IR-200 by the handle grip and point it at
thesurface to be measured. Keep away from any electrical,
moving or hot parts. Make sure that the unit is pointed in a
safe direction away from any bystanders before turning ON.
2. Squeeze the trigger to turn the micro IR-200 ON. When the
trigger is squeezed, the SCAN icon will be ON, and the micro
IR200 will continuously update the displayed current
temperature value and display the maximum temperature
value since the unit was turned ON.
The micro IR-200 can be moved slowly over the surface to
locate hot or cool areas. See the High Alarm and Low Alarm
sections for information on high and low alarm settings.
3. When the trigger is released, the HOLD icon will be ON.
Themicro IR-200 will automatically turn OFF after seven
seconds unless the unit is in Continuous Measurement mode.

999-995-066.09_REV. E 13
micro IR-200 Non-Contact Infrared Thermometer
micro IR-200 Controls
Figure 8 –micro IR-200 Display/Buttons
Continuous Measurement (Scanning) Mode
The micro IR-200 can be locked ON to allow measurements
without holding the trigger. Make sure that the unit is pointed in
a safe direction away from any bystanders before turning ON.
Turn the micro IR-200 ON by squeezing and holding the trigger.
While holding the trigger, press and release the menu button.
The SCAN and Lock icons will be ON. Release the trigger, and
the micro IR-200 will continuously update the measured
temperature until the trigger switch is squeezed and released
again.
Laser Enabled/Disabled
If needed, the lasers used for aiming can be turned off to help
conserve battery life. If this is done, extra care must be used
when aiming the micro IR-200 to ensure good readings. To
enable or disable, while squeezing the trigger, press and release
the laser enable button. The Laser Enable icon will be ON when
the laser is enabled.
Backlight
If using in a low lit area, the micro IR-200 is equipped with a
display backlight. To turn the backlight ON and OFF, with the
unit ON, press the backlight button.
Menu Button Use
After squeezing the trigger, pressing and releasing the menu
button will allow you to cycle through the following settings in this
order: High Alarm ON/OFF, High Alarm Temperature Setting,
Low Alarm ON/OFF, Low Alarm Temperature Setting,
Temperature Display Units, Emissivity.
High Alarm
High Alarm will give an audible tone when the current
temperature exceeds a preset limit. To turn the High Alarm ON,
squeeze and release the trigger, and then press and release the
menu button until the High Alarm icon is flashing. Use the
up/down buttons to turn the High Alarm feature ON/OFF as
indicated on the current temperature value line. Press and
release the menu button again. The High Alarm icon will
continue to flash, and the High Alarm temperature will appear.
Use the up/down buttons to change the High Alarm temperature
Menu Button
Trigger
LCD Display
Down Button/ -
Backlight
Laser

14 999-995-066.09_REV. E
micro IR-200 Non-Contact Infrared Thermometer
as desired. Squeeze the trigger to exit the Settings mode and
save your selection.
Low Alarm
Low Alarm will give an audible tone when the current
temperature falls below a preset limit. To turn the Low Alarm ON,
squeeze and release the trigger, and then press and release the
menu button until the Low Alarm icon is flashing. Use the
up/down buttons to turn the Low Alarm feature ON/OFF as
indicated on the current temperature value line. Press and
release the menu button again. The Low Alarm icon will continue
to flash, and the Low Alarm temperature will appear. Use the
up/down buttons to change the Low Alarm temperature as
desired. Squeeze the trigger to exit the Settings mode and save
your selection.
Temperature Display Units - °C/°F
The micro IR-200 can display temperatures in either degrees
Celsius (C) or Fahrenheit (F). To change the display unit,
squeeze and release the trigger, and then press and release the
menu button until the temperature unit on the screen is flashing.
Use the up/down buttons to switch between F or C as desired.
Squeeze the trigger to exit the Settings mode and save your
selection.
Emissivity
The emissivity value can be set from 0.10 to 1.00. See the Set-
Up section to determine an appropriate value for your
application. To adjust this value, squeeze and release the
trigger, and then press and release the menu button until the
emissivity value on the screen is flashing. Use the up/down
buttons to increase or decrease the emissivity value. Squeeze
the trigger to exit the Settings mode and save your selection.
Cleaning
Do not immerse the RIDGID micro IR-200 Non-Contact Infrared
Thermometer in water. Wipe off dirt with a damp soft cloth. Do
not use aggressive cleaning agents or solutions. Treat the
instrument as you would a telescope or camera.
Storage
The RIDGID micro IR-200 Infrared Thermometer must be stored
in a dry secure area between -10°C (14°F) and 60°C (140°F).
Store the tool in a locked area out of the reach of children and
people unfamiliar with the micro IR-200.
Remove the battery before any long period of storage or shipping
to avoid battery leakage.
Service and Repair
Improper service or repair can make the RIDGID micro IR-200 Non-
Contact Infrared Thermometer unsafe to operate.
Service and repair of the micro IR-200 must be performed by a
RIDGID Authorized Independent Service Center.
For information on your nearest RIDGID Authorized Independent
Service Center or any service or repair questions:
•Contact your local RIDGID distributor.
WARNING
