Riding'Times Z8 User manual

Z8 ELECTRIC BIKE
OWNER’S MANUAL

WELCOME
Please read this owner's handbook carefully before using
your Riding'times order to become thoroughly familiar
with the correct operation of your bike's controls,
features, capabilities, and limitations. This handbook
includes safe riding tips but does not contain any of the
techniques and skills necessary to ride an electric bicycle
safely.
Join the Riding'times community of riders
wherever you are!
This is just the beginning of your adventure with us! We
look forward to hearing about your experience and seeing
you online on our social networks:
youtube.com/@ridingtimesamazon6449
tiktok.com/@ridingtimes
Tag us! @Ridingtimes #Ridingtimes
EN: If you have any questions, please contact us first. Our professional local
customer service will reply within 24 hours.
DE: Wenn Sie Fragen haben, kontaktieren Sie uns bitte zuerst. Unser
professioneller lokaler Kundenservice wird innerhalb von 24 Stunden antworten.
FR: Si vous avez des questions, veuillez d'abord nous contacter. Notre service
clientèle local professionnel répondra dans les 24 heures.
IT: Se hai domande, contattaci per primo. Il nostro servizio clienti locale
professionale risponderà entro 24 ore.
ES: Si tiene alguna pregunta, póngase en contacto con nosotros primero. Nuestro
servicio de atención al cliente local y profesional responderá en un plazo de 24
horas.

WARNING
1.Check all parts of the bike and ensure that they are in good
condition before riding. If any problems are found, contact the
dealer immediately.
2.Obey traffic regulations and do not carry passengers on the bike.
3.Slow down in rainy, snowy, or slippery conditions and increase the
braking distance to ensure safety.
4.The bike is not designed for wading. If water level reaches the
wheel hub of the rear motor, it may cause a short circuit and
damage the electrical system.
5.Avoid touching the two metal contacts of the battery box at the
same time, as it may generate a large short-circuit current and lead
to an accident.
6.Do not disassemble or modify the bike's components by yourself. If
parts need to be replaced, purchase standard parts from the general
agency of the company.
7.Do not lend the electric bike to someone who cannot operate it
safely to avoid unnecessary damage and accidents.
8.To minimize the risk of serious injury, protective equipment should
be worn at all times including a helmet. You are responsible for your
own safety. Use this product with extreme caution and at your own
risk.

TABLE OF CONTENTS
1. Assemble mountain bike
2. Mountain bike parts of the analysis chart
3. Specifications
4. Baery instrucons
5. Instrucon of the dashboard
6. Maintenance and cleaning
7. Troubleshoong Instrucons

1
1. Take out of the mountain bike from the box(figure1)
2.Assemble the handle bar:Put the handlebar into the center of the vercal
bar(figure 1),fasten. (figure ) the screws by using NO.4 Allen Wrench 2 .
Figure 1
Figure 1 Figure 2
Assemble mountain bike
Quick release
bag
Figure 1 Figure 2 Figure 3

2
Figure 4
5. Insert the connecon cable:Insert and connect the cable of the le/right
brakes,speed swivel,dashboard,three-in-one switch based on the color,pay
aenon to the cable connector direcons(Figure 1),manage the cable
harness(Figure 2).
4.Assemble the front wheel:Put the front wheel on the suspension fork,
disc brake is the le of the vehicle(Figure 1);Take out of the quick release
bag from the accessory box,insert to the front wheel axle hole(Figure 2),
twist the quick release nut to the right ghtness(Figure 3),move down to
remove the handle(Figure 4/5)
Figure 5
Figure 1 Figure 2
3. Assembe the headlight:Take out the leadlight from the accessory
box,it is assembled on the suspension fork by using No.4 Allen Wrench.


3
6:Assemble the front mudguard:Put the mudguard on the wheel,and use
the NO.4 Allen wrench and the open spanner fixed the mudguard on the
front fork;And then sll use NO.4 Allen wrench put the mudguard support
frame fixed to the le and right of the front fork(Figure 2)
Figure 1 Figure2
Figure 1 Figure2
7:Assemble the pedal plate:Take out of the le and right pedal plate,Lis for
le side and R is for the right side(Figure 1),put the pedal plate on the crank,
fasten it by using the open spanner(Figure 2)
Le right
8:Manage the cable harness:Take out of the winding tube from the accessory
box,put the le brake cable,brake crank power off cable,dashboard cable,
three-in-one switch cable twine together,and put the right accelerate brake
handle cable,transmission cable,brake crank power off cable twine together,
pay aenon no need to twine the right brake cable.
Figure 1 Figure2

4
Analyc drawing of various parts
of mountain bike
6.Front disc
7.Tyre
5.Shock-absorbing
front fork
4.Headlight
1.Handlebar
11.Baery
12.seat
13.Frame
14.Taillight
15.Controller
16.Mudguard
19.Rear disc brake
20.Rear disc
22.Side brace
8.Tooth disc
9.Chain
21.Transmission
25.Riser
23.Grip
3.Variable speed dial
27.Acceleraon handle
2.Dashboard
26.Brake handle
18.Front disc brake 10.Pedals
1.Handlebar
2.Dashboard
3.Variable speed dial
4.Headlight
5.Shock-absorbing front fork
6.Front disc
7.Tyre
8.Tooth disc
9.Chain
10.Pedals
24.Three-in-one switch
11.Baery
12.seat
13.Frame
14.Taillight
15.Controller
16.Mudguard
17.Shock absorber
18.Front disc brake
19.Rear disc brake
20.Rear disc
21.Transmission
22.Side brace
23.Grip
24.Three-in-one switch
25.Riser
26.Brake handle
27.Acceleraon handle
17.Shock absorber

5
SPECIFICATIONS
ProductModel: Z8
Motor :48V
Baery: 48V 15Ah
Load: 130KG
Mileage: 40-90KM
(Depends on load, terrain and riding habits)
Charging me: 6-8hours
Wheel diameter:20 inches
Charger: 48V2A
Baery instrucons
1.Baery charging:this car is an external lithium
baery,which can be removed for charging. When the
baery is low,open the key and take out the baery.Hold the baery ghely
with both hands to prevent it from falling,Take out the charger,plug the input
end into the power supply,and plug the output end dc2.1into the baery
charging hole,When the red lighe is on,it will be charged for 7-9 hours,and
when the green light is on,it will be full.
2.Warnings
(1).Load circuit may cause voltage and current,and the voltage orcurrent may
add to pack,the voltage orcurrent must be controlledas lower than RWV and
RWl,larger voltage or current may damage the PCM of pack.
(2).To prevent the possidility of the pack from leaking,heang fire.please
observe the following precauons:
Do not immerse the pack in water and seawater Guard against Damp.
Do not use and leave the pack near a heat source as fire or heater.
When recharging,use the baery charger specifically for that purpose.
Do not connect the pack to an electrical outlet.
Do not discard the pack in fire or heat it.

6
Do not short-circuit the pack by directly connecng the posive and
negave terminal with metal object such wire
Do not transport and store the baery together with metal objects such
as necklaces,hairpins etc.
Do not strike or throw the pack.
Do not directly solder the pack or baery and pierce the baery with a
nail or other sharp object.
As installed safety device in the baery,please do not resolve or chane
any other secons of the baery to protect the inherent safety funcons.
3.Cauons
(1).Do not use or leave the pack at very high temperature (for example at
strong direct sunlighe or a vehicle in extremely hot condions).
(2).Donot use it in a locaon where stac electricity is great,otherwise the
safety devices in the pack may be damaged,which will cause hidden trouble
of safety.
(3).If the pack leaks and the electrolyte get into the eyes,do not rub eyes,
instead,rinse the eyes,with clean running water,and immediately seek
medical aenon.Otherwise,eye injury can result.
(4).If the baery emits peculiar smell,heang,discoloraon,deformaon
during use or storage,or any abnormal phenomenon occurs during charging,
immediately remove the baery from the charger or device,and stop using
the primary charge and discharge to acvate the baery.
(5).In case the pack terminals art dirt,clean the terminals with a dry cloth
before use.Otherwise power failure or charge failure may occur due to the
poor connecon with the instrument.
(6).Be aware discharged baery may cause fire or smoke,tape the terminals
to insulate them.
(7).The pack should be stored at room temperature,charged to about40% to
60% of capacity.ln case of over-discharge,pack should be charged for one
me every 3 months while storing and baeries should be discharge and
charge aer being stored more than a year in order to acvate it and restore
energy.
(8).Prohibiteon short circuit
Never make short pack circuit.lt generates very high current which
causes heang of the cells and may cause electrolyte leakage,gassing
or explosion that are very dangerous.The LIP tabs may be easily short-
circuited by pung them.onconducve surface.Such outer short circuit
may lead to heat generaon and damage of the cell.

7
9.Mechanical shock
LIP cells have less mechanical endurance than metal-can-cased LIB.
Falling,hing,bending,etc.may cause degradaon of LIP characteriscs.
Instrucons of the Dashboard
1.Product name and model
Intelligent LCD display for e-bike;model:YL81C.
2.Specificaons
36V/48V power supply
Rated working current 15mA
Maximum working current 30mA
Leakage current at power-off<1uA
Working current at the supply controller end 50mA
Working temperature-20~60℃
Storage temperature-30~70℃
3.Appearanceanddimensions

Physical picture of display
Front dimension
drawing of display
Side dimension
drawing of display

8
4.Funcon overview and funconal area layout
(1).Funcon overview
Display YL81C provides a variety of funcons tomeet the riding needs of
users,including:
Baery level indicator
Assist level adjustment and indicaon
Headlight indicator
Speed indicator :including real-me speed,maximum speed(MAXS)
and average speed(AVG)
Distance indicator:including ODO and trip distance(Trip)
Error code indicator
(2).Funconal area layout

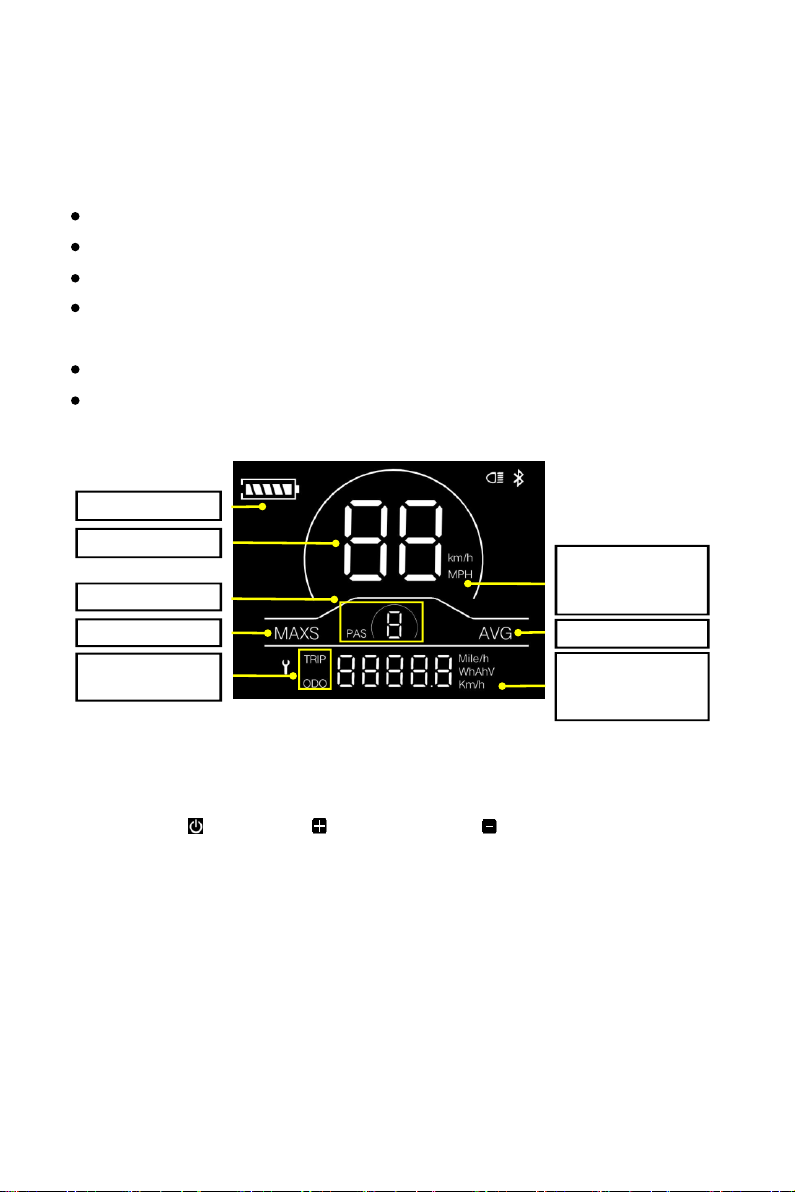

Funconal Area Layout Interface of Display YL81C
Maximum speed Average speed indicator
Baery level indicator
Speed indicator
Speed unit
Metric system:km/h
Imperial system:PMH
Assist level indicator
Distance/speedunit
Metric system:km、km/h
Imperial system:Mile
Trip distance
indicatro ODO
(3).Buon definions
There are three buons on the operang unit of display YL81C,i.e.,the
on/off buon ,plus buon and minus buon .
5.General operaon
(1).Power on/off
If your e-bike is not used for more than 10minutes,the display will be
automatically powered off.
(2).Display interface

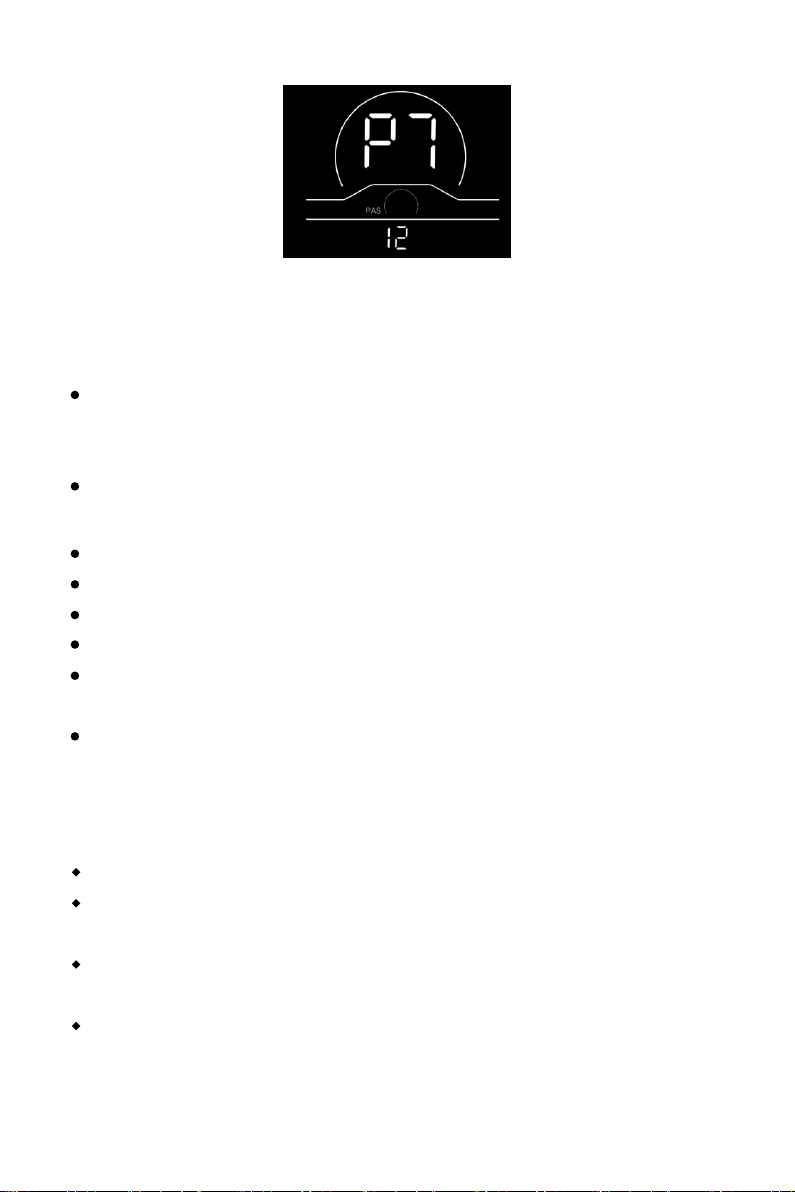

After the display is turned on,the display will show the real-time speed
(km/h)and the trip distance(km) by default.By pressing the button,the
information displayed will be switched between the trip distance (km),

9
ODO(km),maximum speed(km/h) and average speed(km/h).When the
distance reaches 9999.9km,it will be automacally reset to zero.
Trip distance indicator ODO
Average speed indicator Maximum speed indicatorr
Display Interface Switching
(3).Push assistance
By pressing and holding the buon the electric push a ssistance mode
will be enabled.Your e-bike will run at the constant speed of 6km/h.The
display will show level p.By releasing the buon,your e-bike will
immediately stop power output and return to the state before push
assistance.
Push Assistance Indicator Interface

10
(4).Assist level selecon
By pressing the buon / ,the e-bike assist level will be switched to
change the motor output power.The assist levels available for the display
levels 0-5.
Assist Level Switching Interface
(5).Baery level indicator
The baery level indicator consists of five segments.When the baery is
fully charged,the five segments will be all on.ln case of undervoltage, the
outline of the baery indicator will flash,which means the baery has to be
charged immediately.
Full baery level indicaon
2-segment indicao
4-segment indicao 3-segment indicao
1-segment indicao Undervoltage flashing
Baery Level Indicator Interface
(6).Error code indicator
When a fault occurs in the electronic control system of your e-bike,the
display will automacally indicate the error code in the distance area in
the distance area in the format of E0**.Detailed definions of error codes
codes are shown in Schedule1.

11
Error Code Indicator Interface
When an error code appears on the display interface,please
conduct troubleshoong in me.Otherwise,your e-bike will not
work normally.
6.General seng
All parameters can only be set when your e-bike stops.The steps for
general seng are as follows:In the power-on state,when the display
shows the speed of 0.
(1).Trip distance reset
Press and hold the buons and at the same me for more than 2
seconds to reset the trip distance.
(2).Restore factory
dEF refers to factory reset.dEF-nrepresents not to restore factory
sengs,and dEF-y represents to restore factory sengs.Press and hold
the buons and at the same me for more than 2 seconds to enter the
factory reset interface,and press the buon / to select a parameter.
Restore the factory seng interface
7.Custom setting
All parameters can only be set when your e-bike stops.

12
The steps fo customseng are as follows:
In the power-on state,when the display shows the speed of 0.
Press and hold the buons and at the same me for more than 2
seconds to enter the selecon interface of custom seng opons.
Press the buon / to switch the selecon interface of general seng
opons,and press the buon to enter the parameter modificaon
interface.
Press the buon / for parameter selecon.
Press the buon to save the parameter and return to the selecon interface
of custom seng opons.
Press and hold the buon to save the parameter and exit the selecon
interface of custom seng opons.
(1).Rated voltage seng
P1 refers to the rated voltage seng opon.Available values include:36V
and 48V.Press the buon to enter the parameter modificaon interface.
Press the buon / for parameter selcon.Press the buon to save the
parameter and return to the selecon interface of general seng opons.
Rated Voltage Seng Interface
(2).Wheel diameter seng
P2 refers to the wheel diameter seng opon.Available parameters
include:8-32 inches.Press the buon to enter the parameter modificaon
interface.Press the buon / for parameter selecon Press the buon to
save the parameter and return to the selecon interface of general
seng opons.

13
Wheel Diameter Seng Interface
(3).Speed limit seng
P3 represents the speed limit seng opon.The adjustable range is
10~40km/h.Press the buon to enter the parameter modificaon
interface.Press the buon / for parameter selecon.Press the
buon to save the parameter and return to the selecon interface of
general seng opons.
Speed Limit Setting Interface
(4).Metric/imperial system seng
P4 refers to the metric/imperial system seng opon.00 represents the
metric system,and 01 represents the imperial system.Press the buon
to enter the parameter modificaon interface.Press the buon / for
parameter selecon.Press the buon to save the parameter and return
to the selecon interface of general seng opons.
Metric system indicator interface Imperial system indicator interface

14
(5).Speed sensor seng
P5 refers to speed sensor seng opon,which can be set according to
the number of magnec heads installed on the wheels of your e-bike.
The seng range is 1-63.Press the buon to enter the parameter
modificaon interface.Press the buon / for parameter selecon.
Press the buon to save the parameter and return to the selecon
interface of general seng opons.
Current Limit Seng Interface
(6).Current limit seng
P6 refers to current limit seng .The adjustable range is 1-25A.Press the
buon to enter the parameter modificaon interface. Press the buon
/ for parameter selecon.Press the buon to save the parameter and
return to the selecon interface of general seng opons.
(7).Assistance sensor seng
P7 erfers to current limit seng.The adjustable range is 1-25A .Press the
buon to enter the parameter modificaon interface.Press the buon
/ for parameter selecon.Press the buon to save the parameter and
return to the selecon interface of general seng opons.
Current Limit Seng Interface

15
Assistance Sensor Seng Interface
8.Quality commitments and warranty scope
(1).Warranty informaon
For the faults caused by the quality of the product under normal use,
theCompany will be responsible for providing limited warranty during the
warranty period.
The warranty period of the product is within 12 months from delivery.
(2).Non-warranty scope
The ceclosure is opened
The connector is damaged
Theenclosure is scratched or damaged aer delivery
The outgoing line of the display is scratched or broken
Faults or damage caused by force majeure (such as fires,earthquakes,
etc.) or natural disasters (such as lightning strikes,etc.)
The warranty period has expired
9.Consideraons
Please use safely,and do not plug or unplug the display when it is
powered on.
Please avoid bumping as far as possible.
Please do not alter the background parameter sengs of the display at
will other wise normal riding cannot be guaranteed.
If the display fails to work normally, it should be repaired as soon as
possible.
Due to product upgrades of the Company,part of the displayed contents
or funcons of the product you bought may be different from the manual,
depending on the actual model.

16
Maintenamce and cleaning
1.If your bike is very dirty,please clean it with water or mild detergent
and non abrasive sponge Driving.
2.Do not use high pressure to wash the bicycle.
3.Never wash the bearing points or electronic components of the
electric bicycle directly.
4.Do not use irritant chemicals or alcohol wipes to clean the bike.
5.Please use lubricating oil to wipe the metal parts of the car body for
maintenance.
6.It is strictly forbidden to oil the brake and wheel hub.

Lubr icaon part Lubr icaon cycle Recommended lubr iubr icang oil
Front fork assembly
Front and rear axles
Central axis
Pedal shafr
Sprocket
Chain
Inside the flyoheel
Brake handle
A year
A year
A year
A year
A week
A week
one month
one month
Buer (lithium grease)
Buer (lithium grease)
Buer (lithium grease)
Buer (lithium grease)
Lubr icang oil
Lubr icang oil
Lubr icang oil
Lubr icang oil
Troubleshoong instrucons
1.Instrument error code

fault code fault name fault code fault name
E001
E002
E003
controller failure
communicaon failure
Hall fault
E004
E005
E006
handle failure
brake handle failure
motor failure
Error code definion table
According to the fault code,check the connecng line of the corresponding
line to see if it is damaged.

