Riello Burners BF3 User manual

Page 1of 20
MODEL
BF3 & BF5
INSTALLATION
MANUAL
RESIDENTIAL OIL BURNERS
THIS BURNER IS NOT EQUIPPED FOR 2 LINE OPERATION.
FOR 2 LINE OPERATION ORDER:
PART # C7001025 FOR BF3, C7001026 FOR BF5
IMPORTANT: If this burner is being installed in a packaged unit (i.e. Burner comes with a boiler
or furnace), follow the installation and set-up instructions supplied with the heating unit, as settings
may differ from those shown in this manual.
C6505027 REV 6.1
0202

Page 2of 20
TABLE OF CONTENTS
TECHNICAL DATA -Model BF3................................................................................................3
TECHNICAL DATA –Model BF5 ...............................................................................................4
OIL BURNER COMPONENT IDENTIFICATION .....................................................................5
Burner Components............................................................................................................5
Serial Number Identification................................................................................................5
INITIAL SET-UP ..........................................................................................................................5
MOUNTING BURNER TO BOILER OR FURNACE..................................................................6
Method 1 -Universal Mounting Flange ................................................................................6
Method 2 -Pedestal Mount.................................................................................................7
ELECTRICAL CONNECTIONS..................................................................................................7
APPLICATION FIELD WIRING STANDARD (NO BURNER FAN OFF DELAY) ..................8
NOZZLE PLACEMENT...............................................................................................................9
INSERTION/REMOVAL OF DRAWER ASSEMBLY.................................................................9
ELECTRODE SETTING...............................................................................................................10
TURBULATOR SETTING............................................................................................................10
OIL LINE CONNECTIONS.........................................................................................................10
Single Line (Gravity Feed)...................................................................................................11
Two Line (Lift System)........................................................................................................11
PUMP PURGE ..............................................................................................................................12
Single Line (Gravity System)................................................................................................12
Two Line (Lift System)........................................................................................................12
SETTING THE AIR DAMPER ADJUSTMENT............................................................................13
BF BURNER CHAMBER PRESSURE FIELD..............................................................................13
BURNER ADJUSTMENT TABLES..............................................................................................14
BF BURNER TROUBLE SHOOTING CHART............................................................................15
BF BURNER INTAKE AIR LAYOUT..........................................................................................16

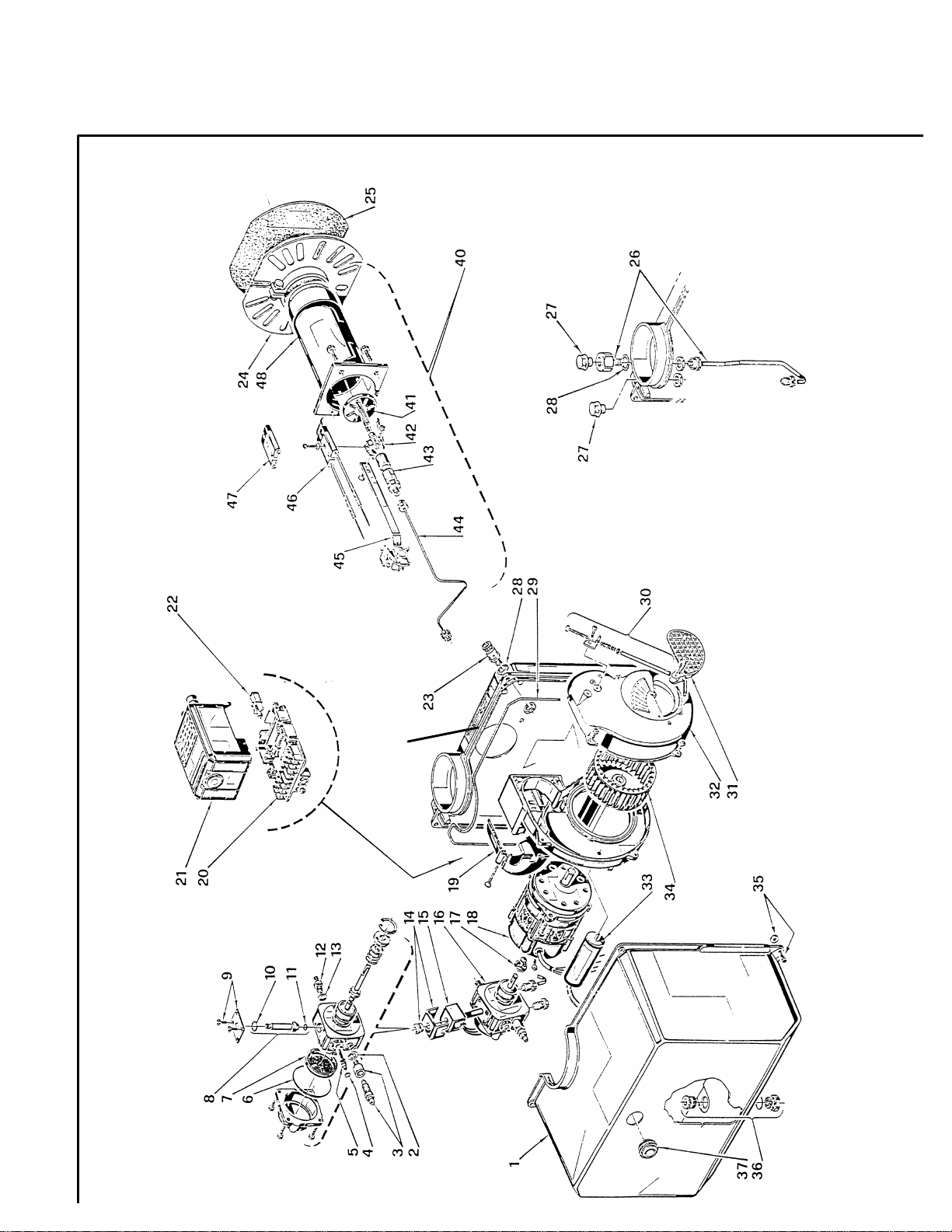

SPARE PARTS EXPLODED VIEW .............................................................................................17
SPARE PARTS LIST.....................................................................................................................18
PRECAUTIONS............................................................................................................................19
ATTENTION:
The burner settings used in this manual were obtained under laboratory
conditions and may vary from those obtained in the actual installation of
the burner. Combustion results must be verified using proper
combustion test equipment. Riello will not be responsible for the
improper installation or set-up of the appliance.

Page 3of 20

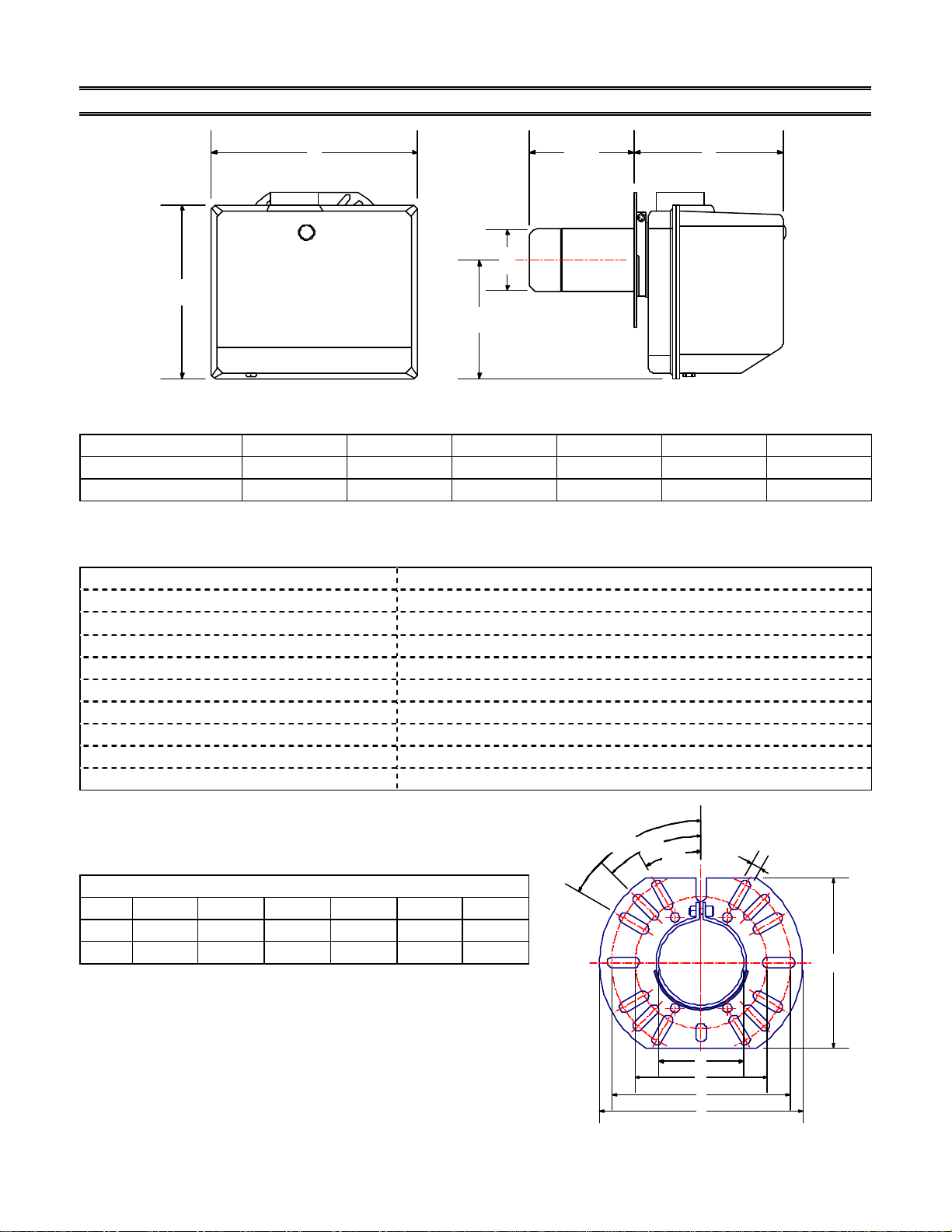

RIELLO 40 BF3 TECHNICAL DATA
DIMENSIONS
MODEL BF3 ABCDEF
Inches 9 13/16 11 1/4 7 1/2 3 1/2 4 1/4 8 1/4
mm 249 286 193 89 108 210
*E1: 6” (152 mm), 8 7/8” (225 mm) & 10” (254 mm) tubes are also available.
SPECIFICATIONS
FUEL: No. 2 Fuel Oil
FIRING RATE: 0.50 to 0.95 US GPH
EFFECTIVE OUTPUT: 70,000 to 133,000 BTU/h
VOLTAGE (Single Phase): 120V 60Hz (± 10% -15%)
ABSORBED ELECTRICAL POWER: 192 Watts
MOTOR (rated): 3250 rpm Run Current 2.2 AMP
CAPACITOR: 12.5 Microfarads 260V
PUMP PRESSURE: 100 to 200 PSI
PRIMARY CONTROL: RIELLO 530 SE/C
IGNITION TRANSFORMER: 8 kV 16mA *with intake air temperature at 20ºC (68ºF)
MOUNTING FLANGE DIMENSIONS
MODEL BF3
ABCDEF
Inch 7/16 7 3/32 3 9/16 5 9/16 7 9/16 8 1/2
mm 11 180 90 141 192 216
AC
D
BE
*E1 F
30º
45º
60º A
B
F
E
D
C

Page 4of 20

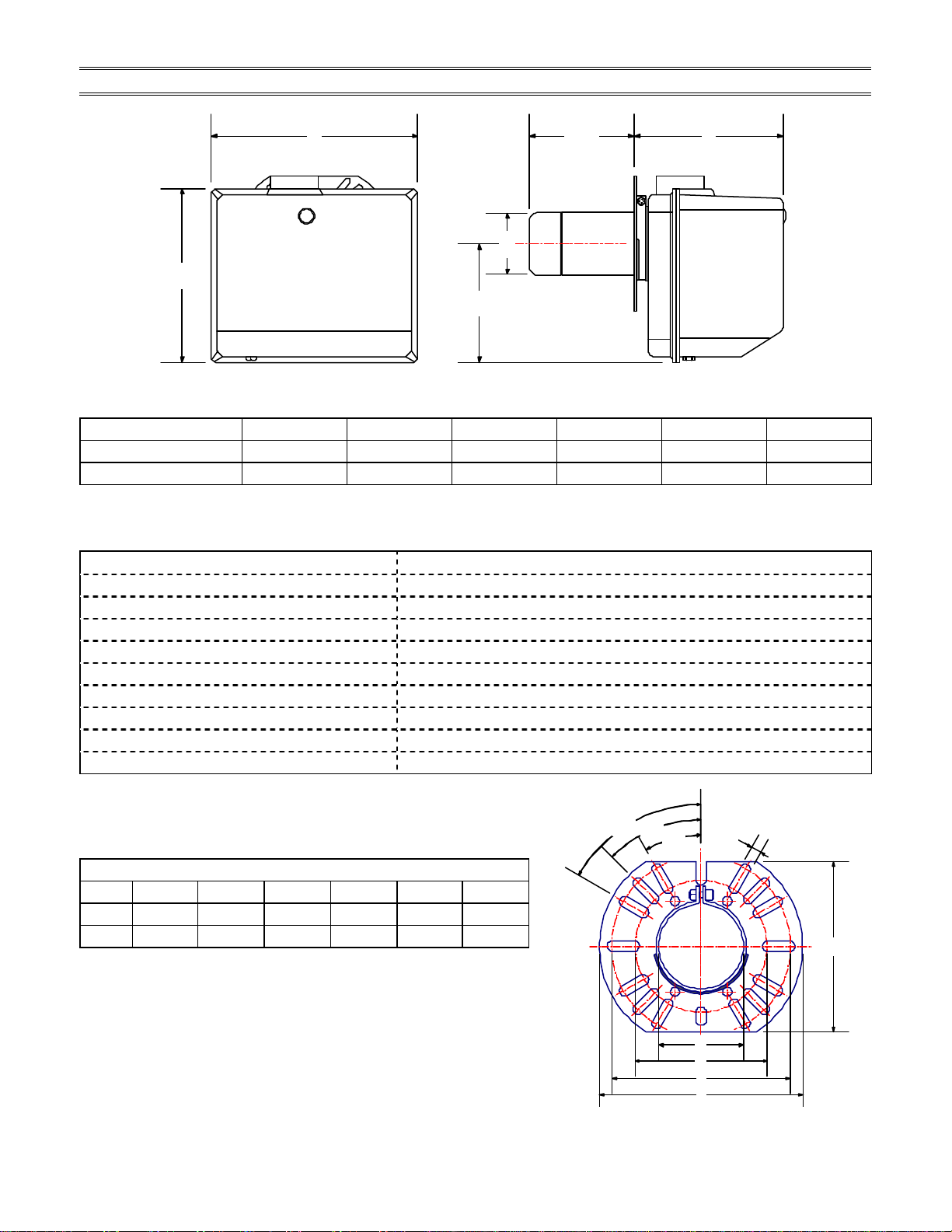

RIELLO 40 BF5 TECHNICAL DATA
DIMENSIONS
MODEL BF5 ABCDEF
Inches 9 13/16 11 1/2 7 1/2 3 1/2 4 1/4 8 3/4
mm 249 292 193 89 108 222
*E1: 6” (152 mm) & 10” (254 mm) tubes are also available.
SPECIFICATIONS
FUEL: No. 2 Fuel Oil
FIRING RATE: 0.75 to 1.65 US GPH
EFFECTIVE OUTPUT: 105,000 to 231,000 BTU/h
VOLTAGE (Single Phase): 120V 60Hz (± 10% -15%)
ABSORBED ELECTRICAL POWER: 204 Watts
MOTOR (rated): 3250 rpm Run Current 2.2 AMP
CAPACITOR: 12.5 Microfarads 260V
PUMP PRESSURE: 100 to 200 PSI
PRIMARY CONTROL: RIELLO 530 SE/C
IGNITION TRANSFORMER: 8 kV 16mA *with intake air temperature at 20ºC (68ºF)
MOUNTING FLANGE DIMENSIONS
MODEL BF5
ABCDEF
Inch 7/16 7 3/32 3 9/16 5 9/16 7 9/16 8 1/2
mm 11 180 90 141 192 216
AC
D
BE
*E1 F
30º
45º
60º A
B
F
E
D
C

Page 5of 20
RIELLO 40 SERIES OIL BURNER
COMPONENT IDENTIFICATION
BF3 & BF5 BURNER COMPONENTS
1) Primary Control Sub-base10) Universal Mounting Flange
2) Primary Control 11) Turbulator Adjustment Screw
3) Lockout Indicator Lamp and Reset Button 12) Air Tube Cover
4) Pump Pressure Regulator Adjustment Screw 13) Pump Plug
5) Motor 14) Inlet Fuel Line Port
6) Capacitor 15) Return Fuel Line Port
7) Air Damper 16) Bleeder and Pressure Gauge Port
8) End Cone Assembly 17) Coil
9) Mounting Gasket
SERIAL NUMBER IDENTIFICATION
The Riello 15 character serial number, example, 97 A 8511111 00025, is identified as follow:
97 = last two digits of the year of manufacture; A= BI-week of manufacture; 8511111 = burner
product code; 00025 = increment of 1 for each burner produced –specific to product code –reset to
zero each January 1st. (97) (A) (8511111) (00025)
Year of manufacture BI-week of manufacture Burner product code Sequence
INITIAL SET-UP
A) Remove burner from the carton. Check parts list (inside cover) to ensure all parts are present.
B) Remove burner cover by loosening the four screws securing it. Remove control box and air tube
cover.
C) Remove drawer assembly, insert nozzle and set turbulator adjustment for specific input required.
5
17

Page 6of 20
MOUNTING THE BURNER
TO THE BOILER OR FURNACE
There are two possible methods to mount the burner, depending on the individual application. These
are:
1) Universal flange bolted to Boiler/Furnace unit.
2) Universal flange mounted to optional Pedestal mount, where flange mounting direct to appliance is
not possible. Pedestal kit must be ordered separately.
METHOD 1 –UNIVERSAL MOUNTING FLANGE
A) Slide the UNIVERSAL MOUNTING FLANGE (1) over the end cone assembly with the flat flange
surface towards the heating unit.
B) Secure the UNIVERSAL MOUNTING FLANGE to the AIR TUBE by tightening the ALLEN
BOLT (2). Be sure that the MOUNTING FLANGE is properly positioned. The outer edge of the
END CONE will be at least ¼” (6.5 mm) back from the inside wall of the refractory chamber or
inside wall of the combustion chamber (see dimension B above). The measured length (A) is to
include the MOUNTING GASKET (3) and FLANGE.
C) For dry based appliances it is suggested that an amulet or cera-felt sleeve be used on the end cone
to help reduce the risk of end cone burn-off. This amulet also provides an additional benefit of
sealing the chamber air tube hole when this hole is larger then our air tube diameter. Please refer to
amulet instructions in regards to installing amulet to the burners air tube end cone.
CERA-FELT
SLEEVE OR
AMULET
SHOWN

Page 7of 20
1
2
D) The burner can now be attached to the heating unit by inserting the AIR TUBE through the
BURNER ACCESS HOLE (6) and into the appliance, making sure the MOUNTING FLANGE
lines up with the appliance studs (6). Secure the burner in place using nuts (4).
A visual verification of the air tube insertion into the combustion chamber of the heating unit is
suggested. Dimension “B” should be at least ¼ inch (see drawing).
METHOD 2 –PEDESTAL MOUNT
Secure the MOUNTING FLANGE to MOUNTING PEDESTAL using the hardware provided with the
pedestal. Secure burner to MOUNTING FLANGE as in METHOD 1.
NOTE: It is suggested that the pedestal be anchored in position on the floor by installing brackets over
the pedestal tube and securing brackets to the floor.
WARNING: WHEN THE COMBUSTION CHAMBER IS LINED WITH A REFRACTORY
MATERIAL, IT IS IMPERATIVE THAT THE END CONE NOT PROTRUDE INTO THE
CHAMBER AREA, AS EXCESSIVE HEAT AT BURNER END CONE DURING OPERATION OR
SHUTDOWN WILL DAMAGE THE END CONE. IF HIGH END CONE TEMPERATURES ARE A
CONCERN USING A CERA-FELT SLEEVE OR, AMULET OVER THE END CONE COULD
HELP REDUCE THE RISK OF BURN-OFF THE END CONE.
ELECTRICAL CONNECTIONS
It is advisable to leave the control box off the sub-base while completing the electrical connections to
the burner.
1) Electrical connector
2) Earth ground conductor terminal
The burner may be controlled using either a DIRECT LINE
VOLTAGE control circuit (120V AC 60 cycle) OR a LOW
VOLTAGE control (24V AC 60 cycle) using models Riello or
Honeywell R8038A 24v relays.
Following the wiring diagram on the next page, make
electrical connections to burner. All wiring must be done in
accordance with existing electrical codes, both National and
Local.
WARNING: DO NOT activate burner until proper oil line connections have been made, or failure of
the pump shaft seal may occur.

Page 8of 20

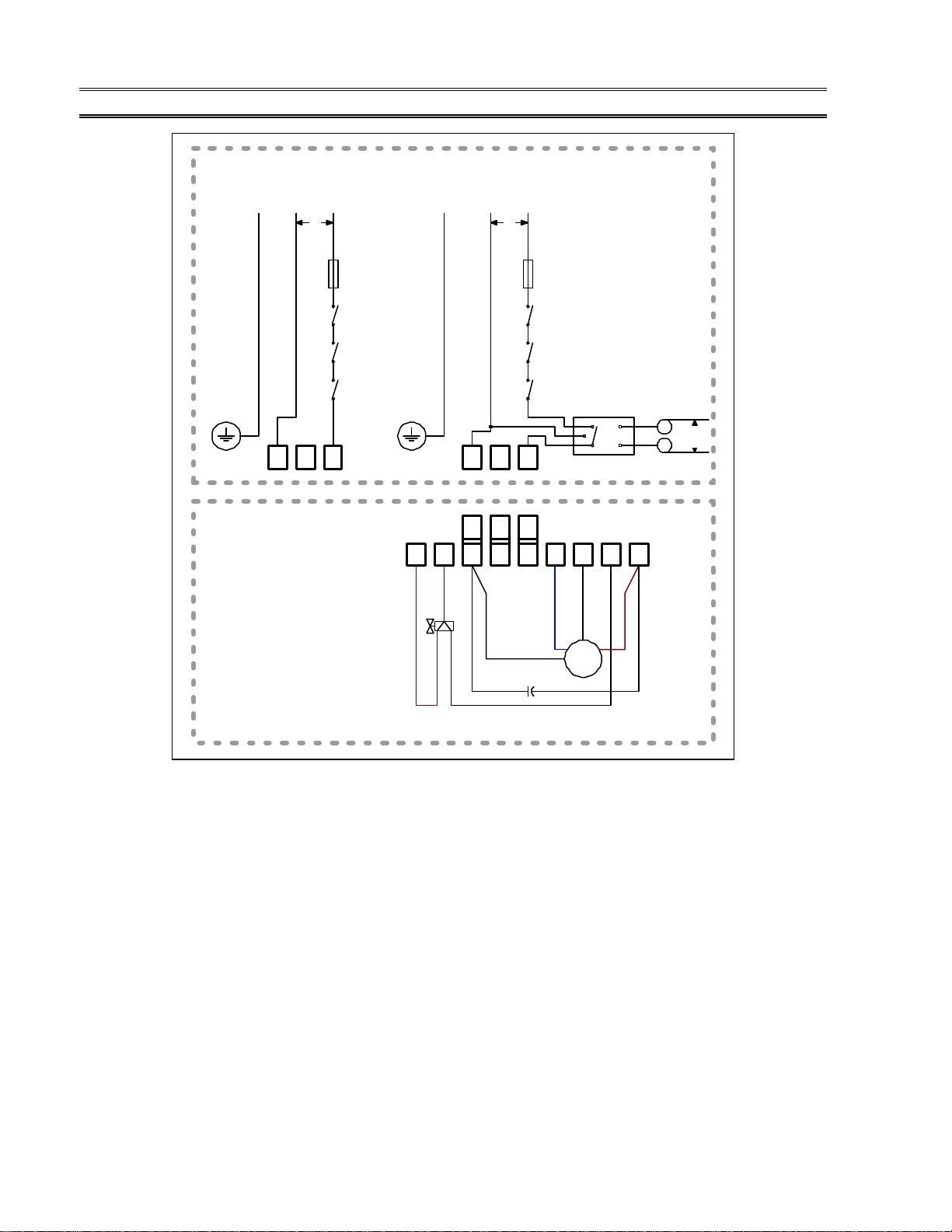

APPLICATION FIELD WIRING –STANDARD
REMOTE SENSING OF SAFETY LOCKOUT: The SAFETY SWITCH in the 530SE CONTROL
BOX is equipped with a contact allowing remote sensing of burner lockout. The electrical connection is
made at terminal 4 (•) on the SUB-BASE. Should lockout occur the 530SE CONTROL BOX will
supply a power source of 120Vac to the connection terminal. The maximum allowable current draw on
this terminal (4) is 1 Amp.
WARNING: If a neutral or ground lead is attached to this terminal, the CONTROL
BOX on the burner will be damaged should lockout occur.
N
•
L
HOT LINE (BLACK)
EARTH GROUND (GREEN)
NEUTRAL (WHITE)
LINE SAFETY
SWITCH
OPERATING
LIMIT SWITCH
SAFETY
LIMIT SWITCH
FUSE 15A
N
•
L
T
T
NEUTRAL (WHITE) HOT LINE (BLACK)
EARTH GROUND (GREEN)
LINE SAFETY
SWITCH
OPERATING
LIMIT SWITCH
SAFETY
LIMIT SWITCH
FUSE 15A
24
V
AC
120
V
AC
120
V
AC
DIRECT LINE
VOLTAGE LOW VOLTAGE
TRANSFORMER &
SWITCHING RELAY
1 2 43 765 98
N
•
L
MOTOR
CAPACITOR
BLACK
COIL
BLUE
BROWN BLACK
VALVE
BLUE
WHITE
BLACK
BROWN
WHITE
WHITE
RIELLO
FACTORY
WIRED SUB
BASE
FIELD
WIRING

Page 9of 20
NOZZLE PLACEMENT
A) Determine the proper firing rate for the boiler
or furnace unit, considering the specific
application and use the Burner Set-Up charts
on page 14 to select the proper nozzle and
pump pressure to obtain the required input
from the burner.

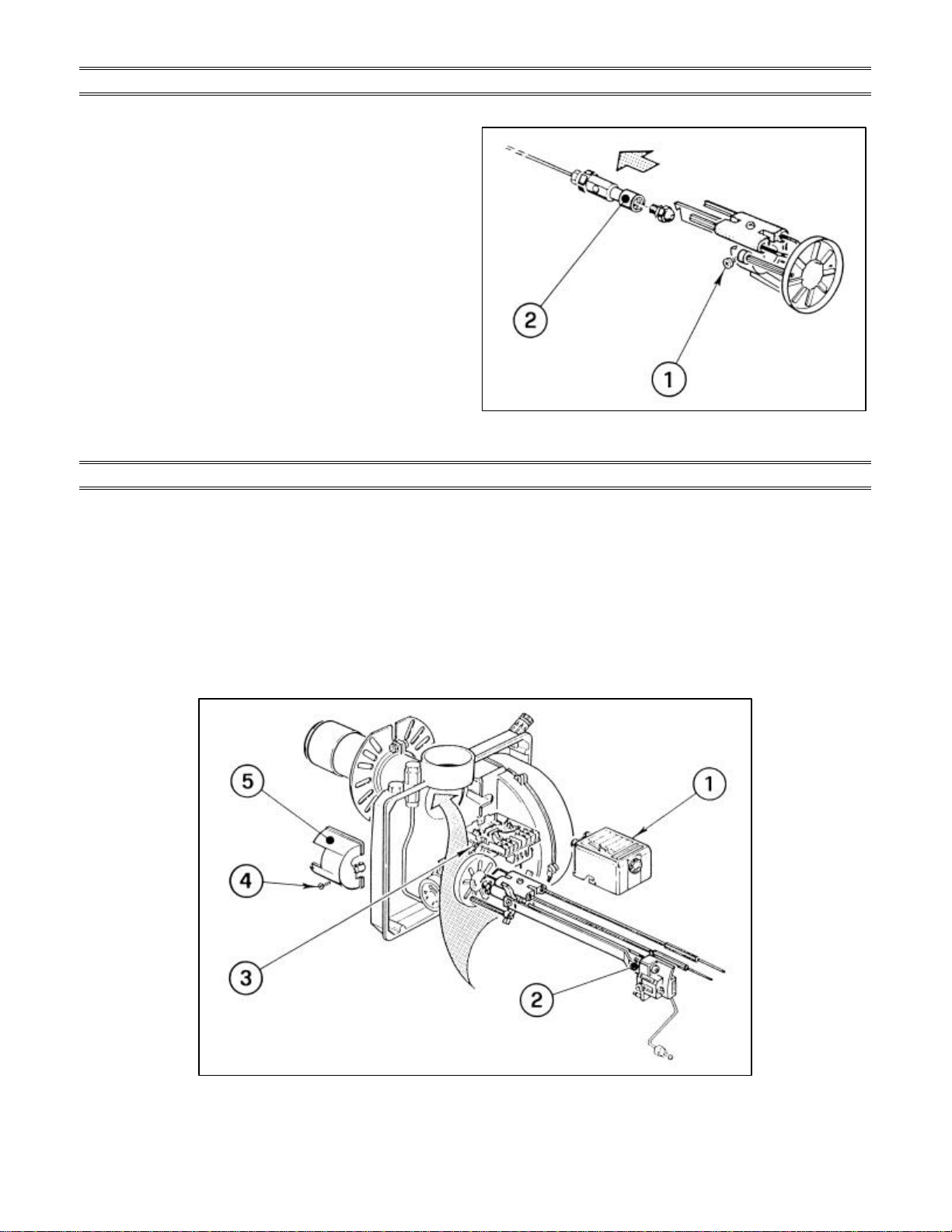

B) Remove the NOZZLE ADAPTER (2) from
the DRAWER ASSEMBLY by loosening the
SCREW (1).
C) Insert the proper NOZZLE into the NOZZLE
ADAPTER and tighten securely (DO NOT
over tighten).
D) Replace adapter, with nozzle installed, into
drawer assembly and secure with screw (1).
INSERTION/REMOVAL OF DRAWER ASSEMBLY
A) To remove drawer assembly, loosen SCREW (3), and then unplug CONTROL BOX (1) by
carefully pulling it back and then up.
B) Remove the AIR TUBE COVER PLATE (5) by loosening the retaining SCREW (4) (Two
SCREWS –Model BF5).
C) Loosen SCREW (2), and then slide the complete drawer assembly out of the combustion head as
shown.
D) To insert drawer assembly, reverse the procedure in items Ato Cabove, and then attach fuel line to
the pump.

Page 10 of 20
04
3 0
3
2
1
ELECTRODE SETTING
IMPORTANT: THESE DIMENSIONS MUST BE OBSERVED AND VERIFIED
TURBULATOR SETTING
A) Loosen NUT (1), and then turn SCREW (2) until the INDEX
MARKER (3) is aligned with the correct index number as per
the Burner Setup charts, on page 14.
B) Retighten the RETAINING NUT (1).
NOTE: MODEL BF3: Zero and three are scale indicators only.
From left to right, the first line is 3 and the last line 0.
MODEL BF5: Same as above except scale indicators are 0 and 4.
OIL LINE CONNECTIONS
WARNING: The burner is shipped with the pump set to operate on a ONE-line system. To operate on
a Two-line system, the by-pass plug (3) must be installed.
To install the by-pass plug:
1) Remove the plug from the return port of the pump.
2) Insert the by-pass (3) plug into the return port of the pump and screw into place.
3) Connect the return line connection pipe (4) to the return port of the pump and tighten securely.
NOTE: Pump pressure must be set at time of burner startup. Attach a pressure gauge to the
PRESSURE PORT (2) for pressure readings. All pump port threads are British Parallel thread design.
Direct connection of NPT threads to the pump will damage the pump body. Riello manometers and
vacuum gauges do not require any adapters, and can be safely connected directly to pump ports. An
NPT (metric) adapter must be used when connecting other gauge models.
5/32" - 4mm
5/64" to 7/64" or 2 to 2.5mm
13/64" or
5mm

Page 11 of 20

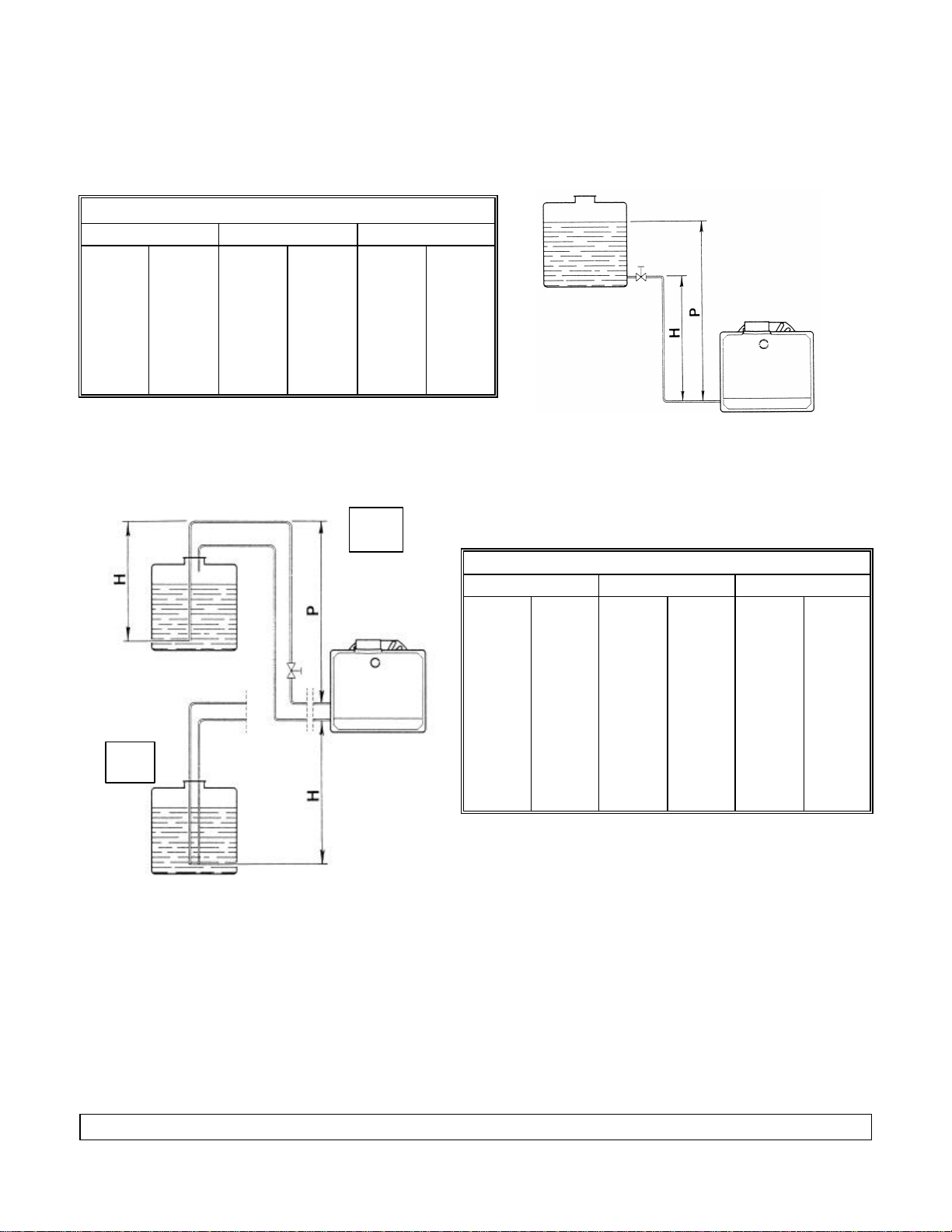

SINGLE LINE (GRAVITY FEED)
Install the required fitting NPTF to NPT adapter into the pump's SUCTION LINE CONNECTION
FITTING on left side of burner on top. Attach the required tubing to this fitting. Be sure that the plug in
the RETURN LINE CONNECTION FITTING is tightened securely.
SINGLE LINE SYSTEM-PIPE LENGTHS
H3/8” OD 1/2” OD
FT MFT MFT M
1.5 0.5 33 10 65 20
3.0 1.0 65 20 130 40
5.0 1.5 130 40 260 80
6.5 2.0 195 60 325 100
TWO LINE (LIFT SYSTEM) (Accessory package required)
Convert the pump for operation as a two-line system by installing the by-pass plug.
2 LINE (LIFT) SYSTEM-PIPE LENGTHS
H3/8” OD 1/2” OD
FT MFT MFT M
0.0 0.0 115 35 330 100
1.5 0.5 100 30 330 100
3.0 1.0 80 25 330 100
5.0 1.5 65 20 295 90
6.5 2.0 50 15 230 70
9.5 3.0 25 8 100 30
11 3.5 20 6 65 20
A) Suction and return lines should be sized in accordance with local codes. The suction line should
extend down near the bottom of the oil tank. The return line should terminate near the top of the oil
tank.
B) Suction and return lines should be sized in accordance with local codes and both should extend to
the same depth inside the fuel tank. Be sure there are no air leaks or blockages in the piping
system. Any obstructions in the return line will cause failure of the pump shaft seal. Do not exceed
the pipe lengths indicated in the tables on page 11.
Install the required fittings (NPT THREAD) in the SUCTION LINE and RETURN LINE
CONNECTION FITTINGS. Attach the required tubing to these fittings.
WARNING: Pipe dope or Teflon tapes are NOT to be used on any direct oil connection to the
fuel pump.
A
B

Page 12 of 20
fuel pump.
WARNING: The height “P” in Pipe Length charts on page 11 should not exceed 13 feet (4m).
WARNING: The vacuum should not exceed 11.44 inches of mercury.
WARNING: An external, appropriately listed and certified oil filter must be placed in the fuel
line between the fuel tank and the burner pump.
PUMP PURGE
NOTE: To protect the pump gears. It is advisable to lubricate the pump before purge all air out of oil
line(s) system. Apply oil through the VACUUM PORT.
1) SINGLE LINE (GRAVITY SYSTEM)
Turn off all power to burner/appliance, and then attach a hose over bleeder plug fitting put other end of
hose into a bucket. Loosen bleeder plug, when oil comes out of bleeder plug and appears clear tighten
bleeder port plug, and remove hose. The burner should have purge all air of pump, and oil line and
burner is ready to operate.
2) TWO LINE (LIFT SYSTEM) 2 options
A) Turn off the main power source to the burner and
remove the air tube cover. Shine a light source on the
photocell on the control box (now visible where the air
tube cover was removed), return power to the burner
and activate the burner. With the light source in place,
the burner will operate in prepurge only. Once the
burner is purged, turn off the power source and replace
the air tube cover. Return power to the burner. The
burner is now ready to operate.
B) Turn off the main power source to the burner/
appliance and then remove control box module. Get a
jumper wire and jumper sub-base terminals # 5 & # 6, this will operate the motor and pump only
with the control module off. Attach a hose over the bleeder port fitting and put the other end into a
bucket. Restore power and run burner without control box module until oil flows out of bleeder port
fitting and appears to be clear. Remove power and reinstall control box module, now the burner is
ready to operate.
ATTENTION: It is important that the fuel line be completely sealed and free from air leaks or
any internal blockages.
WARNING! WHEN THE BYPASS PLUG IS INSTALLED, A TWO-PIPE SYSTEM MUST BE
USED OR FAILURE OF THE PUMP SHAFT SEAL WILL OCCUR.

Page 13 of 20
SETTING THE AIR DAMPER ADJUSTMENT
A) The initial air damper setting is made by turning screw
(2) until the top edge of the air damper (3) is aligned
with the number according to the burner setup chart.
B) Further adjustments can be made with the burner cover
in place by removing plastic plug on the top right hand
side of the cover. Turn the screw counter clockwise (+
indicator) to increase combustion air, turn the screw
clockwise (-indicator) to decrease combustion air.
C) The final position of the air damper will vary on each
installation. Use instruments to establish the proper
settings for maximum CO2and a smoke reading of
zero.
NOTE: Variations in flue gas, smoke, CO2, and temperature readings may be experienced when the
burner cover is put in place. Therefore, the burner cover must be in place when making the final
combustion instrument readings, to ensure proper test results.
COMBUSTION CHAMBER PRESSURE CHART
0.500.0 0.75 1.00 1.25 1.50 1.75
BURNER OUTPUT (US GPH)
0.1
0.2
0.3
0.4
0.5BURNER OUTPUT VS CHAMBER PRESSURE CHART
CHAMBER PRESSURE (INCHES WC)

Page 14 of 20
BURNER ADJUSTMENT TABLES
IMPORTANT: The following charts indicate initial setting with combustion air at 20ºC (68ºF).
MODEL BF3 BURNER SETUP CHART
1
ACTUAL FIRING
RATE 5% ±
2
NOZZLE
SIZE
3
PUMP
PRESSURE
US GPH GPH PSI BAR
4
TURBULATOR
SETTING
5
AIR DAMPER
SETTING
0.50 0.40 X 60/ 80° 160 11 0.0 3.2
0.60 0.50 X 60/ 80° 145 10 1.0 3.8
0.75 0.60 X 60/ 80° 160 11 1.5 4.4
0.80 0.65 X 60/ 80° 150 10 2.0 5.0
0.95 0.75 X 60/ 80° 160 11 3.0 7.0
MODEL BF5 BURNER SETUP CHART
1
ACTUAL FIRING
RATE 5% ±
2
NOZZLE
SIZE
3
PUMP
PRESSURE
US GPH GPH PSI BAR
4
TURBULATOR
SETTING
5
AIR DAMPER
SETTING
0.75 0.65 X 60/ 80° 145 10 0.0 3.3
0.85 0.75 X 60/ 80° 145 10 0.5 3.5
1.00 0.85 X 60/ 80° 145 10 1.0 4.0
1.10 1.00 X 60/ 80° 145 10 1.5 4.5
1.25 1.10 X 60/ 80° 145 10 2.0 5.0
1.50 1.25 X 60/ 80° 145 10 3.0 6.0
1.65 1.35 X 60/ 80° 145 10 4.0 7.0
?? Actual input values given in above table are based on zero (0) chamber pressure, fired in Riello
Canada Inc. Test Lab DIN (small) test boiler (chamber length 17”, chamber diameter of 11”). Input
values calculated using pump pressures listed above in the set-up table. Some variations will occur
depending on application. This above set-up table is used to assist in the initial set-up only. Proper
test equipment must be used to set the burner up properly.
?? Please refer to appliance literature or recommendation regarding nozzle size, spray pattern and
spray angle. If no suggestions or literature are given, using above set-up table for desired input
value set burner to table setting until burner is firing then make suitable adjustments to burner to
achieve desirable combustion results.
MODEL BF3 & BF 5 NOZZLES: Any nozzle manufacturer, size, and angle spray pattern. The
appliance in which the burner is installed into determines BF burner nozzle selection.
COMBUSTION CHAMBER
Follow the instructions furnished by the boiler/furnace manufacturer. Size retrofit application according
to the appropriate installation codes (e.g. CSA B139 or NFPA #31).
NON-RETROFIT APPLICATIONS
If this BF burner is packaged with the appliance, it is considered an OEM package; please read all
instructions the related to the burner, this information will supercede our installation manual.

Page 15 of 20
• Faulty CAD cell or seeing light before trial for ignition.
• Coil wire on terminals #1 & 2 or #1 & 8 reversed.
• Open coil circuit, terminals #2 & 8.
• Open coil circuit, terminal #1 (530 SE only).
• Open coil circuit, terminal #1 (483 SE only) will cause burner
to cycle normally, but burner will lockout.
• Defective 42-52 Vac supply - Terminals #3 & 7.
• Defective control box / Replace.
Burner Continues to Purge and Lightoff with
Immediate Flame Dropout. (530 SE Only)
• Metal yoke for coil missing.
• Coil wire #2 & 8 reversed.
• Low resistance of coil holding circuit, terminals #1 & 2,
(1350 ohms ± 10%).
Burner Locks Out After Trial For Ignition
• Low resistance or no contact on starting circuit of coil,
terminals #2 & 8. (1.3 ohm ± 10%)
• No oil supply - tank empty, valve closed, dirty filter,
damaged supply lines.
• Defective or dirty oil valve stem, nozzle or pump strainer.
• Broken pump drive key, defective pump, no oil pressure.
• Ignition electrodes shorted, cracked porcelain.
• Burner motor not up to speed.
• Excessive draft over fire.
• Defective control box / Replace.
Burner Fires-Cycles On & Off
In Quick Succession - (483SE Only)
• Metal yoke for coil missing.
• Low resistance or short in holding circuit of coil,
terminal #1 & 2.
• Coil wires on terminals #2 & 8 reversed.
RIELLO 40 SERIES BF OIL BURNER
TROUBLE SHOOTING CHART
Thermostat is calling for heat
Burner is not running
Reset Control Box
Burner Does Not StartBurner Starts
Test for 120Vac Supply at sub-base between L(P) & N
or terminals #3 & 5
120 Vac No Voltage
• Check system fuse, ensure service switch is ON.
• Verify all control limits are closed.
• If using switching relay - verify 24Vac at T-T.
Turn off power supply - Remove control box and jumper terminals
#5 & 6. Restore power.
Motor Runs Motor Does Not Run
• Verify electrical connections.
• Check for seized pump, motor, or fan against housing.
• Defective motor capacitor.
• Thermal overload (Hot motor).
• Verify reduced voltage (42-52 Vac) between terminals #3 & 7.
• Ensure good contact between control box spades
and sub-base terminals.
• Defective control box / Replace.
Burner stays in Pre-purge

Page 16 of 20
A TYPICAL LAYOUT FOR BF BURNER INTAKE AIR
A) Use an approved air intake kit.
B) Always keep intake air run to the minimum.
C) Maximum intake air run of 4 (inch) diameter, flexible or rigid type of venting = 100’
D) Reduce intake air length by 10’ for every 90° elbow used. 5’ for every 45° elbow used.
E) It is suggested that air intake venting be insulated with R7 (min) foil lined insulation a minimum of 10’ from
air intake source. (Prevent condensation or corrosion of intake air venting)
F) Used approved type of intake air vacuum breaker and to be installed in the same room and the burner, for the
event of intake air source being blocked, this device should be tested to prove that in the event of intake air
source is blocked that the vacuum breaker balancer is set correctly and can provide sufficient air for
combustion for the burner. If the room that the burner is installed into cannot provide enough air or air
quality is a concern, an additional air inlet source will have to be providing to this room.
IF THIS BF BURNER IS INSTALLED ON AN OEM APPLIANCE PLEASE
REFER TO INTAKE AIR LAYOUT SUGGESTED IN THEIR LITERATURE.
THIS INTAKE AIR LAYOUT FOR CHIMNEY APPLICATIONS ONLY

Page 17 of 17
SPARE PARTS
38

Page 18 of 18
RIELLO BF3 & BF5 SPARE PARTS LIST
• Indicates applicable model for each part.
No CODE BF3 BF5 DESCRIPTION No CODE BF3 BF5 DESCRIPTION
3008019 •Burner Cover 22 3002280 ••Photo Cell
13008023 •Burner Cover 23
C5283000 ••Electrical Fitting
23007077 ••Crushable Metal Washer 3/8” ID. 24 3000932 ••Moveable Flange
33007568 ••Bleeder 25 3005856 ••Mounting Gasket
43007028 ••O-Ring –Pump Pressure Regulator 3008020 •Oil Supply Tube & Adapter Fitting
5N/A ••Regulator 26 3008024 •Oil Supply Tube & Adapter Fitting
6C7010002 ••O-Ring –Pump Cover 27 3007901 ••Plug
73005719 ••Pump Screen 28 N/A Adapter Washer
83006925 ••Valve Stem 29 3007630 ••Gasket –Burner Cover
93007203 ••Plate –Valve Stem Retainer 30 3000681 ••Manual Air Damper Regulator
10 3007029 ••O-Ring –Valve Stem, upper 31 3008021 ••Air Damper
11 3007156 ••O-Ring –Valve Stem, lower 3007207 •Air Intake Housing
12 3007268 ••Nozzle Outlet Fitting 32 3007824 •Air Intake Housing
13 3007087 ••Crushable Metal Washer 5/8” ID 33 3005844 ••Capacitor 12.5µF
14 3006553 ••Coil U-bracket and Retainer Nut 34 3005708 ••Fan
15 3002279 ••Coil 35 3007707 ••Cover Screw and Washer
16 3007802 ••Pump 36 3007628 ••Filter Assembly
17 3000443 ••Pump Drive Key 37 3007627 ••Plug–Cover Opening–Burner Reset
18 3005843 ••Motor 120V 60Hz 3008078 •Back plate
19 3007315 ••Air Tube Cover Plate 38 3008079 •Back plate
20 3002278 ••Primary Control Sub Base AL1009 Post Purge Control (not shown)
21 3001157 ••Primary Control 530 SE/C
VERY SHORT 3” COMBUSTION HEAD 8 7/8" COMBUSTION HEAD
3948876 •VSBT Combustion Head 3948877 •Combustion Head
40
3948976 •VSBT Combustion Head 40 3948975 •Combustion Head
3006968 •Turbulator Disc 3006968 •Turbulator Disc
41
3006977 •Turbulator Disc 41 3006977 •Turbulator Disc
42 3006966 ••Electrode Support 42 3006966 ••Electrode Support
43 3006965 ••Nozzle Adapter 43 3006965 ••Nozzle Adapter
3008627 •Nozzle Oil Tube 3008790 •Nozzle Oil Tube
44
3008629 •Nozzle Oil Tube 44 3008628 •Nozzle Oil Tube
3008633 •Regulator Assembly 3008846 •Regulator Assembly
45
3008634 •Regulator Assembly 45 3008635 •Regulator Assembly
3008630 •Electrode Assembly 3008789 •Electrode Assembly
46
3008631 •Electrode Assembly 46 3008632 •Electrode Assembly
47 3005869 ••Electrode Porcelain 47 3005869 ••Electrode Porcelain
3008623 •Very Short Air Tube 3008788 •Air Tube
48
3008626 •Very Short Air Tube 48 3008625 •Air Tube
SHORT 6” COMBUSTION HEAD 10" COMBUSTION HEAD
3948873 •Combustion Head 3948874 •Combustion Head
40
3948973 •Combustion Head 40 3948974 •Combustion Head
3006968 •Turbulator Disc 3006968 •Turbulator Disc
41
3006977 •Turbulator Disc 41 3006977 •Turbulator Disc
42 3006966 ••Electrode Support 42 3006966 ••Electrode Support
43 3006965 ••Nozzle Adapter 43 3006965 ••Nozzle Adapter
3006969 •Nozzle Oil Tube 3006970 •Nozzle Oil Tube
44
3006973 •Nozzle Oil Tube 44 3006974 •Nozzle Oil Tube
3006324 •Regulator Assembly 3005867 •Regulator Assembly
45
3006323 •Regulator Assembly 45 3005878 •Regulator Assembly
3006330 •Electrode Assembly 3005870 •Electrode Assembly
46
3006329 •Electrode Assembly 46 3005880 •Electrode Assembly
47 3005869 ••Electrode Porcelain 47 3005869 ••Electrode Porcelain
3007592 •Short Air Tube 3007593 •Long Air Tube
48
3007594 •Short Air Tube 48 3007595 •Long Air Tube
C7001084

Page 19 of 20
PRECAUTIONS
AIR FOR COMBUSTION
Do not install burner in room with insufficient air for combustion. Be sure there is an adequate air
supply for combustion if the boiler/furnace room is enclosed. It may be necessary to create a window to
permit sufficient air to enter the boiler/furnace room. The installer must follow local ordinances in this
regard.
CANADA: It is suggested that the installer follow CSA standard B139.
USA: It is suggested that the installer follow NFPA manual #31.
CHIMNEY
Be sure chimney is sufficient to handle the exhaust gases. It is recommended that only the burner be
connected to the chimney. Be sure that it is clean and clear of obstructions.
OIL FILTER
An external oil filter is REQUIRED, even though there is an internal strainer in the pump. The filter
should be replaced at least once a year, and the filter container should be thoroughly cleaned prior to
installing a new filter cartridge.
DRAFT
Follow the instructions furnished with the heating appliance.
The pressure in the combustion area should be kept as close to zero as possible. The burner will operate
with a slight draft or pressure in the chamber.
ELECTRICAL CONNECTIONS
CANADA
All electrical connections should be done in accordance with the C.E.C. Part 1, and all local codes. The
system should be grounded.
USA
All electrical connections should be done in accordance with the National Electrical Code, and all local
ordinances. The system should be grounded.
CONTROL BURNER OPERATION
Check out the burner and explain its operation to the homeowner. Be sure to leave the Owner’s
Instruction sheet with the homeowner.
FIRE EXTINGUISHER
If required by local codes, install an approved fire extinguisher.
ELECTRICAL CONNECTIONS
. In most localities, a number 14 wire should be used inside a metal conduit. The system should be
grounded. A service switch should be placed close to the burner on a fireproof wall in an easily
accessible location.

Page 20 of 20
RIELLO BURNERS NORTH AMERICA
35 Pond Park Road
Hingham, MA 02043
Phone [phone]
Toll Free 800-992-7637
Fax [phone]
1-800-4-RIELLO
1-800-474-3556
www.riello-burners.com
2165 Meadowpine Blvd
Mississauga, ON L5N 6H6
Phone [phone]
Toll Free 800-387-3898
Fax [phone]
