Riello 40BF Installation instructions

Installation & Operating Manual
C6505027 - 20015900 (3) - 07/2014
Single stage operation oil burners
CODE MODEL TYPE
3729010 BF3 290T
3729110 BF5 291T
RETROFIT APPLICATIONS ONLY
If this burner is being installed in a packaged unit (ie. burner comes with a boiler or furnace), follow
the installation and set-up instructions supplied with the heating unit, as settings may differ from
those shown in this manual.
- The following pages contain information, descriptions and diagrams for the proper installation
and wiring of the burner. Please read carefully before attempting final installation.
- This manual is to remain with the final installation designation. It is the installer’s responsibility to en-
sure that the burner installation and operation instructions mentioned in this manual are followed and
operated within local code authority limits.
This burner is not equipped for 2 line operation.
For 2 line operation order: part # C7001025 for BF3, C7001026 for BF5.
WARNING
BF

20015900
GB
INSTALLATION PRECAUTIONS
AIR FOR COMBUSTION
Do not install burner in room with insufficient air for combustion. Be sure there is an adequate air supply for
combustion if the boiler room is enclosed. It may be necessary to create a window to permit sufficient air to
enter the boiler room. The installer must follow local ordinances in this regard.
CANADA It is suggested that the installer follow CSA standard B139.
USA It is suggested that the installer follow NFPA manual #31.
CHIMNEY
Be sure chimney is sufficient to handle the exhaust gases. It is recommended that only the burner be con-
nected to the chimney. Be sure that it is clean and clear of obstructions.
OIL FILTER
An external oil filter is REQUIRED, even though there is an internal strainer in the pump. The filter should be
replaced at least once a year, and the filter container should be thoroughly cleaned prior to installing a new
filter cartridge.
DRAFT
Follow the instructions furnished with the heating appliance. The pressure in the combustion area should be
kept as close to zero as possible. The burner will operate with a slight draft or pressure in the chamber.
ELECTRICAL CONNECTIONS
CANADA All electrical connections should be done in accordance with the C.E.C. Part 1, and all local codes.
The system should be grounded.
USA All electrical connections should be done in accordance with the National Electrical Code, and all
local ordinances. The system should be grounded.
CONTROL BURNER OPERATION
Check out the burner and explain its operation to the homeowner. Be sure to leave the Owner’s Instruction
sheet with the homeowner.
FIRE EXTINGUISHER
If required by local codes, install an approved fire extinguisher.
ELECTRICAL CONNECTIONS
In most localities, a number 14 wire should be used inside a metal conduit. The system should be grounded.
A service switch should be placed close to the burner on a fireproof wall in an easily accessible location.
The burner settings used in this manual were obtained under laboratory conditions and may vary
from those obtained in the actual installation of the burner. Combustion results must be verified
using proper combustion test equipment. Riello will not be responsible for the improper
installation or set-up of the appliance.
ATTENTION
ATTENTION

20015900
GB
TABLE OF CONTENTS
PACKAGE CONTENTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SERIAL NUMBER IDENTIFICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
TECHNICAL DATA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Burner and mounting flange dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Burner components identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MOUNTING THE BURNER TO BOILER OR FURNACE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ELECTRICAL CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
APPLICATION FIELD WIRING - RIELLO 530 SE/C PRIMARY CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
APPLICATION FIELD WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
APPLICATION FIELD WIRING - RIELLO 530 SE/C 24 VPRIMARY CONTROL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
INSTALLATION/ REMOVAL OF DRAWER ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ELECTRODE SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
NOZZLE PLACEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
TURBULATOR SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
OIL LINE CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Single line (Gravity feed system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Two line (Lift system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
PUMP PURGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Single line (Gravity feed system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Two line (Lift system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
SETTING THE AIR ADJUSTMENT PLATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
COMBUSTION CHAMBER PRESSURE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
BURNER START-UP CYCLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
BURNER ADJUSTMENT TABLES - BURNER SETUP CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
A TYPICAL LAYOUT FOR BF BURNER INTAKE AIR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
TROUBLE SHOOTING CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED SPARE PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SPARE PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
BURNER START-UP LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

20015900
1
GB
PACKAGE CONTENTS LIST
Your Riello 40 BF burner should include the following parts. Please check to make sure all parts are present before be-
ginning the installation.
SERIAL NUMBER IDENTIFICATION
The Riello 15 character serial number, example,
06 A 8511111 00025, is identified as follows:
06 = Last two digits of the year of manu-
facture;
A= BI-week of manufacture;
8511111 = Burner product code;
00025 = Increment of 1 for each burner pro-
duced – specific to product code –
reset to zero each January 1st.
Quantity Description Code
1 Burner chassis with cover 3729010 - 3729110
1 Gasket 2567340
1 Nut 2621854
1 Connector 2623842
1 Installation manual
(06) (A) (8511111) (00025)
Year of
manufacture Burner product code Increment
BI-week of
manufacture

20015900 2
GB

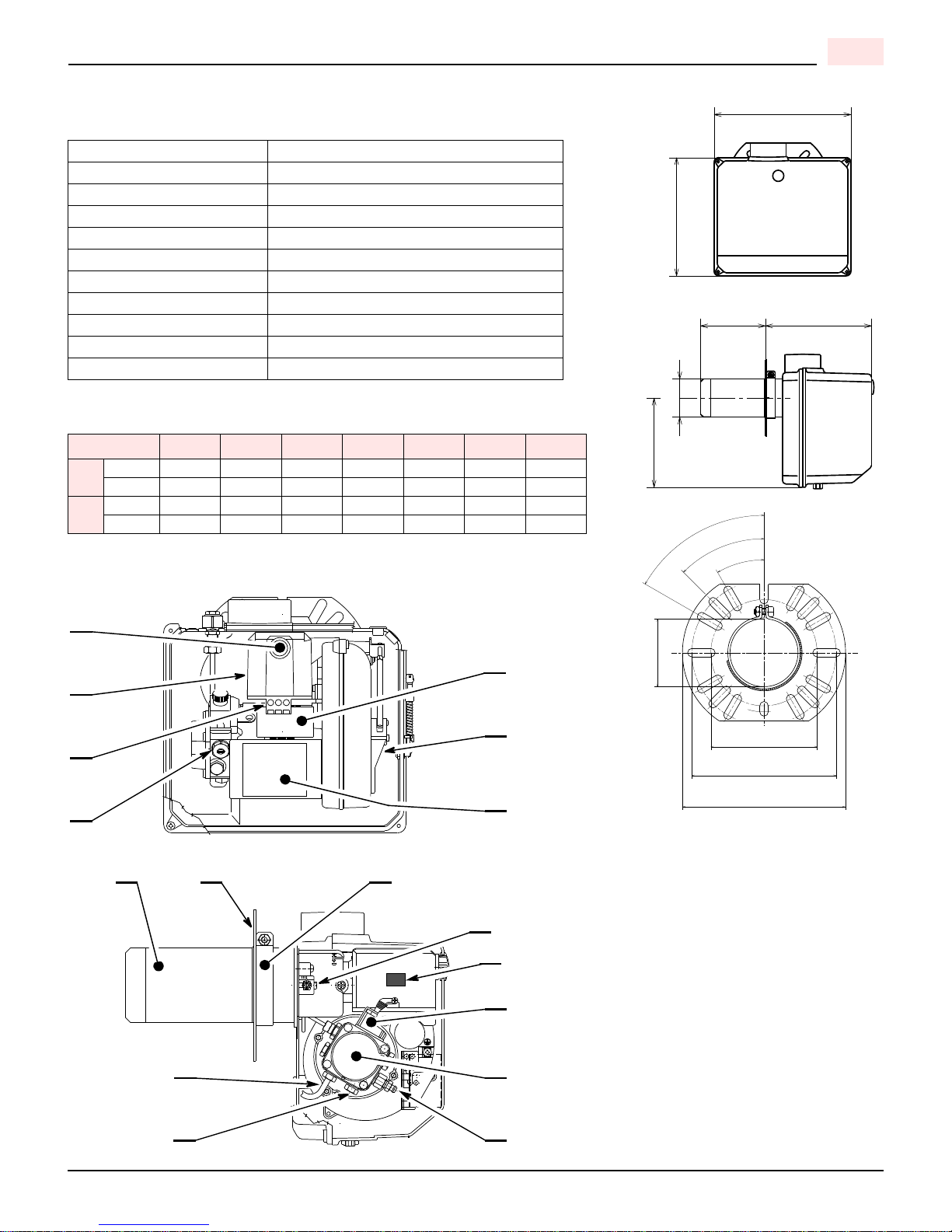

TECHNICAL DATA
SPECIFICATIONS
BURNER AND MOUNTING FLANGE DIMENSIONS
BURNER COMPONENTS IDENTIFICATION
Fuel No. 2 Fuel Oil
BF3 Firing rate - Effective Output 0.50 to 0.95 US GPH - 70,000 to 133,000 BTU/h
BF5 Firing rate - Effective Output 0.75 to 1.65 US GPH - 105,000 to 231,000 BTU/h
Voltage (single phase) 120V 60Hz (+ 10% - 15%)
BF3 Absorbed electrical power 192 Watts
BF5 Absorbed electrical power 204 Watts
Motor (rated) 3250 rpm Run Current 2.2 AMP
Capacitor 12.5 Microfarads 260V
Pump pressure 100 to 200 PSI
Primary control RIELLO 530 SE/C - RIELLO 530 SE/C 24 V
Ignition transformer 8kV 16mA
Model ABCDE*E1F
BF3 Inches 9 13/16 11 1/4 7 1/2 3 1/2 4 1/4 6 8 1/4
mm 249 286 193 89 108 152 210
BF5 Inches 9 13/16 11 1/2 7 1/2 3 1/2 4 1/4 8 7/8 8 3/4
mm 249 292 193 89 108 225 222
5 9/16”-141mm
7 9/16” - 192 mm
8 1/2” - 216 mm
3 9/16”
90 mm
60°
45°
30°
BURN-
ER COMPONENTS
1Lockout indicator lamp and reset button
2Primary control
3Primary control sub-base
4Pump pressure regulator
5Post purge timer (option)
6Air adjustment
7Capacitor
8Combustion head
9Mounting gasket
10 Universal mounting flange
11 Turbolator adjustment screw
12 Coil
13 Bleeder and pressure gauge port
14 Return fuel line port
15 Inlet fuel line port
16 Pump
17 24 V thermostat connections
D7516
D7515
B
A
EF
C
D
*E1
03
D7517
1
2
3
45
6
7
15
8 9 10
12
1314
16
11
17
*E1: 6” (152 mm) 8 7/8” (225mm) & 10” (254 mm) tubes are also available.

20015900
3
GB
MOUNTING THE BURNER TO THE BOILER OR FURNACE
There are two possible methods to mount the burner, depending on the individual application. These are:
1) Universal flange bolted to Boiler/Furnace unit.
2) Universal flange mounted to optional Pedestal mount, where flange mounting direct to appliance is not possible. Pedestal kit
must be ordered separately.
METHOD 1 – UNIVERSAL MOUNTING FLANGE
A) Slide the UNIVERSAL MOUNTING FLANGE (1) over
the end cone assembly with the flat flange surface to-
wards the heating unit.
B) Secure the UNIVERSAL MOUNTING FLANGE to the
AIR TUBE by tightening the ALLEN BOLT (2). Be sure
that the MOUNTING FLANGE is properly positioned. The
outer edge of the END CONE will be at least 1/4” (6.5
mm) back from the inside wall of the refractory chamber
or inside wall of the combustion chamber (see dimension
B above). The measured length (A) is to include the
MOUNTING GASKET (3) and FLANGE.
C) For dry based appliances it is suggested that an amu-
let or cera-felt sleeve be used on the end cone to help re-
duce the risk of end cone burn-off. This amulet also
provides an additional benefit of sealing the chamber air
tube hole when this hole is larger then our air tube diam-
eter. Please refer to amulet instructions in regards to in-
stalling amulet to the burners air tube end cone.
D) The burner can now be attached to the heating unit by
inserting the AIR TUBE through the BURNER ACCESS
HOLE (5) and into the appliance, making sure the
MOUNTING FLANGE lines up with the appliance studs
(6). Secure the burner in place using nuts (4).
A visual verification of the air tube insertion into the com-
bustion chamber of the heating unit is suggested. Dimen-
sion “B” should be at least 1/4 inch (see drawing).
METHOD 2 – PEDESTAL MOUNT
Secure the MOUNTING FLANGE to MOUNTING PED-
ESTAL using the hardware provided with the pedestal.
Secure burner to MOUNTING FLANGE as in METHOD
1.
NOTE: It is suggested that the pedestal be anchored in
position on the floor by installing brackets over the ped-
estal tube and securing brackets to the floor.
WHEN THE COMBUSTION CHAM-
BER IS LINED WITH A REFRACTORY
MATERIAL, IT IS IMPERATIVE THAT
THE END CONE NOT PROTRUDE
INTO THE CHAMBER AREA, AS EXCESSIVE
HEAT AT BURNER END CONE DURING OPER-
ATION OR SHUTDOWN WILL DAMAGE THE
END CONE. IF HIGH END CONE TEMPERA-
TURES ARE A CONCERN USING A CERA-FELT
SLEEVE OR, AMULET OVER THE END CONE
COULD HELP REDUCE THE RISK OF BURN-
OFF THE END CONE.
D9646
42
125
6
CERA-FELT
SLEEVE OR
AMULET
SHOWN
D9647
D9648
WET BASED
CHAMBER
APPLICATIONS
DRY BASED
CHAMBER
APPLICATIONS
WARNING

20015900 4
GB
ELECTRICAL CONNECTIONS
It is advisable to leave the control box off the sub-base while
completing the electrical connections to the burner.
1) Electrical connector
2) Earth ground conductor terminal
The burner may be controlled using either a DIRECT LINE
VOLTAGE control circuit (120V AC 60 cycle) OR a LOW
VOLTAGE control (24V AC 60 cycle) using models Riello or
Honeywell R8038A 24v relays or a LOW VOLTAGE
THERMOSTAT INPUT (T-T).
Following the wiring diagram on the next page, make electrical
connections to burner. All wiring must be done in accordance
with existing electrical codes, both National and Local.
Do not activate burner until proper oil line connections have been made, or failure of the pump shaft seal may
occur.
APPLICATION FIELD WIRING - RIELLO 530 SE/C PRIMARY CONTROL
S7954
WARNING
REMOTE SENSING OF
SAFETY LOCKOUT
The SAFETY SWITCH in
the 530 SE/C CONTROL
BOX is equipped with a con-
tact allowing remote sens-
ing of burner lockout. The
electrical connection is
made at terminal 4 (•) on
the SUB-BASE.
Should lockout occur the
530 SE/C CONTROL BOX
will supply a power source
of 120Vac to the connection
terminal.
The maximum allowable
current draw on this termi-
nal (4) is 1 Amp.
If a neutral or
ground lead is
attached to this
terminal, the
CONTROL BOX on the
burner will be damaged
should lockout occur.
WARNING
EARTH GROUND (Green)
NEUTRAL (White)
HOT LINE (Black)
EARTH GROUND (Green)
NEUTRAL (White)
HOT LINE (Black)
TRANSFORMER
Blue White Black Brown
White
Blue
Brown
Black
CAPACITOR
VALVE
MOTOR
COIL
234567891
NL
NLNL
FACTORY
WIRED
SUB-BASE
T
T24V
AC
120V
AC
LINE SAFETY
SWITCH
OPERATING
LIMIT SWITCH
SAFETY
LIMIT SWITCH
FUSE 15A
120V
AC
Black
White
LINE SAFETY
SWITCH
OPERATING
LIMIT SWITCH
SAFETY
LIMIT SWITCH
FUSE 15A
SWITCHING RELAY
M
~
D5995
DIRECT LINE LOW VOLTAGE
VOLTAGE

20015900
5
GB
APPLICATION FIELD WIRING
Capacitor
GREEN
BLUE
BLACK
BLACK
WHITE
BLUE
M
BROWN
AL 1009-1
Burner Fan-Off
Timer
6
12
8
N
1
11
9
3
27
YELLOW
BLUE
BLUE
RED
GREY
L
WHITE
BLACK
RED
WGR B
WHITE RED
BROWN
Ground
FACTORY WIRED
SUB BASE
LIMIT
Switches
SAFETY
Switches
Fuse 15A
L1L2 Earth
Ground
WHITE GREEN RED BLACK
Motor
FIELD
WIRING
Oil Valve Control Box
530 SE/C
4
All the installation, maintenance and disassembly operations MUST be carried out with the electric-
ity supply disconnected.
The installation of the burner must be carried out by qualified personnel, as indicated in this manual
and in compliance with the standards and regulations of the laws in force.
DANGER
WARNING
D7518

20015900 6
GB
APPLICATION FIELD WIRING - RIELLO 530 SE/C 24V PRIMARY CONTROL
REMOTE SENSING OF SAFETY LOCKOUT
The SAFETY SWITCH in the 530 SE/C 24V CONTROL BOX is equipped with a contact allowing remote sensing of
burner lockout. The electrical connection is made at terminal 4 (•) on the SUB-BASE.
Should lockout occur the 530 SE/C 24V CONTROL BOX will supply a power source of 120Vac to the connection
terminal.
The maximum allowable current draw on this terminal (4) is 1 Amp.
If a neutral or ground lead is attached to this terminal, the CONTROL BOX on the burner will be
damaged should lockout occur.
T
T
JT
T
123456789
AC
120 V
AC
120 V
D8794
FACTORY
WIRED
SUB-BASE
EARTH GROUND (GREEN) NEUTRAL (WHITE) HOT LINE (BLACK)
24V OPERATING
NL
LINE SAFETY
SWITCH
OPERATING
LIMIT SWITCH
SAFETY
LIMIT SWITCH
FUSE 15A
NL NL
EARTH GROUND (GREEN) NEUTRAL (WHITE) HOT LINE (BLACK)
FUSE 15A
LINE SAFETY
SWITCH
SAFETY
LIMIT SWITCH LIMIT SWITCH
ON LEFT SIDE OF
THE CONTROL BOX
ON LEFT SIDE OF
THE CONTROL BOX
Blue
White
Black
Brown
White
Blue
Brown
Black
CAPACITOR
MOTOR
COIL
Black
White
DIRECT LINE LOW VOLTAGE
VOLTAGE
WARNING

20015900
7
GB
INSTALLATION/REMOVAL OF DRAWER ASSEMBLY
Removal:
A) Loosen off oil delivery tube nut from pump.
B) Loosen SCREW (3), and then unplug CON-
TROL BOX (1) by carefully pulling it back
and then up.
C) Remove the AIR TUBE COVER PLATE (5)
by loosening the retaining SCREW (4) (Two
SCREWS – Model BF5).
D) Loosen SCREW (2), and then slide the
complete drawer assembly out of the com-
bustion head as shown.
E) To insert drawer assembly, reverse the pro-
cedure in items A to D above.
ELECTRODE SETTING
IMPORTANT:
These dimensions must be observed and verified.
NOZZLE PLACEMENT
- Remove the NOZZLE ADAPTER (2) from the DRAWER
ASSEMBLY by loosening the SCREW (1).
- Insert the properNOZZLE into the NOZZLEADAPTER and
tighten securely (Do not over tighten).
- Replace adapter, with nozzle installed, into drawer assem-
bly and secure with screw (1).
IMPORTANT:
The nozzle and the pump pressure must be in accordance with the burner setup chart at page 12.
TURBULATOR SETTING
A) Loosen NUT (1), and then turn SCREW (2) until the
INDEX MARKER (3) is aligned with the correct in-
dex number as per the burner setup chart at page 9.
B) Retighten the RETAINING NUT (1).
MODEL BF3: Zero and three are scale indicators only.
From left to right the first line is 3 and the last line 0.
MODEL BF5: Same as above, except scale indicators
are 0 and 4.
E9327
5/32” or 4 mm
5/32” to 13/64” or 4 to 5 mm
13/64”
5 mm
D6003
S7459
3
2
1
D7520

20015900 8
GB
OIL LINE CONNECTIONS
This burner is shipped with the oil pump set to operate on a single line system.
To operate on a two-line system the by-pass plug must be installed.
NOTE:
Pump pressure must be set at
time of burner start-up.
A pressure gauge is attached
to the PRESSURE PORT (8)
for pressure readings.
All pump port threads are Brit-
ish Parallel Thread design.
Direct connection of NPT
threads to the pump will dam-
age the pump body.
Riello manometers and vacuum
gauges do not require any
adapters, and can be safely
connected to the pump ports.
An NPT (metric) adapter must
be used when connecting other
gauge models.
SINGLE LINE (GRAVITY FEED SYSTEM)
The burner is shipped configured for use in single line applications.
No changes to the oil pump are required for use in single line applications.
NOTE:
If the pump cover (1) is removed for any reason, be sure the O-ring (2), is properly seated in the pump cover (1) before
re-attaching the pump cover to the pump housing.
Install the required fitting NPTF to NPT adapter into the pump's SUCTION LINE CONNECTION FITTING on left side
of burner on top.
Attach the required tubing to this fitting. Be sure that the plug in the RETURN LINE CONNECTION FITTING is
tightened securely.
Do not operate a single line system with the by-pass plug installed.
Operating a single line system with the by-pass plug installed will result in damage to the pump shaft
seal.
WARNING
1
2
8
7
4
D7521
SINGLE LINE SYSTEM-PIPE LENGTHS
H 3/8” OD 1/2” OD
FT M FT M FT M
1.5 0.5 33 10 65 20
3.0 1.0 65 20 130 40
5.01.51304026080
6.52.019560325100
H
P
D7523
ATTENTION:
do not exceed
pipe lengths
indicated in chart!

20015900
9
GB

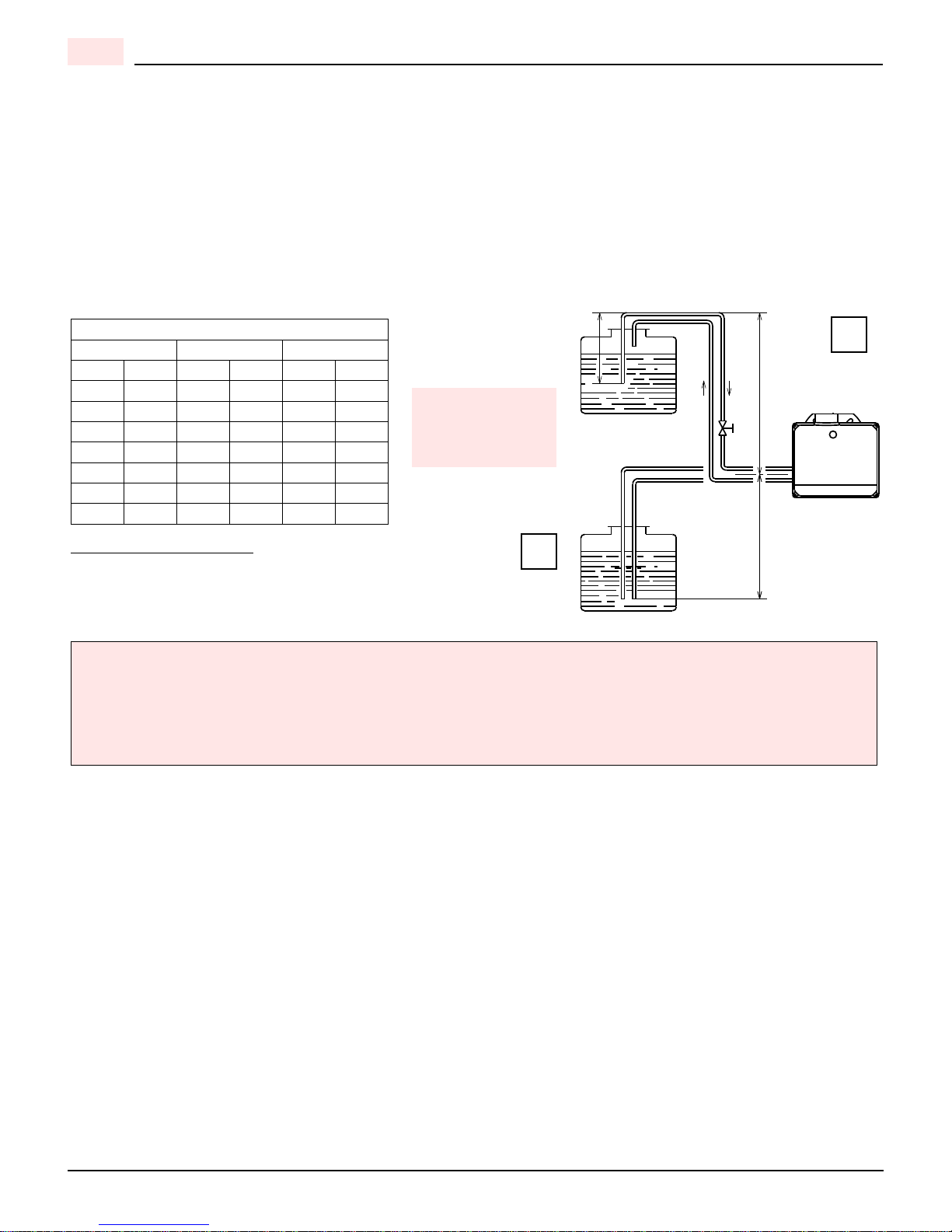

TWO LINE (LIFT SYSTEM) (Accessory package required)
If a two-line system is required, install the By-pass plug. The by-pass plug is installed in the return port of the pump.
A 2.5-mm hexagonal key is to be used to install the plug.
DO NOT use an inch size hexagonal key; damage to the by-pass plug may result.
A) Suction and return lines should be sized in accordance with local codes. The suction line should extend down
near the bottom of the oil tank. The return line should terminate near the top of the oil tank.
B) Suction and return lines should be sized in accordance with local codes and both should extend to the same depth
inside the fuel tank. Be sure there are no air leaks or blockages in the piping system. Any obstructions in the return
line will cause failure of the pump shaft seal. Do not exceed the pipe lengths indicated in the table.
Install the required fittings (NPT THREAD) in the SUCTION LINE and RETURN LINE CONNECTION FITTINGS.
Attach the required tubing to these fittings.
To install the by-pass plug:
1) Remove the return plug (7).
2) Install the by-pass plug (4) using the 2.5 mm hexagonal key.
3) Connect the return line connection pipe to the return port (7)
of the pump and tighten securely.
2 LINE (LIFT) SYSTEM-PIPE LENGTHS
H 3/8” OD 1/2” OD
FT M FT M FT M
0.0 0.0 115 35 330 100
1.5 0.5 100 30 330 100
3.0 1.0 80 25 330 100
5.0 1.5 65 20 295 90
6.5 2.0 50 15 230 70
9.5 3.0 25 8 100 30
113.52066520
WARNING:
- Pipe dope or Teflon tapes are NOT to be used on any direct oil connection to the fuel pump.
- The height ‘P’ in Pipe Length Charts should not exceed 13 feet (4 m).
- The vacuum should not exceed 11.44 inches of mercury.
IMPORTANT: An external, appropriately listed and certified oil filter must be placed in the fuel line between
the fuel tank and the burner pump.
D7524
HP
H
A
B
ATTENTION:
do not exceed
pipe lengths
indicated in chart!

20015900 10
GB

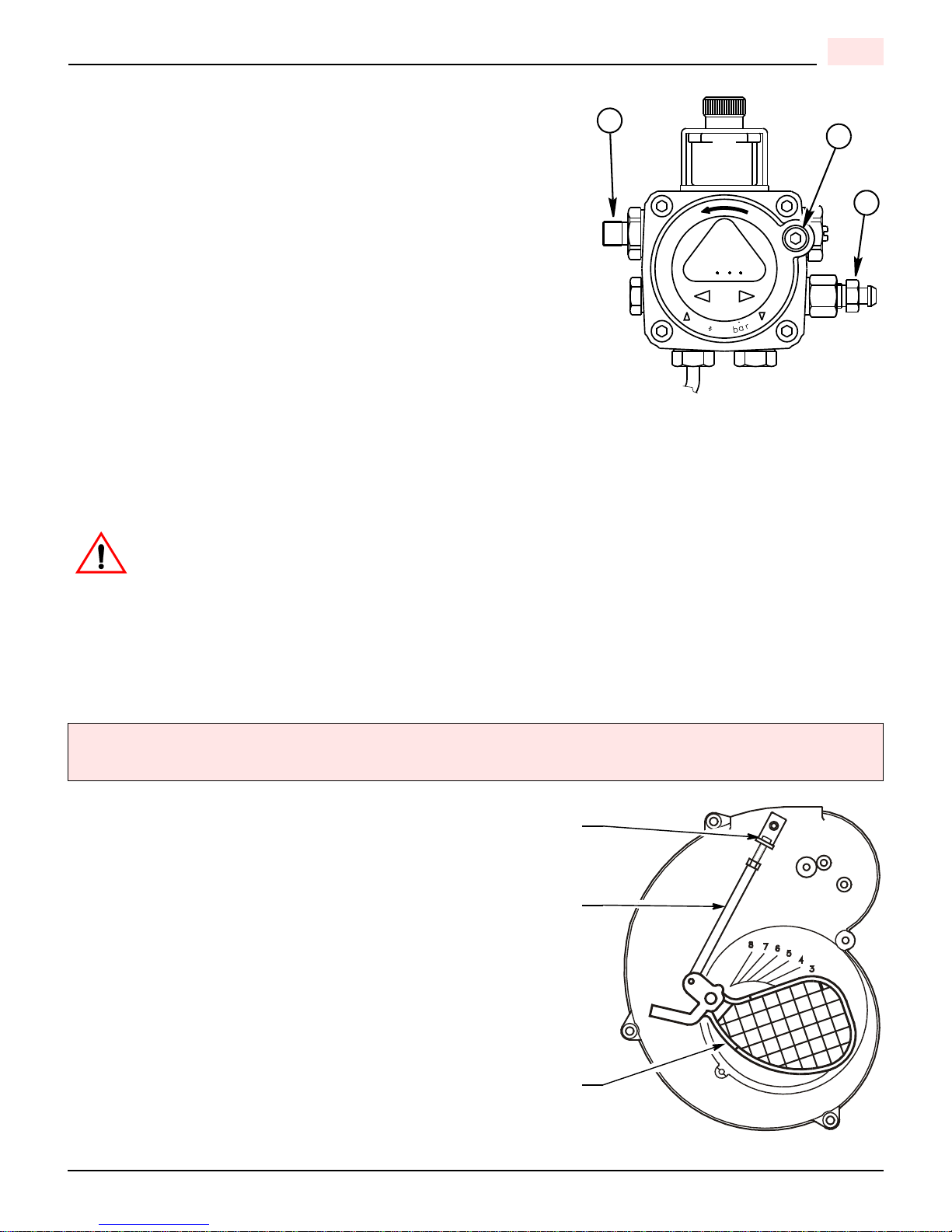

PUMP PURGE
NOTE: To protect the pump gears, it is advisable to lubricate the
pump prior to purging a lift system.
Apply oil through the VACUUM PORT (C).
A) SINGLE LINE (GRAVITY FEED SYSTEM)
I. Loosen the bleeder valve (A) until oil flows out.
Tighten the bleeder valve securely and startburner.
II. When bleeding the pump by pressure:
1) Loosen the bleeder valve (A).
2) Disconnect nozzle oil supply line at the pump nozzleport (B).
3) Attach a flexible plastic tube to the pump nozzle, port directing
the oil flow into a bucket.
4) Loosen the screw(s) securing the air tube cover, allowing it to
be removed freely.
5) Holding the air tube cover in its proper location start the burner.
6) When the solenoid valve is engaged approximately 10 seconds
after starting, remove the air tube cover and shine a light
source on the photocell, allowing it to see false light.
7) Run the burner until the fuel pump has been purged of air, then tighten the bleeder valve and immediately
shut down the burner.
8) Reinstall the air tube cover and nozzle line.
9) The burner can now be started normally.
Omitting steps 2 and 3 will result in a collection of unburned oil in the combustion chamber creating a
hazardous situation upon burner startup.
B) TWO LINE (LIFT SYSTEM)
Turn off the main power source to the burner and remove the air tube cover. Shines a light source on the photocell
(now visible where the air tube cover was removed), return power to the burner and activate the burner. With the
light source in place, the burner will operate in prepurge only. Once the burner is purged, turn off the power source
and replace the air tube cover. Return power to the burner. The burner is now ready to operate.
SETTING THE AIR ADJUSTMENT PLATE
A) The initial air damper setting is made by turning screw (2) until
the top edge of the air damper (3) is aligned with the number ac-
cording to the burner setup chart.
B) Further adjustments can be made with the burner cover in place
by removing plastic plug on the top right hand side of the cover.
Turn the screw counter clockwise (+ indicator) to increase com-
bustion air, turn the screw clockwise (- indicator) to decrease
combustion air.
C) The final position of the air damper will vary on each installation.
Use instruments to establish the proper settings for maximum
CO2and a smoke reading of zero.
NOTE:
Variations in flue gas, smoke, CO2, and temperature readings may
be experienced when the burner cover is put in place.
Therefore, the burner cover must be in place when making the final
combustion instrument readings, to ensure proper test results.
ATTENTION: It is important that the fuel line be completely sealed and free from air leaks or any internal blockages.
WARNING! WHEN THE BYPASS PLUG IS INSTALLED, A TWO-PIPE SYSTEM MUST BE USED OR FAILURE OF
THE PUMP SHAFT WILL OCCUR.
D7527
C
A
B
WARNING
2
1
3
D5141

20015900
11
GB
COMBUSTION CHAMBER PRESSURE CHART
The firing rate was obtained considering a room temperature of 68 °F and an atmospheric pressure of
394 “wc (approx. 0 ft above sea level), with the combustion head adjusted.
BURNER START-UP CYCLE
BURNER OUTPUT VS CHAMBER PRESSURE CHART
D7525 (GPH) BURNER OUTPUT
CHAMBER PRESSURE
(INCHES WC)
0.0 0.50 0.75 1.00 1.25 1.50 1.75
0.2
0.3
0.4
0.5
0.1
WARNING
Normal Lock-out, due to light-failure
Thermostat
Motor
Ignition transformer
Valve
Flame
Lock-out lamp
~ 12sec. ~ 12sec. ~ 5sec.
D7526
2min.

20015900 12
GB
BURNER ADJUSTMENT TABLES
IMPORTANT
The following charts indicate initial setting with combustion air at 20ºC (68ºF).
MODEL BF3 BURNER SETUP CHART
MODEL BF5 BURNER SETUP CHART
- Actual input values given in above table are based on zero (0) chamber pressure, fired in Riello Canada Inc. Test
Lab DIN (small) test boiler (chamber length 17”, chamber diameter of 11”). Input values calculated using pump pres-
sures listed above in the set-up table. Some variations will occur depending on application. This above set-up table
is used to assist in the initial set-up only. Proper test equipment must be used to set the burner up properly.
- Please refer to appliance literature or recommendation regarding nozzle size, spray pattern and spray angle. If no
suggestions or literature are given, using above set-up table for desired input value set burner to table setting until
burner is firing then make suitable adjustments to burner to achieve desirable combustion results.
MODEL BF3 & BF 5 NOZZLES
Any nozzle manufacturer, size, and angle spray pattern. The appliance in which the burner is installed into determines
BF burner nozzle selection.
COMBUSTION CHAMBER
Follow the instructions furnished by the boiler/furnace manufacturer. Size retrofit application according to the
appropriate installation codes (e.g. CSA B139 or NFPA #31).
NON-RETROFIT APPLICATIONS
If this BF burner is packaged with the appliance, itis considered an OEM package; pleasereadallinstructionstherelated
to the burner, this information will supercede our installation manual.
1 2 3 4 5
ACTUAL FIRING
RATE 5% ± NOZZLE SIZE PUMP PRESSURE TURBOLATOR
SETTING AIR DAMPER SETTING
US GPH GPH PSI BAR
0.50 0.40 X 60/80° 160 11 0.0 3.2
0.60 0.50 X 60/80° 145 10 1.0 3.8
0.75 0.60 X 60/80° 160 11 1.5 4.4
0.80 0.65 X 60/80° 150 10 2.0 5.0
0.95 0.75 X 60/80° 160 11 3.0 7.0
1 2 3 4 5
ACTUAL FIRING
RATE 5% ± NOZZLE SIZE PUMP PRESSURE TURBOLATOR
SETTING AIR DAMPER SETTING
US GPH GPH PSI BAR
0.75 0.65 X 60/80° 145 10 0.0 3.3
0.85 0.75 X 60/80° 145 10 0.5 3.5
1.00 0.85 X 60/80° 145 10 1.0 4.0
1.10 1.00 X 60/80° 145 10 1.5 4.5
1.25 1.10 X 60/80° 145 10 2.0 5.0
1.50 1.25 X 60/80° 145 10 3.0 6.0
1.65 1.35 X 60/80° 145 10 4.0 7.0

20015900
13
GB
A TYPICAL LAYOUT FOR BF BURNER INTAKE AIR
A) Use an approved air intake kit.
B) Always keep intake air run to the minimum.
C) Maximum intake air run of 4 (inch) diameter, flexible or rigid type of venting = 100í
D) Reduce intake air length by 10’ for every 90° elbow used. 5’ for every 45° elbow used.
E) It is suggested that air intake venting be insulated with R7 (min) foil lined insulation a minimum of 10’ from air intake
source. (Prevent condensation or corrosion of intake air venting)
F) Used approved type of intake air vacuum breaker and to be installed in the same room and the burner, for the event
ofintakeair sourcebeing blocked, this deviceshouldbetestedtoprovethatintheeventofintakeairsource is blocked
that the vacuum breaker balancer is set correctly and can provide sufficient air for combustion for the burner. If the
room that the burner is installed into cannot provide enough air or air quality is a concern, an additional air inlet source
will have to be providing to this room.
THIS INTAKE AIR LAYOUT FOR CHIMNEY APPLICATIONS ONLY

20015900 14
GB
TROUBLE SHOOTING CHART
• Faulty CAD cell or seeing light before trial for ignition.
• Coil wire on terminals #1 & 2 or #1 & 8 reversed.
• Open coil circuit, terminals #2 & 8.
• Open coil circuit, terminal #1 (530 SE only).
• Open coil circuit, terminal #1 (483 SE only) will cause burner
to cycle normally, but burner will lockout.
• Defective 42-52 Vac supply - Terminals #3 & 7.
• Defective control box / Replace.
Burner Continues to Purge and Lightoff with
Immediate Flame Dropout. (530 SE Only)
• Metal yoke for coil missing.
• Coil wire #2 & 8 reversed.
• Low resistance of coil holding circuit, terminals #1 & 2,
(1350 ohms ± 10%).
Burner Locks Out After Trial For Ignition
• Low resistance or no contact on starting circuit of coil,
terminals #2 & 8. (1.3 ohm ± 10%)
• No oil supply - tank empty, valve closed, dirty filter,
damaged supply lines.
• Defective or dirty oil valve stem, nozzle or pump strainer.
• Broken pump drive key, defective pump, no oil pressure.
• Ignition electrodes shorted, cracked porcelain.
• Burner motor not up to speed.
• Excessive draft over fire.
• Defective control box / Replace.
Burner Fires-Cycles On & Off
In Quick Succession - (483SE Only)
• Metal yoke for coil missing.
• Low resistance or short in holding circuit of coil,
terminal #1 & 2.
• Coil wires on terminals #2 & 8 reversed.
Thermostat is calling for heat
Burner is not running
Reset Control Box
Burner Does Not StartBurner Starts
Test for 120Vac Supply at sub-base between L(P) & N
or terminals #3 & 5
120 Vac No Voltage
• Check system fuse, ensure service switch is ON.
• Verify all control limits are closed.
• If using switching relay - verify 24Vac at T-T.
Turn off power supply - Remove control box and jumper
terminals #5 & 6. Restore power.
Motor Runs Motor Does Not Run
• Verify electrical connections.
• Check for seized pump, motor, or fan against housing.
• Defective motor capacitor.
• Thermal overload (Hot motor).
• Verify reduced voltage (42-52 Vac) between terminals #3 & 7.
• Ensure good contact between control box spades
and sub-base terminals.
• Defective control box / Replace.
Burner stays in Pre-purge

GB
20015900 15
EXPLODED SPARE PARTS LIST

GB
20015900 16
SPARE PARTS LIST
No. CODE DESCRIPTION No. CODE DESCRIPTION
BF3 BF5 BF3 BF5
13020270 •BURNER BACK COVER
13020271 •BURNER BACK COVER
23007077 ••CRUSHABLE METAL WASHER 3/8” ID
33007568 ••BLEEDER
43007028 ••O-RING - PUMP PRESSURE REGULATOR
53007202 ••REGULATOR SCREW
63007162 C7010002 ••O-RING - PUMP COVER
73005719 ••PUMP SCREEN
83006925 ••VALVE STEM
93007203 ••PLATE - VALVE STEM RETAINER
10 3007029 ••O-RING - VALVE STEM UPPER
11 3007156 ••O-RING - VALVE STEM LOWER
12 3007581 ••NOZZLE OUTLET FITTING
13 3007087 ••CRUSHABLE METAL WASHER 5/8” ID
14 3006553 ••COIL U-BRACKET AND RETAINER NUT
15 3002279 ••COIL
16 3007802 ••PUMP
17 3000443 ••PUMP DRIVE KEY
18 3005843 ••MOTOR
19 3007315 •AIR TUBE COVER PLATE
19 3007316 •AIR TUBE COVER PLATE
20 3002278 ••PRIMARY CONTROL SUB BASE
21 3001157 C7001029 ••PRIMARY CONTROL 530SE/C
21 20010004 ••PRIMARY CONTROL 530SE/C 24 V
22 3002280 ••PHOTOCELL
23 3008078 •BURNER FRONT PLATE
23 3008079 •BURNER FRONT PLATE
24 3000932 ••MOVEABLE FLANGE
25 3020248 C6880000 ••MOUNTING GASKET
26 3008020 •OIL SUPPLY TUBE & ADAPTER FITTING
26 3008024 •OIL SUPPLY TUBE & ADAPTER FITTING
27 3008825 ••DRIP
28 3007627 ••PUMP-COVER OPENING-BURNER RESET
29 3007630 ••GASKET - BURNER COVER
30 3007728 •MANUAL AIR DAMPER REGULATOR
30 3000681 •MANUAL AIR DAMPER REGULATOR
31 3008021 ••AIR DAMPER
32 3007706 •PLUG
33 20087023 ••CAPACITOR
34 3005708 ••FAN
OPTIONAL
35 C7001084 ••AL 1009 POST PURGE DEVICE KIT
C5283000 ••ELECTRICAL FITTING

GB
20015900 17
SPARE PARTS LIST
No. CODE DESCRIPTION No. CODE DESCRIPTION
40 3948876 •VERY SHORT 3” COMBUSTION HEAD
40 3948976 •VERY SHORT 3” COMBUSTION HEAD
41 3006968 •TURBULATOR DISC
41 3006977 •TURBULATOR DISC
42 3006966 ••ELECTRODE SUPPORT
43 3006965 ••NOZZLE ADAPTER
44 3008627 •NOZZLE OIL TUBE
44 3008629 •NOZZLE OIL TUBE
45 3008633 •REGULATOR ASSEMBLY
45 3008634 •REGULATOR ASSEMBLY
46 3008630 •ELECTRODE ASSEMBLY
46 3008631 •ELECTRODE ASSEMBLY
47 3005869 ••ELECTRODE PORCELAIN
48 3008623 •AIR TUBE
48 3008626 •AIR TUBE
40 3948873 •SHORT 6” COMBUSTION HEAD
40 3948973 •SHORT 6” COMBUSTION HEAD
41 3006968 •TURBULATOR DISC
41 3006977 •TURBULATOR DISC
42 3006966 ••ELECTRODE SUPPORT
43 3006965 ••NOZZLE ADAPTER
44 3006969 •NOZZLE OIL TUBE
44 3006973 •NOZZLE OIL TUBE
45 3006324 •REGULATOR ASSEMBLY
45 3006323 •REGULATOR ASSEMBLY
46 3006330 •ELECTRODE ASSEMBLY
46 3006329 •ELECTRODE ASSEMBLY
47 3005869 ••ELECTRODE PORCELAIN
48 3007592 •AIR TUBE
48 3007594 •AIR TUBE
40 3948877 •8 7/8” COMBUSTION HEAD
40 3948975 •8 7/8” COMBUSTION HEAD
41 3006968 •TURBULATOR DISC
41 3006977 •TURBULATOR DISC
42 3006966 ••ELECTRODE SUPPORT
43 3006965 ••NOZZLE ADAPTER
44 3008790 •NOZZLE OIL TUBE
44 3008628 •NOZZLE OIL TUBE
45 3008846 •REGULATOR ASSEMBLY
45 3008635 •REGULATOR ASSEMBLY
46 3008789 •ELECTRODE ASSEMBLY
46 3008632 •ELECTRODE ASSEMBLY
47 3005869 ••ELECTRODE PORCELAIN
48 3008788 •AIR TUBE
48 3008625 •AIR TUBE
40 3948874 •10” COMBUSTION HEAD
40 3948974 •10” COMBUSTION HEAD
41 3006968 •TURBULATOR DISC
41 3006977 •TURBULATOR DISC
42 3006966 ••ELECTRODE SUPPORT
43 3006965 ••NOZZLE ADAPTER
44 3006970 •NOZZLE OIL TUBE
44 3006974 •NOZZLE OIL TUBE
45 3005867 •REGULATOR ASSEMBLY
45 3005878 •REGULATOR ASSEMBLY
46 3005870 •ELECTRODE ASSEMBLY
46 3005880 •ELECTRODE ASSEMBLY
47 3005869 ••ELECTRODE PORCELAIN
48 3007593 •AIR TUBE
48 3007595 •AIR TUBE
BF3 BF5
BF3 BF5
