Riello G10 Quick start guide

20013656 (3) - 04/2011
Installation, use and maintenance instructions
安装 , 使用以及维护说明书
Light oil burner
轻油燃烧器
CODE - 编码 MODEL - 型号 TYPE - 类型
20013638 G10 464T1
GB
CN
One stage operation
一段火运行

20013656
GB
INFORMATION ABOUT THE INSTRUCTION MANUAL
INTRODUCTION
The instruction manual supplied with the burner:
- is an integral and essential part of the product and must not be sepa-
rated from it; it must therefore be kept carefully for any necessary
consultation and must accompany the burner even if it is transferred
to another owner or user, or to another system. If the manual is lost
or damaged, another copy must be requested from the Technical
Assistance Service of the area;
- is designed for use by qualified personnel;
- offers important indications and instructions relating to the installation
safety, start-up, use and maintenance of the burner.
DELIVERY OF THE SYSTEM AND THE INSTRUCTION MAN-
UAL
When the system is delivered, it is important that:
- The instruction manual is supplied to the user by the system manu-
facturer, with the recommendation to keep it in the room where the
heat generator is to be installed.
- The instruction manual shows:
- the serial number of the burner;
- the address and telephone number of the nearest Assistance
Centre;
- The system supplier carefully informs the user about:
- the use of the system,
- any further tests that may be necessary before the system is
started up,
- maintenance and the need to have the system checked at least
once a year by the manufacturer or another specialised techni-
cian.
To ensure a periodic check, recommends the drawing up
of a Maintenance Contract.
..................................................................................
..................................................................................
..................................................................................
..................................................................................

1 20013656
GB

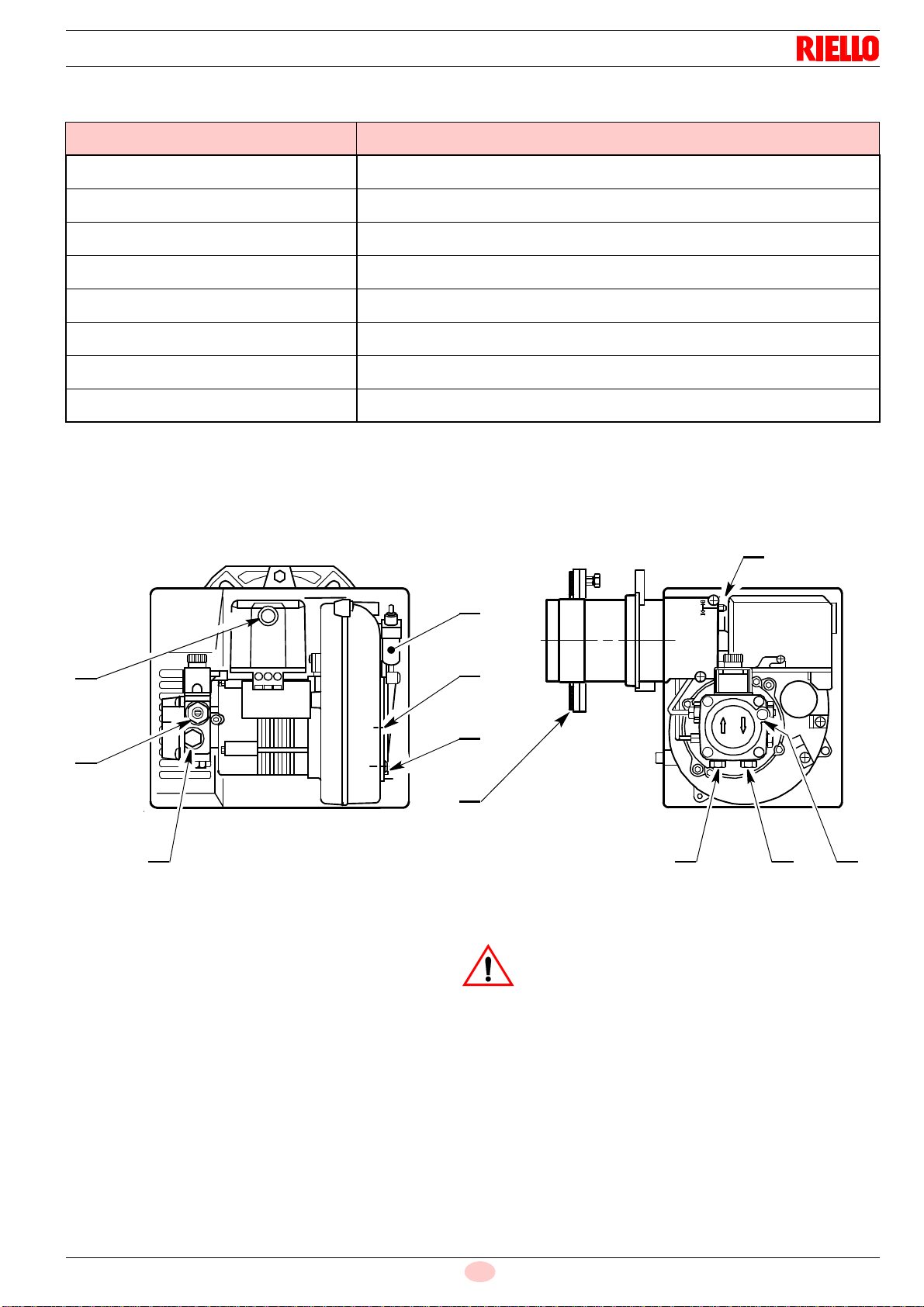

TECHNICAL DATA
OFor use on hot air generator the burner must be fitted with control box type 479SE or 539SE.
OBurner with CE marking in conformity with EEC directives: EMC 2004/108/EC, Low Voltage 2006/95/EC,
Machines 2006/42/EC.
OThe burner meets protection level of IP 40, EN 60529.
TYPE 464T1
Thermal power – output 54 – 120 kW – 4.5 – 10 kg/h
Fuel Light oil, max. viscosity at 20 °C: 6 mm2/s
Electrical supply Single phase, 230V ±10% ~50Hz
Motor Run current 0.8A – 2850 rpm – 298 rad/s
Capacitor 4 F
Ignition transformer Secondary 8 kV – 16 mA
Pump Pressure 7 – 15 bar
Absorbed electrical power 0.170 kW
1– Return line
2– Suction line
3– Gauge connection
4– Pump pressure regulator
5– Vacuum gauge connection
6– Screws fixing air damper
7– Hydraulic jack with air damper
8– Lock-out lamp and reset button
9– Flange with insulating gasket
10 – Combustion head adjustment screw
HYDRAULIC JACK OPERATION 7)(Fig. 1)
It is strongly recommended a periodic check of the
pump pressure operation (annually or better every
six months, if the burner operation is continuous).
If the value is lower than 1 bar, compared to that one
of the initial setting, please check the cleaning of the
pump and line filters.
In case the pressure setting was not restorable,
please replace the pump, in order to guarantee that
the pump pressure during the pre-purge time is at
least 3.7 bar.
DANGER
5
D8067
Fig. 1
123
4
86
7
9
10
6

20013656 2
GB
EQUIPMENT
WORKING FIELD (as EN 267)
OVERALL DIMENSIONS
Quantity Description
2
1
4
1
1
Flexible oil pipes with nipples
Flange with insulating gasket
Screws and nuts for flange
to be fixed to boiler
Maintenance assembly
Screw and nuts for flange
0.8
0
0.4
4 5 6 Fuel output - kg/h
50 60 120 Thermal power - kW
D5669 70 80 90 100 110
0.2
0.6
Pressure in the combustion
chamber – mbar
78910
Flange Burner
305 108 261
140
=
40
45°
262
11
204
D5670
=
189
83 83
170
45°
ø105

3 20013656
GB
INSTALLATION
BOILER FIXING
Put on the flange (1) the screw and two nuts, (see fig. 2).
Widen, if necessary, the insulating gasket holes (5), (see fig. 3).
Fix the flange (1) to the boiler door (4) using screws (2) and (if necessary) the nuts (3) interposing the
insulating gasket (5), (see fig. 4).
MAINTENANCE POSITION
Access to the combustion head, diffuser disc / electrodes unit and nozzle, (see fig. 5).
Remove the burner out of the boiler, after loosing the fixing nut to the flange.
Hook the burner to the flange (1), by removing the combustion head (6) after loosing the fixing screws (7).
Remove the diffuser disc-holder assembly (9) from the nozzle-holder (8) after loosing its fixing screw.
Screw the nozzle (10).
Fig. 6
Verify that the installed burner is lightly leaned towards the
button.
(See figure 6).
The burner is designed to allow entry of the flexible oil-lines
on either side of the burner.
D5572
D5012
Fig. 2
1
Fig. 3
5
E9022
D8058
1
Fig. 4
43
2
2
5
110
9
8
7
6
Fig. 5
D8056 D8057

20013656 4
GB
HYDRAULIC SYSTEMS
Warning: before starting the burner make sure that the return pipe-line is not clogged: any obstruction
would cause the pump seals to break.
The pump vacuum should not exceed a
maximum of 0.4 bar (30 cm Hg).
Beyond this limit gas is released from
the oil.
Oil lines must be completely airtight.
The return line should terminate in
the oil tank at the same level as the
suction line; in this case a non-return
valve is not required.
When the return line arrives over the
fuel level, a non-return valve must be
used.
This solution however is less safe than
previous one, due to the possibility of
leakage of the valve.
PRIMING THE PUMP
Start the burner and wait for the priming.
Should lock-out occur prior to the arrival
of the fuel, await at least 20 seconds
before repeating the operation.
A filter must be installed on the suction fuel line.
H
meters
Lmeters
I. D.
8 mm I.D. 10 mm
0.5
1
1.5
2
10
20
40
60
20
40
80
100
WARNING
The pump is supplied for use with a two pipe system.
For use on a one pipe system, it is necessary to remove the by-pass
screw (A), (see figure).
A
H
meters
Lmeters
I. D.
8 mm I.D. 10 mm
0
0.5
1
1.5
2
3
3.5
35
30
25
20
15
8
6
100
100
100
90
70
30
20
H max. 4 m
H
H
max. 4 m
min. 0.1 m
D5219
D5220
D5199
H=Difference of level.
L=Max.length of the
suction line.
I.D.=Internal diameter of the
oil pipes.
PRIMING THE PUMP
Loosen the plug of the vacuum gauge (5, fig. 1) and
wait until the fuel flows out.
SYSTEM NOT PERMITTED IN GERMANY

5 20013656
GB
ELECTRICAL WIRING
Brown
White (50V)
Blue
Motor
Capacitor
Regulating thermostat
Neutral
Switch with fuse
6A max.
M
~
Grey
230V ~ 50Hz
LN
Limit thermostat
with manual resetting
Remote lock-out lamp
(230V - 0.5A max.), if required
1NT1T2S3B4
12
Brown
Valve
T
T
D5334
Black
TERMINAL
CONTROL-BOX
7 pin plug
7 pole socket
3456789
NL
Yellow/Green
Blue
Blue
Brown
Black
Hour counter
h
Black
Do not exchange the neutral with the phase
WARNING
NOTES:
– Wires of 1 mm2section.
– The electrical wiring carried out by the
installer must be in compliance with the
rules in force in the Country.
TESTING
Check the shut-down of the burner by opening
the thermostats.
S7183
CONTROL BOX
- To remove the control-box from the burner,
loosen screw (A) (see figure) and pull towards
the arrow.
- The photoresistance is fitted directly into the con-
trol-box (underneath the ignition-transformer) on a
plug-in support.
RUN OF THE ELECTRICAL CABLE
1- Grommet N- Neutral
2- Cable-clamp L- Phase
3- Terminal block - Burner-earth
- Lock-out lamp
ATTENTION
Do not connect burner’s grounding, to fail-
ure indicator terminal . This may result
the destroy of the control box.
CARRIED-OUT BY THE INSTALLER
CARRIED-OUT IN THE FACTORY
BLOCK OF
530SE*

20013656 6
GB
COMBUSTION ADJUSTMENT
In conformity with Efficiency Directive 92/42/EEC the application of the burner on the boiler, adjustment
and testing must be carried out observing the instruction manual of the boiler, including verification of
the CO and CO2concentration in the flue gases, their temperatures and the average temperature of the
water in the boiler.
To suit the required appliance output, fit the nozzle then adjust the pump pressure, the setting of the
combustion head and the air damper opening in accordance with the following schedule.
The values shown in the table are measured on a CEN boiler (as per EN 267).
They refer to 12.5% CO2at sea level and with light oil and room temperature of 20 °C.
RECOMMENDED NOZZLES: Monarch type R
Delavan type W - B
Steinen type S - Q
Danfoss type S
PUMP PRESSURE: 12 bar : The pump leaves the factory set at this value.
14 bar : Improves flame retention; it is therefore suitable for ignitions at
low temperatures.
COMBUSTION HEAD SETTING:
This is done when fitting the nozzle, with the
blast tube removed. It depends on the output of
the burner and is carried out by rotating the reg-
ulating rod, till the terminal plane of the blast
tube is level with the set-point, as indicated in
the schedule.
In the sketch on the left, the combustion head is
set for an output of 1.50 GPH at 12 bar, while
the shutter is level with set-point 3, as required
by the above schedule.
Combustion head settings indicated in the
schedule are valid for most cases.
The setting of the fan output according to the installation should normally be done only through the air
damper. Should one subsequently want to retouch also the setting of the combustion head, with the
burner running, operate on the rod (1) with a 6 mm spanner (2) as follows (see fig. 7, page 7).
Nozzle Pump pressure Burner output Comb. head
adjustment Air damper adjustment
GPH Angle bar kg/h ± 4% Set-point Set-point
1.10 60° 12 4.4 2 3
1.25 60° 12 5.0 2.5 3.4
1.50 60° 12 6.0 3 3.8
1.75 60° 12 7.0 4 4
2.00 60° 12 8.0 5 5
2.25 60° 12 9.0 6 6
2.50 60° 12 10.0 6 7
1
2
3
4
1
For 2.00 - 2.25 GPH nozzles it is
advisable to use, if possible,
full cones.
2
Blast tube
Regulating rod
Shutter
Terminal plane of the blast tube
D5398
2
135
3

7 20013656
GB
TURN TO THE RIGHT: (sign +)
In order to increase the volume of air entering the com-
bustion chamber and thus diminishing its pressure.
There is a reduction of CO2and the adhesion of the
flame to the air diffuser disc improves.
(Setting advisable for ignitions at low temperatures).
TURN TO THE LEFT: (sign –)
In order to reduce the volume of air entering the com-
bustion chamber and thus increasing its pressure. The
CO2improves and the adhesion of the flame to the dif-
fuser tends to reduce.
(This setting is not advisable for ignitions at low temper-
atures).
In any case do not bring the combustion head setting
more than one point away from that indicated in the
schedule. One set-point corresponds to 3 turns of the
rod; a hole (3) at its end facilitates counting the number
of turns.
AIR DAMPER ADJUSTMENT: (fig. 8)
The mobile air damper (A) operated by the jack (B)
assures the complete opening of the air intake.
The regulation of the air-rate is made by adjusting the
fixed air damper (C), after loosing the screws (D). When
the optimal regulation is reached, screw tight the
screws (D) to assure a free movement of the mobile air
damper (A).
The settings indicated in the schedule refer to the burner
with its metal cover fitted and the combustion chamber
with “zero” depression. These regulations are purely
indicative. Each installation however, has its own unpre-
dictable working conditions: actual nozzle output; posi-
tive or negative pressure in the combustion-chamber,
the need of excess air, etc.
All these conditions may require a different air-damper
setting.
It is important to take account of the fact that the air
output of the fan differs according to whether the
burner has its metal cover fitted or not.
Therefore we recommended to proceed as follows:
– adjust the air damper as indicated in the schedule at
page 6;
– mount the cover, simply by means of the upper
screw;
– check smoke number;
– should it become necessary to modify the air output,
remove the cover by loosening the screw, adjust the
air damper, remount the cover and finally recheck the
smoke number.
NOTE: When the burner works at a firing rate higher
than 9 kg/h remove the panel fitted inside the
metal cover. (See figure 9).
1
2 3
6
D8068
D
C
D5555
D
A B
PANEL
D5287
Fig. 7
Fig. 8
Fig. 9
4

20013656 8
GB
ELECTRODES SETTING (See fig. 10)
BURNER START-UP CYCLE
ADJUSTMENTS, TO AVOID FLAME - DETACHMENT, AT BURNER - IGNITION
This inconvenience can occur, when the temperature of the gas-oil decreases below + 5 °C.
1) CORRECT POSITIONING OF THE ELECTRODES
See figure 10.
2) PUMP - SETTING
The pump is factory set, at a pressure of 12 bar.
When the temperature of the light oil decreases below + 5 °C, increase the pressure to 14 bar.
3) COMBUSTION-HEAD SETTING
Regulate the combustion-head one set-point further ahead than indicated in the instructions.
Example: the instructions require to set the combustion-head on set-point 3.
Instead, the setting is made on set-point 4.
4) FAN - AIR DAMPER ADJUSTMENT
Adjust the damper, reducing the excess air until the Bacharach number is not near 1
(i.e. a combustion with the lowest possible excess-air).
Attention:
Before assembling or remo-
ving the nozzle, loosen the
screw (A) and move the elec-
trodes ahead.
4 ± 0.3 mm
D5288
A4.5
± 0.5 mm
MOVE THE ELECTRODE
HOLDER BACKWARDS TO
THE END
Fig. 10
Normal Lock-out, due to failure to light
Thermostat
Motor
Ignition transformer
Valve
Flame
Lock-out lamp
~12s D5229 ~12s ~5s

20013656
CN
说明书的相关信息
引言
说明书随燃烧器一起提供：
- 它是产品不可或缺的组成部分，不得将其与产品分离；因此必须小心
保存以便查阅，如果将燃烧器转给另一个用户或转移至另一个系统，
则说明书必须跟随燃烧器一起转移。如果说明书损坏或丢失，则必须
从您就近的 Technical Assistance Centre （技术支持中心）索取说
明书的复本 ；
- 说明书只能由有资格的人员使用；
- 说明书提供了有关燃烧器安装、启动、使用和维护的重要指示和安全
警告。
系统和说明书的交付
一旦交付系统：
- 系统制造商也必须将说明书交付给用户，并建议其将说明书保存在热
发生器的安装区域附近。
- 说明书上显示：
- 燃烧器的序列号；
- 最近 Assistance Centre （支持中心）的地址和电话号码；
- 系统制造商必须告知用户有关以下内容的准确信息：
- 系统的使用；
- 启动系统前需要进行的测试；
- 必需的维护和检查 （每年必须由制造商代表或别的专业技术人员至少
检查系统一次）。
要保证定期检查， 建议遵照 Maintenance Contract （维护合同）
的规定。
..............................................
..............................................
..............................................
..............................................

1 20013656
CN
技术参数
O如应用于热风炉燃烧器必须装配 479SE 或539SE 控制盒 .
O带CE 标志的燃烧器符合下列标准 : EMC 2004/108/EC, 低电压 2006/95/EC, 机械 2006/42/EC.
O燃烧器电气保护等级为 IP 40, EN 60529.
类型 464T1
燃烧器出力 54 – 120 kW – 4.5 – 10 kg/h
燃料 轻油 , 在20 °C 时最大粘度6 mm2/s
电源 单相 ,230V±10% ~50Hz
马达 运行电流 0.8A – 2850 rpm – 298 rad/s
马达启动电容 4 F
点火变压器 次级 8 kV – 16 mA
油泵 油压 7 – 15 bar
电功耗 0.170 kW
1–回油管
2–供油管
3–压力表接口
4–油泵压力调节器
5–真空压力表接口
6–风门固定螺钉
7–风门挡板液压传动装置
8–带锁定指示灯的复位按钮
9–带绝热垫的法兰
10 –燃烧头调节螺钉
5
D8067
图. 1
123
4
86
7
9
10
6
液压千斤顶运作方式 7)( 图 1)
强烈建议周期性地检查泵压力是否正常运作
（每年一次，或者在燃烧器不断运行的情况下，
建议检查的时间为六个月一次）。
如果压力值比初始设定值小 1 巴， 检查泵和线
路中的过滤器是否干净。
如果压力无法复位， 请更换泵以便保证预吹扫
过程中，压力至少为 3.7 巴。
危险

20013656 2
CN
燃烧器随机附件
工作范围 (按照 EN 267)
外观尺寸
数量 描述
2
1
4
1
1
带变径头的油软管
带绝热垫的法兰
将法兰安装到锅炉上的螺栓和螺母
肼米胞吿
法兰用螺栓和螺母
0.8
0
0.4
456 轻油流量 - kg/h
50 60 120 燃烧器出力 - kW
D5669 70 80 90 100 110
0.2
0.6
燃烧室压力 – mbar
78910
法兰 燃烧器
305 108 261
140
=
40
45°
262
11
204
D5670
=
189
83 83
170
45°
ø105

3 20013656
CN
锅炉固定
鋅t将螺钉和两个螺母置于法兰 (1) 上， (参见图 2).
鋅t必要时，扩大隔热衬垫孔 (5)，(参见图 3).
鋅t用螺钉 (2) 和(必要时 )螺母 (3) 将法兰 (1) 固定至锅炉门 (4) 插入隔热衬垫 (5)，(参见图 4).
维修工作
接近燃烧头、扩散器压板 /电极单元和喷嘴， (参见图 5).
鋅t松开法兰的固定螺母后，从锅炉中拆下燃烧器 .
鋅t松开固定螺钉 (7) 后，通过拆下燃烧头 (6) 将燃烧器钩在法兰 (1) 上.
鋅t在松开扩散器阀座压板组件 (9) 的固定螺钉后，将其从喷嘴夹持器 (8) 上拆下 .
鋅t拧上喷嘴 (10).
确保燃烧器如图所示，稍微向上倾斜 .
(参见图 6).
燃烧器允许油软管从任何一边进入 .
D8058
1
1
E9022
3
2
2
D5012
5
图.2
图.3
图.4 4
5
D8057
6
1
9
D8056
图.5
7
10 8
图. 6
D5572

20013656 4
CN
油路系统
警告 :启动燃烧器之前，确保回油管无堵塞 . 任何堵塞会使泵的密封损坏 .
油泵进油真空度不能超过 0.4 bar (30 cm
Hg).
大于这一值，气体可能从油中分离出来 .
油管一定要完全密封 . 回油管应回到油箱中
与入油管相同的水平高度; 在这种情况下，不
需止回阀 .
如果回油管回到比燃料表面高的位置，必须
装一个止回阀 .
这种方法不如前一种方法，因为阀门有可能
漏油 .
首次启动油泵
启动燃烧器直到油泵充油 .
如在燃料到达油泵之前锁定 , 至少等 20 秒才
能再次启动 .
在供油管路上必须装滤网 .
H
（m）
L（m）
I. D.
8 mm I.D. 10 mm
0.5
1
1.5
2
10
20
40
60
20
40
80
100
警告
燃烧器油泵是按双管油系统设计运行的 .
如要单管运行，必须 拆下旁路螺钉 (A), ( 参见图 ).
A
D5199
H=高度差 .
L=供油管最大长度 .
I.D.=油管内径 .
油泵首次启动
松开真空压力表接口螺钉 (5, 图. 1) 直到有油流出为至 .
H
max. 4 m
min. 0.1 m
D5219
H max. 4 m
H
D5220
H
（m）
L（m）
I. D.
8 mm I.D. 10 mm
0
0.5
1
1.5
2
3
3.5
35
30
25
20
15
8
6
100
100
100
90
70
30
20

5 20013656
CN
电气连接
褐色
白色
(50V)
兰色
马达
电容
启动温控器
零线
主开关
T6A
M
~
灰色
230V ~ 50Hz
LN
安全温控器
远程锁定信号
(230V - 0.5A max.), 如需要
1NT1T2S3B4
12
褐色
阀门
T
T
D5334
黑色
控制盒 530SE*
7 针插头
7 孔插座
3456789
NL
黄绿色
Blue
兰色
褐色
黑色
计时器
h
黑色
不要将火线与零线接反
警告
注意
–最小电线截面积：1 mm2.
–电线连接必须符合所在国家的强制规定 .
测试
检查当温控器断开后，燃烧器是否停止运行 .
S7183
控制盒
松开螺钉 (A, 参见右图 ) 后，沿箭头方向拔出控制盒 .
光电管通过接线插头直接安装在控制器上 (
在点火变
压器底部
).
电气连接电线
1- 电缆护套 N- 零线
2- 线卡 L- 火线
3- 接线端子 - 燃烧器接地
- 锁定指示灯
注意
如燃烧器不接地 , 端子 就失去作用 . 这也
有可能损坏控制盒 .
安装者负责
厂家设置
的接线端子

20013656 6
CN
燃烧调整
根据燃烧器运用于锅炉上的效率标准 92/42/EEC，调试燃烧器必须参考锅炉的使用说明 , 这一工作包括调整烟气中
的CO 和CO2，烟温及锅炉的平均水温。
要达到所需要的出力，应按照下表选择合适的喷嘴，检测油泵压力，设定燃烧头和风门 .
表中的数值由 CEN 锅炉测得 ( 按照 EN 267).
参考条件：12.5% CO2，在零海拔，油温和室温为 20 °C.
推荐的喷嘴 :Monarch 类型 R
Delavan 类型 W - B
Steinen 类型 S - Q
Danfoss 类型 S
油泵压力 :12 bar : 出厂时泵压设定为 12 bar.
14 bar : 适合在低温时应用 ;提高火焰稳定性 .
燃烧头设定 :
在安装喷嘴时进行 , 同时燃烧筒已移开 . 根据燃
烧出力, 转动调节杆直到燃烧筒端面达到设定值
, 如图所示 .
如图所示 , 在泵压为 12 bar, 喷嘴出力为 1.50
GPH , 燃烧头刻度设置为 3.
以上所示的燃烧头设定适用于大多数情况 .
风量的设置可通过调节风门挡板来调节 . 如果在
燃烧头安装好后 , 并且运行时仍要调节燃烧头 ,
可用 6 mm 扳手 (2)转动调节杆 (1),如下所示 ( 图
.7, P. 7).
喷嘴 泵压 燃烧器出力 燃烧头设置 风门调节
GPH 角度 bar kg/h ± 4% 设定点 设定点
1.10 60° 12 4.4 2 3
1.25 60° 12 5.0 2.5 3.4
1.50 60° 12 6.0 3 3.8
1.75 60° 12 7.0 4 4
2.00 60° 12 8.0 5 5
2.25 60° 12 9.0 6 6
2.50 60° 12 10.0 6 7
1
2
3
4
1
如可能 ,对于 2.00 - 2.25 GPH 的
喷嘴 建议使用全空角 .
2
燃烧筒
调节杆
标尺
燃烧筒端面
D5398
2
135
3

7 20013656
CN
右旋 :(+的方向 ), 可增大进入燃烧室的风量相应降低其
风压 .
烟气中 CO2含量减少但火焰燃烧状况得到改善 .
(
温度较低点火时可采取此设置 ).
左旋 : (
–的方向 ), 可减少进入燃烧室的风量同时增加其
压力 .
烟气中 CO2含量增加但火焰贴盘现象减少 .(
温度较低点
火时不宜采取此设置
).
任何情况下燃烧头的设定值不要偏离上图所示的参考值
太多（不能大于 1 个刻度）. 调节杆转 3 圈相当于一个刻
度; 可通过端面上的孔 (3) 来方便的记录所转的圈数 .
风门挡板调整 :(图. 8)
可调风门挡板 (A) 通过液压装置 (B) 驱动 , 确保风门入
口完全打开 .
拧松螺钉 (D) 后调整固定风门 (C) 来调节风量 .
当达到合适的风门位置后, 拧紧螺钉(D) 以确保可调风门
(A) 的运行 .
上表所示的设置值是在燃烧器安装金属外壳和燃烧室背
压为零的情况下测得 .
每一次安装 , 都可能有不同状况 : 实际喷嘴出力 , 燃烧室
的正负压力 , 空气过剩量 ,等等 .
所有这些条件都需要不同的风门挡板设置 .
应考虑燃烧器是否装上金属外壳对进风量大小的影响 .
因此建议按以下步骤进行 :
– 按表中所示 (4, p 6)调节风门挡板 ;
– 安装外壳 , 仅固定上部螺钉 ;
– 检查烟气等级 ;
– 如必须调整风门挡板 , 拧下上部螺钉后移开外壳 ,调
节风门挡板 ,然后安装外壳并再次检查烟气等级 .
注意 :
如燃烧器出力大于 9kg/h，请移开金属外壳内壁的挡板 .
1
2 3
6
D8068
D
C
D5555
D
A B
挡板
D5287
图. 7
图. 8
图. 9
4

20013656 8
CN
点火电极的设定 (参见图 . 10)
燃烧器启动程序
在燃烧器点火时 , 为避免火焰不稳 , 可调整电极位置
当轻油油温低于 +5 °C, 有可能引起点火困难 .
1) 正确的点火电极位置
参见图 . 10.
2) 油泵压力 - 设定
油泵压力出厂时设定为 12 bar.
当轻油油温低于 +5 °C, 将油压增加到 14 bar.
3) 燃烧头的设定
可将燃烧头的设定点调整得比上表中所给设置值大一个设定点
例如 :说明书中所给设定值为 3, 此时可将设定点调整到 4.
4) 风门挡板调整
调整减震器，减少过量空气直至黑度指数不接近 1.
(即在最小过量空气的条件下燃烧 ).
注意 :
在更换或安装喷嘴前 , 拧松 螺
钉(A) 并将电极向前移动 .
4 ± 0.3 mm
D5288
A4.5
± 0.5 mm
向后移动电极座一直到末端
图. 10
正常点火 由于点火失败而锁定
启动温控器
马达
点火变压器
阀门
火焰
锁定信号
~12s D5229 ~12s ~5s
