Riello RC2-38 Quick start guide

2903445 (2) - 05/2017
Installation, use and maintenance instructions
Light oil burners
One stage operation
CODE MODEL TYPE
3571000 RC2-38 732T3
3572080 RC2.1-46 732T6
20062926 RC2.1-46 TL 732T6

3445
1
INDEX
1. BURNER DESCRIPTION
One stage light oil burner.
1.1 BURNER EQUIPMENT
Flexible oil pipes with nipples . . . . . . No. 2 Nut and pin . . . . . . . . . . . . . . . . . . . . . . . . . . .No. 1
Flange with insulating gasket. . . . . . . No. 1
1. BURNER DESCRIPTION. . . . . . . . . . . . . . 1
1.1 Burner equipment. . . . . . . . . . . . . . . . . . . . 1
2. TECHNICAL DATA . . . . . . . . . . . . . . . . . . 2
2.1 Technical data . . . . . . . . . . . . . . . . . . . . . . 2
2.2 Overall dimensions. . . . . . . . . . . . . . . . . . . 2
2.3 Firing rates . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . 3
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . . 4
3.1 Working position. . . . . . . . . . . . . . . . . . . . . 4
3.2 Boiler fixing. . . . . . . . . . . . . . . . . . . . . . . . . 5
3.3 Burner assembly. . . . . . . . . . . . . . . . . . . . . 5
3.4 Hydraulic systems. . . . . . . . . . . . . . . . . . . . 7

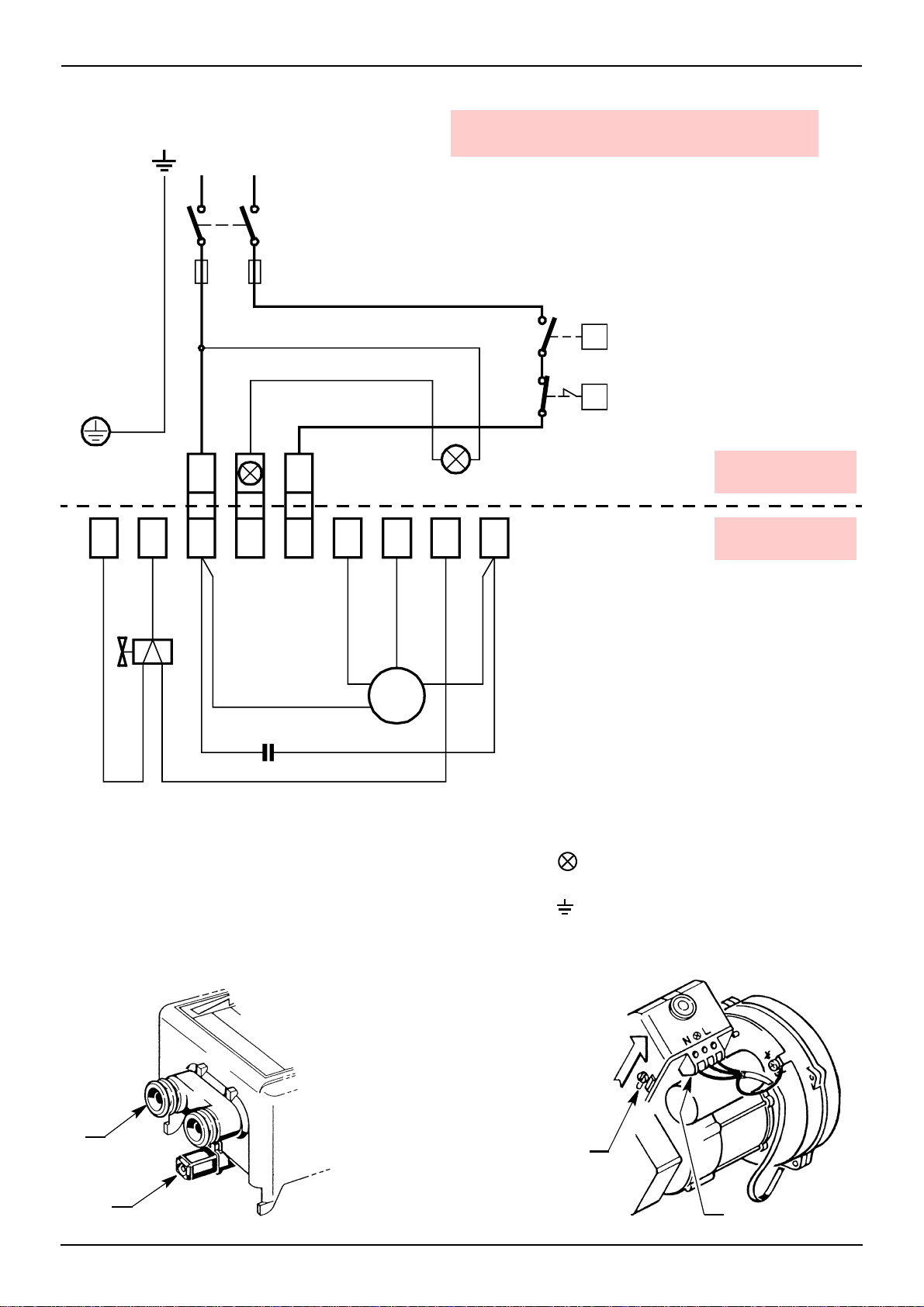

3.5 Electrical wiring. . . . . . . . . . . . . . . . . . . . . . 9
4. WORKING . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 Combustion adjustment. . . . . . . . . . . . . . . . 10
4.2 Nozzles recommended . . . . . . . . . . . . . . . . 10

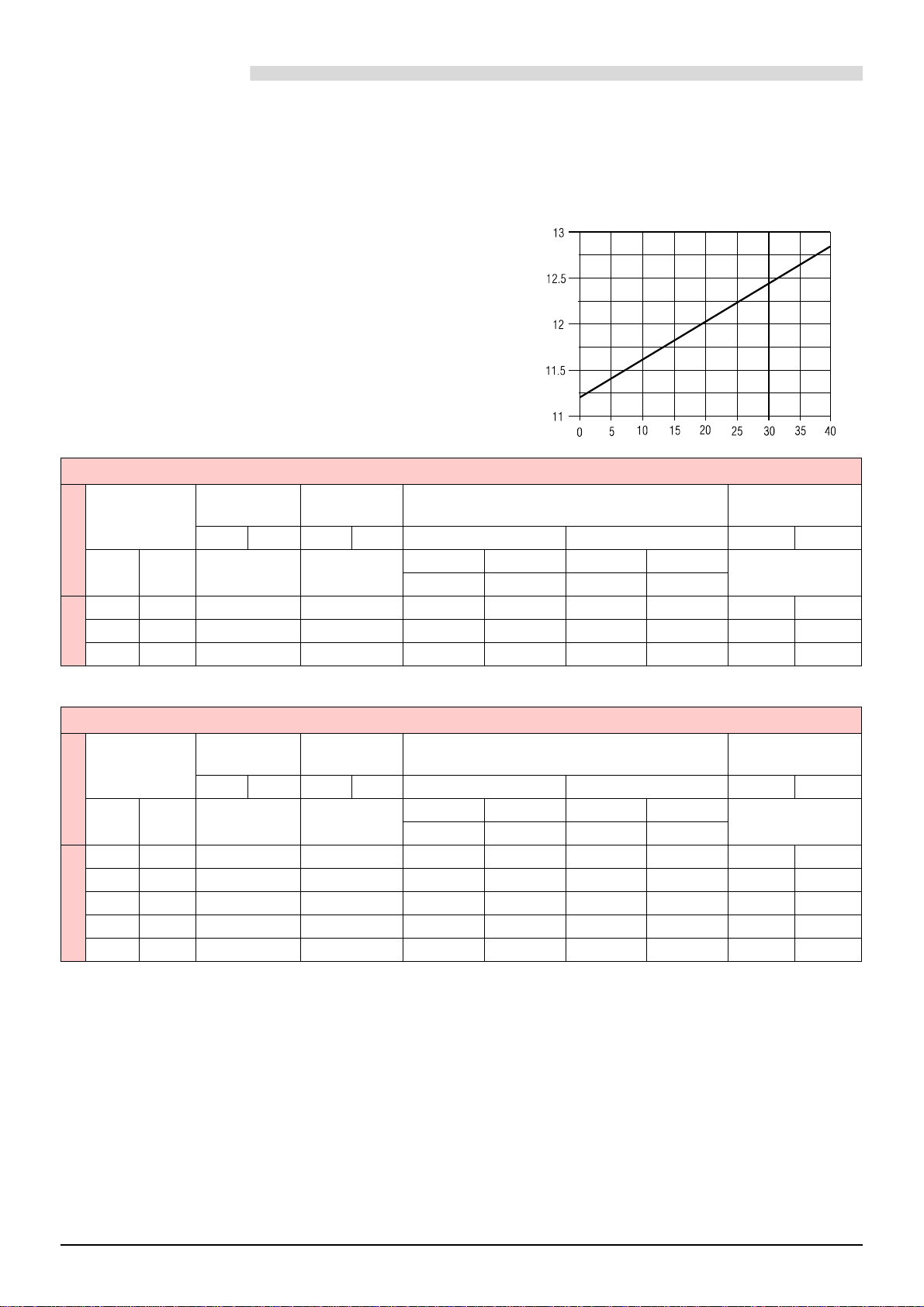

4.3 Pump pressure . . . . . . . . . . . . . . . . . . . . . . 10
4.4 Maintenance position . . . . . . . . . . . . . . . . . 11
4.5 Electrodes adjustment. . . . . . . . . . . . . . . . . 11

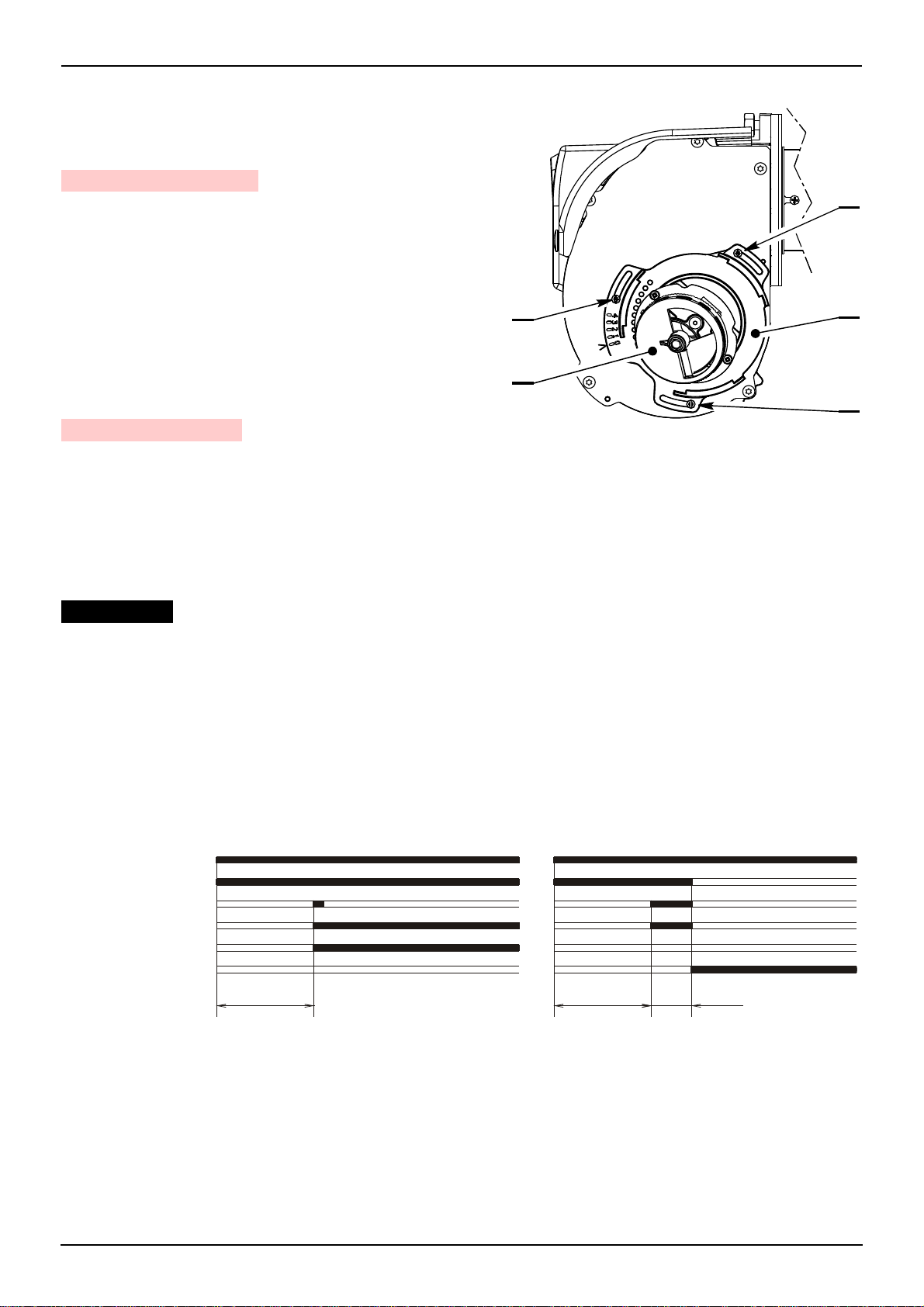

4.6 Air adjustment . . . . . . . . . . . . . . . . . . . . . . . 12
4.7 Burner start-up cycle . . . . . . . . . . . . . . . . . . 12
5. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . 13

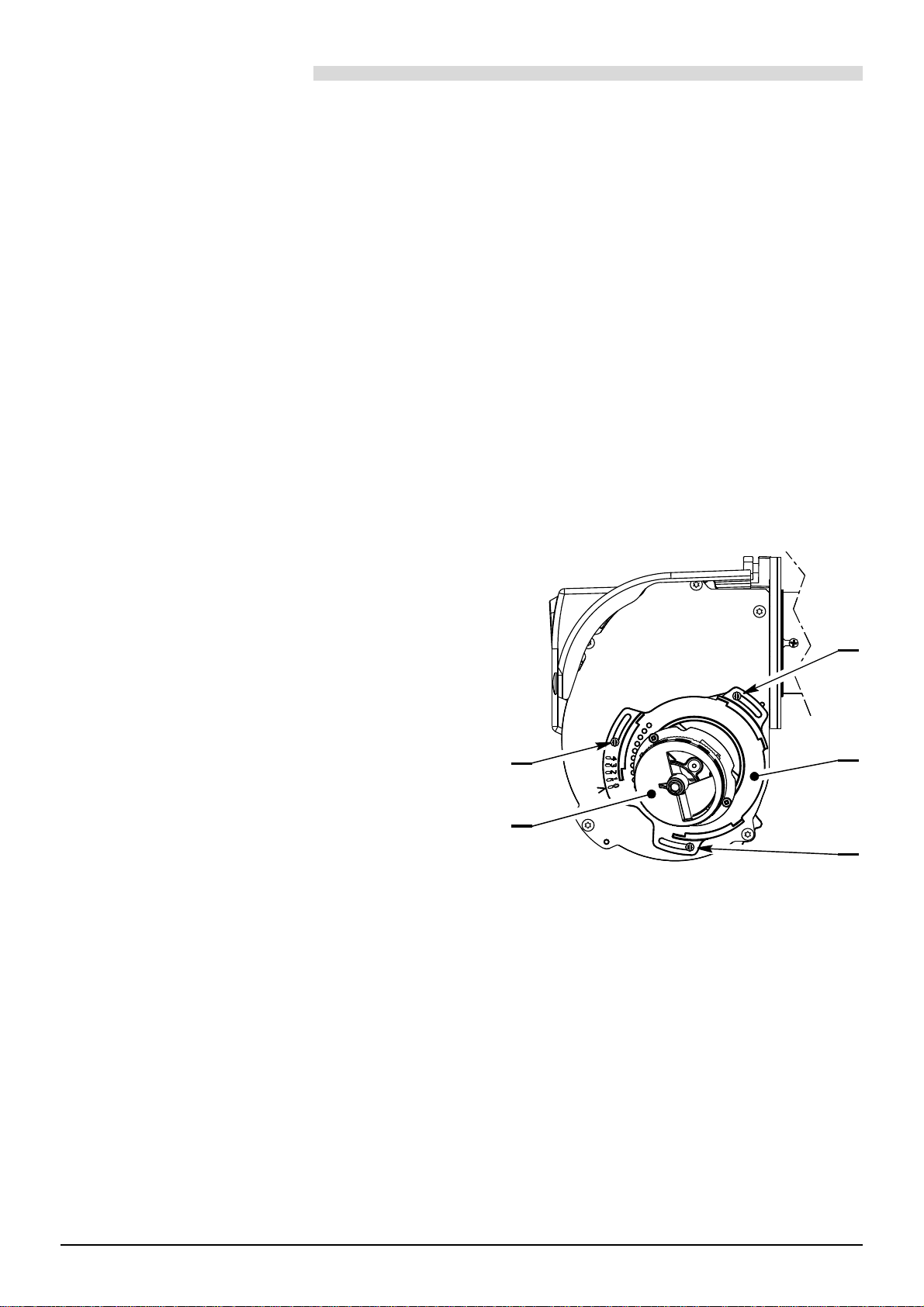

5.1 Access to the fan. . . . . . . . . . . . . . . . . . . . . 13
6. FAULTS / SOLUTIONS . . . . . . . . . . . . . . . 14
7. SAFETY WARNINGS . . . . . . . . . . . . . . . . . 15
7.1 Burner identification. . . . . . . . . . . . . . . . . . . 15
7.2 Basic safety rules . . . . . . . . . . . . . . . . . . . . 15
1 – Return line
2 – Suction line
3 – Oil pump
4 – Gauge connection
5 – Pressure adjuster
6 – Control box
7 – Reset button with lock-out lamp
8 – Air adjustment knob
9 – Suction gauge connection
10 – Flange with insulating gasket
11 – Combustion head
12 – Feeder
➤
Burner with CE marking in conformity with Directives: Machine Directive 2006/42/EC, Low Voltage Di-
rective 2014/35/UE, Electromagnetic Compatibility 2014/30/UE.
Fig. 1
D7000

3445
2

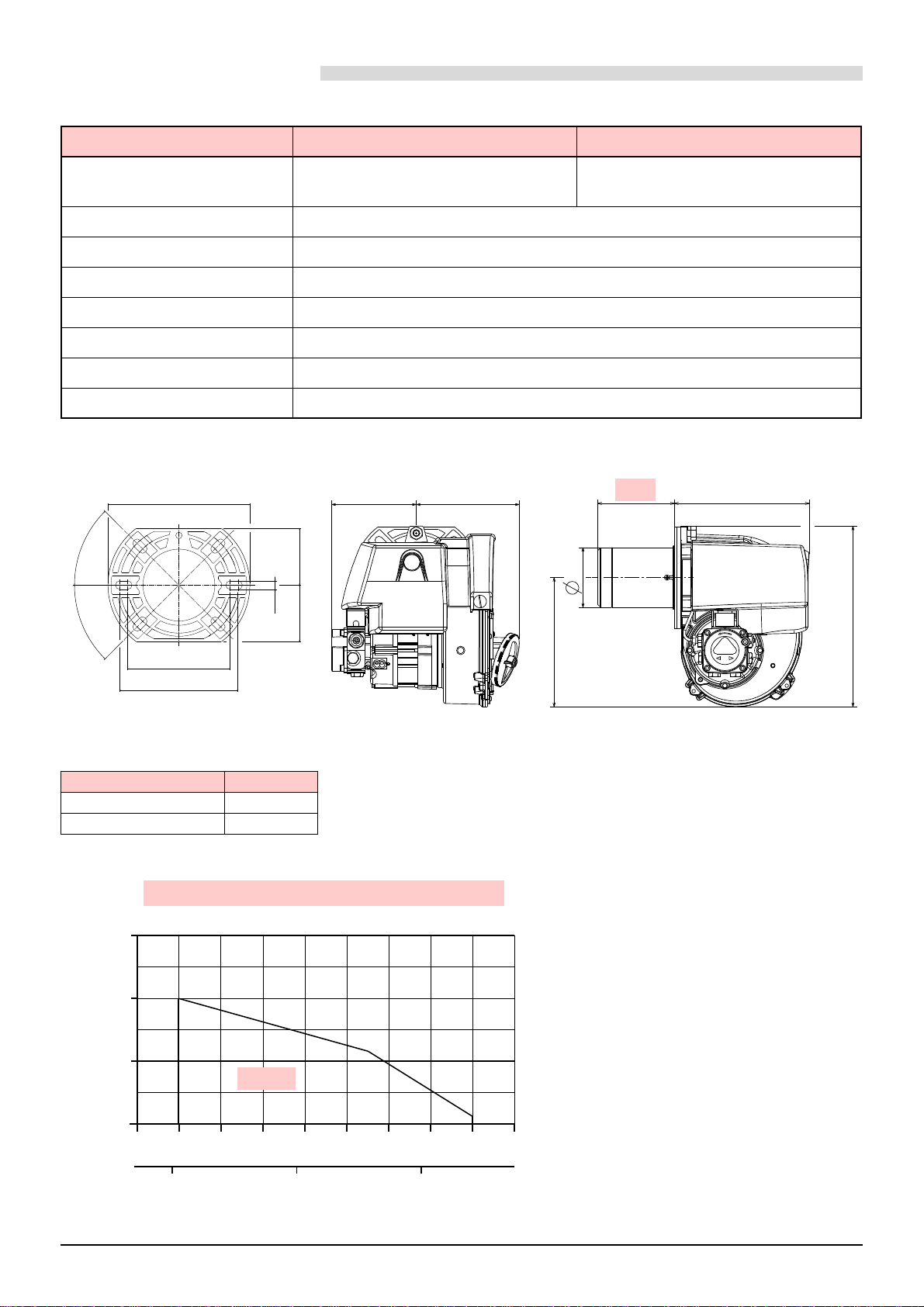

2. TECHNICAL DATA
2.1 TECHNICAL DATA
2.2 OVERALL DIMENSIONS
2.3 FIRING RATES, (as EN 267)
TYPE 732T3 732T6
Output
Thermal power 2.0
− 3.2 kg/h
24 − 38 kW 2.8
− 3.9 kg/h
33,2 − 46,2 kW
Fuel Light oil, viscosity 4 − 6 mm2/s at 20°C (Hi= 11.86 kWh/kg)
Electrical supply Single phase,
~
50Hz 230V ± 10%
Motor Run current 0.75A – 2800 rpm – 294 rad/s
Capacitor 4,5 µF
Ignition transformer Secondary 8 kV – 16 mA
Pump Pressure: 7 − 15 bar
Absorbed electrical power 0,115 kW
BURNER CODE A
3571000 - 3572080 109
20062926 177
D7010
45°
45°
180
130
150
11
75 72
120 146 109 191
85
183
256
D7001
A
22 24 26 28 30 32 34 36 38 40
2.5
23
0
1
2
3
Pressure in combustion
chamber – mbar
VERSION WITHOUT BAFFLE PLATE CF - BF
D8792
kg/h
kW
732T3

3445
3
2.4 ACCESSORIES
BF AIR INTAKE
In case of BF application, air is fed in through a flexible or
rigid pipe connected to the air intake (A, fig. 5, page 4).
This component is supplied separately.
To install this fitting, you must:
➤
remove the knob unit (1) from the burner by unscrew-
ing the two screws (2), see fig. 2;
➤
apply the O-ring (4) to the air intake (3) as illustrated in
figure 3;
➤
place the air intake (3) horizontally against the feeder
(5), making sure you pull the locking device (6, fig. 5,
page 4);
➤
turn clockwise to fasten the air intake (3) to the burner
and release the locking device (6). The air intake can
be turned to meet installation needs, as illustrated in
figure 4.
➤
To adjust, you must pull the locking device (6, fig. 5,
page 4) and turn the air intake until you are happy with
the position.
22 24 26 28 30 32 34 36 38 40
2.5
23
42 44 46 48
3.5 4
4
3
2
1
0
VERSION WITH BAFFLE PLATE CF - BF
Pressure in combustion
chamber – mbar
D8793
kg/h
kW
732T3 732T6
D7014
5
1
Fig. 2
2
2
9
Fig. 3
3
4
D7005
3
Fig. 4

3445
4
To adjust delivery, proceed as follows:
➤
loosen screw (7) and adjust the ring (8),
turning it to the desired setting;
➤
secure in place by tightening screw (7)
with a driving torque of 0.8 Nm.

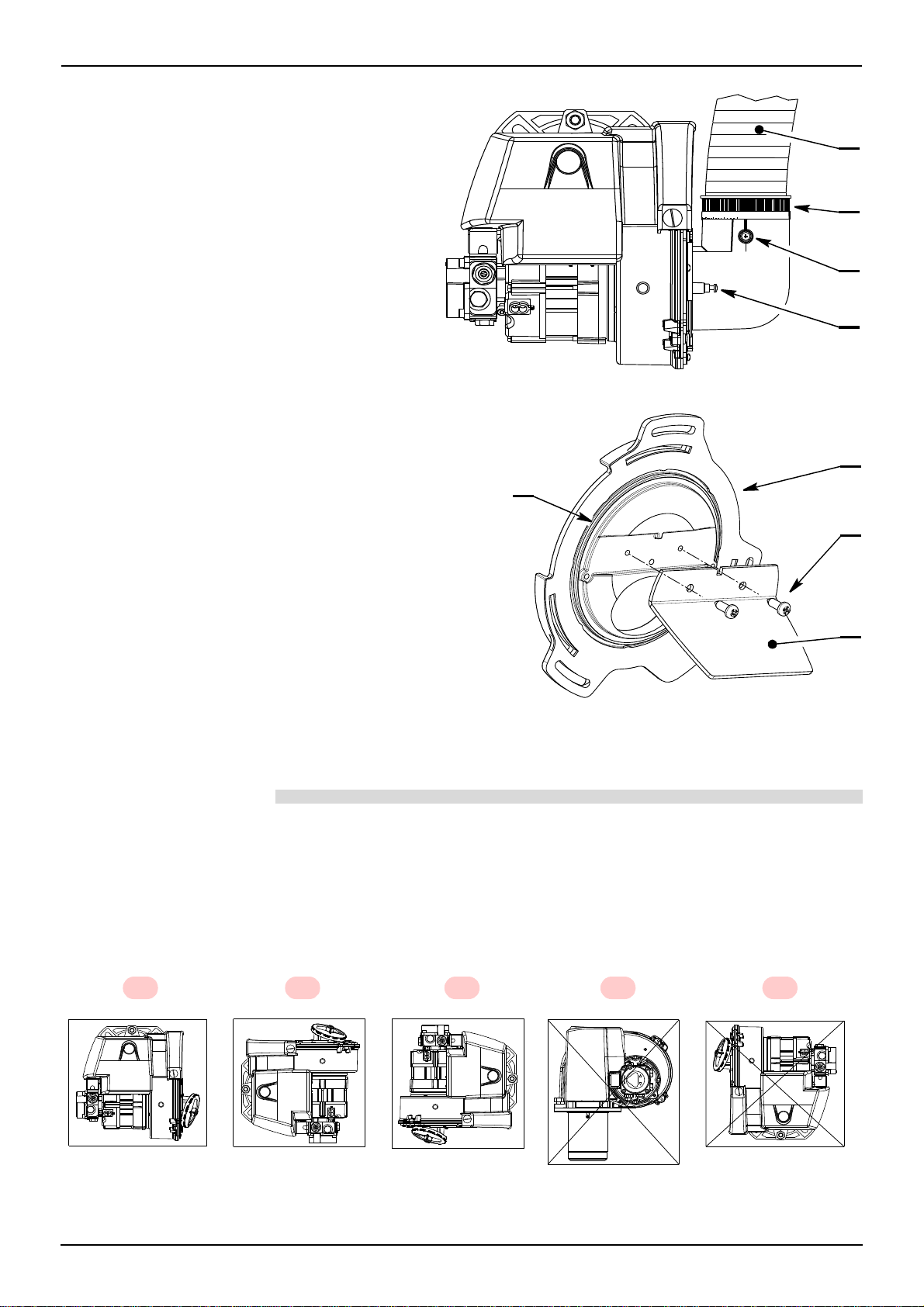

BAFFLE PLATE (see fig. 6)
The baffle plate is installed whenever the burner’s
purging performance needs increasing. This compo-
nent is supplied separately.
To install this fitting, you must:
➤
unscrew the three screws (9, fig. 2 page 3) and
remove the air adjustment unit (5);
➤
apply the baffle plate (10) by means of the two
screws (11), screwing it on with a driving torque
of 0.8 Nm;
➤
follow the above procedure in the reverse order,
restoring the feeder (5) to its original position,
tightening the two screws (9) with a driving torque
not exceeding 0.8 Nm;
➤
make extra sure you position the O-ring (12) cor-
rectly.
3. INSTALLATION
THE BURNER MUST BE INSTALLED IN CONFORMITY WITH LEGISLATION AND LOCAL STANDARDS.
3.1 WORKING POSITION (CF and BF version)
D7011
Fig. 5
6
7
A
8
D7013
5
10
11
12
Fig. 6
The burner is designed to work only in the positions 1, 2and 3.
Any other position could compromise the correct working of the appliance.
Installations 4and 5are forbidden for safety reasons.
D7003
1 2 3 4 5

3445
5
3.2 BOILER FIXING
➤
Secure the flange to the burner as follows: fit the screw and the two nuts (see fig. 7) on the flange (1).
➤
Widen, if necessary, the insulating gasket holes (2,fig. 8), taking care not to damage them.
➤
Fix the flange (1) to the boiler door (5, fig. 9) interposing the insulating gasket (2), using the screws
(3) and (if necessary) the nuts (4).
3.3 BURNER ASSEMBLY
In the case of CF application, combustion air is fed through the
feeder unit (A).
In the case of BF application, combustion air is fed through a flexible
or rigid pipe connected to the air intake (B).
FOR CORRECT BF APPLICATION, THE BURNER MUST BE
INSTALLED ON AN APPROPRIATE BF BOILER.
Consequently, you must comply with the following requirements and
instructions:
➤
The combustion air intake tube must be:
- fastened securely to the burner;
- made of a suitable material, with temperature characteristics in
the range - 30 °C to 80 °C;
- in compliance with all requirements of applicable regulations in
force in the country of destination.
2
5
3
1
E9239
E9238
1
4
D5012
2
Fig. 7
Fig. 9
Fig. 8
3
D7015
A
S7011
B
CF APPLICATIONS
BF APPLICATIONS

3445
6
➤
The intake-tube / burner system must not allow a loss of over 2 m
3
/h at 0.5mbar:
for instance, the above requirements will be met if you use flues for pressure exhaust of flue gases (the con-
densation kind).
➤
Make sure the air intake tube’s inlet is positioned so that it is not likely to be obstructed by foreign matter and,
where necessary, use suitable screens.
➤
The temperature of the incoming air must not exceed 40 °C;
➤
The inside diameter of the hose must be at least 80 mm.
➤
The intake tube can be up to 6 metres in length.
Warning: length is reduced if there are bends in the intake section.
For instance, using a tube with a smooth inside surface, you must allow for the following losses:
- for each 45° bend, tube length is reduced by 0.5 m;
- for each 90° bend, tube length is reduced by 0.8 m.

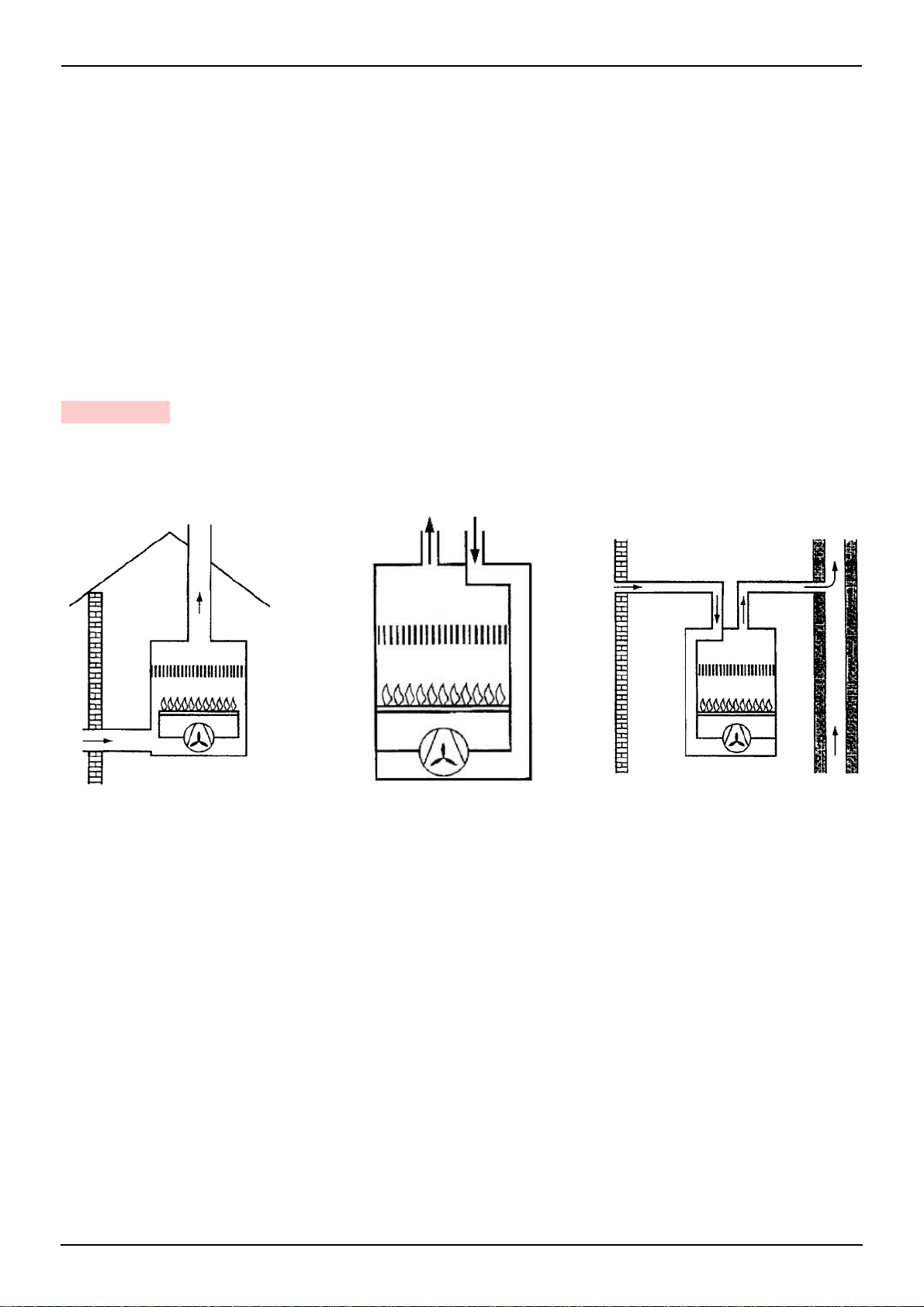

BURNER INSTALLATION MUST COMPLY WITH ONE OF THE INSTALLATIONS ILLUSTRATED IN THE
FIGURES BELOW.
➤
Under no circumstances should the air’s entry in the hose intake area be obstructed.
➤
The hose must not be blocked in any way or feature a shutting device (valves, membranes etc.).
➤
Coaxial tubes must not be installed for any reason.
ATTENTION
S7851
S7853
S7876

3445
7
3.4 HYDRAULIC SYSTEMS
It is necessary to install a filter on the fuel supply line.
◆
The pump is designed to allow working with two pipes.
◆
Before starting the burner make sure that the return pipe-line is
not clogged. An excessive back pressure ( ≥ 1 bar) would cause
the damage of the pump seal, with subsequent fuel leaks inside
the burner.
◆
In order to obtain one pipe working it is necessary to unscrew
the return plug (2), remove the by-pass screw (3) and then
screw again the plug (2) with a torque of 0.5 Nm.
The pump has a delivery pressure regulation device (5). Pressure
increases if turned in a clockwise direction, and decreases if
turned in the other direction. An indication of sensitivity is 1 bar
per turn. The pressure can be regulated in a range of 7 ÷ 15 bar.
Do not loosen the knob (8) and periodically check that it is
firmly fixed, for safety reasons.
Pressurised systems have a positive fuel pressure on intake to the
burner. Usually the tank is higher than the burner, or the fuel pump-
ing systems are on the outside of the boiler.
Figure 12 is an example of connection to a pressurised ring, no mat-
ter what position the ring feeder tank is in.
In the system in fig. 11, the table shows the maximum indicated lengths for the supply line, depending on
the difference in level, length and the diameter of the oil pipes.
PRIMING PUMP
it is sufficient to loosen the suction gauge connection (6, fig. 10) and wait until oil flows out.
D5912
1- Suction line
2- Return line
3- By-pass screw
4- Gauge connection
5- Pressure adjuster
6- Suction gauge connection
7- Valve
8- Knob
1
7
4
3
2
5
6
8
Fig. 10
PUMP
(see fig. 10)
PRESSURISED ONE PIPE SYSTEMS (fig. 11 and 12)
H
max. 4 m
D7006
H
meters
L meters
I. D.
8 mm I. D. 10 mm
0.5
1
1.5
2
10
20
40
60
20
40
80
100
●
● ONLY FOR ITALY:
Automatic shut-off device as per Ministry of Internal Affairs’ regulation no. 73 dated 7/29/71.
The installer must ensure that the supply pressure is not above 0.5 bar.
Above that level, the pump seal is subject to too much stress.
H= difference of level; L= max. length of the suction line; I. D. = internal diameter of the oil pipes.
●
D7007
Fig. 11 Fig. 12
SYSTEM NOT PERMITTED
IN GERMANY

3445
8
Depressurised systems have a negative fuel pressure (depression) on intake to the burner.
Usually the tank is lower than the burner.
In the systems in figs. 13 and 14, the table shows the maximum indicated lengths for the supply line,
depending on the difference in level, length and the diameter of the oil pipes.
PRIMING PUMP
On the systems in fig. 13 and 14 start the burner and wait for the priming.
Should lock-out occur prior to the arrival of the fuel, await at least 20 seconds before repeating the operation.
In two pipe vacuum systems (fig. 14) the return line should terminate within the oil tank at the same level as
the suction line. In this case a non-return valve is not required.
Should however the return line arrive over the fuel level, a non-return valve is required.
This solution however is less safe than previous one, due to the possibility of leakage of the valve.
DEPRESSURISED SYSTEMS (fig. 13 and 14)
H
max. 4 m
max. 4 m
H
H
H
D7008
●●
H
meters
L meters
I. D.
8 mm I. D. 10 mm
0
0.5
1
1.5
2
3
3.5
35
30
25
20
15
8
6
100
100
100
90
70
30
20
● ONLY FOR ITALY:
Automatic shut-off device as per Ministry of Internal Affairs’ regulation no. 73
dated 7/29/71.
The installer must ensure that the supply depression is not above 0.4 bar
(30 cm Hg).
Above that level, gas leaks out from the fuel.
The pipes must all be perfectly sealed.
H= difference of level; L= max. length of the suction line;
I. D. = internal diameter of the oil pipes.
ONE PIPE SYSTEM TWO PIPE SYSTEMFig. 13 Fig. 14

3445
9
3.5 ELECTRICAL WIRING
A
S7057
S7701
A
1
Fig. 15
Fig. 16
Brown
White (50V)
Blue
Motor
Capacitor
Limit thermostat
Neutral
Main switch
T6A
N L
M
~
Black
230V ~ 50Hz
N L
Safety thermostat
Remote lock-out signal
(230V - 0.5A max.), if required
123456789
Blue
Brown
Terminal block of
control-box 530SE
*
Oil valve
T
T
D5228
Black
CARRIED-OUT BY
NOTES:
– Wires of min. 1 mm
2
section. (Unless requested oth-
erwise by local standards and legislation).
– The electrical wiring carried out by the installer must
be in compliance with the rules in force in the Country.
WARNING
DO NOT EXCHANGE NEUTRAL WITH PHASE
ACCESS TO THE FLAME SENSOR (see fig. 16)
The flame sensor (A) is fitted directly into the control-
box, underneath the ignition-transformer (B), on a plug-in
support.
TESTING
Check the shut-down of the burner by
opening the thermostats.
CONTROL BOX (fig. 15)
To remove the control box from the
burner, loosen screw (A)and pull to the
arrow direction. Run of the electrical
cable:
1- Terminal block
N- Neutral
- Lock-out signal
L- Phase
- Burner-earth
THE INSTALLER
CARRIED-OUT
IN THE FACTORY
B

3445
10
4. WORKING
4.1 COMBUSTION ADJUSTMENT
In conformity with EN 267 the application of the burner on the boiler, adjustment and testing must be car-
ried out observing the instruction manual of the boiler, including verification of the CO and CO
2
concentra-
tion in the flue gases, their temperatures and the average temperature of the water in the boiler. To suit the
required appliance output, fit the nozzle then adjust the pump pressure and the air adjustment, in accord-
ance with the following schedule.
The values shown in the table are measured on a CEN
boiler (as per EN 267), if they refer to 12.5% CO
2
at sea
level (1013 hPA) and with light oil and room temperature
of 20°C, and combustion chamber pressure of 0 mbar.
WARNING:
Combustion air is drawn in from outside, meaning there may
be notable changes in temperature, which can affect the
percentage of CO
2
. You are advised to adjust CO
2
in accor-
dance with the graph featured. E.g.: outside air temperature
20 °C, adjust CO
2
to 12% (± 0.2%).
4.2 NOZZLES RECOMMENDED
Delavan type W; Hago type SS;
Steinen type Q; Danfoss type S.
Angle : 60° - In most cases.
80° - In case of flame detachment, during ignitions at low temperatures.
4.3 PUMP PRESSURE
12 bar: The pump leaves the factory set at this value.
14 bar: Improves flame retention; it is therefore suitable for ignitions at low temperatures.
VERSION WITH BAFFLE PLATE
TYPE
Nozzle Pump
pressure Burner output Air adjustment Head pressure
CF BF CF BF CF BF CF BF
GPH Angle bar kg/h ± 4% Feeder Knob Feeder Regulator mbar
Set-point Set-point Set-point Set-point
732T6
0.75 60°W 11 2.9 4 1 4 1.25 1.5 1.6
0.85 60°W 12 3.4 4 1.5 4 2.5 1.8 1.9
1.00 60°W 12 4.0 4 4 2 5 2.5 2.6
VERSION WITHOUT BAFFLE PLATE
TYPE
Nozzle Pump
pressure Burner output Air adjustment Head pressure
CF BF CF BF CF BF CF BF
GPH Angle bar kg/h ± 4% Feeder Knob Feeder Regulator mbar
Set-point Set-point Set-point Set-point
732T3
0.50 60°W 14 2.2 1 1.6 1 2.2 1.4 1.5
0.60 60°W 12 2.4 1 2.6 1 3 1.7 1.7
0.65 60°W 12 2.6 1 3.5 1 4.3 2.1 2.1
0.75 60°W 12 3.0 1 4.4 1 5.8 2.4 2.4
0.75 60°W 14 3.3 1 5.7 1 10 3.0 2.7
% CO
2
°C

3445
11
4.4 MAINTENANCE POSITION
➤
Remove the flange-fixing nut and pull out the
burner.
➤
Place the burner on a horizontal surface as illus-
trated in figure 17.
➤
Loosen the two screws (1) and remove the blast
tube (2).
➤
Remove the diffuser disc assembly (3) from the noz-
zle-holder assembly, loosening the screw (3, fig. 18)
first.
➤
Screw the nozzle (4) on, holding it as illustrated in
figure 17.
➤
Refit following the above procedure in the reverse
order.
4.5 ELECTRODES ADJUSTMENT
To reach the electrodes, proceed as described in chapter
“4.4 MAINTENANCE POSITION”.
Electrode position is not adjustable. If there is a
problem, make sure the distances are as recom-
mended.
For other adjustments, proceed as follows:
➤
Place the diffuser disc assembly (1) against the nozzle holder (2), and secure in place with the screw (3).
➤
Fine adjustment is achieved by loosening screw (4) and moving the electrodes (5).
Fig. 17
E9237
1
2
3
4
ATTENTION
A
2 – 0.2 mm
4.5 – 0.5 mm
0
D7009
+ 0.2
Fig. 18
5 4
3 12
A

3445
12
4.6 AIR ADJUSTMENT,
(fig. 19)
Depending on burner output, air must be adjusted by turning
the feeder (2) first, followed by the knob (3).
To adjust, proceed as follows:
➤
Loosen the three screws (1).
➤
Turn the feeder (2), positioning it according to the values
given in the table on page 10.
➤
Tighten the three screws (1) with a driving torque not
exceeding 0.8 Nm.
Warning
It is essential you make sure the feeder is screwed on suf-
ficiently tightly to avoid de-setting the burner while it is in
operation.
This is done by turning the knob (3). Turning clockwise
limits the cross-section of the air passage area and increases CO
2
value. The opposite occurs when turned
anticlockwise.
Adjustments in the table on page 10 are given as an approximate guide only.
Each system features operating conditions that cannot be known in advance: actual nozzle delivery, pressure or
vacuum in the combustion chamber, necessary excess air etc...
All these conditions may call for a different air setting.
➤
Under no circumstances should the air's entry in the knob area (3, fig. 19) be obstructed.
➤
Placing fingers or tools of any kind inside the knob’s intake opening (3, fig. 19) is prohibited.
➤
Check the position of the feeder and knob as indicated in the table on page 10.
➤
Check the Bacharach device and CO
2
.
4.7 BURNER START-UP CYCLE
Fig. 19
D7004
1
1
12
3
FEEDER ADJUSTMENT
KNOB ADJUSTMENT
ATTENTION
Normal Lock-out, due to light-failure
Thermostat
Motor
Ignition transformer
Valve
Flame
Lock-out lamp ~
12s
D5229
~ 12s
~ 5s

3445
13
5. MAINTENANCE
The burner requires periodic maintenance carried out by a qualified and authorised technician in conformity
with legislation and local standards.
Periodic maintenance is essential for the reliability of the burner, avoiding the excessive consumption of
fuel and consequent pollution.
Before carrying out any cleaning or control always first switch off the electrical supply to the
burner acting on the main switch of the system.
THE BASIC CHECKS ARE:
➤
Check that there are no obstructions or bends in the supply or return oil pipes, in the air intake pipes and the
combustion product discharge tubes.
➤
Clean the filter in the oil suction line and in the pump.
➤
Clean the flame sensor (see fig. 16, page 9).
➤
Check for correct fuel consumption.
➤
Replace the nozzle (4, fig. 17, page 11) and check the correct position of electrodes (fig. 18, page 11).
➤
Clean the combustion head in the fuel exit area.
➤
Leave the burner working without interruptions for 10 min. and set rightly all the components stated in
this manual. Then carry out a combustion check verifying:
●
Smoke temperature at the chimney;
●
Content of CO
2
(%);
●
Content of CO (ppm);
●
Smoke value according to opacity smokes index according to Bacharach scale.
5.1 ACCESS TO THE FAN, (see Fig. 20)
IMPORTANT
➤
Perform maintenance work only when strictly nec-
essary, taking great care not to damage or unbal-
ance the fan during cleaning.
➤
Take careful note of the original position before
beginning any of these operations.
Proceed as follows:
➤
Unscrew the three screws (1) and remove the air
adjustment unit (2). At this point, you can clean the fan:
vacuum up any impurities, taking care they do not enter
the air circuit.
➤
Refit following the above procedure in the reverse
order, restoring the air adjustment unit (2) to its original
position and being extra careful to ensure that the O-
ring (12, fig. 6, page 3) is positioned correctly.
➤
Tighten the three screws (1) with a driving torque not
exceeding 0.8 Nm.
D7004
1
1
12
3
Fig. 20

3445
14
6. FAULTS / SOLUTIONS
Here below you can find some causes and the possible solutions for some problems that could cause a fail-
ure to start or a bad working of the burner. A fault usually makes the lock-out lamp light which is situated
inside the reset button of the control box (7, fig. 1, page 1).
When lock out lamp lights the burner will attempt to light only after pushing the reset button. After this if the
burner functions correctly, the lock-out can be attributed to a temporary fault.
If however the lock out continues the cause must be determined and the solution found.
WARNING
The manufacturer cannot accept responsibility for any damage to persons, animals or property due to error in
installation or in the burner adjustment, or due to improper or unreasonable use or non observance of the
technical instruction enclosed with the burner, or due to the intervention of unqualified personnel.
FAULTS POSSIBLE CAUSES SOLUTION
The burner doesn’t
start when the limit
thermostat closes.
Electricity power failure.
Check that safety thermostat is not lock out.
Check that the limit thermostat is not
broken.
Check the L-N terminals are powered in the
command and control equipment.
Faulty command and control equipment: re-
place.
Faulty resistance. The red led on the command and control equipment is off, check the resistance and
replace if necessary.
The burner stays in
pre-purging.
The flame sensor perceives external
light. Eliminate the source of light.
The flame sensor is in short-circuit. Replace the flame sensor.
The burner pre-purg-
es and locks out
without forming the
flame.
The flame does not form.
No fuel: check the supply line, dirty filter.
The ignition electrodes are not correctly
regulated, adjust according to the instruc-
tion manual.
Missing or irregular electric ignition arc, re-
place the command and control equipment.
Inadequate, dirty or worn nozzle: replace.
The valve does not excite: replace the coil or
the command and control equipment.
The burner performs
pre-purging and igni-
tion cycle but locks
out within the safety
limit.
The flame sensor does not perceive
the flame. Clean or replace.
The burner continues
recycling.
The flame sensor does not perceive
the flame well enough. Clean or replace.
The flame detaches.
Correctly adjust the air/fuel ratio (CO
2
).
Inadequate, dirty or worn nozzle: replace.
The valve does not remain excited: replace
the command and control equipment, the
coil or the pump valve.
Dirty filters: clean or replace.
Burner starts with fir-
ing delay.
The ignition electrodes are incorrectly
set. Adjust according to the instruction manual.
The air/fuel ratio is incorrect. Correctly adjust the air/fuel ratio (CO
2
).
Inadequate, dirty or worn nozzle: replace.

3445
15
7. WARNINGS AND SAFETY
The dimension of the boiler’s combustion chamber must respond to specific values, in order to guarantee a
combustion with the lowest polluting emissions rate.
You are therefore advised to consult the Technical Assistance Department before choosing this type of
burner for the combination with a boiler. Qualified personnel are those with the professional and technical
requirements indicated by law no. 46 dated March 5, 1990 n° 46.
The commercial organisation has a widespread network of agencies and technical offices whose personnel
participates periodically in instructional and refresher courses at the company training centre.
This burner must only be used for the purposes it has specifically been designed for.
All contractual and other liability on the part of the manufacturer is excluded for injury caused to people,
animals or damage caused to property due to faulty installation, calibration, adjustment, maintenance or
improper use.
7.1 BURNER IDENTIFICATION
The Identification Plate on the product gives the serial number, model and main technical and performance
data. If the Identification Plate is tampered with, removed or missing, the product cannot be clearly identi-
fied thus making any installation or maintenance work potentially dangerous.
7.2 BASIC SAFETY MEASURES
➤
Children or inexpert persons must not use the appliance.
➤
Under no circumstances must the intake grids, dissipation grids and ventilation vents in the installation
room be covered up with cloths, paper or any other material.
➤
Unauthorised persons must not attempt to repair the appliance.
➤
It is dangerous to pull or twist the electric leads.
➤
Cleaning operations must not be performed if the appliance is not disconnected from the main power supply.
➤
Do not clean the burner or its parts with inflammable substances (e.g. petrol, alcohol, etc.).
The cover must be cleaned with soapy water.
➤
Do not place anything on the burner.
➤
Do not block or reduce the size of the ventilation vents in the installation room.
➤
Do not leave containers and inflammable products in the installation room.

Subject to modifications
RIELLO S.p.A.
I-37045 Legnago (VR)
Tel.: [phone]
http:// www.riello.it
http:// www.riello.com
