Riello GS5 Quick start guide

20013751 (2) - 09/2009
Installation, use and maintenance instructions
安装 , 使用以及维护说明书
Forced draught gas burner
强制通风燃气燃烧器
CODE - 编码 MODEL - 型号 TYPE - 类型
20013631 GS5 552T1
GB
CN
One stage operation
一段火运行

20013751
GB
INFORMATION ABOUT THE INSTRUCTION MANUAL
INTRODUCTION
The instruction manual supplied with the burner:
- is an integral and essential part of the product and must not be sepa-
rated from it; it must therefore be kept carefully for any necessary
consultation and must accompany the burner even if it is transferred
to another owner or user, or to another system. If the manual is lost
or damaged, another copy must be requested from the Technical
Assistance Service of the area;
- is designed for use by qualified personnel;
- offers important indications and instructions relating to the installation
safety, start-up, use and maintenance of the burner.
DELIVERY OF THE SYSTEM AND THE INSTRUCTION MAN-
UAL
When the system is delivered, it is important that:
- The instruction manual is supplied to the user by the system manu-
facturer, with the recommendation to keep it in the room where the
heat generator is to be installed.
- The instruction manual shows:
- the serial number of the burner;
- the address and telephone number of the nearest Assistance
Centre;
- The system supplier carefully informs the user about:
- the use of the system,
- any further tests that may be necessary before the system is
started up,
- maintenance and the need to have the system checked at least
once a year by the manufacturer or another specialised techni-
cian.
To ensure a periodic check, recommends the drawing up
of a Maintenance Contract.
说明书的相关信息
引言
说明书随燃烧器一起提供：
- 它是产品不可或缺的组成部分，不得将其与产品分离；因此必须小心
保存以便查阅，如果将燃烧器转给另一个用户或转移至另一个系统，
则说明书必须跟随燃烧器一起转移。如果说明书损坏或丢失，则必须
从您就近的 Technical Assistance Centre （技术支持中心）索取说
明书的复本 ；
- 说明书只能由有资格的人员使用；
- 说明书提供了有关燃烧器安装、启动、使用和维护的重要指示和安全
警告。
系统和说明书的交付
一旦交付系统：
- 系统制造商也必须将说明书交付给用户，并建议其将说明书保存在热
发生器的安装区域附近。
- 说明书上显示：
- 燃烧器的序列号；
- 最近 Assistance Centre （支持中心）的地址和电话号码；
- 系统制造商必须告知用户有关以下内容的准确信息：
- 系统的使用；
- 启动系统前需要进行的测试；
- 必需的维护和检查 （每年必须由制造商代表或别的专业技术人员至少
检查系统一次）。
要保证定期检查， 建议遵照 Maintenance Contract （维护合同）
的规定。
..................................................................................
..................................................................................
..................................................................................
..................................................................................
..............................................
..............................................
..............................................
..............................................

1 20013751
GB
TECHNICAL DATA
For gas family 3 (LPG) ask for separate kit.
OThe burner meets protection level of IP X0D (IP 40) as EN 60529.
OThe burner is approved for intermittent operation as per Directive EN 676.
OBurner with CE marking in conformity with EEC Directives: EMC 89/336/EEC - 2004/108/EC, Low
Voltage 73/23/EEC - 2006/95/EC, Machines 98/37/EEC and Efficiency 92/42/EEC.
OGas train according to EN 676.
NOTE
The grommet (3) and the hood fixing screw (4), supplied as accessories, should be assembled on
the same side as the gas train.
TYPE 552T1
Thermal power 18 – 58 kW – 15,500 ÷50,000 kcal/h
Natural gas
(Family 2) Pci 8 – 12 kWh/Nm3– 7.000 ÷10.340 kcal/Nm3
Pressure min. 10 mbar – max. 40 mbar
Electrical supply Single phase, 230V ± 10% ~50Hz/60Hz
Motor 0.75 A run current - 2800 rpm. - 294 rad/s
Capacitor 2 μF
Ignition transformer primary 230V / 0.2A – secondary 8 kV
Absorbed electrical power 0.15 kW
COUNTRY DE DK - AT - GR - SE GB - IE LU NL
GAS CATEGORY II2ELL3B/P II2H3B/P II2H3P II2E3B/P II2L3B/P

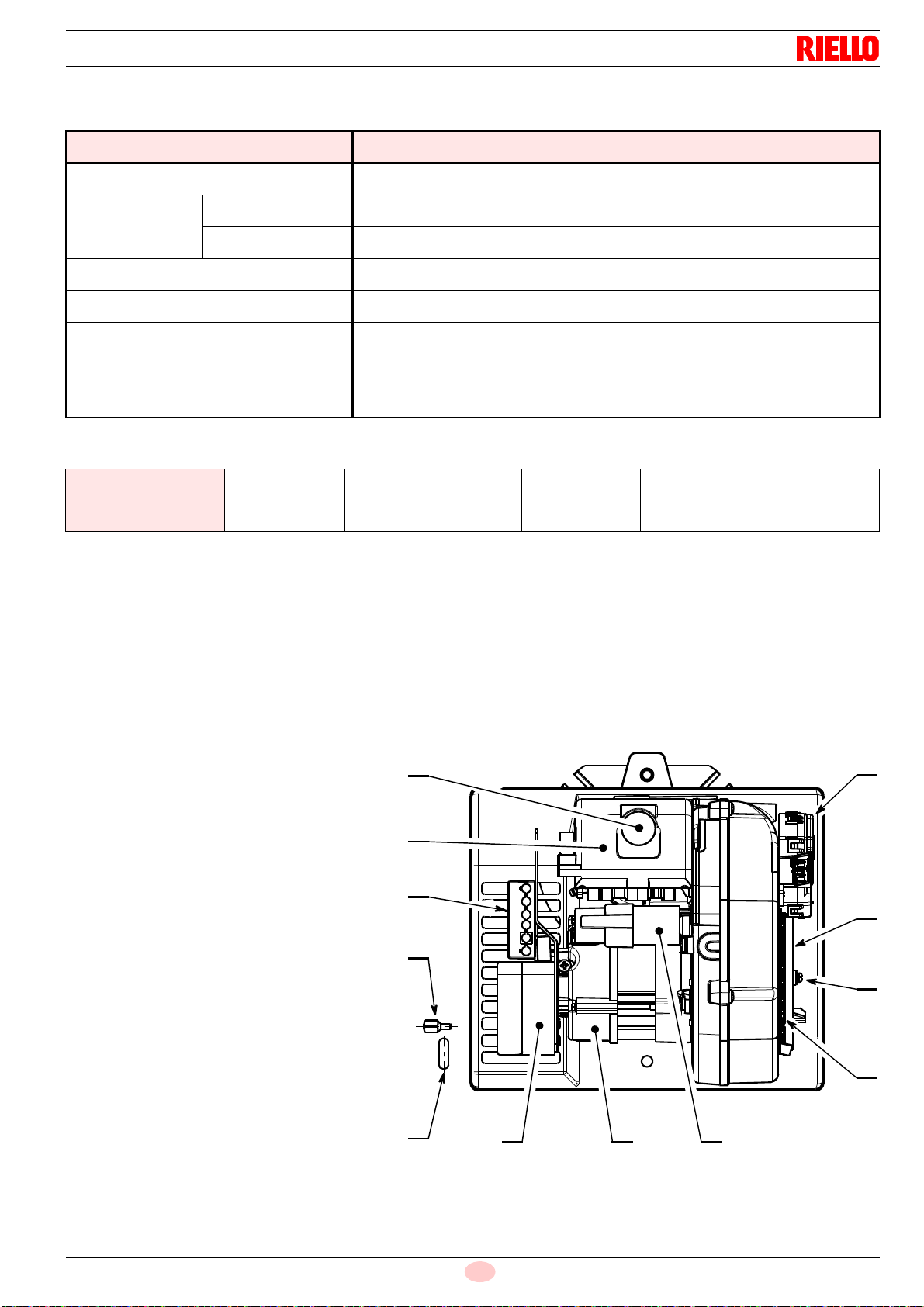

1 – Air dampers
2 – Damper fixing screws
3 –Grommet
4 – Hood fixing screw
5 – Air pressure switch
6 –Motor
7 – Lockout light with reset button
8 – Control box
9 – 6 pole socket for gas train
10 – Capacitor
11 – Air damper opening motor
1
3
2
2
4
9
8
7
D7387
5 6 10
Fig. 1
11

20013751 2
GB
BURNER EQUIPMENT
ACCESSORIES
SOFTWARE DIAGNOSTIC KIT
A special kit is available that, by an optical link to a PC, shows the burner life together with operat-
ing hours, type and number of lockout, serial number, etc...
Do the following to display the diagnostic:
Connect the kit supplied separately to the appropriate socket on the control box.
The information is read after the software program in the kit is booted.

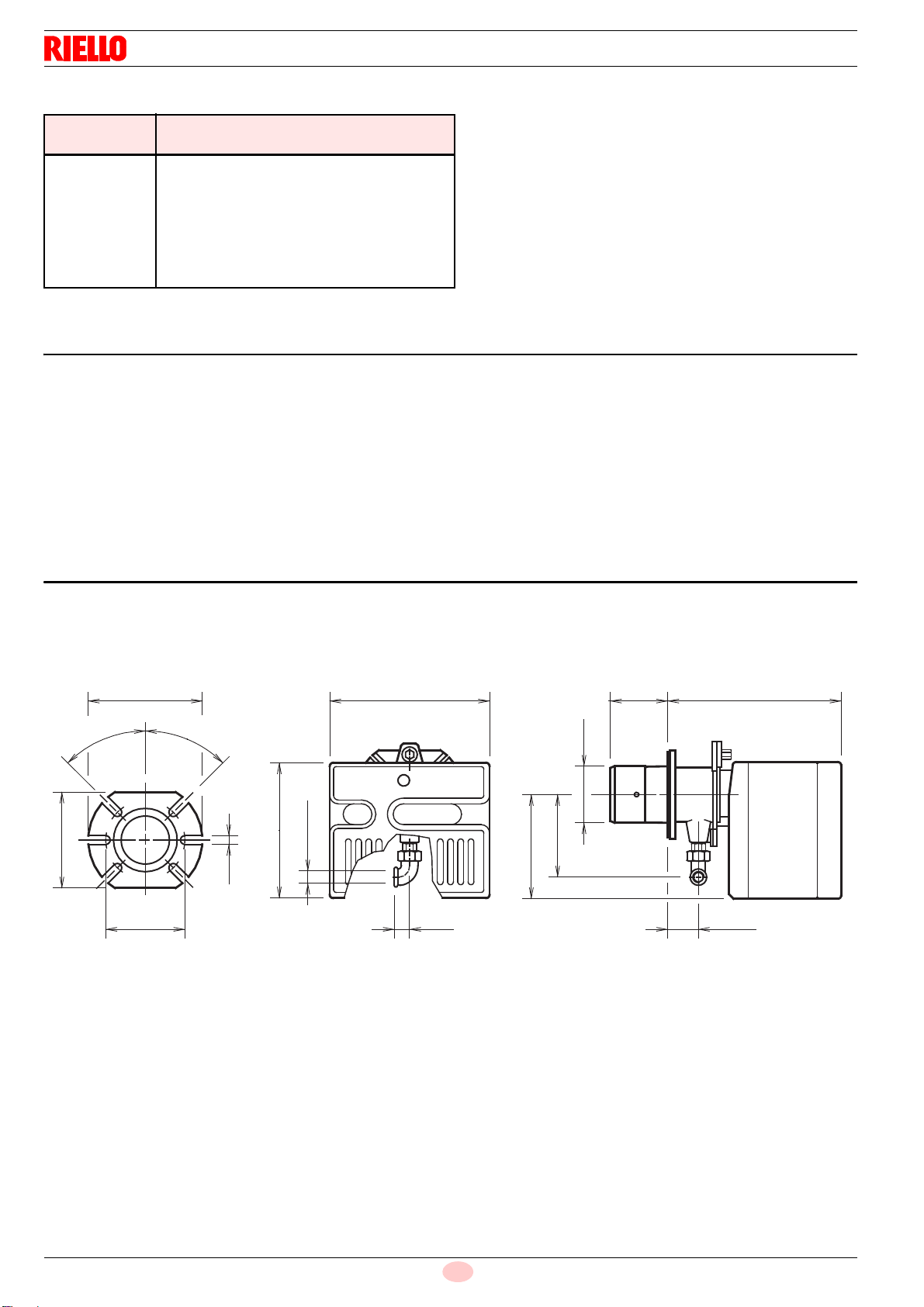

DIMENSIONS
RESET KIT
The use of a connection available as an accessory is provided for remote resetting of the control
box.
Quantity Description
4
1
3
1
1
1
Screws with nuts
Insulating gasket
Screws for fixing the fairing
Grommet
Hinge
7 pin plug
Flange Burner
272 100 295 ø 170
130 28 48
45°
45°
ø 91
233
10
140
Rp 1/2
180
138
*125
D5066
Long combustion head upon request
*

3 20013751
GB
BOILER FIXING
FIRING RATE
TEST BOILER
The firing rate has been defined according to EN 676 standard.
COMMERCIAL BOILERS
The burner-boiler matching is assured if the boiler conforms to EN 303 and the combustion chamber
dimensions are similar to those shown in the diagram EN 676.
For applications where the boiler does not conform to EN 303, or where the combustion chamber is
much smaller than the dimensions given in EN 676, please consult the manufacturers.

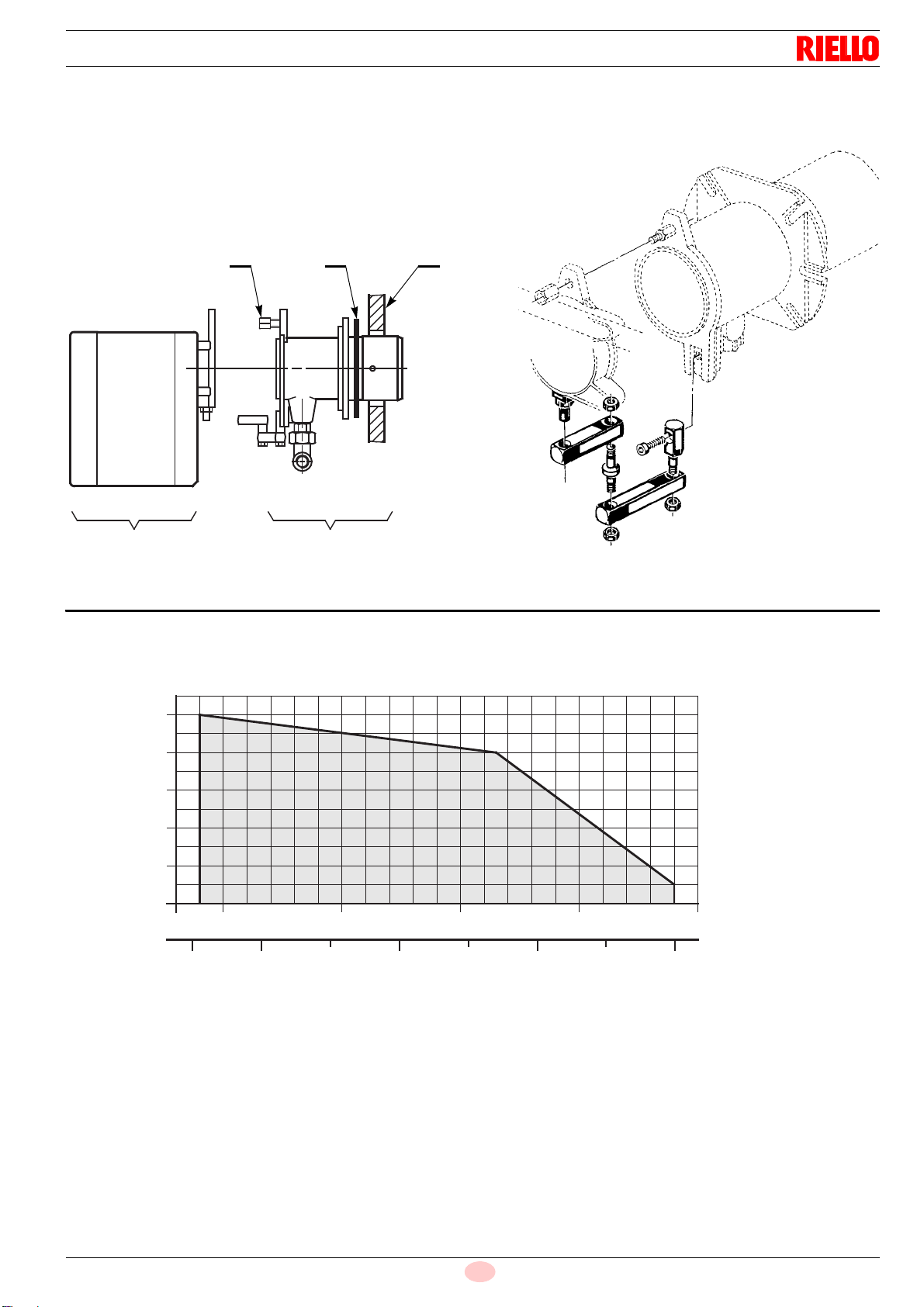

Separate the combustion head from the burner body
by removing the nut (1) and pulling back the group (A).
Fix the group (B) to the boiler plate (2), inserting the
supplied insulating gasket (3).
132
AB
D5067
HINGE ASSEMBLY
S7392
Pressure in combustion
chamber – mbar
Thermal power
D5135
0.8
0.2
0.4
0.6
20,000 30,000 40,000 50,000 kcal/h
1.0
15,000
020 4030 50 60 kW16

20013751 4
GB

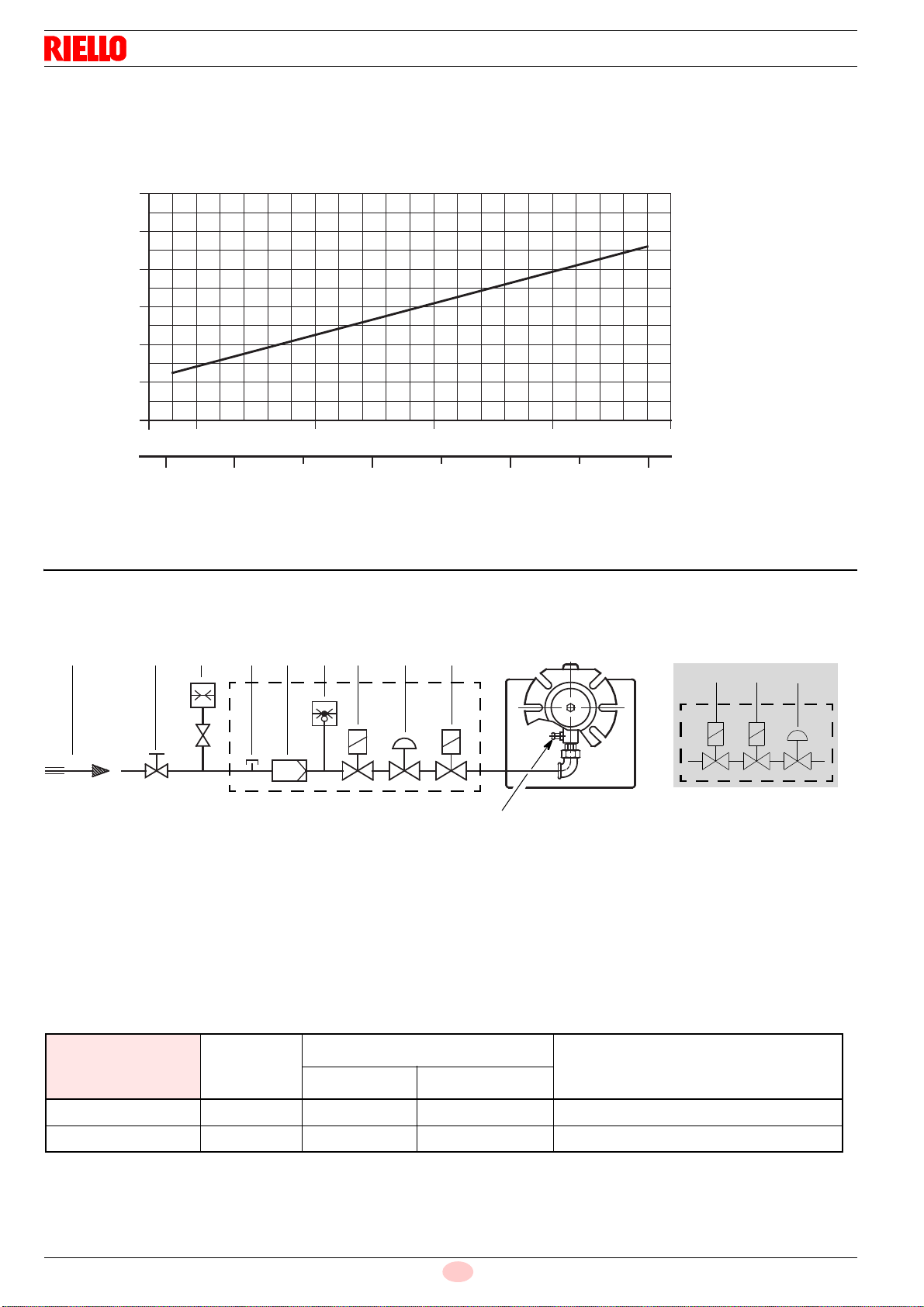

CORRELATION BETWEEN GAS PRESSURE AND BURNER OUTPUT
To obtain the maximum output, it is necessary to have 4.6 mbar measured on the pipe coupling,
with the combustion chamber at 0 mbar and gas G20 - Pci = 10 kWh/Nm3(8,570 kcal/Nm3).
GAS FEEDING LINE
The gas train is supplied separately, for its adjustment see the enclosed instructions.
Gas pressure at combustion
head in mbar
Thermal power
4
1
2
3
5
6D5136
20,000 30,000 40,000 50,000 kcal/h
20 4030 50 60 kW16
15,000
0
GAS TRAIN ACCORDING TO EN 676
MULTIBLOC CODICE CONNECTIONS USE
TRAIN BURNER
MBC 65 DLE 3970569 Rp 1/2 Rp 1/2 Natural gas and LPG
MBDLE 405 B01 3970530 Rp 1/2 Rp 1/2 Natural gas and LPG
1– Gas arrival pipe
2– Manual cock (supplied by the installer)
3– Gas pressure gauge (supplied by the installer)
4– Filter
5– Gas pressure switch
6– Safety valve
7– Pressure governor
8– Adjustment valve
M1 – Gas-supply pressure test point
M2 – Pressure coupling test point
1
D5069
M2
2 3 M1 4 5 6 7 8
D7279
678
MBC 65 DLE

5 20013751
GB
ELECTRICAL WIRING
TERR A
~ 50Hz 230V
MG557-3
WARNING:
Do not swap neutral and phase over, follow the diagram shown
carefully and carry out a good earth connection.
The section of the conductors must be at least 1 mm2. (Unless requested
otherwise by local standards and legislation).
The electrical wiring carried out by the installer must comply with the
rules in force in the country.
CONTROL BOX
Black
White
Blue
IMPORTANT
The burners have been approved for intermittent operation.
This means that they must stop once every twenty four hours to
permit the electrical control box to check its efficiency at start up.
Normally the boiler's limit thermostat (TL) ensures the stopping of
the burner. If this is not the case, it is necessary to apply in series
with the (TL) a timer switch that turns off the burner at least once
every twenty-four hours.
TESTING
Check the burner has stopped by opening the hermostats.
Check that the burner has locked out during operation by opening
the connector (CN1) inserted in the probe's red wire, located out-
side the control box.
E9323
A
Main switch
general

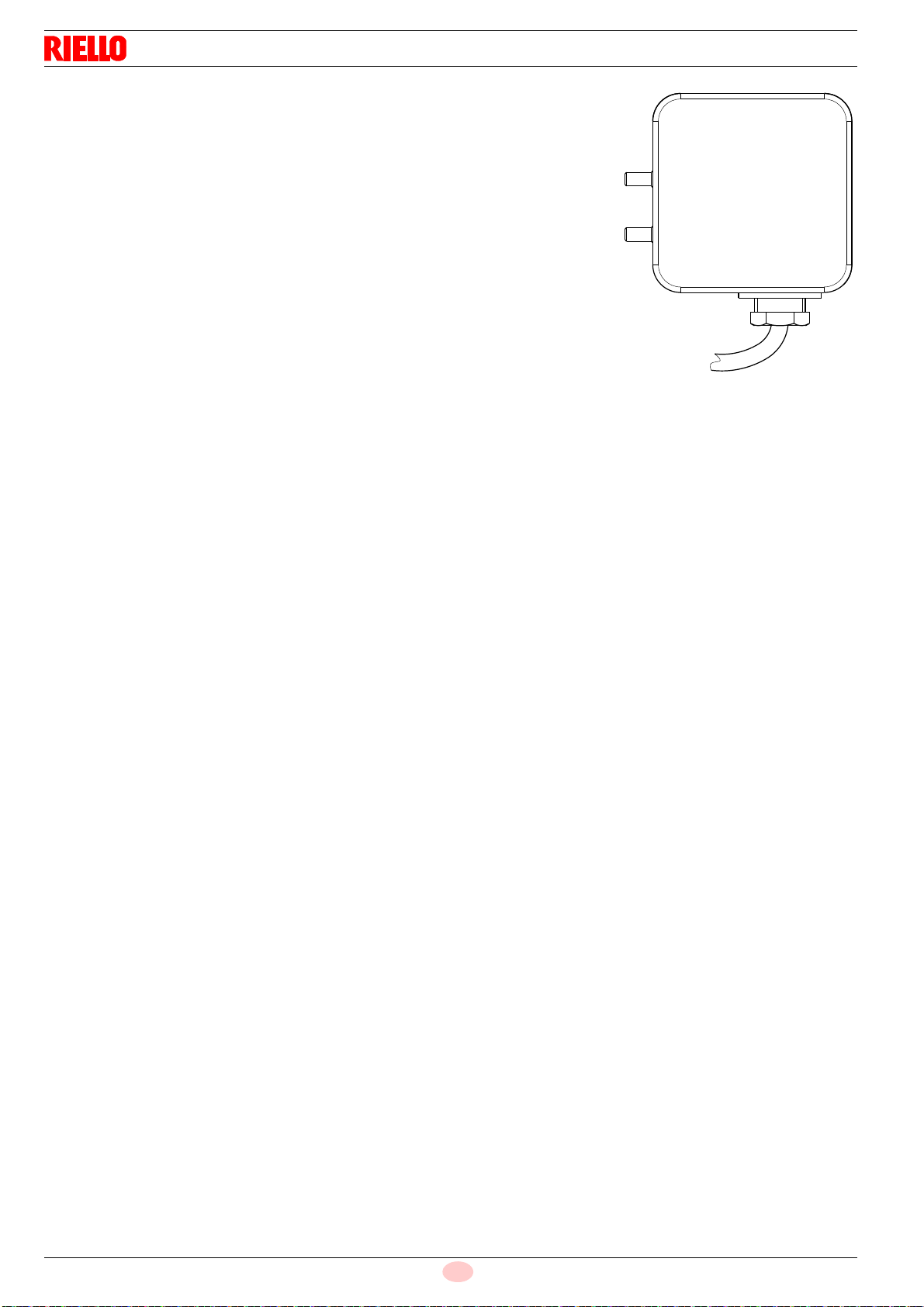

CONTROL BOX, (see fig. 2)
To extract the control box from the burner it is nec-
essary:
to disconnect all the connectors connected to it,
the 7 pin plug, and the earth wire (TB);
undo the screw (A) and pull out the control box
in the direction of the arrow.
For the installation of the control box it is neces-
sary:
to tighten up the screw (A) with a tightening
torque of 1 – 1.2 Nm;
connect all the connectors that were previously
connected.
Fig. 2
KEY TO LAYOUT
AD – Air damper opening motor
C– Motor capacitor
CN1 – Ionising probe connector
E– Ignition electrode
h1 – Hour counter
(230V - 0.1A max.)
MV – Fan motor
PA – Air pressure switch
PG – Minimum gas pressure switch
RS – Remote reset conn.
SB – Lockout light
(230V - 0.5A max.)
SM – Single stage gate conn.
SO – Probe ionisation
TB – Burner earth
TL – Limit thermostat
TS – Safety thermostat
T6A –Fuse
V1 – Adjustment valve
VS – Safety valve
XP6 – 6 pin plug/socket
XP7 – 7 pin/plug socket
F–Filter
D7388

20013751 6
GB
COMBUSTION HEAD ADJUSTMENT
Loosen the screw (A), move the elbow (B) so that the
rear plate of the coupling (C) coincides with the set
point.
Tighten the screw (A).
Example:
The burner is installed in a 40 kW boiler.
Considering efficiency of 90% the burner must
supply around 44 kW.
The diagram shows that for this
output the adjustment must be
made on notch 3.
The diagram is to be used only for
initial settings, to improve air pres-
sure switch operation or improve
combustion, it may be necessary to
reduce this setting (set point
toward position 0).
AIR DAMPER ADJUSTMENT
The air damper opening motor (1) controls the damper (6);
the burner does not start until the damper (6) is completely
open.
To adjust the fixed damper (4) it is necessary to:
loosen the screws (3 and 5) and rotate the damper as
far as the required point (2).
Once optimum adjustment has been reached, fix the
screws (3 and 5).
The adjustment of the damper varies in each single appli-
cation, so it is necessary to use a calibration tool to obtain
an efficient combustion result.
Important:
It is advisable to carry out an analysis of the combustion
values with the hood assembled.
S7015
C
A
B
Set point
02134
70
50
40
30
20
10
60
40,000
50,000
30,000
20,000
10,000
kcal/h kW D5137
60,000
5
44
D7305
1
5
4
3
2
6

7 20013751
GB
COMBUSTION ADJUSTMENT
In conformity with Efficiency Directive 92/42/EEC, the application of the burner on the boiler, adjust-
ment and testing must be carried out by observing the instruction manual of the boiler, including
verification of the CO and CO2concentration in the flue gases, their temperatures and the average
temperature of the water in the boiler. It is advisable to set the burner according to the type of gas
used and following the indications of the table:
PROBE - ELECTRODE POSITIONING
IMPORTANT
Do not turn the starting electrode but leave it as shown in the drawing; if the starting electrode is put
near the ionization probe, the amplifier of the control box might be damaged.
IONISATION CURRENT
The minimum current necessary for the con-
trol box operation is 5 μA.
The burner normally supplies a higher cur-
rent value, so that no check is needed.
Should you want to measure the ionisation
current anyway, you must open the connec-
tor (CN1) (see wiring diagram page 5)
inserted in the red wire and insert a microammeter.
EN 676 AIR EXCESS: max. output λ≤1.2 – min. output λ≤1.3
GAS Theoretical max. CO2
0 % O2
Setting CO2% CO
mg/kWh NOx
mg/kWh
λ= 1.2 λ= 1.3
G 20 11.7 9.7 9.0 ≤100 ≤170
G 25 11.5 9.5 8.8 ≤100 ≤170
G 30 14.0 11.6 10.7 ≤100 ≤230
G 31 13.7 11.4 10.5 ≤100 ≤230
D5033
Ignition electrode
Diffuser
WARNING 2.5 – 3.5 mm
Probe
Probe Electrode
Put the ceramic
near the diffuser disc
2
D4625 +_
Probe
Connector
Socket
of control-box

20013751 8
GB
AIR PRESSURE SWITCH
The air pressure switch is set after all other adjustments have been
made. Begin with the switch at the lowest setting. With the burner
function at the required power, turn the knob slowly in a clockwise di-
rection until burner lockout.
Then turn the knob anticlockwise to an extent that is around 20% of
the adjusted value and then check that the burner starts up properly. If
the burner locks out again turn the knob slightly in an anticlockwise
direction.
Attention:
In conformity with the standard, the air pressure switch must prevent
the air pressure falling below 80% of the adjusted value and the CO in
the flue gases exceeding 1% (10,000 ppm). To check this, insert a
combustion analyser in the flue, slowly reduce the burner air setting
(for example with a piece of cardboard) and verify that the burner
locks out before the CO value in the flue gases exceeds 1%.
D7404

9 20013751
GB

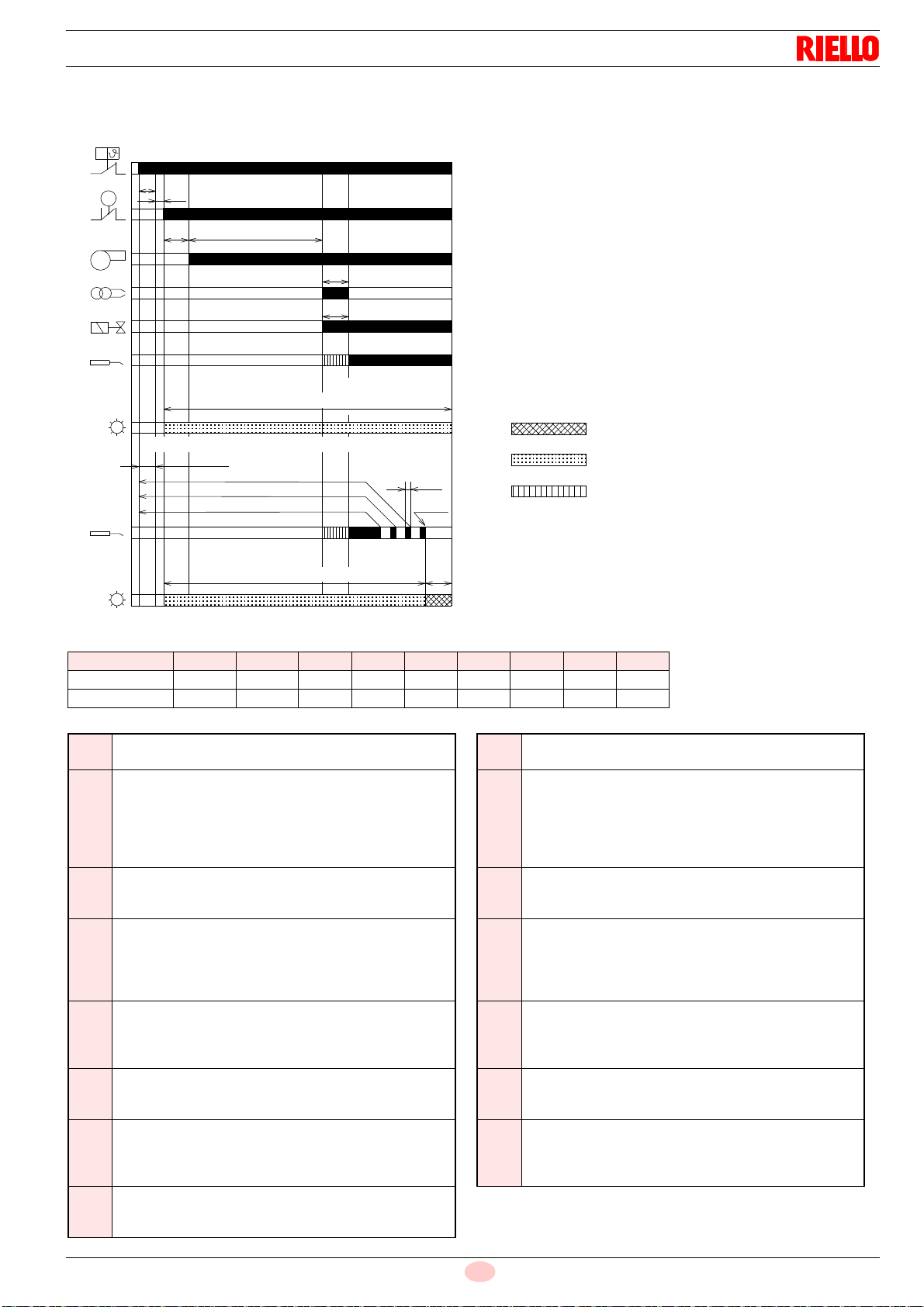

OPERATING PROGRAMME
NORMAL OPERATION
t 4i
t s
t 4L
AD
M
I
V
SO
LED
LED
M
M
.
t 1
SO
t
2
TL
P
t3d t3
KEY TO LAY-OUT
I– Ignition transformer
LED – Reset button LED indicating operating
status
M– Fan motor
SO – Ionisation probe
TL – Limit thermostat
V– Gas valve
AD – Air damper opening motor
t1 Standby time pending an input signal to control box:
reaction time, the control box stands still for the time t1.t3I Flame or flame simulation detected during pre-purging: immediate lockout.
t1I Flame or flame simulation detected before demand for
heat: the appliance stands still. t3r
A recycle attempt is made in the event of a pressure
drop during pre-ventilation: in the case of a second air
pressure drop between the 16th and 29th second
another lockout follows; if there is a pressure drop
between the 30th second and 40th second , the appli-
ance immediately goes into lockout.
t2 Wait time after a request for heat:
the control box stays still for the t2 time. ts Safety time:
if at the end of the ts time there is no flame, a lockout
follows.
t2a
Check whether the air pressure switch has already been
moved to the work position before the required heat:
the control box remains in standby status, a lockout fol-
lows if the air pressure switch remains switched for the
T2a time.
t4a Air pressure drop checking time during the ts time and the normal operation:
the control box locks out immediately.
t2I
Flame or flame simulation detected before during
standby time:
lockout occurs if flame or flame simulation persists for
time t2l.
t4i Transformer turn on time:
total ignition time.
t3 Pre-purging time:
start of the fan motor. t4I Flame loss in operation:
valve drop maximum reaction time, lockout occurs after
3 recycle attempts.
t3a
Time for checking the switching of the air pressure
switch in the operating position during the pre-purging
time: if the pressure switch does not switch within t3a
a lockout follows.
t6 Post-purging time:
additional purging time on the opening of the heat limit
thermostat (TL)
t3d Opening time of air damper opening motor: time to reach the opening position of the electrical
damper.
D7400
MV = still
Flame loss during operation (Recycle max 3 attempts)
Lock-out
Red (LED lights)
Green (LED lights)
No signal needs to be received
Green
Red
OPERATING TIMES (in seconds)
t1, t3l, t4l, t4a t2l t2, t4i t2a t3 t3a t3d t3r ts t6
max max - - - max - max - max
1 30 3 120 40 15 4 70 3 360
Green

20013751 10
GB
LOCKOUT DUE TO FIRING FAILURE
LOCKOUT TYPES AND TRIGGERING TIMES IN CASE OF BURNER MALFUNCTION
DESCRIPTION OF THE FAULT TYPES LOCKOUT
Presence of flame during the waiting time "t2" After max. 30 seconds (after TL)
Presence of flame in pre-purging or loss of air pressure on functioning Within 1 second
Air pressure loss during pre-ventilation; After a maximum of 1 repetition within one second
No ignition at the end of the safety time “ts” Within three seconds
Flame goes out during operation After a maximum of 3 repetitions within one second
Air pressure switch broken before or after the burner starts up Within 120 seconds, within 15 seconds
t s
M
I
V
SO
LED
M
t 4i
t3d t
3
.
P
TL
t
1
t 2
M
AD
t2
ts
M
I
V
SO
LED
M
t1
t3
P
TL
M
AD
t3d
LOCKOUT DUE TO A FLAME OR FLAME SIMULATION
DETECTED DURING PRE-PURGING:
D7401
Red
Red
Lock-out
D7402
KEY TO LAY-OUT
I– Ignition transformer
LED – Reset button LED indicating operating
status
M– Fan motor
SO – Ionisation probe
TL – Limit thermostat
V– Gas valve
AD – Air damper opening motor
Red (LED lights)
Green (LED lights)
Green
Lock-out
Red (LED lights)
Green (LED lights)
Green
OPERATING TIMES (in seconds)
t1, t3l, t4l, t4a t2l t2, t4i t2a t3 t3a t3d t3r ts t6
max max - - - max - max - max
1 30 3 120 40 15 4 70 3 360

11 20013751
GB
COLOUR CODE OF THE CONTROL BOX RESET BUTTON LED
(*) only for applications provided for.
RESET CONTROL BOX (FROM BUILT-IN BUTTON)
To reset the appliance proceed as follows:
Press the reset button for 1-2 seconds. If the burner fails to restart check that the limit thermostat (TL) is
closed.
Should the reset button of the appliance continue to flash showing the cause of failure (RED LED),
push the button for not more than 2 seconds.
Warning:
If the reset button is pressed for more than 2 seconds the appliance goes into the visual diagnostics phase and
the LED indicator begins to flash (see VISUAL DIAGNOSTICS CONTROL BOX).
RESET CONTROL BOX (FROM REMOTE CONNECTION)
The use of a connection available as an accessory is provided for the remote resetting of the control box.
RECYCLE FUNCTION (in case of disappearance of the flame during operation)
The control box permits a recycle, in other words the complete repetition of the start.-up programme, up to a max-
imum of 3 attempts in the case in which the flame goes out during operation.
If the flame goes out yet again ( 4th time) the burner goes into lockout. If there is a new heat request during recy-
cle , the 3 attempts are reset when the limit thermostat (TL) is switched.
LOGGING OF BURNER OPERATING PARAMETERS
With this control box, data - i.e. the number of lockout that have occurred, the type of lockout that has occurred
(just the last one) and the oil valve opening operating time - can be logged even when there is no power supply.
That way, you can determine how much fuel has been consumed during operation.
For the display of these parameters it is necessary to connect the diagnostic software kit as described on page
2.
ADDITIONAL, PROGRAMMABLE CONTROL BOX FUNCTIONS
POST-PURGING FUNCTION (t6)
Post-purging is a function that keeps air purging on even after the burner switches off. The burner switches off
when the limit thermostat (TL) opens, consequently cutting off the fuel supply to the valves. To use this function
the reset button must be pressed when the limit thermostat is not switched (burner switched off).
Post-purging time can be set to a maximum of 6 minutes, proceeding as follows:
Press and hold the reset button for at least 5 seconds till the LED indicator changes to red.
Set the desired time by pressing the button the appropriate times: once = post-purging for 1 minute.
After 5 seconds the control box automatically shows the minutes set by the red LED blinking: 1 led pulse =
post-purging for 1 minute.
To reset this function, press and hold the button for at least 5 seconds at least, till the LED indicator changes to red
then release it without carrying out any operation, then wait for 20 seconds for the burner to start again.
If during post-purging there is a new request for heat, post-purging time is halted and a new burner operating cy-
cle starts when the limit thermostat (TL) switches.
The control box's factory settings are as follows: 0 minutes = no post-purging.

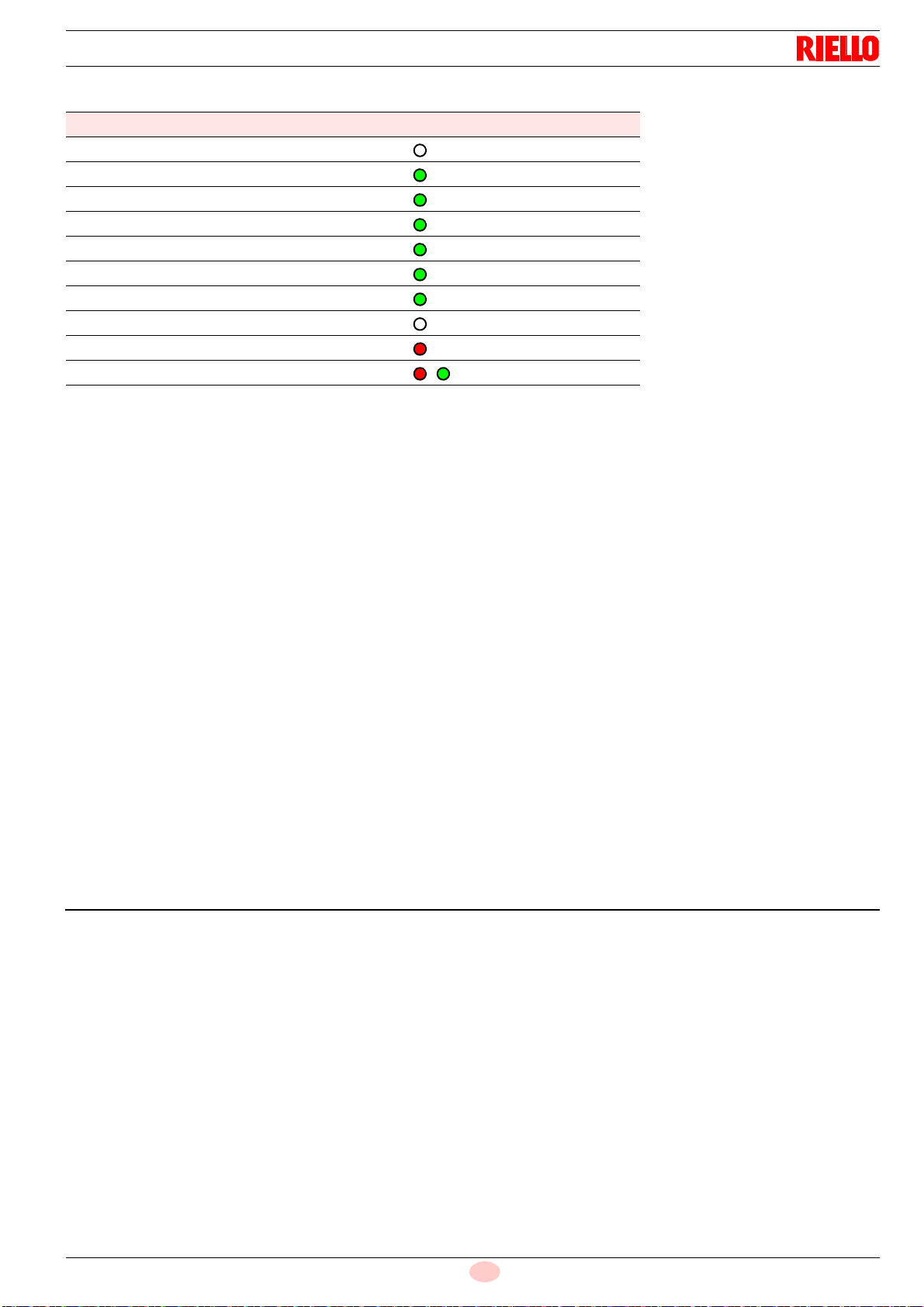

Operating status LED colour codes
Wait Led unlit
Pre-purging Green
Transformer turn on Green
Regular flame Green
Post-purging Green
Recycle Green
Continuous purging(*)Green
Flame present during start up Led unlit
Lock-out Red
Lockout with continuous purging (*)Red + Green

20013751 12
GB
CONTINUOUS PURGING FUNCTION, (only for applications in which this is provided for)
Continuous purging is an operation that maintains the air purging regardless of whether there is a request for the burner
to turn on or not. From the moment it is set, the motor keeps running whether the limit thermostat (TL) has not been
switched (burner off), or when the burner is blocked.
When the limit thermostat (TL) is switched, the motor stops for a standby time of 4 seconds (standby position = t2
+ t1), the air pressure switch is subsequently checked and a new burner operation cycle starts.
The function can be set from the reset button when the limit thermostat (TL) is not switched (burner off), by
following the procedure in the post-purging function paragraph pressing the button 7 times = continuous
purging.
To reset this function, press and hold the button for at least 5 seconds at least, till the LED indicator changes to red
then release it without carrying out any operation, then wait for 20 seconds for the burner to start again.
The control box's factory settings are as follows: 0 minutes = no continuous post-purging.
FUNCTION SETTING PROCEDURE USING RESET BUTTON
MAINTENANCE
Before cleaning or performing checks, switch off the burner’s power supply with the system’s master
switch and close the gas shutoff valve.
The burner requires periodic maintenance carried out by a qualified and authorised technician in conformity with
legislation and local standards.
Periodic maintenance is essential for the reliability of the burner, avoiding the excessive consumption of fuel and
consequent pollution.
THE BASIC OPERATIONS ARE: :
Checking that there are no obstructions or kinks in the supply or return oil pipes, in the air intake regions
and the combustion product discharge tubes.
Checking that the burner and gas train electrical connections are correct.
Checking that the gas train is suitable for the burner's power, the type of gas used and the mains gas pres-
sure.
Checking the proper positioning of the combustion head and its fixing to the boiler.
Checking the proper positioning of the air damper.
Checking the proper positioning of the ionisation probe and electrode.
Checking the adjustment of the air pressure switch and the gas pressure switch.
Let the burner work at full speed for approximately ten minutes, correctly adjusting all the elements indicated in
this manual. Then carry out the analysis of the scale combustion by checking:
Percentage of CO2(%); CO Content (ppm); NOx content (ppm);
Ionisation current (μA); Flue gases temperature at the flue;
Control box function Action with the reset button Possible Reset button use status
Reset 1 - 2 seconds After control box lockout
Visual diagnostic of the causes of the
lockout 3 seconds After control box lockout
Post-purging 5 seconds then press
once = 1 minute With limit thermostat (TL) not switched (burner off)
Continuous purging (only for applica-
tions provided for). 5 seconds then press 7 times = continuous purging With limit thermostat (TL) not switched (burner off)
Resetting set functions 5 seconds With limit thermostat (TL) not
switched (burner off)
Resetting operating parameters 5 seconds With limit thermostat (TL) switched
during pre-purging

13 20013751
GB
VISUAL DIAGNOSTICS CONTROL BOX
The control box supplied features a diagnostics function through which any causes of malfunctioning can be
identified (indicator: RED LED signal).
To use this function, you must press and hold the reset button for at least 3 seconds once it has entered the
safety condition (lockout).
The control box generates a sequence of led pulses, which is repeated at constant 2-second intervals.
The sequence of led pulses issued by the control box identifies the possible types of malfunction, which are
listed in the table below.
To reset the control box after the diagnostics display, press the lockout-reset button.
SIGNAL PROBABLE CAUSE
2pulses

The flame does not stabilise at the end of the safety time:
– faulty ionisation probe;
– faulty gas valve;
– neutral/phase inverted;
– faulty ignition transformer;
– poor burner adjustment (insufficient gas).
3pulses

Min. air pressure switch does not close or is already closed before the limit thermo-
stat closing:
– air pressure switch faulty;
– air pressure switch incorrectly regulated.
4pulses

Flame presence:
– after closing the limit thermostat;
– during pre-ventilation.
6 pulses

Air pressure drop:
– during pre-purging;
– during safety or operating time.
7pulses

Disappearance of the flame 4 times during operation:
– poor burner adjustment (insufficient gas);
– faulty ionisation probe;
– faulty gas valve;
– short circuit between ionisation probe and earth.
         
2sPulses Pulses
RED LED illuminated
press reset for 3 sec. Interval
ATTENTION

20013751 14
GB
FAULTS / SOLUTIONS
Here below you can find some causes and the possible solutions for a series of problems that could cause a
failure to start or the poor operation of the burner. A fault in the operation usually switches on the lockout lamp,
situated inside the reset button of the control box (7, fig. 1, page 1). When lock-out lamp lights the burner will
attempt to light only after pushing the reset button. After this if the burner functions correctly, the lock-out can
be attributed to a temporary fault. However, if lockout continues, you must determine the cause of the problem
and take the action illustrated in the tables below .
START-UP PROBLEMS
FAULTS POSSIBLE CAUSES SOLUTION
The burner does not
start when the limit
thermostat closes.
Lack of electrical supply.
Check for voltage at L1-N terminals in 7-
pin plug.
Check the conditions of the fuses.
Check that safety thermostat is not lock
out.
Gas is not supplied.
Check gate opening.
Make sure that valves have changed
over to open position and that there are
no short circuits.
The gas pressure switch does not
close the contact. Adjust it.
The connections in the control box
are wrongly inserted. Check and connect completely all the plugs.
The air pressure switch has
changed over to the operational
position. Replace the pressure switch.
The air damper opening motor is
faulty. Check the connection or replace the mo- tor.
Burner runs normally in
the prepurge and igni-
tion cycle and locks out
after 5 seconds ca.
The phase-neutral connection is in-
verted Swap them over.
The wiring to the earth is lacking or
ineffective. Make earth connection efficient.
Ionisation probe has a ground fault
or is not in contact with flame, or
there is a break in its wiring to con-
trol box, or there is a ground fault
due to its insulation being defective.
Check right position and, if necessary,
adjust as indicated herein.
Restore electrical connection.
Replace faulty lead.
Burner starts with an ig-
nition delay.
Ignition electrode is wrongly
positioned. Adjust properly as indicated herein.
Air output is too high. Set the air output according to the
instructions of this manual.
Valve brake not open enough with
insufficient gas allowed through. Set correctly.
The burner locks out,
after the pre-purge pe-
riod, because the
flame does not ignite.
The solenoid valves let too little
gas through.
Check mains pressure and/or adjust the
solenoid valve as indicated in this manu-
al.
The valves are faulty. Replace them.
The electric ignition arc is irregular
or not present;
Make sure connectors are inserted prop-
erly.
Make sure electrode is in the right posi-
tion as indicated herein.
Air in the piping. Completely bleed the gas feed line.

15 20013751
GB
TROUBLE DURING OPERATION
The burner does not
pass through the pre-
purge and locks out.
The air pressure switch does not
switch
The pressure switch is defective; Re-
place it.
The air pressure is too low (combustion
head incorrectly set).
Flame is detected. Defective valves: replace them.
The burner continues
to repeat the starting
cycle without locking
out.
The gas pressure in the mains is
very near the value the gas pres-
sure switch is adjusted to. Conse-
quently, the sudden falling off in
pressure at the opening of the
valve causes the pressure switch
to open meaning the valves imme-
diately close and the motor stops.
The pressure then increases, the
pressure switch closes and the
starting cycle is started again, and
so on.
Reduce the pressure switch pressure
setting.
FAULTS POSSIBLE CAUSES SOLUTION
Burner locks out
during operation.
Probe has ground fault. Check right position and, if necessary,
adjust as indicated herein.
Clean or replace ionisation probe.
Flame disappears four times. Check gas mains pressure and/or adjust the solenoid valve, as indicated in this
manual.
Opening of the air pressure switch
The air pressure is too low (combustion
head incorrectly set).
The pressure switch is defective:
replace.
The burner stops. Opening of the gas pressure switch Check mains pressure and/or adjust the
solenoid valve as indicated in this
manual.
FAULTS POSSIBLE CAUSES SOLUTION

20013751 16
GB
WARNINGS AND SAFETY
The dimension of the boiler’s combustion chamber must respond to specific values, in order to guarantee a
combustion with the lowest polluting emissions rate.
You are therefore advised to consult the Technical Assistance Department before choosing this type of burner
for the combination with a boiler. Qualified personnel are those with the professional and technical require-
ments indicated by law no. 46 dated March 5, 1990.
The commercial organisation has a widespread network of agencies and technical offices whose personnel
participates periodically in instructional and refresher courses at the Company Training centre.
This burner must only be used for the purposes it has specifically been designed for.
All contractual and other liability on the part of the manufacturer is excluded for injury caused to people, ani-
mals or damage caused to property due to faulty installation, adjustment, maintenance or improper use.
BURNER IDENTIFICATION
The Identification Plate on the product gives the serial number, model and main technical and performance
data. Tampering with, removal or absence of the Identification Plate will mean it is not possible to identify the
product with certainty and therefore make any installation or maintenance difficult and/or dangerous.
BASIC SAFETY MEASURES
The control box may not be used by children or inexpert people.
Under no circumstances may intake grilles or heat dissipation grilles or the ventilation openings in rooms
where the control box is installed be plugged with rags, paper or anything else.
No attempt must be made to repair the control box by non-authorised personnel.
It is dangerous to twist or pull the electrical cables.
Under no circumstances must any attempt be made to carry out any cleaning operations before unplugging
the control box from the electrical supply.
Do not clean the control box or any of its parts with substances that can easily catch fire (e.g. petrol, alcohol,
etc.). The cover must be cleaned with soapy water.
Do not rest anything on the burner.
Do not plug or reduce the size of the ventilation openings in the room where the generator is installed.
Do not leave containers and inflammable substances in the room where the control box is installed.
WARNINGS TO AVOID BURNOUT OR BAD COMBUSTION OF THE BURNER
1 – When the burner is stopped, the flue must stay open and effect a natural draught in the combustion
chamber. If the smoke pipe is closed, the burner must be drawn back till the extraction of blast pipe
from the furnace. Before operating in this way take the voltage off.
2 – The premises the burner operates in must have same openings to allow the air necessary for com-
bustion to pass through. To be sure about this, you have to control CO2and CO in the exhaust
gases with all the windows and doors closed.
3 – If there are air intakes in the premises the burner works in make sure there are intakes big enough
to ensure the change required; In any case, check that when the burner stops the extractors do not
draw hot fumes from pipes through the burner.

1 20013751
CN
技术数据
对于 3 类燃气 （LPG) 适用的组件
燃烧器符合 EN60529 的 IPX0D(IP40）防护等级。
根据 EN676 指令，燃烧器允许间隙运行。
带有 CE 标记的燃烧器符合 EEC 下列指令：EMC89/336/EEC-2004/108/EC. 低电压 73/23/EEC2006/
95/EC. 机器 98/37/EEC 和效率为 92/42/EEC。
燃气阀组符合 EN676 标准。
注意：
提供的附件电缆护套 （3）和固定螺钉 （4），应该安装在燃气阀组的同侧。
类型 552T1
热功率 18 – 58 kW – 15,500 ÷50,000 kcal/h
天然气
( 2 类)8 – 12 kWh/Nm3– 7.000 ÷10.340 kcal/Nm3
压力 最小 10 mbar – 最大 40 mbar
电源 单相 , 230V ± 10% ~50Hz/60Hz
电动机 0.75 A 运行电流 - 2800 rpm. - 294 rad/s
电容器 2 μF
点火变压器 初级 230V/0.2A – 次级 8 kV
电功消耗 0.15 kW
国家 DE DK - AT - GR - SE GB - IE LU NL
气体类别 II2ELL3B/P II2H3B/P II2H3P II2E3B/P II2L3B/P
1- 风门挡板
2- 风门挡板固定螺钉
3- 电缆护套
4- 固定螺钉
5- 风压开关
6- 电机
7- 带有复位按钮的锁定指示灯
8- 控制盒
9- 燃气阀组的 6 孔插座
10- 电容器
11- 风门挡板的控制电机
1
3
2
2
4
9
8
7
D7387
5 6 10
图1
11

20013751 2
CN
燃烧器附件
配件
软件诊断组件
通过红外线将组件连接到电脑上，能够显示燃烧器使用寿命，运转时间，锁定的类
型和编号和序号等。
执行如下操作，以显示诊断结果：
分别将提供的设备连接到控制盒上的插口处。
在软件程序启动之后阅读相关信息。
外观尺寸
复位组件
用于对控制盒的远程复位，作为配件提供。
数量 描述
4
1
3
1
1
1
带有螺帽的螺钉
隔热垫
固定螺钉
护套
铰链
7针插头
法兰 燃烧器
272 100 295 ø 170
130 28 48
45°
45°
ø 91
233
10
140
Rp 1/2
180
138
*125
D5066
单独提供的加长燃烧头
*
