Rigel PD-108J User manual

ISSUED: 25 FEB 2016
INSTRUCTION MANUAL
PD-108J
3-IN-1 RECESSED
WASHROOM PANEL

The instructions contained herein are for the safe and correct use, care and maintenance of the
product, to minimize the risk of injury and damage to yourself, other persons, or property.
Please read the following safety information thoroughly and retain this document for future use
and reference.
Instructions accompanied by this symbol could lead to death
or serious injury if they are ignored or followed improperly.
Dangerous Voltage Inside
Do not expose the unit to rain or moisture to prevent shock and
fire hazard.
Please read this manual and ensure that you understand the instructions and procedures stated
within before installing or operating the product.
While every effort has been made to ensure that the information contained within this document
was accurate and complete at the time of printing, Rigel Technology (S) Pte Ltd shall not be
held responsible for any errors, omissions or inaccuracies. By installing or using the product,
the user agrees that no responsibility for the consequences resulting from any misinformation
shall be incurred on Rigel Technology (S) Pte Ltd. Rigel Technology (S) Pte Ltd reserves the
right to change the specifications and functions of the product described herein at any time
without prior notice.
No part of this guide may be reproduced, stored in a retrieval system, or trans-mitted, in any
form or by any means, electronic, mechanical, recording, or otherwise, without the prior written
permission of Rigel Technology (S) Pte Ltd.
IMPORTANT SAFETY, INSTALLATION AND OPERATING INSTRUCTIONS
Rigel products have been designed and tested to be safe and risk-free when installed, operated
and maintained in good working order, in accordance with the instructions and
recommendations found i this document.
There are no user-serviceable parts in this product. Please contact a qualified and licensed
tradesperson should the product require dismantling and/or repairs.
Supervision should be given to any persons who may have difficulty understanding or operating
the controls of the product. Extra consideration should be given to the young, infirm, elderly, or
any person inexperienced in the correct operation of the product's controls.
Regular cleaning of the sensor eyes is recommended to remove dirt and stains which may
impede the sensor's functionality.
IMPORTANT SAFETY INFORMATION

1) Products manufactured in Rigel are safe and without risk provided that they are installed, used
and maintained in good working order in accordance with our instructions and recommendations.
2) This appliance MUST be earthed.
3) There are no user serviceable parts in this hand dryer, only a competent tradesperson should
dismantle the unit to carry out repairs.
4) If you suspect any malfunctioning of this unit, switch off the electricity supply and inform your
supplier or installer immediately.
5) Turn off the electrical supply before removing the cover. Mains connections are exposed when
the cover is removed.
6) If any of the following conditions occur, isolate the electricity supply and contact the supplier or
installer:
i. If the cover is not properly fitted and water has entered the hand dryer case.
ii. If the case is damaged.
iii. If the hand dryer makes an unusual noise, smells or gives off smoke.
iv. If the hand dryer shows a distinct change in performance, indicating a need for maintenance.
7) The supply cord cannot be replaced. If the cord is damaged, the appliance should be
scrapped.
8) Any person who may have difficulty understanding or operating the controls of the hand dryer
should be supervised while using the appliance. Particular consideration should be given to the
young, the elderly, the infirm or anyone inexperienced in the correct operation of the controls.
9) Disconnection must be incorporated in fixed wiring in accordance with the wiring rules.
IMPORTANT SAFETY INFORMATION
CUSTOMER SUPPORT
CONTACT US
RIGEL TECHNOLOGY (S) PTE LTD
RIGEL INNOVATION CENTER
No 20, Changi Business Park Central 2 , Singapore 486031.
Tel: [phone] Fax: [phone]
RIGEL TECHNOLOGY (M) SDN BHD
Wisma Rigel, 16 & 18, Jalan 3 / 33B, MWE Commercial Park, 6 1/2 Miles, Off Jalan Kepong,
52000 Kuala Lumpur, Malaysia
Tel: [phone] Fax: [phone]
RIGEL TECHNOLOGY (NINGBO) CO. LTD
No 6,Three Road of Chuang Ye West of Bonded Zone , Beilun, 315800 Ningbo, Zhejiang, China
Tel: [phone] Fax: [phone]
RIGEL TECHNOLOGY CERAMICS (SICHUAN) CO. LTD
Shuanghecha ng. Anfu Town, Naxi District, 646300 Luzhou City, Sichuan, China
Tel: [phone] Fax: [phone]
Office Working Hours: 8:30am - 6.00pm (Monday to Thursday)
8:30am - 5.30pm (Friday)
E-mail: [email protected]
Website: www.rigel.com.sg
Office Working Hours: 8:30am - 6.00pm (Monday to Friday)
E-mail: [email protected]
Website: www.rigel.com.my
AFTER-SALES SERVICE
Our Customer Support Team is comprehensively trained to provide help and advice, spare parts
or a service visit.
SPARE PARTS
We maintain an extensive stock of spares and aim to have functional parts available for ten years
from the date of final manufacture of the product. Spares can be purchased from approved
stockists or merchants (locations on request) or direct from our Customer Support Department.
Spares direct will normally be dispatched within two working days.
NOTE
In the interest of safety, spares requiring exposure to mains voltages can only be sent to qualified
persons.
SERVICE
Our Customer Support Team is available to provide quality service at a reasonable cost. You will
be assured of the services of a trained engineer / agent, genuine spares and a 6-month
guarantee on the repair.

ELECTRICAL INSTALLATION REQUIREMENTS
1) The installation must comply with the " Requirements for Electrical
Installation" commonly referred to as the IEE Wiring Regulations, or any
particular regulations and practices, specified by the local electricity
supply company in force at the time of installation.
2) In accordance with e current edition of "The Plugs and Sockets etc
(Safety) Regulations" in force at the time of installation, the appliance is
intended to be permanently connected to the fixed wiring of the electrical
mains system.
3) In domestic installation, the rating of the electricity supply company
fuse and the consumer unit must be adequate for the additional demand
required for the unit. As this is a high powered unit, it is essential to
contact your electricity supply company to ensure that the existing supply
is adequate for the additional load. Voltage drop due to high local
demand will reduce the product performance.
4) The unit must be earthed by connecting the supply cable earth
conductor to the earth terminal. Within the washroom, all accessible
conductive parts of electrical equipment and extraneous conductive
(metal) parts that are likely to introduce earth potential, must be
electrically bonded to earth using a minimum 4mm² cable if unprotected
and 2.5mm² cable if protected.
5) To obtain full advantage of the performance from the unit, it is
advisable to have the shortest possible route for the cable from the
consumer unit to the product. Long cable runs will increase the voltage
drop and affect the performance of the unit. The maximum permissible
length is dependent upon current demand, voltage drop and cable size,
refer to IEE Wiring regulations for further information.
Please read the following warranty information thoroughly and retain this document for future
use and reference.
Rigel Technology (S) Pte Ltd ("Rigel") warranties the products against any defect of materials
or workmanship for a period of 1 year from the date of purchase.
Within the warranty period, all defective parts will be repaired and/or replaced free of charge.
To be eligible for free repair and/or replacement, any service work on the product must be
undertaken by Rigel or our approved agents.
Service under this warranty will not affect the warranty expiry date, and any warranty on
exchanged parts or products will end when the warranty expires.
This warranty is only applicable for products properly installed and operated in accordance to
the operating procedures stated in the instruction manual.
This warranty does not extend to washroom accessories or other peripheral items.
Rigel's responsibility under this warranty does not apply to damage/defects caused by:
·Misuse, negligence, or accidents.
·Public abuse or vandalism.
·Repairs or alterations not authorized by or performed without consultation from Rigel.
·Repairs or alterations that do not comply with Rigel's installation instruction.
·Repairs or alterations that were not performed with genuine parts supplied by Rigel.
Rigel will not be held liable for any incidental or consequential damages, including loss of
profits or savings, arising from the use or misuse of the products.
The terms in this warranty are only valid after:
·Full payment has been made.
·The official Warranty Card is completely and correctly filled out in ink and returned to Rigel
within 14 days of purchase. Loss or misplacement of the Warranty Card, or unauthorized
amendments to the Warranty Card, shall render the warranty null and void.
This warranty is in addition to your statutory and other legal rights.
WARRANTY

ELECTRICAL INSTALLATION REQUIREMENTS
6) The current rating to the cable will be reduced if it is bunched with
other cables, surrounded by thermal loft or wall insulation or placed in
areas where the ambient temperature exceeds 30°. Under these
conditions, de-rating factors apply and it is necessary to select a larger
cable size.
7) In the majority of installations, one or more of the above conditions will
apply and it is recommended that a 10mm² cable be installed. The
minimum recommended cable size in ideal conditions is 6mm².
8) A separate, permanently connected supply must be taken from the
consumer unit through a double pole switch, which has at least 3mm
minimum contact gap. The switch may be a ceiling mounted pull cord
type within the washroom or a wall mounted switch in an adjacent room.
9) A 30mA residual current device (RCD) must be fitted. This may be a
part of the consumer unit or a separate unit.
10) The product circuit must be protected by either a miniature circuit
breaker (MCB) or cartridge fuse of rating 10 amps installed at the
Consumer Unit or Fuse Board.
11) When installing the cable, individual cores must not be twisted before
entering the terminal block. Care should be taken that no strains are
exerted on the terminal block when connected to the cable cores. Ensure
all connections are tight to prevent overheating.
12) Do not turn on the electrical supply until the installation is complete
and the unit is ready to be operated.
BEFORE USING YOUR HAND DRYER
Please take time to read and understand the operating and safety
instructions detailed in this manual.
WHAT TO DO IF SOMETHING GOES WRONG
If when you first use your hand dryer it doesn't function correctly, first
contact your installer to check that installation and commissioning are
satisfactory and in accordance with the instructions in this manual. We
are in-hand to offer you or your installer any advice you may need.
Should this not resolve the difficulty, simply contact our Customer
Services who will give every assistance, and if necessary, arrange for our
service engineer to visit. If later the performance of the hand dryer
declines, consult this manual to see whether simple home maintenance is
required. Please call our Customer Services to talk the difficulty through,
request service under guarantee if applicable, or take advantage of our
comprehensive After-Sales service.
CUSTOMER SERVICE

DESCRIPTION
Dimensions
Automatic Hand
Dryer
RL-AHD101P
Waste Receptacle 300mm (L) x 150 (W) x 570mm (H)
Paper Towel
Dispenser
Unit requires 7 - 9 inches wide folded paper towel
(C-fold, Multi-fold or Single fold)
440(L) x 196(W) x 1515(H) (Overall)
3-IN-1 SEMI-RECESSED WASHROOM PANEL
SPECIFACATIONS
CUSTOMER FAULT DIAGNOSIS
WARNING
There are no user serviceable components beneath the cover of this
appliance. Only a competent tradesperson should remove the cover.
The trouble shooting information tabled below is for the guidance of the
purchaser.
In the event that these remedied do not solve the problem, the purchaser
should contact the installer or supplier for advise.
PROBLEM CAUSE REMEDY
Unit does not
operate
No hot air
Motor not
running
Power off;
Sensing distance too
short;
Sensing device
damaged
Heater broken
Motor damaged;
Capacitor damaged
Check power;
Adjust sensing distance*
Call service
Call service for replacement
Call service
Call service
!
FAULT DIAGNOSIS

DESCRIPTION AUTOMATIC HAND DRYER (RL-AHD101P)
Unit Design Equipped with an infrared sensing device that
drives a centrifugal fan and supplies hot air by
a set of heaters
ON/OFF Switch
Dimensions
Sensing Distance
Air Temperature
Operation Duration
Motor Type
Voltage
Frequency
Air Velocity
Operated by automatic infrared sensing device
267 x 210 x 148mm
22 cm (adjustable)
60°C - 63°C at 10 cm from heater
1 min (non-adjustable)
Induction type (Brushless) 50Hz
230V
50 Hz
10 m/s
Noise Level 45db
Output Power 970W
SPECIFACATIONS
3
_
_
_
2 1
+
All RIGEL products are tested before leaving the factory. With proper care
and usage, the products are durable, safe and reliable. Use only
accessories recommended by the manufacturer.
WARNING
A. Do not install the unit near fire, flammable or explosive material.
B. Do not use rough cloth, strong acid, alkaline, petrol or any other
organic solutions to clean the surface of the unit. Use wet cloth with
cleaner to wipe the exterior to keep the unit clean.
C. Do not use jet stream water to wash electrical wirings & connections.
SENSING DISTANCE ADJUSTMENT
*ADJUST SENSING DISTANCE SLOWLY.
Clockwise - to increase sensing distance
Counterclockwise - to reduce
!
MAINTENANCE INSTRUCTIONS

4
1
2
3
5
1. Place hands into the
hand dryer hole.
2. Dryer will turn on
automatically.
3. Rub your hands
quickly for faster
drying. Dryer stops
automatically when
user's hands are
removed.
HAND DRYER FEATURES :
1. The unit turns on automatically when hands are positioned within 22cm of the nozzle.
2. The sensor activates the unit with a 0.5 sec delay to avoid being turned on mistakenly by unintended
objects passing through.
3. The unit will cut power off when continuously operated for over 60 seconds to avoid unintended
activation by unwanted objects.
4. The concentrated strong, hot air flow dry hands in 10 sec -15 sec.
Switch ON the power supply to the unit.
WARNING DO NOT THROW ANY EXPLOSIVE OR
FLAMMABLE OBJECTS ON WASTE BIN.
!
To refill, open the casing with keys provided. Fill in with folded paper towels (See
specification for paper towel size).
NOTE: PLEASE USE THE SUGGESTED PAPER TOWEL SIZE. DO NOT
USE PAPER TOWEL SMALLER THAN THE PAPER DISPENSER
OPENING.
Use of garbage disposal plastic bags recommended. To clear, open the casing
with keys provided. Remove waste bin & replace waste bin plastic bags or wash
bin upon collection of garbage.
OPERATING INSTRUCTIONS
Illustration
NO. DESCRIPTIONS QTY
1
2
3
4
5
1
PD108J DOOR
1CASING COVER
1
PAPER DISPENSER
1AUTOMATIC HAND DRYER
1
WASTE RECEPTACLE
Descriptions
PART LIST
PART LIST

Illustration
PART LIST
5. Close the casing cover & secure cover with lock.
IMPORTANT NOTES
ALWAYS ENSURE THAT THE GAP IN BETWEEN THE SENSOR OF THE
HAND DRYER & WASTE RECPTACLE, AT LEAST 25cm (10 inches), IS
CLEAR FOR VENTILATION & TO PREVENT FALSE TRIGGERING.
5.
INSTALLATION INSTRUCTIONS

Waste bin
Hand
dryer
Screw
Descriptions
NO. DESCRIPTION PART NO. QTY
1
2
3
4
5
6
7
8
1
HD101P COVER
9
10
11
12
13
14
16
17
15
18
19
20
21
2
4
1
1
4
1
1
4
1
1
1
2
4
1
2
1
1
1
4
4
4
1
1
22
23
24
SCM5x8CSKHEX
SCM3NUT
SA-18x10
HD101 BRASEN
SCM3x6PP
HD101 LOUVER
HD101 BLOWER
SCM3x5PP
HD101 HEATER
HD101CA RELAY
SCM3x16PP
HD101 INSULPAD
TERBLK - L
SCM4x12PP
HD101 CONTROL
HD101-CAP
HD101 CHASSIS
SCM4x8TAP
SCM4x22TAP
SCM4PLAINWAS
WPLGM4x20
ALKEY 3-L
AZ2280-1A-12D ZETTLER RELAY
ALLEN KEY SIZE 3 , L SHAPE
WALL PLUG,20MM
HAND DRYER 101 COVER
M5x8 CSK HEX SOCKET SS SCREW
M3 SS NUT
SENSOR EYE ASSEMBLY
HAND DRYER 101 SENSOR EYE BRACKET
M3x6 PAN PHILLIPS SS SCREW
HAND DRYER 101 LOUVER
HAND DRYER 101 BLOWER FAN
M3x5 PAN PHILLIPS SS SCREW
HAND DRYER 101 HEATING UNIT
HD101 RELAY CABLE ASSEMBLY
M3x16PAN PHILLIPS SS SCREW
HAND DRYER 101 INSULATION PAD
TERMINAL BLOCK 'LARGE'
M4x12 PAN PHILLIPS SS SCREW
AHD101 CONTROLLER ASSEMBLY
HAND DRYER 101 CAPACITOR
HAND DRYER 101 CHASSIS
M4x8 BT TRUSS HD STS
M4x22 SELF TAPPING SCREW
M4 PLAIN WASHER
PART LIST
3. 4.
3. Secure mounting using screws onto 3 sides of wall cavity.
4. Insert the waste bin into the 3-in-1 recessed washroom
panel when the installation is done.
INSTALLATION INSTRUCTIONS
IMPORTANT NOTES
Item shown are illustration only, and therefore may not reflect actual
model supplied.

A/C Supply
cable
connection.
Cable connection
to A/C supply.
Back view of
PD108J.
Wall Plug
Finished floor
ELECTRICAL
* Make sure the electrical mains is OFF. Connect the cable to terminal block as follows:
Brown or Red - Live (L)
Blue or Black - Neutral (N)
Green or Green/ Yellow - Earth
INTERNAL SCHEMATIC WIRING DIAGRAM
SENSOR TRANSFORMER
Relay
CAPACITOR
M
Heater
Thermostat Thermal Fuse
L E N
Controller
Heating Elements
Fuse
IMPORTANT
A multipole switch should be fitted between the flushing system and the mains
connection, with a breaker point gap of at least 3mm (1/8") & from 15A to 250V.
INSTALLATION INSTRUCTIONS
1. Mark out and drill holes to insert wall plug on 3 sides of wall
cavity.Refer to ' installation diagram ' for mount position.
2. Ensure the position is upright . Connect the A/C connector
to power supply.
1. 2.
INSTALLATION INSTRUCTIONS
IMPORTANT NOTES
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE DOING ANY
INSTALLATION.
BEFORE INSTALLATION, MAKE SURE THAT THE POWER SOURCE IS
CORRECT.

160 120
49
612
87
320103
120160
50 29
4983 350
50 29
1482
440
1515
800 385
400
196
117
Mounting
hole
locations
Mounting hole
locations
Power
supply
connection
location
Hand Dryer
Mounting hole
locations
Mounting hole
locations
*413
*117 (Depth)
*1482*330
*350(Distance
between screw)
*1000 (Distance
between screw)
*50 *29
*1050~1150
Finished Floor
Finished Wall Concrete
PD108J
PD108J
*870 (Cable connection location)
Hand Dryer
Mounting hole
locations
Mounting hole
locations
Mounting hole
locations
GENERAL SPECIFICATION
*All dimensions are in mm

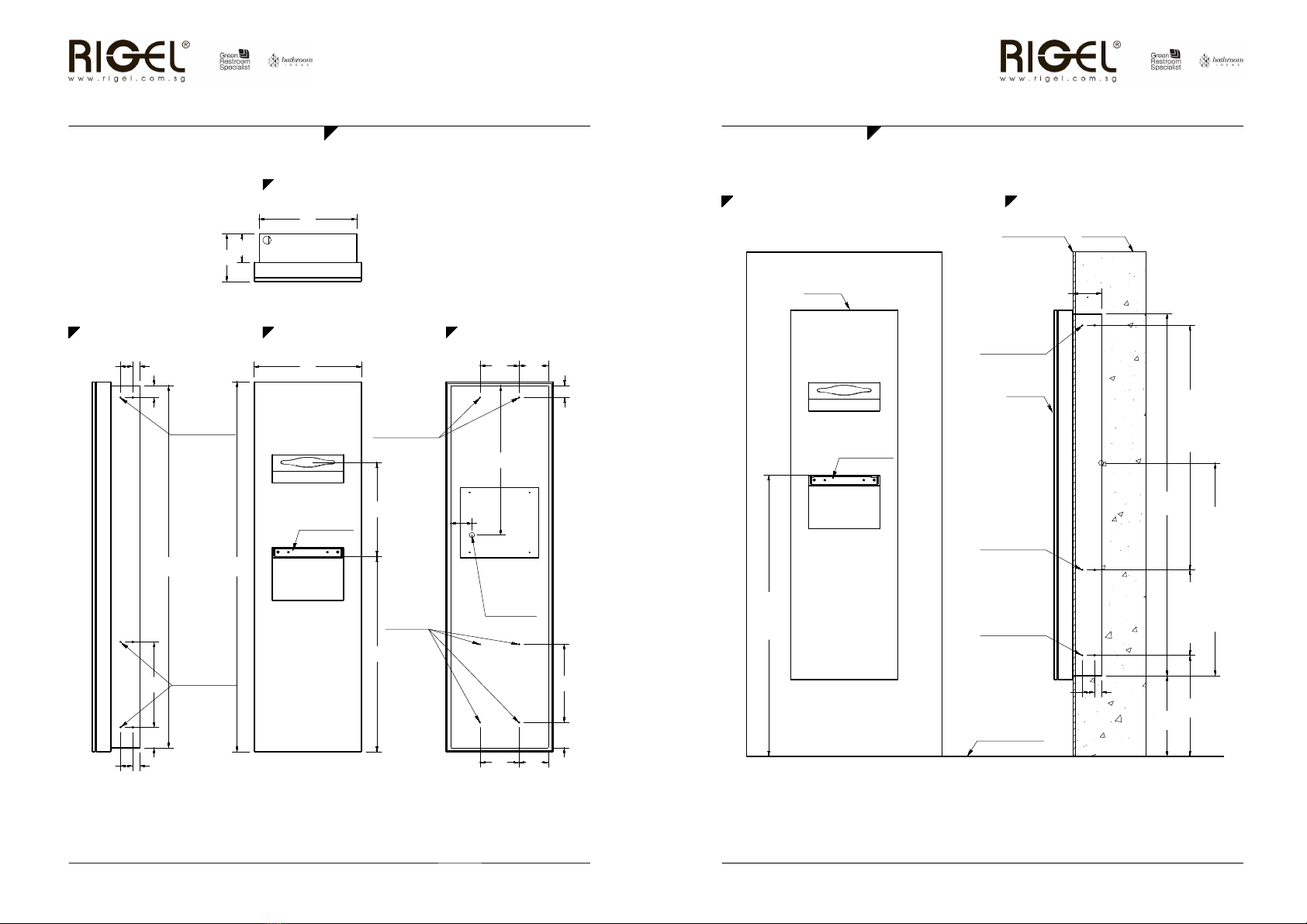

Technical Drawing
TOP VIEW
SIDE VIEW FRONT VIEWFRONT VIEW BACK VIEW
INSTALLATION
Diagram
FRONT VIEW SIDE VIEW
*All dimensions are in mm
