Rigol DG5000 Series Use and care manual

RIGOL
Calibration Guide
DG5000 Series Function/Arbitrary
Waveform Generator
Jan. 2014
RIGOL Technologies, Inc.

RIGOL
DG5000 Calibration Guide
I
Guaranty and Declaration
Copyright
© 2013 RIGOL Technologies, Inc. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL Technologies, Inc.
Publication Number
CGB07102-1110
Notices
RIGOL products are protected by patent law in and outside of P.R.C.
RIGOL reserves the right to modify or change parts of or all the specifications
and pricing policies at company’s sole decision.
Information in this publication replaces all previously corresponding material.
RIGOL shall not be liable for losses caused by either incidental or consequential
in connection with the furnishing, use or performance of this manual as well as
any information contained.
Any part of this document is forbidden to be copied or photocopied or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees this product conforms to the national and industrial standards in
China as well as the ISO9001:2008 standard and the ISO14001:2004 standard.
Other international standard conformance certification is in progress.
Contact Us
If you have any problem or requirement when using our products or this manual,
please contact RIGOL.
E-mail: [e-mail]
Website: www.rigol.com

RIGOL
II DG5000 Calibration Guide
Document Overview
This chapter gives a detailed introduction of the calibration notices and calibration
process of DG5000.
Subjects in this Manual
Chapter 1 Calibration Notices
This chapter gives a detailed introduction of the recommended calibration interval,
calibration safety, the method to stop the calibration and the related information,
how to acquire the calibration service, the recommended test devices and the notices
during the test.
Chapter 2 Calibration Process
This chapter gives a detailed introduction of the calibration interface and the
calibration process of each calibration item of DG5000.
Format Conventions in this Manual
1. Button:
The button at the front panel is denoted by the format of “Text Box + Button
Name (Bold)” in the manual, for example, Utility represents the Utility button.
2. Menu:
The menu item can be denoted by the format of “Menu Word (Bold) + Character
Shading”, for example, I/O Setup denotes the “I/O Setup” item under
Utility.
3. Operation Steps:
The next step of the operation is denoted by an arrow “” in the manual. For
example, Utility I/O Setup represents pressing Utility at the front panel
and then pressing the menu item I/O Setup.

Contents RIGOL
DG5000 Calibration Guide
III
Contents
Guaranty and Declaration.........................................................................I
Document Overview................................................................................II
Chapter 1 Calibration Notices.............................................................1-1
Calibration Interval................................................................................ 1-1
Calibration Safety.................................................................................. 1-1
To Stop the Calibration........................................................................... 1-2
To Acquire the Calibration Service........................................................... 1-2
Recommended Test Devices ................................................................... 1-2
Test Notices.......................................................................................... 1-3
Chapter 2 Calibration Process ............................................................2-1
Frequency Accuracy Calibration............................................................... 2-3
Duty Cycle Calibration............................................................................ 2-4
Rise Time Calibration............................................................................. 2-5
Fall Time Calibration.............................................................................. 2-6
Amplitude Ellipse (AC Amplitude Accuracy) Calibration.............................. 2-7
Amplitude Square (AC Amplitude Accuracy) Calibration ............................. 2-8
Amplitude Line (AC Amplitude Accuracy) Calibration ................................. 2-9
Ellipse Low-frequency Flatness Calibration ..............................................2-10
Line Low-frequency Flatness Calibration .................................................2-11
Offset (DC Offset Accuracy) Calibration...................................................2-12
Offset Compensation Calibration ............................................................2-13
Inner Impedance (Output Impedance) Calibration...................................2-14
Ellipse High-frequency Flatness Calibration..............................................2-16
Line High-frequency Flatness Calibration.................................................2-17

Chapter 1 Calibration Notices RIGOL
DG5000 Calibration Guide
1-1
Chapter 1 Calibration Notices
Calibration Interval
Regular calibration can ensure the performance specifications of DG5000. You are
recommended to calibrate the instrument at a one-year calibration interval. You can
choose a proper calibration interval according to your requirement of the
performance accuracy but the calibration interval can not exceed 2 years (otherwise,
the specifications can not be guaranteed).
You are recommended to perform a complete calibration at the calibration interval to
ensure that the instrument will remain within specifications before the next
calibration.
Calibration Safety
You need to input the correct password before calibration each time you want to
calibrate the instrument. The password is used to prevent accidental or unauthorized
calibration of the instrument.
Press Utility Test/Cal Secure Code, input the correct password
using the knob and direction keys. Then, users can press Secure to turn off the
calibration safety protection. At this time, press Manual Cal to enter the calibration
interface or press Preset to restore the calibration values to their default values.
The calibration password is “2010”. The password is stored in the non-volatile
memory and will not change at power-off or remote interface reset.
Note: please press Secure to turn on the calibration safety protection after finishing
the calibration to avoid the mis-operation.

RIGOL Chapter 1 Calibration Notices
1-2 DG5000 Calibration Guide
To Stop the Calibration
You can power off the instrument to stop the calibration at any time during the
calibration. The calibration data stored will not be cleared when the calibration is
stopped and you do not need to calibrate the items already calibrated again in the
next calibration.
CAUTION
If the calibration is stopped when the instrument is writing the new
calibration constants into the Flash, you may lose all the calibration
constants and you need to perform the calibration again.
To Acquire the Calibration Service
RIGOL does not recommend manual calibration by users. If calibration is required,
please contact RIGOL customer service department or the local distributor.
Recommended Test Devices
It is recommended that you use the test devices listed in the table below or other test
devices whose performance specifications satisfy the “Performance Requirement”
listed in the table below for calibration.
Table 1-1 Recommended Test Devices
Device
Performance Requirement
Recommended
Digital Multimeter
61/
2
RIGOL DM3068
Digital Oscilloscope Sample Rate: 1GHz
Support duty cycle, rise time and
fall time measurement function RIGOL DS6104
Frequency Counter
>10MHz
Accuracy: 0.1ppm Agilent 53131A
Power Meter -30dBm to +20dBm Accuracy: ±0.02dB
Resolution: 0.01dB Agilent E4418B
Cable BNC (m) – dual banana (m) --
Cable BNC (m) – BNC (m) --
Power Sensor -30dBm to +20dBm Agilent N8482A
Power Sensor Cable Used to connect the power meter
and power sensor --
50Ω Load 50Ω/1W --

Chapter 1 Calibration Notices RIGOL
DG5000 Calibration Guide
1-3
Test Notices
For optimum performance, all procedures should comply with the following
recommendations.
1) Make sure the environment temperature is stable and between 18℃and 28℃.
Ideally, the calibration should be performed at 23℃±1℃.
2) Make sure the environment relative humidity is less than 80％.
3) Make sure that the instrument has been warmed up for at least 30 minutes
before the calibration.
4) Keep the test cables as short as possible and make sure that the impedance of
the cable is consistent with the requirement.

Chapter 2 Calibration Process RIGOL
DG5000 Calibration Guide 2-1
Chapter 2 Calibration Process
Warm the DG5000 up for at least 30 minutes. Press Utility Test/Cal 
Secure Code, use the knob and direction keys to enter the correct password, and
then turn off the calibration safety protection by pressing Secure. Press Manual Cal
to enter the calibration interface as shown in the figure below.
Figure 2-1 Calibration Interface
1. Cal Item
Press this softkey to select the desired calibration item. The calibration items of
DG5000 manual calibration are listed in the table below. You can select one or
more calibration items, but it is recommended to perform a complete calibration.
Table 2-1 Calibration Items
No.
Item
1 Freq Accuracy
2
Duty (duty cycle)
3 Rise Time
4 Fall Time
5
Offset (DC offset accuracy)
6 Offset Comp (offset compensation)
7 Ampl Ellipse (AC amplitude accuracy)
8
Ampl Square (AC amplitude accuracy)
9 Ampl Line (AC amplitude accuracy)
10 Lflat Ellipse (ellipse low-frequency flatness)
11
Lflat Line (line low-frequency flatness)
12 Inner Imped (output impedance)
13 Hflat Ellipse (ellipse high-frequency flatness)
14
Hflat Line (line high-frequency flatness)

RIGOL Chapter 2 Calibration Process
2-2 DG5000 Calibration Guide
Note:the amplitude calibration must be prior to the low-frequency flatness
calibration and the inner impedance calibration must be prior to the
high-frequency flatness calibration.
2. Cal Point
Press this softkey and the specified calibration point in the ID column is
highlighted (do not apply to “Freq Accuracy” calibration item). At this point, you
can rotate the knob to select the current calibration point.
Note: in inner impedance (output impedance) calibration, users are not allowed
to select the current calibration point free, the specified calibration method
please refer to “Inner Impedance (Output Impedance) Calibration”.
3. Meas Val
After selecting a calibration point (do not apply to “Freq Accuracy” calibration
item), press this softkey and the MeasValue column of the corresponding point
becomes editable. At this point, use the numeric keyboard or the knob and
direction keys to input the measurement value.
4. Input Val
After selecting a calibration point (do not apply to “Freq Accuracy” calibration
item) and inputing the measurement value, press this softkey to input the
measurement value to the system and finish the calibration of the point
selected.
5. Save
Press this softkey to save the current calibration value.
The calibration method of each calibration item is introduced in detail in the following
part.
CAUTION
You need to calibrate each item following the sequence below.

Chapter 2 Calibration Process RIGOL
DG5000 Calibration Guide
2-3
Frequency Accuracy Calibration

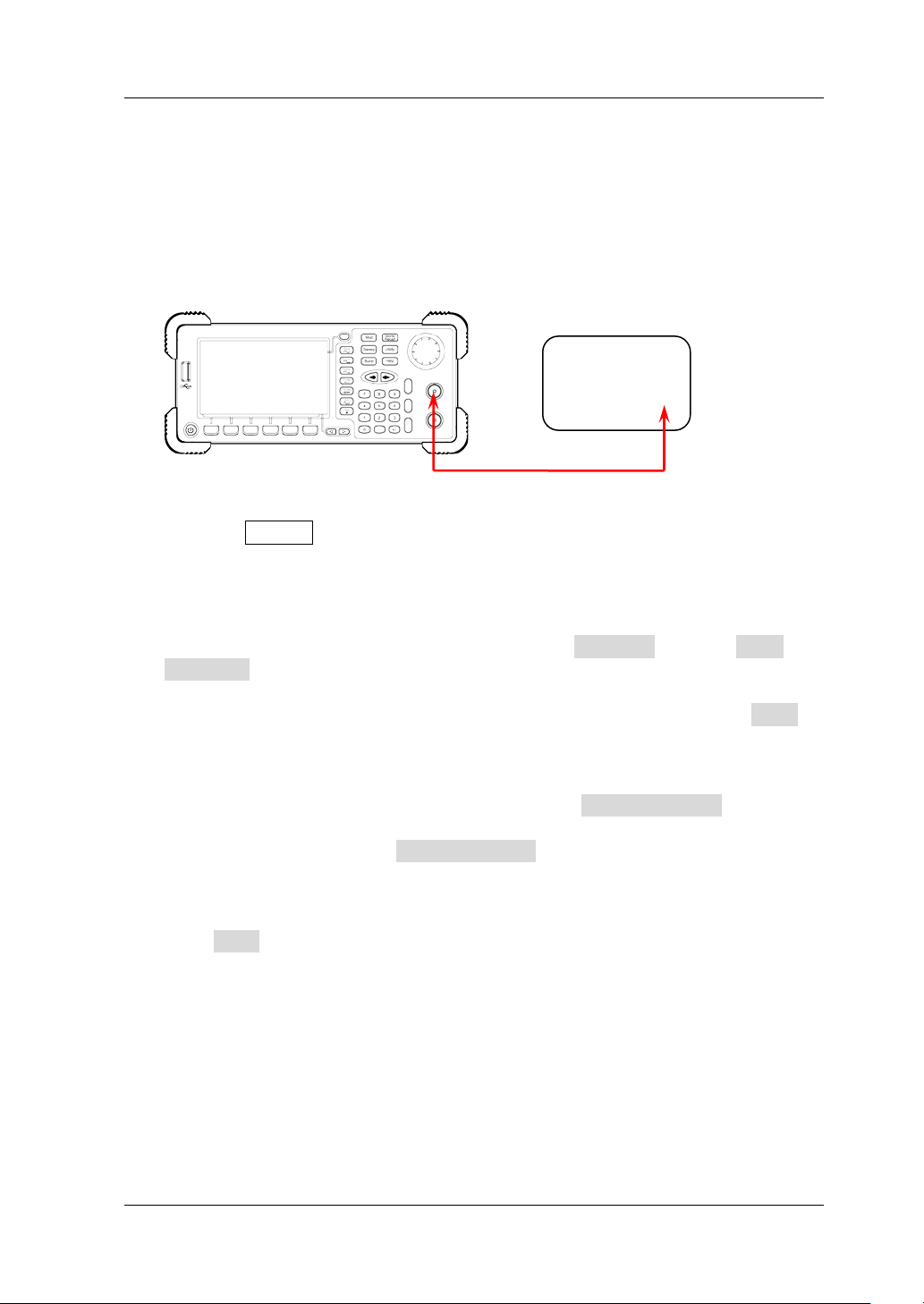

1. Make sure that DG5000 has been warmed up for at least 30 minutes. Connect
the channel output terminal (take CH1 as an example; the calibration method is
also applicable to CH2) of DG5000 with the signal input terminal of the

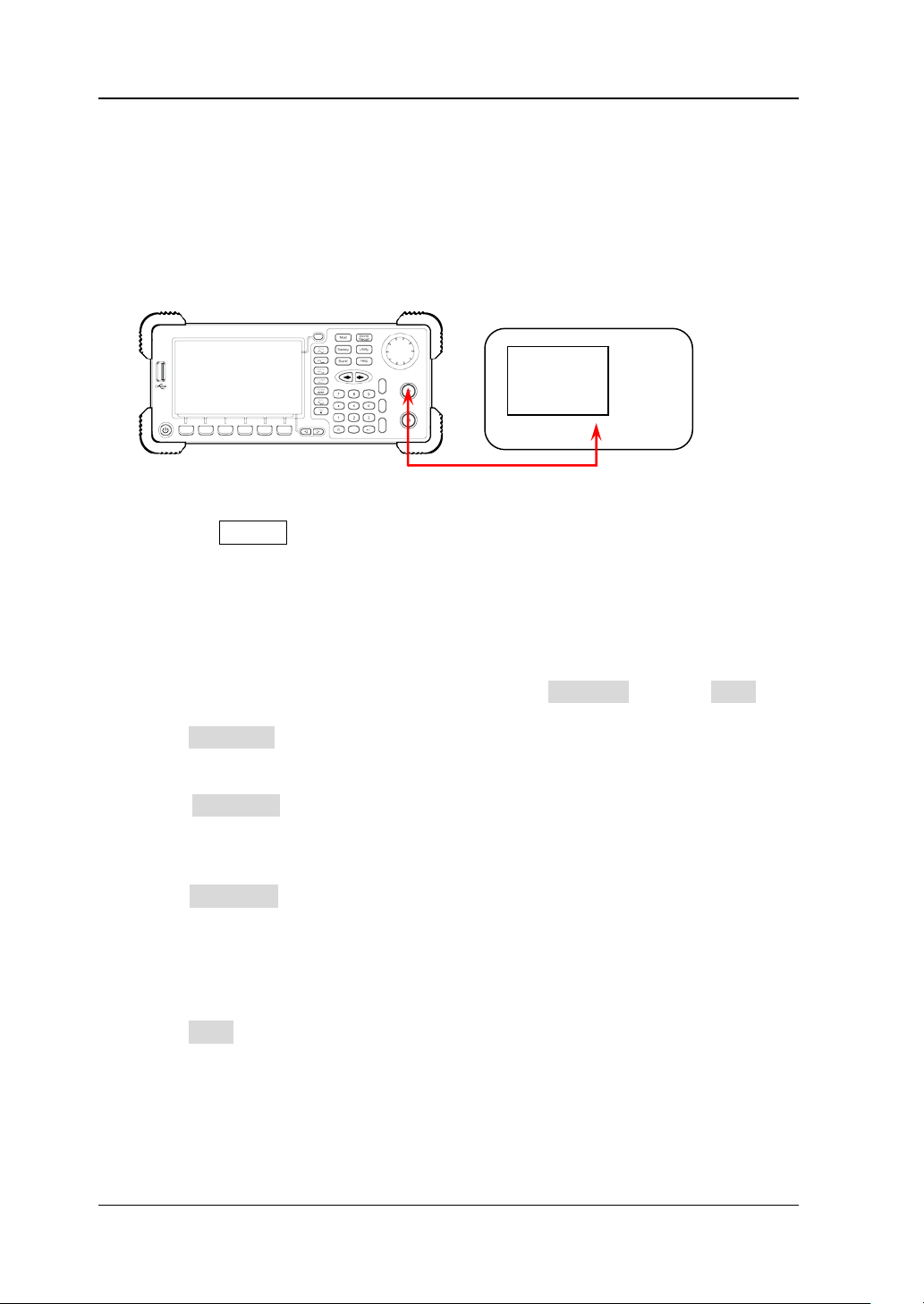

frequency counter using the dual-BNC cable as shown in the figure below.
DG5000 Series Frequency Counter
Figure 2-2 Connect DG5000 and the Frequency Counter
2. Press the Output softkey corresponding to CH1 at the front panel of DG5000 to
enable the channel output.
3. Set the input impedance of the frequency counter to HighZ.
4. Enter the DG5000 calibration interface and press Cal Item to select Freq
Accuracy.
5. According to the prompt messages in the calibration interface, press Start to
start the frequency accuracy calibration.
6. Observe the measurement value of the frequency counter. If the current
measurement value is lower than 10 MHz, press Upward adjust to increase
the output frequency of DG5000; and if the current measurement value is
greater than 10 MHz, press Dnward adjust to reduce the output frequency of
DG5000 until the absolute value of the difference between the measurement
value of the frequency counter and 10 MHz is lower than 1 Hz.
7. Press Save and the frequency accuracy calibration is finished.
◎

RIGOL Chapter 2 Calibration Process
2-4 DG5000 Calibration Guide
Duty Cycle Calibration
1. Make sure that DG5000 has been warmed up for at least 30 minutes. Connect
the channel ouput terminal (take CH1 as an example; the calibration method is
also applicable to CH2) of DG5000 with the signal input terminal of the digital
oscilloscope using the dual-BNC cable as shown in the figure below.
DG5000 Series Digital Oscilloscope
Figure 2-3 Connect DG5000 and the Digital Oscilloscope
2. Press the Output softkey corresponding to CH1 at the front panel of DG5000 to
enable the channel output.
3. Turn on the digital oscilloscope and the corresponding channel. Set the trigger
type to “Edge” and the edge type to “Rising Edge” and select “Positive Duty
Cycle” measurement item.
4. Enter the DG5000 calibration interface and press Cal Item to select Duty.
5. Press Cal Point and the cursor switches to the first calibration point in the ID
column.
6. Press Meas Val and the MeasValue column of the point selected becomes
editable. At this point, use the numeric keyboard or the knob and direction keys
to input the current measurement value of the digital oscilloscope.
7. Press Input Val to input the measurement value to the system and finish the
calibration of the point currently selected. The cursor switches to the ID column.
8. Select the next calibration point using the knob. Repeat step 6 and 7 until all the
calibration points are calibrated.
9. Press Save and the duty cycle calibration is finished.
◎

Chapter 2 Calibration Process RIGOL
DG5000 Calibration Guide
2-5
Rise Time Calibration
1. Make sure that DG5000 has been warmed up for at least 30 minutes. Connect
the channel ouput terminal (take CH1 as an example; the calibration method is
also applicable to CH2) of DG5000 with the signal input terminal of the digital
oscilloscope using the dual-BNC cable as shown in Figure 2-3.
2. Press the Output softkey corresponding to CH1 at the front panel of DG5000 to
enable the channel output.
3. Turn on the digital oscilloscope and the corresponding channel. Set the trigger
type to “Edge” and the edge type to “Rising Edge” and select “Rise Time”
measurement item.
4. Enter the DG5000 calibration interface and press Cal Item to select Rise Time.
5. Press Cal Point and the cursor switches to the first calibration point in the ID
column.
6. Press Meas Val and the MeasValue column of the point selected becomes
editable. At this point, use the numeric keyboard or the knob and direction keys
to input the current measurement value of the digital oscilloscope.
7. Press Input Val to input the measurement value to the system and finish the
calibration of the point currently selected. The cursor switches to the ID column.
8. Select the next calibration point using the knob. Repeat step 6 and 7 until all the
calibration points are calibrated.
9. Press Save and the rise time calibration is finished.

RIGOL Chapter 2 Calibration Process
2-6 DG5000 Calibration Guide
Fall Time Calibration
1. Make sure that DG5000 has been warmed up for at least 30 minutes. Connect
the channel ouput terminal (take CH1 as an example; the calibration method is
also applicable to CH2) of DG5000 with the signal input terminal of the digital
oscilloscope using the dual-BNC cable as shown in Figure 2-3.
2. Press the Output softkey corresponding to CH1 at the front panel of DG5000 to
enable the channel output.
3. Turn on the digital oscilloscope and the corresponding channel. Set the trigger
type to “Edge” and the edge type to “Falling Edge” and select “Fall Time”
measurement item.
4. Enter the DG5000 calibration interface and press Cal Item to select Fall Time.
5. Press Cal Point and the cursor switches to the first calibration point in the ID
column.
6. Press Meas Val and the MeasValue column of the point selected becomes
editable. At this point, use the numeric keyboard or the knob and direction keys
to input the current measurement value of the digital oscilloscope.
7. Press Input Val to input the measurement value to the system and finish the
calibration of the point currently selected. The cursor switches to the ID column.
8. Select the next calibration point using the knob. Repeat step 6 and 7 until all the
calibration points are calibrated.
9. Press Save and the fall time calibration is finished.

Chapter 2 Calibration Process RIGOL
DG5000 Calibration Guide
2-7
Amplitude Ellipse (AC Amplitude Accuracy) Calibration
1. Make sure that DG5000 has been warmed up for at least 30 minutes. Connect
the channel output terminal (take CH1 as an example; the calibration method is
also applicable to CH2) of DG5000 with the voltage input terminals of the digital
multimeter using the BNC - dual banana cable as shown in the figure below.
DG5000 Series DMM
Figure 2-4 Connect DG5000 and the Digital Multimeter
2. Press the Output softkey corresponding to CH1 at the front panel of DG5000 to
enable the channel output.
3. Turn on the digital multimeter. Select the AC voltage (ACV) measurement
function and set the range to “Auto”.
4. Enter the DG5000 calibration interface and press Cal Item to select Ampl
Ellipse (the default item).
5. Press Cal Point and the cursor switches to the first point in the ID column.
6. Press Meas Val and the MeasValue column of the point selected becomes
editable. At this point, use the numeric keyboard or the knob and direction keys
to input the current measurement value of the digital multimeter.
7. Press Input Val to input the measurement value to the system and finish the
calibration of the point currently selected. The cursor switches to the ID column.
8. Select the next calibration point using the knob. Repeat step 6 and 7 until all the
calibration points are calibrated.
9. Press Save and the amplitude ellipse (AC amplitude accuracy) calibration is
finished.
◎◎
◎◎

RIGOL Chapter 2 Calibration Process
2-8 DG5000 Calibration Guide
Amplitude Square (AC Amplitude Accuracy) Calibration
1. Make sure that DG5000 has been warmed up for at least 30 minutes. Connect
the channel output terminal (take CH1 as an example; the calibration method is
also applicable to CH2) of DG5000 with the voltage input terminals of the digital
multimeter using the BNC - dual banana cable as shown in Figure 2-4.
2. Press the Output softkey corresponding to CH1 at the front panel of DG5000 to
enable the channel output.
3. Turn on the digital multimeter. Select the AC voltage (ACV) measurement
function and set the range to “Auto”.
4. Enter the DG5000 calibration interface and press Cal Item to select Ampl
Square.
5. Press Cal Point and the cursor switches to the first point in the ID column.
6. Press Meas Val and the MeasValue column of the point selected becomes
editable. At this point, use the numeric keyboard or the knob and direction keys
to input the current measurement value of the digital multimeter.
7. Press Input Val to input the measurement value to the system and finish the
calibration of the point currently selected. The cursor switches to the ID column.
8. Select the next calibration point using the knob. Repeat step 6 and 7 until all the
calibration points are calibrated.
9. Press Save and the amplitude square (AC amplitude accuracy) calibration is
finished.

Chapter 2 Calibration Process RIGOL
DG5000 Calibration Guide
2-9
Amplitude Line (AC Amplitude Accuracy) Calibration
1. Make sure that DG5000 has been warmed up for at least 30 minutes. Connect
the channel output terminal (take CH1 as an example; the calibration method is
also applicable to CH2) of DG5000 with the voltage input terminals of the digital
multimeter using the BNC - dual banana cable as shown in Figure 2-4.
2. Press the Output softkey corresponding to CH1 at the front panel of DG5000 to
enable the channel output.
3. Turn on the digital multimeter. Select the AC voltage (ACV) measurement
function and set the range to “Auto”.
4. Enter the DG5000 calibration interface and press Cal Item to select Ampl
Line.
5. Press Cal Point and the cursor switches to the first point in the ID column.
6. Press Meas Val and the MeasValue column of the point selected becomes
editable. At this point, use the numeric keyboard or the knob and direction keys
to input the current measurement value of the digital multimeter.
7. Press Input Val to input the measurement value to the system and finish the
calibration of the point currently selected. The cursor switches to the ID column.
8. Select the next calibration point using the knob. Repeat step 6 and 7 until all the
calibration points are calibrated.
9. Press Save and the amplitude line (AC amplitude accuracy) calibration is
finished.

RIGOL Chapter 2 Calibration Process
2-10 DG5000 Calibration Guide
Ellipse Low-frequency Flatness Calibration
1. Make sure that DG5000 has been warmed up for at least 30 minutes. Connect
the channel output terminal (take CH1 as an example; the calibration method is
also applicable to CH2) of DG5000 with the voltage input terminals of the digital
multimeter using the BNC - dual banana cable as shown in Figure 2-4.
2. Press the Output softkey corresponding to CH1 at the front panel of DG5000 to
enable the channel output.
3. Turn on the digital multimeter. Select the AC voltage (ACV) measurement
function and set the range to “Auto”.
4. Enter the DG5000 calibration interface and press Cal Item to select Lflat
Ellipse.
5. Press Cal Point and the cursor switches to the first point in the ID column.
6. Press Meas Val and the MeasValue column of the point selected becomes
editable. At this point, use the numeric keyboard or the knob and direction keys
to input the current measurement value of the digital multimeter.
7. Press Input Val to input the measurement value to the system and finish the
calibration of the point currently selected. The cursor switches to the ID column.
8. Select the next calibration point using the knob. Repeat step 6 and 7 until all the
calibration points are calibrated.
9. Press Save and the ellipse low-frequency flatness calibration is finished.
