Rikon Power Tools 70-1420VSR User manual

www.rikontools.com
70-1420VSRM2
14”x 20”Midi VSR Lathe
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email [email protected] or call toll free at [phone]
The serial number can be found on the specication label on the rear of your machine.
70-1420VSR

2
TABLE OF CONTENTS
SPECIFICATIONS - 70-1420VSR
NOTE: The specications, photographs, drawings and information in this manual represent the current model when the
manual was prepared. Changes and improvements may be made at any time, with no obligation on the part of RIKON
POWER TOOLS® to modify previously delivered units. Reasonable care has been taken to ensure that the information in
this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine.
Motor ..................................................................................... 1-1/2 HP, DC, TEFC
Motor Speed (no load).......................................................................... 2,900 RPM
Volts, Phase ........................................................................................ 115 V, 1 Ph
Amps, Hertz ........................................................................................ 13 A, 60 Hz
Recommended Breaker Size .................................................................... 20 Amp
Electronic Variable Speeds ........................................................ 150 - 3,850 RPM
Speed Ranges (3) ..................................... 150-650 / 400-1,550 / 850-3,850 RPM
Spindle Rotation (2) ..................... Forward (C-Clockwise) & Reverse (Clockwise)
Swing Over Bed ............................................................................... 14” (356 mm)
Swing Over Tool Rest Base........................................................ 10-5/8” (270 mm)
Distance Between Centers............................................................... 20” (508 mm)
Headstock Spindle Threading .................................................... 1-1/4” x 8 TPI RH
Outboard Spindle Threading ...................................................... 1-1/4” x 8 TPI RH
Outboard Swing Over Extension Bed .............................................. 18” (457 mm)
Outboard Swing Over Tool Rest Base .................................... 14-5/8” (371.5 mm)
Headstock Taper ............................................................................................ MT-2
Tailstock Taper ............................................................................................... MT-2
Hole Through Drive Spindle .............................................................. 3/8” (10 mm)
Hole Through Tailstock ...................................................................... 3/8” (10 mm)
Tailstock Ram Travel .......................................................................... 4" (102 mm)

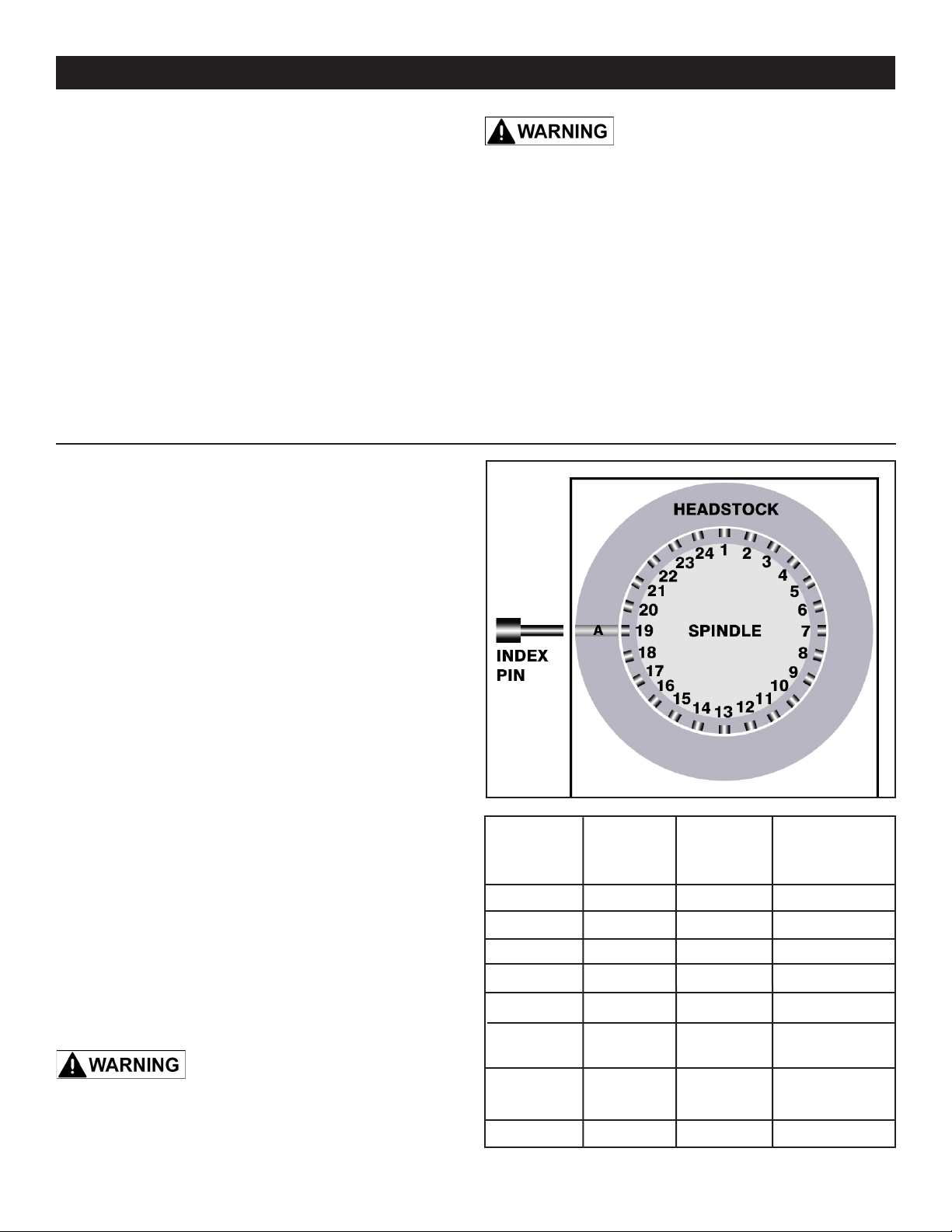

Number of Indexing Positions............................................................................. 24
Base to Spindle Height ............................................................ 15-9/32” (388 mm)
Cast Base Size (LxW) ......................................... 36-3/4” x 8-3/8” (933 x 212 mm)
Overall Size (LxDxH).............. 43-3/8” x 17-5/8" x 18-1/4" (1102 x 447 x 463 mm)
Net Weight ................................................................................. 137 lbs. (62 kgs.)
Specications.....................................................................................................................2
Safety Instructions ........................................................................................................3 - 6

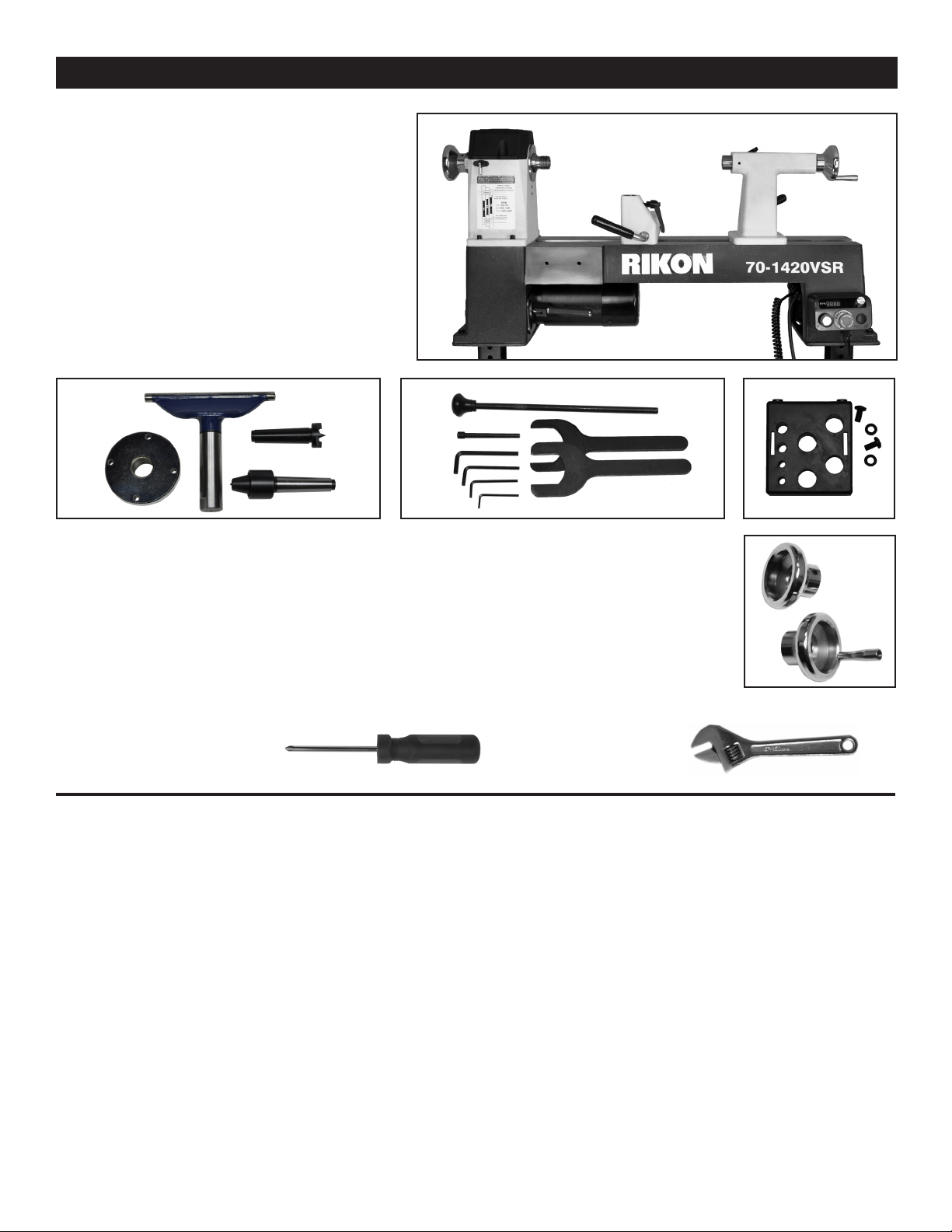

Contents of Package .....................................................................................................7
Getting To Know Your Machine ..............................................................................................8
Installation ......................................................................................................................8
Assembly ................................................................................................................................... 8
Operation .................................................................................................................. 9 - 12
Adjustments............................................................................................................... 12 - 15
Maintenance .................................................................................................................... 16
Troubleshooting ..........................................................................................................16 - 17
Notes ........................................................................................................ 16

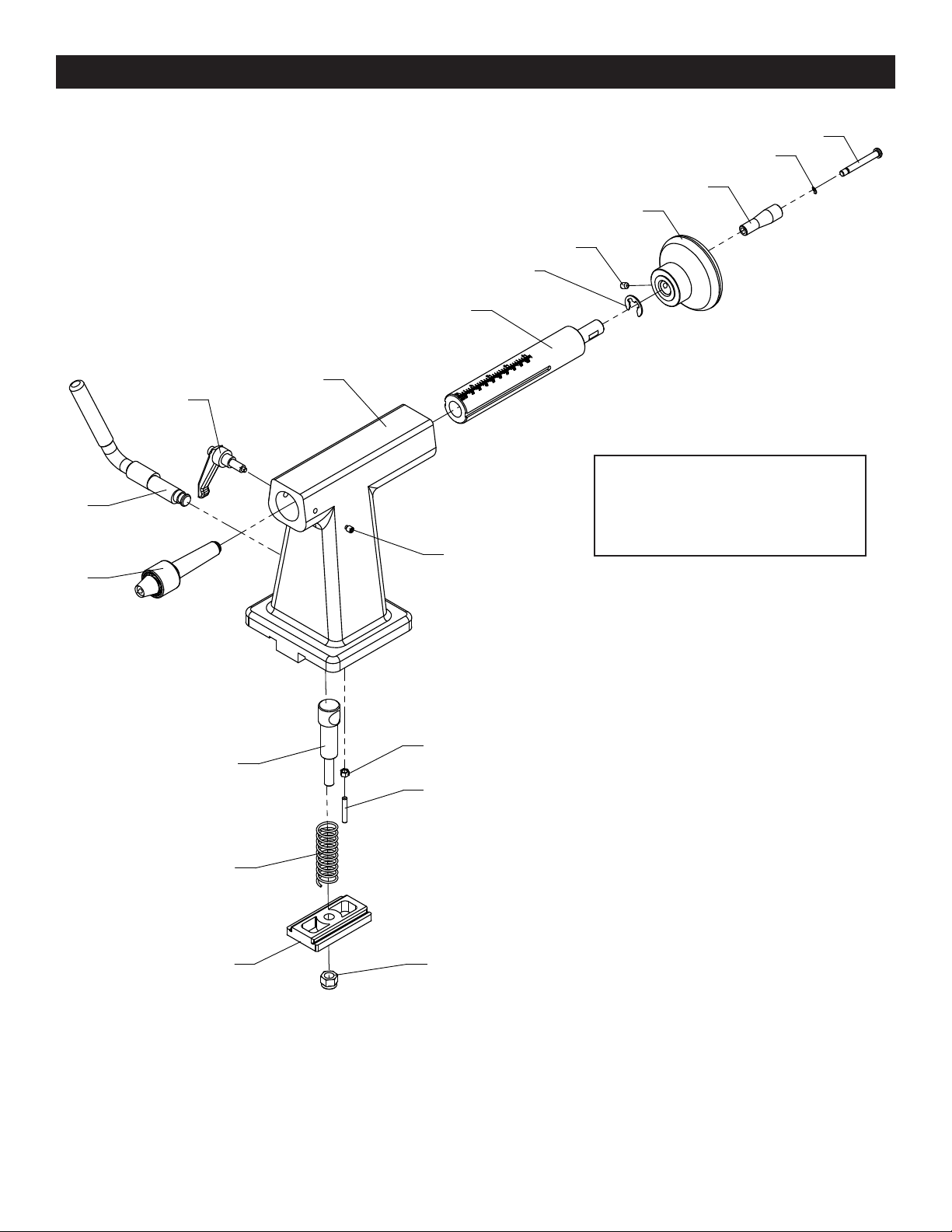

Parts Diagram & Parts List ..................................................................................... 18 - 21
Electricals & Wiring Diagram .....................................................................................5 & 22
Accessories ........................................................................................................ 22 & 23
Warranty .......................................................................................................................... 24

3
SAFETY SYMBOLS
IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following
instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock,
re, and/or serious personal injury.
There are certain applications for which this tool was designed. We strongly recommend that this tool not be modied
and/or used for any other application other than that for which it was designed. If you have any questions about its
application, do not use the tool until you have contacted us and we have advised you.
SAFETY INSTRUCTIONS
GENERAL SAFETY
KNOW YOUR POWER TOOL. Read the owner’s manual
carefully. Learn the tool’s applications, work capabilities,
and its specic potential hazards.
BEFORE USING YOUR MACHINE
To avoid serious injury and damage to the tool, read and
follow all of the Safety and Operating Instructions before
operating the machine.
1. Some dust created by using power tools
contains chemicals known to the State of California to
cause cancer, birth defects, or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
• masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area and work
with approved safety equipment, such as those dust masks
that are specially designed to lter out microscopic
particles.
2. READ the entire Owner’s Manual. LEARN how to use
the tool for its intended applications.
3. GROUND ALL TOOLS. If the tool is supplied with a 3
prong plug, it must be plugged into a 3-contact electrical
receptacle. The 3rd prong is used to ground the tool and
provide protection against accidental electric shock. DO
NOT remove the 3rd prong. See Grounding Instructions
on the following pages.
4. AVOID A DANGEROUS WORKING ENVIRONMENT.
DO NOT use electrical tools in a damp environment or
expose them to rain.
5. DO NOT use electrical tools in the presence of
ammable liquids or gasses.
6. ALWAYS keep the work area clean, well lit, and
organized. DO NOT work in an environment with oor
surfaces that are slippery from debris, grease, and wax.
7. KEEP VISITORS AND CHILDREN AWAY. DO NOT
permit people to be in the immediate work area,
especially when the electrical tool is operating.
8. DO NOT FORCE THE TOOL to perform an operation
for which it was not designed. It will do a safer and
higher quality job by only performing operations for
which the tool was intended.
9. WEAR PROPER CLOTHING. DO NOT wear loose
clothing, gloves, neckties, or jewelry. These items can
get caught in the machine during operations and pull the
operator into the moving parts. The user must wear a
protective cover on their hair, if the hair is long, to
prevent it from contacting any moving parts.
10. CHILDPROOF THE WORKSHOP AREA by
removing switch keys, unplugging tools from the
electrical receptacles, and using padlocks.
11. ALWAYS UNPLUG THE TOOL FROM THE
ELECTRICAL RECEPTACLE when making adjust-
ments, changing parts or performing any maintenance.
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. This symbol may be used
in conjunction with other symbols or pictographs.
Indicates an imminently hazardous situation, which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious
injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in minor or
moderate injury.
NOTICE: Shown without Safety Alert Symbol indicates a situation that may result in property damage.

4
SAFETY INSTRUCTIONS
16. NEVER LEAVE A RUNNING TOOL UNATTENDED.
Turn the power switch to the “OFF” position. DO NOT
leave the tool until it has come to a complete stop.
17. DO NOT STAND ON A TOOL. Serious injury could
result if the tool tips over, or you accidentally contact the
tool.
18. DO NOT store anything above or near the tool where
anyone might try to stand on the tool to reach it.
19. MAINTAIN YOUR BALANCE. DO NOT extend
yourself over the tool. Wear oil resistant rubber soled
shoes. Keep oor clear of debris, grease, and wax.
20. MAINTAIN TOOLS WITH CARE. Always keep tools
clean and in good working order. Keep all blades and tool
bits sharp, dress grinding wheels and change other
abrasive accessories when worn.
21. EACH AND EVERY TIME, CHECK FOR DAMAGED
PARTS PRIOR TO USING THE TOOL. Carefully check
all guards to see that they operate properly, are not dam-
aged, and perform their intended functions. Check for
alignment, binding or breaking of moving parts. A guard
or other part that is damaged should be immediately
repaired or replaced.
22. DO NOT OPERATE TOOL WHILE TIRED, OR
UNDER THE INFLUENCE OF DRUGS, MEDICATION
OR ALCOHOL.
23. SECURE ALL WORK. Use clamps or jigs to secure
the workpiece. This is safer than attempting to hold the
workpiece with your hands.
24. STAY ALERT, WATCH WHAT YOU ARE DOING,
AND USE COMMON SENSE WHEN OPERATING A
POWER TOOL.
A moment of inattention while operating power tools may
result in serious personal injury.
26. USE A PROPER EXTENSION CORD IN GOOD
CONDITION. When using an extension cord, be sure to
use one heavy enough to carry the current your product
will draw. The table on the following page shows the cor-
rect size to use depending on cord length and nameplate
amperage rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the larger diameter of the
extension cord. If in doubt of the proper size of an exten-
sion cord, use a shorter and thicker cord. An undersized
cord will cause a drop in line voltage resulting in a loss of
power and overheating.
USE ONLY A 3-WIRE EXTENSION CORD THAT HAS
A 3-PRONG GROUNDING PLUG AND A 3-POLE
RECEPTACLE THAT ACCEPTS THE TOOL’S PLUG.
27. ADDITIONAL INFORMATION regarding the safe and
proper operation of this product is available from:
• Power Tool Institute
1300 Summer Avenue
Cleveland, OH 44115-2851
www.powertoolinstitute.org
• National Safety Council
1121 Spring Lake Drive
Itasca, IL 60143-3201
www.nsc.org
• American National Standards Institute
25 West 43rd Street, 4th Floor
New York, NY 10036
www.ansi.org
• ANSI 01.1 Safety Requirements for
Woodworking Machines and the
U.S. Department of Labor regulations
www.osha.gov
28. SAVE THESE INSTRUCTIONS. Refer to them
frequently and use them to instruct others.
25. ALWAYS WEAR A DUST MASK TO PREVENT
INHALING DANGEROUS DUST OR AIRBORNE
PARTICLES, including wood dust, crystalline silica dust
and asbestos dust. Direct particles away from face and
body. Always operate tool in well ventilated area and
provide for proper dust removal. Use dust collection
system wherever possible. Exposure to the dust may
cause serious and permanent respiratory or other injury,
including silicosis (a serious lung disease), cancer, and
death. Avoid breathing the dust, and avoid prolonged
contact with dust. Allowing dust to get into your mouth
or eyes, or lay on your skin may promote absorption of
harmful material. Always use properly tting NIOSH/OSHA
approved respiratory protection appropriate for the dust
exposure, and wash exposed areas with soap and water.
12. KEEP PROTECTIVE GUARDS IN PLACE AND IN
WORKING ORDER.
13. AVOID ACCIDENTAL STARTING. Make sure that
the power switch is in the “OFF” position before plugging
in the power cord to the electrical receptacle.
14. REMOVE ALL MAINTENANCE TOOLS from the
immediate area prior to turning “ON” the machine.
15. USE ONLY RECOMMENDED ACCESSORIES. Use
of incorrect or improper accessories could cause serious
injury to the operator and cause damage to the tool. If in
doubt, check the instruction manual that comes with that
particular accessory.

5
SAFETY INSTRUCTIONS
THE USE OF AN EXTENSION CORD
WITH THIS MACHINE IS NOT RECOMMENDED. For
best power and safety, plug the machine directly into a
dedicated, grounded electrical outlet that is within the
supplied cord length of the machine.
If an extension cord needs to be used, it should only be
for a limited operation of the machine. The extension
cord should be as short as possible in length, and have
a minimum gauge size of 14AWG.
Check extension cords before each
use. If damaged replace immediately. Never use a tool
with a damaged cord, since touching the damaged
area could cause electrical shock, resulting in serious
injury.
Use a proper extension cord. Only use cords listed by
Underwriters Laboratories (UL). Other extension cords can
cause a drop in line voltage, resulting in a loss of power
and overheating of tool. When operating a power tool out-
doors, use an outdoor extension cord marked “W-A” or “W”.
These cords are rated for outdoor use and reduce the risk
of electric shock.
DO NOT MODIFY ANY PLUG. If it will not t the electrical
receptacle, have the proper electrical receptacle installed
by a qualied electrician.
IMPROPER ELECTRICAL CONNECTION of the
equipment grounding conductor can result in risk of
electric shock. The conductor with the green insulation
(with or without yellow stripes) is the equipment ground-
ing conductor. DO NOT connect the equipment grounding
conductor to a live terminal if repair or replacement
of the electric cord or plug is necessary.
CHECK with a qualied electrician or service personnel if
you do not completely understand the grounding
instructions, or if you are not sure the tool is properly
grounded when installing or replacing a plug.
USE ONLY A 3-WIRE EXTENSION CORD THAT HAS
THE PROPER TYPE OF A 3-PRONG GROUNDING PLUG
THAT MATCHES THE MACHINE’S 3-PRONG PLUG AND
ALSO THE 3-POLE RECEPTACLE THAT ACCEPTS THE
TOOL’S PLUG. *
REPLACE A DAMAGED OR WORN CORD
IMMEDIATELY.
This tool is intended for use on a circuit that has an
electrical receptacle as shown in FIGURE A. It shows a
3-wire electrical plug and electrical receptacle that has
a grounding conductor. If a properly grounded electrical
receptacle is not available, an adapter as shown in
FIGURE B can be used to temporarily
connect this plug to a 2-contact ungrounded
receptacle. The adapter has a rigid lug
extending from it that MUST be connected
to a permanent earth ground, such as a
properly grounded receptacle box.
THIS ADAPTER IS PROHIBITED IN
CANADA.
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN,
grounding provides the path of least resistance for electric
current and reduces the risk of electric shock. This tool
is equipped with an electric cord that has an equipment
grounding conductor and requires a grounding plug (not
included). The plug MUST be plugged into a matching elec-
trical receptacle that is properly installed and grounded in
accordance with ALL local codes and ordinances.
THIS TOOL MUST BE GROUNDED
WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.
EXTENSION CORDS
Keep the extension cord clear of
the working area. Position the cord so that it will not
get caught on lumber, tools or other obstructions while
you are working with your power tool.
* Canadian electrical codes require extension cords
to be certied SJT type or better.
** The use of an adapter in Canada is not acceptable.
FIG. B
FIG. A
ELECTRICAL SAFETY

6
SPECIFIC SAFETY INSTRUCTIONS FOR WOOD LATHES
1. Do not operate this machine until you have read all of the following instructions.
2. Do not attempt to operate this machine until it is completely assembled.
3. Do not turn ON this machine if any pieces are damaged or missing.
4. This machine must be properly grounded.
5. If you are not familiar with the operation of the machine, obtain assistance from a qualied person.
6. Always wear approved, safety protective eyewear and hearing protection when operating this machine.
7. Always wear a dust mask and use adequate dust collection and proper ventilation.
8. Do not wear loose clothing, neckties, jewelry or gloves when operating this machine. Tie back long hair.
9. Disconnect the power before servicing or making adjustments.
10. Do not change speeds until the machine comes to a full stop and unplug from power source.
11. Keep ngers, clothing and hair away from rotating stock.
12. The clearance between the workpiece and the tool rest should be only about 1/8”.
13. Never adjust the tool rest while the lathe is turned on.
14. Tighten all locks and clamping devices before operating.
15. Turn o󰀨 and unplug the lathe after use, to prevent accidental use.
16. Use only sharp lathe tools. Dull tools can damage your work and are unsafe to use.
17. Make sure workpiece is secure and centered before operating.
18. When face plate turning, rough-cut the workpiece close to the finished shape before screwing it to the face plate.
19. Never jam tools into the workpiece or take too big of a cut.
20. Make sure there are no loose knots, nails, staples, dirt or foreign objects in the workpiece to be turned.
21. Wood should not be warped, cracked or have improperly made or cured glue joints.
22. Rotate workpiece by hand before starting power to check for clearance.
23. Start the lathe at slow speeds to check the settings, then increase the speed to your desired level for working.
24. Low speeds are best for roughing stock, and for long or large diameter workpieces.
25. If excessive vibration occurs, stop the lathe to check the workpiece settings between centers or on face plates.
26. For sanding or applying finishes, remove the tool rest from the machine. Use low speeds to avoid heat build-up.
27. Do not engage the spindle lock when the lathe is turning, and be sure to disengage the spindle lock when done
working to avoid damage to the machine next time the lathe is turned on.
28. Never stop the machine by grabbing the workpiece, faceplate or hand wheel. Let the machine stop on its own.
29. The use of any accessories or attachments not recommended may cause injury to you and damage your machine.
30. Remove material or debris from the work area. Keep the oor and work area neat and clean.
31. Keep these instructions for future reference.
SAFETY INSTRUCTIONS
This machine is intended for the shaping, smoothing and finishing of natural, solid woods. The permissible workpiece
dimensions must be observed (see Technical Specification). Any other use not as specified, including modification of the
machine or use of parts not tested and approved by the equipment manufacturer can cause unforeseen damage, and
invalidate the warranty.
ATTENTION: Use of this lathe still presents risks that cannot be eliminated by the manufacturer. Therefore, the user must
be aware that wood working machines are dangerous if not used with care and all safety precautions are adhered to.
This owner’s manual is not a teaching aid and is intended to show
assembly, adjustments, and general use.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust,
a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other
safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
California Proposition 65 Warning

7
Model 70-1420VSR Wood Lathe is shipped complete in one box.
Unpacking and Clean-up
1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure
that all of the items are accounted for, before discarding any packing material. Place parts on a protected surface
for easy identication and assembly. If any parts are missing or broken, please call RIKON Customer Service
(877-884-5167) as soon as possible for replacements. DO NOT turn your machine ON if any of these items are
missing. You may cause injury to yourself or damage to the machine.
2. Report any shipping damage to your local distributor. Take photographs for any possible insurance claims.
3. Clean all rust protected surfaces with ordinary household type grease or spot remover. Do not use ammables; gas-
oline, paint thinner, mineral spirits, etc. These may damage painted surfaces. Clean thoroughly under the headstock,
tailstock and tool rest body. Then coat with a light film of dry lubricant spray, or wax, to enhance passage of the tool
rest and tailstock on/over the bed. Refrain from using any water-based solvents as they will promote metal rusting.
4. Apply a coat of paste wax to any machined surfaces to prevent rust. Wipe all parts thoroughly with a clean dry cloth.
5. Set packing material and shipping carton aside. Do not discard the packing material until the machine has been set up
and is running properly in case a return is necessary.
CONTENTS OF PACKAGE
A. Lathe Bed Assembly - including;
B. Motor Assembly
C. Headstock Assembly
D. Tool Rest Base Assembly
E. Tailstock Assembly
F. Electronic Controls
CONTENTS OF PACKAGE
LIST OF LOOSE PARTS
G. 3-3/8” Faceplate
H. 8” PRO Tool Rest with
4-5/16” (110mm) Post
I. Spur Center
J. Live Center
K. Long Knockout Bar
L. Short Knockout Bar
M. Hex Wrenches (2.5, 3, 4, 5 mm)
N. Wrenches (38 & 46 mm)
O. Tool Holder, Screws & Washers (2)
P. Outboard Hand Wheel
Q. Tailstock Hand Wheel
A
E
B
C
F
G
D
H
I
J
L
K
M
N
ADDITIONAL TOOLS REQUIRED FOR ASSEMBLY & ADJUSTMENTS
#2 Phillips Screwdriver Adjustable Wrench
O
NOTE: Lathe shown with Outboard Hand Wheel * on the
Headstock and Tailstock Hand Wheel ** installed.
Lathe is shown on the #70-920 Stand (sold separately).
***
P
Q

8
INSTALLATION
1. When moving the lathe, DO NOT use the headstock
assembly, motor, tool rest or tailstock as this may
damage the machine. Hold under the lathe’s bed to lift
and move the machine. Straps or battens placed under
the lathe bed can also be used to move the machine.
2. Position the machine on a solid stand, or bench, that
is located in an area that has ample space in front and in
back of the lathe for working and moving around the lathe.
3. For best power and safety, the lathe should be plugged
directly into a dedicated grounded electrical outlet that is
within the supplied cord length of the machine. The use of
an extension cord is not recommended.
4. Align the machine so that during use, any turning debris
or kickback will not face aisles, doorways, or other work
areas that bystanders may be in. Do not locate or use the
machine in damp or wet conditions.
5. Once in place in your shop, make sure that the
machine is level. If possible, secure the machine, or stand
to the floor, or bench, with lag screws (not supplied). This
will reduce any possible vibration during use.
GETTING TO KNOW YOUR MACHINE
G
B
D
K
C
L
H
I
A. Motor, Mounting Plate & Locking Handle
B. Outboard Bed Cover Plate Door
C. Headstock
D. Spindle Lock Knob / Index Pin
E. Outboard Hand Wheel
F. Headstock Cover
G. Spindle with Spur Center
H. Tool Rest & Base Assembly
I. Tool Rest Locking Handle
J. Tool Rest Base Locking Lever
K. Live Center
L. Tailstock Assembly
M. Face Plate
N. Electronic Controls
- ON & OFF Switches
- Forward / Reverse Switch
- Speed Control Knob
- Digital Speed Readout
O. Lathe Bed
P. Power & Controller Cords
Q. Tailstock Locking Lever
R. Tailstock Hand Wheel
S. Tailstock Locking Handle
T. Tool Holder & Tools
E
F
J
MOVING & INSTALLING THE LATHE
5. The Faceplate (M) may be shipped pre-installed on the
headstock spindle. If plate or bowl turning is to be done,
then the use of the faceplate is needed. To remove the
faceplate, loosen the two set screws in the rear hub of the
faceplate, then unscrew it from the spindle (counter-clock-
wise rotation). Two large wrenches are supplied for this.
6. For spindle turning, remove the faceplate. Install the
Spur Center (G) into the headstock spindle and Live Center
(K) into the tailstock spindle. Both have #2 Morse Taper
shanks.
7. Secure the lathe to a solid work surface or stand.
The 70-1420VSR Lathe requires only minor assembly to
become operational. See the photos above for reference.
1. Install the Outboard Hand Wheel (E) on the Headstock.
Tighten it in place on the spindle with the two set screws.
2. If not pre-assembled for shipping, install the Tailstock
Hand Wheel (R) onto the tailstock spindle. Secure with the
set screw on the at spindle area.
3. Install the Tool Holder (T) onto the back of the headstock
with the two Phillips head screws and washers provided.
4. Install the 8” Tool Rest (H) into the Tool Rest Base.
ASSEMBLY
** Midi Lathe shown on #70-920 Stand (sold separately)
M
N
P
O
Q
R
E
S
R
G
T
K
M
A
S
P
REAR VIEW
H

OPERATION
1. HEADSTOCK SPINDLE LOCK: The spring loaded
Index Pin Assembly (#39B, FIG. 1, A) is used to position
the spindle for making accurate, spaced pattern work on
projects such as straight uting, grooving, drilling, detail
carving, wood burning patterns and laying out designs.
See page 15 for more information on indexing.
NOTE: DO NOT use the Index Pin to remove accessories
from the lathe, or damage to the pin, or spindle pulley
may result. Use the wrenches provided with the lathe.
The Index Pin is spring loaded. Rotate the index Lever (A)
from its downward position, 180 degrees into the upward
position to engage the indexing pin. This will insert the
index pin’s shaft end into one of the spindle pulley’s 24
numbered holes (B), locking the spindle in place. To unlock
the spindle, rotate the index lever to its down position.
FIG. 1
FIG. 3
HEADSTOCK CONTROLS
2. HEADSTOCK INDEXING HOLES: (FIG. 1, B) The
largest Spindle Pulley (#24B) has 24 positioning ‘holes’
located around its left side. Each index hole is 15° apart,
and marked for reference around the pulley perimeter.
Insert the Indexing Pin (A) into one of these holes, and
the spindle will be locked so that work can be done on the
workpiece. See page 15 for additional information.
- Never start the lathe with the index pin
engaged in the spindle, or damage to the lathe will result.
- Never engage the spindle lock while the spindle is
turning, or damage to the lathe will result.
3. HEADSTOCK FACEPLATE: Faceplates (#3B, FIG. 2, C)
are used for turning bowls and plates. The screw holes in
the plate are for mounting the workpiece for turning.
- To install the faceplate, thread the faceplate onto the
spindle in a clockwise direction, and secure it in place with
the set screws that are located on the back hub of the
faceplate.
- To remove the faceplate, loosen the set screws. Use the
supplied 38mm Wrench on the at portion of the spindle
(FIG. 2, X) and the 46mm Wrench on ats of the face-
plate’s rear hub, then loosen the faceplate from the spindle.
Rotate the faceplate counter-clockwise to fully remove it
from the spindle.
4. HEADSTOCK SPUR CENTER: The Spur Center (#1B,
FIG. 2, D) is used for turning between centers. It ts into
the spindle. Both the spindle and spur center have match-
ing MT-2 tapers. The spur center can be removed from the
spindle with the long Knockout Bar (K) inserted through
the outboard left end of the spindle. NOTE: Be careful and
hold the spur center during this process so it does not y
out onto the oor. A short Knockout Bar (L) is supplied to
remove the Spur Center’s Center Point, if it needs replacing.
FIG. 2
DIAMETER
OF WORK
ROUGHING
RPM
GENERAL
CUTTING
RPM
FINISHING
RPM
Under 2”
2 to 4”
4 to 6”
6 to 8”
8 to 10”
10 to 12”
12 to 14”
14 to 16”
1520
750
510
190
220
255
300
380
3200
1600
1080
400
460
540
650
3200
2480
1650
1240
1000
830
710
620
810
A
B
X
C
D
GENERAL LATHE SPEEDS FOR WORKPIECE DIAMETERS
PIN
NOTE: The parts listed in the instructions refer to the
Parts Diagrams & Parts Lists on pages 18 to 21.
( EX: Part #29 on Sheet B is listed as #29B, etc.).
9

10
OPERATION
FIG. 4
FIG. 5
FIG. 6
1. TOOL REST BODY LOCK HANDLE: (FIG. 4, A) This
cam action lever handle locks the tool rest base (B) down in
position on the lathe bed. Unlock handle to position the tool
rest in any location along the lathe bed. Tighten the handle
when the tool rest is properly located for safe turning of the
workpiece. See page 13 for adjusting clamping pressure.
2. TOOL REST LOCK HANDLE: (C) Locks the tool rest in
position for supporting your tools during turning. Unlock the
handle to adjust the tool rest at a specic angle, or height.
Tighten handle when properly positioned.
1. TAILSTOCK LOCK HANDLE: (FIG. 5, D) Locks the
tailstock in position along the length of the lathe bed.
Unlock the cam lever handle to position the tool rest to
move the tailstock. Tighten handle when properly posi-
tioned. See page 13 for adjusting clamping pressure.
2. TAILSTOCK QUILL LOCK HANDLE: (E) Secures the
tailstock quill in position. Unlock the handle to move the
quill, with live center, forward or backwards. Tighten the
locking handle when the quill is nally positioned.
3. TAILSTOCK QUILL HANDWHEEL: (F) The handwheel
advances or retracts the quill 0 to 4”. The tailstock quill lock
handle (E) must be loose to move the quill.
4. TAILSTOCK LIVE CENTER: (G) Used for turning be-
tween centers. The Live Center (#11C) and the Quill (#7C)
have MT-2 tapers. Remove the live center by retracting the
quill until the center loosens, or use the knockout bar.
TOOL REST CONTROLS
TAILSTOCK CONTROLS
ELECTRONIC CONTROLS
C
B
D
E
F
G
AC
B
D
E
NOTE: The handle is spring loaded on its internal bolt. To
change the handle position, pull the handle out, rotate it to
the position you desire, then release the handle and it will
align itself back onto the bolt.
CONTINUED ON PAGE 11
The lathe features a corded Control Box, FIG. 6 (#1E), with
magnets on its back that allow it to be positioned on the
face of the headstock or anywhere along the lathe’s bed!
Wherever it is most comfortable for the turner to quickly
access the controls to regulate turning speeds, direction of
spindle rotation or to stop the lathe.
3. FORWARD / REVERSE SWITCH: (FIG. 6, C) This
selector switch will change the direction that the spindle
turns - clockwise (forward) or counter-clockwise (reverse).
Only change rotation direction when the spindle
has completely stopped. Should the switch be changed
while the lathe is operating, the machine will automatically
turn o󰀨 in ‘protection’ mode. The Digital Readout will show
an error code reading.
1. ‘ON’ BUTTON: (FIG. 6, A) Push the green Button so
that it turns the lathe ON. Push the red ‘mushroom’ Stop
Button (B) to turn the lathe OFF.
2. ‘STOP’ BUTTON: (B) Push in the extended red Button
to stop the lathe. To restart the lathe, rotate the OFF but-
ton clockwise and it will pop out to reset itself. Then press
the ‘ON’ button to restart the lathe.
Turn o󰀨 the lathe by pushing the large red OFF button (B)
and the digital reading will go out, and the control box will
reset. Rotate the O󰀨 button clockwise and it will pop out
to reset itself. Then put the forward/reverse switch to the
desired setting (FWD or REV) and the lathe can be turned
back on to continue your work.
NOTE: See page 16 for a list of Electronic Digital Codes.
A

OPERATION
5. SPEED RPM DIGITAL READOUT: (E) Displays the
spindle’s RPM as set by the RPM Knob (D). NOTE: Speeds
displayed may vary + - 5% due to di󰀨erence in input voltage.
CONTINUED FROM PAGE 10
11
LATHE BED EXTENSIONS - (OPTIONAL)
FIG. 7
FIG. 8
The 70-1420VSR Lathe features a cast iron bed with three
sides machined to add bed extensions which will expand
the work capabilities for turning. Extensions easily bolt onto
the lathe for solid support. Extensions and Lathe Stand
accessories are sold separately. See page 22.
RIGHT BED END: To extend the spindle turning length
between centers, the addition of a lathe bed extension is
needed. There are two extension options:
- #70-903 This 13-1/2” Bed Extension extends the lathe’s
maximum spindle length from 16-1/2” to 30”. If the lathe is
mounted on a stand, a stand extension is not needed. FIG. 7.
- #70-901 This 24” Bed Extension expands the working
spindle length from 16-1/2” to 40-1/2”. If the lathe is mount-
ed on a stand (#70-920), the lathe Stand Extension (#70-
913) is needed to support the added bed length. FIG. 8.
LEFT BED END: To extend the swing over the lathe bed
for larger diameter turning of bowls and platters, the
addition of a bed extension on the left, headstock end of
the lathe is provided for outboard turning.
- #70-903 The mounting of the 13-1/2” Bed Extension will
expand the lathe’s swing from 12” over the lathe bed, to 15”
over this outboard extension bed. FIG. 9.
FIG. 10
4. SPEED RPM KNOB: (FIG. 6, D) This knob controls the
desired spindle revolutions per minute (RPM). The lathe
has three speed ranges; 150-650, 400-1550, 850-3850
RPM. Spindle speeds are shown on the LCD Display (E). See the Speed Chart (FIG. 3, page 9) for recommended
speeds based on the diameter of the workpieces.
FRONT of BED: To expand the positioning of tool rests for
improved turning of rims and rear portions of bowls and
platters, the front on the lathe bed is machined for the
addition of a short bed extension.
70-920 70-913
70-901
FIG. 9
THE MACHINE
MUST NOT BE PLUGGED IN AND THE
POWER SWITCH MUST BE IN THE OFF
POSITION UNTIL ALL ADJUSTMENTS
ARE COMPLETE.
- #70-903 Installing the 13-1/2” Bed
Extension to the lathe front allows the
positioning of the tool rest for improved
access to turning and nishing the sides
and backs of workpieces. FIG. 10.
NOTE: Longer bed extensions can not
be used on this bed front connection as
damage to the bed casting will result.
70-903

OPERATION
OUTBOARD BOWL & PLATTER TURNING
With the optional #70-903 13-1/2” Extension mounted on the left, outboard
end of the lathe (FIG. 9 & 11), faceplates or chucks can be mounted on
the outboard end of the spindle. This end has the same 1-1/4” x 8TPI RH
threading as the inboard spindle end. For outboard turning, the spindle
needs to rotate in the REVERSE direction. For turning:
1. To remove the Handwheel (#28B), loosen the 2 Set Screws. Then use
the 38mm Wrench on the at portion of the Handwheel and 46mm Wrench
on the large Locking Nut (#27B) to loosen the handwheel from the spin-
dle. Rotate the handwheel counter-clockwise to fully remove it from the
spindle. See Figure 15, parts E and F on page 14.
2. Faceplates or Chucks holding workpieces can now be mounted on the
outboard spindle for turning.
3. Remove the tool rest assembly from the lathe bed, and mount it on the
lathe bed extension for turning. For this:
- Loosen the lathe bed’s end Screw (#1A) with the 5mm Hex Wrench then
rotate the safety Washer (#2A) downward so the tailstock and tool rest can
be removed.
- Release the tailstock’s locking handle and slide the tailstock o󰀨 of the
lathe bed.
- Release the tool rest base’s locking handle and slide the tool rest base
assembly o󰀨 of the lathe bed.
- Remount the tool rest base assembly with
tool rest onto the 13-1/2” outboard extension
so it can be used for turning. FIG.11.
- Remount the tailstock onto the lathe bed
and reset the safety end washer in place for
security.
USING MAGNETIC BASE LIGHTS & ACCESSORIES
The 70-1420VSR lathe is designed with at headstock and tailstock metal
surfaces for attaching magnetic based lights, storage bowls or other acces-
sories. The headstock lid is tted with a steel plate just for this purpose. The
cast iron tailstock’s top surface o󰀨ers a generous 7-3/8” (90mm) long x 1-1/2”
(35mm) wide at surface. See page 23 for the 12-202 LED Light shown.
12
FIG. 11
Metal Plate on
headstock lid
ADJUSTMENTS
CENTER POINT ALIGNMENT
The Spur and Live Centers points are pre-set at the factory, but,
upon receipt of the lathe their alignment should be checked in
case some movement during shipping has occurred.
- Rotate the centers to ensure that the points do not wobble.
- The tailstock should slide along the lathe bed without binding.
The side clearance of the tailstock in the bed gap is absolutely
minimal and so no adjustments to the tailstock are required.
- The headstock is fastened to the lathe bed with 4 bolts (#20B).
By loosening these bolts, the headstock can be moved slightly
to align the Spur Center point to the Live Center Point.
- Once aligned, secure the headstock bolts.
NOTE: Periodically check the alignment of the centers to
make sure there has been no movement from working.

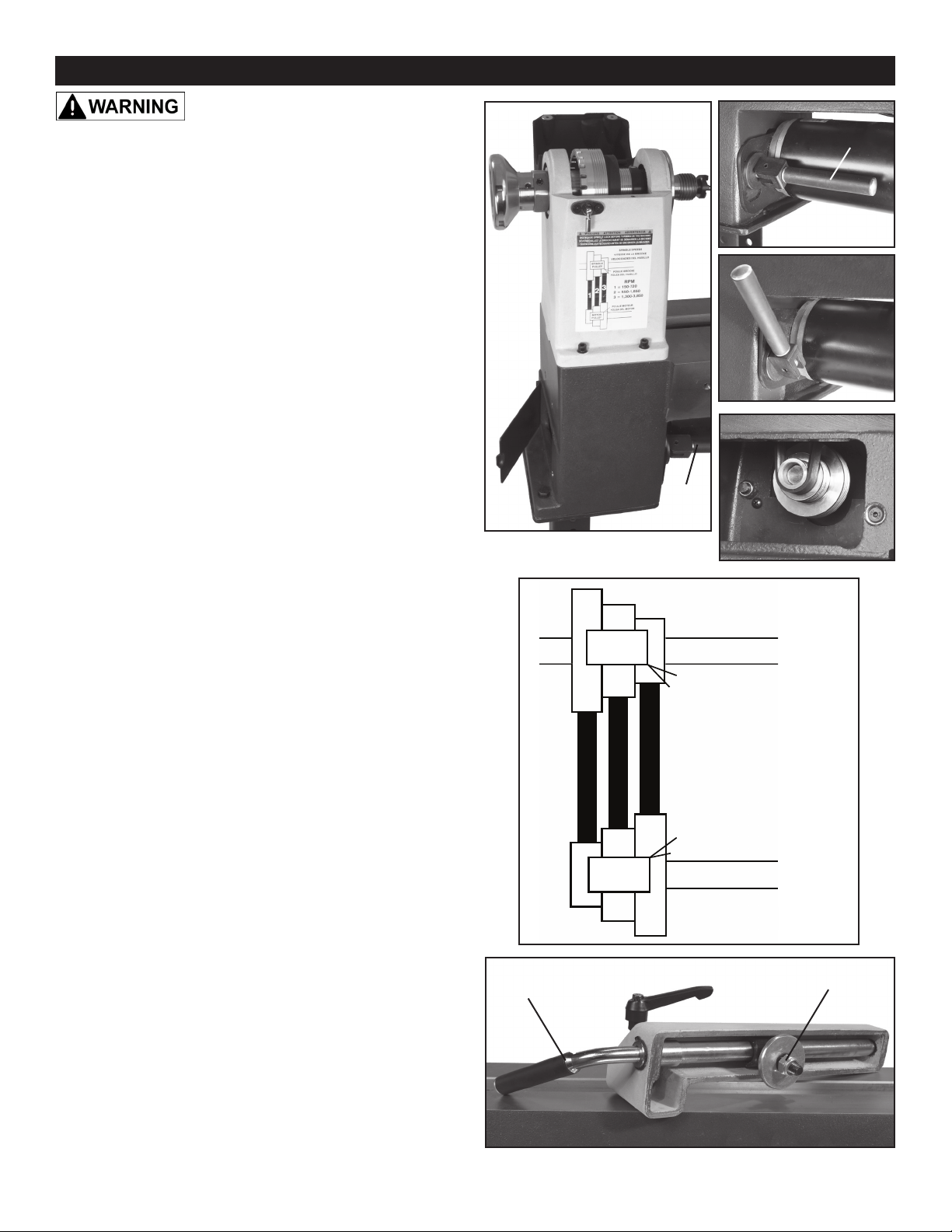

ADJUSTMENTS
1. Unplug the lathe from the power source.
2. Open the top Headstock Cover (#14B, FIG. 12, A) and
the left side, Bed Cover Plate Door (#5A, B) to gain access
to the belt and pulleys that are inside of the headstock.
3. Loosen the motor mount locking cam-action Handle (#18A).
- Pull the handle forward to unlock. FIG. 12, C.
- Push the handle up to release the belt tension.
4. - Change the belt position on the two pulleys.
The Poly-V-Belt (#29B) can now be re-positioned on the
upper Spindle Pulley (#24B) and lower Motor Pulley (#10A,
FIG. 12, D) for the desired speed range setting. FIG. 13
shows the belt positions for the three speeds.
NOTE: The ‘High’ speed range (850-3850 RPM) provides
maximum speed. The ‘Low’ speed range (150-650 RPM)
will provide maximum torque. See the Speed Chart on page
9, FIG. 3, for recommended speeds based on the diameter
of the workpieces being turned.
5. With the Poly-V-Belt positioned on the pulleys, lower the
Motor Connecting Plate so that the weight of the motor pro-
vides the needed tension on the belt. Then re-tighten the
locking cam Handle that was loosened in step 3, above.
- Push the handle down and then backward to set the
belt tension and lock it in place.
6. Close the Headstock Cover and Bed Cover Plate Door
to protect the belt, pulleys and internal working from dust.
FIG. 12
CHANGING BELT SPEEDS
THE MACHINE MUST NOT BE
PLUGGED IN AND THE POWER SWITCH MUST BE IN THE
OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.
ADJUSTING THE LOCKING HANDLES
The locking handles on the Tailstock and Tool Rest Base
are pre-set at the factory to give ample holding pressure
against the lathe bed to keep these lathe assemblies
positioned, so that they will not move during use.
If adjustments are needed, the clamping pressure can be
changed by turning the large Hex Nuts (#15C & 9D) that
are located under the lathe bed and below the assemblies.
This is done with a 16mm (5/8”) or adjustable wrench (not
included). FIG. 14 shows the tool rest removed from the
lathe bed to view the locking mechanism and Hex Nut (A).
1. Loosen the Locking Handle (B) so that there is no
clamping pressure being exerted on the lathe assembly.
2. With a wrench, slightly turn the Hex Nut to loosen or
tighten it on its Threaded Shaft (#12C &79D).
3. Test the clamping pressure with the locking handle, and
adjust the nut again, if needed, to set the right pressure.
A
A
B
B
D
C
C
LOCKED
HANDLE
RELEASED
HANDLE
C
D
13
FIG. 14
FIG. 13
DISENGAGE SPINDLE LOCK BEFORE TURNING ON THE MACHINE
DÉVERROUILLEZ LA BROCHE AVANT DE DÉMARRER LA MACHINE
DISENGAGE EJE BLOQUEO ANTES DE ENCENDER LA MÁQUINA
WARNING ATTENTION ADVERTENCIA
123
SPINDLE
PULLEY
POULIE BROCHE
POLEA DEL HUSILLO
POULIE MOTEUR
POLEA DEL MOTOR
MOTOR
PULLEY
SPINDLE SPEEDS
VITESSE DE LA BROCHE
VELOCIDADES DEL HUSILLO
RPM
1 = 150-650
2 = 400-1,550
3 = 850-3,850
+ - 5%
C
M
Y
CM
MY
CY
CMY
K
70-1420 Spindle Speed Label Diagram & Warning EFS 2.pdf 1 1/21/2022 10:54:16 AM

14
ADJUSTMENTS

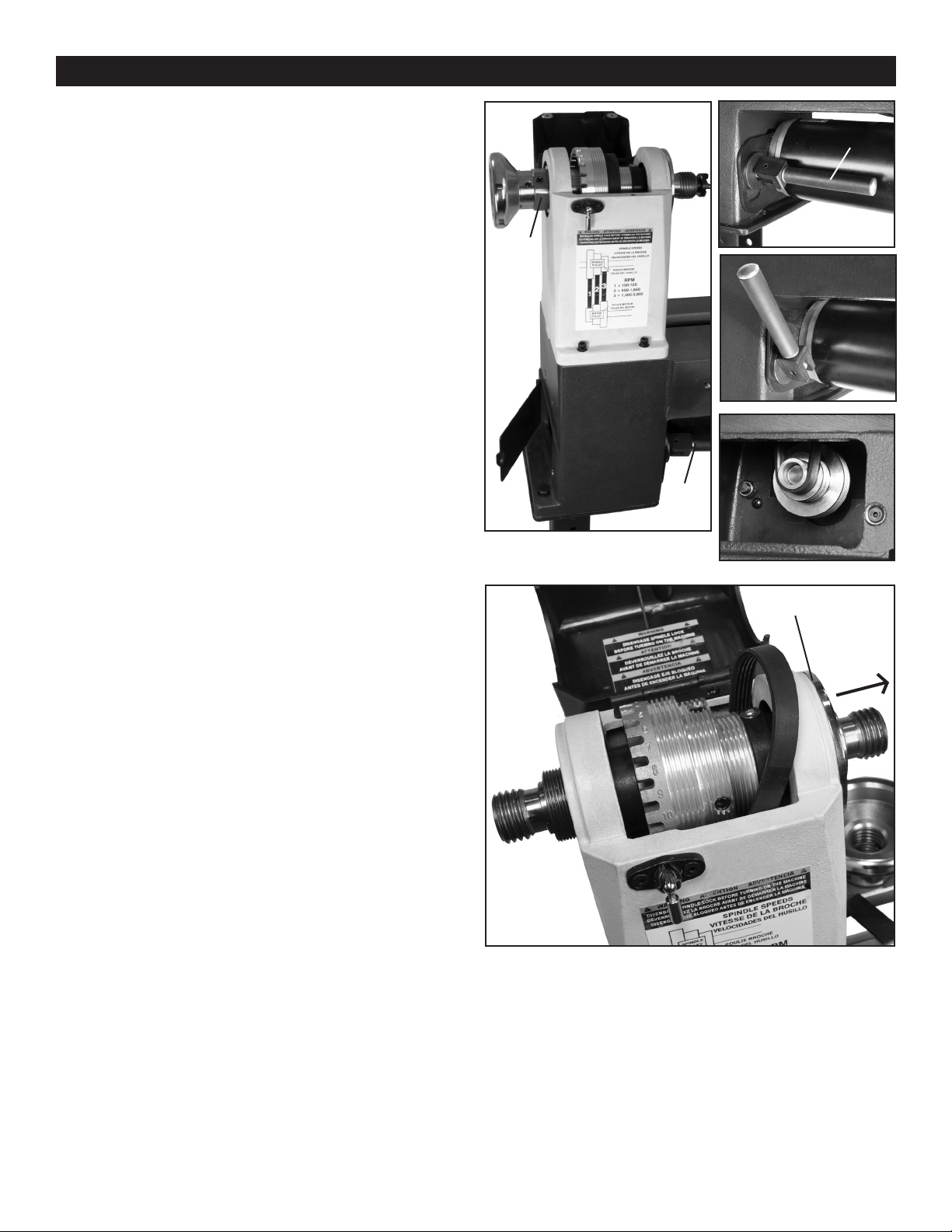

Changing the belt requires that the headstock spindle be
removed, or half removed, from the headstock casting.
Then the new belt can be slipped over the spindle and
down inside of the headstock to the motor pulley.
1. Unplug the lathe from the power source and remove any
accessories from the spindle - spur center, face plate, etc..
2. Open the top Headstock Cover (#14B, FIG. 15, A) and
the left side, Bed Cover Plate Door (#5A, B) to gain access
to the belt and pulleys that are inside of the headstock.
3. Loosen the motor mount locking cam-action Handle (#18A).
- Pull the handle forward to unlock. FIG. 15, C.
- Push up the handle to release the belt tension.
4. Remove the Belt (#29B) from the lower Motor Pulley
(#10A; FIG. 15, D). NOTE: If the belt is not to be saved,
the old belt can be cut o󰀨 at this time.
5. To remove the Handwheel (#28B, FIG. 15, E), loosen
the 2 Set Screws. Then use the 38mm Wrench on the at
portion of the Handwheel and 46mm Wrench on the large
Locking Nut (#27B, FIG. 15, F) to loosen the handwheel
from the spindle. Rotate the handwheel counter-clockwise
to fully remove it from the spindle.
6. Remove the large Locking Nut (#27B) in a counter-
clockwise rotation with the supplied 48mm wrench and then
remove the large Washer (#26B) behind the nut.
7. At the opposite inboard side of the headstock, remove
the Bearing End Plate (#6B) by unscrewing the 3 hex head
Screws (#5B) with a 3mm hex wrench. FIG. 16, P.
8. Remove and loosen the Set Screws (FIG. 16, H) that
attach the Spindle Pulley (#24B) to the spindle. The pulley
should now be loose on the spindle. NOTE: There are two
(2) set screws (#22B & 23B), one on top of the other, in both
of the two (2) threaded holes. This stacking keeps the set
screws from loosening during use.
9. Carefully knock the spindle, towards the tailstock. Use
a block of wood against the left spindle end to prevent any
damage when it is hit with a mallet/hammer. The spindle
pulley, spacers, sleeve and bearings will all slide along the
spindle. See page 19 for the spindle diagram assembly.
Once there is enough space, the old drive belt can be
removed around the spindle end, and replaced with the
new belt. Figure 16.
10. Re-install the spindle and parts back into the head-
stock casting. As in step 9, very carefully knock the spindle
and bearings back into place with a block of wood and
mallet.
CHANGING THE BELT
FIG. 16
11. Re-assemble the remaining headstock parts by revers-
ing the procedure previously described.
12. Secure the spindle pulley in place on the spindle with
the set screws. Make sure that the set screws engage back
onto the at sections on the spindle to eliminate slippage.
13. Position the new belt on the spindle and motor pulleys
and set the tension as described on page 13 for ‘Changing
Belt Speeds’.
H
REMOVE
SPINDLE
HAND
WHEEL
REMOVED
FROM
SPINDLE
H
P
FIG. 15
A
B
D
C
C
LOCKED
HANDLE
RELEASED
HANDLE
C
D
E
F

ADJUSTMENTS
15
CHANGING THE BEARINGS
To change the bearings, the whole spindle shaft needs to
be shifted right, out of the headstock, towards the tailstock.
Then the bearings can be removed from the headstock
casting. With the new bearings in place, the spindle shaft
assembly can be re-installed, so turning can be resumed.
1. Follow the steps 1-9 described in CHANGING THE
BELT on page 14 to remove the spindle assembly from the
headstock.
2. Carefully knock out the old bearings. Use a block of
wood against the bearings to prevent any damage to the
machine if mistakenly hit with a mallet/hammer. Bearings
on the spindle can be removed with a gear pulley, if
available.
THE MACHINE MUST NOT BE
PLUGGED IN AND THE POWER SWITCH MUST BE IN THE
OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.
3. Install the new Bearings (#7B) on the spindle or in the
headstock casting, by carefully knocking them into position.
4. Re-assemble the lathe parts by reversing the procedure
described in steps 10 - 13 as described in the CHANGING
THE BELT instructions on page 14.
NOTE: The lathe’s ball bearings are lifetime lubricated,
sealed, and do not need any further care. To prevent
slipping, keep the drive belt free of oil and grease.
SPINDLE INDEXING ADJUSTMENTS
The Headstock Spindle has 24 indexing holes, each 15°
apart, which allows accurate pattern work on projects such
as straight uting, grooving, drilling, detail carving, wood
burning patterns, laying out designs and more.
The Indexing Chart, FIG. 17, shows how to rotate the
spindle to access any of the 24 indexing holes. The 8 pri-
mary settings are listed in FIG. 18, however, other indexing
design settings are possible. Vary the index combinations
to make non-equal, spaced patterns. Also, by rotating/
re-positioning your work while it is being held between
centers, in a chuck or on a faceplate, new orientation
points for the index holes will be set for your work.
To Use: Insert the Indexing Pin into one of the 24 spindle’s
positioning holes according to the chart, and the number of
setting you need for your workpiece. Make sure that the pin
locates and securely enters into one of the indexing holes
so that there is no accidental slipping.
FIG. 17
NUMBER OF
INDEX
POSITIONS
ANGLE
BETWEEN
POSITIONS
HEADSTOCK
INDEX
LETTER
1
2
3
4
6
8
12
24
360°
180°
120°
90°
60°
45°
30°
15°
A
A
A
A
A
A
A
A
NEVER START THE LATHE WITH
THE INDEX PIN ENGAGED IN THE SPINDLE, OR
DAMAGE TO THE MACHINE WILL RESULT.
With the Indexing Pin in the rst spindle hole setting, do
your work (drilling /marking/etc.), then rotate the spindle
to the next index setting noted on the chart. Work through
all of the designated index setting numbered positions and
complete the remaining markings, or work, on your work-
piece.
SPINDLE
INDEX
NUMBER
1
1,13
1,9,17
1,7,13,19
1 to 24
1,4,7,10,13,
16,19,22
1,5,9,13,17,21
1,3,5,7,9,11,13,
15,17,19,21,23
FIG. 18
See page 9 for additional information on the lathe’s head-
stock and indexing.

MAINTENANCE
1. Before each use:
- Check the power cord and plug for any wear or damage.
- Check for any loose screws, hardware, locking handles,
jigs or various lathe accessories.
- Check the area to make sure it is clear of any misplaced
tools, lumber, cleaning supplies, etc. that could hamper the
safe operation of the machine.
2. Avoid a build-up of wood shavings and dust. Regularly
clean all parts of the machine using a soft cloth, brush or
compressed air. A general cleaning should be done after
every use to avoid future problems and ensure that the
machine is in ready condition for its next use.
Turn the power switch “OFF” and disconnect the plug from the outlet prior to adjusting or maintaining
the machine. DO NOT attempt to repair or maintain the electrical components of the motor. Contact a qualied service
technician for this type of maintenance.
3. Keep the lathe bed free of resin and rust. Clean it
regularly with a non-flammable solvent, then coat with a
light film of dry lubricant spray, or wax, to enhance passage
of the tool rest and tailstock on/over the bed.
4. Keep the lathe tools sharp, and make sure the steel is
not loose in the handles so that no accidents might occur.
Making sure that tools are in proper operating condition
will ensure that the quality of your turning will be the best
possible.
5. Check all lathe accessories (spur centers, live centers,
chucks, tool rests, etc) to ensure that they are in perfect
working condition.
6. The lathe’s ball bearings are lifetime lubricated, sealed,
and do not need any further care. Keep the drive belt free
of oil and grease to prevent slipping on the pulleys.
WARNING: If blowing sawdust, wear a proper dust mask
and eye protection to prevent debris from being inhaled and
blowing into your eyes.
TROUBLESHOOTING -
00
02
06
CODE CONDITION ACTION
Digital RPM Display is not operating.
Software Protection Mode - Possible damage to
the electronic controller. Short circuit protection.
Spindle Direction Protection Mode - The spindle
direction has been changed during operation.
- Check wiring connections to the RPM reader.
- Check & clean the RPM reader for any dust build-up.
- Check drive belt. Adjust RPM reader or drive belt positions.
- Check that the motor wiring is not loose and wired correctly.
- Turn o󰀨 the machine and re-start once the digital display has
cleared. If the error code still appears, the controller hardware
may be damaged and Technical Support should be contacted.
- Turn o󰀨 the machine and re-start it once the digital display
has cleared.
DISPLAY
16
See page 22 for the 70-1420VSR Wiring Diagram, and page 5 for additional electrical information.
NOTES
Electronic Speed Control ACTION CODES

For parts or technical questions contact: [email protected] or 877-884-5167.
17
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE REMEDY
1. Workpiece is warped, out of round, has
major aw, or was improperly prepared
or centered for turning
2. Worn spindle bearings
3. Worn belt
4. Motor mount bolt or handles are loose
5. Lathe is on an uneven surface
1. Correct problem by planing, band
sawing, or discard the workpiece
2. Replace the bearings
3. Replace the belt
4. Tighten all bolts or handles
5. Shim the lathe stand, or adjust the
feet on the stand for stability
Excessive Vibration.
1. Excessive depth of cut
2. Loose or broken belt
3. Worn spindle bearings
4. Improper cooling of motor
5. Worn motor
1. Reduce cutting depth
2. Check tension or replace drive belt
3. Replace bearings
4. Clean motor to increase air ow, or
reduce motor running time
5. Replace Motor
Motor or Spindle Stalls or will not
start
1. Correct the overload condition
2. Increase supply wire size or elimi-
nate extension cord if one is used
3. Adjust belt tension
4. Have voltage checked by an elec-
trician and corrected, if necessary
5. Replace the motor
1. Power line is overloaded
2. Undersize wires in supply system
3. Drive belt tension is too high
4. Low voltage
5. Worn motor
Motor fails to develop full power.
1. Dull turning tools
2. Tool rest is set too low
3. Tool rest is set too far from the workpiece
4. Improper turning tool is being used
1. Sharpen the tools
2. Reposition the tool rest height
3. Set the tool rest closer to the
workpiece
4. Use the correct tool for operation
1. Excessive pressure being applied by the
tailstock onto the workpiece
2. Tailstock is not secured in place
3. Lathe bed and tailstock mating surfaces
are greasy or oily.
1. Apply only su󰀩cient force with the
tailstock to hold the workpiece
securely between centers.
2. Tighten tailstock locking lever
3. Remove tailstock and clean bed
surfaces with a cleaner degreaser
Tailstock Moves when applying
pressure
Digital readout does not work 1. Digital readout sensor out of position 1. See page 16 for information.
2. Contact Technical Support at
877-884-5167 or email
[email protected]
Motor will not start 1. Machine is not plugged in
2. Low voltage
3. Loose connection
1. Plug in machine
2. Check fuses
3. Check plug and all connections
Tools tend to grab or dig in.
Machine bogs down during cutting 1. Excessive depth of cut is taken
2. Turning tools are dull
1. Decrease the depth of cut
2. Sharpen the turning tools
Tailstock or Tool Rest Base do not
lock in place
1. Incorrect adjustment on locking lever
mechanism
1. Adjust the nut under the clamping
plate to increase (or decrease) the
clamping pressure of the lock levers
Motor overheats 1. Motor is overloaded
2. Air ow restricted on the motor
1. Reduce load on the motor
2. Clean motor to increase air ow

PARTS DIAGRAM & PARTS LIST
18
NOTE: Please reference
the Part Number when calling
for Replacement Parts.
For Parts under Warranty,
the Serial Number of your
machine is required.
PART
NO.
DESCRIPTION
KEY
NO. QTY
P70-1420VSR-1A
P70-1420VSR-2A
P70-1420VSR-3A
P70-1420VSR-4A
P70-1420VSR-5A
P70-1420VSR-6A
P70-1420VSR-7A
P70-1420VSR-8A
P70-1420VSR-9A
P70-1420VSR-10A
P70-1420VSR-11A
P70-1420VSR-12A
P70-1420VSR-13A
P70-1420VSR-14A
P70-1420VSR-15A
P70-1420VSR-16A
P70-1420VSR-17A
P70-1420VSR-18A
P70-1420VSR-19A
Hex at round head screw M8x12
Eccentric washers
Bed
Pan head screw M4x10
Bed cover assembly
Countersunk head screw M5x10
Magnet
Countersunk head screw M4x8
Plate
Motor pulley
Hex cup point screw M6x8
Hex cup point screw M6x5
Hex lock nut M8
Hex at round hd screw M6x16
Standard spring washer 6
Motor connecting plate
Spinning gear
Tensioning Handle Assembly
Motor 1-1/2HP, DC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
1
1
2
1
1
1
2
1
1
1
1
2
2
2
1
1
1
1
70-1420VSR BED ASSEMBLY
SHEET A
TOOLS NOT SHOWN
BUT LISTED ON PAGE 7
Hex Wrench - 2.5mm
Hex Wrench - 3mm
Hex Wrench - 4mm
Hex Wrench - 5mm
Wrench - 38mm
Wrench - 46mm
Knockout Bar - Long
Knob End for long K/O bar
Knockout Bar - Small
P-HEX2.5
P-HEX3
P-HEX4
P-HEX5
70-931
70-932
P70-150VSR-32A
P70-150VSR-33A
P70-150VSR-34A
111
7
12
14 15
19
18
4
8 9
13
17
3 2 1
56
16
WL1420A010000 床身组件
Sheet

机头箱组件WL1420A020000 Sheet
3
13
9
16
29
15
32
4
1
11
2
10
17
12
18
5
19
6
20
7
21
8
22
14
2324
7
26
33
27
17
30
18
31
34
38
37
35
28
39
25
36
PARTS LIST & PARTS LIST
19
70-1420VSR
HEADSTOCK ASSEMBLY
SHEET B
NOTE: Please reference
the Part Number
when calling for
Replacement Parts.
For Parts under Warranty,
the Serial Number of your
machine is required.
PART
NO.
DESCRIPTION
KEY
NO. QTY
70-943
P70-1420VSR-2B
70-933
P70-1420VSR-4B
P70-1420VSR-5B
P70-1420VSR-6B
P70-1420VSR-7B
P70-1420VSR-8B
P70-1420VSR-9B
P70-1420VSR-10B
P70-1420VSR-11B
P70-1420VSR-12B
P70-1420VSR-13B
P70-1420VSR-14B
P70-1420VSR-15B
P70-1420VSR-16B
P70-1420VSR-17B
P70-1420VSR-18B
P70-1420VSR-19B
P70-1420VSR-20B
Spur center
Hex cup point screw M6x8
3-3/8” Faceplate
Spindle
Hex socket screw M5x12
Bearing end cap/plate
Bearing 6007
Corrugated gasket
Magnet sleeve
Magnet
Tapping screw ST3x6
Hinge shaft
Hex lock nut M5
Headstock cover
Panels
Hex socket screw M5x12
Pan head screw M4x10
Flat washer 4
Hinge
Hex cap screw M6x30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
4
1
1
3
1
2
1
1
2
2
1
1
1
1
1
3
3
1
4
PART
NO.
DESCRIPTION
KEY
NO. QTY
P70-1420VSR-21B
P70-1420VSR-22B
P70-1420VSR-23B
P70-1420VSR-24B
P70-1420VSR-25B
P70-1420VSR-26B
P70-1420VSR-27B
P70-1420VSR-28B
70-985
P70-1420VSR-30B
P70-1420VSR-31B
P70-1420VSR-32B
P70-1420VSR-33B
P70-1420VSR-34B
P70-1420VSR-35B
P70-1420VSR-36B
P70-1420VSR-37B
P70-1420VSR-38B
P70-1420VSR-39B
Standard spring washer 6
Hex cup point screw M8x6
Hex cup point screw M8x10
Spindle pulley
Spacer
Washer
Locking nut
Wheel
Poly-V-belt
Side panel
Tachymeter head
Hex socket screw M5x8
Cable plate
Plate
Hex socket screw M3x10
Flat washer 6
Headstock
Hex socket screw M4x12
Stop pin assembly
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
4
4
2
1
1
1
1
1
1
1
1
1
1
1
2
4
1
4
1

PARTS DIAGRAM & PARTS LIST
20
NOTE: Please reference the Part Number
when calling for Replacement Parts.
For Parts under Warranty, the Serial Number
of your machine is required.
70-1420VSR TAILSTOCK ASSEMBLY
SHEET C
WL1420A040000 尾座组件 Sheet
14 15
16
17
9
8
7
18
1
2
3
4
5
10
11
12
13
6
See pages 10 and 13 for
information on operating and
adjusting the tailstock.
P70-1420VSR-1C
P70-1420VSR-2C
P70-1420VSR-3C
P70-1420VSR-4C
P70-1420VSR-5C
P70-1420VSR-6C
P70-1420VSR-7C
P70-1420VSR-8C
P70-1420VSR-9C
P70-1420VSR-10C
P70-1420VSR-11C
P70-1420VSR-12C
P70-1420VSR-13C
P70-1420VSR-14C
P70-1420VSR-15C
P70-1420VSR-16C
P70-1420VSR-17C
P70-1420VSR-18C
Screw
Spring ring
Rotating handle
Hand wheel
Hex cup point screw M6x8
Split washer 12
Axle sleeve (Quill) & bolt
Tailstock
Locking handle
Tailstock locking lever
Live center
Threaded shaft
Compression spring
Clamping plate
Hexagonal lock nut M10
Hex at point screw M5x25
Hex nut M10
Hex point end screw M6x8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
PART
NO.
DESCRIPTION
KEY
NO. QTY
