Riley RS1 User manual

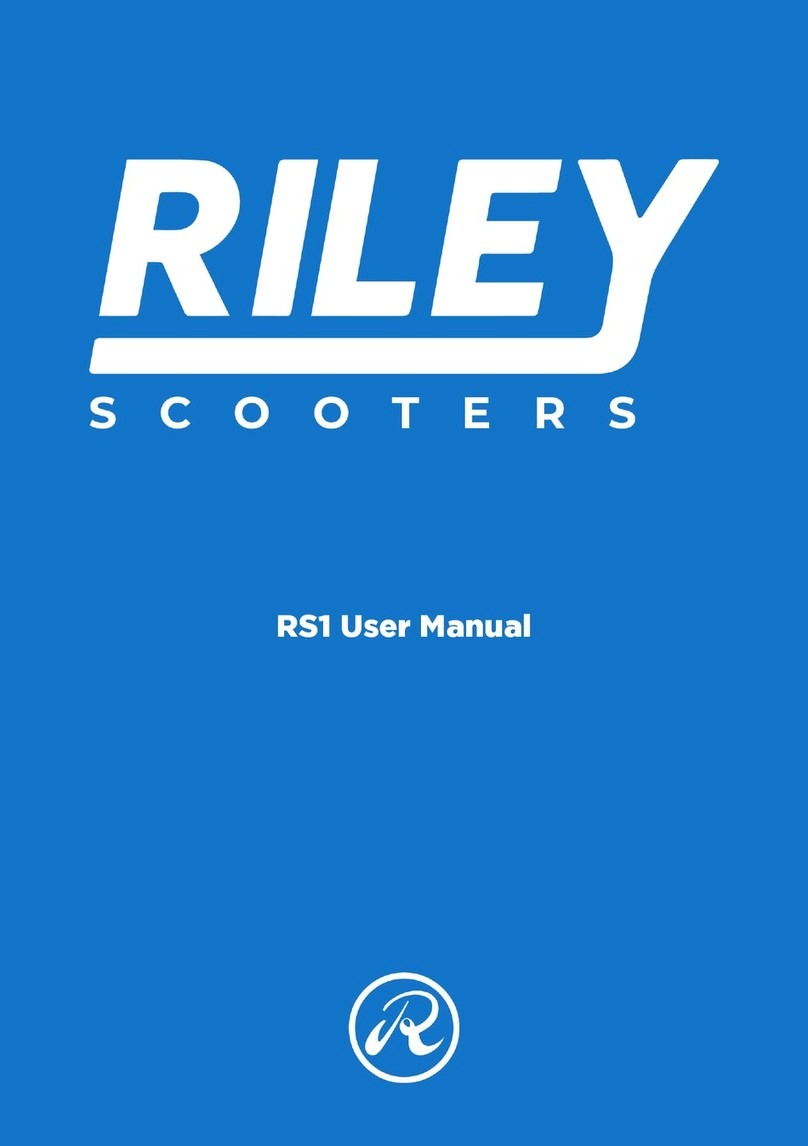

RS1 User Manual

1 2
RS1 - EN Riley Scooters
Thank you for choosing a Riley Scooter. We are a British start-up with
an ambitious vision. Your electric ride truly makes a difference.
With increasing urban trafc and environmental issues throughout
the world, you are supporting us to achieve our mission of providing
“a viable way forward for smarter, cleaner cities”.
Riley Scooters is reinventing urban transportation leading to a positive
environmental difference in the world through our all-electric scooter
revolution.
Whilst the e-scooter may be just a pleasure ride for some, it’s the
modern way of transport. We hope this e-scooter brings you as much
satisfaction riding it, as it did for us creating it.
Contribute to our mission by sharing images and videos of your rides
using the hashtag #riIeyscooters. Together, let’s lead the way forward
for modern urban transport creating a clean and sustainable future
for all.
Hayden Riley
Founder & CEO
Proudly
British

3 4
Declaration of conformity
Riley Scooters Limited: Kings Lodge, London Road, Sevenoaks,
TN15 6AR, United Kingdom
This declaration of conformity is issued under the sole
responsibility of the manufacturer.
Object of the declaration:
Type of Device: Electric scooter
Model NO: RS1
Description: RILEY SCOOTER RS1
The object of the declaration described above is in conformity
with the relevant Union harmonisation legislation:
2011/65/EU amended by 2015/863(EU)
2014/30/EU
2014/35/EU
2006/42/EC
2014/53/EU
RoHS Directive
EMC Directive
Low Voltage Directive
Machinery Directive
RED DIRECTIVE
References to the relevant harmonize standards used or
references to other technical specification in relation to which
conformity is declared:
BS EN 17128:2020
EN 17128:2020
EN 60335-1:2012
EN 60335-2-29:2004
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN 61558-1:2005
EN 61558-2-16:2009
PT 55014-1:2021
EN 55014-2:2015
EN 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019
Name of manufacturer: RILEY SCOOTERS LIMITED
Address: Kings Lodge, London Road, Sevenoaks,
TN15 6AR, United Kingdom
Importer/Distributor contact detail:
www.rileyscooters.com
AUTHORISED SIGNATURE:
Hayden Riley
Founder & CEO
Date: 2022-10-28

5 6
About the manual Contents
For your driving safety, please
read this user manual carefully
before using the e-scooter.
Please note “warnings” and
“tips” in this manual.
Warnings: improper operation
may result in personal injury.
Tips: Helpful advice for the
usage of the e-scooter.
Should you have any queries,
please contact our customer
support team via our website
(rileyscooters.com).
Tips:
The manufacturer recommends
riders be 14+ years old.
People without experience, or
with impaired physical ability
should learn to ride with a
competent rider.
Children should only clean and
maintain the e-scooter under
adult supervision.
Improper use of the e-scooter and/or failure to read this user
manual may lead to serious bodily injury. Riley Scooters will take
no responsibility for any injuries caused by improper use .
Note: it is important to pump the tyres up to 35 P.S.I (2.41 Bar) for
your own safety and optimal riding quality.
1. Safety notes .................................................................................. 7-9
1.1 About safety.......................................................................................... 7
1.2 Safety precautions .......................................................................... 7-9
2. Product Information ................................................................. 10-14
2.1 Overall view .......................................................................................... 10
2.2 Operation of buttons ........................................................................ 11
2.3 Assembly instructions ..................................................................... 12
2.4 Folding instructions.......................................................................... 13
2.5 Uninstall/install the battery........................................................... 14
3. How to ride the e-scooter..........................................................15-16
4. Battery instruction......................................................................17-19
4.1 Battery parameters........................................................................... 17
4.2 Battery safety ...................................................................................... 18
4.3 Charging instructions........................................................................ 19
5. Specifications ................................................................................. 20
6. Maintenance..................................................................................... 21
7. Troubleshooting............................................................................. 22
8. What’s included.............................................................................. 23
9. Riley Scooter App.......................................................................... 24

7 8
1.2 Safety precautions
Please note that you may lose
balance, or fall over when you
ride an e-scooter. To avoid injury,
you should familiarise yourself
with this manual and keep the
e-scooter in good condition.
1. Safety notes
1.1 About safety
There are risks involved with
riding an e-scooter. For your
safety, please learn to ride safely
and obey the local rules/laws.
Please check the tyres for
damage and that xings are
tight before riding. Please
contact your local distributor for
any safety queries.
Please do not do anything that
may harm other people or their
property with the e-scooter.
Any conversion of the e-scooter
is prohibited as it will change
its performance or damage
the structure, which may cause
serious injury.
Please do not submerge the
e-scooter into water, which will
not only damage the e-scooter,
but also cause a safety risk.
Take caution when riding
in the rain.
Safety measures should
be taken before riding,
e.g. wear sportswear,
helmet, knee pads and
elbow pads.
DO NOT ride with loading.
DO NOT ride with more
than one rider.
DO NOT ride if you are
pregnant.
Max Load: 120 kg. DO NOT ride after
drinking alcohol or
taking medicine.

9 10
DO NOT listen to music
when you ride the
e-scooter.
Be careful of uneven,
loose or slippery
surfaces. Avoid slopes,
stairs and poorly lit areas.
DO NOT use in dangerous
areas, where there is a risk
from ammable materials.
2. Product information
2.1 Overall view
Accelerator/Throttle
Handle
Brake lever
Headlight
Folding button
Folding spanner
Anti-slip mat
Motor
LED Display
Hook
Battery clip
Detachable battery
Charging port
Fender
Fender clip
Tail lights
Number plate
Disc brake
Stand

11 12
2.2 Operation of buttons
Brake lever
Function button
Power switch
Throttle button
Speed
Multifunction
Gear
Unit display
Fault display
Power
LED display
Power Switch: Press and hold
the power button to turn on/off.
Function button:
A. Press function key to switch
riding modes.
Beginner mode (10km/h limit)
Gear indicator is not displayed.
Normal mode (15/h limit)
Gear indicator shows white.
Sports mode (25km/h limit)
Gear indicator shows red.
B. Press the power button twice
to turn the headlights on/off.
The tail lights are always on.
Throttle: Press down the throttle
button to accelerate.
Brake: Apply pressure to the
brake lever to brake. Lightly step
on the rear fender to assist the
brakes.
Cruise mode: Maintain a set
speed for 6 seconds to enter
the cruise mode. Exit the cruise
mode by pressing down the
throttle again, or by braking.
1. Pull up the stem
towards the front
wheel.
2. Fold clip in
rmly, ensuring it
clicks and button
is tight.
3. Secure the two
wires together
inside the stem.
4. Attach headset
to the stem, then
screw in 2 screws
each side using the
Allen key provided.
Note: If the
mechanism
becomes loose,
tighten the screw
accordingly.
2.3 Assembly instructions

13 14
2.4. Folding instructions 2.5 Uninstall/Install the battery
Uninstall
1. Push/slide the
button up.
2. Pull the clip rmly
away from the stem,
while pushing the
stem down.
3. Fold the stem
towards the rear.
4. Align the hook
with the fender clip
on the rear fender
and press down till
it clicks.
1. Push battery
clip in and hold.
2. Push the
battery up, away
from the bottom
of the stem.
3. After pushing
the battery
up, pull it out
horizontally.
1. Insert the battery
horizontally into the
pole, while pushing
the battery clip in.
2. When in, let
go of the battery
clip, and push the
battery down
until rmly
secure.
Install

15 16
3. How to ride the e-scooter
Wear a helmet, knee pads
and elbow pads when you
learn to ride the e-scooter.
1. Press the POWER
button for two seconds.
2. Put one foot on the
base plate and push off
the ground with your
strong leg.
3. Balance both feet on
your e-scooter when you
have enough momentum.
4. Press the THROTTLE
slightly with your right
hand to start and rotate
the handlebars to turn.
5. Continuously press the
throttle to speed up.
6. Apply pressure to the
brake lever to slow down
or stop.
7. When the e-scooter
stops or runs at a slow
speed, you can get off.

17 18
4. Battery instruction
The instructions show you how to charge and maintain the battery
and provide some safety notices and the technical specications.
Please use the battery properly according to these instructions to
prolong battery life and performance.
4.1 Battery parameters
Name Parameter
Type Li-ion battery
Charging time Approx. 3 hours
Voltage 36V
Working temperature 0°C - 35°C
Charging temperature 0°C - 35°C
Max Charging Voltage 42V
Storage Time (at -10°C - 40°C) 3 months (full charge)
Initial Volume 5.8 AH
Max Charging Current 2A
4.2 Battery safety
Do not disassemble the battery.
In the unlikely event that there
is a leak in the battery or it
overheats, do not use or charge
it and contact us.
Do not let children touch the
battery. Always unplug the
charger before installing the
battery or riding.
If you want the e-scooter
to run most efciently, the
battery must be charged and
used within the temperature
range indicated in the battery
parameters.
Lithium ion batteries are
considered dangerous and
require local law to allow
transportation.
The battery contains dangerous
substances. Please do not
open the battery. Do not insert
anything into the battery.
NEVER throw batteries away
in general rubbish. Take the
exhausted battery to a state
approved battery recycle centre.
Call your waste collection service
to nd out if they offer disposal
of batteries.
Do not charge the battery
at high temperature
or charge the battery
in a high temperature
environment.
Only use the original
charging equipment to
charge the e-scooter.

19 20
5. Specication
4.3 Charging instructions
Open the charging port cover, make sure the charging port is clean
and dry.
Connect the charger to the battery and the plug to a power source
(100V-240V; 50/60Hz). Make sure the charging light is on.
When the charger indicator is green, charging is complete.
Charging method 1: Charging method 2:
Charging
port
Battery
connector
Charging
port
Tips:
Connect the charger to the AC power rst, then connect it to the
battery.
After charging, cover with the dustproof rubber to prevent
anything from entering the charging port and causing battery
failure.
Product
Scooter Specification
Unfolded size 1131x450x1179mm
Folded size 1131x450x475mm
Height from baseplate to ground 115mm
Net weight 15kg
Tyre Size
10 inch pneumatic air tyre with
inner tube
Tyre pressure 35 P.S.I. (2.41 Bar)
Waterproof level IPX4
Basic Information
Battery Capacity 36V/5.8AH
Motor power 350W
Mileage per charge 15.5 miles (25km)
Max speed 15.5 mph (25km/h)
Max loading 120kg
Climbing angle 15°
Driving modes 3 (beginner, eco, sport)
Charger Specification
Input voltage 100-240V
Frequency 50-60Hz
Output voltage 42V
Output current 1.5A
Store temperature -10°C - 35°C

21 22
6. Maintenance 7. Troubleshooting
Maintenance
Make sure the e-scooter
charger and charging cord are
disconnected and ensure that
the e-scooter is off.
Check the brake system and
tyres at least once a month
because they are sensitive parts.
If braking performance and tyre
grip are impaired, contact your
local dealer or Riley Support to
replace the appropriate parts.
Wipe the shell with a soft damp
cloth to clean the e-scooter. It is
important to clean the e-scooter
regularly to minimize the buildup
of dust and dirt which may
impact the performance of the
e-scooter.
Do not clean the e-scooter
with a jet wash or by soaking in
water. This will cause permanent
damage.
Storage
Please charge your e-scooter
before you store. Please ensure
this is done at least once every
three months.
If the storage temperature is
lower than 0°C, please don’t
charge the e-scooter. Please
keep the e-scooter in a suitable
place indoors, keep dry and at
the appropriate temperature.
In order to protect the user’s
safety, do not take the e-scooter
apart, otherwise the warranty of
the product will be invalid.
Please contact us for a repair or if there are any issues with the
e-scooter.
Potential problem Solution
Unable to start up Check to see if the battery is
charged
Does not charge 1. Check whether the plugboard
has electricity.
2. Check the charger to see
whether the AC plug is
connected (whether the light
is on.)
3. Check the plug of the charger
and the charging port of the
e-scooter have been inserted
correctly.
Tips:

23 24
Stay on the move with our app which connects directly to your
scooter through Bluetooth. Get directions, view key riding info, and
track your rides effortlessly.
Features:
• Cockpit showing key riding info
• Lock and trace your scooter
• Track your rides
• Shop our range of accessories
8. What’s included 9. Riley Scooter APP
E-scooter packing list:
1 x E-scooter
1 x Battery
1 x Charger
1 x Manual
1 x Set of screws and Allen key
1 x Copy of Manufacturer’s Limited Warranty
Please contact us if the product is broken or if anything is missing
when you open the package. We will replace it for you as soon as
possible.
Note: When connecting to
your scooter ensure your
Bluetooth is enabled on
your mobile device and the
scooter is turned on.
Scan to download the App. Alternatively,
go to Google Play Store (Android) or the
Apple App Store (iOS) and search Riley
Scooters to download and install the App.
Be advised there is a minimum Android/
iOS/Bluetooth version required. See user
materials for additional details.

RS1 Användarmanual

1 2
RS1 - SV Riley Scooters
Tack för att du valde en Riley Scooter. Vi är en brittisk start-up med
en ambitiös vision. Din elektriska åktur gör verkligen skillnad.
Med ökande stadstrak och miljöfrågor över hela världen, stödjer du
oss för att uppnå vårt uppdrag att tillhandahålla “en gångbar väg
framåt för smartare, renare städer”.
Riley Scooters återuppnner stadstransporter som leder till en positiv
miljöskillnad i världen genom vår helelektriska scooter revolution.
Även om e-scooter kanske bara är en nöjesresa för vissa, är det det
moderna sättet att transportera. Vi hoppas att den här e-scooter ger
dig lika mycket tillfredsställelse när du kör den, som den gjorde för
oss att skapa den.
Bidra till vårt uppdrag genom att dela bilder och videor av dina turer
med hashtaggen #riIeyscooters. Låt oss tillsammans leda vägen
framåt för modern stadstransport som skapar en ren och hållbar
framtid för alla.
Hayden Riley
Grundare & VD
Stolt
brittisk

3 4
Försäkran om överensstämmel
Riley Scooters Limited: Kings Lodge, London Road, Sevenoaks,
TN15 6AR, Storbritannien
Denna försäkran om överensstämmelse utfärdas på tillverkarens
eget ansvar.
Föremål för deklarationen:
Typ av enhet: Elektrisk scooter
Modell nr: RS1
Beskrivning: RILEY SCOOTER RS1
Ändamålet med förklaringen som beskrivs ovan är i
överensstämmelse med relevant unionsharmoniseringslagstiftning:
2011/65/EU amended by 2015/863(EU)
2014/30/EU
2014/35/EU
2006/42/EC
2014/53/EU
RoHS Directive
EMC Directive
Low Voltage Directive
Machinery Directive
RED DIRECTIVE
Hänvisningar till relevanta harmoniserade standarder som används
eller hänvisningar till andra tekniska specikationer för vilka
överensstämmelse deklareras:
BS EN 17128:2020
EN 17128:2020
EN 60335-1:2012
EN 60335-2-29:2004
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN 61558-1:2005
EN 61558-2-16:2009
PT 55014-1:2021
EN 55014-2:2015
EN 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019
Namn på tillverkare: RILEY SCOOTERS LIMITED
Adress: Kings Lodge, London Road, Sevenoaks,
TN15 6AR, United Kingdom
Importör/distributör kontaktinformation
www.rileyscooters.com
AUKTORISERAD SIGNATUR:
Hayden Riley
Founder & CEO
Date: 2022-10-28

5 6
Om manualen Innehåll
För din körsäkerhet, läs denna
bruksanvisning noggrant innan
du använder e-scooter.
Observera “varningar” och
“tips” i denna manual.
Varningar: felaktig användning
kan leda till personskada.
Tips: Användbara råd för
användningen av e-scooter.
Om du har några frågor,
vänligen kontakta vårt
kundsupportteam via vår
hemsida (rileyscooters.com).
Tips:
Tillverkaren rekommenderar att
förare är 14+ år gamla.
Personer utan erfarenhet, eller
med nedsatt fysisk förmåga
bör lära sig att åka med en
kompetent passagerare.
Barn bör endast rengöra och
underhålla e-scooter under
uppsikt av vuxen.
Felaktig användning av e-scooter och/eller underlåtenhet att läsa
denna bruksanvisning kan leda till allvarliga kroppsskador. Riley
Scooters tar inget ansvar för eventuella skador orsakade av felaktig
användning.
Obs: det är viktigt att pumpa däcken upp till 35 P.S.I (2,41 Bar) för
din egen säkerhet och optimala körkvalitet.
1. Säkerhetsanvisningar ............................................................................. 7-9
1.1 Om säkerhet ......................................................................................... 7
1.2 Säkerhetsföreskrifter ..................................................................... 7-9
2. roduktinformation ................................................................................ 10-14
2.1 Översikt ................................................................................................. 10
2.2 Användning av knappar .................................................................. 11
2.3 Monteringsanvisning ....................................................................... 12
2.4 Vikningsinstruktioner ...................................................................... 13
2.5 Avinstallera/installera batteriet.................................................... 14
3. Hur man åker e-scooter ...................................................................... 15-16
4. Batteriinstruktion ................................................................................... 17-19
4.1 Batteriparametrar ............................................................................. 17
4.2 Batterisäkerhet.................................................................................... 18
4.3 Laddningsinstruktioner ................................................................... 19
5. Specikationer ............................................................................................ 20
6. Underhåll ........................................................................................................ 21
7. Felsökning ..................................................................................................... 22
8. Vad ingår ....................................................................................................... 23
9. Riley Scooter App....................................................................................... 24

7 8
1.2 Säkerhetsåtgärder
Observera att du kan tappa
balansen, eller ramla omkull
när du åker e-scooter. För att
undvika skador bör du bekanta
dig med denna bruksanvisning
och behålla den e-scooter i bra
skick.
1. Om säkerhet
1.1 Om säkerhet
Det nns risker med att köra en
e-scooter. För din säkerhet bör
du lära dig att cykla säkert och
följa de lokala reglerna/lagarna.
Kontrollera däcken för skador
och att fästena är täta innan
du kör. Kontakta din lokala
distributör för eventuella
säkerhetsfrågor.
Vänligen gör inte något som
kan skada andra människor eller
deras egendom med e-scooter.
Varje ombyggnad av e-scooter
är förbjuden eftersom den
kommer att förändra dess
prestanda eller skada strukturen,
vilket kan orsaka allvarliga
skador.
Sänk inte ner e-scooter i
vatten, vilket inte bara skadar
e-scooter, utan också orsakar en
säkerhetsrisk.
Var försiktig när du
cyklar i regnet.
Säkerhetsåtgärder bör
vidtas före åkning,
t.ex. bära sportkläder,
hjälm, knäskydd och
armbågsskydd
ÅK INTE med lastning.
ÅK INTE med mer än en
passagerare.
ÅK INTE om du är
gravid.
Max belastning: 120 kg. ÅK INTE efter att ha
druckit alkohol eller
tagit medicin.

9 10
Lyssna INTE på musik när
du åker e-scooter.
Var försiktig med
ojämna, lösa eller hala
ytor. Undvik sluttningar,
trappor och dåligt
upplysta områden.
Använd INTE i farliga
områden där det nns risk
för brandfarliga material.
2. Produktinformation
2.1 Övergripande vy
Accelerator/gashandtag
Handtag
Bromshandtag
Strålkastare
Vikknapp
Viknyckel
Anti-halk matta
Motor
LED-display
Krok
Batteriklämma
Löstagbart batteri
Laddningsport
Stänkskärm
Stänkskärmsklämma
Bakljus
Nummerskylt
Skivbroms
Stå
