Rilu QFT-7 User manual

P a g e | 1
[phone]
www.rilu-e-bike.com.au
USER MANUAL
QFT-7
Folding Bicycle
Unit 2, No 2 Caulson Close
Maribyrnong 3032
Melbourne, Victoria
Australia
[phone]
[email protected].au
Rev. QF7T-UM.A4.12092019-FINAL
RILU Trading Pty
P a g e | 2
[phone] www.rilu-e-bike.com.au
Introduction
Product Description Page 4
Riding Range & Load Weight Page 5
Product Summary Page 6
General Usage Summary Page 7
Display
Turning your Q-F7T (ON/OFF)
Page 8
PAS – Default Motor Assistance Level
Page 9
Front & Rear lights (ON/OFF)
Page 9
PAS - Turn OFF Motor Assistance Page 10
PAS - Motor Assistance MAX Page 10
6km/h - Walk Assist Function
Page 10
Understanding Battery Capacity Meter
Page 11
Battery LOW – Flashing Wanning Page 12
Folding
Step by step guide to folding your bike Page 13
Servicing your folding lock Page 17
Gearing
Gear Adjustment
– Uneven Shifting
Page 19
Gear Alignment –
Gear #7
Page 20
Gear Alignment
– Gear #1
Page 21

P a g e | 3
[phone] www.rilu-e-bike.com.au
Motor
Motor
–
Changing Tire Page 22
Motor
–
Service Notes Page 23
Battery
Removing battery from inside frame Page 24
Charger Page 25
Battery
S
torage Page 25
Sensors
Pedal Sensor – Location Page 27
Pedal Sensor – Repair Page 28
Thumb Throttle Page 29
P a g e | 4
[phone] www.rilu-e-bike.com.au
Product Description
Frame: 6061 Aluminium alloy
Lightweight Folding Frame
Gears: Altus 7 – Shimano
Brakes: Front Disc and Rear V-Brake
Stem: Height Adjustable – Aluminium Alloy.
Front Fork: High Strength – Aluminium alloy
Rim & Tire 20” x 13G x 36H alloy
Double wall with wide 2.125” tires
Seat Post: Quick Adjust Clamp
Saddle: VELO Plush Saddle
Motor: 36V / 200 W (Thumb + PAS)
Display: LED / 3 Modes (Motor Power – L/M/H)
Battery: 36 V / 10.4AH (Lithium Ion)
Charger: 36V / 2A (Smart charger)
Lights: Front & Rear (eBike battery power)

P a g e | 5
[phone] www.rilu-e-bike.com.au
Riding Range & Charge Time
Range depending on:
Rider, terrain, weather & level of assistance.
Throttle 30Km+
PAS 50Km+
Battery charge time is 4-5 Hours
Weight
17.8 Kg (Bike) net weight
19.5Kg (Battery Installed)
QF7-T Rated Load weight is 120Kg
P a g e | 6
[phone] www.rilu-e-bike.com.au
Product Summary
Congratulation on your purchase of a RILU Q-F7T Folding
electric bicycle.
Your new electric bicycle has two different ways of
activating motor power.
Throttle
Located on the right hand side of the handlebar is a thumb
triggered throttle which enables you to control the speed of the
motor, without the need for pedalling.
PAS
Built into your Q-F7T is a “Pedal Assistance Sensor”.
This automatically detect the speed at which you pedal and will
automatically moderate the ‘motors speed’ while riding.
By selecting one of the three modes “low/med/high”
on the LED display you are able to adjust the amount of ‘motor
output power’ that is automatically given when pedalling is
detected by the PAS.
Override Function
Engaging the throttle will override your PAS setting

P a g e | 7
[phone] www.rilu-e-bike.com.au
General Usage Summary
RILU recommends you first ride the bike without using any electrical assistance
to familiarize yourself with the mechanical gearing and breaking system of your
Q-F7T.
P a g e | 8
[phone]
www.rilu-e-bike.com.au
Turning Q-F 7 T (ON & OFF)
Can’t power on your display?
Check the battery power switch.
Ensure its set to the ON position.
You only need to turn off the battery when
not using the Q-F7Tfor long period of time
(longer than one month)
HOLD
“M”
TURN
ON

P a g e | 9
[phone]
www.rilu-e-bike.com.au
Default Motor Assistance Level
Turn “ON” Riding LED lights
HOLD
“ + ”
P a g e | 10
[phone] www.rilu-e-bike.com.au
MODE “
0
” (PAS turned OFF)
Set PAS Motor Assistance to MAX
6Km/h – Walk Assist Function
Press “ - ”
Only use ‘high’ once you
are confident with riding
your Q-F7T.
Only use ‘Walk Assist’
when you are walking the
bike, do not use while
sitting on the bike.
Throttle will still function
in MODE ‘0’
Press “ + ”
Hold “ - ”

P a g e | 11
[phone]
www.rilu-e-bike.com.au
Understanding Battery Capacity Meter
The battery capacity gauge is located below the POWER logo at
the bottom of the handlebar LED Display.
It is an approximate estimation of battery capacity based on a
real-time voltage reading of the battery pack.
There are several factors that may affect the accuracy of the
reading such as cold weather or steep inclines.
When the motor is under heavy load the POWER gauge LEDs
will ‘sag’ showing an underestimated capacity reading.
The gauge will correct itself after the heavy load is lifted.
P a g e | 12
[phone]
www.rilu-e-bike.com.au
Battery Low – Flashing Warning
When battery LED is Flashing
Battery charge level is <10%.
It is critical that you recharge within 24 hours
to avoid any damage to the battery.

P a g e | 13
[phone]
www.rilu-e-bike.com.au
Folding Guide
Step 1 - Lower seat post.
This will enable the seat post to act as a balance leg
assisting the bike to keep upright when folded
Step 2 - Fold pedals
Reduces risk of damaged during transport and storage
SEATPOST TO
GROUND
LOWER SEAT
MIN
P a g e | 14
[phone] www.rilu-e-bike.com.au
Step 3 - Align the pedals
Chain side – Pointing to the back of the bike.
Step 4 - Unlock ‘Folding Safety Latch’
Step 5 - Pull ‘Folding Lever’ forward
TWIST
UP
PULL
Forward

P a g e | 15
[phone] www.rilu-e-bike.com.au

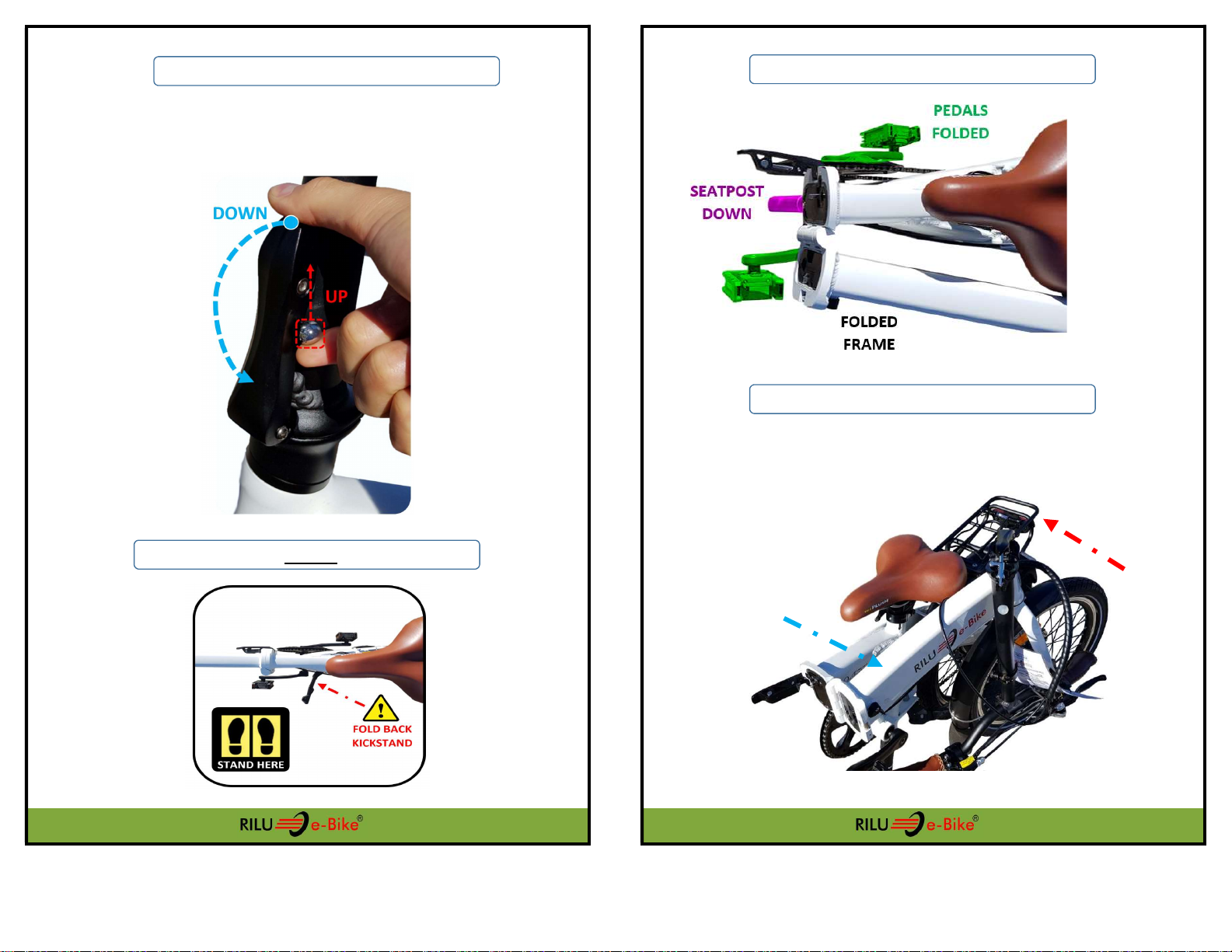

Step 6 - Fold handlebar stem
● Release (UP) (Stem lock)
● Fold (DOWN) (Stem latch)
Step 7 - Stand behind the folding lock
P a g e | 16
[phone] www.rilu-e-bike.com.au
Step 8 - Fold the bike in half
Step 9 - Carry using two hands
● Hand 1 - Rear of bike rack
● Hand 2 - Folded bike frame
HAND
1
HAND
2

P a g e | 17
[phone]
www.rilu-e-bike.com.au

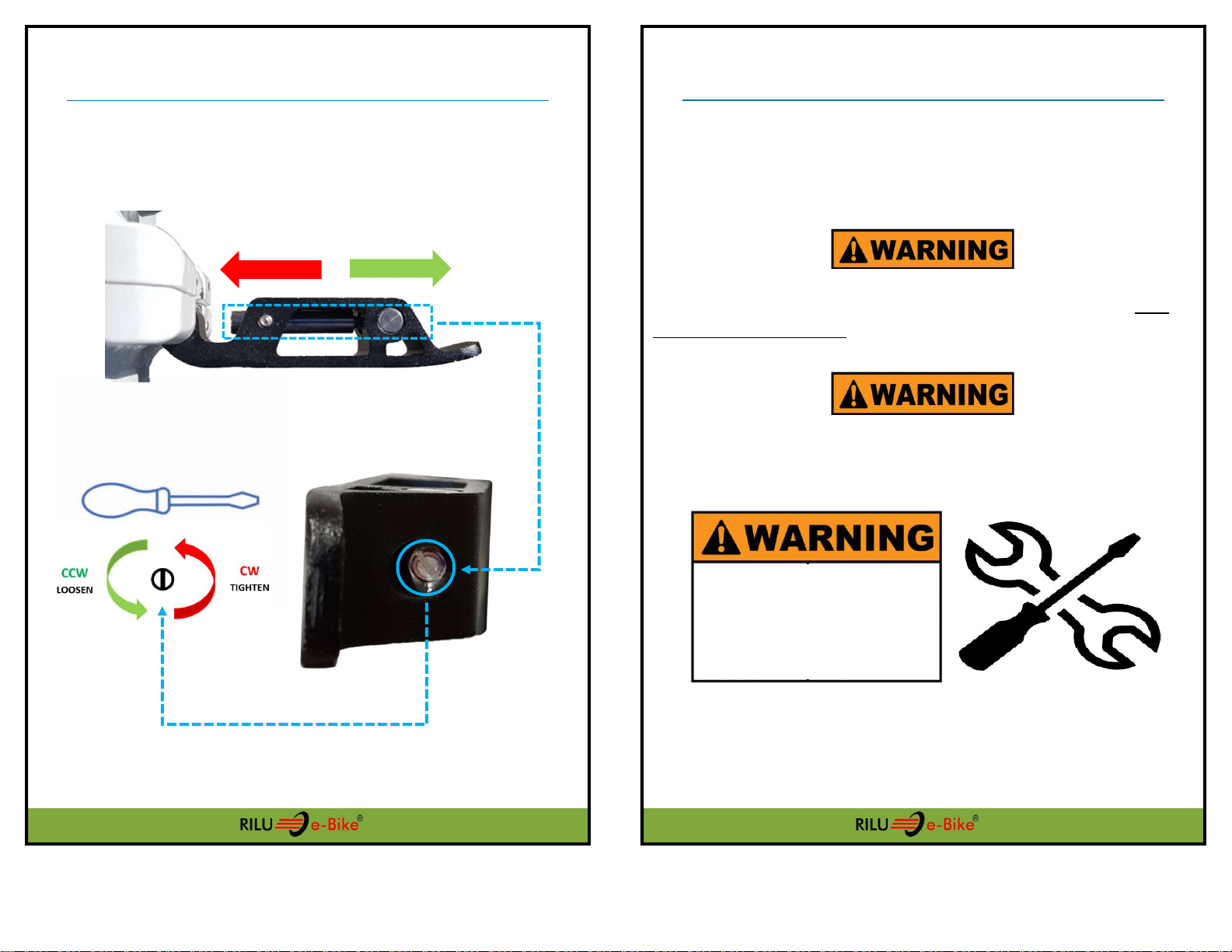

Adjusting - Folding Clamp
Over time you may need to adjust the folding clamp if you are unable
to fully close the clamp before riding or if the folding lock is loose and
doesn’t grip the frame.
TIGHTEN
LOOSEN
P a g e | 18
[phone] www.rilu-e-bike.com.au
Adjusting - Gear Quick Adjustment
RILU advises using a bike service stand when performing gearing and
breaking adjustments.
It will be easier when the bike is raised off the ground.
Electric bicycles are heavier than regular bicycles please ensure your
bike stands weight rating meets the 20Kg requirement of your Q-F7T
TURN OFF electric system when working on gearing and breaking to
avoid any unexpected motor power.
TURN OFF
electric
system when working
on QFT-7

P a g e | 19
[phone] www.rilu-e-bike.com.au
Gearing Adjustment - Uneven Shifting / Slipping
If you experience uneven shifts or slippage in the lower gears, where
the chain jumps from gear #2 to gear #3 unintentionally. Try to adjust
the derailleur using the following method to improve shifting.
P a g e | 20
[phone] www.rilu-e-bike.com.au
Gearing Adjustment – Gear #7 Pulley Alignment

P a g e | 21
[phone] www.rilu-e-bike.com.au
Gearing Adjustment – Gear #1 Pulley Alignment
P a g e | 22
[phone]
www.rilu-e-bike.com.au
Motor - Change Tire
Step 1 Step 2
Cut - Cable Tie Unplug - Motor Cable
Step 3 Step 4
5mm Allen - Release Brakes Check Brake Pad Free
Step 5 Step 6
18mm Spanner Pull back derailleur
Step 7 Step 8

P a g e | 23
[phone] www.rilu-e-bike.com.au
Motor – Service Notes
P a g e | 24
[phone] www.rilu-e-bike.com.au
Battery – Unlocking
Battery – Removal
Battery – Installation
Battery – Removal
Pinch the battery
Pull away from frame
Battery pushed too far inside.
The lock is unable to fully turn.
Not installed correctly
No Gap OK
Flush with edge
correctly installed

P a g e | 25
[phone]
www.rilu-e-bike.com.au
Battery - Charger Warnings
The charger will warm up during charging.
Ensure charging takes place in a well-ventilated area.
DO NOT cover the charger, nor the battery during charging.
Battery – Charging Error
Contact your dealer for support if you experience the above issue
or if battery not receiving charge.
Battery (RED) & Charger (GREEN)
P a g e | 26
[phone] www.rilu-e-bike.com.au
Battery – Charging Steps
Battery – Storage Guide

P a g e | 27
[phone]
www.rilu-e-bike.com.au
Pedal Sensor – Location & Function
Wedged between the chain wheel and the bottom bracket
is the “Pedal Assist Sensor” and the “Rotation Disk”.
Pedalling will cause the Disk to rotate, the sensor is able to
detect the rate (cadence) at which you are pedalling.
Pedal Assist Sensor
Rotation Disk
P a g e | 28
[phone]
www.rilu-e-bike.com.au
Pedal Sensor – No Motor Power
If you are pedalling while in mode (low/med/high) and are not
receiving automatic motor assistance or experiencing intermittent
motor power please inspect the “pedal assist sensor” and the “rotation
disk” alignment as it is possible to knock and bend the sensor when
folding your eBike
<5mm

P a g e | 29
[phone]
www.rilu-e-bike.com.au
Thumb Throttle – Location & Function
RILU advises riders to avoid ‘hard starts’ that involve applying full throttle while
on an incline.
RILU recommends to have the bike in motion before engaging the throttle to
prolong the life of the gears inside the motor.
Thumb Throttle – Loose
If you find the throttle is free spinning there is a 4mm Allen screw located at the
base of the throttle, tighten it to avoid any further movement.
PUSH DOWN
Actives Throttle
4mm Allen
P a g e | 30
[phone] www.rilu-e-bike.com.au
Dealer Notes

P a g e | 31
[phone] www.rilu-e-bike.com.au
Customer Notes
