User Manual
Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
- Model R5 –Easy
- Model R6 –Rilis
- Model R7 –OneGrip
- Model R8 –FlexiDoc (Carl Mk2)
-
2011-0177 v2
Tel
+46-

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
2
Table of content
1. Surgeon chair Carl Mk2.................................................................... 3
2. Important –Before Use..................................................................... 3
2.1 Unpacking...................................................................................... 4
2.2 Installation...................................................................................... 4
2.3 Intended areas of use ....................................................................5
3. Product identification label.............................................................. 6
4. Basic adjustments of the chair........................................................ 7
4.1 Chassis, wheels and electrical brake............................................. 8
4.2 Chair height adjustment................................................................. 8
4.3 Seat angle adjustment ................................................................... 8
4.4 Backrest angle and height adjustment...........................................8
4.5 Model R5 - "Easy" armrest............................................................. 9
4.6 Model R6 - "Rilis" safety armrest ................................................. 10
4.7 Model R7 - "OneGrip" armrest..................................................... 11
4.8 Model R8 - "FlexiDoc" armrest..................................................... 12
5. Battery operation and charging..................................................... 13
6. Disinfection, cleaning and repairs................................................. 14
7. Safety............................................................................................... 14
7.1 CE Declaration of conformance................................................... 14
8. Technical data................................................................................. 15
9. Disposal and recycling................................................................... 15
10. Warranty .......................................................................................... 15

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
1. Surgeon chair Carl
Thank you for choosing the Rini Surgeon chair Carl.
•Carl Mk2 with extra accessibility for feet and pedals through
uniquely designed chassis with three wheels or Carl 4 Foot/Heel
with four wheels
•Ergonomic comfort for the surgeon through an intuitive setup and
with either "Easy" armrest (R5), the patented safety armrest "Rilis"
(R6), "OneGrip" armrest (R7) or "FlexiDoc" armrest (R8 only
available for Carl Mk2)
•Convenient to move thanks to easy-rolling wheels and a stable
parking position by an electric or mechanical brake
•Easy to clean with smooth surfaces and encapsulated details
Carl Mk2 and Carl 4 Foot/Heel is the second generation of Rini's
popular electrically adjustable surgeon chairs where lots of user
feedback and new technologies have been combined. The goal has
been to provide a quality chair with a small footprint, maximizing the
area around the feet often where pedals and other product are placed.
At the same time for the surgeon, Carl chairs and armrests offers
maximum ergonomic comfort by extensive configuration options
achieved using intuitive hand grips. The model R5 is supplied armrest
"Easy" where the armrest plate can be angled 360°. The model R6 is
supplied with Rini's patented safety armrest "Rilis" that can be
adjusted with high precision to the desired position. The model R7 is
equipped with "OneGrip" armrest, popular when small adjustments
are required. The model R8 is equipped with "FlexiDoc" armrest for
the most demanding procedures.
The Carl surgeon's chair is easy to raise and lower electrically with
pushbuttons and has a stable parking position through an electric or
mechanical brake on the rear wheels. A cover is supplied to protect
the wheels frame. Overall, Carl chairs gives the surgeon a tailor-made
work environment of the highest quality.
Rini is constantly improving existing products and developing new
ones. Consequently, we value the professional user’s point of view;
so, don’t hesitate to let us know your opinion about any of our product
lines.
2. Important –Before Use
To ensure patient safety and the lifespan of the product, it is
important to observe the following instructions before use.
Please read this manual carefully and understand how to use the
product before you start.

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
4
2.1 Unpacking
Before the product is unpacked make sure that the packaging has not
been damaged during transport. If so, document these with a picture
and report this immediately to the transport company and your local
Rini representative.
In the packages the chair is normally in the following parts:
•Complete chair with wheels and seat mounted
•Backrest and two armrests
•Battery charger and user manual
Be careful when lifting the chair off the pallet. The chair is heavy
and may cause injury. Do not use sharp tools when removing the
packaging material. This may cause damage.
Make sure that the delivery includes all ordered parts. Contact your
Rini sales representative if you find any discrepancies.
2.2 Installation
When you get the surgeon chair delivered, it is not ready to be used. It
must be mounted accordingly to this manual.
Place the chair on a firm surface and mount the backrest and
armrests. The transport lock for the lifting column is normally activated
and is removed by holding down the "Down" button (different
placement of buttons depending on the model) for about 5 seconds
and releasing it before the "beep" ceases.
Mount
backrest
Mount armrests
with brackets

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
5
For safety reasons including both person and product it is
necessary to have sufficient training in using the product.
Before use, please check the following:
•That the product has not been damaged in transport.
•That adjustment of back, seat, height and armrest can be done
according to this manual
•That the brake is working
•That the battery is fully charged
Please contact your local Rini representative if you have any
questions or concerns.
2.3 Intended areas of use
The surgeon chair Carl is developed for different types of
microsurgeries where the surgeon needs a stable seated work position
with flexible relief for the arms.
The design of Carl chair gives great freedom of movement to the
surgeon while the chair provides space for other product at the feet.
Intended uses include:
•Neurosurgery
•Eye Surgery
•Ear, nose and throat surgery
•Facial Plastic Surgery
•Robotic Surgery
•Dental Surgery
The chair is intended for indoor use and on floors with hard floor
standard. The chair may not be equipped with other accessories
or components than those authorized by Rini Ergoteknik AB.
Repairs and other technical measures should only be performed
by personnel authorized by Rini Ergoteknik AB. The chair may
only be used for the purposes specified in this manual. Any other
use may pose a risk to the user.
The chair should not be used for surgeons that weigh more than
150kg. The wheels must be locked with the electric brake during
surgery. When transporting the chair, it should be empty and in
its lowest position. The chair is not designed for person
transports.
The Carl Mk2 chair with 3 wheels has an increased risk of tipping
when leaning sideways in higher chair positions.

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
6

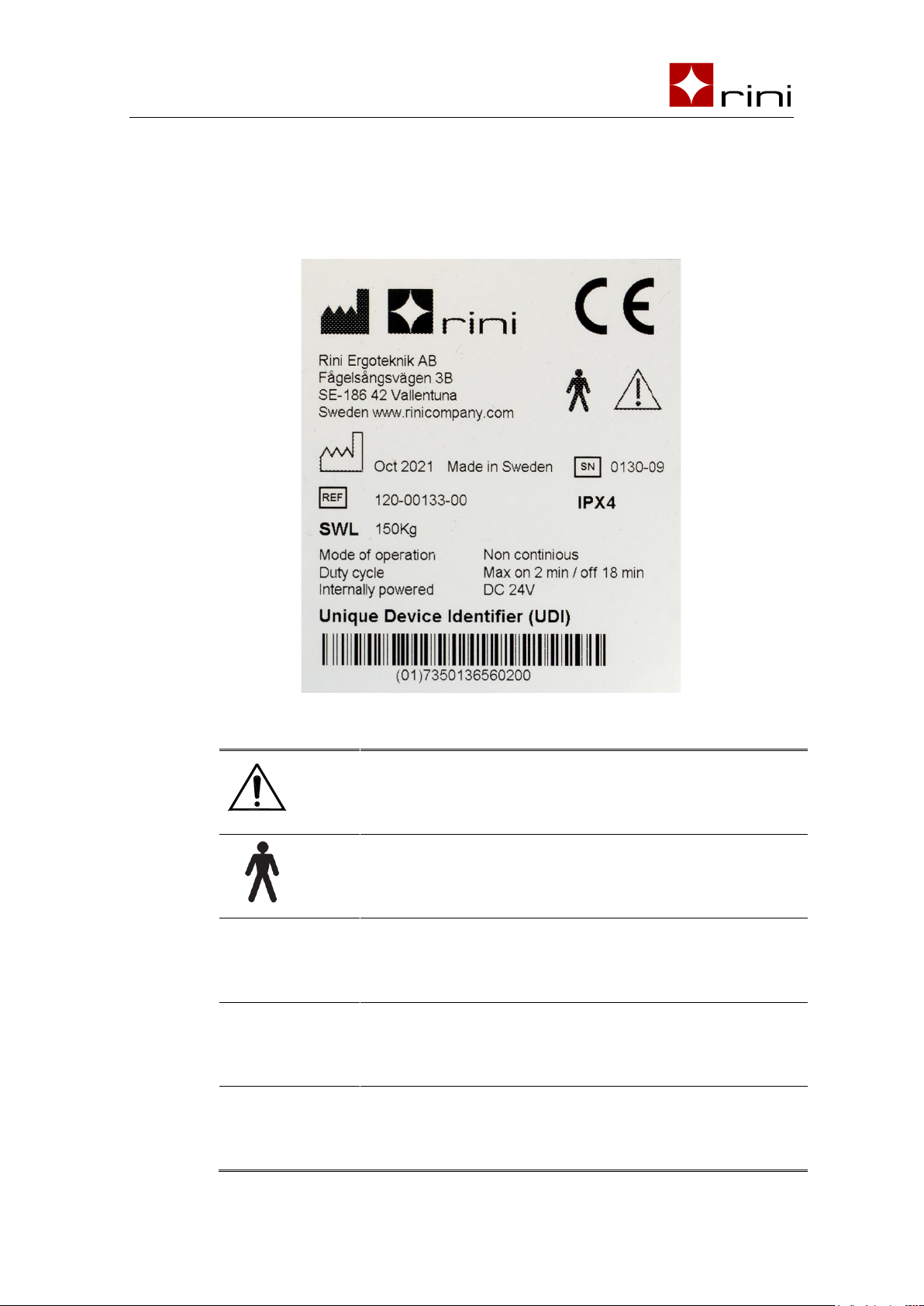

3. Product identification label
The label is located on the back of the chair and shows the product part
number and its unique serial number. For questions about this product,
always specify these numbers to facilitate identification.
Label description
Warning. Risk is present. Read the applicable
information in the user guide.
Type B product with protection against electric
shock.
SWL
Safe Work Load. The product must not be loaded
with more than the specified weight.
IPX4
The product is protected from splash of water
Duty cycle
and power
Average ratio between operating time and idle time
of the electrical lifting mechanism. The product is
internally powered by 24VDC battery.

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
7
4. Basic adjustments of the chair
Carl Mk2 (upper picture) and Carl 4 Foot (lower picture) has intuitive
controls and buttons to adjust the chair to an effective and ergonomic
working indicated in yellow.
Shown is Carl Mk2 R6
with safety armrest
”Rilis”
Seat angel
adjustment
Back angel
adjustment
Chair height
adjustment
Electrical brake
for rear wheels
Back height
adjustment
Shown is Carl 4 Foot R7
with armrest ”OneGrip”
Seat angel
adjustment
Back angel
adjustment
Chair height
adjustment
Carl 4 Foot
Brake for rear
wheels
Back height
adjustment

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
8
4.1 Chassis, wheels and brake
The chassis design with 3 wheels (Carl Mk2) combines stability with
high availability of technical equipment such as pedals on the floor
around the chair. The chair can also be equipped with a separate
pedal stand as an accessory. Large high-quality ball bearing wheels
facilitate movement and the rear wheels are lockable with an electric
brake that is controlled by an alternating on / off button. When the
brake is used, an audible signal sound.
The chassis design with 4 wheels (Carl 4) is extra stable and suits
users who have less technical equipment on the floor near the chair.
The Carl 4 chair is also equipped with large, high-quality ball bearing
wheels to facilitate movement and has an easy mechanical brake as
standard.
Always activate the brake during surgery to prevent accidental
movement of the chair. When the seat is in a high position and
used with high load, the chair can overbalance.
4.2 Chair height adjustment
The seat is raised and lowered electrically where the construction
consists lifting column, control box and a battery pack. Seat height for
Carl Mk2 is controlled by two buttons on the sides of the front wheel,
Carl 4 Heel is controlled by pressing with heels on buttons between
the front wheels and Carl 4 Foot by buttons on top of the front wheels.
The chair shall not be used by persons weighing over 150kg.
4.3 Seat angle adjustment
The chair is equipped with a lever on the right-hand side to adjust the
seat angle between -15º and +5º.
Adjust the seat to a comfortable position by lifting the lever which then
locks in this position when it is dropped.
4.4 Backrest angle and height adjustment
The chair is equipped with a lever on the left side to adjust the
backrest angle between -15º and +20º.

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
9

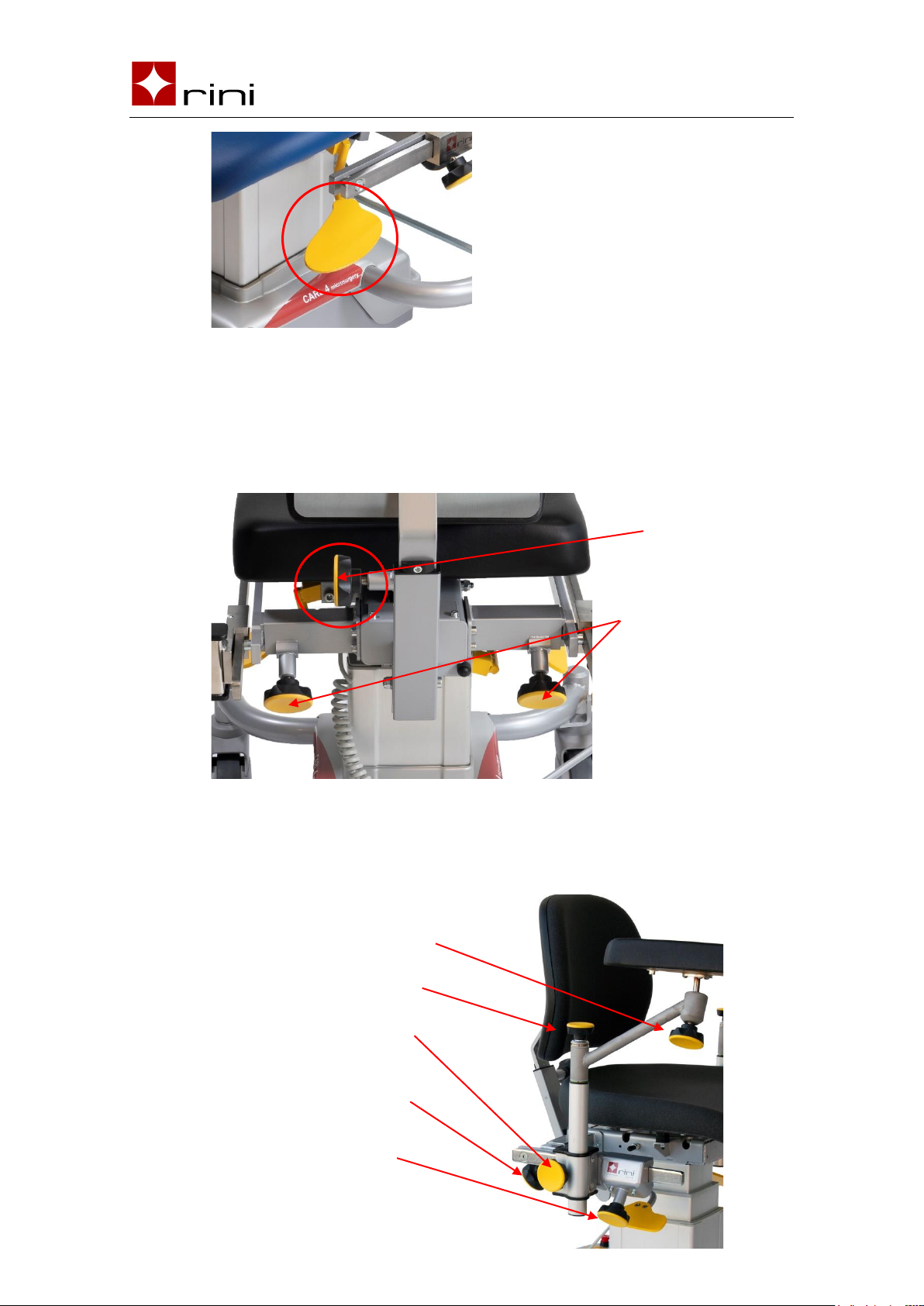

Adjust the backrest to a comfortable position by lifting the lever which
then locks in this position when it is dropped.
The backrest height adjustment device is placed on the back of the
chair. Adjust the height by loosening the knob and lock a suitable
position by tightening it again.
4.5 Model R5 - "Easy" armrest
Rinis "Easy" armrest have square cup shaped plates that are able to
be set in all possible angles.
5. Knob for adjusting the
armrest plate in 360° angle
4. Knob for adjustment of
sideway position/friction
3. Basic adjustment of
armrest height
2. Basic adjustment of the
armrest width
1. Basic adjustment of the
back/forward position
Basic adjustment of width of
armrests (Model R5, R6, R7)
Backrest
height

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
10
Setting 1 (Basic setting)
Move the position of the armrest by loosening the knob and sliding the
armrests.
Setting 2 (Basic setting)
The width between the armrests can be adjusted by loosening the knob
under the seat.
Setting 3 (Basic setting)
The height of the entire armrest can be adjusted so it is in the center of
the work area for subsequent fine tuning. Use the knob to set the
appropriate armrest height.
Setting 4
Turn knob to adjust the sideway position as well as the friction of the
armrest.
Setting 5
Turn the knob to release and then set the armrest in the desired
position and lock.
The armrest should not be loaded with more than 8 kg
4.6 Model R6 - "Rilis" safety armrest
Rinis patented safety armrest Rilis has the most extensive adjustment
possibilities to offer an optimal ergonomic working position.
Setting 1 (Basic setting)
Move the position of the armrest by loosening the knob and sliding the
armrests.
5. Lock wheel for adjusting
the armrest longitudinal and
lateral
4. Push buttons (without
load) for fine adjustment of
height and position
3. Basic adjustment of the
armrest width
2. Basic adjustment of
armrest height
1. Basic adjustment of the
position

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
11
Setting 2 (Basic setting)
The height of the entire armrest can be adjusted so it is in the center
of the work area for subsequent fine tuning. Use the knob to set the
appropriate armrest height.
Setting 3 (Basic setting)
The width between the armrests can be adjusted by loosening the
knob under the seat.
Setting 4
By pressing the buttons, the armrest can be adjusted for an optimal
working position. To release the armrest, you need to use two hands
for safety reasons. One hand to move the armrest pad up and down,
while the other hand push the button. Set the armrest in the desired
position and release the button to lock the position. Note! that the
adjustment of the armrest should be without load.
Setting 5
The armrest plate is curved and loosen the black locking wheel to
position the armrest. Tighten when the correct position is found. The
armrest can also rotate around the black locking wheel, allowing
maximum flexibility and ergonomic relief. It also helps the surgeon to
be seated or get up from the chair and still be able to maintain sterile
hands by using the elbows to rotate the armrests.
The Rilis armrest should not be loaded with more than 15 kg.
4.7 Model R7 - "OneGrip" armrest
The OneGrip is suitable when an up/down adjustment range is
needed, and it is required to be able to adjust the armrest while
draped.
5. Lever for fine adjustment
of the armrest up/down
4. Knob for adjustment of
sideway position/friction
3. Basic adjustment of the
armrest width
2. Basic adjustment of
armrest height
1. Basic adjustment of the
back/forward position

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
12
Setting 1 (Basic setting)
Move the position of the armrest by loosening the knob and sliding the
armrests.
Setting 2 (Basic setting)
The height of the entire armrest can be adjusted so it is in the center
of the work area for subsequent fine tuning. Use the knob to set the
appropriate armrest height.
Setting 3 (Basic setting)
The width between the armrests can be adjusted by loosening the
knob under the seat.
Setting 4
Turn knob to adjust the sideway position as well as the friction of the
armrest.
Setting 5
By pulling the lever upwards, the armrest can be adjusted to an
optimal working position. Set the armrest in the desired position and
release the lever to lock the position.
The armrest should not be loaded with more than 10 kg.
4.8 Model R8 - "FlexiDoc" armrest (Carl Mk2)
The model R8 is equipped with the patented "FlexiDoc" armrest for the
most demanding procedures where fine tuning of the armrest is
continuously needed during surgical procedure.
Setting 1 (Basic setting)
Move the position of the armrest by loosening the knob and sliding the
armrests.
Setting 2
The height and length of the entire armrest can be adjusted in a
flexible way using the lever.
The armrest should not be loaded with more than 20 kg.
2. Levers for fine
adjustment of the
armrest position
1. Basic adjustment of
the back/forward
position

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
13
5. Battery operation and charging
The Carl chair is battery-powered and starts as soon as the "Up/Down
button" or "Brake button" is activated. Under normal working conditions,
a fully charged battery lasts up to 3 months. When the battery level is
below 20%, it is indicated during operation with a beep sound.
The Carl chair has an associated battery charger that handles 100-
240V mains voltage. The charging socket is located on the back of the
chair and the status is indicated on the battery charger (see below).
Regular charging of the battery is recommended as full discharge
reduces the life of the battery. Recharge the battery every month, but at
least every three months to avoid damage to the battery that otherwise
occurs through self-discharge.
A new or fully discharged battery must be charged for 24 hours. When
the battery is fully charged, the charge automatically switches to
maintenance charging to avoid overcharging.
The indicator on the battery charger shows the following
Status - when connected
Indicator
Battery is charging
Battery is fully charged
Batteries have a limited life span, and the battery module must be
replaced under normal working conditions after about four years. Year
of manufacture and month can be found on the battery's nameplate. If
the operating time is greatly reduced despite 24 hours of charging, the
battery module must be replaced. At low battery level it is possible to
use the chair with the charger connected but it is not recommended. A
new battery module is ordered from Rini and is easy to replace.
Only the dedicated charger for Carl chair must be used.
Battery charger
with status indicator
Charging socket
located on the
battery module

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
14
6. Disinfection, cleaning and repairs
No part of the product is normally in contact with the patient and the
armrests are normally draped during surgery.
Disinfection
Part
Product
Other information
Upholstery and
armrests
Virkon
(including most
disinfectants
without alcohol).
1% concentration.
(Disinfectants containing alcohol
cannot be used due possible to
dehydration)
Chassis and buttons
Noedischer
Dekonta
CCOTRADE RW
1-3% concentration
0,5% concentration
Cleaning
Part
Product
Other information
Upholstery and
armrests
Water and soap
Use damp cloth
Chassis and buttons
Water and soap
Use damp cloth
Battery charger
Water
Use damp cloth
Repairs
The product should only be repaired by Rini or a Rini authorised service
centre. Product to be repaired under warranty must be sent to Rini
factory or an authorised Rini service centre.
Unauthorized repairs and modifications may result in loss of
function and void warranty.
7. Safety
The product should only be used as intended otherwise it can cause
injury to persons or product. Read this manual before the product is put
into service. Necessary knowledge of the product is required before
clinical use and this manual should always be available when using the
product. No accessories other than those mentioned in this manual may
be used. Please note the warning signs on the product.
Warning signs are used when there is a risk for patients, staff or
product.
7.1 CE Declaration of conformance
Surgeon chair 120-001xx-xx follows EU Medical Device
Regulation 2017/745 for medical products.
Tested according to EN/IEC 60601-1.

Surgeon chair Carl Mk2 and Carl 4 Foot/Heel
15
8. Technical data
General
Weight base unit
Carl Mk2 43kg/95lb and Carl 4 45kg/99lb
Length (chassis)
Carl Mk2 560mm and Carl 4 530mm
Width (chassis)
Carl Mk2 550mm and Carl 4 520mm
Medical classification
Standard
Protective class
Battery
Charger
Class 1 Type B
EN/IEC 60601
IPX4
24V 2Ah rechargeable lead acid
100 - 240V
Cushions
Medical classified material - black colour (standard) or
other colours as options
Operator data
Lifting capacity
150kg / 331lbs (max weight surgeon)
Height adjustment
490 - 800mm - foot control by buttons on the side
Back support
Type
Standard H 350mm x B 300mm - other types as options
Inclination and height
Angle -15o till +20oHeight 200-300mm from seat
Seat
Type
Standard L 420mm x B 460mm - other types available as
options
Inclination
Angle +5otill -15o
Armrest
Type
Model R5 - Easy
Model R6 - Rilis safety armrest
Model R7 - OneGrip
Model R8 - FlexiDoc (Carl Mk2)
Brake
Type
Carl Mk2 electric and Carl 4 mechanic on back wheels
Operational environment
Temperature
+5ºC to +40ºC
Relative humidity
20% to 90% at 30ºC
Atmospheric pressure
700 to 1060hPa
Transport and storage
Temperature
-10ºC to +50ºC
Relative humidity
20% to 90% at 30ºC
Atmospheric pressure
700 to 1060hPa
9. Disposal and recycling
The product is mainly made from environmentally recyclable materials
as steel, stainless steel, aluminum and plastics. Rini recommends that
the material be sorted and recycled in connection with the destruction of
the product.
Electronic parts and cables shall be handled as electronic waste in
accordance with local requirements. The battery contains lead and
is disposed according to current environmental legislation.
10. Warranty
The warranty is valid one year from the date of purchase. Please
contact Rini for further information.

Rini Ergoteknik AB Fågelsångsvägen 3B
SE-186 42 Vallentuna Sweden
Phone [phone]
Email [email protected] www.rinicompany.com
