Rinnai Brivis CC315 Series User manual

Compact Classic Ducted Gas Heater
Installation Manual
Brivis Models:
CC315
CC320
CC325
CC330
by

Brivis 2 Ducted Gas Heater IM
This appliance must be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000, AS/NZS 5601, AS/NZS 5141
• AS 4254, HB 276-2004
• Local Regulations and Municipal Building Codes
including local OH&S requirements
This appliance must be installed, maintained and removed
only by an Authorised Person.
For continued safety of this appliance it must be installed
and maintained in accordance with the manufacturer’s
instructions.
Proudly a member of the A.G.A.
All of our gas products are
A.G.A. certified.

Brivis 3 Ducted Gas Heater IM
Table of Contents
Warnings and Important Information 4
1. Scope 5
1.1 Compact Classic Heaters ............................................................................................................................... 5
1.2 Installer Due Diligence for Changeovers ........................................................................................................ 5
Definitions.................................................................................................................................................................. 6
Disclaimer.................................................................................................................................................................. 6
2. General Product Guidelines 7
2.1 Application and Sizing..................................................................................................................................... 7
2.2 Unpacking the Heater ..................................................................................................................................... 7
2.3 Unloading or Lifting the Heater ....................................................................................................................... 7
2.4 Service Connection Guidelines....................................................................................................................... 8
2.4.1 Gas Inlet Connection ............................................................................................................................ 8
2.4.2 Electrical Power Supply ........................................................................................................................ 8
2.5 Installation of Duct Connection Pops.............................................................................................................. 8
2.6 Heater Positioning........................................................................................................................................... 8
2.7 Removal of L-Shaped Lid .............................................................................................................................. 9
2.8 Installation of Heater ....................................................................................................................................... 9
2.9 Ventilation Calculations................................................................................................................................. 10
3. Heater Dimensions and Clearances 11
3.1 Compact Classic ........................................................................................................................................... 11
3.2 Service Clearances ....................................................................................................................................... 12
3.3 Splitting Compact Classic Heaters .............................................................................................................. 13
3.4 Duct Connection............................................................................................................................................ 13
3.5 Flue Instructions............................................................................................................................................ 15
3.5.1 General ............................................................................................................................................... 15
3.5.2 All Compact Classic Models ............................................................................................................... 15
3.5.3 Brivis Remote Flue Terminal ............................................................................................................ 15
3.6 Fan Speed Setting ........................................................................................................................................ 15
3.7 Wiring Diagram ............................................................................................................................................. 16
3.8 Wiring the Brivis Programmable Thermostat (Add-On & Fan Only)............................................................. 16
4. Ducting Information 18
4.1 Return Air Grille ............................................................................................................................................ 18
5. Outlet Chart Information 19
6. Commissioning and Control Settings 20
6.1 Commissioning Instructions .......................................................................................................................... 20
6.1.1 Initial Damper Settings........................................................................................................................ 20
6.1.2 Initial Ignition and Gas Inlet Pressure Check ..................................................................................... 20
6.1.3 Start & Check Burner Pressure .......................................................................................................... 20
6.1.4 Setting Fan Speed .............................................................................................................................. 21
6.2 Final Checks (Compact Classic Heaters) ..................................................................................................... 21
7. Technical Specifications 22

Brivis 4 Ducted Gas Heater IM
WARNING
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and to ensure
optimum performance.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, property damage, personal injury and/or death.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
personal injury or death.
WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in
personal injury or death.
CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe
practices.
WARNING
REGULATORY / INSTALLATION
This appliance shall be installed in accordance with:
Manufacturer’s Installation Instructions.
Current AS/NZS 5601 and AS/NZ 3000.
AS 4254 - Ductwork for air-handling systems in buildings.
HB 276-2004 – A Guide to Good Practice.
AS/NZS 5141 - Residential heating and cooling systems.
Local Gas and Electricity Authorities.
“SuperSizeGuide”
Building Code of Australia (BCA) including local OH&S requirements
Environment Authorities
This appliance must be installed, maintained and removed only by an Authorised Person.
For continued safety of this appliance it must be installed and maintained in accordance with the
manufacturers instructions.
This appliance is heavy. Use 2 people or mechanical lifting device. Improper lifting may result in
serious injury or property damage.
Take care when opening or unpacking this appliance. Failure to do so may result in serious injury
or product failure.
DO NOT modify the electrical wiring of this appliance. If the control power wiring is damaged
or deteriorated then it must be replaced by an authorised person. Failure to do so may result in
electric shock, re, serious injury or product failure.
DO NOT install the heater on an unstable or non level surface or where there may be a danger
of it falling. It may result in death, serious injury, or product failure.
NOTE
A NOTE ON ILLUSTRATIONS
The illustrations used in this manual are for explanatory purposes only and the shape of your unit
may vary slightly from that which is shown in this manual.
WARNINGS AND IMPORTANT INFORMATION

Brivis 5 Ducted Gas Heater IM
1. SCOPE
This installation manual is intended to be used as a guideline for the installation of Gas Fired Central Heaters.
It covers only the installation and commissioning of the heater and the allowable ueing congurations. Although
recommended return air grilles and allowable duct outlet quantities are specied, it does not cover the actual ducting
design required to suit the specic installation.
This installation manual is based on Australian codes. For all other applications, please refer to local codes and
regulations.
These heaters must be installed and serviced only by qualied personnel.
This manual applies to the following models:
1.1 COMPACT CLASSIC HEATERS
Internal Models
NG LPG
CC315INGV2 CC315ILPGV2
CC320INGV2 CC320ILPGV2
CC320IXANGV2 CC320IXALPGV2
CC325INGV2 CC325ILPGV2
CC325IXANGV2 CC325IXALPGV2
CC330INGV2 CC330ILPGV2
CC330IXANGV2 CC330IXALPGV2
Note: CC3 Ducted Gas Heaters do not have on-board Add-On Cooling connections
1.2 INSTALLER DUE DILIGENCE FOR CHANGEOVERS
Modern ducted gas heaters, even those that are physically ‘like-for-like’, typically have di󰀨erent technical
specications and control systems from existing, older models. Modern units usually have higher Star Ratings, which
are accompanied by higher airows. Higher e󰀩ciency heaters with modulating gas valves also operate di󰀨erently to
non-modulating units.
When doing a direct unit change over:
• Do a comprehensive inspection of the entire existing system to ensure it is ‘t for purpose’ with the new heater
• Check existing items that are not being replaced; i.e. ensure the soundness and suitability of all ttings and
controls for use with the new ducted gas heater (e.g. Duct sizes, Flue, Return Air grille size, Thermostat, Zoning
etc.)
• Correctly commission the new ducted gas heater – where possible, align it with the performance characteristics
of the original system – do not leave units at the factory default settings unless you are absolutely certain the
settings are appropriate
Failure to observe best practice can lead to costly call backs for installers, unnecessary manufacturer warranty calls
and a poor customer experience.

Brivis 6 Ducted Gas Heater IM
DEFINITIONS
Shall
Indicates a mandatory requirement of this manual.
Should
Indicates a recommended requirement of this manual.
Any deviations from these instructions may, at the discretion of the manufacturer, void the warranty. As a result, the
customer and/or installer may be charged a fee for non-product warranty related call outs. Also note that failure to
comply with these instructions may preclude company service personnel from being able to service the unit.
DISCLAIMER
IMPORTANT: This document is a guide only. Laws, regulations and industry standards can vary between States and Territories.
Accordingly, this guide must be read in conjunction with, and subject to, all laws, regulations and industry standards
applicable in the State or Territory in which the products are installed. You must ensure that the installation of the
products will comply with those laws, regulations and standards, and that the products recommended to customers
are fit for the purpose for which they are intended.

Brivis 7 Ducted Gas Heater IM
2. GENERAL PRODUCT GUIDELINES
IMPORTANT
MANDATORY INSPECTION PRIOR TO INSTALLATION
Immediately report any damage or discrepancies to your appliance supplier. This appliance has been
inspected and tested at the time of manufacture and packaging, and was released for transportation
without known damage. Upon receipt, inspect the exterior for evidence of rough handling in shipment.
Ensure that the appliance is labelled correctly for the gas, electrical supply, or other services it is
intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be
installed or operated under any circumstances. No responsibility will be accepted for installation or
operation of damaged or incorrect appliances. Installation of damaged or incorrect appliances may also
contravene local regulations.
2.1 APPLICATION AND SIZING
These Compact Classic heaters are designed to provide a central source of heat for a ducted central heating system.
The heaters shall not be installed on a marine craft, houseboat, or any similar environment.
The heaters must be installed in accordance with these instructions and related regulations, codes, standards, and
authorities. These include but may not be limited to:
• AS/NZS 5601 - Gas installations
• AS 4254 - Ductwork for air-handling systems in buildings
• HB 276 - A Guide to Good Practice
• AS/NZS 5141 - Residential heating and cooling systems
• Local Gas and Electricity Authority Codes
• Product Sizing Guide
• Local Building Regulations
• Environment Authorities
• National Construction Code of Australia (NCC)
Note: The manufacturer assumes no responsibility for equipment installed in violation of any code, regulations and these
installation instructions.
It is recommended the Product Sizing Guide is followed in estimating heating requirements and for system design
that will result in efficient installation and provide a higher level of comfort and economical operation.
For the hourly input and the gas type to be used, refer to the appliance data label located inside the service
compartment or the Technical Specifications at the rear of this manual
Note: All installations should only be carried out by a qualified tradesperson. Installations at altitudes above 1000m above sea level may
require main burner injector upgrading. Please contact the Customer Service Centre for advice.
2.2 UNPACKING THE HEATER
Some heaters are supplied on a pallet with a plastic sleeve. To unpack:
• Cut and remove the external plastic packaging and dispose of thoughtfully.
• Remove heater from pallet (if supplied).
2.3 UNLOADING OR LIFTING THE HEATER
When unloading or lifting the heater, ensure lifting equipment is in good operating condition and capable of lifting
the total load. Be sure there is a clear area to place the heater down, which is within reach of the lifting equipment.
Note: Do not use the lifting handles provided to lift the heater above head height. If fitting the heater to elevated heights such as a roof,
use suitable lifting equipment.

Brivis 8 Ducted Gas Heater IM
2.4 SERVICE CONNECTION GUIDELINES
2.4.1 Gas Inlet Connection
• All piping must be in accordance with AS/NZS 5601 and any local gas regulations.
• The connection point for the heater is a male G3/4 compression fitting to AS 3688.
• A gas cock shall be fitted in the gas line adjacent to the heater and in a convenient location so it can be turned
OFF quickly and easily.
• The gas supply shall in no way interfere with any servicing of the heater.
Note: The gas supply must be installed by a licensed gas fitter. The gas pipe and gas meter should be sized so the heater can maintain
its required incoming gas pressure at maximum consumption with all other gas appliances operating at their maximum capacity
at the same time as the heater.
2.4.2 Electrical Power Supply
The heater is pre-wired with a 3-pin plug and lead, and shall be plugged into a standard 10 Amp 220-240V fixed
switched socket outlet adjacent to the heater in a convenient location so it can be turned OFF quickly and easily.
Note: A qualified electrician must install the 220 to 240 volt wiring according to local regulations.
IMPORTANT: Switch OFF the power and unplug the heater before touching any wiring. If any electrical wiring is damaged, it must
be replaced by the manufacturer, its service agents or an electrically qualified technician, in order to avoid a hazard.
The electricity supply must be 220-240V at 50Hz, and supplied by an authorised power supplier. Generators should
never be used to supply this system as their output may be incompatible with, or prone to damage electronic
components of the heater.
2.5 INSTALLATION OF DUCT CONNECTION POPS
The supply and return air pops must be fastened to the heater cabinet as follows:
Insert pop into the cabinet pop hole, ensuring the flange is placed over the OUTER wall of the cabinet
• Spread flange to tightly fit the cabinet pop hole with the notched side overlapping the other
• Secure pops with the rivets supplied
2.6 HEATER POSITIONING
Install the heater in a position that allows adequate and safe access for service as per guidelines in this manual
and its applicable standards. The cost of any equipment and additional labour involved in accessing such heater
installations will not be accepted by manufacturer.
Note: All service clearance measurements must be adhered to, otherwise this will impede on the serviceability of the heater.

Brivis 9 Ducted Gas Heater IM
2.7 REMOVAL OF L-SHAPED LID
To remove the L-Shaped lid:
• Remove all screws securing the lid.
• Disengage the short return face of the lid as shown in Diagram 1.
• Lift the lid up and off to access the controls as shown in Diagram 2.
• To reassemble repeat the above process in reverse.
Diagram 1. Disengage short return Diagram 2. Lift lid up and o󰀨
2.8 INSTALLATION OF HEATER
The Compact Classic range is designed to be installed in the roof or beneath the floor only.
This must be done in accordance with the following guidelines and AS 5601.
Installing in the Roof Space
• The area under the heater must be capable of supporting the additional load, without causing deformation of
any part of the building structure
• The appliance must be accessible by means of fixed access, a normal ladder or steps
• A passage of 600mm wide must be provided between the roof access opening and the heater
• This passage must have a suitable walkway of at least 19mm thick particle board or equivalent and be capable
of supporting the weight of a person and their tools
• A permanent level platform must be provided beneath the heater and this platform area must extend 750mm out
from the controls access panel side and fan motor access panel side/s for the entire length of the heater
• The air gap created between the base of the heater and the platform by the heater’s supports must be
maintained
• Permanent artificial lighting must be provided at the heater, with the switch located at the roof access opening
Installing Beneath the Floor
• There must be a minimum clearance of 200mm between any part of the appliance and the lowest part of the
floor structure. In addition to this, refer to section "3.2 Service Clearances".
• The heater must be located within 2m of the access opening, or there is to be a minimum clearance of 1.2m
between the lowest part of the floor structure and ground level, maintained from the access opening to the
heater
• All under floor installations must be on a level concrete base (50mm thick), and provision made to drain any
seepage or ground water away from the heater
• Permanent artificial lighting must be provided at the heater, with the switch located at the access opening
• Lateral (horizontal) flues may be installed in accordance with AS 5601, making sure that the lateral flue section
has a minimum rise of a 20mm per metre of lateral run
• The flue must be terminated outside the building in accordance with AS 5601. This termination can be
performed using a Brivis Remote Terminal. Refer to the Fluing instructions, "3.5 Flue Instructions"

Brivis 10 Ducted Gas Heater IM
2.9 VENTILATION CALCULATIONS
For installation of internal heaters in a room, enclosure, residential garage, or plant room with natural ventilation
conditions, ensure adequate ventilation is available by utilising the following formulae:
Installation of a gas appliance in a room or enclosure for properties approved for
construction prior to 31st March 2014
a. Determine if the unit(s) MJ/hr rating for each cubic metre of the room or enclosure, is greater than 3 MJ/hr per m3.
Example:
Unit rating (Ur) = 120MJ/hr
Room volume (Rv) = 1m x 1m x 2.4m = 2.4m3
Ur/Rv = 120/2.4 = 50 MJ/hr per m3
As the result if greater than 3 MJ/hr per cubic metre of the space, additional ventilation is required.
b. Two permanent openings are required, each equivalent in area to the determined value A. The lower vent shall
be located close to the floor or at burner level for a Downflow unit. The upper vent shall be located at or above
the top of the unit. The two openings may be combined as long as the above conditions are met.
Determine free ventilation area using A = T x F, where:
A = minimum free ventilation area, mm2
T = total gas consumption of all gas appliances, MJ/hr. e.g. CC320I V2 = 90MJ/hr
F = factor (detailed in the table below)
Table 1. Ventilation F Factors
Gas appliance location Source of Ventilation Factor F
Gas appliance in a room or enclosure
Directly to outside* 300
Via an adjacent room 600
Gas appliance in a plant room
Directly to outside* 150
Via an adjacent room 300
* Directly to outside means through an outside wall, into a cavity vented to outside, into an
underfloor space or roof space vented to outside.
Installation of a gas appliance in a room, enclosure, residential garage or plant room for
properties approved for construction after 31st March 2014
c. Determine if the unit(s) MJ/hr rating for each cubic metre of the room, enclosure, residential garage or plant room
is greater than 0.4 MJ/hr per m3.
Example:
Unit rating (Ur) = 120MJ/hr
Room volume (Rv) = 1m x 1m x 2.4m = 2.4m3
Ur/Rv = 120/2.4 = 50 MJ/hr per m3 > 0.4 MJ/hr per m3
As the result if greater than 0.4 MJ/hr per cubic metre of the space, additional ventilation is required.
Refer to AS/NZS 5601 for natural ventilation requirements.
Note: For all other applications, e.g. Mechanical Ventilation, refer AS/NZS 5601.

Brivis 11 Ducted Gas Heater IM
3. HEATER DIMENSIONS AND CLEARANCES
3.1 COMPACT CLASSIC
Diagram 3. Heater Dimensions
Table 2. Compact Classic Heater Dimensions (mm)
MODEL A B C D E F G H I J K L M øSa øRa
CC315I V2 215 553 183 724 168 244 407 385 615 338 386 236 485 300 300
CC320I V2 215 553 183 724 168 244 407 385 615 338 386 236 485 300 300
CC320IXA V2 215 553 183 724 168 244 407 385 615 338 386 236 485 350 350
CC325I V2 215 553 183 724 168 244 407 385 615 338 386 236 485 300 300
CC325IXA V2 215 553 183 724 168 244 407 385 615 338 386 236 485 350 350
CC330I V2 250 588 183 843 229 244 559 537 651 457 386 236 520 350 350
CC330IXA V2 250 588 183 843 229 244 559 537 651 457 386 236 520 400 400
A
B
ØSa
ØRa
F
E
D
CGAS INLET
JK
L
M
G
H
THERMOSTAT
WIRES
POWER LID
FLUE OUTLET
Ø 100mm
I

Brivis 12 Ducted Gas Heater IM
3.2 SERVICE CLEARANCES
Method 1 - In Ceiling
Diagram 4.
750mm
Minimum
300mm
Minimum
750mm
Minimum Service Clearance
Heat
Exchanger
Cabinet
Fan
Cabinet
Platform
Plan ViewSide View
50 mm Minimum
(vertical clearance)
200 mm Minimum
(vertical clearance)
Controls
Tray Position
Note: Heater shall be positioned in the above orientation only for service access.
Method 2 - In Ceiling and Under Floor
Diagram 5. Internal Clearances
Note: All minimum service height clearances are to the underside of the rafters or any obstruction.
800 mm Minimum
(vertical clearance) 300mm
Minimum
750mm
Minimum
Service Clearance
Heat
Exchanger
Cabinet
Fan
Cabinet
Platform
Plan ViewSide View
Controls
Tray Position

Brivis 13 Ducted Gas Heater IM
Method 3 - Under Floor
Diagram 6.
3.3 SPLITTING COMPACT CLASSIC HEATERS
The Compact Classic model heaters can be split in half to allow for ease of installation. To split the heater, follow
these simple instructions:
• Remove the four screws securing the roof and remove
• Disconnect the main loom quick-connect plug located on the cabinet centre wall
• Disconnect spark igniter from the control board and feed back into heat exchanger cabinet
• Remove the two large metric screws above the controls securing the fan cabinet to the heat exchanger cabinet
• Split the heater by firstly tilting then pulling the fan cabinet from the heat exchanger cabinet
• To reassemble conduct the above in reverse order
3.4 DUCT CONNECTION
There are two options available for the Return Air. Please refer to Diagram 7 for configuration of the unit.
1. Preferred Option is Return Air on fan housing side (ex factory)
2. 'Alternate Option' on motor side (Refer to Diagram 8)
IMPORTANT: When connecting return air to 'Alternate Option', there will be a nominal airflow reduction of 10% when connected
to required size duct that is straight and taught.
Diagram 7. Supply and Return Air
Return Air (Preferred Option)
Return Air (Alternate Option)
Supply Air
(Preferred Option)
Motor
Heat Exchanger
Fan Housing
Note: The ducting should be well insulated and it is mandatory under building codes to install insulated fire rated duct.
200 mm Minimum
(vertical clearance)
Plan View
Side View
750mm
Minimum
300mm
Minimum
750mm
Minimum Service Clearance
Heat
Exchanger
Cabinet
Fan
Cabinet
Platform
FLUE OUTLET
Minimum 20mm
rise per 1 metre run
Controls
Tray Position

Brivis 14 Ducted Gas Heater IM
Diagram 8. Installation of Alternative Pop Position
1. Remove all eight screws securing the Blank Panel.
2. Remove Blank Panel from the appliance.
3. Insert two screws removed in Step 1 to the bottom
of the Side Pop panel.
Blank panel
Blank panel
Insert screws
4. Remove the two bottom screws from the side Pop
Panel.
5. Secure Blank Panel to open fan side of the
appliance with remaining eight screws.
Remove screws

Brivis 15 Ducted Gas Heater IM
3.5 FLUE INSTRUCTIONS
3.5.1 General
• All flues must be installed in accordance with AS 5601 Gas installation Code
• All horizontal flues must have a minimum rise of 20mm per 1m run
• Horizontal flues terminating on a wall must be at least 300mm above ground level
• Systems with both horizontal and vertical flue runs should be treated as all horizontal
• Provide adequate support to flue sections (e.g. saddles / strapping)
3.5.2 All Compact Classic Models
• Require a 100mm round single or twin wall non-corrosive metal flue, suitably terminated
• All flues must have a bolted flue sleeve connection to allow for repairs and/or removal of the appliance
• Twin wall flue – maximum flue length of 6m
• Single wall flue – maximum flue length of 2m
• Up to 4 x 90˚ elbows are permitted with the same length requirements specified above
• One x 45˚ bend is equivalent to 0.5 x 90˚ bend (i.e. 2 x 45˚ bends = 1 x 90˚ bend)
3.5.3 Brivis Remote Flue Terminal
In specific installations, for example under the floor, it is recommended that a remote terminal be used to terminate
a horizontal flue on the outside wall of the building. Please refer to instructions supplied with a Brivis Remote Flue
Terminal. Figure below depicts typical Compact Classic underfloor configuration.
Diagram 9. Remote Flue Terminal Installation
3.6 FAN SPEED SETTING
There are three fixed fan speed options available with this unit, these are:
• High - “HIGH” (Factory Default)
• Medium - “MED”
• Low - “LOW”
To adjust the fan speed:
Ensure the power supply to the unit is OFF at the fixed switched socket outlet adjacent to the heater
Access the controls and change as required:
• For High fan speed do not adjust
• For Medium fan speed move terminal from “HIGH” to “MED”
• For Low fan speed move terminal from “HIGH” to “LOW”
• Turn the power back on once complete Heater Configuration
HOUSE FLOOR
FLUE OUTLET
WALL
GAS INLET
POWER LEAD
LEVEL CONCRETE BASE
Ground Level
See Note
Minimum 20mm rise per 1 metre run
300mm Minimum
Single Skin Flue Maximum Length - 2m
Twin Skin Flue Maximum Length - 6m
BRIVIS REMOTE
FLUE TERMINAL
Part No: B018384

Brivis 16 Ducted Gas Heater IM

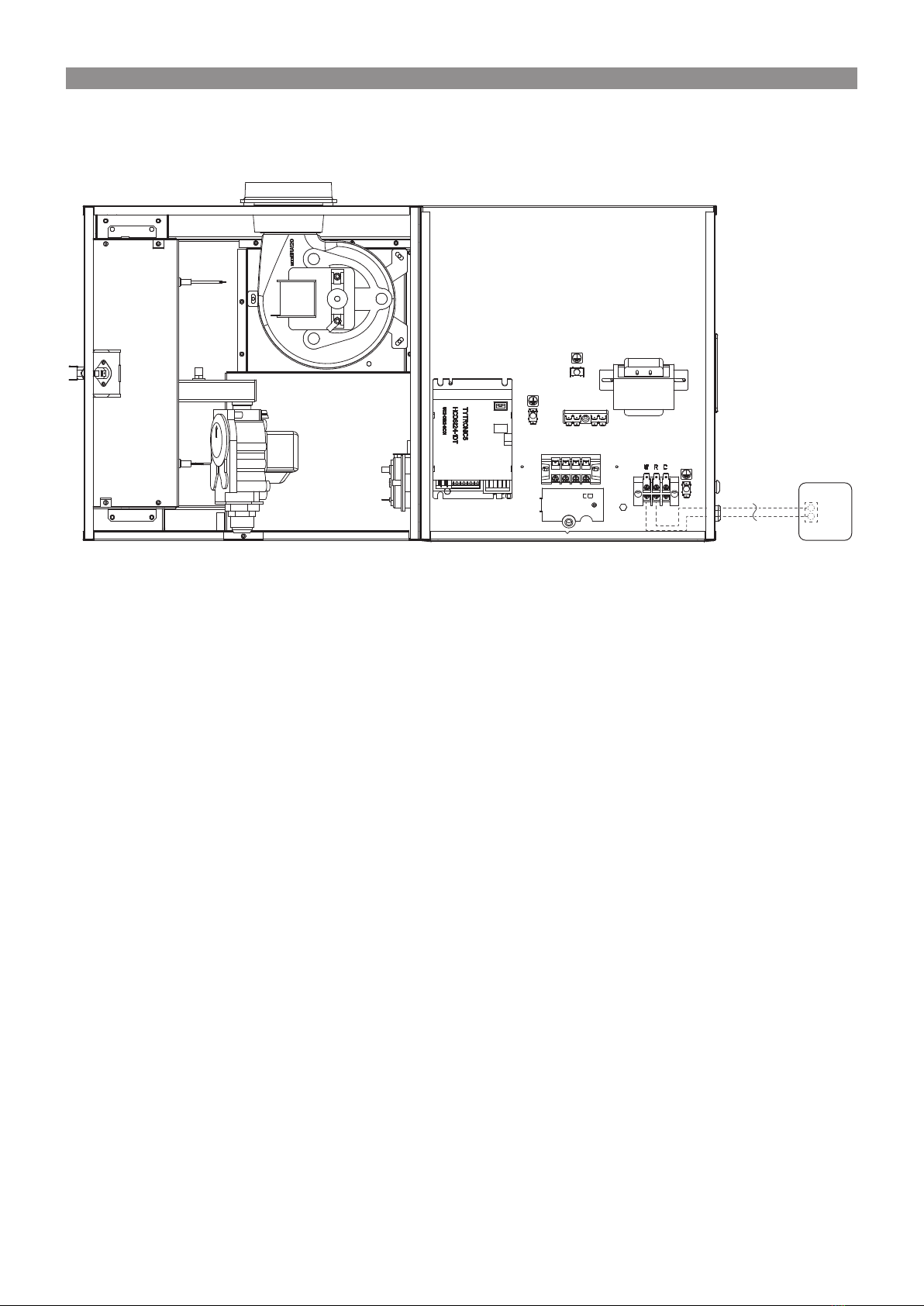

3.7 WIRING DIAGRAM
Diagram 10. CC3 to Thermostat Wiring Diagram
3.8 WIRING THE BRIVIS PROGRAMMABLE THERMOSTAT (ADD-ON & FAN ONLY)
The Classic control board does not have provision for “Add-On” cooling or “Fan Only” operation. For “Add-On”
cooling or “Fan Only” operation the unit must be configured.
To facilitate Add-On Cooling or Fan Only operation an additional accessory, ‘ACC LOOM ADD-ON RELAY CLASSIC’
(Brivis Part No. B063283) must be fitted.
To configure a Compact Classic heater for “Add-On” cooling refer to Diagram 11 on page 17.
To configure a Compact Classic heater for “Fan Only” operation refer to Diagram 11 and omit the “Y” connection.
For more information regarding connection of the Add-On relay refer to the installation instructions supplied with
‘ACC LOOM ADD-ON RELAY CLASSIC’ (Brivis Part No. B063283).
T/STAT

Brivis 17 Ducted Gas Heater IM
Diagram 11. Brivis Ice Add-On Schematic - Typical
Note: For Brivis ICE Add-On connection to a Brivis Classic heater an additional relay ‘ACC LOOM ADD-ON RELAY CLASSIC’ (Brivis
Part No. B063283) must be fitted.
Note:
• All electrical works to comply with relevant regulations.
• Requires Brivis programmable Thermostat.
• Contact Brivis Technical Support for information on superseded Brivis Heaters.
Relay Wires
PCB Wires
Field Supplied Wires
To Add-On Cooling Unit
For connection refer to the installation manual
accompanying the Add-On cooling unit.
0
1
3
4
2
7
6
8
Relay
B063283
Block
Brown
Red
Red
HEATER
Programmable
Thermostat
R
Y
G
W
White
Fan speed terminal block
Common (B)
Low (R)
Medium (W)
High (Br)
Blue
C
R
W
Heater
Control
Board
240V
Active
Terminal

Brivis 18 Ducted Gas Heater IM
4. DUCTING INFORMATION
Good duct design and sizing are essential to every Central Heating system. Use the Product Sizing Guide and
technical data within this manual for the best results and follow these guidelines:
• Ductwork should be well insulated and airtight and have a minimum insulation rating of R1.0 (R1.5 in some
areas). Ensure that ducting complies with the Building Code of Australia.
• The ducting shall be well fastened to pops, BTOs, outlet boots and neck adapters adequately with duct tape, in
accordance with AS 4254.
• It shall also be properly sized, and curves and bends shall be smooth enough to ensure that the air flows
through efficiently, quietly and with minimal resistance.
• The registers and diffusers shall be large enough and of good design. They should minimise noise, while
providing the correct distribution pattern.
• The positive return air system shall be fitted with a grille large enough to accept the full air capacity of the
system at low noise levels and minimum resistance.
• If the system uses high level outlets (e.g. ceiling diffusers), then the return air inlet should be at a low level.
Ceiling systems with a high level return air may result in reduced performance.
Note: It is important that the ducting should be well insulated. It is mandatory under building codes to install insulated, fire rated duct.
4.1 RETURN AIR GRILLE
If a filter is fitted to the return air grille, make sure it is easily accessible for regular cleaning.
Table 3 below gives the minimum recommended return air grille sizes for each model heater.
Table 3. Minimum Recommended Return Air Grille Selection
Without Filter With Filter
Model Grille Size (m²) Example Size (mm) Grille Size (m²) Example Size(mm)
CC315I V2 0.21 (370x560) 0.30 (400x750)
CC320I V2 0.21 (370x560) 0.30 (400x750)
CC320IXA V2 0.24 (530x530) 0.35 (400x1000)
CC325I V2 0.23 (530x530) 0.33 (350x900)
CC325IXA V2 0.26 (530x530) 0.38 (400x1000)
CC330I V2 0.35 (400x1000) 0.51 (400x1350)
CC330IXA V2 0.38 (400x1000) 0.54 (400x1350)
Note: Sizes are based on maximum airflow for typical 'egg-crate' grilles. For all other types, refer to the manufacturer’s specifications.
Example:If a grille has a free ventilation opening of 370mm x 560mm, the grille size is 0.37m x 0.56m = 0.21m².
This grille would be suitable for a CC315 & CC320 heater provided the grille does not have a filter fitted.

Brivis 19 Ducted Gas Heater IM
5. OUTLET CHART INFORMATION
The outlet chart (Table 4) provides recommendations based on the Product Sizing Guide or a system designed using
accepted design principles. The calculations use the typical size of registers and diffusers used on domestic heating
systems (300mm x 100mm floor registers and 150mm round ceiling diffusers) with 150mm ductwork.
For all systems, the minimum number of outlets, the outlet grille and the damper in the duct must all remain fully
open if the heater is to operate properly without overheating. Additionally, to ensure that the air velocity through each
ceiling outlet is sufficient, the maximum number of fully open ceiling outlets should not be exceeded (although the
system will operate efficiently with more ceiling outlets fully open if properly balanced).
There is not a limit/maximum number of floor outlets, so Table 4 lists the typical number for each heater model.
The outlet chart is divided into four columns as follows:
A. The maximum number of outlets that should remain fully open for a ceiling outlet system.
B. The typical number of outlets for a floor outlet system.
C. The minimum number of outlets that should remain fully open for floor/ceiling systems.
Note: Airflow figures are based on the maximum fan speed setting at total static pressure of 50Pa for 15, 20 & 25 kW models, 125Pa
for the 30kW model.
Table 4. Outlet Register Chart
System Model Airflow Rate (L/s)
A B C
Maximum No.
Ceiling Outlets
Typical No. Floor
Outlets
Minimum No. Floor/
Ceiling Outlets
CC315I V2 540 10 9 5
CC320I V2 540 10 9 5
CC320IXA V2 625 11 10 6
CC325I V2 600 11 10 6
CC325IXA V2 680 12 11 7
CC330I V2 920 13 16 8
CC330IXA V2 980 14 16 8

Brivis 20 Ducted Gas Heater IM
6. COMMISSIONING AND CONTROL SETTINGS
All of these heaters have been factory tested, but should be commissioned and adjusted in accordance with the
following instructions to ensure efficient and optimal heating performance. Remember:
• Mains power must be switched OFF before any wiring is touched.
• Commissioning must be carried out by a qualified trades person.
• If the heater cannot be adjusted to operate in accordance with these instructions, contact the Customer Service
Centre (refer to the back cover).
6.1 COMMISSIONING INSTRUCTIONS
6.1.1 Initial Damper Settings
Generally, a correctly designed and installed ducted system should have the following initial damper settings:
• Living areas: 100% open
• Bedrooms: 50% open
• Bathrooms, ensuite and laundry: 25% open.
6.1.2 Initial Ignition and Gas Inlet Pressure Check
a. Turn OFF the 240 Volt AC power supply at the fixed switched socket outlet adjacent to the unit.
b. Ensure the gas cock adjacent to the heater is in the OFF position.
c. Locate gas valve inlet pressure test point, remove the grub screw and insert your test point fitting (hose tail 1/8”
NPT).
d. Attach a manometer to the test point.
e. Ensure that all air has been purged from the gas piping and then turn ON the gas cock adjacent to the unit.
f. Turn on the 240 Volt AC power supply adjacent to the unit.
g. Go to the Thermostat, turn it ON and increase the temperature setting so that it calls for heat
h. The unit will now attempt to ignite. If the ignition attempt fails the heater will cycle through five ignition attempts
before locking out.
i. Once the ignition is successful allow the unit to run for one minute, ensuring the gas supply pressure does not
fall to below 1.1 kPa for natural gas and 2.7 kPa for LPG heaters. This should be done with all other gas
appliances operating at their full capacity.
j. If the reading is below the minimum requirement and cannot be adjusted any higher, this indicates the incoming
gas supply is inadequate (check supply pipe for blockage, check pipe sizing and gas meter size).
k. Turn the unit OFF at the thermostat, isolate the gas and the 240 Volt power supply adjacent to the unit.
l. Remove and replace test point with the grub screw.
Note: If there is air in the gas line, the heater may not ignite on the first attempt. Ignition attempts will occur automatically. Allow time
for the heater to rectify itself as it may simply be purging air.
If the heater does not attempt pilot ignition at all:
• Check the Lighting Procedure again and if it still fails to light, by-pass the Thermostat by removing cables from
the terminal block at the unit and link (bridge) terminals “R” and “W”. If it then lights, there is a fault with the
wires to the Thermostat or in the Thermostat itself. If it does not light, check the overheat switch has not tripped
or the 2 amp fuse has not blown.
6.1.3 Start & Check Burner Pressure
• Repeat steps 'a' to 'g' in Section 6.1.2. For step 'c' relocate the test point fitting from the inlet pressure test point
location to the burner pressure test point location, either on the gas valve or the manifold.
• Take a manometer reading of the test point pressure and confirm it is equal to the figure shown on the appliance
data label. If the pressure reading is not correct adjust the gas valve pressure regulator either up or down to
match the required test point pressure. If the pressure is lower than the required amount and cannot be adjusted
any higher, this indicates that the incoming supply pressure is not sufficient (check supply pipe for blockage,
pipe and gas meter sizing).
