Rinnai RHFE-752ETR User manual

All Rinnai gas products
are A.G.A. certified.
Power Flued Flamefire
Gas Space Heater
RHFE-752ETR
This appliance shall be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000 & AS/NZS 5601
• Local Regulations and Municipal Building Codes
This appliance must be installed, serviced and repaired by an Authorised Person.

Rinnai Australia i RHFE-752ETR Operation & Installation Manual
Congratulations on the purchase of your Rinnai RHFE-752ETR Flamefire.
We trust you will have many years of comfort and enjoyment from your appliance.
BEFORE PROCEEDING WITH THE OPERATION OR INSTALLATION OF YOUR NEW HEATER
PLEASE READ THIS MANUAL THOROUGHLY AND GAIN A FULL UNDERSTANDING OF THE
REQUIREMENTS, FEATURES AND OPERATION OF YOUR NEW APPLIANCE.

Rinnai Australia ii Operation Manual
INSTALLATION RECORD
INSTALLERS / GAS FITTERS DETAILS
Installers Name: _____________________________________________________
Company Name: _____________________________________________________
Company Address: _____________________________________________________
_____________________________________________________
_____________________________________________________
Company Contact Details
Telephone: _____________________________________________________
Mobile Phone: _____________________________________________________
Certificate of Compliance / Certification Number: ______________________________
Authorised Persons - Licence Number: _______________________________________
Installers Signature: _____________________________________________________
Installation Date: _____________________________________________________
APPLIANCE DETAILS
Model Number: _____________________________________________________
Serial Number: _____________________________________________________
Installation Address: _____________________________________________________
_____________________________________________________
_____________________________________________________
_____________________________________________________

Rinnai iii Operation Manual
BEFORE YOU START ................................................................................................1
INSTALLATION REQUIREMENTS..............................................................................................1
CERTIFICATION .......................................................................................................................... 1
FLUE INSTALLATION MANUAL.................................................................................................. 1
CARTON CONTENTS / ITEM CHECKLIST................................................................................. 1
ABOUT YOUR NEW RHFE-752ETR SPACE HEATER .............................................2
GENERAL DESIGN LAYOUT ...................................................................................................... 2
REMOTE CONTROL GENERAL LAYOUT .................................................................................. 3
REMOTE CONTROL DISPLAY....................................................................................................4
FEATURES................................................................................................................................... 4
UNPACKING THE APPLIANCE:.................................................................................................. 4

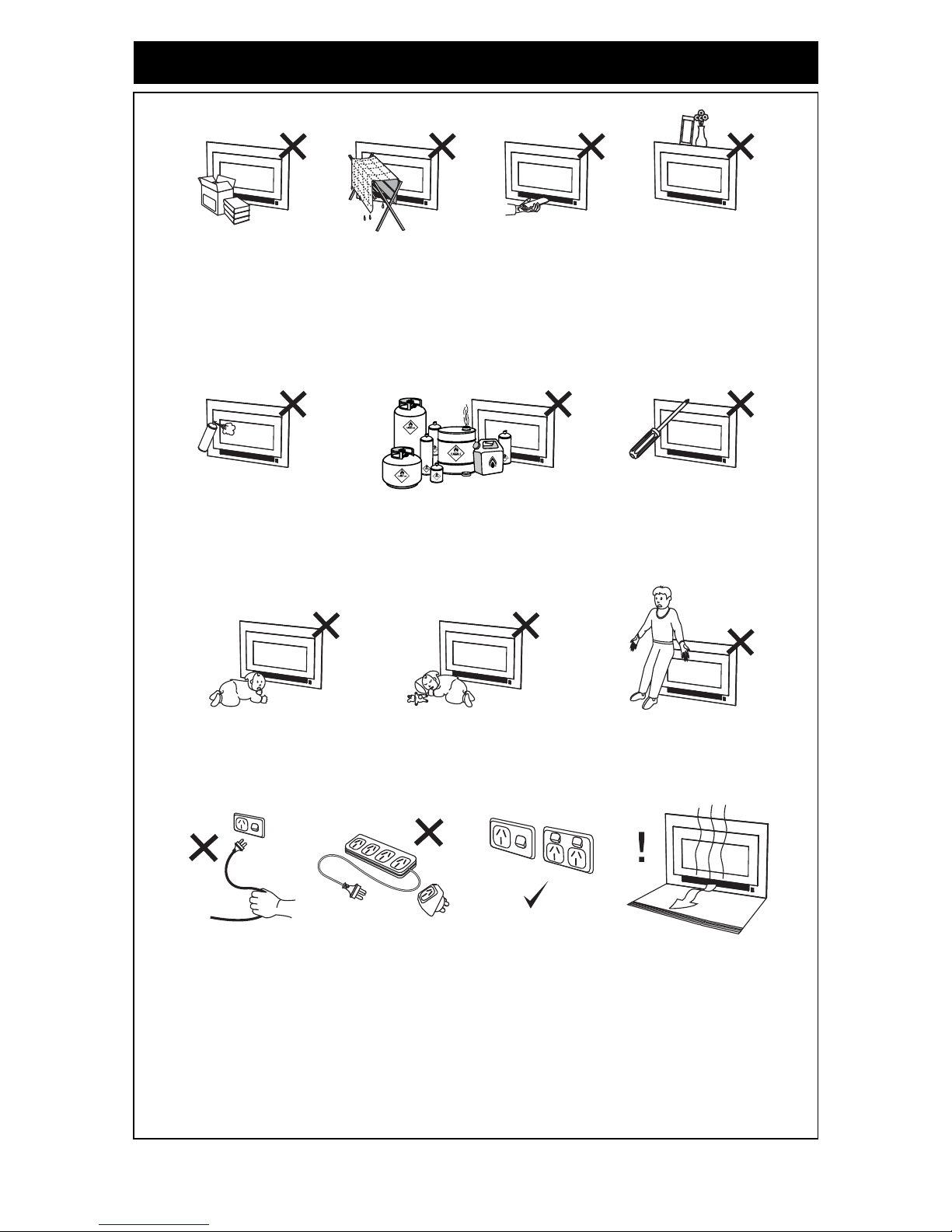

SAFETY.......................................................................................................................5
BASIC HEATER OPERATION....................................................................................7
GENERAL NOTES ABOUT IGNITION......................................................................................... 7
OPERATION WITHOUT THE REMOTE CONTROL (AUTOMATIC MODE) ............................... 7

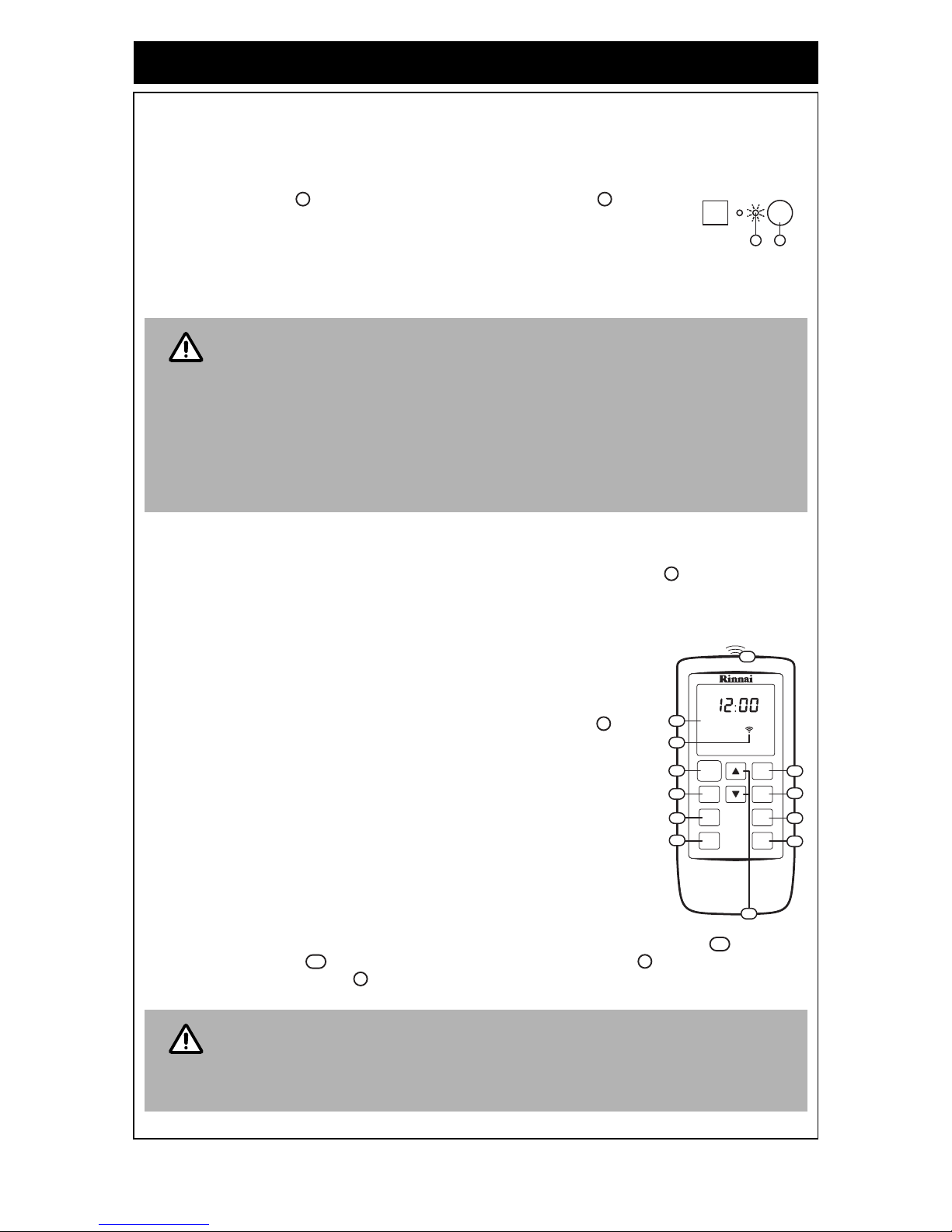

OPERATION WITH THE REMOTE CONTROL........................................................................... 7
TURNING ON THE POWER ........................................................................................................8
ADJUSTING THE TEMPERATURE............................................................................................. 8
FLAME FUNCTION ...................................................................................................................... 9
REMOTE CONTROL BATTERIES............................................................................................... 9
PROGRAMMED HEATER OPERATION ..................................................................10

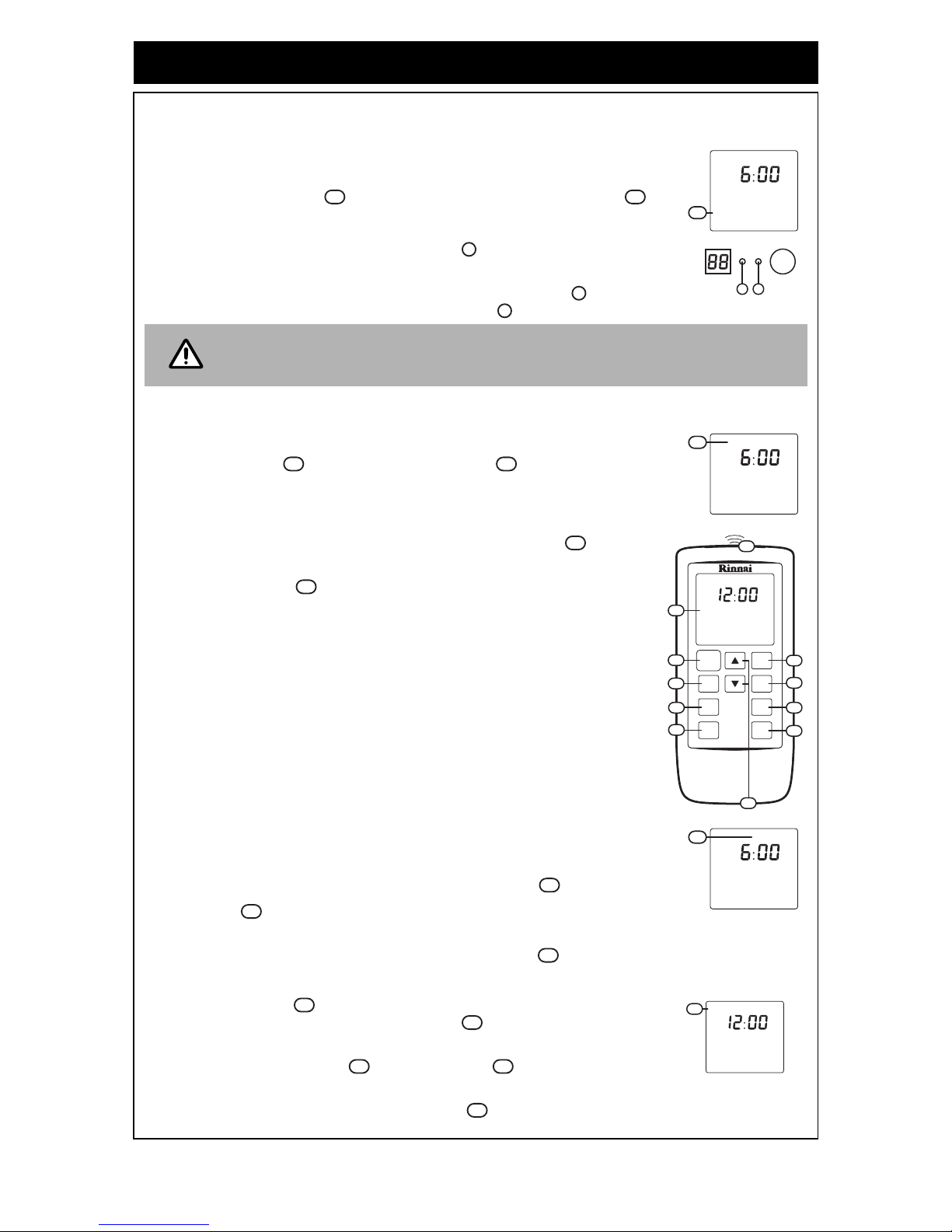

PROGRAMMING THE CLOCK AND TIMERS........................................................................... 10
PRE-HEAT.................................................................................................................................. 10
USING THE TIMERS..................................................................................................................11
USING THE OVERRIDE FUNCTION.........................................................................................11
USING THE EXTRA LOW FUNCTION ...................................................................................... 11
THE LOCK FUNCTION ..............................................................................................................11
CARE AND MAINTENANCE.....................................................................................12
CLEANING ................................................................................................................................. 12
FILTERS..................................................................................................................................... 12
LOUVRES................................................................................................................................... 12
GENERAL HEATER CHARACTERISTICS................................................................................13
SERVICE.................................................................................................................................... 13
TROUBLE SHOOTING CHECKLIST .........................................................................................14
ERROR CODES.........................................................................................................................14
INSTALLATION MANUAL ........................................................................................15
CONTACT INFORMATION .......................................................................................28
OPERATION MANUAL

Rinnai Australia 1 Operation & Installation Manual
BEFORE YOU START
INSTALLATION REQUIREMENTS
This heater must be installed by an authorised person. The installation must conform to local
regulations. The installation must also comply with the instructions supplied by Rinnai.
Service and removal must be carried out by an authorised person.
CERTIFICATION
The Rinnai RHFE-752ETR has been certified by the Australian Gas Association.
The AGA Certification Number is shown on the appliance dataplate.
No parts or functions should be modified or permanently removed from the heater.
Please keep these instructions in a safe place for future reference.
FLUE INSTALLATION MANUAL
These instructions are to be used in conjuction with the Rinnai “Power Flued Flamefire Space Heater
Co-axial Flue System Installation Manual” supplied with flue kits ASPDFK or ASPKIT03.

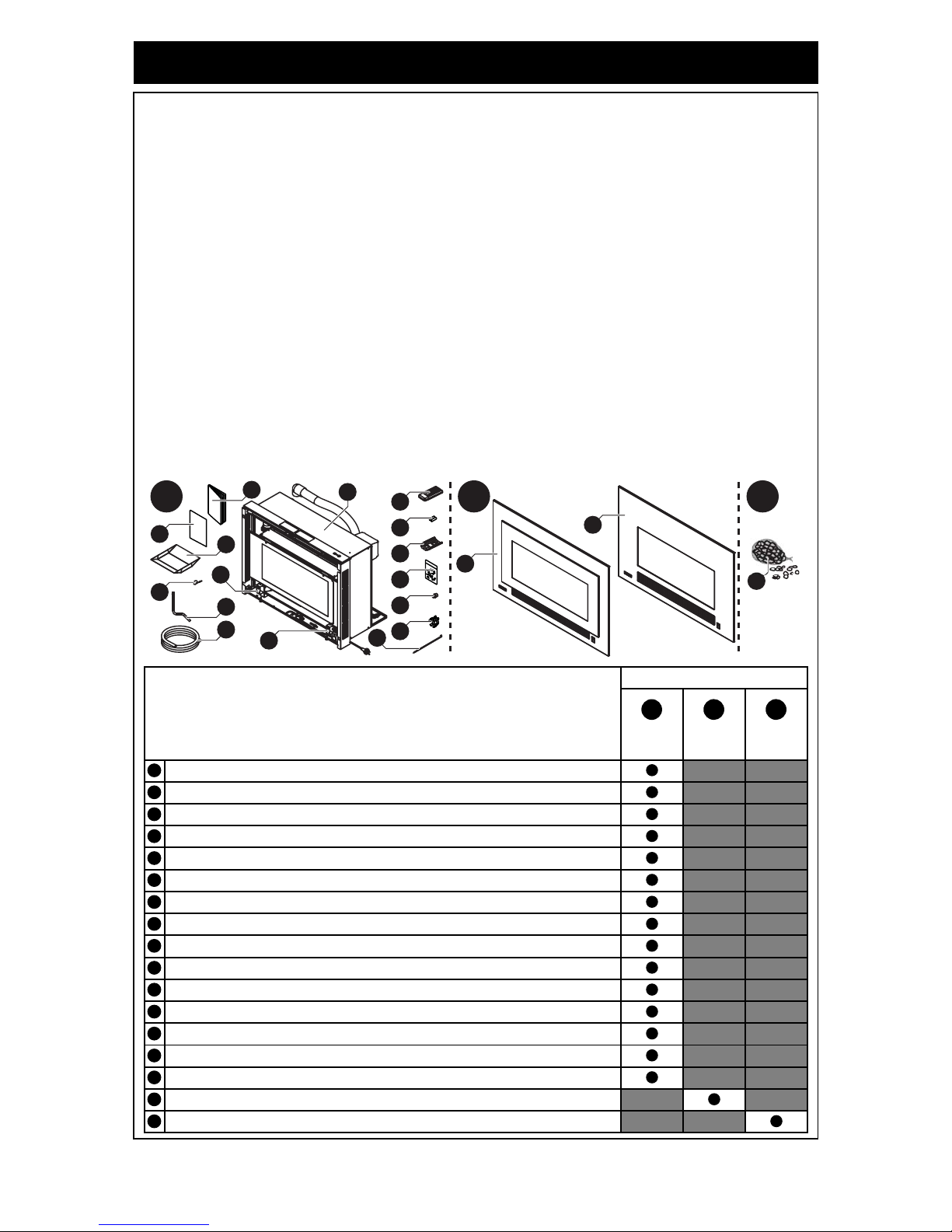

CARTON CONTENTS / ITEM CHECKLIST
The components for RHFE-752ETR heater are supplied in 3 separate cartons, the following tables list
which components are in each carton. Ensure that the components listed are present before
proceeding with the installation.
Component Descriptions
Carton Contents
Engine Fascia Burn
Media
Rinnai RHFE-752ETR Engine.
Remote Control.
1.5V AAA Batteries (x2)
Remote Control Mounting Bracket.
Fixings: Screw 8x1 Truss PH ZP (x2), Screw M4 x 20 Pan Phil Zinc (x1).
1/2” BSP x 5/8” UNF 3/8” Tube Flare.
Flue Exhaust Lock (see Flue Installation Manual for details).
Cable Tie 300mm
Fascia Mounting Screws (x2 pre-installed in the engine fascia mounting brackets).
This Operation and Installation Manual.
Condensate Kit Instructions (use in conjunction with Flue Installation Manual).
Condensate Tray (see Flue Installation Manual for details).
Wire Tie (see Flue Installation Manual for details).
Condensate tube (see Flue Installation Manual for details).
Condensate Drain Hose (see Flue Installation Manual for details).
Fascia (double or single fronted styles available separately).
Mesh Bag Containing Burner Media.
A B C
1
9
9
2
3
4
5
6
7
16
12
15
14
13
11
10
17
16
8
A
B
C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

Rinnai 2 Operation Manual
ABOUT YOUR NEW RHFE-752ETR SPACE HEATER
GENERAL DESIGN LAYOUT
AUTO OVERHEAT
DISCHARGE VENT
1DOUBLE GLAZED
FLAME WINDOW
2ROOM AIR RETURN 3
BURNER MEDIA
4LOUVRE, WARM
AIR DISCHARGE
5RECEIVER WINDOW /
BLOCKAGE INDICATOR
Remote control receiver, Indicator
for filter/louvre blockages
6
3
3
ON/OFF BUTTON
Turns the heater On or Off.
789
10
7OPERATION INDICATOR
Indicates operation status
8
TIMER INDICATOR
Indicates timer program status.
9ERROR DISPLAY
Displays error codes
10
CONTROL PANEL
2
1
987 10
6
4
5
3

Rinnai 3 Operation Manual
ABOUT YOUR NEW RHFE-752ETR SPACE HEATER
REMOTE CONTROL GENERAL LAYOUT
• Use 2 x 1.5V AAA batteries. NEVER mix old and new batteries.
• Remove batteries if the remote control is not going to be used for a long
period. This will help avoid damage from leaking batteries.
• When using Timers press Override to activate remote control functions.
• If the heater is operating in Override mode, using the STANDBY/ON button will
cancel any future timer operations, these will have to be reset manually.
• Some fluorescent lights may interfere with the transmission of remote control
signals, in this case changing the position from which you are operating the
remote control may help.
• Avoid leaving the remote control in direct sunlight and do not place it close to
the warm air discharge louvres of the heater.
• Avoid dropping the remote control or getting it wet.
FRONT REAR
BATTERY
COMPARTMENT
COVER
STANDBY
ON
Flame
Lock
Timer 2
Timer 1
Override
Time
Set
Temperature
Lock
Clock
AM
PM
Timer 1
Set
Set ON OFF
ON OFFTimer 2 Set
Override
Extra Low
Time
Flame
CONTROL BUTTONS
Used to select the temperature,
flame picture and adjust timers.
20
11
STANDBY / ON
BUTTON
Stops and Operates the heater
remotely.
FLAME BUTTON
Sets the flame picture.
TIME SET BUTTON
Sets clock and timers.
REMOTE DISPLAY
TIMER 1 BUTTON
Sets timer program 1.
TIMER 2 BUTTON
Sets timer program 2.
OVERRIDE BUTTON
Manually overrides
current timer operation.
LOCK BUTTON
Locks out control to
prevent tampering.
EXTRA LOW
Energy saving room temperature
control.
17
INFRA RED
EMITTER
18
20
21
19 BATTERIES AND
BATTERY COMPARTMENT
The remote control is powered by a pair of
1.5V AAA batteries.
To replace batteries simply unscrew the battery
compartment cover located on the back of the
remote control anti-clockwise, when installing
new batteries ensure that the correct polarity is
observed.
22
21
22
11
14
12
15
13
16
14
15
17
19 18
16
12
13
Extra
Low
NOTE

Rinnai 4 Operation Manual
ABOUT YOUR NEW RHFE-752ETR SPACE HEATER
REMOTE CONTROL DISPLAY
FEATURES
UNPACKING THE APPLIANCE:
Check for damage and missing parts. If the heater is damaged or missing any parts, contact your
supplier for advice. Before installing the appliance, check it is labelled for the correct gas type (see
label on top rear of heater). Refer to local gas authority for confirmation of gas type if you are in doubt.
• Room Sealed: Air for combustion is taken from the outside and the flue products are exhausted
to the outside. This means heater operation has no effect on the composition and quality of air in
the room.
• Push Button Ignition: Only one touch of the STANDBY/ON switch is all that is required to
operate the heater.
• Lock: When the Lock function is activated all controls other than the STANDBY/ON switch will
be locked. Deactivating the lock releases the controls. If the lock is activated when the appliance
is in STANDBY, all functions will be locked.
• Memory: The heaters micro-computer records preset temperatures, timer programming, and
operational modes. Even in the event of a power failure, the need for reprogramming is minimised.
• Dual Timer: The Dual Timer allows you to program the appliance to operate for two separate
periods each day. Once programmed the heater can then be controlled by selection of the Timer
1 and or Timer 2 functions.
The Dual Timer feature means that you can "Set and Forget" your heater. It will turn itself ON
or to STANDBY at the times you have programmed until you cancel the Timer program.
• Pre-Heat: This function automatically operates the appliance before the programmed ON time of
the Timer, in order to heat a room to the pre-set temperature by the programmed ON time.
• Remote Control: Full function cordless remote for the convenience of operating the heater from
a distance.
• Extra Low Function: The Extra low function is an energy saving feature designed to control the
room temperature economically. If the room temperature continues to rise above the set
temperature on thermostat the main burner will turn down to its lowest setting. When the room
temperature requires further heating the heater will automatically re-ignite to warm the room.
MAIN DISPLAY
Displays current Clock, Timer or
Temperature status.
MAIN DISPLAY MODE
Indicates that controller is in Time
or Temperature display modes.
CLOCK SET INDICATOR
Displays when the Clock Set mode
is selected.
23
24
25
TIMER 1 INDICATOR
Displays to indicate current status
of Timer 1.
26
TIMER 2 INDICATOR
Displays to indicate current status
of Timer 2.
27
LOCK INDICATOR
Displays when the Lock mode is
activated.
28
OVERRIDE INDICATOR
Displays when Override has been
selected.
29
TRANSMISSION SIGNAL
Displays when data is transmitted.
32
EXTRA LOW INDICATOR
Displays when Extra Low function
has been selected.
30
FLAME INDICATOR
Displays current flame picture setting
when Flame mode is activated.
31
23
24
25
26
27
28
29
30
32
31

Rinnai 5 Operation Manual
SAFETY
DO NOT MODIFY THIS APPLIANCE.
Failure to comply with these instructions could result in a fire or explosion,
which could cause serious injury, death or property damage.
Improper installation, adjustments, service or maintenance can cause serious
injury, death or property damage. Such work must be performed by an
authorised person.
a. The appliance must be installed in accordance with the local gas and
electrical authority regulations.
b. For information on gas consumption, see data plate on the appliance.
c. This appliance must not be installed where curtains or other combustible
materials could come into contact with it. In some cases curtains may need
restraining.
d. Heat emanating from the front of this appliance may over time affect the
appearance of some materials used for flooring such as carpet, vinyl, cork
or timber. This effect may be amplified if the air in the room contains cooking
vapours or cigarette smoke. To avoid this possibility, it is recommended that
a mat be placed in front of the appliance, extending at least 750 mm in front
of it.
e. The appliance is not intended for use by young children or infirm persons
without supervision.
f. Young children should be supervised to ensure they do not play with the
appliance.
g. If the supply cord is damaged or requires replacing, it must be replaced by
the manufacturer or the manufacturer's agent or similarly qualified person in
order to avoid a hazard.
WARNING
IMPORTANT
100mm
1000mm
100mm
250mm
The above diagram shows the clearances required
around this heater whilst in operation.

Rinnai 6 Operation Manual
SAFETY
DO NOT restrict the warm air discharge by placing articles in front of the heater. This appliance must
not be used for any purpose other than heating.
DO NOT allow anyoneto post articles through the louvres or let flammable and combustible materials
to come into contact with the heater.
DO NOT place articles on or against this appliance, on the heaters top panel or obstruct the auto
overheat discharge vent.
DO NOT spray aerosols in the vicinity of this appliance whilst the heater is operating. Most aerosols
contain butane gas, which can be a fire hazard if used near the heater when it is in use.
DO NOT store flammable materials near this appliance.
DO NOT modify this appliance.
Young children should be supervised at all times. Hand or body contact with the warm air discharge
louvres and glass must be avoided.
DO NOT allow young children or the infirm to sleep directly in front of the heater.
DO NOT allow anyone to sit on or lean against the appliance.
DO NOT unplug the heater while it is in operation or while the fans are still cycling. Unplugging the
heater will cause any timer operation to stop. Timer programs are stored in the memory of the remote
control.
A dedicated 230~240V 50Hz 10 Amp power point must be used with this appliance. DO NOT use
power boards or double adaptors to operate this appliance. The appliance MUST NOT BE located
below a power Point.
Heat emanating from the front of this appliance may over time affect the appearance of some
materials used for flooring such as carpet, vinyl, cork or timber. This effect may be amplified if the air
in the room contains cooking vapours or cigarette smoke. To avoid this possibility, it is recommended
that a mat be placed in front of the appliance, extending at least 750 mm in front of it.
