Rinnai CNTRLDRCINW Quick start guide

Standard wired remote controller
Operation and installation guide
MODEL
CNTRLDRCINW

Important
Controller must be installed in accordance with:
- Manufacturer’s installation instructions
- Current AS/NZS 3000, AS/NZS 5141, AS/NZS 5419,
AS/NZS 1677, and AS/NZS 60335.2.40
- HB276 - A Guide to good practice for energy e󰀩cient installation
Must be installed, maintained and removed only by an authorised
person.
Warning
Improper installation, adjustment, alteration, service and maintenance
can cause property damage, personal injury or loss of life.
For more information about buying, using, and servicing of Rinnai
appliances call: 0800 RINNAI (0800 746 624).

Contents
Safety and important information........................................
Installation ..........................................................................
Controller operation
LCD display ........................................................................
Controller buttons ...............................................................
Operation............................................................................
Timer functions ...................................................................
Fault codes.........................................................................
Wi-Fi control .......................................................................
Wi-Fi registration and connection.......................................
4
5
12
13
15
19
28
29
30

4|
Safety and important information
DO NOT install the controller in a place exposed to leakage or
ammable gases. Once ammable gases are leaked and left
around the controller, re may occur.
DO NOT operate with wet hands or let water enter the wired
controller—electric shock may occur.
Controller must be wired according to the wiring diagram.
The wired controller operates in a low voltage loop circuit, DO NOT
connect the cable to 220-240 V power.
The shielded wire of the wired controller MUST BE grounded.
After completing the wired controller connection, DO NOT use a
megger tester to check the insulation. This may damage the product.
A maximum of TWO CONTROLLERS may be installed on a system.
Specication
Input voltage: DC 5 V / DC 12 V
Ambient temperature.: -5~43 °C
Ambient humidity: 40-90% RH
Controller loom shall be 2-core (0.5 mm2) shielded cable, up to 40 m.

| 5
Installation
Backing plate
Remove the backing plate by inserting
a at screwdriver in the lower part of the
controller, rotate (do not pry up and down) to
remove the backing plate.
The PCB is mounted in the upper part of the
controller be careful not to damage.
Fasten the backing plate on the wall with three
screws (ST3.9*25) and plugs (provided).
120 mm
120 mm
20 mm
44 mm
46 mm
60 mm
19 mm
84 mm
Screwdriver
locations
Backing
plate

6|
Loom access point
Remove plastic knockout from the backing plate.
Create a hole in the wall to access the wall cavity
for routing the loom from the indoor unit to the
controller.
Put on a at surface. Be careful not to distort
the back plate of the wired controller by over
tightening the mounting screws.
Battery installation (CR2032)
Keep batteries out of reach of children.
Swallowing may lead to serious injury
in as little as two hours, or death due to
chemical burns and potential perforation
of the oesophagus.
Slide the battery into the holder with the positive side facing up.
When rst turning on set up the time of day. If the system is exposed
to a power outage the battery will maintain the time of day. If the
displayed time is not correct once power is restored try replacing the
battery.
Remove
knockout
WARNING

| 7
Thermostat connection to the indoor unit
44 mm
Indoor unit
PCB
60 mm
Loom
knockout
HA
HB
Indoor unit
Connect the terminals on the wired controller (HA, HB), and the
terminals on the indoor unit (HA, HB). There is no polarity between HA
and HB, refer image below.
HB
Indoor unit
Wired controller
HA
HB
HA HB

8|
HA HB
Indoor unit
Earth the
shielded
wire
Max. 40 m
Max. 40 m
Controller 1
Controller 2
HA
HA
HB
HB
Setting up two controllers
Up to two controllers can be connected to the HA and HB terminals on
the indoor unit as shown.
From the factory all controllers are supplied with SW1
dip switch setting 1 OFF and dip switch setting 2
OFF. When conguring a second controller, two dip
switches on the rear of the second controller (SW1
location) must change to the ON position as shown.
Dip switch settings for the primary controller must
remain unchanged.
If two controllers are installed both are equal and
reect the same information, and operational changes can be done on
either controller. Wi-Fi control may be setup on one of the controllers
only. There is no polarity between HA and HB.
Controller 1 (primary)
SW1
1 2
ON
Controller 2 (secondary)
SW1
1 2
ON

| 9
Controller 1
Total length 40 m maximum
Indoor unit 1 Indoor unit 2 Indoor unit n
Max. 16
HA
HA HA HA HB
HB
HB
HB
One controller to multiple units
For some units, one wired controller can support multiple units (a
maximum of 16).
For conguration of multiple indoor units loom connection is polarity
sensitive and HA must connect to HA on all indoor units, the same
applies to HB. In group control there will be no error displayed on the
wired controller.

10 |
Reattach backing plate of the wired controller
To reconnect the fascia to the back plate, anchor the top lugs rst as
shown below then swing the fascia down and press lightly to engage
the bottom tabs. Be careful not to pinch the loom during the process.
DO NOT allow water to enter the controller, use trap and putty to seal
the connectors. Connecting wires must be securely xed in place.
Putty
Putty Putty
Trap
Trap Trap

Controller operation
Functions
• Mode: Auto-Cool-Dry-Heat-Fan
• Fan speed: Auto/Low/Med/High
• Timer ON/OFF
• Temperature setting
• Weekly timer
• Follow me
• Turbo
• Child lock
• Clock

12 |
Temperature display
Lock display
MODE display
Displays current mode incl.
°C / °F display
Room temperature
Wireless control feature display
(on some models)
Follow me
Delay off
Turbo
Eco
Filter reminder
Sleep feature
Active clean
Weekly timer / ON/OFF timer Clock
Fan speed
LOW
MED
HIGH
AUTO
Horizontal swing
Vertical swing
Secondary unit
LCD display

| 13
Controller buttons
1
2
3
4
6
7
8
9
10
11
5
1. Fan speed
2. Mode
3. Function
4. Swing (some models)
5. Adjust
6. Timer
7. Copy
8. Power
9. Conrm
10. Back
11. Day o󰀨* / delay
* This means single day schedule deactivation.

14 |
Setting the current day and time
1. Press the timer button for two seconds or more. The timer display
will ash.
2. Press the down or up button to set the day. The selected day will
ash.
3. Press the timer button then press the down or up button to set the
current time. Press repeatedly to adjust the time in one minute
increments.
4. Complete the setting by pressing the conrm button.
5. 12 or 24 hour clock. Press the timer button and the day o󰀨 /
delay button for two seconds. This will alternate the clock display
between 12 and 24 hours.
1 2 3 4 5
+

| 15
Operation
Turn on and o󰀨
Press the power button.
Adjusting room temperature setting
Press the up or down button to set the room temperature. Indoor
setting temperature range 16-30 °C.
Pressing the conrm and down button for three
seconds will alternate the temperature display between
the °C and °F scale.
Selecting operation mode
Press the Mode button to cycle through the di󰀨erent modes of operation.
Adjusting fan speed setting
Press the fan speed button to set the fan speed. This button does not
work when in Auto or Dry mode.

16 |
Child lock function
Press the up and down buttons at the same time for three seconds to
activate the child lock function and lock all the buttons on the controller.
Press the same two buttons again to deactivate.
When the child lock function is activated the lock symbol
appears.
Keypad tone setting
Press the swing and function buttons together for three seconds to turn
on or turn o󰀨 the keypad tone.
Turbo
This mode allows you to cool indoor air quickly in summer or warm it
quickly in winter. In Turbo mode the fan is set to operate at maximum
output.
Turbo will only function when in cooling or heating
mode. Press the function button until the turbo fan
symbol appears, press again to deactivate. Standard fan
symbol
Turbo fan
symbol

| 17
Follow me
Press the function button until the Follow me icon
appears. Press conrm to activate.
When Follow me is activated the room temperature is
detected at the sensor in the wired controller. When Follow me is not
active the room temperature is detected at the air inlet of the indoor
unit.
Sleep mode
Press the function button until the Sleep icon appears. Press
conrm to activate Sleep mode. The ambient temperature will
decrease 1° every hour for the rst two hours, then it will hold
a steady temperature for ve hours, then it will switch o󰀨.
The feature is to provide increased comfort when sleeping as well as
saving energy overnight.
Eco mode
Press the function button until the Eco icon appears. Press
conrm to activate Eco mode, an 8-hour energy-saving mode
reducing up to 60% of energy use.

18 |
Active clean
Press the function button until the Active clean icon appears.
Press conrm to start Active clean. The unit will enter in an
automated process where the indoor unit coil will be cleaned
and sterilised. This function can take up to 90 minutes to complete.
Active clean should be done at least twice a year, at the end
of summer, and at the end of winter. This does not replace the
requirement for yearly servicing of your unit. Contact your installer or
Rinnai to schedule annual servicing.
Swing function (only for units with swing features)
Up-down swing
Press the Swing button for two seconds to start the left-
right swing function. When activated the icon will appear.
Up-down airow direction and swing
Press the Swing button to start the up-down swing
function. When activated the icon will appear.

| 19
Timer functions
WEEK
ON
OFF
DAY
ON
OFF
DAY
DAY
WEEKLY timer
Use this timer function to set operating times for
each day of the week.
On timer
Use this timer to start operation. The timer operates
and operation starts after the time has passed.
O󰀨 timer
Use this timer to stop operation. The timer operates
and operation stops after the time has passed.
On and O󰀨 timer
Use this timer to start and stop operation. The timer
operates and operation starts and stops after the
time has passed.

20 |
To set the ON or OFF timer
Press the timer button to select the ON day or OFF day. Press the
conrm button, the timer display will blink.
Press the up or down buttons to set the time. After this is done the
timer will automatically start or stop. Press the conrm button to lock in
the settings.
To set the ON and OFF timer

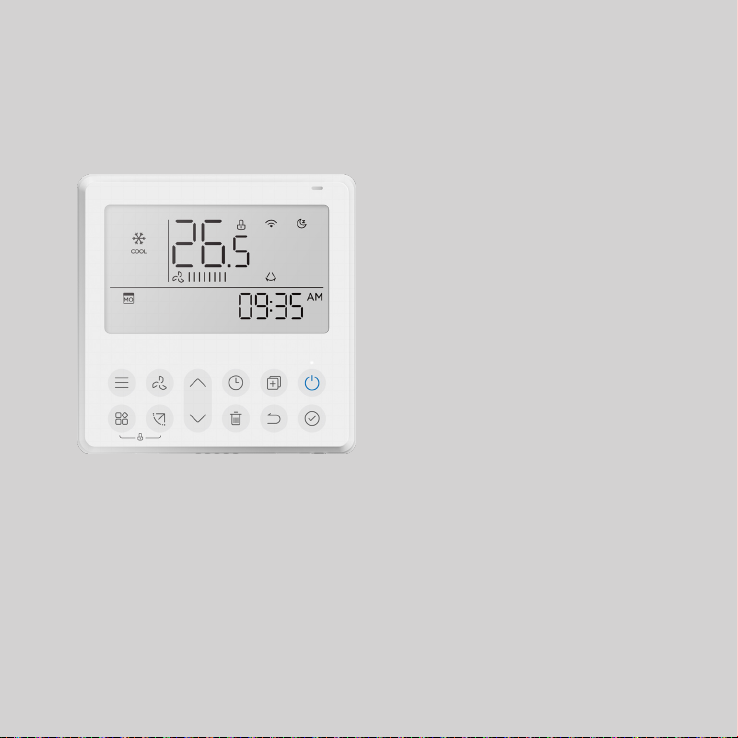

Press the timer button to select the ON and OFF day. Press the
conrm button, the clock display will blink. Press the up or down
buttons to set the time for the ON timer, then press the conrm button
to lock in this setting. Press the up or down buttons to set the time for
the OFF timer, then press the conrm button to lock in this setting.
Please note: If you have a second wired controller, this controller
cannot set the timer.
