Wired Remote Controller
Operation and Installation Manual
MODELS
CNTRLDRCIPW
CNTRLDRCIPB

Congratulations on the purchase of your Rinnai
Wired Remote Controller.
This manual describes safety precautions required
for the use of the product.
• Read this manual carefully before installing or
operating your wired remote controller. Make
sure you understand the information provided
before attempting to use the product.
• Keep this manual where it is readily accessible
after reading it through.
• If another user operates the product in the future,
be sure to hand over this manual to the new user.
• All the pictures in this manual are for explanation
purpose only. They may be slightly di󰀨erent from
the wired remote controller you purchased and
the actual shape shall prevail.

Rinnai 3 DRCi R32 Wired Controller OIM
This Wired Controller is compatible with the following Rinnai indoor models:
DRCi Hi-Wall Slim Ducted Cassette
DINLR07B1 HINRP20M DINSD26MB CIN20RMB
DINLR09B1 HINRP26M DINSD35MB CIN26RMB
DINLR11B1 HINRP35M DINSD50MB CIN35RMB
DINLR13B1 HINRP50M DINSD70MB CIN50RMB
DINLR15B1 HINRP60M
DINLR18B1 HINRP70M
NOTE
This controller contains features and functions that are applicable
to certain models in 1:1 and Multi congurations. In brackets
next to the associated feature or function the applicable models
will be listed. If no models are listed the feature or function is
applicable to all.
1:1 - This conguration contains one outdoor unit and one indoor unit.
Multi - This conguration contains one outdoor unit and two or more indoor
units. The only models that may be installed in a multi conguration are Hi-Wall,
Cassette, and Slim Ducted units, DRCi is a 1:1 conguration.

Rinnai 4 DRCi R32 Wired Controller OIM
1.0 TABLE OF CONTENTS
1. Safety Precautions 6
2. Accessory Installation 8
3. Installation Method 9
Wired Remote Controller Dimensions ...............................................................9

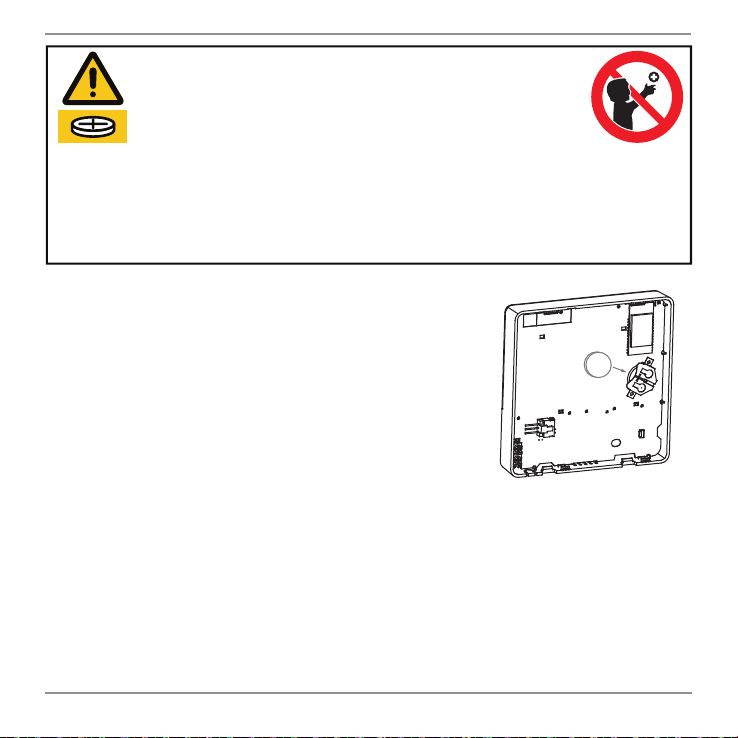

Battery Installation (CR2032) ........................................................................... 11
Thermostat Connection to Indoor Unit .............................................................12
Setting up two Controllers ................................................................................12
Indoor Unit........................................................................................................14
4. Specications 16
Wiring Specications........................................................................................16
5. Features 17
Feature and Functions of the Wired Controller ................................................17

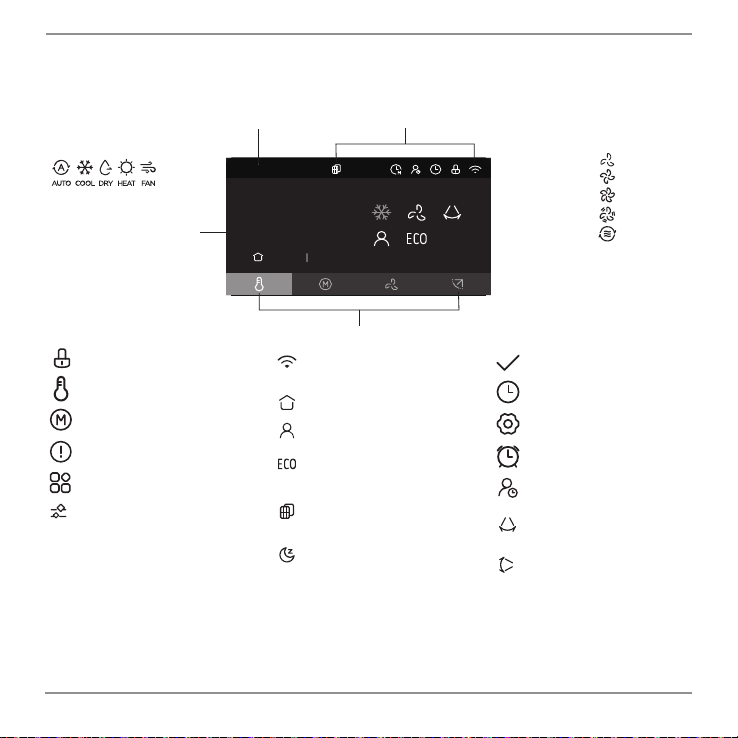

6. TFT Display 18
7. Controller Buttons 19
8. Operation 20
Introduction to Button Setting...........................................................................20

Rinnai 5 DRCi R32 Wired Controller OIM
Mode Setting ...................................................................................................23
Set Temperature Setting...................................................................................24
Fan Speed Setting ...........................................................................................24
Fan Direction Setting........................................................................................25
Special Function Settings.................................................................................27
Special Function Setting ..................................................................................29
9. Wireless Control Connection 40
Safety Precautions ...........................................................................................40
Download and Install APP................................................................................41
10. User Registration 42
11. NetworkConguration 44
Network conguration by Bluetooth scan......................................................... 45
Network conguration by selecting appliance type .........................................49
12. How to Use App 54
Special Functions.............................................................................................56
13. Warranty 60
Contacts 64

Rinnai 6 DRCi R32 Wired Controller OIM
1. SAFETY PRECAUTIONS
IMPORTANT
• This wired controller must be installed only by an Authorised
Person.
• Installation by other persons may lead to imperfect installation,
electric shock or re.
• Adhere to this installation manual.
• Improper installation may lead to electric shock or re.
• Reinstallation must be made by an Authorised Person.
• Do not uninstall the unit randomly. Arbitrarily uninstalling may
lead to abnormal operation, heating or re of the air condition.
NOTE
• Do not install the unit in a place vulnerable to leakage or
ammable gases. Once ammable gases are leaked and left
around the wire controller, re may occur.
• Do not operate with wet hands or let water enter the wired
controller. Otherwise, electric shock may occur.
• The wiring should adapt to the wired controller’s current.
Otherwise, electric leakage or heating may occur and result
in re.
• The specied cables shall be applied in the wiring. No external
force may be applied to the terminal.
• The illustrations used in this manual are for explanatory
purposes only.

Rinnai 7 DRCi R32 Wired Controller OIM
CAUTION
BEFORE INSTALLING THE WIRED CONTROLLER
• This manual provides instructions for installing the wired
controller. Please refer to the wiring diagram of this installation
manual for connecting the wired controller with indoor unit.
• The wired controller operates in a low voltage loop circuit.
Strictly DO NOT directly contact the high voltage cable
above, such as 115V,220V,380V. DO NOT allow the controller
or controller loom to come in contact with high voltage cables
such as 115V and above. Clearances for this situation shall
be 300mm or more.
• The shielded wire of the wired controller must be grounded
rmly.
• After completing the wire controller connection, DO NOT use
Megger tester to check the insulation. That may damage the
product.
NOTE
A maximum of two controllers may be installed on a system and
the mix may contain any of the following three controllers:
CNTRLDRCINW / CNTRLDRCIPW / CNTRLDRCIPB

Rinnai 8 DRCi R32 Wired Controller OIM
2. ACCESSORY INSTALLATION
Select the installation location
Don’t install at the place where cover with heavy oil, vapor or sulfureted gas,
otherwise, this product would be deformed that would lead to system malfunction.
Preparation before installation
1. Please conrm that all the following parts have been supplied.
No. Name Qty Remarks
1 Wired Controller 1 —
2 Operation & Installation Manual 1 —
3 Screws 3 ST 3.9*25 (For mounting on the wall)
4 Wall Plugs 3 For Mounting on the Wall
5 Battery (CR2032) 1 —

Rinnai 9 DRCi R32 Wired Controller OIM
3. INSTALLATION METHOD
Wired Remote Controller Dimensions
Figure 1. Dimensions
Remove the backing plate from the wired controller
• Insert a at screwdriver into the
slots in the lower part of the wired
controller (2 places). Rotate the
screwdriver (2 places) to remove the
backing plate (Figure 2).
Srewdriver
locations
Backing
plate
Figure 2. Backing plate removal
NOTE
Do not pry up and down, you can only rotate the screwdriver.

Rinnai 10 DRCi R32 Wired Controller OIM
NOTE
The PCB is mounted in the upper part of the wired controller. Be
careful not to damage the board with the slot screwdriver.

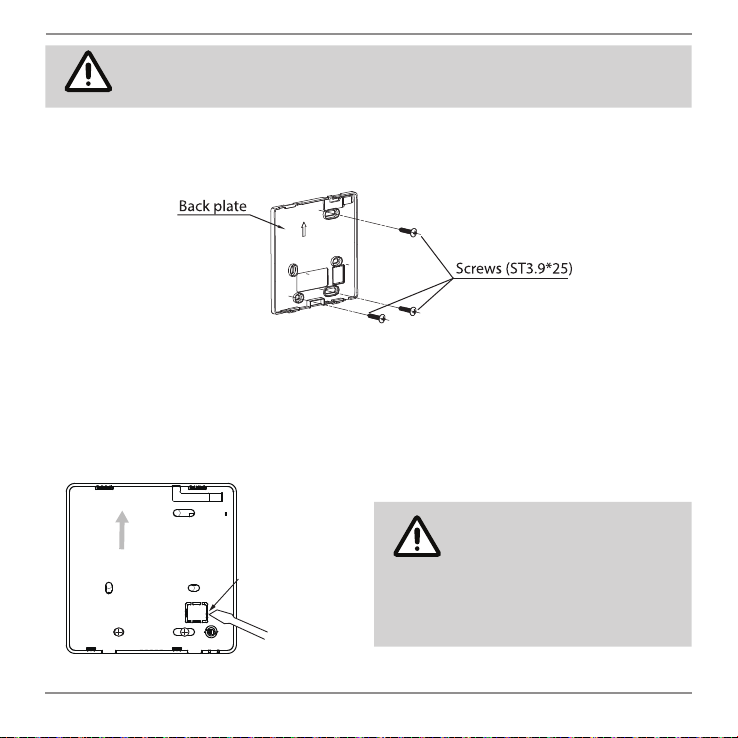

Fasten the back plate of the wired controller
• Fasten the back plate on the wall with the 3 screws (ST3.9*25) and plugs
(Figure 3) provided.
Figure 3.
Fasten the back plate of the wired controller
• Remove plastic knockout from the backing plate (Figure 4).

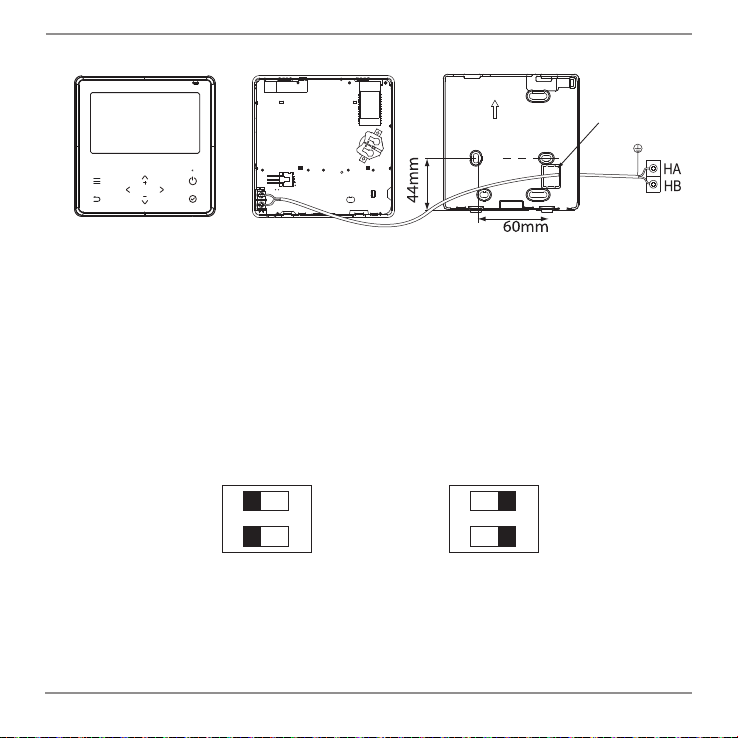

• Create a hole in the wall to access the wall cavity for routing the loom from FCU
to controller.
Remove knockout
NOTE
Put on a at surface.
Be careful not to distort
the back plate of the
wire controller by over
tightening the mounting
screws.
Figure 4.
