RIUKOE ML-B080 User manual

80W LED Beam Moving Head
ML-B080
User Manual
Please read this user manual before using this product.

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
INDEX
STATEMENT.........................................................................................................3
ACCESSORIES.......................................................................................................3
SAFETY INSTRUCTION .........................................................................................3
GENERAL GUIDELINES .........................................................................................4
INSTALLATION .....................................................................................................6
TECHNICAL SPECIFICATION..................................................................................8
CONTROL SYSTEM.............................................................................................11
HOW TO SET THE UNIT...................................................................................... 12
CHANNEL DESCRIPTION: ................................................................................... 13
TROUBELSHOOTING.......................................................................................... 17
CLEANING AND MAINTENANCE ........................................................................ 19

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
STATEMENT
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also cannot be responsible for any malfunction & problem owing to
ignore the manual.
ACCESSORIES
These items are packed together with the product:
Name
Quantity
Unit
Remark
USER MANUAL
1
PCS
DMX CABLE
1
PCS
OMEGA
2
PCS
CLAMP
2
PCS
SATETY CABLE
1
PCS
SAFETY INSTRUCTION
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
GENERAL GUIDELINES
NEVER OPEN THIS FIXTURE WHILE IN USE!
During the initial operation of this fixture, a light smoke or smell may emit
from the interior of the fixture. This is a normal process and is caused by
excess paint in the interior of the casing burning off from the heat
associated with the lamp and will decrease gradually over time.
This fixture is a professional lighting effect designed for INDOOR / DRY
LOCATIONS ONLY on stage, in nightclubs, theatres, etc.

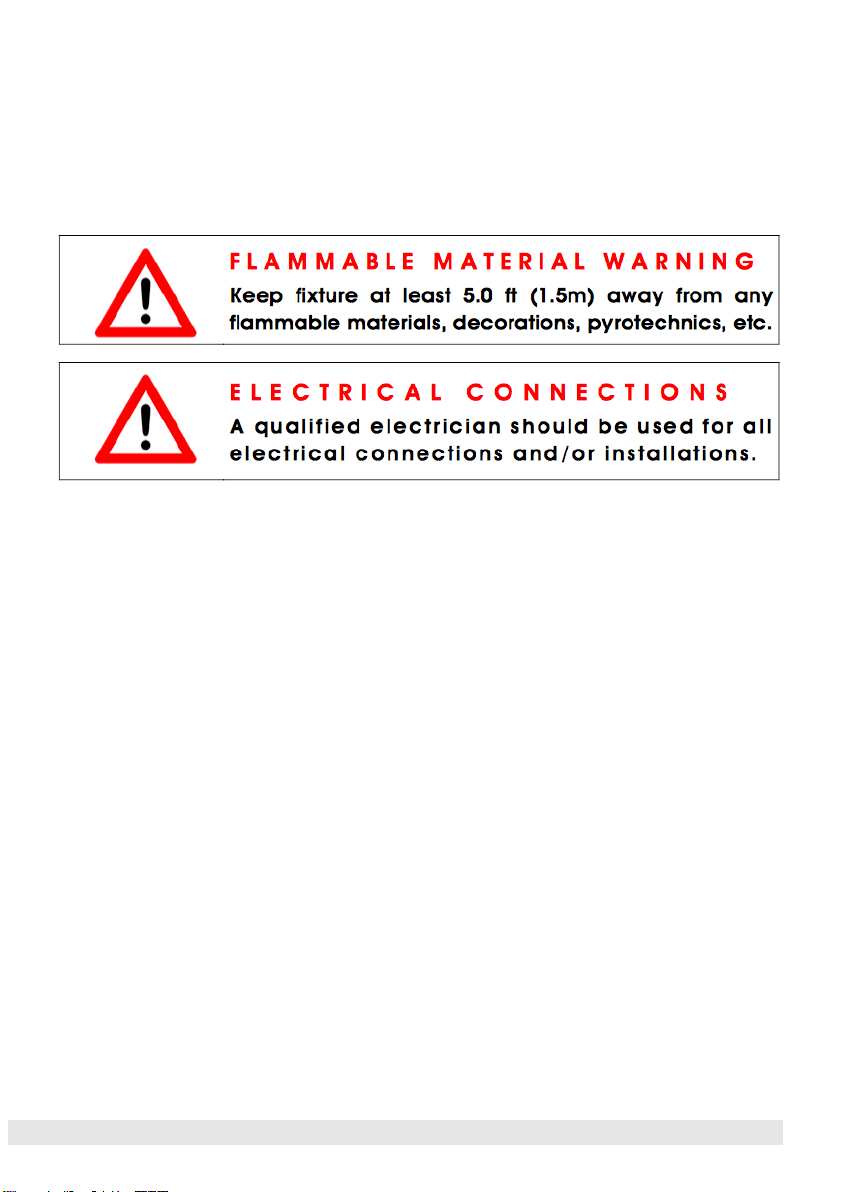

Please make sure there are NO FLAMMABLE MATERIALS close to the

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
fixture while operating, to prevent any fire hazard.
The fixturemust be installed in a location with adequate ventilation, at least
1.5 feet (.5m) from adjacent surfaces. Be sure no air ventilation slots are
blocked.
DO NOT attempt installation and/or operation without knowledge how to
do so.
DO NOT permit operation by persons who are not qualified to operate this
type of fixture. Most damages are the result of operations by
nonprofessionals. Consistent operational breaksmayensure the fixture will
function properly for many years to come.
DO NOT shake fixture, avoid brute force when installing and/or operating
fixture.
Always install the fixture with an appropriate safety cable. When installing
the fixture in a suspended environment, always use mounting hardware
that is no less than M10 x 25 mm, alsobe sure the hardware is insert in the
pre-arranged screw holes in the bracket of the fixture.
Use the original packaging and materials to transport the fixture in for
service.
DO NOT TOUCH the housing bare-hand during its operation. Turn OFF
the power and allow approximately 15 minutes for the fixture to cool down
before replacing or serving.

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
INSTALLATION
C A U T I O N S
For added protection, mount the fixture in areas outside walking paths,
seating areas, or in areas were unauthorized personnel might reach the
fixture.
Ambient operating temperature range for this fixture is 5°to 113°F. (-15°
to 45°C) Do not use the fixture under or above this temperature.
Beforemounting the fixture to any surface, make sure the installation area
can hold a minimum point load of 10 times the weight of the fixture.
Fixture installation must always be secured with a secondary safety
attachment, such as an appropriate safety cable.
Never stand directly below the device when mounting, removing or
servicing.
The unit should be mounted via its screw holes on the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. And
make sure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight. Also always use a

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.

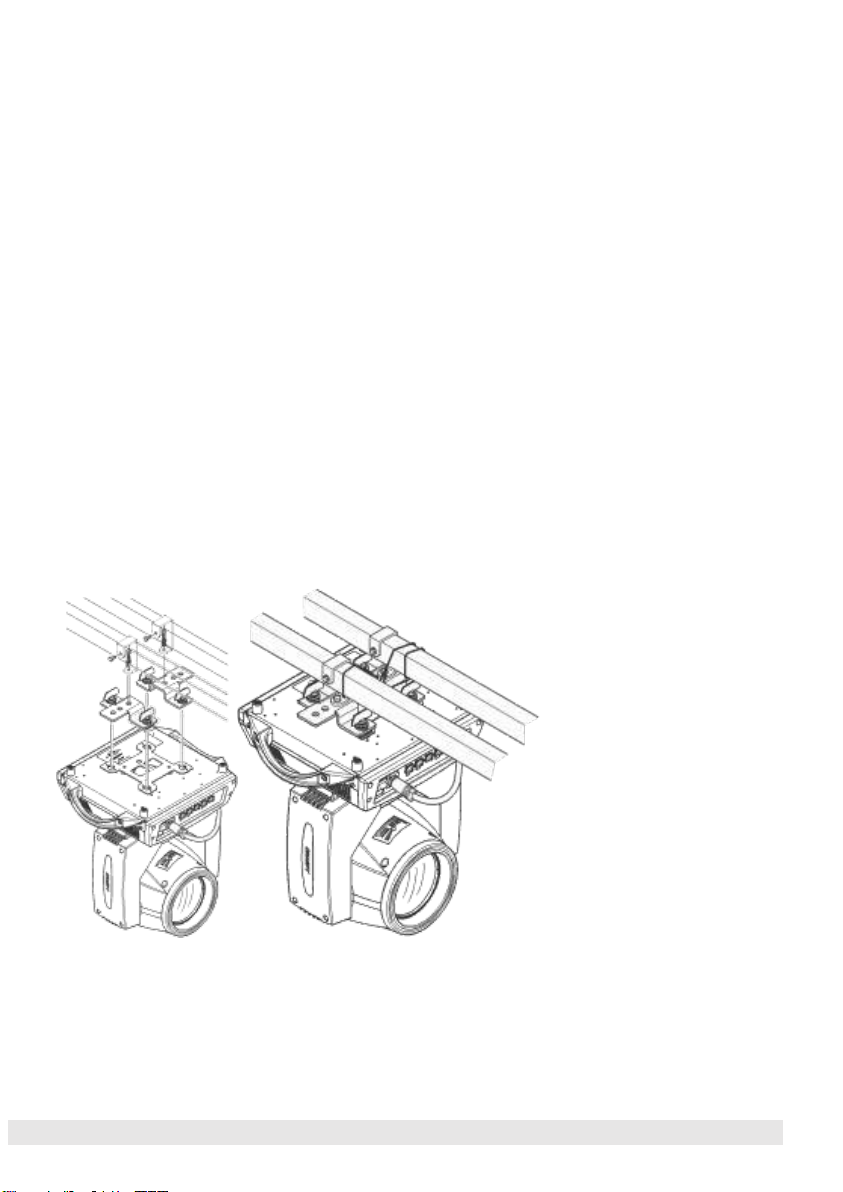

Clamp mounting
The moving head provides a unique mounting bracket assembly that
integrates the bottom of the base, the included ‘Omega Bracket’ and the
Safety Cable rigging point in one unit (see the illustration below).When
mounting this fixture to truss be sure to sere to secure an appropriately rated
clamp to the included Omega Bracket using a M10 screw fitted through the
center hole of the ‘omega bracket’. As an added safety measure be sure to
attached at least one properly rated Safety Cable to the fixture using one of
the safety cable rigging point integrated in the base assembly.

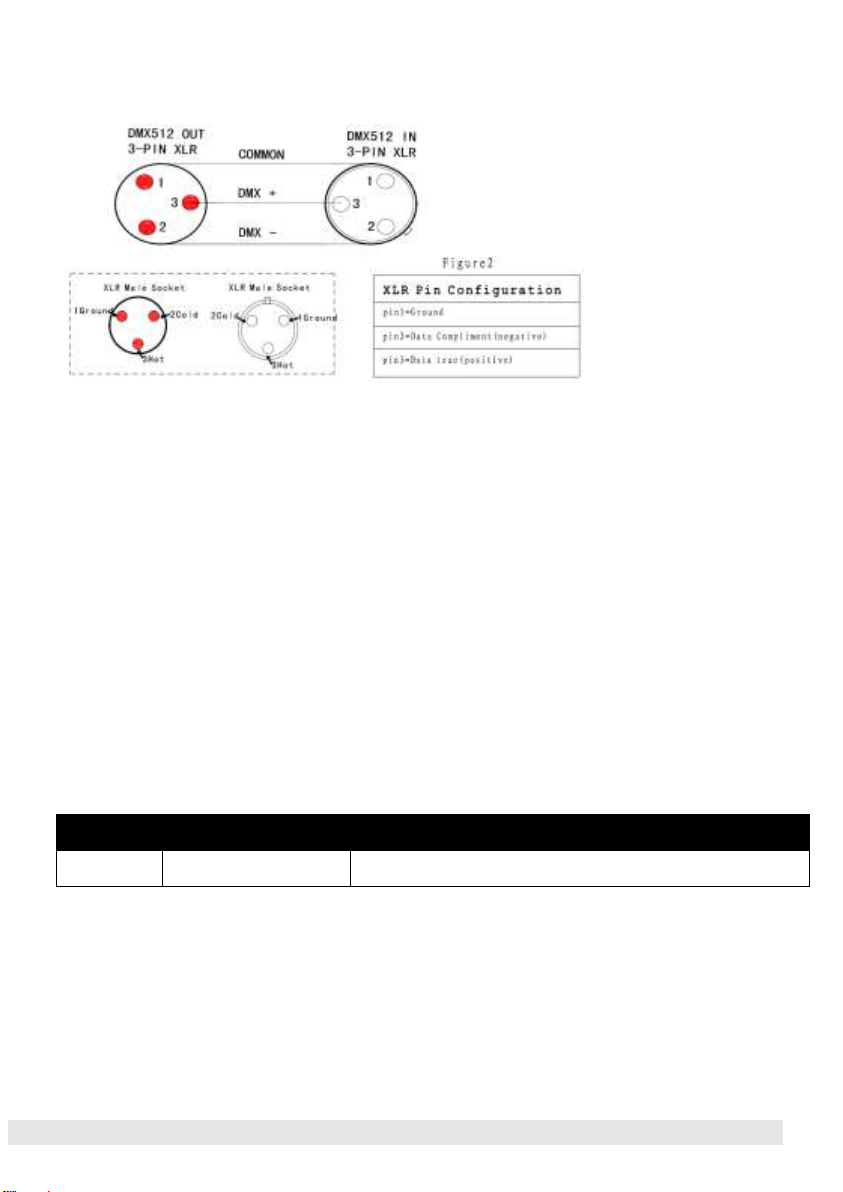

DMX-512 control connection:
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving
head together through serial linking. The cable needed should be two core, screened cable

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,which
is then plugged into the output XLR socket of the last fixture in the chain. Please see
illustrations below.
TECHNICAL SPECIFICATION
Power Supply
- Voltage:AC90-240V,50/60Hz;
- Power:200W;

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
Light Source
- Lamp source:80W high power white LED;
- Light source life: 80000h
- Color temperature: 6800K
- 5 meters illuminated lumens: 23450lux
- 10 meters illumination lumens: 6340lux
- Beam Angle:2°
Protocols
- Control Mode:DMX512/Maser/Auto/Sound;
- DMX Channel:16/20 DMX Channels;
- Built-in RDM, you can directly adjust the address code with the console
Display/Case/Base
- Display mode: LCD display, lamp temperature display, Chinese and English
display, reverse display
- High temperature resistant engineering plastic case + aluminum base
Color Wheel
- Color plate: 13 colors + white light, rainbow effect, half color change effect
Gobo Wheel
- Fixed gobo plate: 13 gobos +open,gobo shaking, pattern water effect
Prisms
- Double prism disk: 8 prisms, 16 prisms Prism rotation effect (magnifying mirror
can choose honeycomb mirror)
Focus
- Focusing effect

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
Movement
- X-axis: 540°(16-bit) motor correction
- Y-axis: 270°(16-bit) motor correction
Automatic XY error correction, rich built-in program
Dimmer/Strobe
- Dimming level: 0-100% perfect linear dimming system
- Strobe: Synchronous pulse strobe, random pulse strobe
Weigh
- Net weight: 12kg
- Gross weight: 14kg
IP Rated
- IP20, indoor only
Photometric Diagram:
195300 LUX @2m 48500 LUX @4m 23000 LUX@6m
Please Note: Specifications and improvements in the design of this unit and this manual are subject to
change without any prior written notice.

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
80W White LED
Because of its high internal pressure, there might be a risk that the Discharge
lamp would explode during operation. The lamp emits intense UV radiation which
is harmful to the eyes and skin. The high luminance of the arc can cause severe
damage to the retina if you take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX
controller) and let the unit run at least five minutes to cool down before
switching off the mains supply. Never handle the lamp or luminary when it is
hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with
denatured alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate
shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk
of arc tube rupture. The risk increases with age, temperature and improper
handling of the lamp. Do not use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best
projection.
CONTROL SYSTEM
Th e D M X512 is w id ely used in intellig ent ligh ti ng con tr ol, with a DMX 512
controller. Connect several lights together dmx in and dmx out,
3 pin XLR connectors : Pin 1: G ND , Pin 2: Nega tive s ign a l (-), Pin 3: P o s itive s i gna l
(+)

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
HOW TO SET THE UNIT
Main Function
Turn on the unit, press the MENU button intomenumode, and press the UP/DOWN
button until the required function is shown on the monitor. Select the function by the
ENTER button. Use the UP/DOWN button to choose the submenu, press the
ENTER button to store and automatically return to the last menu. Press the MENU
button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute
to enter into menu mode. Press MENU button or let the unit idle one minute to exit.
No.
Display
Function
1
DMX address
001-512

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
CHANNEL DESCRIPTION:
20 CH
16 CH
DMX Value
Function
1
1
0－255
Pan
2
2
0－255
Pan Low
3
3
0－255
Tilt
2
System set
Work mode(DMX, sound,AUTO 1,AUTO
2,AUTO3)
No.of machine:000-255
Channel mode(18CH)
Horizontal inversion (on, off),
vertical inversion (on, off),
Horizontal vertical exchange (on,
off),
Motor position error correction
(on, off), screen saver (on, off)
When there is no signal (hold,
clear) Language (English,
Chinese)
reset
3
Manual mode
slightly
4
Calibration
slightly
5
System test
slightly
6
System message
slightly

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
4
4
0－255
Tilt Low
5
*
0－255
P/T Speed
6
5
Shutter
0-3
Closed
4-103
SLOW - FAST
104-107
Open
108-207
Pulse FAST-SLOW
208-212
Open
213-225
SLOW
226-238
Medium
239-251
FAST
252-255
Open
7
6
0-255
Dimmer
8
*
0-255
Dimmer Fine
9
7
Colour
0-4
white
5-9
Colour white+1
10-14
Colour 1
15-19
Colour 1+2
20-24
Colour 2
25-29
Colour 2+3
30-34
Colour 3
35-39
Colour 3+4
40-44
Colour 4
45-49
Colour 4+5
50-54
Colour 5
55-59
Colour 5+6

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
60-64
Colour 6
65-69
Colour 6+7
70-74
Colour 7
75-79
Colour 7+8
80-84
Colour 8
85-89
Colour 8+9
90-94
Colour 9
95-99
Colour 9+10
100-104
Colour 10
105-109
Colour 10+11
110-114
Colour 11
115-119
Colour 11+12
120-124
Colour 12
125-129
Colour 12+13
130-134
Colour 13
140-149
white
115－199
FAST-SLOW
200-205
STOP
206-255
SLOW - FAST
10
*
0-255
Colour Fine
11
8
Gobo
0-9
white
10-19
Gobo 1
20-29
Gobo 2
30-39
Gobo 3
40-49
Gobo 4
50-59
Gobo 5

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
60-69
Gobo 6
70-79
Gobo 7
80-89
Gobo 8
90-99
Gobo 9
100-109
Gobo 10
110-119
Gobo 11
120-127
Gobo 1 Jitter
128-135
Gobo 2 Jitter
136-143
Gobo 3 Jitter
144-151
Gobo 4 Jitter
152-159
Gobo 5 Jitter
160-167
Gobo 6 Jitter
168-175
Gobo 7 Jitter
176-183
Gobo 8 Jitter
184-191
Gobo 9 Jitter
192-199
Gobo 10 Jitter
200-207
Gobo 11 Jitter
208-230
FAST-SLOW
231-232
STOP
233-255
SLOW - FAST
12
9
0－255
Foucs
13
*
0－255
Foucs Fine
14
10
Colour 7
0-127
Emptv
128-255
Colour 7
15
11
Frost
0-255
Frost

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
16
12
Prism 1
0－127
Emptv
128-255
Prism 1
17
13
Prism 1-Rot
0－63
Linear
64－126
FAST ROTATION - SLOW ROTATION
127－128
STOP
129－191
SLOW ROTATION - FAST ROTATION
192－255
SLOW - FAST
18
14
Prism 2
0－127
Emptv
128-255
Prism 2-Rot
19
15
Prism 2-Rot
0－63
Linear
64－126
FAST ROTATION - SLOW ROTATION
127－128
STOP
129－191
SLOW ROTATION - FAST ROTATION
192－255
SLOW - FAST
20
16
Reset
200－250
Reset
251- 255
Empty
TROUBELSHOOTING
Following are a few common problems that may occur during operation. Here

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
are some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED to see if it can be light up or not.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if
they are linked properly.
2. If the DMX LED is on and no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on
connectors or on PCB of the unit or the previous one.
4. Try to use another DMX controller.
5. Check to see if the DMX cables run near or run alongside to high voltage
cables that may cause damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cableconnected to the PCB
is broken.
2. The motor’s drive IC on the PCB might be out of condition.
D. The lamp is cutting out intermittently
1. The lamp is not working well. Check the mains voltage either too high or
too low.
2. Internal temperature may be too high. Check if replacement of fan is
needed on the head.
E. If The pan belt is broken
1. Turn off the mains power.
2. Loosen the screws (A)，open the cover.
3. Loosen the screws (B).
4. Unplug all the connect wires over the belt.
5. Change a new belt (C), put the belt around the axis gear and motor gear.

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
6. Plug all the connect wires back upon the belt.
7. Tighten all the screws.
F. If The tilt belt is broken
1. Turn off the mains power.
2. Loosen all the screws (A) and open the right arm cover (B).
3. Loosen the screws (C) that fix the bridge.
4. Change a new belt (D). Please adjust the tension of the belt properly.
Note: do not fix the belt too
tight as it is can easily rupture.
5. Reverse the procedures from step 3 to 2.

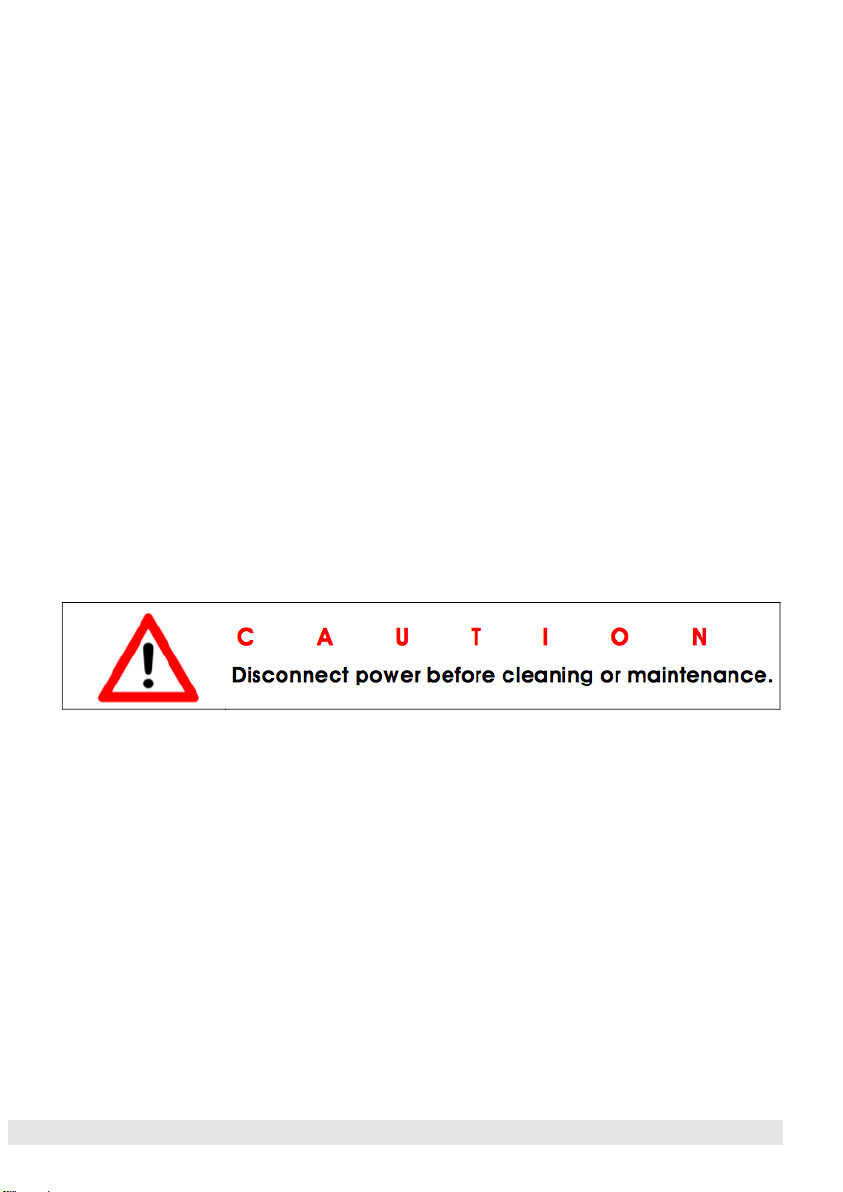

CLEANING AND MAINTENANCE
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e
s o m e s ugg es tion s fo r eas y tr ou b leshooting :
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light
output, and an extended life. The frequency of cleaning depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
environments can cause greater accumulation of dirt on the fixture’s optics.

www.riukoe.com ML-B080 80W LED Beam Moving Head User Manual
Clean the external lens surface at least every 20 days with a soft cloth
to avoid dirt/debris accumulation.
Never use alcohol, solvents, or ammonia based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended
life. There are no user serviceable parts inside this fixture, please refer all
other service issues to an authorized service technician. Should you need any
spare parts, please order genuine parts from your local dealer.
Please refer to the following points during routine inspections:
A detailed electric check by an approved electrical engineer every
three months, to make sure the circuit contacts are in good condition
and prevent overheating.
Be sure all screws and fasteners are securely tightened at all times.
Lose screws may fall out during normal operation resulting in damage
or injury as larger parts could fall.
Check for any deformations on the housing, color lenses, rigging
hardware and rigging points (ceiling, suspension, trussing).
Deformations in the housing could allow for dust to enter into the
fixture. Damaged rigging points or unsecured rigging could cause the
fixture to fall and seriously injure a person(s).
Electric power supply cables must not show any damage, material
fatigue or sediments. Never remove the ground prong from the power
cable.
