65-2451RK Hydrogen Transmitter
WARNING
Read and understand this instruction manual before
operating transmitter. Improper use of the transmitter could
result in bodily harm or death.
Periodic calibration and maintenance of the transmitter is
essential for proper operation and correct readings. Please
calibrate and maintain this transmitter regularly! Frequency
of calibration depends upon the type of use you have and
the sensor types. Typical calibration frequencies for most
applications are between 3 and 6 months, but can be
required more often or less often based on your usage.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter
Product Warranty
RKI Instruments, Inc., warrants gas alarm equipment sold by us to be free from defects in
materials, workmanship, and performance for a period of one year from date of shipment
from RKI Instruments, Inc. Any parts found defective within that period will be repaired
or replaced, at our option, free of charge. This warranty does not apply to those items
which by their nature are subject to deterioration or consumption in normal service, and
which must be cleaned, repaired, or replaced on a routine basis. Examples of such items
are:
Warranty is voided by abuse including mechanical damage, alteration, rough handling, or
repair procedures not in accordance with the operator’s manual. This warranty indicates
the full extent of our liability, and we are not responsible for removal or replacement costs,
local repair costs, transportation costs, or contingent expenses incurred without our prior
approval.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER
WARRANTIES AND REPRESENTATIONS, EXPRESSED OR IMPLIED,
AND ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF
RKI INSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO, THE
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL RKI INSTRUMENTS,
INC. BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
LOSS OR DAMAGE OF ANY KIND CONNECTED WITH THE USE OF
ITS PRODUCTS OR FAILURE OF ITS PRODUCTS TO FUNCTION OR
OPERATE PROPERLY.
This warranty covers instruments and parts sold to users by authorized distributors,
dealers, and representatives as appointed by RKI Instruments, Inc.
We do not assume indemnification for any accident or damage caused by the operation of
this gas monitor, and our warranty is limited to the replacement of parts or our complete
goods.
a) Absorbent cartridges d) Batteries
b) Pump diaphragms and valves e) Filter elements
c) Fuses
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter
Table of Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Hydrogen Detector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Junction Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mounting the Hydrogen Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring the Hydrogen Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Startup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Introducing Incoming Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting the Zero Signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Replacing Components of the Hydrogen Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Calibration Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Preparing for Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the Zero Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the Response Reading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Returning to Normal Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter • 1
Overview
This manual describes the 65-2451RK hydrogen transmitter. This manual also describes
how to install, start up, configure, maintain, and calibrate the transmitter when it is used
with a gas monitoring controller. A parts list at the end of this manual lists replacement
parts and accessories for the hydrogen transmitter.
Specifications
Table 1 lists specifications for the hydrogen transmitter.
WARNING: When using the 65-2451RK, you must follow the instructions and warnings
in this manual to assure proper and safe operation of the 65-2451RK and to
minimize the risk of personal injury. Be sure to maintain and periodically
calibrate the 65-2451RK as described in this manual.
Table 1:Specifications
Description Specification
Target Gas Hydrogen
Area Classification Explosionproof for Class I, Groups B, C, and D
Sampling Method Diffusion
Signal Output 4 to 20 mA
Detection Range 0 to 100% LEL
Response Time 90% in 45 seconds
Accuracy ± 5% of reading or ± 2% LEL (whichever is greater)
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

2 • 65-2451RK Hydrogen Transmitter
Description
This section describes the components of the hydrogen transmitter. The transmitter is a 4 -
20 mA type detector head. It consists of the hydrogen detector, amplifier, and junction
box.
Figure 1: Hydrogen Transmitter Component Location
Hydrogen Detector
The hydrogen detector is a catalytic type detector that produces an electrical output that
corresponds to the detection range. It is packaged in a 1/2 inch NPT nipple with a sintered
metal flame arrestor on one end allowing ambient air to diffuse into the detector. The
flame arrestor also contains any sparks which may occur within the detector. The detector
has a built in molecular sieve that only allows hydrogen to diffuse into the detector. The
1/2 inch NPT mounting threads at the top of the detector allow you to mount it into the
bottom conduit hub of the junction box. A rainshield screws onto the bottom of the
detector (flame arrestor end). The rainshield helps protect the detector from rain and
debris in the monitoring environment. Four color-coded leads extend from the top of the
detector. The leads allow you to connect the detector to the amplifier.
B
LEL
Controller Terminal Strip
Amplifier
Mounting Screw
S
GWR PWR / SIG
Detector (sensor)Current
Label
J-Box
Detector Terminal Strip
Zero Pot
Span Pot
Factory Adjust Pot
Factory Adjust Pot
Jumper Pins,
Factory Use Only
Red + Test Point
Hydrogen
Detector
Sensor
Current
mA
Reducing Bushing,
3/4 NPT to 1/2 NPT
Black - Test Point
SPAN
ZERO
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter • 3
Amplifier
The amplifier converts the electrical output from the detector to a 4 to 20 mA signal that
corresponds to the detection range and transmits the signal to a gas monitoring controller.
A foam gasket that orients the amplifier and keeps it from rotating is installed on the
bottom of the amplifier. A label on the amplifier indicates the detector drive current. This
drive current is factory set and is dictated by the combustible gas to which the detector is
calibrated. Consult RKI Instruments, Inc. if you plan to change the calibration gas for the
transmitter, for example from a hydrogen calibration to a methane calibration. The
amplifier includes the detector terminal strip, controller terminal strip, span pot, zero pot,
and test points (see Figure 1).
Controller Terminal Strip
The controller terminal strip is a three position plug-in style terminal strip located near the
top of the amplifier. Use the controller terminal strip to wire the transmitter to a controller.
Detector Terminal Strip
The detector terminal strip is a four position plug-in style terminal strip located below the
controller terminal strip. Use the detector terminal strip to connect the detector to the
amplifier.
NOTE: The detector is factory-wired to the detector terminal strip. See “Wiring the
Hydrogen Transmitter to a Controller” on page 5 for all wiring procedures
related to the transmitter.
Zero Pot
The zero pot is located in the upper left corner of the amplifier (see Figure 1). Use a small
flat blade screwdriver to turn the zero pot’s adjustment screw and adjust the amplifier’s
zero (fresh air) output during the start-up and calibration procedures. Turn the adjust-
ment screw clockwise to increase the zero output and counterclockwise to decrease the
zero output.
Span Pot
The span pot is located to the right of the zero pot (see Figure 1). Use a small flat blade
screwdriver to turn the span pot’s adjustment screw and adjust the amplifier’s gas
response output during the calibration procedure. Turn the adjustment screw clockwise to
increase the zero output and counterclockwise to decrease the zero output.
CAUTION: The amplifier includes two additional potentiometers. They are factory-set. Do not
adjust them.
Test Points
The test points are on the left side of the amplifier (see Figure 1). The test points produce a
100 mV to 500 mV output that corresponds to the transmitter’s 4 to 20 mA output. Use the
test points and a voltmeter to measure the amplifier’s output during the start-up and
calibration procedures. The black test point in the lower left corner is the negative (-) test
point and the red test point below the zero pot on is the positive (+) test point.
Junction Box
Use the junction box to install the transmitter at a mounting site that is remote from the
controller. The junction box protects the amplifier and wiring connections made to the
amplifier. Use the top 3/4 inch conduit hub to connect wiring from the amplifier to the
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

4 • 65-2451RK Hydrogen Transmitter
controller. Use the cover on the front of the junction box to access the interior of the
junction box. The detector and amplifier are factory installed in the junction box. Three
spacers installed on the back of the junction box control the distance of the junction box
from a mounting surface and ensure that there is enough room to install a calibration cup
on the detector during calibration.
Installation
This section describes procedures to mount the hydrogen transmitter in the monitoring
environment and wire the transmitter to a controller.
Mounting the Hydrogen Transmitter
1. Select a mounting site that is representative of the monitoring environment. Consider
the following when you select the mounting site.
• Select a site where the transmitter is not likely to be bumped or disturbed. Make
sure there is sufficient room to perform start-up, maintenance, and calibration
procedures.
• Select a site where the target gas is likely to be found first. For hydrogen, which is
lighter than air, mount the transmitter near the ceiling or where hydrogen is most
likely to accumulate.
Figure 2: Mounting the Hydrogen Transmitter
Rubber
Spacers,
3X
.75
2.70 .38
3.65
3/4 NPT Female
J Box
3/4 x 1/2 Reducing
Bushing
Hydrogen
Detector
7.5 max
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter • 5
2. At the monitoring site you select, hang or mount the junction box with the detector
facing down (see Figure 2).
Wiring the Hydrogen Transmitter to a Controller
WARNING: Always verify that the power to the controller is off before you make
wiring connections.
1. Turn off power to the controller.
2. Place the controller’s power switch in the OFF position.
3. Remove the junction box cover.

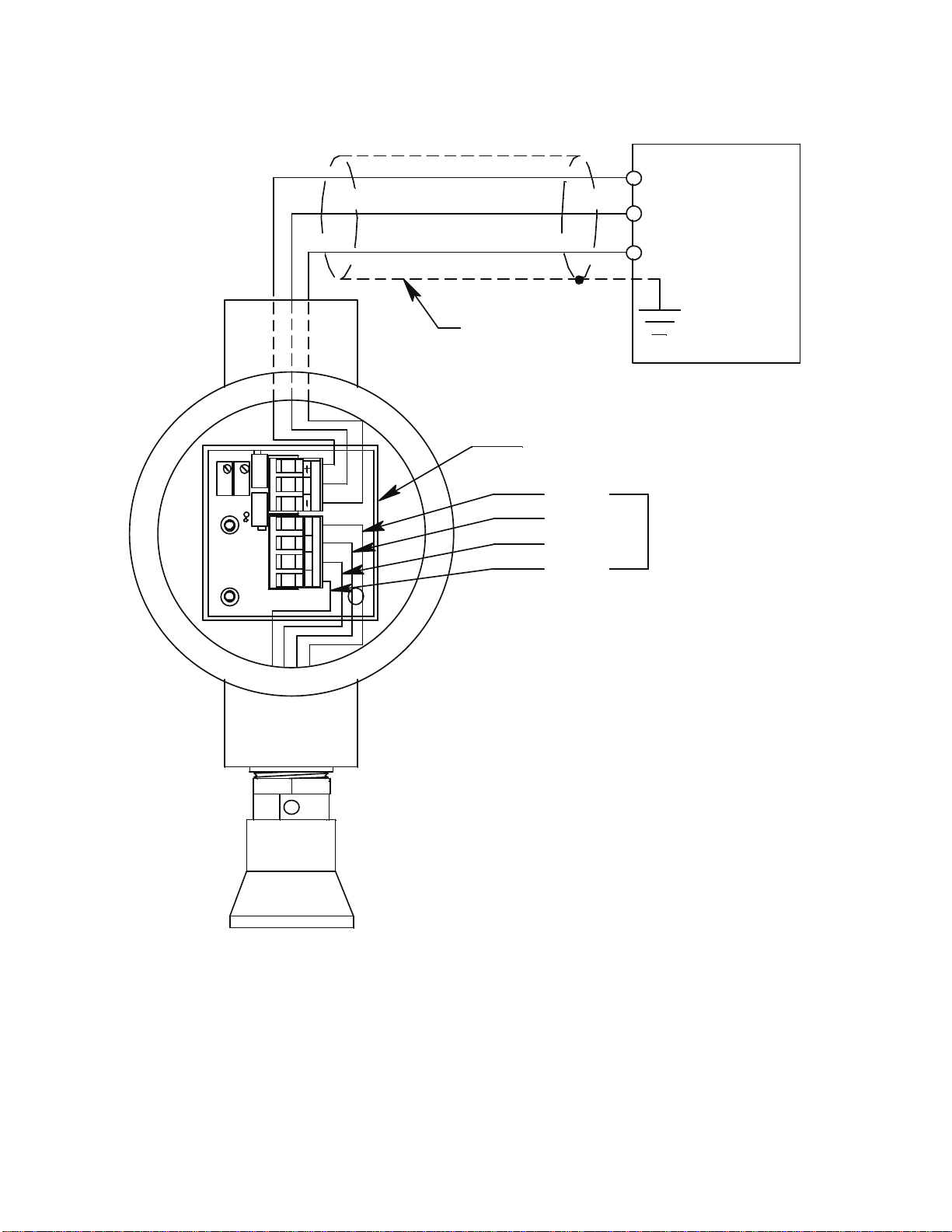

4. The detector leads are factory wired. Verify that the detector leads are wired to the
amplifier’s detector terminal strip as shown in Figure 3.
5. To gain access to a plug-in terminal strip for wiring, pull it out of its socket by
grasping the terminal strip and pulling. The detector strip is keyed so that the
controller and detector terminal strips cannot be reversed inadvertently.
6. Guide a three-conductor, shielded cable or three wires in conduit through the top
conduit hub of the junction box.
7. Pull out the controller terminal strip, and connect the three wires to the terminal strip
as follows (see Figure 3).
• Connect the positive wire to the PWR/SIG “+” terminal.
• Connect the signal wire to the PWR/SIG “S” terminal.
• Connect the negative wire to the PWR/SIG “-” terminal.
CAUTION: If shielded cable is used, leave the cable shield’s drain wire disconnected and
insulated at the transmitter. You will connect the opposite end of the cable’s drain
wire to the controller’s chassis (earth) ground.
8. Reinstall the controller terminal strip into its socket.
9. Secure the junction box cover to the junction box.
10. Route the cable or wires leading from the hydrogen transmitter through one of the
conduit hubs at the controller housing.
CAUTION: Do not route power and transmitter wiring through the same controller conduit hub.
The power cable may disrupt the transmission of the transmitter signal to the
controller.
11. Connect the wires to the applicable detector/transmitter terminal strip at the
controller as shown in Figure 3.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

6 • 65-2451RK Hydrogen Transmitter
Figure 3: Wiring the Hydrogen Transmitter to a Controller
12. If shielded cable is used, connect the cable’s drain wire to an available chassis (earth)
ground at the controller.
Controller or
Recording Device
+ 24 VDC
Amplifier
Black
Red
Cable Shield
- (DC Ground)
4 - 20 mA In (S)
PWR / SI G
SR W G B
Green Detector Wires
White
LEL
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter • 7
Start Up This section describes procedures to start up the hydrogen transmitter and place the
transmitter into normal operation.
Introducing Incoming Power
1. Complete the installation procedures described earlier in this manual.
2. Verify that the power wiring to the controller is correct and secure. Refer to the
controller operator’s manual.
3. Turn on power to the controller.
4. Turn on the controller.
5. Verify that the controller is on and operating properly. Refer to the controller
operator’s manual.
CAUTION: Allow the detector to warm up for 5 minutes before you continue with the next
section, “Setting the Zero Signal”.
Setting the Zero Signal
WARNING: Do not remove the junction box cover while the circuits are energized
unless the area is determined to be non-hazardous. Keep the junction box
cover tightly closed during operation.
CAUTION: If you suspect the presence of hydrogen in the monitoring environment, use the
calibration kit and the zero air calibration cylinder to introduce “fresh air” to the
detector and verify an accurate zero setting. See “Calibration” on page 13 for
instructions to apply zero air when setting the zero signal.
1. Verify that the transmitter is in a fresh air environment (environment known to be free
of hydrogen).
2. Unscrew and remove the junction box cover from the junction box.
3. Set a voltmeter to measure in the millivolt (mV) range.
4. Plug the voltmeter leads into the test points on the amplifier. Plug the positive lead
into the red + test point; plug the negative lead into the black -test point.
5. Verify a voltmeter reading of 100 mV (±2 mV).
6. If necessary, use a small flat-blade screwdriver to adjust the zero pot until the
voltmeter reading is 100 mV (±2 mV).
7. Remove the voltmeter leads from the test points.
8. Secure the junction box cover to the junction box.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

8 • 65-2451RK Hydrogen Transmitter
Maintenance
This section describes maintenance procedures. It includes preventive maintenance,
troubleshooting, and component replacement procedures.
Preventive Maintenance
This section describes a preventive maintenance schedule to ensure the optimum
performance of the hydrogen transmitter. It includes daily, monthly, and quarterly
procedures.
Daily
Verify a display reading of 0 %LEL at the controller. Investigate significant changes in the
display reading.
Monthly
This procedure describes a test to verify that the hydrogen transmitter responds properly
to the target gas.
WARNING: The controller is not an active gas monitoring device during the response
test procedure.
NOTE: Performing a response test on the hydrogen transmitter may cause alarms. Be
sure to put the controller into its calibration mode or disable external alarms
before performing this test.
NOTE: The following procedure assumes the use of a calibration kit which includes a
calibration gas cylinder, a 0.5 LPM fixed flow regulator with an on/off knob, a
calibration cup for the detector, and a length of sample tubing.
Preparing for the response test
1. Place the controller into its calibration mode or disable external alarms.
2. Verify that the controller display reading for the channel you are testing is 0 %LEL.
If the display reading is not 0 %LEL, set the zero reading of the transmitter as
described in “Start Up” on page 7, then continue this procedure.
3. Screw the calibration cup onto the bottom of the detector.
4. Use the calibration kit sample tubing to connect the regulator to the calibration cup.
5. Set a voltmeter to measure in the millivolt (mV) range.
6. Remove the junction box cover, then plug the voltmeter leads into the test points on
the amplifier.
Plug the positive lead into the red + test point; plug the negative lead into the black -
test point.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter • 9
7. Use the following formula to determine the correct test points output for the test
sample.
Output (mV) = (calibrating sample/fullscale) X 400 + 100
For example, with a test sample of 50 %LEL hydrogen and a fullscale setting of 100
%LEL, the correct output is 300 mV.
300 (mV) = (50/100) X 400 +100
Performing the response test
1. Screw the regulator into the calibration cylinder.
2. Turn the regulator knob counterclockwise to open the regulator.
3. Allow the gas to flow for one minute.
4. Verify that the reading is within ± 10% of the response reading you determined earlier.
NOTE: If the reading is not within ± 10% of the correct response reading, calibrate the
transmitter as described in “Calibration” on page 13 of this manual.
5. Turn the regulator knob clockwise to close the regulator.
6. Unscrew the regulator from the calibration cylinder.
7. Unscrew the calibration cup from the detector.
NOTE: For convenience, leave the regulator and calibration cup connected by the
sample tubing.
8. Remove the voltmeter leads from the amplifier test points.
9. Reinstall the junction box cover.
10. When the controller display reading falls below the alarm setpoints, return the
controller to normal operation.
11. Store the components of the calibration kit in a safe place.
Quarterly
Calibrate the hydrogen transmitter as described in “Calibration” on page 13 of this
manual.
Troubleshooting
The troubleshooting guide describes symptoms, probable causes, and recommended
action for problems you may encounter with the hydrogen transmitter.
NOTE: This troubleshooting guide describes transmitter problems only. See the
controller operator’s manual for problems you may encounter with the
controller.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

10 • 65-2451RK Hydrogen Transmitter
Replacing Components of the Hydrogen Transmitter
This section includes procedures to replace the hydrogen detector and amplifier.
Replacing the Hydrogen Detector
1. Turn off power to the controller.
2. Place the controller’s power switch in the OFF position.
3. Remove the junction box cover.
4. Remove the detector terminal strip from its socket.
5. Disconnect the detector leads from the detector terminal strip. Note the position of the
color-coded leads as you remove them.
6. Unscrew the detector from the junction box.
7. Guide the detector leads of the replacement detector through the bottom conduit hub
of the junction box, then screw the mounting threads of the detector into the conduit
hub.
Table 2:Troubleshooting the Hydrogen Transmitter
Condition Symptom(s) Probable Causes Recommended Action
Fail Condition • Controller indicates a
fail condition. • The transmitter wiring is disconnected or
misconnected.
• The transmitter’s zero
reading is low enough
to cause a fail
condition.
• The transmitter is
malfunctioning.
1. Verify that the transmitter wiring is
correct and secure.
2. Calibrate the transmitter.
3. If the fail condition continues, replace
the detector.
4. If the fail condition continues, contact
RKI for further instruction.
Slow or No
Response/
Difficult or
Unable to
Calibrate
• Transmitterresponds
slowly or does not
respond to response
test.
• Unable to accurately
set the zero or
response reading
during calibration.
• Transmitter requires
frequent calibration.
Note: Under “normal”
circumstances, the
transmitter requires
calibration once every 3
months.
Some applications
may require a more
frequent calibration
schedule.
• Thecalibrationcylinder
is low, out-dated, or
defective.
• The calibration gas
flow rate is too low.
• The calibration gas is
not an appropriate
concentration.
• The transmitter is
malfunctioning.
1. Verify that the calibration cylinder
contains an adequate supply of a
fresh test sample.
2. Verify that the regulator used for
calibration is a 0.5 LPM regulator.
3. Verify that the calibration gas
concentration is appropriate for the
transmitter. The concentration should
be in the detection range, preferably
about half of the detection range.
4. If the calibration/response difficulties
continue, replace the detector.
5. If the calibration/response difficulties
continue, contact RKI for further
instruction.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter • 11
8. Connect the detector leads to the detector terminal strip as shown in Table 3 below
and Figure 3 on page 6 of this manual.
9. Turn on power to the controller.
10. Turn on the controller and place it into normal operation.
CAUTION: Allow the replacement detector to warm up for 5 minutes before you continue with
the next step.
11. Calibrate the transmitter as described in “Calibration” on page 13 of this manual.
Replacing the Amplifier
1. Turn off power to the controller.
2. Place the controller’s on/off switch in the OFF position.
3. Remove the junction box cover.
4. Unplug the detector terminal strip and controller terminal strip from their sockets.
You may leave the wires connected to the terminal strips.
5. Unscrew and remove the screw with the flat and lock washers that secures the
amplifier to the junction box.
6. Remove the old amplifier.
7. Install the amplifier into the junction box with the screw, lock washer, and flat washer
you removed in Step 5 above. A foam gasket that orients the amplifier and keeps it
from rotating is installed on the bottom of the amplifier. Make sure the amplifier is
seated flat in the junction box.
8. Install the detector and controller terminals strips into their sockets on the new
amplifier as shown in Figure 3 on page 6 of this manual. If controller leads or detector
leads were removed during this procedure, refer to Table 4 and Table 5 below.
Table 3:Reconnecting the Hydrogen
Detector to the Amplifier
Detector Lead Detector Terminal Strip
Red LEL “R”
White LEL “W”
Green LEL “G”
Black LEL “B”
Table 4:Reconnecting the Amplifier
to the Controller
Amplifier Controller
Terminal Strip
Controller
Transmitter Terminal
Strip (typical)
PWR/SIG “-” - (DC -)
PWR/SIG “S” S (4 - 20 mA In)
PWR/SIG “+” + 24V
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

12 • 65-2451RK Hydrogen Transmitter
NOTE: When a transmitter is first powered up with a new amplifier, the initial output
may be either high or below zero depending on the setting of the zero pot. Be
sure to make arrangements so that this does not cause unwanted alarms.
9. Turn on power to the controller.
10. Turn on the controller and place it into normal operation.
11. Allow the transmitter to warm-up for 5 minutes.
12. Calibrate the transmitter as described in “Calibration” on page 13 of this manual.
Calibration Frequency
Although there is no particular calibration frequency that is correct for all applications, a
calibration frequency of every 3 to 6 months is adequate for most hydrogen transmitter
applications. Unless experience in a particular application dictates otherwise, RKI
Instruments, Inc. recommends a calibration frequency of every 3 months.
If an application is not very demanding, for example detection in a clean, temperature
controlled environment where hydrogen is not normally present and calibration
adjustments are minimal at calibration, then a calibration frequency of every 6 months is
adequate.
If an application is very demanding, for example if hydrogen is present often and in
significant concentrations or the environment is not well controlled, then more frequent
calibration than every 3 months may be necessary. If potential catalyst poisons are known
or likely to be present, more frequent calibration than every 3 months will be necessary.
Table 5:Reconnecting the LEL
Detector to the Amplifier
Amplifier Detector
Terminal Strip Detector Lead
DETECTOR “R” RED
DETECTOR “W” WHT
DETECTOR “G” GREEN
DETECTOR “B” BLK
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter • 13
Calibration
This section describes how to calibrate the hydrogen transmitter. It includes procedures to
prepare for calibration, set the zero reading, set the response reading, and return to
normal operation.
WARNING: The controller is not an active gas monitoring device during the calibration
procedure.
NOTE: The following procedure assumes the use of a calibration kit which includes a
calibration gas cylinder, a 0.5 LPM fixed flow regulator with an on/off knob, a
calibration cup for the detector, and a short piece of sample tubing to connect the
regulator to the calibration cup.
Preparing for Calibration
1. Screw the calibration cup onto the bottom of the detector.
2. Use the sample tubing to connect the regulator to the calibration cup.
3. Set a voltmeter to measure in the millivolt (mV) range.
4. Remove the junction box cover, then plug the voltmeter leads into the test points on
the amplifier.
Plug the positive lead into the red + test point; plug the negative lead into the black -
test point.
5. Use the following formula to determine the correct test points output for the
calibrating sample.
Output (mV) = (calibrating sample/fullscale) X 400 + 100
For example, with a calibrating sample of 50 %LEL and a fullscale setting of
100 %LEL, the correct output is 300 mV.
300(mV) = (50/100) X 400 +100
6. Place the controller into its calibration mode or disable external alarms.
NOTE: Calibrating the hydrogen transmitter may cause alarms. Be sure to put the
controller into its calibration program or disable external alarms before
continuing.
Setting the Zero Reading
NOTE: If you can verify that the hydrogen transmitter is in a fresh air environment, you
do not need to apply zero air to the detector before adjusting the zero reading.
1. Screw the regulator into the zero air calibration cylinder.
2. Turn the regulator knob counterclockwise to open the regulator.
3. Allow the gas to flow for one minute and verify a reading of 100 mV (±2 mV). If
necessary, use the zero pot on the amplifier to adjust the reading to 100 mV (±2 mV).
4. Turn the regulator knob clockwise to close the regulator.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

14 • 65-2451RK Hydrogen Transmitter
5. Unscrew the regulator from the zero air calibration cylinder. Leave the sample tubing
connected to the regulator and the calibration cup.
Setting the Response Reading
1. Screw the regulator into the calibration cylinder. Verify that the calibration gas is
representative of the transmitter’s target gas.
2. Turn the regulator knob counterclockwise to open the regulator.
3. Allow the calibration gas to flow for one minute and verify that the reading matches
the response reading (±2 mV) you determined earlier. If necessary, use the span pot on
the amplifier to adjust the reading to match the correct response reading.
4. Turn the regulator knob clockwise to close the regulator.
5. Unscrew the regulator from the calibration cylinder.
Returning to Normal Operation
1. Remove the voltmeter leads from the amplifier test points.
2. Unscrew the calibration cup from the detector.
NOTE: For convenience, leave the regulator and calibration cup connected by the
sample tubing.
3. Secure the junction box cover to the junction box.
4. When the controller display reading falls below the alarm setpoints, return the
controller to normal operation.
5. Verify that the controller display reading decreases and stabilizes at 0 %LEL.
6. Store the components of the calibration kit in a safe and convenient place.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

65-2451RK Hydrogen Transmitter • 15
Parts List
Table 6 lists replacement parts and accessories for the hydrogen transmitter.
Table 6:Parts List
Part Number Description
06-1248RK Sample tubing (3/16 in. x 5/16 in.; specify length when ordering)
18-0001RK Reducer, 3/4 in. NPT x 1/2 in. NPT
18-0400RK-01 Junction box with spacers
57-1053RK Amplifier with gasket (specify hydrogen as the target gas and that the
NC-6205-01detector is being used when ordering)
65-2451RK Hydrogen transmitter (includes detector, junction box, and amplifier)
71-0133RK 65-2451RK Hydrogen Transmitter Operator’s Manual (this document)
81-0002RK-01 Steel calibration cylinder, 50% LEL hydrogen in air, 34-liter
81-0076RK-01 Steel calibration cylinder, zero emission air, 34-liter
81-1050RK Regulator, 0.5 liter/minute; with pressure gauge and flow control knob, for 17
liter and 34 liter steel calibration cylinders
81-1117RK Calibration cup
81-F004RK-LV Calibration kit, includes regulator, sample tubing, calibration cup, and 34 liter
50 %LEL hydrogen in air steel calibration cylinder
NC-6205-01 Hydrogen LEL detector, 1/2 inch NPT
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
