RMB EV Multi-Point User manual

Table of Contents
Technical Information-----------------------------------1
Warning Statement--------------------------------------2
Read Before Riding-------------------------------------3
List of Parts-----------------------------------------------4
Front Bar---------------------------------------------------6
Tool Kits In The Tool Bag------------------------------7
Assembling The Multi-Point---------------------------8
Charging The Batteries-------------------------------12
Charging The Batteries Outside Scooter---------13
Riding The Multi-Point--------------------------------15
Folding The Multi-Point-------------------------------19
Maintenance---------------------------------------------21
Wiring Diagram-----------------------------------------22
Trouble Shooting Guide------------------------------24

Warranty-------------------------------------------------26
Instructions for optional attachments-------------31
1
T
Te ec ch hn ni ic ca al l I In nf fo or rm ma at ti io on n
Multi-Point
Model No. RMB Multi-Point
Product size 45 L x 27 W x 44 H inch
(115 x 68 W x 113 cm)
Type of motor Permanent-magnet
brushless DC wheel motor
Motor power 500 w Wheel motor, 48 V
Battery type sealed lead acid battery
Battery capacity 48 Volt,
Charger 110V-240V, UL approved
Charging time 4-6 hours
Max. speed Up to 16 MPH ( 26 km/h)
Single charge Up to 31 MILES (50 km)
Max capacity 350 LBS (139kg)
Net weight 101 LBS (46 kg)

2

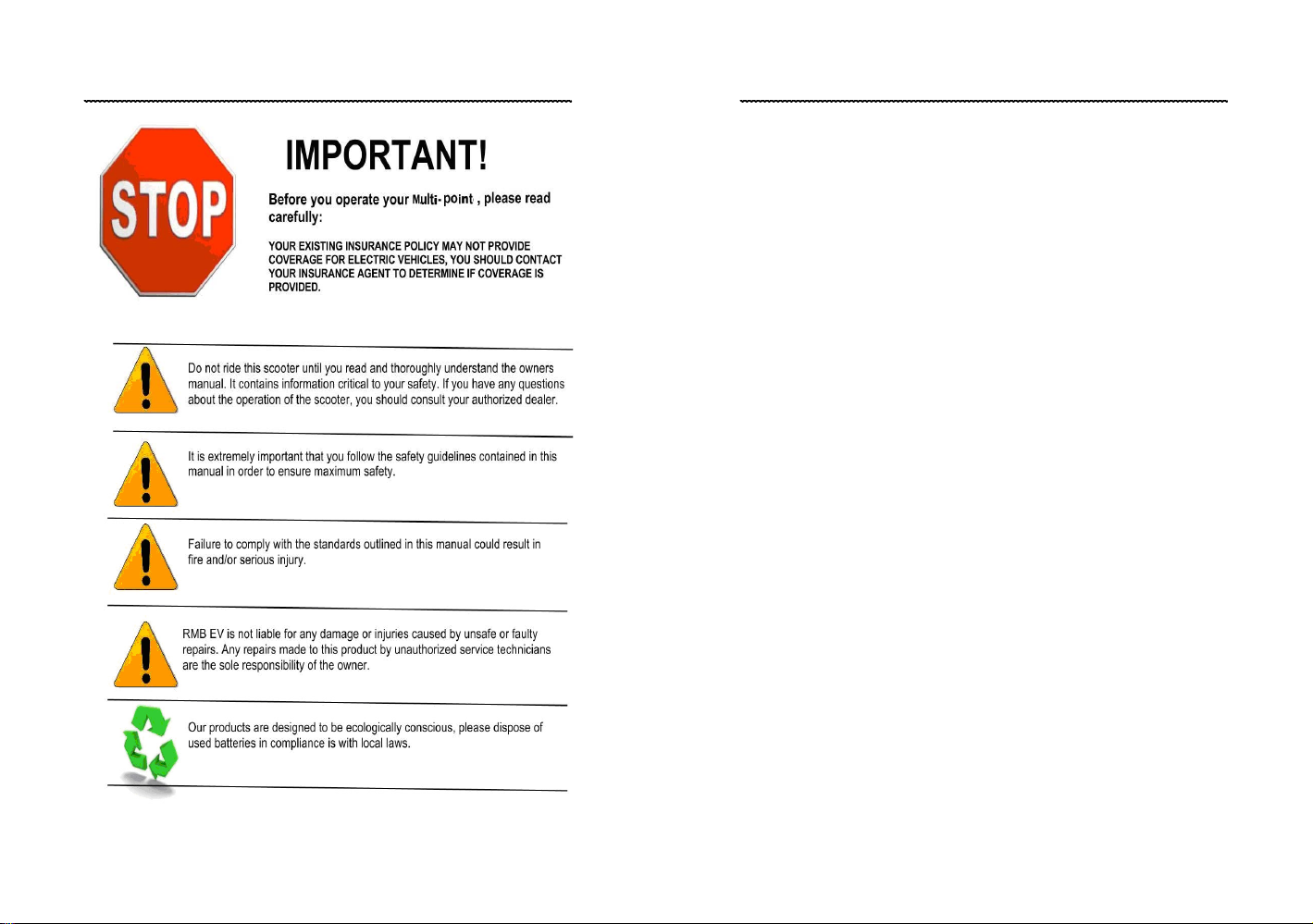

W
Wa ar rn ni in ng g S St ta at te em me en nt t
Multi-Point
3
R
Re ea ad d B Be ef fo or re e R Ri id di in ng g
Multi-Point
WARNING
THE RMB MULTI-POINT IS NOT A TOY AND SHOULD
NOT BE OPERATED BY ANYONE UNDER 12 YEARS
OLD.
Safety Instructions:
(Please take note of the following before each ride)
The maximum weight capacity is 310 lbs.
Only one person at a time should ride.
Always wear protective gear including knee and elbow pads and
an approved safety helmet when riding the Multi-Point.
Before riding, be sure to check that all pivot points, locking
buttons, quick releases, and latches are secured properly.
The power switch lock must be in the “off” position when the
Multi-Point is being charged.
Do not use the Multi-Point when it is raining.
Do not place the battery near heat or fire.
Do not expose the charger to water or any moisture.
Check if batteries are properly charged and installed.
Charge Batteries after each use.
Always ride on dry paved surfaces. Gravel, wet, extreme
incline, and uneven surfaces are a hazard.
C
Ch he ec ck k i if f a al ll l t ti ir re es s a ar re e p pr ro op pe er rl ly y i in nf fl la at te ed d. .

4
L
Li is st t o of f P Pa ar rt ts s
Multi-Point
5
L
Li is st t o of f P Pa ar rt ts s
Multi-Point
1 Throttle
2 Multi-function Instrument
3 Brake lever
4 Alloy handlebar tub
5 Quick release
6 Connecting tube
7 Seat
8 Charger port
9 Footboard
10 Rear wheel
11 Battery
12 Power connecting plugs
13 Allen set screw
14 Front fender compartment
15 Controller
16 Motor
17 Front wheel
18 Basket

6
F
Fr ro on nt t B Ba ar r
Multi-Point

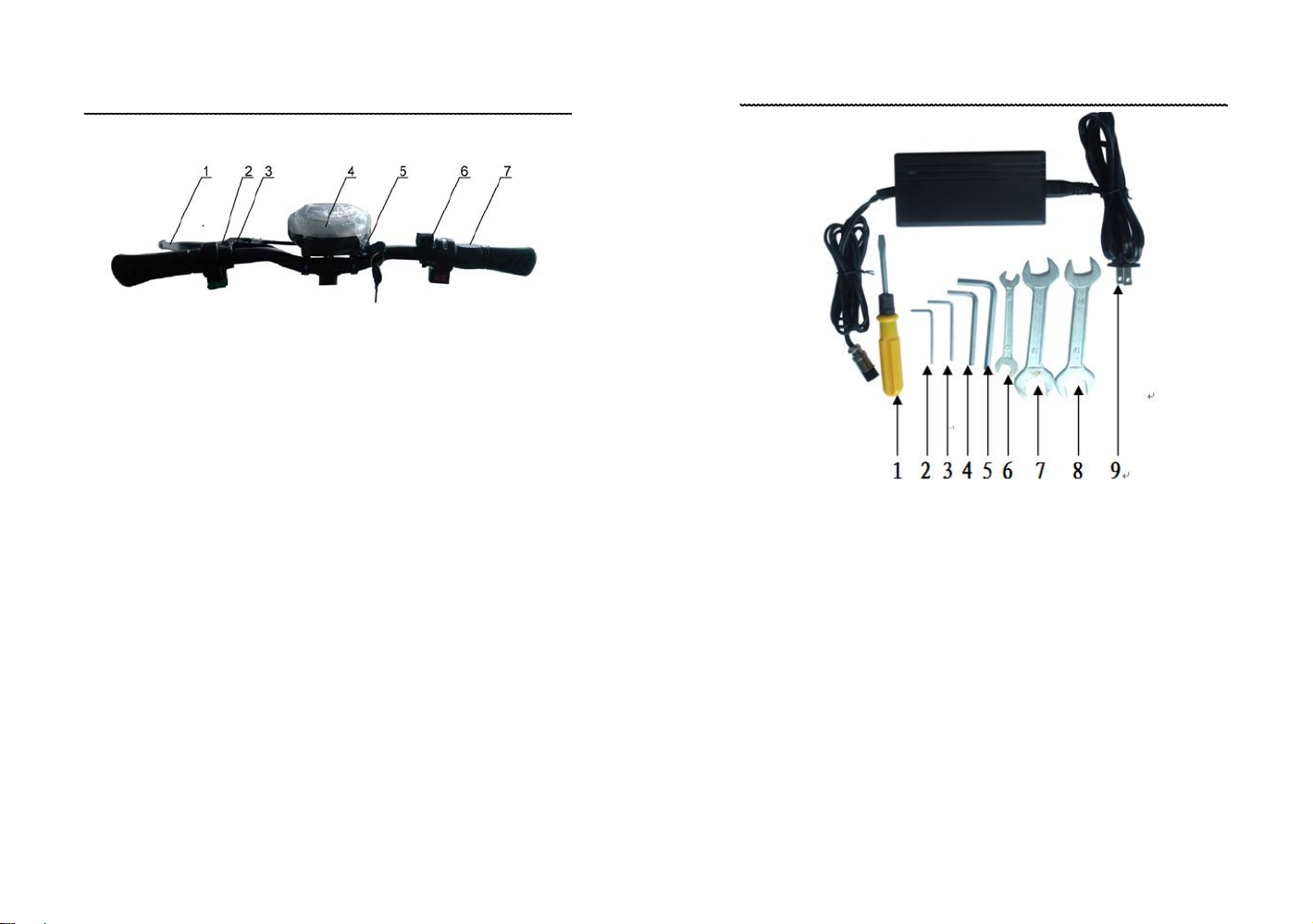

1 Brake lever
2 Lock mechanism switch
3 Horn switch
4 Multi-function Instrument
5 Key switch
6 USB port
7 Throttle
7
T
To oo ol l K Ki it ts s I In n T Th he e T To oo ol l B Ba ag g
Multi-Point
1 Screwdriver
2 Allen wrench （2.5mm）
3 Allen wrench （3mm）
4 Allen wrench （5mm）
5 Allen wrench （6mm）
6 Wrench (8 x 10mm)
7 Wrench (16 x 18mm)
8 Wrench (16 x 18mm)
9 charger

8
A
As ss se em mb bl li in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point

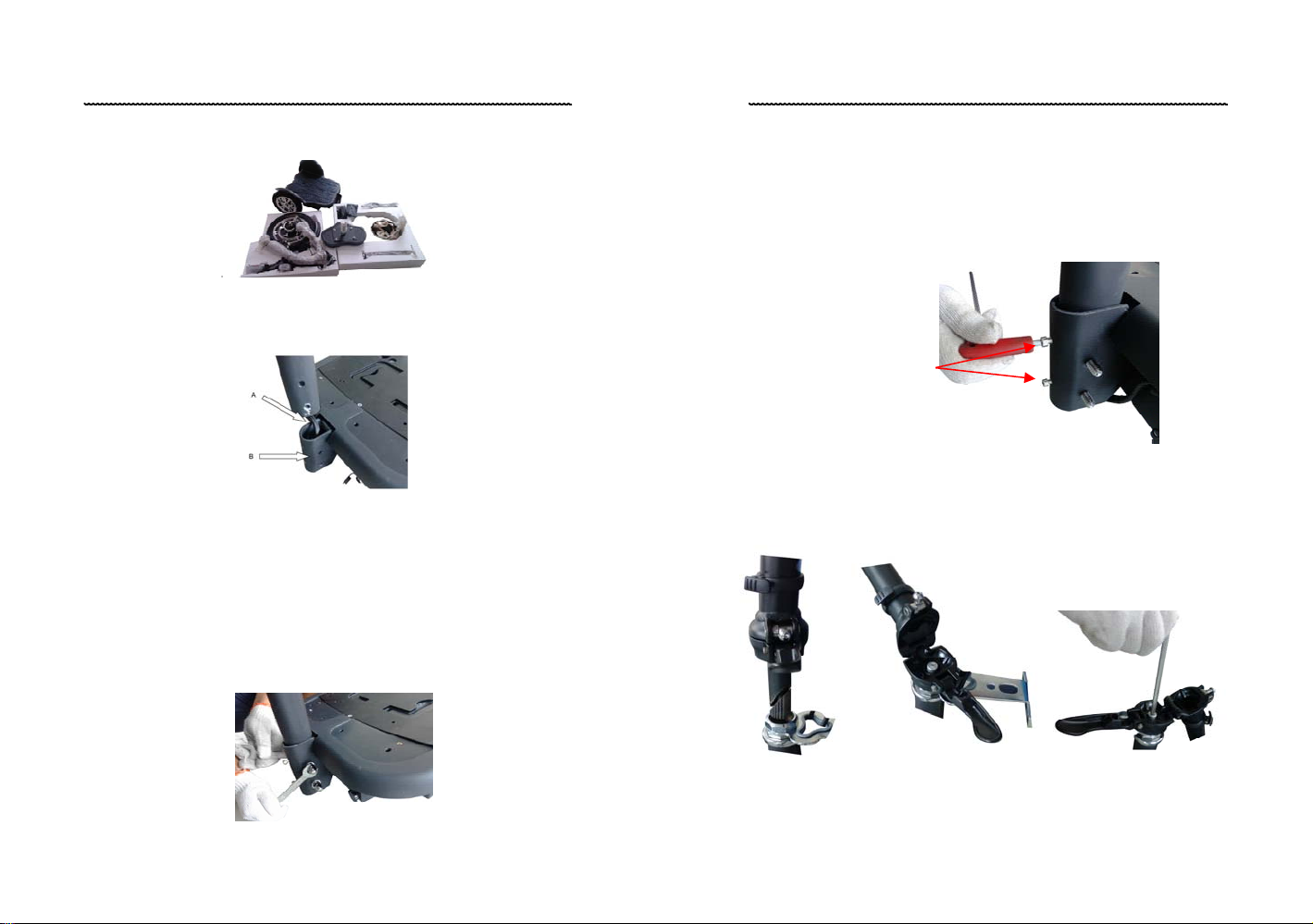

1. Unpack the Multi-Point carefully so that you
do not misplace any of the parts.
2. Place the Multi-Point on a flat, level surface.
Block the front up 3.5''. This will make the
next step easier
3. Remove the bolts and nuts from the
connecting tube clamp (B). Place the
connecting tube into the top opening (A).
After aligning the holes, place the two bolts
through the connecting tube and neck
assembly. Twist the bolts, do not hammer
them through. Tighten these two bolts with the
nuts provided.
9
A
As ss se em mb bl li in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point
4. The two Allen set screws on the front of the
connecting clamp are for removing any play
after the bolts have been tightened. First,
back off the nuts, second, set the screws,
third, tighten the nuts to prevent the screws
from backing off.
5. Extend the handle bar tube to full upright
position, and slide it into connecting with the
front fork.
*Note: The tube shaft is intentionally off center to
allow handlebars to fold to the side. Be sure to
Two Allen
set screws

10
A
As ss se em mb bl li in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point
align release button to pivot on brake handle side
6. Ensure that the handlebar is facing front, the
brake on the left side and the throttle on the
right, then tighten the handlebar tube collar
clamp using the enclosed 5mm wrench.
7. Put two power connecting plugs plug into the
corresponding sockets on the battery box
respectively. Then tie the wire to the frame by
using bands provided.
8. Match the pins of the plugs to the holes of
the sockets. Note the alignment notches.
11
A
As ss se em mb bl li in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point
9. Connect the connecting box well.
NOTE: Handle bar height adjustment. Handle
bar height can be easily adjusted by opening the
quick release on the handlebar tube to preferred
height, then firmly closing quick release.

12
C
Ch ha ar rg gi in ng g T Th he e B Ba at tt te er ri ie es s
Multi-Point
●Before you ride the Multi-Point for the first time
you must charge the batteries for 4-6 hours or
until the charger light turns green using only the
supplied charger.

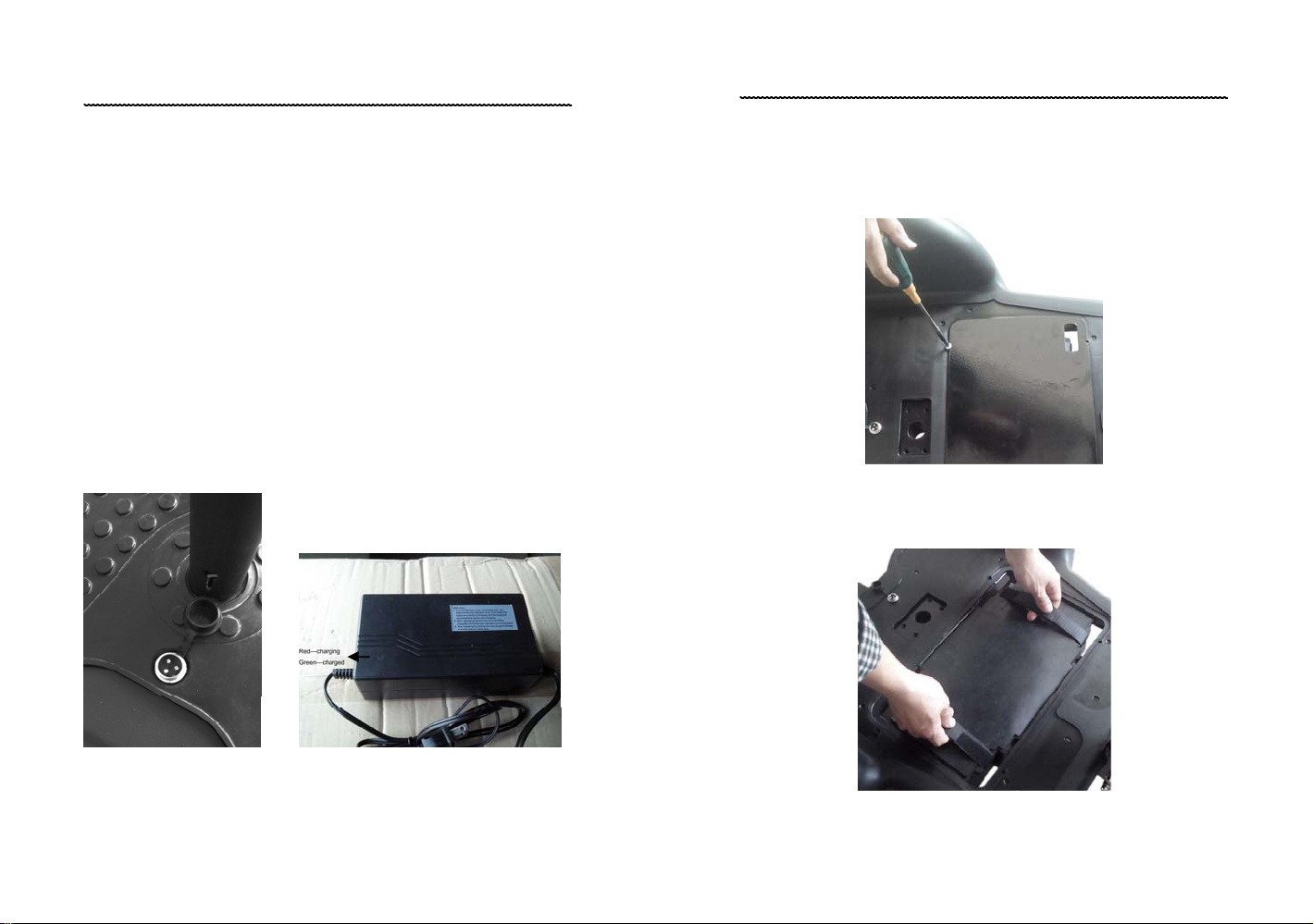

●To charge the batteries, plug the charger into
the charger socket located on the rear side of the
battery/controller compartment. Then plug the
charger into a wall outlet. Red light on charger
indicates charging, green light indicates charged.
Warning: Never charge scooter longer than
10 hours. If the charger does not turn green
by 10 hours or you smell a Sulphur odor after
a long charge there is a problem and contact
the dealer for instructions.
13
C
Ch ha ar rg gi in ng g T Th he e B Ba at tt te er ri ie es s O Ou ut ts si id de e S Sc co oo ot te er r
Multi-Point
1. Turn off the key switch.
2
2. . Lift the floor mat. Unscrew two bolts that
secure the battery cover and remove it.
3
3. . Take out the battery, then charge it.

14
C
Ch ha ar rg gi in ng g T Th he e B Ba at tt te er ri ie es s O Ou ut ts si id de e S Sc co oo ot te er r
Multi-Point
15
R
Ri id di in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point
●Once you have completed the initial charge you
are ready to ride. Remember, this is not a toy.
The Multi-Point can reach speeds up to 16 mph
depending on the terrain and the weight of the
rider. You must wear a helmet and protective
pads. Be aware of all local laws and ordinances
that govern and/or restrict the use of powered
scooters. The laws and ordinances vary greatly
from municipality to municipality. It is your
responsibility to know and abide by your local
restrictions.
●To ride, insert the key into the key switch and
turn the key in clockwise direction till the first click.
The battery gauge will be illuminated indicating
that the battery is in operation. If you want to turn
on the front light, please turn the key to the
second click in clockwise direction.
●Hold onto the front bar with both hands. Your
left fingers will control the brakes and your right

16
R
Ri id di in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point
hand will control the throttle. As you turn the
throttle towards yourself, the speed will be
increased. Release the throttle and apply the
brake to stop the scooter. You will control the
speed of the scooter by using both the throttle
and the brake. When the brake handle is
squeezed it cuts power off the throttle.
NOTE 1: WARNING: Never try stunts. Always
maintain a safe speed.
NOTE 2: When scooter is parked, please remove
the key, this will avoid anyone from accidentally
turning the throttle causing the scooter to speed
forward. Failure to do this could lead to an
accident.
NOTE 3: If you need to stop in an emergency or
kill power quickly, you can turn the key off.

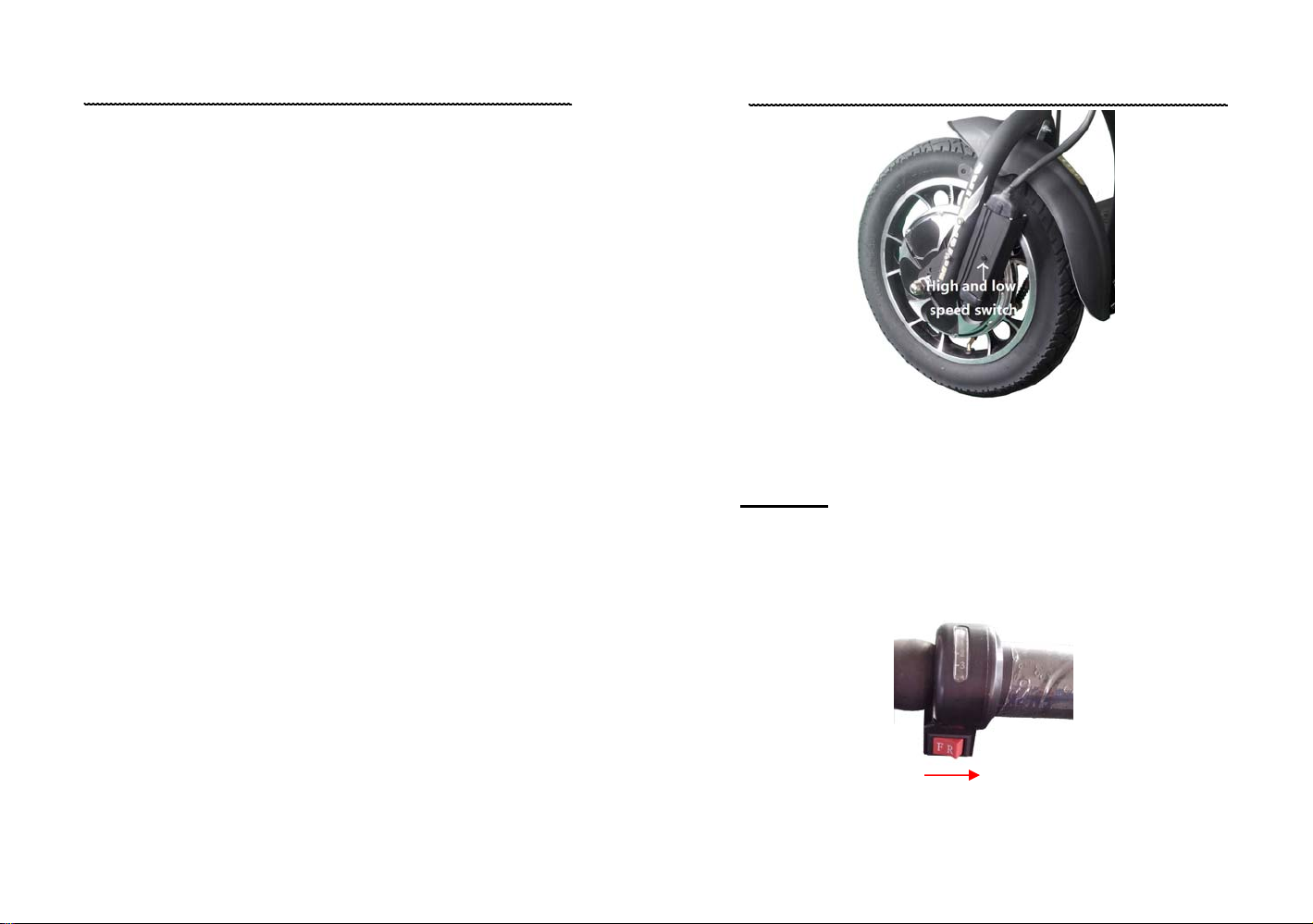

NOTE 4: Depending on skills of the driver, the
Multi-Point comes equipped with an adjustable
speed button located on the controller which
allows you to limit speed to 8mph or switch to
max speed of 16 mph. When the button is
pushed in, the max speed is 8 MPH. When the
button is released, the max speed is 16 MPH.
17
R
Ri id di in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point
NOTE 5: When you use reverse, the scooter
must be stopped, and then push the reverse
switch to “R”, the horn will send out a noise, then
GENTLY turn the throttle to back up. Warning,
do not twist throttle to full power when in
reverse. When finishing reverse, push the
reverse switch back to “F”.

18
R
Ri id di in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point

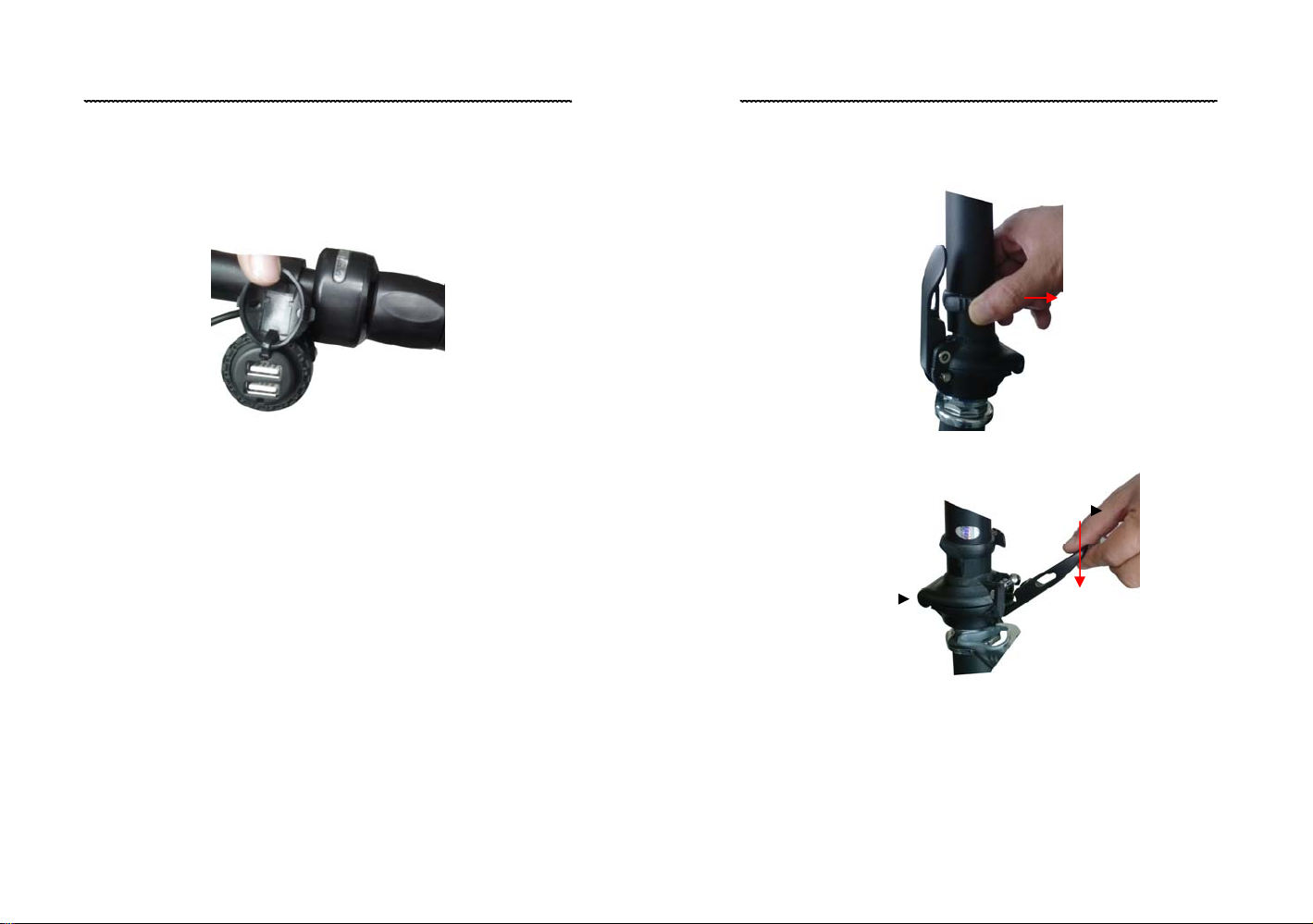

NOTE 6: The Maximum output of dual ports USB
part is 5V 2A which will charge all phones and
tablets.
19
F
Fo ol ld di in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point
1. Turn off the key switch
2. Put the clamp ring to turn to one side.
3. Press the quick release to bottom.

20
F
Fo ol ld di in ng g T Th he e M Mu ul lt ti i- -P Po oi in nt t
Multi-Point
4. Lift the connecting tube (which is also
attached to the handlebar tube).
5. Carefully place the handlebar tube on the
footrest frame
21
M
Ma ai in nt te en na an nc ce e
Multi-Point
Battery: (for professional use only)
The RMB Multi-Point is powered by 4, 12 volt,
rechargeable batteries housed in a single
compartment. Other than recharging, these
batteries need no maintenance. To prolong
battery life, recharge the battery after each use.
You must also charge your Multi-Point if it has not
been used for 30 days or more. If you need to
replace the battery pack, it is located inside the
battery compartment on the footboard. To get to
the battery pack, remove the compartment cover
by loosening the screws. To remove the batteries
disconnect the wires from the battery terminals.
Replace the battery pack with a new one and
reconnect the wires. Follow the instructions on
charging batteries to charge the new batteries.

22

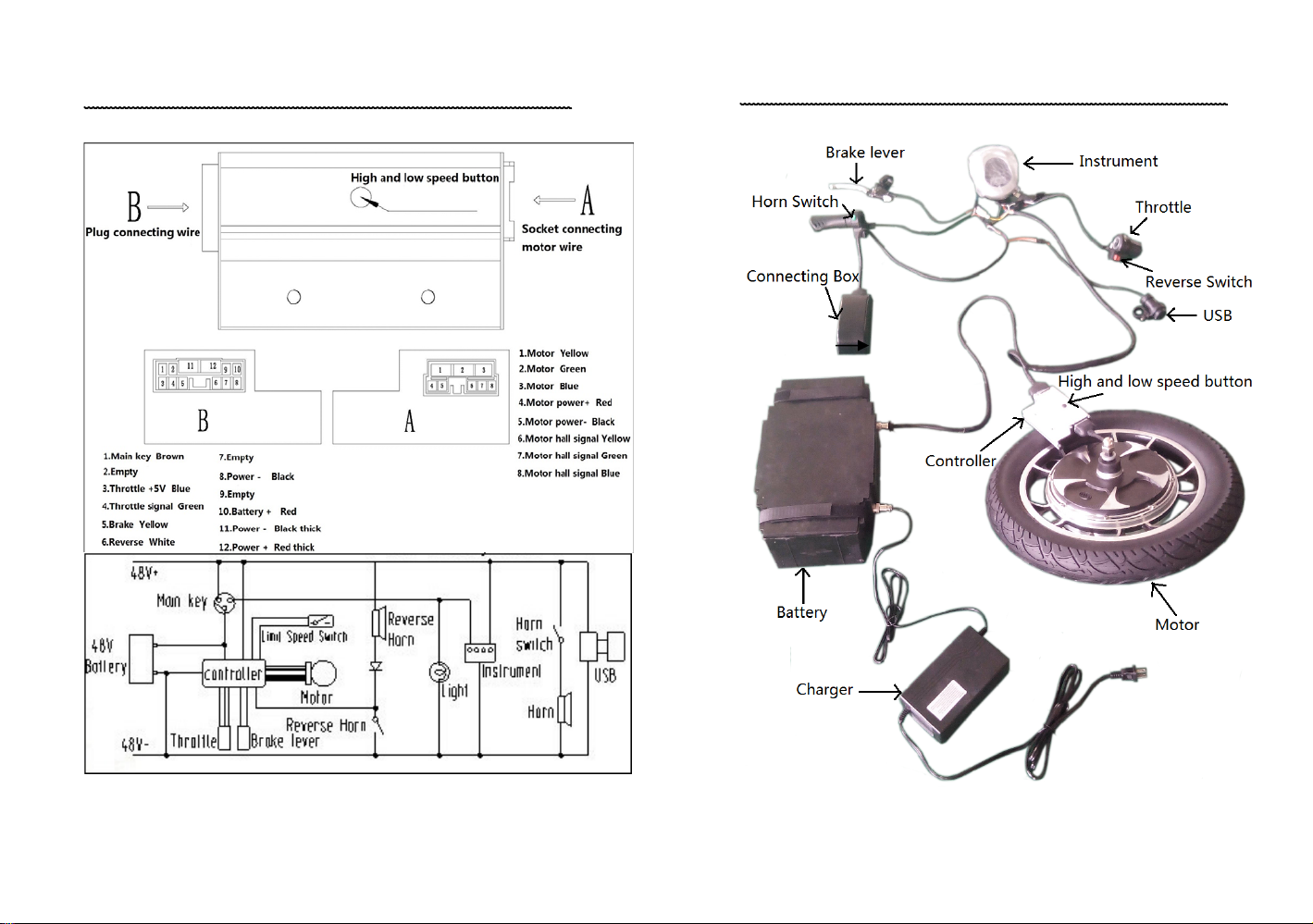

W
Wi ir ri in ng g D Di ia ag gr ra am m
Multi-Point
23
W
Wi ir ri in ng g D Di ia ag gr ra am m
Multi-Point

24
T
Tr ro ou ub bl le e S Sh ho oo ot ti in ng g G Gu ui id de e
Multi-Point
Problem Cause Solution
The power light
on the
instrument
does not
illuminate when
the Multi-Point
is on.
1. Battery is
discharged.
2. Loose
connection
inside
Multi-Point.
3. Fuse is blown.
4. The
instrument is
defective.
1. Recharge your
Multi-Point.
2. Remove the
screws that hold the
battery compartment
cover and raise the
cover. Visually
inspect all wire
connections making
sure there are no
loose wires,
reconnecting those
that are.
3. Replace the fuse.
4. Replace the
instrument.
The power
indicator on the
instrument
illuminates but
Multi-Point still
does not work.
1. The throttle
handle is not
operating
properly.
1. Replace the
throttle handle. Call
Customer Service to
order a new throttle
25
T
Tr ro ou ub bl le e S Sh ho oo ot ti in ng g G Gu ui id de e
Multi-Point
When the brake
lever is
squeezed the
Multi-Point
does not stop.
1. The brakes
are not adjusted
properly.
1. Adjust the brake
by loosening the bolt
on the rear brake
wheel, pull the cable
and retighten the
bolt.
Scooter is
losing speed. 1. Low battery 2. Battery is
defective.
3. Low tire
pressure.
1. Recharge your
battery for 4~6 hours.
2. Replace battery.
Call Customer
Service to order a
new battery.
3. air tires up to
correct pressure.

26
W
Wa ar rr ra an nt ty y
Multi-Point
The Limited Warranty does not cover or apply to
the following: Normal wear and tear; any damage,
failure and/or loss caused by accident, misuse,
neglect, abuse and/or failure to follow instructions
or warnings as stated on the product or in the
applicable owner’s manual or other printed
materials provided with the product; damage,
failure and/or loss caused by the use of the
product in any other manner for which such
products were not specifically designed.
RMB EV warrants the Multi-Point for six (6)
months according to the following
terms. Batteries and tires are warranted for three
(3) months. This warranty extends to the original
retail purchaser only and commences on the date
of the original retail purchase. Any part of the
RMB EV product manufactured or supplied by
RMB EV and found in the reasonable judgment
of RMB EV to be defective in material or
workmanship will be repaired or replaced by an
authorized RMB EV service dealer without
charge for parts or labor. RMB EV is responsible
for the expense of delivering the warranty
replacement parts. However, if the customer
chooses not to replace the parts, the expense of
27
W
Wa ar rr ra an nt ty y
Multi-Point
delivering the Multi-Point to the factory /
authorized service dealer for warranty work or
the expense of returning it back to the owner
after repair/ replacement will be paid for by
the owner. RMB EV’s responsibility in respect to
claims is limited to making the required repairs or
replacements and no claim of breach of warranty
shall be cause for cancellation or rescission of
the contract of sale of any RMB EV
product. Proof of date of purchase will be
required by the dealer to substantiate any
warranty claim. An authorized RMB EV service
dealer must perform all warranty work. The
warranty is limited to thirty (30) days from the
date of purchase for any RMB EV product that is
used for rental demonstration, commercial
purposes, or any other income producing
purpose. This warranty does not cover any RMB
EV product that has been subject to misuse,
neglect, negligence or accident, or has been
operated in any way contrary to the operating
instructions as specified in RMB EV’s owner’s
manual. This warranty does not apply to any
damage to RMB EV products that is the result of
improper maintenance or to any RMB EV product
that has been altered or modified so as to

28
W
Wa ar rr ra an nt ty y
Multi-Point
adversely affect the products operation,
performance, or durability, or that has been
altered or modified to change its intended
use. This warranty does not extend to repairs
made necessary by normal wear and or by use of
parts that are incompatible with RMB EV
products. In addition this warranty does not
cover items that experience normal wear and
tear. RMB EV reserves the right to improve the
design of the product without assuming any
obligations to modify any product previously
manufactured. All warranties are limited in
duration to the six (6) months warranty
period. Any such implied warranties including
merchantability, fitness for a particular purpose or
otherwise are disclaimed in their entirety after the
expiration of the appropriate thirty day warranty
period. RMB EV’s obligation under this warranty
is strictly and exclusively limited to the repair and
replacement of defective parts and RMB EV does
not assume any other obligation. Some states do
not allow limitations on how long an implied
warranty lasts, so the above limitation may not
apply to you. RMB EV assumes no responsibility
for incidental consequential or other damages
including but not limited to expense of returning
29
W
Wa ar rr ra an nt ty y
Multi-Point
the Multi-Point to an authorized service dealer
and expense of delivering it back to the
owner, mechanics travel time, telephone charges,
rental of a like product during the time the
warranty service is being performed, travel loss,
or damage to personal property, loss of revenue,
loss of time, or inconvenience. Some states do
not allow the exclusion or limitation of incidental
or consequential damages so the above
limitations may not apply to you.
WHAT RMB EV WILL DO:
RMB EV will, at its sole option, either repair,
replace or refund the purchase price of any unit
that does not conform to this limited warranty.
RMB EV may choose at its option to use
functionally equivalent reconditioned, refurbished
or new units or parts or any units. You are
responsible to get the unit back to RMB EV.

30
W
Wa ar rr ra an nt ty y
Multi-Point
HOW TO GET WARRANTY SERVICE:
To obtain warranty service, please call or fax to
the following telephone numbers for RMB EV
Customer Service - warranty repair
Tel. [phone] or Fax.[phone],
Email: [email protected]
DO NOT RETURN YOUR PRODUCT TO ANY
ADDRESS.
Please call, email, or write for the location of the
RMB EV authorized service center nearest you
and for the procedures for obtaining warranty
claims.
31
Instructions for optional attachments
Multi-Point

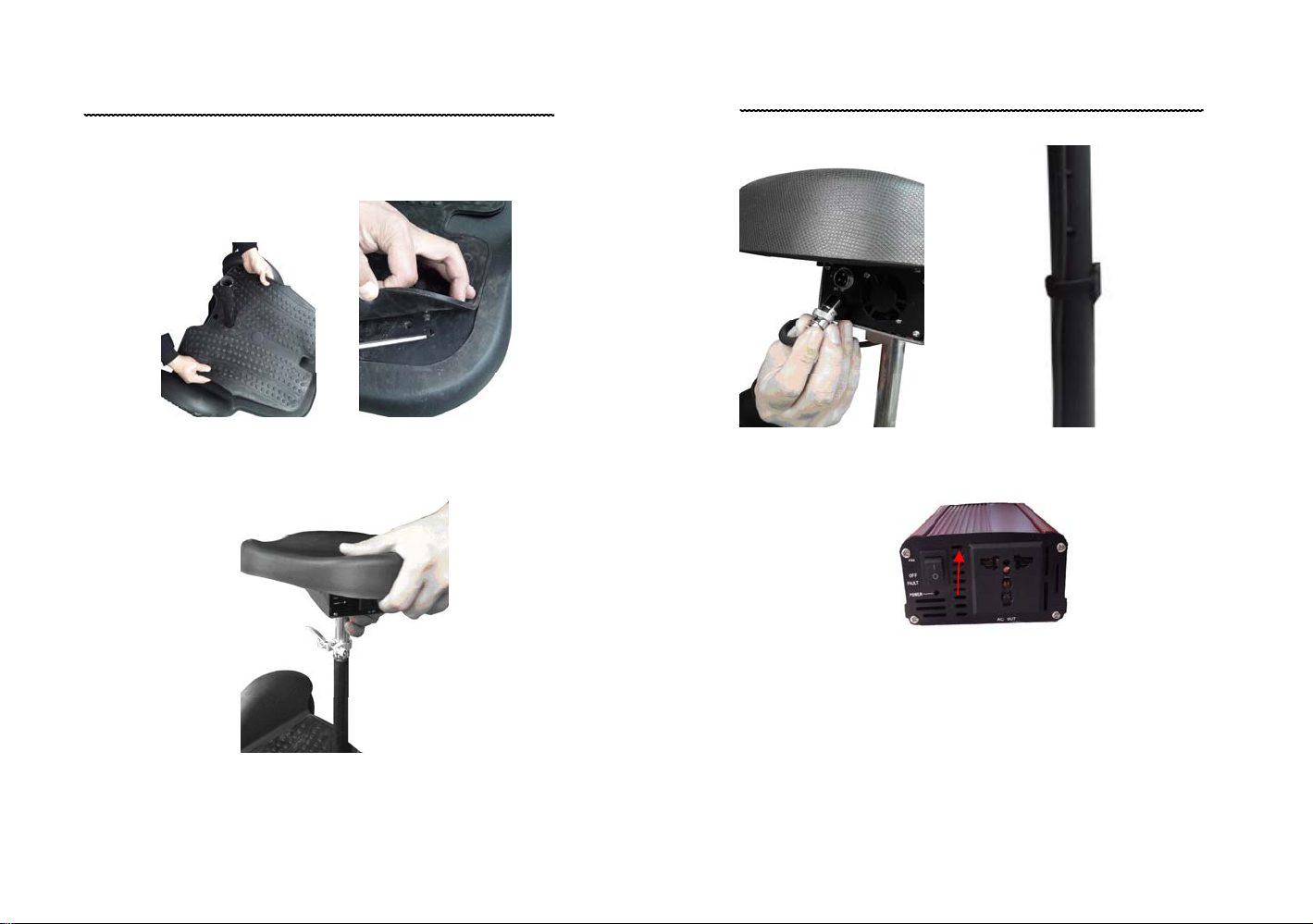

Installing the optional dc to ac inverter
1. Turn off the key switch
2. Remove seat post from seat
3. Install special seat post on seat
4. Install special tube on scooter, put one side
with hole forward, and fasten bolts

32
Instructions for optional attachments
Multi-Point
5. Put floor mat through tube, and align nipples to
corresponding holes in floor deck
6. Install quick release and seat.
7. Put out the connecting wire harness of
inverter, connect well the inverter and charger
port, then tie to the post by bind.
33
Instructions for optional attachments
Multi-Point
8. When using the inverter, turn on the power
switch.
Inverter specification:
●Input voltage is DC 48V
●Output voltage is AC 110V 60Hz
NOTE 1: Do not expose to water drip or spray.
NOTE 2: Shock hazard. Keep away from children
● Do not insert foreign objects into the inverter's

34
Instructions for optional attachments
Multi-Point
ac outlet or vent openings.
●Do not under any circumstances. connect the
inverter to power utility AC distribution wiring.
●Failure to follow the above instructions may
result in personal injury or damage to the
inverter.
NOTE 3: Do not expose the inverter to
temperatures in excess of 104’F(40℃).
35
Instructions for optional attachments
Multi-Point
How to install the trailer
1. Turn off the key switch
2. Put the trailer tongue into the slot, after
aligning the holes, place the two bolts through the
holes. Twist the bolts, and tighten them with the
nuts provided.
3. Place the trailer connection plate (A) into the
trailer connection frame (B) of front of trailer
tongue. After aligning the holes, place the trailer
pin through the hole. Secure the trailer pin with
the cotter pin.

36
Instructions for optional attachments
Multi-Point
How to install the solar panel
1. Turn off the key switch
2. Put the front support(A) onto the riser(B),
aligning the holes, place the two bolts through the
holes, then twist the bolts, and tighten them with
the nuts provided.
3. Put the left front frame(A) onto the front
support(B), aligning the three holes, place the
three bolts through the holes, then twist the bolts,
and tighten them with the nuts provided. The right
front frame is the same as the left front frame.
37
Instructions for optional attachments
Multi-Point
4. Install the rear frame onto the scooter with the
two bolts, and tighten them with the nuts
provided.
