Pride Mobility PMV Series User manual

Please fill out the following information for quick reference:
S.V.P. veuillez compléter les informations ci dessous:
Vul alstublieft de volgende informatie in voor snelle referentie:
Mein autorisierter Fachhändler ist:
Informazioni di riferimento:
Por favor, rellene la siguiente información para tener siempre a mano:
Provider:
Détaillant:
Leverancier:
Name:
Rivenditore:
Proveedor:
Address:
Adresse:
Adres :
Adresse:
Indirizzo:
Dirección:
Telephone:
Téléphone:
Telefoon nummer:
Tel. Nummer:
Telefono:
Número de teléfono:
Purchase Date:
Date d’achat:
Koop Datum:
Kaufdatum:
Data di acquisto:
Fecha de compra:

INFORMATION
Copyright © 2015
INFMANU4584/Rev B/May2015
INTENDED USE
The intended use of the mobility device is to provide mobility to persons limited to a seated position that
have the capability of operating a personal mobility vehicle (PMV).
NOTE: This owner’s manual is compiled from the latest specifications and product information
available at the time of publication. We reserve the right to make changes as they become necessary.
Any changes to our products may cause slight variations between the illustrations and explanations in
this manual and the product you have purchased. The latest/current version of this manual is available
on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
NOTE: This product meets IPX4 classification (IEC 60529).
NOTE: The PMV and its components are not made with natural rubber latex. Consult with the
manufacturer regarding any after-market accessories.

PMV Series 3
WARNING! An authorized Provider or qualified technician must perform the initial setup
of this PMV and must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the PMV to identify warnings
and important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow
designated procedures can cause either personal injury, component damage, or
malfunction. On the product, this icon is represented as a black symbol on a yellow
triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause personal injury and/or equipment damage. On the product,
this icon is represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at
any time or in any circumstances. Performing a prohibited action can cause personal
injury and/or equipment damage. On the product, this icon is represented as a black
symbol with a red circle and red slash.
CONTENTS
SAFETY GUIDELINES .......................................................................................................................3
I. SAFETY........................................................................................................................................4
II. YOUR PMV..................................................................................................................................7
III. BATTERIES AND CHARGING..........................................................................................15
IV. OPERATION.............................................................................................................................22
V. COMFORT ADJUSTMENTS..............................................................................................24
VI. DISASSEMBLY AND ASSEMBLY...................................................................................28
VII. BASIC TROUBLESHOOTING ...........................................................................................29
VIII. CARE AND MAINTENANCE..............................................................................................31
SAFETY GUIDELINES

4PMV Series
MODEL #
I. SAFETY

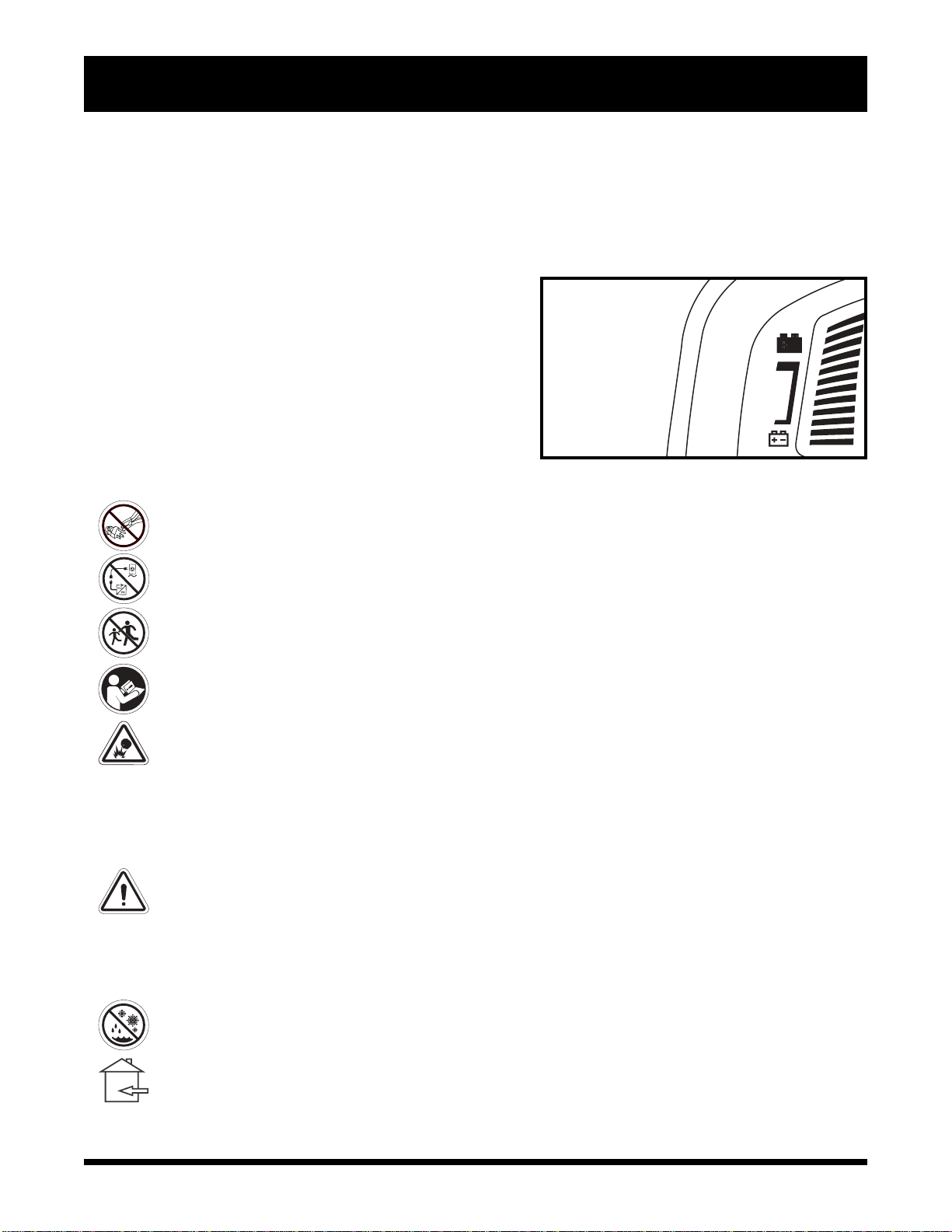

PRODUCT SAFETY SYMBOLS
The symbols below are used on the PMV to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
NOTE: There are more warnings identified and explained in the Consumer Safety Guide that is
included with your PMV. Please become familiar with all the warnings and safety information found
in the Consumer Safety Guide and refer to this resource often.
Read and follow the information in the owner’s manual.
Manufactured in.
Indicates tie-down points on the PMV.
PMV information label.
Battery Set Configuration:
+ = Positive (Red) Terminal Post
- = Negative (Black) Terminal Post
Connect Red wires to Red Positive (+) Terminal Posts.
Connect Black wire to Black Negative (-) Terminal Posts.

PMV Series 5
I. SAFETY
GENERAL
MANDATORY! Do not operate your new PMV for the first time without completely reading
and understanding this owner’s manual and the Consumer Safety Guide.
Your PMV is a state-of-the-art life-enhancement device designed to increase mobility. We provide an
extensive variety of products to best fit the individual needs of the PMV user. Please be aware that the final
selection and purchasing decision regarding the type of PMV to be used is the responsibility of the PMV
user, who is capable of making such a decision.
The contents of this manual are based on the expectation that a mobility device expert has properly fitted
the PMV to the user.
There are certain situations, including some medical conditions, where the PMV user will need to practice
operating the PMV in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a PMV user in various daily living activities.
As you begin using your PMV during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and confident control as you
maneuver through doorways, on and off elevators, up and down ramps and over moderate terrain.
Additional general information can be found on the supplemental information sheets and booklets
included in your Owner’s Package. Please fully read and review the information, and keep it readily
available for future reference.
Below are some precautions, tips and other safety considerations that will help you become accustomed
to operating the PMV safely.
PRE-RIDE SAFETY CHECK
Get to know the feel of your PMV and its capabilities. We recommend that you perform a safety check
before each use to make sure your PMV operates smoothly and safely.
Perform the following inspections prior to using your PMV:
Check the condition of the tires. Make sure they are not damaged or excessively worn.
Check all electrical connections. Make sure they are tight and not corroded.
Check all harness connections. Make sure they are secured properly.
Check the brakes to ensure they operate properly.
Check the battery condition meter to ensure the batteries are fully charged.
Ensure the manual freewheel lever is in drive mode before sitting on the PMV.
If you discover a problem, contact your authorized Provider for assistance. Please refer to the Contact
Information insert in your Owner’s Package.

6PMV Series
I. SAFETY
BRAKING INFORMATION
Your PMV is equipped with these powerful brake systems:
Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the
cener/stop position.
Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or
when power is removed from the system for any reason.
Handbrake: This lever provides you with emergency stopping power. See II. “Your PMV.”
HANDBRAKE LEVER
The handbrake lever contains hydraulic fluid. When the lever is depressed, the fluid is pushed through the
brake line to engage the brake pads against the brake discs. The handbrake lever is a completely sealed
unit, meaning that the hydraulic fluid should not leak; however, there are certain safety measures that
should be taken if the handbrake lever becomes cracked or damaged.
Do not touch spilled material unless wearing protective equipment, such as safety goggles and gloves.
For small spills, cover the material with dry earth, sand or other non-combustible absorbent material.
Once absorbed, enclose the material in a plastic bag and contact your local waste disposal agency for
proper disposal measures. Do not expose the material to waterways or sewers.
If the eyes are exposed, check for and remove contact lenses. Flush eyes with cool, clean, low-pressure
water while occasionally lifting and lowering the eyelids. Seek medical attention if excessive tearing,
redness or pain persists.
If the skin is exposed, remove all contaminated clothing. Wipe off excess material and wash exposed
skin with soap and water. Seek medical attention if skin appears damaged or if irritation persists.
Thoroughly clean contaminated clothing before reuse. Discard contaminated leather goods.
If ingested, do not induce vomiting or give anything to drink unless directed to by a physician. Never
give anything by mouth to a person who is not fully conscious. Seek medical attention immediately.
If inhaled, move the affected individual to fresh air. If the affected individual is not breathing,
immediately begin rescue breathing. If breathing is difficult, 100% humidified oxygen should be
administered by a qualified individual. Seek medical attention immediately and keep the affected
individual warm and at rest.
If ignited, use dry chemical, foam, carbon dioxide or water fog to extinguish.
WARNING! Do not modify the handbrake lever or attempt to replace the hydraulic fluid. If
damage occurs, follow the safety information in this section and contact your authorized
dealer for handbrake replacement. The hydraulic handbrake should only be serviced or
replaced by your authorized dealer.
WARNING! The handbrake contains hydraulic fluid that can cause mild skin, eye and
nasal/bronchial irritation. Do not attempt to adjust or service the handbrake without
proper protective equipment such as safety goggles and gloves and wash hands after
handling.

PMV Series 7
11
12
9
1
2
4
3
5
12a 12c
12b
2110
7
6
8

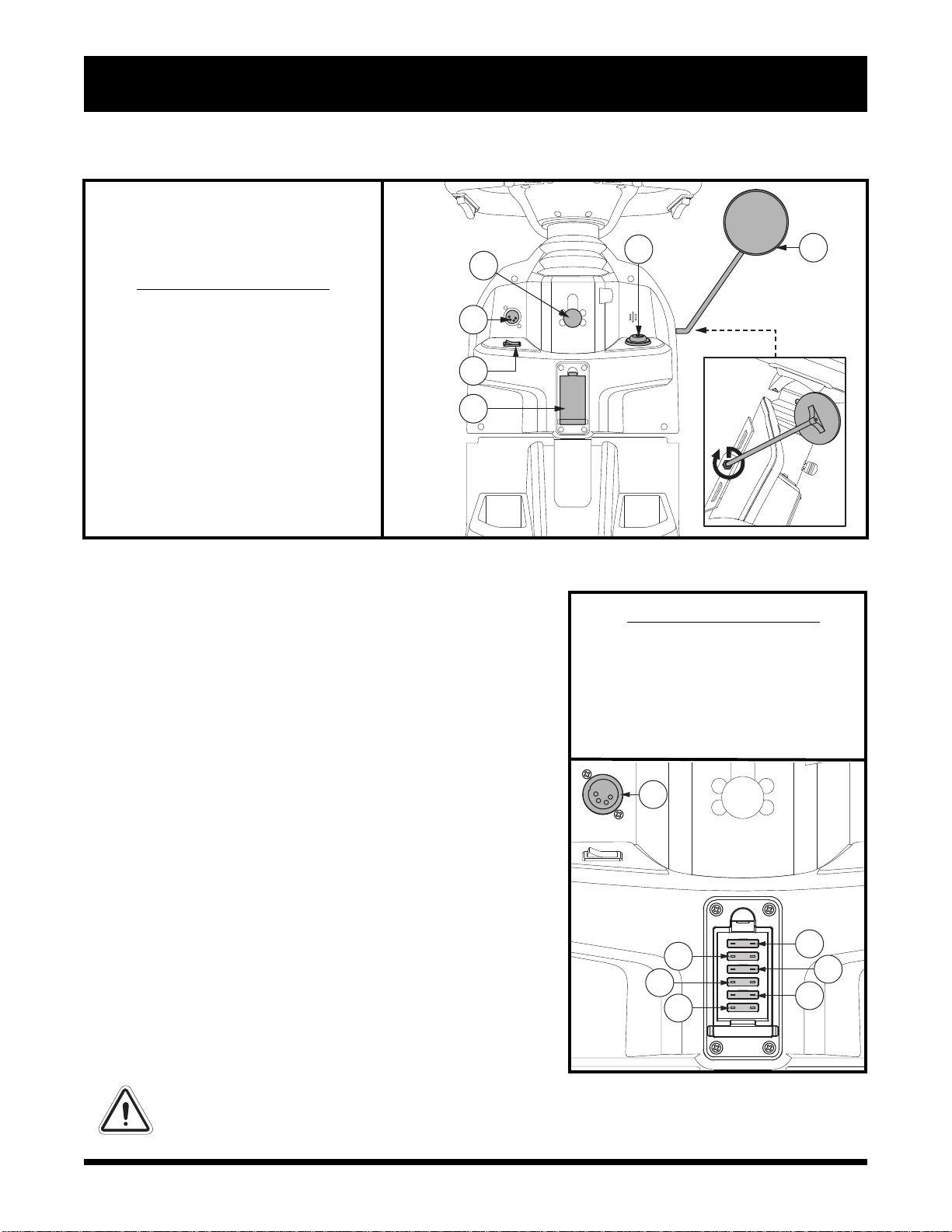

TILLER CONSOLE
The tiller console and lower tiller house all of the controls needed to drive your PMV, including the LCD
control panel, throttle control levers, key switch, and the throttle control lever switch. See figure 1.
PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller
console does become exposed to moisture, do not attempt to operate your PMV until the
tiller console has dried thoroughly.
II. YOUR PMV
Horn Buttons
These buttons activate a warning horn. Your
PMV must be powered up for the horn to be
operational. Do not hesitate to use the warning
horn when doing so may prevent accident or
injury.
Turn Signal Buttons
Press the appropriate turn signal button once
to activate it. The turn signal will flash on the
LCD screen.
Press the same signal button to turn it off.
NOTE: The turn signals are timed to shut off
after 15 seconds. A warning beep will sound as
long as the turn signal is on. See figure 3 for
volume control.
Lights Button
Press the lights button once to activate the
lighting system. The light symbol will be
shown on the LCD screen.
Press the lights button again to turn the
lighting system off.
WARNING! PMV users are
required to use their lights
when visibility is
restricted—day or night.
LCD Screen and control panel settings
The LCD control panel offers easily intuited
feedback information via the LCD screen. See
figure 1. The LCD screen is also used during
the set-up (activation) of the various control
panel settings.
Hazard Lights Button
This button activates the 4-way yellow flashers
on your PMV.
Press the button once to turn on the flashers.
Press the button again to turn off the flashers. Figure 1. LCD Control Panel
IDENTIFICATION KEY
1. HORN BUTTON 8. HI-LOW BUTTON
2. TURN SIGNAL BUTTONS 9. SPEED ADJUSTMENT
3. LIGHTS BUTTON (INCREASE)
4. LCD SCREEN 10.SPEED ADJUSTMENT
5. SET BUTTON (DECREASE)
6. HAZARD LIGHTS BUTTON 11.THROTTLE CONTROL
7. MODE BUTTON 12. HANDBRAKE

8PMV Series
II. YOUR PMV
NOTE: The 4-way flashers will flash and a warning beep will sound as long as the hazard lights are on.
See figure 3 for volume control.
Mode Button
Use the mode button to scroll between the odometer, tripometer, temperature, and clock.
High-Low Button
This button toggles the PMV’s speed between HIGH and LOW.
Press the High-Low button once to set the speed adjustment to high. The High-Low indicator will
display on the LCD screen. See figure 2. Using this setting in conjunction with the speed adjustment
buttons will allow the PMV to achieve speeds up to the maximum preprogrammed speed for the PMV.
Press the High-Low button again to set the speed adjustment to Low. The High-Low indicator will not
display on the LCD screen. Using this setting in conjunction with the speed adjustment buttons will
allow the PMV to achieve speeds up to the half the maximum preprogrammed speed for the PMV.
Speed Adjustment Buttons
These adjustment buttons enable you to pre-select and limit your PMV’s speed. This is indicated by the
maximum speed indicator on the LCD screen. See figure 2.
Press the image of the tortoise to decrease the speed of the PMV.
Press the image of the rabbit to increase the speed of the PMV.
NOTE: The more bars shown on the maximum speed indicator, the faster your pre-selected maximum
speed will be. See figure 2.
Throttle Control Levers
These levers allow you to control the forward speed and the reverse speed of your PMV up to the
maximum speed you preset with the speed adjustment buttons. A throttle control lever is located on the
underside of the left and right side of the tiller handle. See Figure 1.
To Move Forward:
Squeeze the rear part of the throttle control lever.
To Move Rearward:
Squeeze the front part of the throttle control lever.
Release the throttle control lever and allow your PMV to come to a complete stop before engaging the
other side of the lever. When the throttle control lever is completely released, it automatically returns to
the center “stop” position and engages your PMV’s brakes.
Handbrake Lever
This lever provides you with emergency stopping power. When in motion, release the throttle control lever
and gently squeeze the handbrake lever to come to a stop.
WARNING! The handbrake is intended for use as an emergency brake and/or parking
brake only.
To engage the parking brake, squeeze the handbrake lever, then press down on the top of the handbrake
mechanism. A red bar will indicate that the PMV parking brake is locked. See figure 1. Tap the handbrake
lever to release the parking brake when ready to resume movement.

PMV Series 9
13
14 7
1012 11 9 8
6
54
3
2
1
IDENTIFICATION KEY
1. BATTERY CONDITION INDICATOR 8. AM/PM
2. LIGHTS INDICATOR 9. CLOCK
3. SPEED/ERROR CODE/VOLUME 10. TEMPERATURE
4. HI-LOW INDICATOR 11. DISTANCE/TIME/TEMP/ERROR MESSAGE
5. UNIT INDICATOR 12. TRIPOMETER
6. MAXIMUM SPEED INDICATOR 13. ODOMETER
7. RIGHT TURN INDICATOR 14. LEFT TURN INDICATOR
LCD SCREEN AND CONTROL PANEL SETTINGS
The LCD control panel offers easily intuited feedback information via the LCD screen. See figure 2. The
LCD screen is also used during the set-up (activation) of the various control panel settings. See chart 1.
II. YOUR PMV
Figure 2. LCD Screen

10 PMV Series
ODO TRIP TEMP
OPERATION Press MODE PressMODE for 2 seconds
then release
Press MODE Press MODE (hour digits flash)
SELECTION Use SET to select option Press and hold SET
until option
resets to 0.0
Use SET to
choose °F or
°C
Use SET to change hours. Alternate
pressing MODE and SET to change
minutes and AM/PM.
EXIT Press MODE Press MODE Press MODE Press
SETTING CODE INFORMATION
Odometer ODO Measures mph, km/h, and hours of use. Also displays
total distance traveled over life of PMV. (Cannot be
reset.)
Tripometer TRIP Displays trip distance traveled. (Can be reset to “0”.)
Temperature TEMP Displays current temperature in °F or °C.
Clock Displays time in 12-hour (AM/PM) or 24-hour.
SETTING INFORMATION CHART
II. YOUR PMV
Chart 2. LCD Control Panel Information
Battery Charging Mode
During battery charging, the console will display the clock and the battery condition indicator.
Battery Condition Indicator
When the key is turned to the “on” position, this LED indicator gives an approximate reading of battery
strength. When the PMV’s battery voltage reaches a low enough level, a warning beep will sound once,
indicating the batteries need charging. The warning beep will not sound again until the PMV is restarted
or the throttle control lever is pressed.
Maximum Speed Indicator LED
The maximum speed indicator displays the maximum speed selected with the speed adjustment buttons.
The more bars that are lit, the faster the speed. The maximum PMV speed will be determined by the HIGH-
LOW setting, which limits the maximum speed to half when set to LOW. The actual travel speed will be
shown in the speed display on the LCD screen.
Chart 1. LCD Control Panel Information
Press MODE until the setting you want to change appears on the LED screen. Press and hold SET then
follow the steps corresponding to your setting in chart 2.

PMV Series 11
1
2
Volume Control
The volume of the hazard lights, horn, low voltage, turn
signals, and error message can be turned on or off
separately. See figure 3.
To set the volume on or off:
1. Ensure the key is in the “off” position.
2. Press the appropriate two buttons simultaneously (see
chart 3), and turn the key to the “on” position.
3. Once the volume control screen appears, release the
buttons.
4. Press the rabbit button or the tortoise button to cycle
through modes (0-3 indicates off and 4 indicates on).
NOTE: The horn may be turned on or off. In Set 2,
volume control must be set at 4 for the horn to operate.
5. To exit, press any button except the rabbit or tortoise.
NOTE: The error message language option isset the same
way as the volume.
Figure 3. Volume Control Display
IDENTIFICATION KEY
1. VOLUME/LANGUAGE OPTION
2. FUNCTION INDICATOR
FUNCTION BUTTONS FUNCTION INDICATOR
Hazard Lights SET + HAZARD LIGHTS SET 1
Horn SET + HORN SET 2
Low Voltage SET + LEFT TURN INDICATOR SET 3
Turn Signals SET + RIGHT TURN INDICATOR SET 4
Error Message
Language
Option
SET + LIGHTS SET 5
6- Spanish
5- Italian
4- French
3- German
2- Dutch
1 - English
0- Close
Chart 3. Volume Control Information
II. YOUR PMV

12 PMV Series
Off-board Charger Port
The off-board charger power lead plugs into this port during
battery charging. The off-board charger port will be located on
the tiller. See figure 4.
Electrical System Fuses
Your PMV is equipped with a series of electrical system fuses,
which help protect the off-board charging system, key switch,
and lighting system from receiving an overload of electrical
current. These fuses are the same type used in automobiles and
are located in a compartment on the tiller. See figure 5.
NOTE: Keep all electrical areas clean and free of moisture
and foreign material.
Tiller Adjustment Knob
See V. “Comfort Adjustments”.
Key Switch
Insert the key into the key switch and turn it clockwise to
power up (turn on) your PMV. See figure 4.
Turn the key counterclockwise to power down (turn off)
your PMV.
WARNING! If the key is turned to the “off”
position while your PMV is in motion, the
electronic brakes will engage and your PMV
will come to an abrupt stop!
IDENTIFICATION KEY
1. CHARGER POWER CORD
RECEPTACLE
2. OFF-BOARD CHARGER FUSE
3. KEY SWITCH FUSE
4. LOWER HEADLIGHT FUSE
5. REAR TAIL LIGHTS FUSE
6. LEFT TURN SIGNAL FUSE
7. RIGHT TURN SIGNAL FUSE
2
4
6
7
5
3
1
II. YOUR PMV
LOWER TILLER
IDENTIFICATION KEY
1. OFF-BOARD CHARGER PORT
2. FUSE PANEL
3. TILLER ADJUSTMENT KNOB
4. KEY SWITCH
5. THROTTLE CONTROL LEVER SWITCH
6. MIRROR
2
1
6
34
5
Figure 4. Lower Tiller Components
Figure 5. Off-board Charger Port/Tiller
Console Fuses

PMV Series 13
WARNING! When your PMV is in freewheel mode, the braking system is disengaged.
Disengage the drive motors only on a level surface.
Ensure the key is removed from the key switch.
Stand to the side of the PMV to engage or disengage freewheel mode. Never sit on a
PMV to do this.
After you have finished pushing your PMV, always return it to the drive mode to lock
the brakes.
NOTE: If the PMV is placed in freewheel mode (manual freewheel lever forward) while the key is in
the “on” position, the PMV will not run until the manual freewheel lever is pushed backward and the
key is turned to the “off” position, then back to the “on” position.
Motor/Transaxle Assembly
The motor/transaxle assembly is an electromechanical unit that converts electrical energy from your
PMV’s batteries into the controlled mechanical energy that drives the PMV’s wheels.
IDENTIFICATION KEY
1. MANUAL FREEWHEEL LEVER
2. MOTOR/TRANSAXLE ASSEMBLY
Throttle Control Lever Switch
This switch dictates which throttle control lever (left or right) will function. See figure 4.
Toggle the switch to the left to activate the left throttle control lever.
Toggle the switch to the right to activate the right throttle control lever.
NOTE: Only one throttle control lever will function at a time.
Mirror Positioning and Adjustment
For information on positioning and adjusting your mirror, see V. “Comfort Adjustments.”
II. YOUR PMV
REAR COMPONENTS
The manual freewheel lever and motor/transaxle
assembly are located on your PMV as shown. See
figure 6. The main circuit breaker (reset button) and
batteries (not shown) are also located on the rear
component section of your PMV.
WARNING! Before placing your PMV
into or taking it out of freewheel
mode, remove the key from the key
switch. Never sit on a PMV when it is
in freewheel mode. Never put a PMV
in freewheel mode on any incline.
Manual Freewheel Lever
Whenever you need or want to push your PMV for
short distances, you can put it in freewheel mode.
1. Remove the key from the key switch.
2. Push forward on the manual freewheel lever to
disable the drive system and the brake system.
This will enable you to push the PMV.
3. Pull back on the manual freewheel lever to reen-
gage the drive and the brake systems and take
your PMV out of freewheel mode.
2
1
Figure 6. Rear Components

14 PMV Series
IDENTIFICATION KEY
1. REAR SECUREMENT POINTS
2. FRONT SECUREMENT POINTS
IDENTIFICATION KEY
1. LEVER STYLE
a. reset lever
b. manual shut-off button
1
a b
II. YOUR PMV
Figure 7. Main Circuit Breaker
Batteries
The batteries store electrical energy that powers your
PMV. See III. “Batteries and Charging” for informa-
tion on how to charge your PMV batteries.
Main Circuit Breaker
When the voltage in the batteries becomes low or
your PMV is heavily strained because of excessive
loads, the main circuit breaker may trip to protect the
motor and electronics from damage. When the
breaker trips, the entire electrical system shuts down.
See figure 7.
Reset lever flips down when the breaker trips.
Allow a minute or so for the electronics to “rest.”
Push the reset lever up until you hear a click, or
push in the reset button to reset the breaker.
If the breaker trips frequently, you may need to
charge the batteries more often or have your
authorized Provider perform a load test on the
batteries.
If the main circuit breaker trips repeatedly, see
your authorized Provider for service.
NOTICE: If you are preparing the PMV for
transport or service, or if there is a situation that
requires you to manually shut down the electrical
system, press the manual shut-off button on the
circuit breaker. This will cut all power to the PMV.
SECUREMENT POINTS
Always secure the PMV in a forward-facing position
in the vehicle. Attach the four tie-down straps to the
designated securement points. See figure 8. Tighten
the straps to sufficiently remove all slack. Never
attach tie-downs to adjustable, moving, or removable
parts of the PMV such as armrests, shrouds, and
wheels. These items should be removed. Position the
anchor points for the rear tie-down straps directly
behind the rear securement points on the PMV. The
front tie-down straps should anchor to floor points
that are spaced wider than the PMV to provide
increased lateral stability.
WARNING! Ensure PMVs are properly
secured to the motor vehicle during
transport. PMVs that are not properly
secured can become a hazard to the
user and to other vehicle passengers
in the event of a crash, sudden
stopping, or swerving, as the PMV
could tip or slide out of place.
Figure 8. Securement Points (Identified with black
dots)
1
2

PMV Series 15
PROHIBITED! Removal of grounding prong can create electrical hazard. If necessary,
properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged
plug access.
PROHIBITED! Never use an extension cord to plug in your battery charger. Plug the
charger directly into a properly wired standard electrical outlet.
PROHIBITED! Do not allow unsupervised children to play near the PMV while the
batteries are charging. We recommends that you do not charge the batteries while the
PMV is occupied.
MANDATORY! Read the battery charging instructions in this manual and in the manual
supplied with the battery charger before charging the batteries.
WARNING! Explosive gases may be generated while charging the batteries. Keep the
PMV and battery charger away from sources of ignition such as flames or sparks and
provide adequate ventilation when charging the batteries.
WARNING! You must recharge your PMV’s batteries with the supplied off-board charger.
Do not use an automotive-type battery charger.
WARNING! Inspect the battery charger, wiring, and connectors for damage before each
use. Contact your authorized Provider if damage is found.
WARNING! Do not attempt to open the battery charger case. If the battery charger does
not appear to be working correctly, contact your authorized Provider.
WARNING! If the battery charger is equipped with cooling slots, then do not attempt to
insert objects through these slots.
WARNING! Be aware that the battery charger case may become hot during charging.
Avoid skin contact and do not place on surfaces that may be affected by heat.
WARNING! If your battery charger has not been tested and approved for outdoor use, then
do not expose it to adverse or extreme weather conditions. If the battery charger is
exposed to adverse or extreme weather conditions, then it must be allowed to adjust to
the difference in environmental conditions before use indoors. Refer to the manual
supplied with the battery charger for more information.
BATTERIES AND CHARGING
Your PMV requires three long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance-free.
They are recharged by an off-board charging system.
Charge your PMV’s batteries for at least 8 to 14 hours prior to using it for the first time.
Keep the batteries fully charged to keep your PMV running smoothly.
Figure 9. Battery Condition Meter
READING YOUR BATTERY VOLTAGE
The battery condition meter on the tiller console indicates
the approximate strength of your batteries. See figure 9.
To ensure the highest accuracy, the battery condition
meter should be checked while operating your PMV at full
speed on a dry, level surface. For models with the LCD
screen, please refer to the “Battery Condition Indicator”
section in II. “Your PMV.”
CHARGING YOUR BATTERIES
III. BATTERIES AND CHARGING

16 PMV Series
1 2
4 5 6
8-14H
3
Follow these easy steps to charge the batteries:
Figure 10. Battery Charging Procedures Diagram
WARNING! The LED lights on the charger indicate different charger conditions at various
times. If the LED does not indicate that charging is complete within 24 hours, unplug the
charger from the outlet and contact your Provider. Refer to the operating instructions
supplied with the charger for a complete explanation of these indicators.
NOTE: There is a charger inhibit function on your PMV. The PMV will not run and the battery condi-
tion meter will not operate while the batteries are charging.
FREQUENTLY ASKED QUESTIONS
How does the charger work?
When your PMV’s battery voltage is low, the charger works harder, sending more electrical current to the
batteries to bring up their charge. As the batteries approach a full charge, the charger sends less and less
electrical current. When the batteries are fully charged, the current sent from the charger is at nearly zero
amperage. Therefore, when the charger is plugged in, it maintains the charge on your PMV’s batteries, but
does not overcharge them. Refer to the manual supplied with the battery charger for charging instructions.
Can I use a different charger?
Chargers are selected precisely for particular applications and are especially matched to the type, size and
chemical formulation of specific batteries. For the safest and most efficient charging of your PMV’s bat-
teries we recommend only use of the charger supplied as original equipment with your product. Any
charging method resulting in batteries being charged individually is especially prohibited.
What if my PMV’s batteries won’t charge?
Ensure the red (+) and black (-) battery cables are connected properly to the battery terminals.
Ensure both ends of the charger power cord are inserted fully.
III. BATTERIES AND CHARGING

PMV Series 17
How often must I charge the batteries?
Two major factors must be considered when deciding how often to charge your PMV’s batteries:
All day PMV use on a daily basis.
Infrequent or sporadic PMV use.
With these considerations in mind, you can determine how often and for how long you should charge your
PMV’s batteries. The battery charger was designed so that it will not overcharge your PMV’s batteries.
However, you may encounter some problems if you do not charge your batteries often enough and if you
do not charge them on a regular basis. Following the guidelines below will provide safe and reliable battery
operation and charging.
If you use your PMV daily, charge its batteries as soon as you finish using it for the day. Your PMV
will be ready each morning. We recommend that you charge your PMV’s batteries for at least 8 to 14
hours after daily use. We recommend that you charge the batteries for an additional 4 hours after the
battery charger indicates that charging is complete.
If you use your PMV once a week or less, charge its batteries at least once a week for at least 24 hours.
NOTE: Keep your batteries fully charged and avoid deeply discharging your batteries. Refer to the
manual supplied with the battery charger for charging instructions. We recommend charging your
batteries for at least 48 continuous hours once per month to improve battery performance and battery
life.
How can I ensure maximum battery life?
Fully charged deep-cycle batteries provide reliable performance and extended battery life. Keep your
PMV’s batteries fully charged whenever possible. Protect your PMV and batteries from extreme heat or
cold. Batteries that are regularly and deeply discharged, infrequently charged, stored in extreme
temperatures, or stored without a full charge may be permanently damaged, causing unreliable
performance and limited service life.
NOTE: To extend battery life, always turn off PMV and remove the key when not in use.
How can I get maximum range or distance per charge?
Rarely will you have ideal driving conditions—smooth, flat, hard driving surfaces with no wind or curves.
Often, you will face hills, pavement cracks, uneven and loosely packed surfaces, curves, and wind, all of
which affect the distance or running time per battery charge. Below are a few suggestions for obtaining
the maximum range per battery charge.
Always fully charge your PMV’s batteries prior to daily use.
Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each tire.
Plan your route ahead to avoid as many hills, cracked, broken, or soft surfaces as possible.
Limit your baggage weight to essential items.
Try to maintain an even speed while your PMV is in motion.
Avoid stop-and-go driving.
We recommend charging your batteries for at least 48 continuous hours once per month to improve
battery performance and battery life.
Make sure all harness connections are secured properly.
III. BATTERIES AND CHARGING

18 PMV Series
III. BATTERIES AND CHARGING
What type and size of battery should I use?
We recommend deep-cycle batteries that are sealed and maintenance-free. Both AGM and Gel-Cell are deep-
cycle batteries that are similar in performance. Do not use wet-cell batteries, which have removable caps.
WARNING! Corrosive chemicals are contained in batteries. Use only AGM or Gel-
Cell batteries to reduce the risk of leakage or explosive conditions.
NOTE: Sealed batteries are not serviceable. Do not remove the caps.
Why do my new batteries seem weak?
Deep-cycle batteries employ a different chemical technology than that used in car batteries, nickel-
cadmium batteries (nicads), and other common battery types. Deep-cycle batteries are specifically
designed to provide power, drain down their charge, and then accept a relatively quick recharge.
We work closely with our battery manufacturer to provide batteries that best suit your PMV’s specific
electrical demands. Fresh batteries are shipped fully charged to our customers. During shipping, the batteries
may encounter temperature extremes that can influence their initial performance. Heat diminishes the charge
on the battery; cold slows the available power and extends the time needed to recharge the battery.
It may take a few days for the temperature of your PMV’s batteries to stabilize and adjust to their new
room or ambient temperature. More importantly, it takes a few charging cycles (partial draining followed
by full recharging) to establish the critical chemical balance that is essential to a deep-cycle battery’s peak
performance and long life.
Follow these steps to properly break in your PMV’s new batteries for maximum efficiency and ser-
vice life:
1. Fully recharge any new battery prior to its initial use. This charging cycle brings the battery up to about
88% of its peak performance level.
2. Operate your new PMV in familiar and safe areas. Drive slowly at first, and do not travel too far from
your home or familiar surroundings until you have become accustomed to your PMV’s controls and
have properly broken in your PMV’s batteries.
3. Fully recharge the batteries. They should be at over 90% of their peak performance level.
4. Operate your PMV again, then fully recharge the batteries again.
5. After four or five charging cycles, the batteries are able to receive a charge of 100% of their peak
performance level and are able to last for an extended period of time.
What about public transportation?
If you intend to use public transportation with your PMV, you must contact the transportation provider in
advance to determine their specific requirements.

PMV Series 19
You may need the following to change your batteries:
Metric/standard socket set and ratchet
Adjustable wrench
WARNING! Do not lift beyond your physical
capability. Ask for assistance when necessary
while disassembling or assembling your PMV.
To change batteries in your PMV:
1. Remove the seat and battery shroud. See figure 11.
a. Remove the rear shroud by removing the two (2)
thumbscrews that secure it to the PMV frame, and then
lifting the shroud straight up and off of the PMV. See
figure 11.
b. Remove the battery shroud by removing the four (4)
thumbscrews that secure it to the PMV frame, and then
lifting the shroud straight up and off of the PMV. See
figure 11.
2. Disconnect the battery tie-down strap(s).
WARNING! Do not pull on electrical harness
wires directly to detach them from the PMV.
Always grasp the connector itself when discon-
necting the harness to prevent wire damage.
IDENTIFICATION KEY
1. THUMBSCREW
2. REAR SHROUD
3. BATTERY SHROUD
1
3
1
2
How do I change a battery in my PMV?
MANDATORY! Battery posts, terminals, and related accessories contain lead
and lead compounds. Wear goggles and gloves when handling batteries and
wash hands after handling.
WARNING! Always use three batteries of the exact same type, chemistry, and
amp-hour (Ah) capacity. Refer to the specifications table in this manual and
in the manual supplied with the battery charger for recommended type and
capacities.
WARNING! Do not mix old and new batteries. Always replace all three
batteries at the same time.
WARNING! Contact your authorized Provider if you have any questions
regarding the batteries in your PMV.
WARNING! Do not replace the batteries while the PMV is occupied.
WARNING! The batteries on your PMV should only be serviced or replaced by
an authorized Provider or a qualified technician.
PROHIBITED! Keep tools and other metal objects away from battery
terminals. Contact with tools can cause electrical shock.

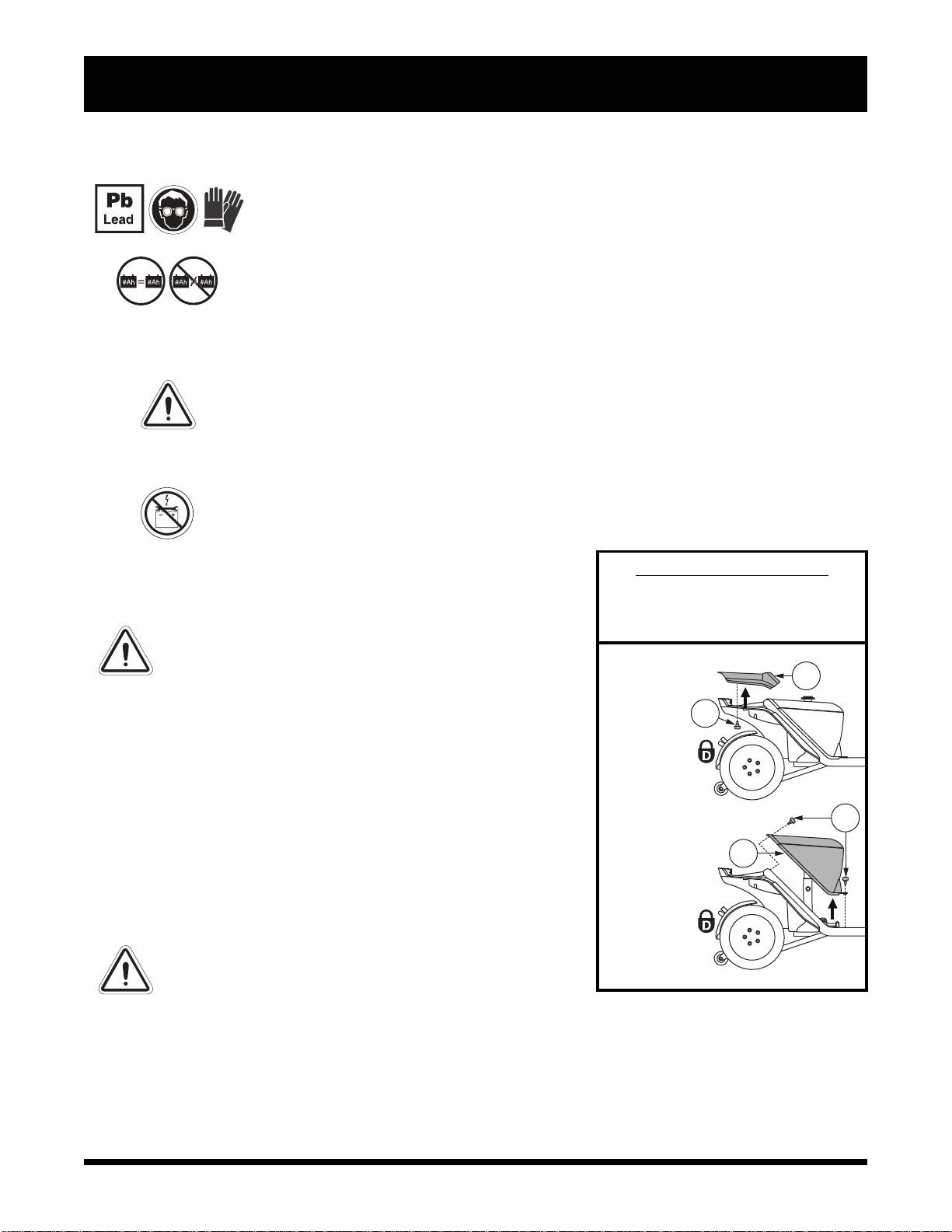

Figure 11. Battery Shroud Removal/
Installation
III. BATTERIES AND CHARGING

20 PMV Series
1
2
33
22
2
IDENTIFICATION KEY
1. MAIN CIRCUIT BREAKER
2. BATTERY TERMINALS UNDER BOOTS
3. BATTERY TIE-DOWN STRAPS
4. Disconnect the battery cables from the battery
terminals by sliding back the terminal boots and
unscrewing the nut from the bolt. See figure 13.
5. Remove the old batteries from the battery wells.
6. Place a new battery in each battery well according to
the battery wiring diagram as shown in figure 12.
NOTE: Use battery straps to secure batteries in the bat-
tery wells. Please refer to figure 14 for battery strap
installation procedures.
7. Connect the red battery cable to the positive (+)
battery terminal on each battery.
8. Connect the black battery cable to the negative (-)
battery terminal on each battery.
9. Reposition the terminal boots over the battery
terminals.
10. Reconnect the battery tie-down straps.
11. Reinstall the battery shroud, the rear shroud, and the
seat.
NOTE: If you encounter a damaged or cracked battery,
immediately enclose it in a plastic bag. Contact your
local waste disposal agency or your authorized Provider
for instructions on disposal and battery recycling,
which is our recommended course of action.
III. BATTERIES AND CHARGING
Figure 12. Battery Removal/Installation Terminals
and Connections
Figure 13. Battery Terminal Hardware
