Road Armor Sahara SA611 Series Configuration guide

Page ( 1 of 3 )
INSTALL INSTRUCTIONS
Sahara Front Bumper
Product : SA611XXX
Applicaon : 2011—2016 Ford Super Duty
WINCH
NON-WINCH

2011-2016 Ford Super Duty (V.20161219) Page ( 2 of 3 )
www.ROADARMOR.com
INSTALL INSTRUCTIONS
SAFETY FIRST!
 FOLLOW ALL INSTRUCTIONS, YOUR SAFETY AND THE SAFETY OF OTHERS IS MOST IMPORTANT.
 WEAR APPROPRIATE EYE PROTECTION AND EXERCISE CAUTION WHEN DRILLING / CUTTING
REQUIRED TOOLS RECOMMENDED TOOLS

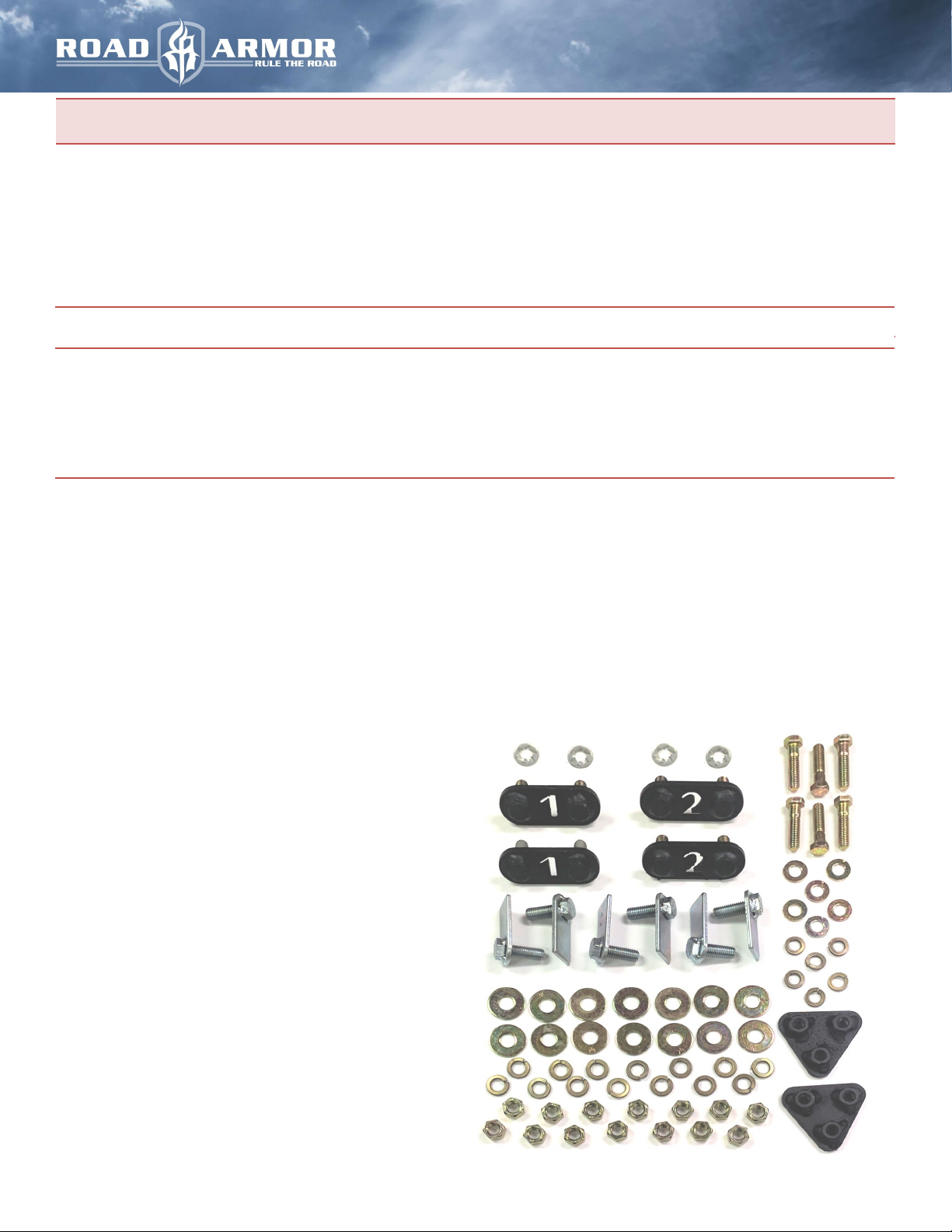

INCLUDED HARDWARE
I WARNING
Read the instrucons completely before beginning installaon. Before ghtening bolts,
drilling or cung where required, check to make sure there are no obstrucons such as
brake, fuel or electrical lines which may be damaged. Also keep in mind this is an aer-
market product and MAY require minor shimming and/or trimming, reaming, etc. for
proper t. Road Armor is not responsible for any damages to vehicle.
 IMPORTANT NOTICE
 Be sure to inspect and test t your product to ensure proper tment before having it coated, painted, bed
lined, etc.
 Road Armor will not be responsible for the cost of coang your unit if any problems with t or nish are not
noted and addressed beforehand.
SAE & METRIC Socket set and wrenches Adjustable Table Cart / Table/Pallet Li or Hoist
Screw drivers, pry tool, pick tool, pliers Impact driver
4Retainer Washers / Clips
2Double Bolt Plates (#1)
2Double Bolt Plates (#2)
61.5" Single Bolt Tabs (ZINC)
14 1/2" Flat Washers
14 1/2" Split Lock Washers
14 1/2"-13 Grade 8 Hex Nuts
67/16" Bolts
67/16” Washers
67/16” Split Lock Washers
2Trip Nut Plates (Triangle Shape)

2011-2016 Ford Super Duty (V.20161219) Page ( 3 of 3 )
www.ROADARMOR.com
INSTALL INSTRUCTIONS
x2
23
4 5
1
1Unplug bumper wiring harness from the body harness
2Remove (4) 13mm bolts each side of outer bumper support gussets
3Remove under-run guards from both frame rails (18mm bolts)
4Remove bolts from front by each tow hook to remove bumper
5Remove factory tow hooks both sides using 15mm socket
6
8
6Fit up Road Armor bracket over frame as shown,
do not ghten yet.
7Insert the #1 Double Bolt Tabs through inside top slots as indicated, then
ax to the bumper side bracket using a retainer clip, one per tab only.
Then do the same with the #2 Double Bolt Tabs in the inside boom slots.
Do no worry about the unused outer slots, they are for a dierent vehicle
applicaon.
8Fit up bumper to brackets aligning the retained bolts with bracket slots
9Once centered and sased with tment ghten everything down
FINISHED
7
#1
#2
