Roadmaster 9410 Kit Installation manual

ROADMASTER, Inc. 6110 NE 127th Ave. Vancouver, WA 98682 800-669-9690 Fax [phone] www.roadmasterinc.com
All specifications are subject to change without notice.
8 53 6 49 - 0 2 11-18
Even Brake
replacement motorhome monitor,
ICX transmitter or second vehicle kit
part numbers 9410, 9420 and 9430
Programming Instructions
Time Tested • Time Proven
CAUTION
Check the Even Brake serial number before continuing.
This kit is compatible ONLY with Even Brake systems with serial numbers up to 27,496. Check the serial number
on the bottom of the Even Brake unit before proceeding.
The Even Brake motorhome monitor and the ICX
transmitter must be programmed as a set. If a re-
placement monitor, a replacement ICX transmit-
ter or a second vehicle kit is to be installed, follow the
instructions below.
Program the motorhome monitor
Until both the motorhome monitor and the ICX trans-
mitter are programmed as a set, the motorhome monitor
will not receive the signal from the ICX transmitter. Follow
the instructions below to program the monitor.
A second 12-volt outlet (in addition to the towed ve-
hicle’s) will be necessary.
1. Before programming, first install Even Brake in the
towed vehicle — follow the installation instructions. Even
Brake must be completely installed, with both the ICX
transmitter cord and the power cord plugged in.
Read the installation instructions and the owner’s
manual before installing or operating Even Brake.
Failure to understand how to install or operate Even
Brake could result in property damage, personal in-
jury or even death.
Note: Before transferring to a second (or third, or
fourth) vehicle, it may be necessary to adjust the feet to
maintain stability. Refer to the section titled “Adjust the
feet and the seat pad” in the Even Brake owner’s manual.
continued on next page
2. Next, plug the motorhome monitor power cord into
the second 12-volt outlet. (This outlet must be receiving
power for the monitor to operate). The LCD text display
will read “Even Brake.”
3. Now, press the “Dim” button on the motorhome monitor
(Figure 1) for approximately six seconds, until the LCD
text display reads “Receiver is in Learn Mode.”

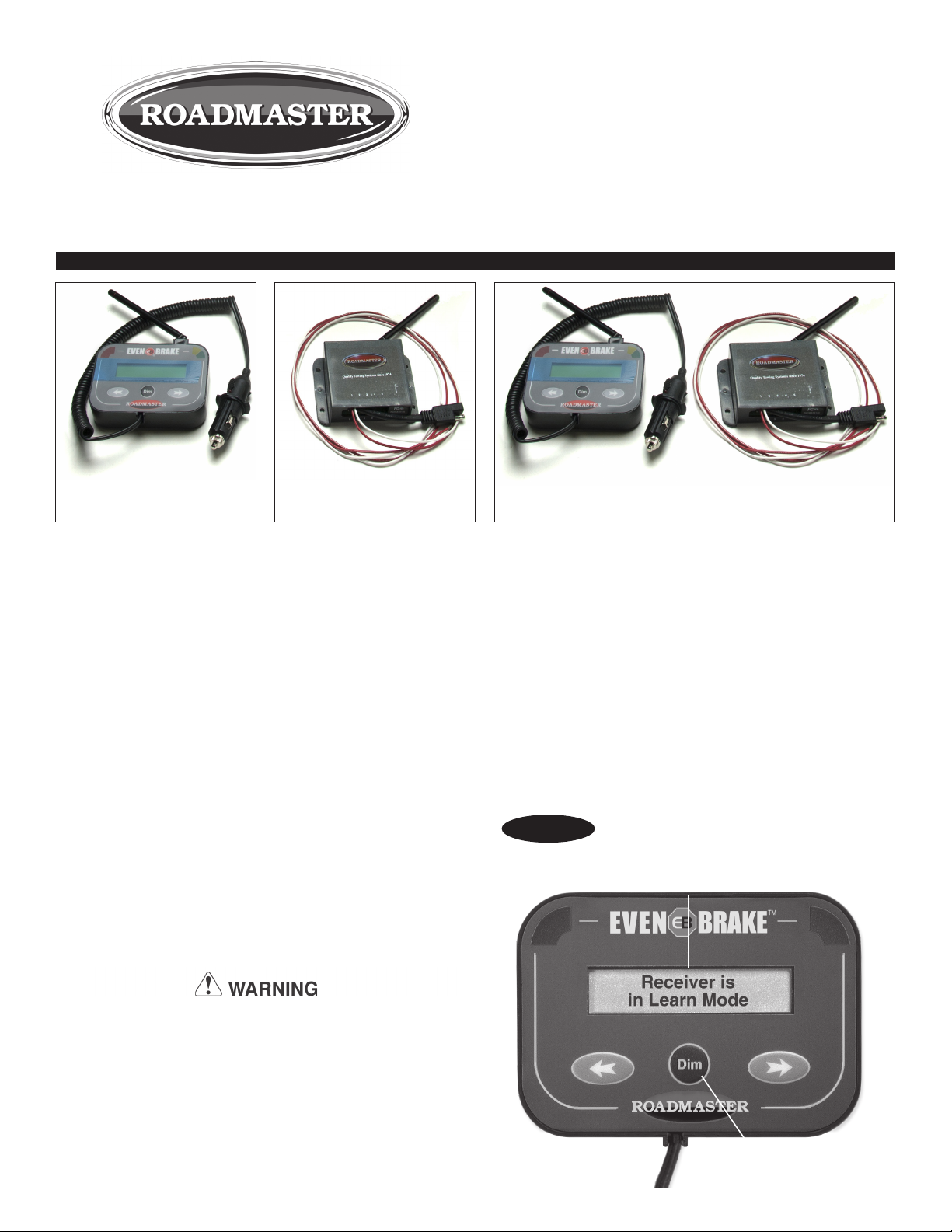

9410 Kit 9420 Kit 9430 Kit
1. Press the “Dim” button
for six seconds.


2. LCD text display reads
“Receiver is in Learn Mode.”
Figure 1

Press the
“ Tes t ”
button.

Figure 2
4. Release the “Dim” button. The LCD text display will
read “Learning ICX #1 — Advance? OK .”
If you are installing a replacement motorhome monitor
or a replacement ICX transmitter into the towed vehicle,
press the button with the right-hand arrow (>) on the mo-
torhome monitor. The LCD text display will read “Press
Even Brake Test Button.”
(If you are programming the monitor for a second
towed vehicle, press the button with the left-hand arrow
(<) on the monitor to scroll to the next message — “Learn-
ing ICX #2 — Advance? OK .” If you are programming
the monitor for a third or fourth towed vehicle, continue to press the button with the left-hand arrow (<) on the mo-
torhome monitor to scroll to the appropriate message in this series — “Learning ICX #3…” or “Learning ICX #4…”)
5. Press the green “Test” button (Figure 2) on the Even Brake touch pad control panel. Even Brake will begin a self-
diagnostic test.
(As part of the test, Even Brake will cycle the brake pedal clamp up and down three times. When the brake pedal
clamp is depressed, the LCD display at the motor-home monitor will read “Braking.”)
6. After Even Brake has completed the self-diagnostic test, the test light on the touch pad control panel will illuminate
green to indicate the system is ready, or red to indicate the system is not ready.
• If the test light is green and the LCD display reads “Test Is Good — System Ready,” the motorhome monitor is
programmed to the ICX transmitter. When the vehicle is towed, the monitor will display braking activity and system
status information from Even Brake.
The monitor can be programmed in this manner for up to four vehicles. Once programmed, the monitor will auto-
matically recognize the ICX transmitter in each vehicle without further adjustment.
• If the test light is red, check the motorhome monitor LCD text display for detailed information. You can also refer
to the “Communications” sections (“Overview” and “Reference Chart”) in the Even Brake owner’s manual.
7. Before towing, read the Even Brake installation instructions and owner’s manual. Understand how to install and
operate Even Brake, and carefully follow the instructions and safety precautions.
Read all instructions before installing or operating Even Brake. Failure to understand how to install or
operate Even Brake could result in property damage, personal injury or even death.
Program the motorhome monitor
continued from preceding page
