Westfalia Auto Code User manual

Auto Code
Getting Started Guide
This guide provides you with details of how to use your Auto Code
and how to access Saved Screens through the
Auto Code Application

Contents
Updating your Auto Code Handset...........................................................................................................2
Features:..................................................................................................................................................3
Specifications:..........................................................................................................................................3
Kit Contents..............................................................................................................................................4
Auto Code Navigation...............................................................................................................................4
Menu & Icons ...........................................................................................................................................5
Main Menu............................................................................................................................................5
System Setup Menu..............................................................................................................................6
Additional Icons used............................................................................................................................7
First Time Use Procedure.........................................................................................................................8
Web Site Registration...............................................................................................................................9
Quick Start Guide...................................................................................................................................10
Saved Screens.......................................................................................................................................11
Overview of Saved Screens................................................................................................................11
Saving screens on the Auto Code handset.........................................................................................11
Accessing screens saved on the Auto Code handset..........................................................................12
Saving multiple screens......................................................................................................................15

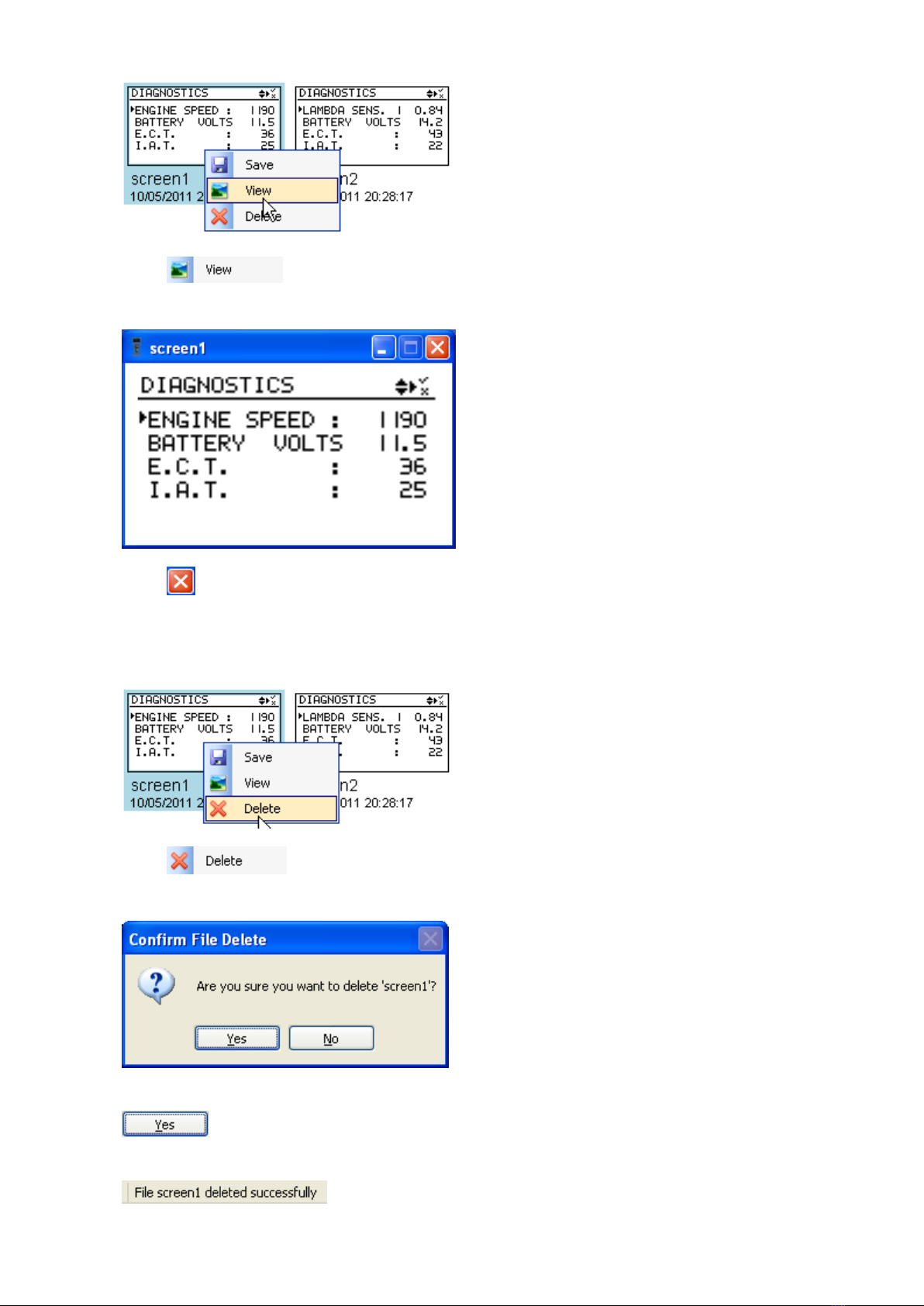

Viewing a single screen......................................................................................................................16
Deleting a single screen......................................................................................................................16

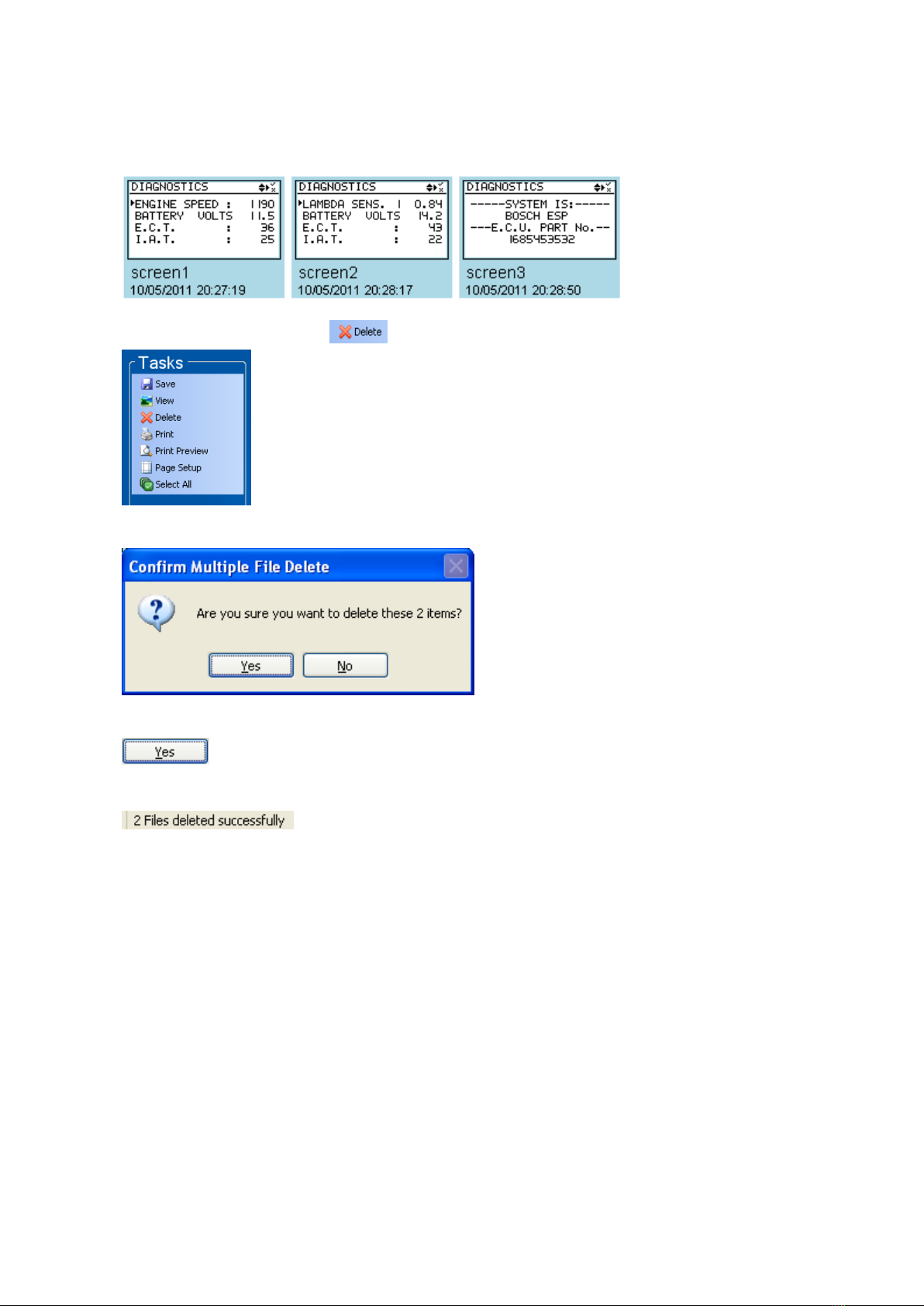

Deleting multiple screens....................................................................................................................17

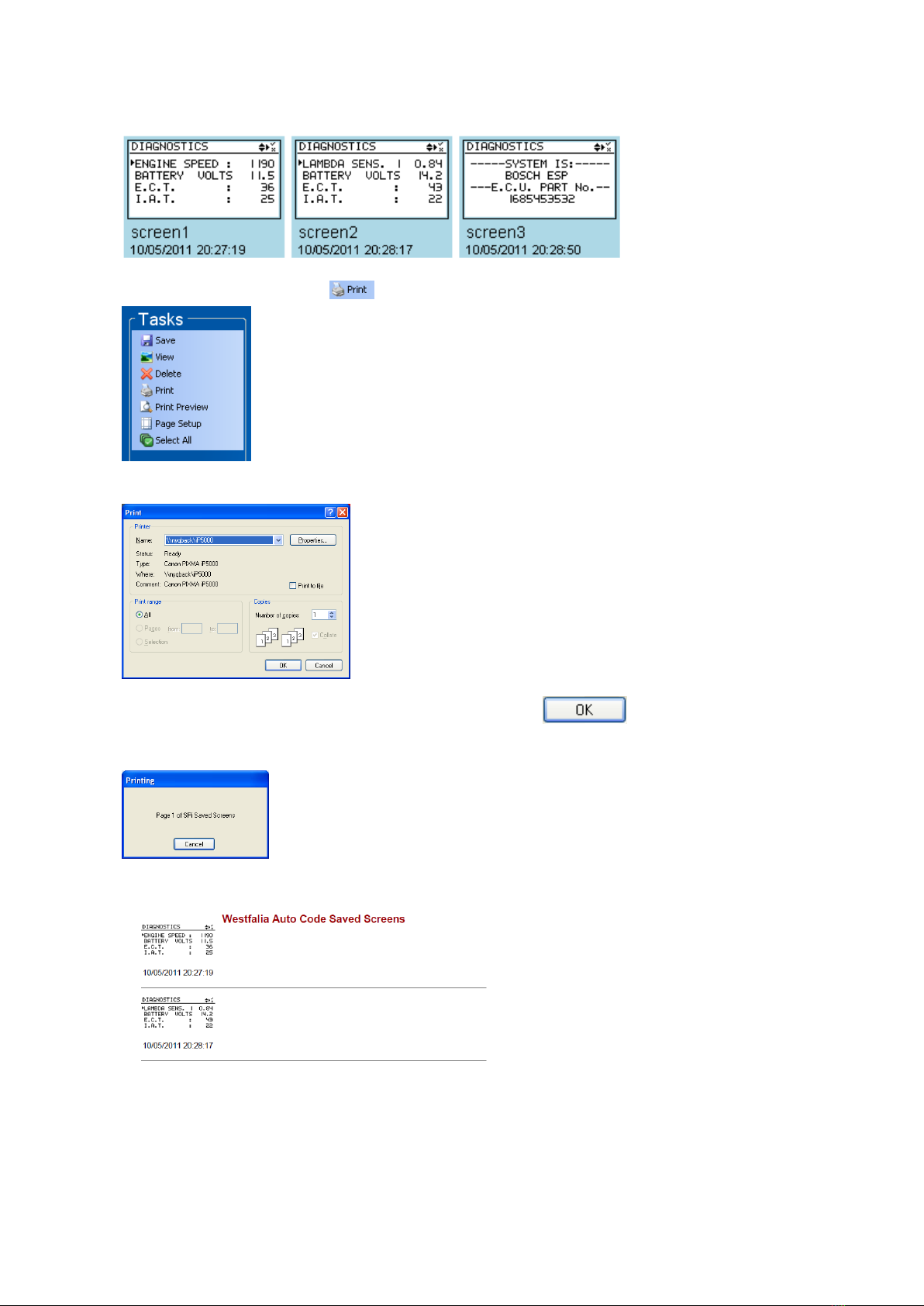

Printing screens..................................................................................................................................18
Print preview.......................................................................................................................................19
Page setup .........................................................................................................................................20

2
900001400199 –Auto Code - Towing coding solution
Please read this information carefully before using your new Auto Code Handset
Thank you for purchasing your Auto Code Towing coding solution. We at Westfalia believe that
you will have many years of successful business as a result of your investment and it is our aim
to ensure that you will remain as up-to-date as possible. Please refer to these instructions when
using the tool, if you experience any difficulty then please contact the technical help line on the
number below:
TECHNICAL HELP LINE NO. 0844 561 7861
Please register your product with Westfalia by completing the registration on-line by selecting
the following link: www.Westfalia-Autocode.co.uk which will also give you exclusive access to
the Westfalia Auto Code support area!
By registering your product you can take advantage of the following:
Westfalia product and technical updates via email
Westfalia will keep you up to date with new vehicle coverage and products, special
offers and technical information
Notification of application updates for your new Auto Code
Your new Auto Code tool is updateable. When updates are available notifications
will be sent to all registered users and a posting will be made on the Westfalia Auto
Code support website www.Westfalia-Autocode.co.uk
Updating your Auto Code Handset
When you receive notification of an update, you can launch your Westfalia Auto Code
Application and follow the instructions. Updates are easy to install and keep you up to date with
the very latest software available at all times.
We are always keen to hear back from customers regarding our products, and what you would
like to see included. If you have any specific thoughts, please feel free to contact our Technical
Support Help line on 0844 561 7861 and discuss them with the team. Also, don‟t forget to log in
to the Westfalia Auto Code Support Forum where you can share experiences and ask
questions to Westfalia technical staff and other Westfalia customers. Check the Westfalia Auto
Code Support website www.Westfalia-Autocode.co.uk for regular updates and product news.

3
Features:
Use of just one J1962 harness to cover all applications
Just 1 SD Card
Integrated Applications List
High Visibility Back Lit Display
Regular Internet updates
Soft touch case with improved ergonomic design
Easy to navigate keypad and menu systems
Full product support helpline backup
ZigBee wireless ready, enables communications with optional add-on modules
Future Proof design incorporates upgradeable communications protocol hardware allowing for cost
effective updates if and when required.
Fully updateable multiplexed vehicle communications eliminating the need for additional adaptors and
cables for 16Pin vehicles.
High performance processor and re-programmable hardware, via the internet or SD Card.
Upgradeable to additional software packages allowing the user additional areas to increase revenue
(Key Programming, Engine, ABS & Airbag Diagnostics)
Specifications:
J1850 VPW / PWM
ISO High & Low Speed
CAN
Single Wire CAN
LIN
Fault Tolerant CAN
5v Rosco Systems
Subscription Number:
Serial Number & PIN:
Vehicle Harness
Connector
USB Connector
Status LED
LCD Display
Multi-Functional
Keypad
SD Card Slot

4
Kit Contents
1. Auto Code Handset (900001400199)
2. Auto Code 16Pin Diagnostic Cable
3. PC/Auto Code USB Data Cable
4. Auto Code Applications CD
Auto Code Navigation
2. 16Pin Diagnostic
Cable
1. Auto Code Handset
4. PC/Auto Code
USB Cable
Arrows control the
cursor around the
screen
OK Button confirms
the selected option
ESC Button cancels an
operation or returns
from a menu
Button used for special
functions
5. Auto Code
Applications CD

5
Menu & Icons

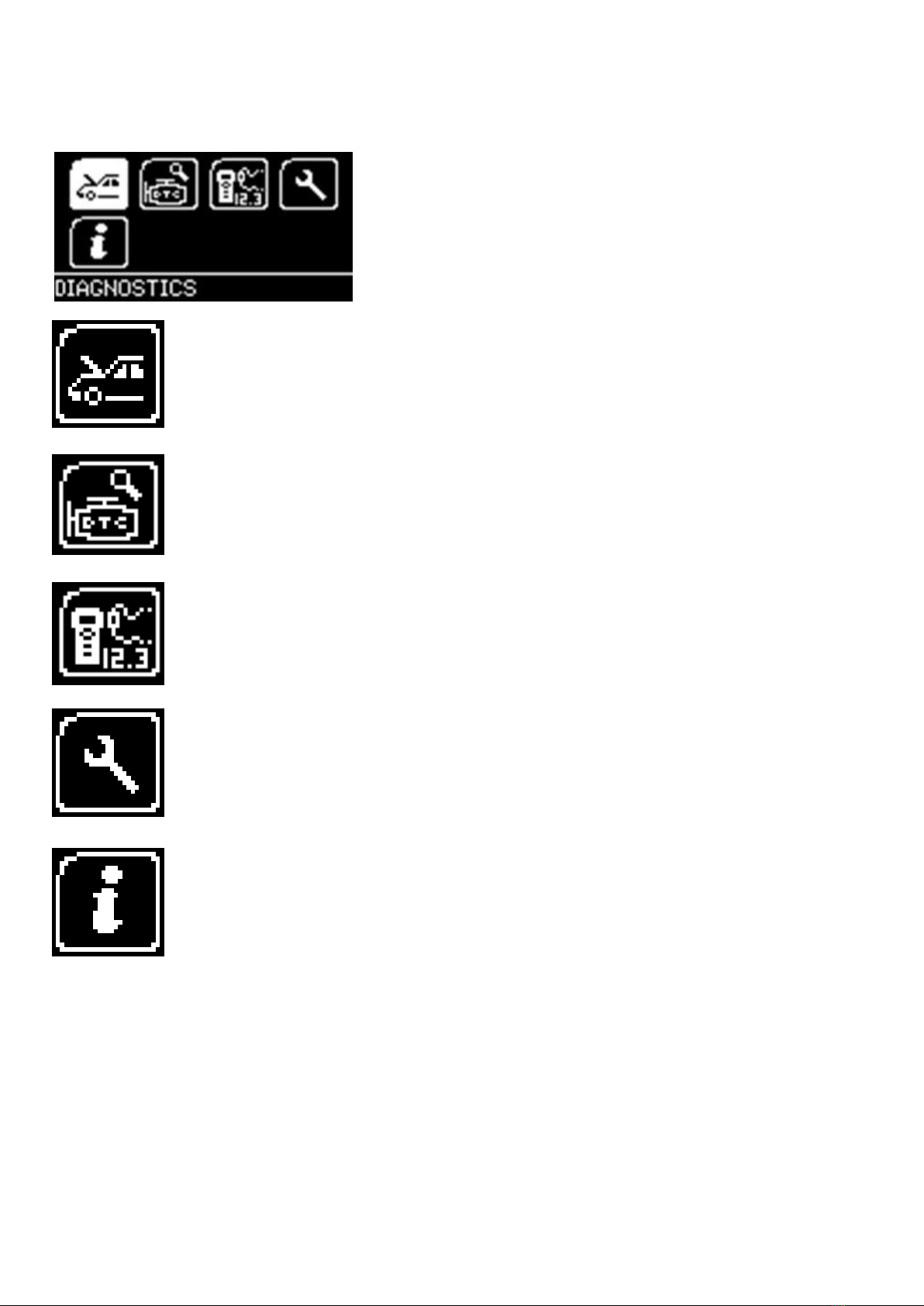

Main Menu
Manufacturer Icon –Select this to start Vehicle
Specific Serial Diagnostics
System Setup Icon –Select this to configure the
various settings of the Service Scan
Information Icon –Select this to display
software and hardware version information
D.T.C Lookup –Select this to search for error codes that potentially come up
as unknown within your system.
Wireless Devices –Select this to search and connect wireless
devices to the Service Scan

6

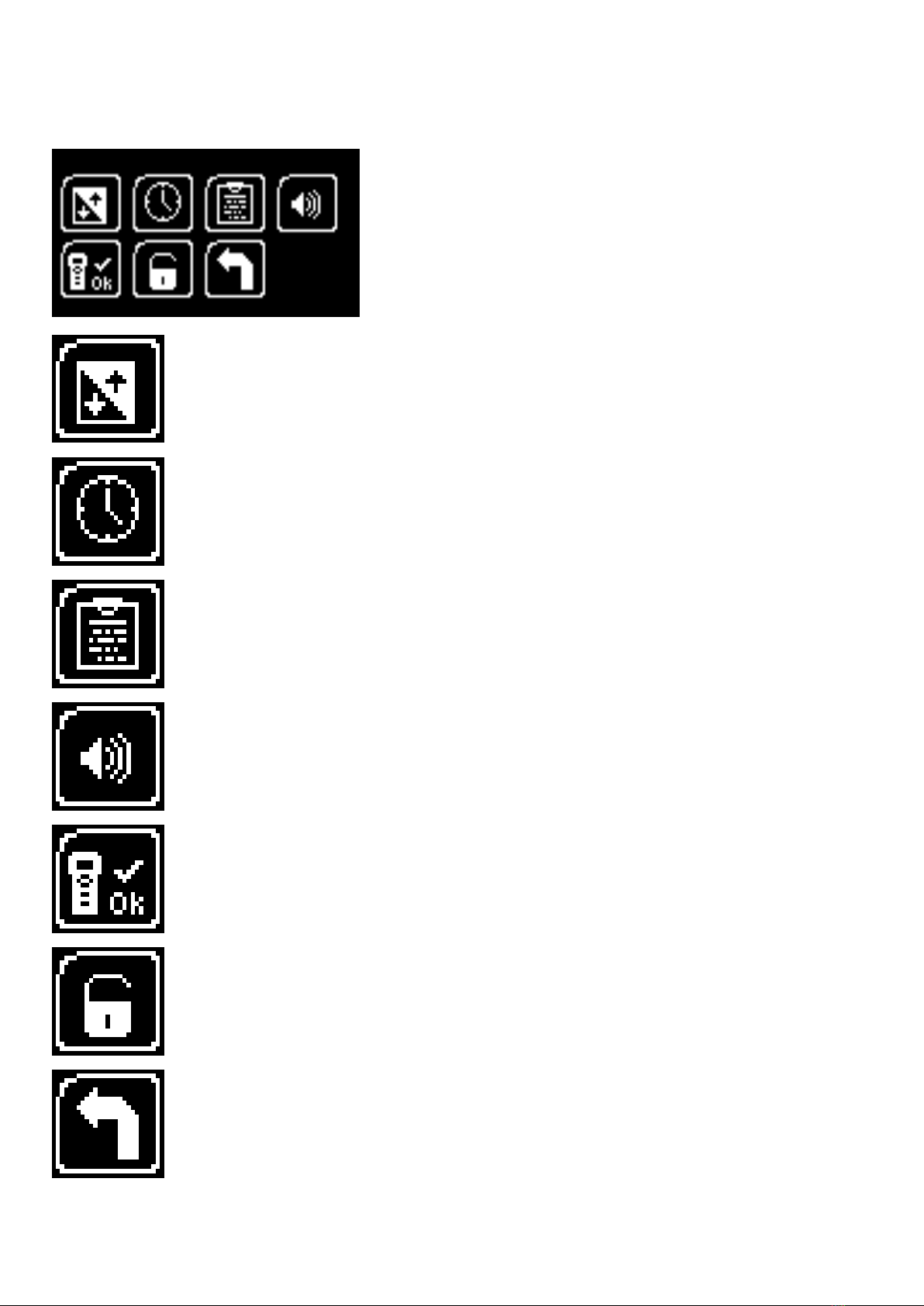

System Setup Menu
Contrast Icon –Select this to adjust the display
contrast. Use the up and down arrows to adjust
and press OK to save the settings
Clock Icon –Select this to change the date and
time of the Service Scan
Garage Information Icon –Select this to display
your user details. This is changed through the
PC Suite
Auto Code Test Icon –Select this to carry out
hardware tests on the Service if requested by
Westfalia Support
Volume Icon –Select this to adjust the sounder
volume using the left and right arrow keys and
press OK to save the setting
Application Unlock Icon –Select this to unlock
application packages available to you
depending on your subscription
„Back‟ Icon –Select this to return to the
previous menu

7
Additional Icons used
Live Data Icon –Select this to display Live Data (Components) for the
vehicle you are currently diagnosing.
Diagnostic Trouble Codes Icon –Select this to read the Diagnostic
Trouble codes on the vehicle you are currently diagnosing.
Erase Diagnostic Trouble Codes Icon –Select this to clear the
Diagnostic Trouble codes on the vehicle you are currently diagnosing.
Actuator Icon –Select this to run actuators for the vehicle you are
currently diagnosing.
Injector Programming Icon –Select this option to program injectors
to the vehicle that you are currently working on.
Program Keys Icon –Select this to program keys into the vehicle you
are currently on.
Erase Programmed Keys Icon –Select this to erase programmed
keys from the vehicle you are currently on.
Service Functions Icon –Select this to perform service related
functions on the vehicle you are currently working on.

8
First Time Use Procedure
Your Auto Code arrives to you in a locked state. This is for security and registration purposes.
To use your new Auto Code first you are required to unlock your unit. Please follow the
instructions below to obtain your “Registration Code”:
Plug the Auto Code in to the diagnostic socket on any available
car with a 16Pin socket, or if you have purchased a mains
power supply you can use this. The handset will now boot up
and you will be presented with the main menu.
Using the arrow keys, navigate to the “System Setup Icon” and
press OK to enter the “Setup” menu.
Using the arrow keys again, navigate to the “Application
Unlock” icon and press OK to enter the unlock screen.
Record the Serial Number and the Registration Code on the
screen and then call Technical Support on 0844 561 7861.
You will be asked to provide your customer details including
an up to date email address. This is important so we can keep
you informed of any software updates.
Technical Support will now use this information to generate an
“Unlock Code” and when asked please press the OK button to
proceed to the next step.

9
“ENTER”

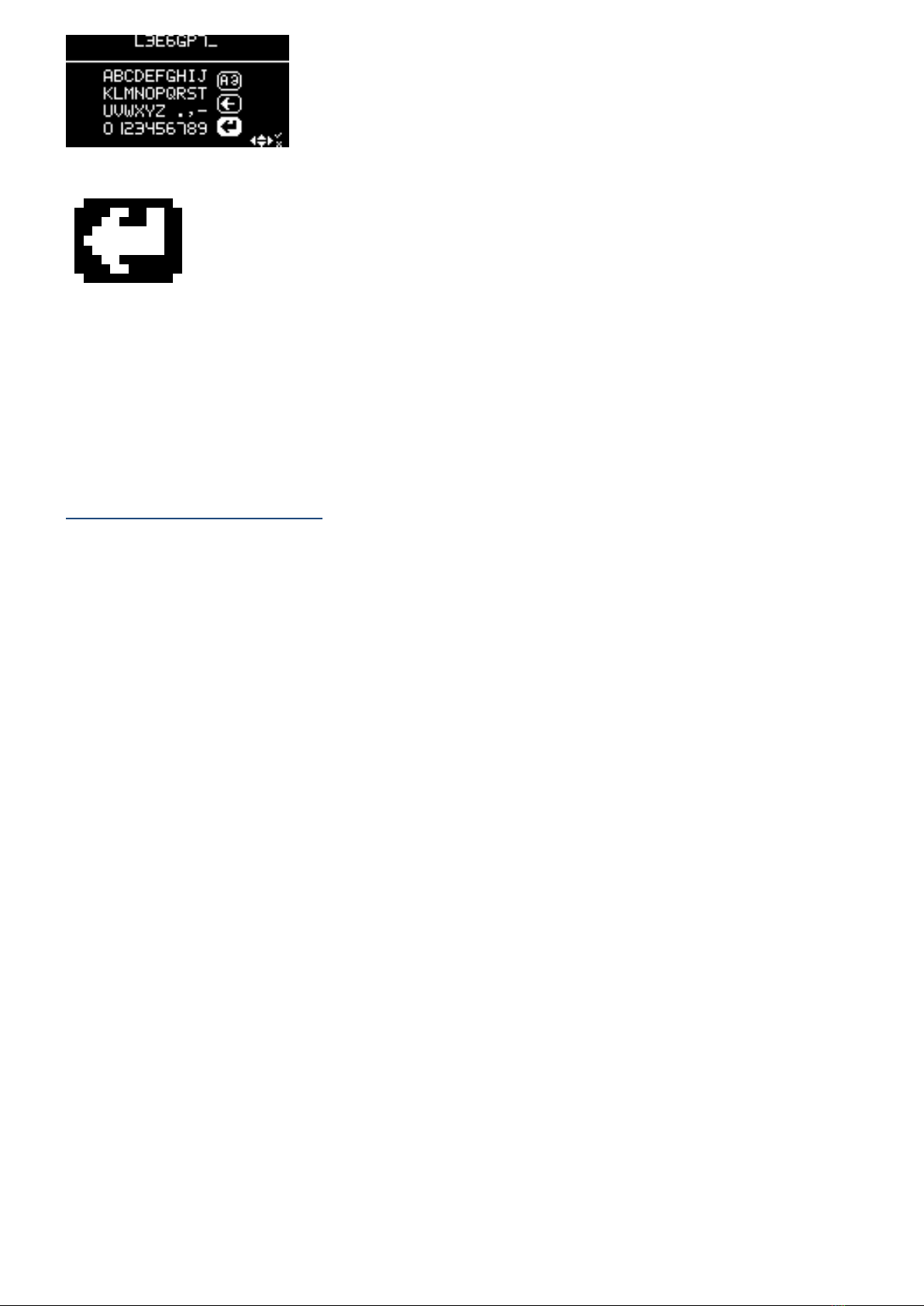

Technical Support will provide you with the unlock code.
Using the arrows to navigate around the on screen keyboard,
enter the code provided by Customer Services. Mistakes can
be deleted by using the ESC key. When you have entered
your code you can confirm by navigating to the “Enter” button
on the screen and pressing OK on the keypad.
Check your code if you have any problems and start again by
disconnecting and re-connecting your Auto Code.
Your Auto Code is now ready for use!
Web Site Registration
It is important that you take the time to register on the Westfalia Auto Code Support web site at
www.Westfalia-Autocode.co.uk . To do this click on the “Register” text at the top right hand of
the screen and follow the instructions. Make a note of your ……….
Username _______________ and Password ( or reminder) ______________ here.
When you then “Log In” to the site you can keep an eye on the Auto Code updates page as well
as the forum for handy hints and tips as well as general automotive diagnostics chat with other
Westfalia Auto Code Customers.

10
Quick Start Guide
Now you are ready to start using the Auto Code to program towbar modules on the range of cars
covered. Remember you can look at the complete Applications List on the CD provided, simply
put the disk in to your laptop or desktop PC and you will be presented with a menu to choose
from the Application Guides. For more up to date versions please check the website.
Connect the Auto Code to a vehicle using the required
harness. The Auto Code will then power up and take you to the
Main Menu screen.
Using the keypad, navigate to the Manufacturer Icon and press
OK.
Using the keypad to navigate up and down the menus you will
be given the following options:
Select the Manufacturer
Select the Model
Select the Type of System ( ABS, AirBag, Engine etc..)
Select the Size of the engine
Select the Fuel type
Select the Year of the vehicle
Select the Variant of the vehicle
Select the Engine Code
Finally you will be shown the System or Systems fitted to that
choice of vehicle
The Auto Code will now load the correct software and
establish communications with the vehicle!
Remember you can always call our Product Support
Helpline on 0844 561 7861 for further assistance.

11
Saved Screens
Overview of Saved Screens

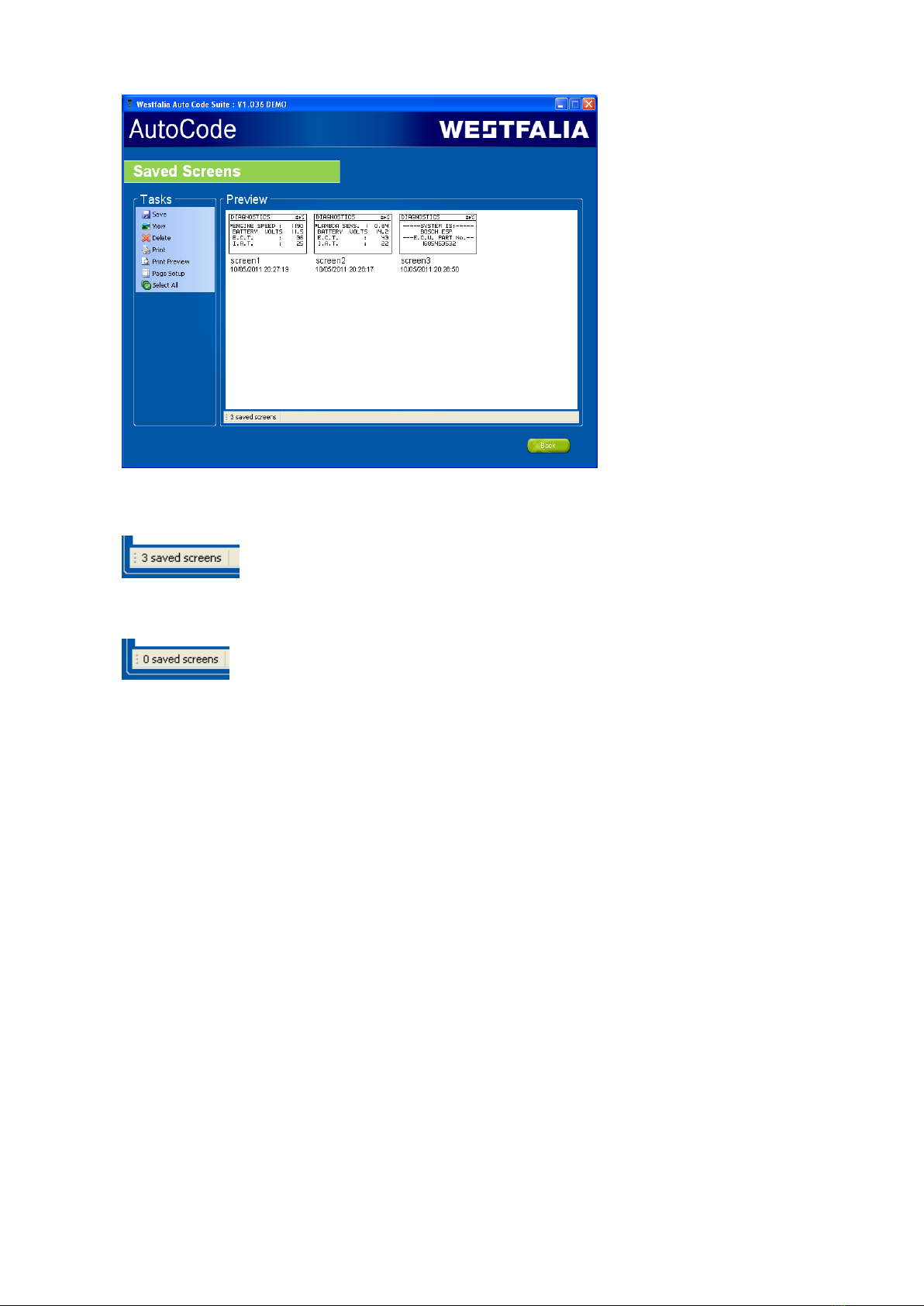

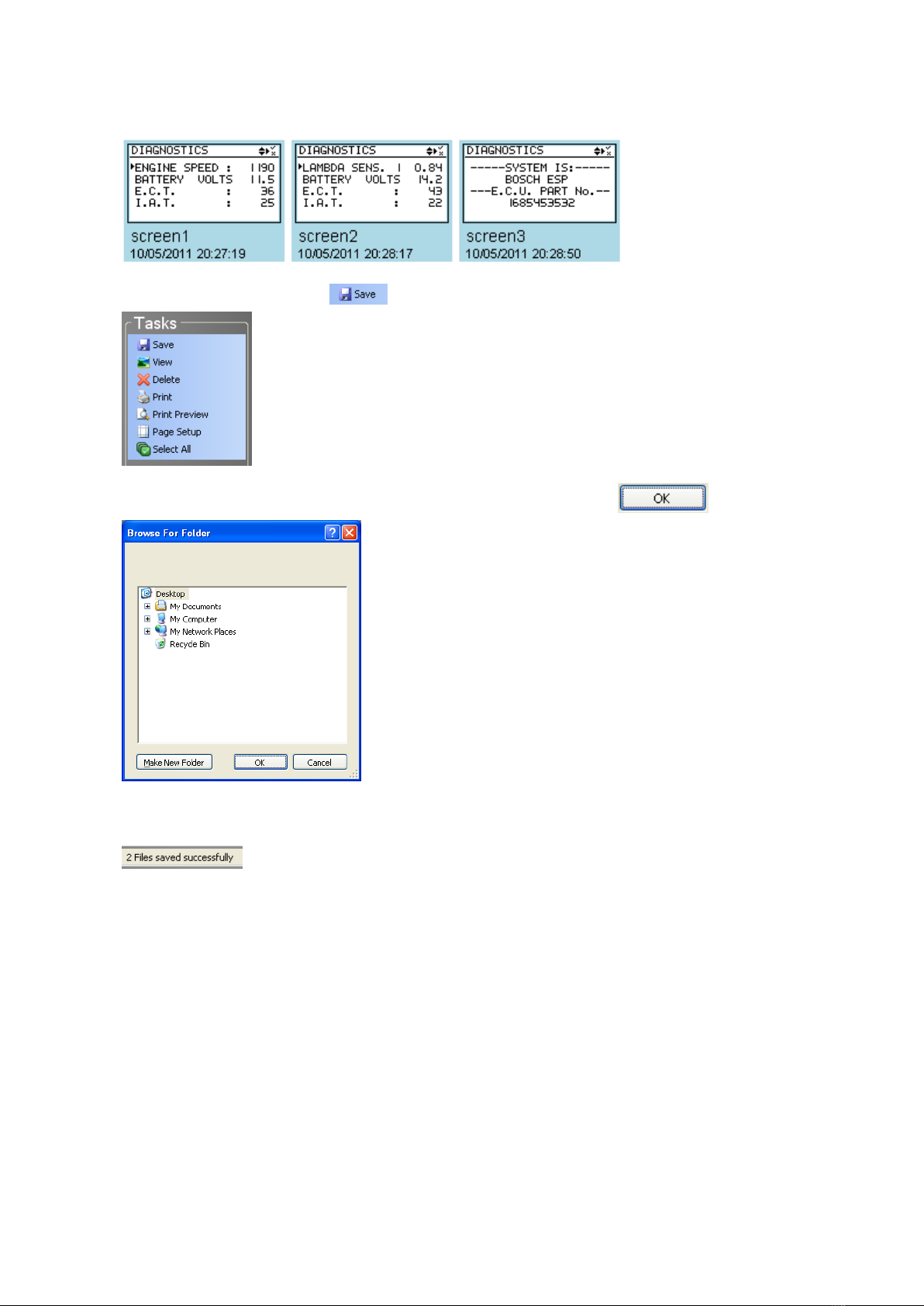

The saved screens functionality allows you to record an image of what is displayed on the Auto
Code handset for viewing later. This can be used to record fault codes and descriptions or
component readings without needing to write them down.
Screens that you save using the Auto Code are stored on the SD memory card and so are
retained after the Auto Code is powered off. You can save as many screens as there is space
for on the SD memory card (several hundred can be stored on the 2GB SD memory card
provided as standard with the Auto Code).
Once screens have been saved on the Auto Code they can be transferred to your PC
(computer) for viewing using the Auto Code Suite PC software (available from www.Westfalia-
Autocode.co.uk). These screens can then be saved on to your computer‟s hard drive as
standard image files or printed out.
Saved screens remain stored on the SD memory card until they are deleted through the Auto
Code Suite PC software.
Saving screens on the Auto Code handset
1. When the Auto Code handset is displaying a screen you wish to save press the Special
Function button (located below the ESC key on the handset keypad).
2. The Auto Code will then briefly display
SAVING SCREEN
in the top left corner of the screen
3. If the screen has saved successfully the message
SAVING SCREEN
will disappear and a short double beep will be audible.
4. If the screen does not save successfully a message
FAILED TO SAVE SCREEN
will be displayed. If this occurs then it could be that the SD memory card is full.

12
Accessing screens saved on the Auto Code handset
1. Start the Auto Code PC Application using either the Westfalia Auto Code Suite icon on
your desktop or on your start menu (Start > All Programs > Westfalia > Auto Code Suite).
2. From the main screen click:
3. Connect your Auto Code as shown and click

13
4. The screen below will be displayed and any screens saved on the Auto Code will be
loaded one at a time into the Preview area:
5. Once all the screens have loaded the status bar will display the number of screens
loaded:
6. If there are no screens saved on the Auto Code handset the Preview area will remain
blank and the status bar will display:

14
Saving a single screen
1. Right click on the screen you wish to save, a menu will appear:
2. Click
3. Choose a location and filename for the screen and click
4. Screen images can be saved in four possible formats by changing the „Save as type‟
setting:
Bitmap (*.bmp)
GIF (*.gif)
JPEG (*.jpg;*.jpeg)
PNG (*.png)

15
Saving multiple screens
1. Select the screens that you wish to save by clicking on them, those that are selected will
be highlighted:
2. In the „Tasks‟ menu click
3. Select a folder in which to save the screen images and click
4. The status bar text will then indicate how many of the selected screens were successfully
saved:

16
Viewing a single screen
1. Right click on the screen you wish to view, a menu will appear:
2. Click
3. A new window will appear showing you a larger version of the screen image:
4. Click when you have finished viewing the screen to close the window.
Deleting a single screen
1. Right click on the screen you wish to view, a menu will appear:
2. Click
3. You will be asked to confirm you wish to delete the screen:
4. If you are certain you wish to delete this screen from the Auto Code handset click
5. If the screen deleted successfully the status bar text will briefly confirm this:

17
6. The Preview area will then be updated to show the remaining saved screens.
Deleting multiple screens
1. Select the screens that you wish to delete by clicking on them, those that are selected
will be highlighted:
2. In the „Tasks‟ menu click
3. You will be asked to confirm you wish to delete the selected screens:
4. If you are certain you wish to delete these screens from the Auto Code handset click
5. If the screens deleted successfully the status bar text will confirm this:
6. The Preview area will then be updated to show the remaining saved screens.

18
Printing screens
1. Select the screens that you wish to print by clicking on them, those that are selected will
be highlighted:
2. In the „Tasks‟ menu click
3. The standard windows Print dialog will appear:
4. Select the printer and options you desire then click
5. The printing progress will then be displayed and the selected screens printed:
6. The page(s) printed should resemble this example:
