ROADWORX Wind Up 100-4 User manual

Wind Up 100-4
Lighting Stand
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
22.06.2022, ID: 504973

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 11
4 Operating.................................................................................................................................................... 12
5 Technical specications....................................................................................................................... 19
6 EU declaration of conformity............................................................................................................ 20
7 Protecting the environment.............................................................................................................. 22
Table of contents
Wind Up 100-4 3
Lighting Stand

1 General information
This manual contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the manual for future reference.
Make sure that it is available to all those using the product. If you sell the unit, please make
sure that the buyer also receives this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
4Wind Up 100-4
Lighting Stand

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Wind Up 100-4 5
Lighting Stand

1.2 Notational conventions
This manual uses the following notational conventions:
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
Instructions
General information
6Wind Up 100-4
Lighting Stand

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
Wind Up 100-4 7
Lighting Stand

Warning signs Type of danger
Warning – danger zone.
General information
8Wind Up 100-4
Lighting Stand

2 Safety instructions
This light stand is intended to be used for the stable mounting and height-adjustable posi‐
tioning of spotlights. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from improper
use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces
and choke! Never let children play unattended with the product.
Intended use
Safety instructions
Wind Up 100-4 9
Lighting Stand

CAUTION!
Danger of tipping when transported under load
If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage.
Remove the installed device before transporting the stand.
CAUTION!
Danger of tipping on unsuitable surfaces
When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install
the stand only on even and solid surfaces.
CAUTION!
Danger of tipping due to overload
In case of overload, the stand may tip over and cause injuries and property damage. Never exceed the maximum load capacity
specied for the stand.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
10 Wind Up 100-4
Lighting Stand

3 Features
Special characteristics:
nCrank tripod with four feet for more stability
nTwo telescopes, extendable by means of a crank
n3/8" mount (suitable for holding speakers with a 35 mm ange)
nMaximum weight-bearing capacity: 100 kg
nMaximum height: 4 m
nCross beam included in delivery
noptional truss adapter: Item no. 337351
Features
Wind Up 100-4 11
Lighting Stand

4 Operating
Unpack and check carefully there is no transportation damage before using the product. Keep
the equipment packaging. To fully protect the product against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
CAUTION!
Danger of tipping when transported under load
If the stand is moved without having removed the installed device, the stand may
tip over and cause injuries and property damage.
Remove the installed device before transporting the stand.
Operating
12 Wind Up 100-4
Lighting Stand

CAUTION!
Danger of tipping on unsuitable surfaces
When the speaker stand is installed on soft or uneven ground, the stand may tip
over and cause injuries and property damage.
Install the stand only on even and solid surfaces.
CAUTION!
Danger of tipping due to overload
In case of overload, the stand may tip over and cause injuries and property
damage.
Never exceed the maximum load capacity specied for the stand.
Operating
Wind Up 100-4 13
Lighting Stand

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your surface and after some time cause permanent dark
stains.
In case of doubt, do not put the rubber feet directly on the surface and use a suit‐
able underlay if necessary, i.e. felt pads or similar.
Comply with regulations
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
Operating
14 Wind Up 100-4
Lighting Stand

*
'
)
(
$
&
%
#
+
,

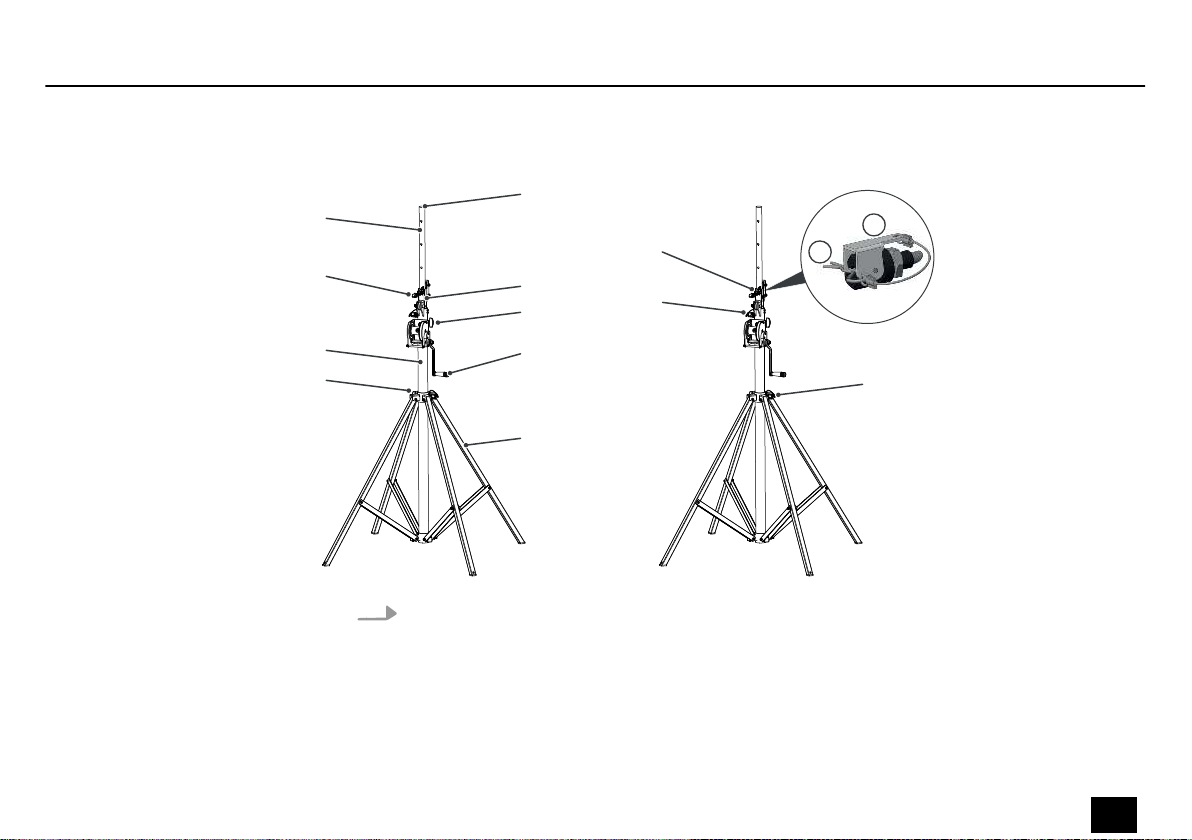

-A
B
1. Loosen the safety screw [1] on the lower slide and unfold the tripod feet [2] until the
safety bolt [10] engages in the desired position in the main tube [3].
Setup
Operating
Wind Up 100-4 15
Lighting Stand

2. Fix the position with the safety screw [1] on the lower slide to which the four cross
beams are attached.
3. Flange the cross beam onto the mount for the cross beam at the tripod top end [9] and
tighten the securing screw of the mount. Attach the spotlights. Pay attention to an even
weight distribution to reach a centric load of the stand. The maximum load capacity of
85 kg in total must not be exceeded.
4. Loosen the locking screw [4] on the tube clamp of the square tube [7].
5. Crank the upper extension tube [5] clockwise with the crank [8] until the safety bolt [12]
engages in the desired position in the upper extension tube [5]. Fix the position of the
extension tube with the safety screw [4] on the tube clamp of the square tube [7].
6. Loosen the locking screw [6] on the tube clamp of the main tube [3].
7. Crank out the square tube [7] clockwise with the crank [8] until the safety bolt [11]
engages in the desired position in the square tube [7]. Fix the position of the square tube
with the safety screw [6] on the tube clamp of the main tube [3].
8. Turn the crank [8] slightly counter-clockwise to avoid over-tensioning the wire rope.
Operating
16 Wind Up 100-4
Lighting Stand

1. Pull out the spring split pin [A] of the safety bolt [11] and fold the xing [B] at the max‐
imum angle in the opposite direction to pull the safety bolt out of the square tube [7].
2. Loosen the safety screw [6] on the tube clamp of the main tube [3] and crank the square
tube [7] all the way down with the crank [8]. Fix the position of the square tube with the
safety screw [6].
3. Pull out the spring split pin [A] of the safety bolt [12] and fold the xing [B] at the max‐
imum angle in the opposite direction to pull the safety bolt out of the upper extension
tube [5].
4. Loosen the safety screw [4] on the tube clamp of the square tube [7] and crank the upper
extension tube [5] all the way down with the crank [8]. Fix the position of the extension
tube with the safety screw [4].
5. Remove the spotlights. During the assembly, pay attention to an even weight distribu‐
tion to reach a centric load of the tripod.
6. Loosen the safety screw of the mounting and detach the cross beam.
7. Pull out the spring split pin [A] of the safety bolt [10] and fold the xing [B] at the max‐
imum angle in the opposite direction to pull the safety bolt out of the main tube [3].
8. Loosen the safety screw [1] on the lower slide, to which the four cross struts are
attached, and fold up the feet of the tripod [2].
Dismounting
Operating
Wind Up 100-4 17
Lighting Stand

9. Pack all parts of the system in their original package, as possible, and store the package
in a dry place protected against moisture.
Operating
18 Wind Up 100-4
Lighting Stand

5 Technical specications
Height, max. 4 m
Holder type 3/8" mount; ange, Æ35 mm
Tripod space, max. 1.6 m
Load, max. (with centric load) 100 kg
Transport size 1.75 m
Weight 25 kg
Dimensions cross beam 1300 mm × 35 mm × 35 mm
Technical specications
Wind Up 100-4 19
Lighting Stand

6 EU declaration of conformity
Name and address of
manufacturer / EU-AR
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
THIS DECLARATION OF CONFORMITY IS ISSUED UNDER THE SOLE RESPONSIBILITY OF:
Name and address of
manufacturer
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Product identication 504973 Roadworx Win Up 100-4
THE PRODUCTS MENTIONED IN THIS DECLARATION ARE IN CONFORMITY WITH:
EU Community Legislation Machinery Directive 2006/42/EC
EU declaration of conformity
