Robam KQWS-3150-R313 User manual

User Manual
KQWS-3150-R313
Electric Oven
If the manual is lost, you can send e-mail to [email protected], request for an electronic manual.
Cod:0203070203
Cod:0040305465

Contents
1
4
6
7
15
13
16
........................................................................................
......................................................................................
.................................................................................
...................................................................................
...........................................................
................................................................
.................................... ...................................................
Safety Precautions
Product Introduction
Installation Instructions
Operation Instructions
Cleaning and Maintenance
Operation in case of emergency
Backing in the oven
22
................................. ...................................................
Technical information
..............

1
Electric Oven
To be
grounded
Electric
shock danger
In order to avoid any harm or property damage to the users and other persons, following distinctions and signs
are specially given.
All these are the important notices concerned with safety, so please abide by these notices strictly. And, please
use this product correctly on the premise that all the contents herein are understood fully.
Distinctions on contents made in accordance with extent of harm and damage
Danger
Notice
Warning
Personal risk, serious injury or a fire may be very likely caused if this sign is neglected
and the product is operated improperly .
Personal risk, serious injury or a fire may be caused if this sign is neglected and the
product is operated improperly.
Personal injury or damage to objects may be caused if this sign is neglected and the
product is operated improperly.
Signs of the behaviors that shall be paid attention to or that shall be prohibited
Warning
Please use this product strictly in accordance with contents of this Operation Manual. Our
company is not reliable for any property loss or personal injury caused by improper using of
this product.
Prohibited No touch No remove Abide by
strictly
No open
flames
Safety Precautions
Hot surface
Abide by
strictly
Prohibited
Hot surface
Be sure not to use a power socket which is loose or contacted poorly,
otherwise such dangers as electric shock, short out and fire may be
caused.
Before disconnecting plug from the socket, you should grip the end of the
plug. Be sure not to disconnect the plug with power wire in your hand,
otherwise such dangers as electric shock, short out and fire may be
caused.
The complete appliance shall be kept far away from heat sources and
inflammables (e.g. gas and alcohol).
In order to avoid the electric shock that may occur, please ensure that the
appliance has been disconnected from power before replacement of a
bulb.
During use the appliance becomes hot. Care should be taken to avoid
touching heating elements inside the oven. when taking out foods after
using, make sure to wear the high-temperature resistant protective gloves
properly in order to avoid burns.
Abide by
strictly
Abide by
strictly
Danger

2
Electric Oven
If the appliance functions improperly, make sure to disconnect it from the
power and stop using immediately. And, be sure not to touch the
appliance and that it is repaired by a professional.
Make sure the power cord is not damaged. When using the power cord,
make sure that the cord is not bent, stretched, twisted or knotted. And, Be
sure not to press or attack the power cord with weight.
Use a separate 16A or higher socket, and be sure not to connect several
appliances to the same power socket at the same time, and make sure
that the socket is grounded safely and effectively.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
To be
grounded
Abide by
strictly
Abide by
strictly
Abide by
strictly
Abide by
strictly
Abide by
strictly
Abide by
strictly
Abide by
strictly
Turn off the appliance immediately after using, otherwise the residual fat
may cause a fire; in case the appliance is not to be used for an extended
period of time, please cut off the power.
You should cut off the power before cleaning of the appliance and use a
neutral detergent to clean it. Moreover, make sure to clean it with a soft
piece of cloth, in order to prevent its surface from being scratched.
Make sure to disconnect the electric oven from power before removing
the fan guard. After cleaning, reset the guard properly to the original
position in accordance with the Operation Manual.
Hot air may come out when door of the appliance is opened after using,
so please be sure not to stand too close to the appliance to avoid burns
caused by the hot air.
WARNING: Accessible parts may become hot during use. Young children
should be kept away.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass, since they can scratch the surface, which may result in
shattering of the glass.
Prohibited
WARNING: Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
Abide by
strictly
Abide by
strictly
Warning

Never place any flammable substance (e.g. smoke agent) in or under the
appliance; when using the appliance, be sure not to spray any smoke
agent around it and that the appliance is always supervised.
Be sure not to operate the appliance when any of your hand or foot is wet
or your feet are bare.
Abide by
strictly
Prohibited
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Prohibited
In order to prevent a fire, the appliance should be kept clean and the air
duct should be kept smooth.
Abide by
strictly
Be sure not to use a steam cleaner.
The internal grills and ovenware, etc. should be placed properly during
using.
The appliance cannot be used as an indoor heater.
If the appliance functions abnormally, please disconnect the power plug
and power it on again.
Prohibited
Prohibited
Use a temperature sensor recommended for this electric oven.
Abide by
strictly
Abide by
strictly
Abide by
strictly
3
Electric Oven
Warning
Notice

4
Product Introduction
Model
Net Weight
Outside Dimension
W H D(mm)× ×
Capacity
Rated Power
Rated Frequecy
Rated Voltage
KQWS-3150-R313
220-240V～
50Hz
3150W
60L
30kg
595×595×531
Adopts the intelligent one-touch menu for easy operation and better baking taste;
The built-in full-automatic precise temperature probe adopts the dual temperature control technology to
improve the food baking quality;
The high-temperature enamel inner container is durable with flip heating pipes, easy to remove & clean;
Specially made hinge integrated with the multi-layer tempered glass door, easy and flexible to open and
close;
Multi-function baking selections to meet the diverse baking demands and make it easy for operation;
Specially designed professional baking modes with upper and lower dual temperature controls, to meet
diverse baking tastes;
Good quality baking heaters enables quick heat-up and efficient heating to extend the service life;
Adopts the energy efficient, environmental & high-temperature resistant cotton to secure the good heat
preservation performance and thus save more energy during baking.
Packaging of Electric Oven
Please dispose these packaging materials in an environment-friendly way, in order to keep a good environment.
Be sure not to allow children to play with the packaging materials (e.g. plastic film and carton box, etc.),
otherwise it would lead to suffocation accident. So, please keep children away from the packaging materials.
Important Information
Dear users:
We take this opportunity to express our heartfelt thanks to you for your choosing of ROBAM brand electric oven
series products. We especially recommend that you shall read this Manual carefully before installing and using
this product and keep it properly for later reference.
Our company is a professional corporation specializing in production of household appliances and kitchen
wares such as extractor hoods, electric ovens, gas cookers and disinfector cabinets in China. The electric oven
of ROBAM brand adopts advanced design concept and optimized molding and focuses on matching with
cabinet in the aspect of overall design.
Product Characteristics
Technical Parameters of the Product
Electric Oven

5
（The picture is for reference only，specifications are subject to the physical product）
Product Structure
Electric Oven
4
5
temperature
1 Pcs
1 Pcs
1
2
3
4
S/N Name
Mounting Screw
Quantity
List of Accessories
Wire Rack
Ovenware
User Manual
1 Pcs
4 Pcs

6
Installation Instructions

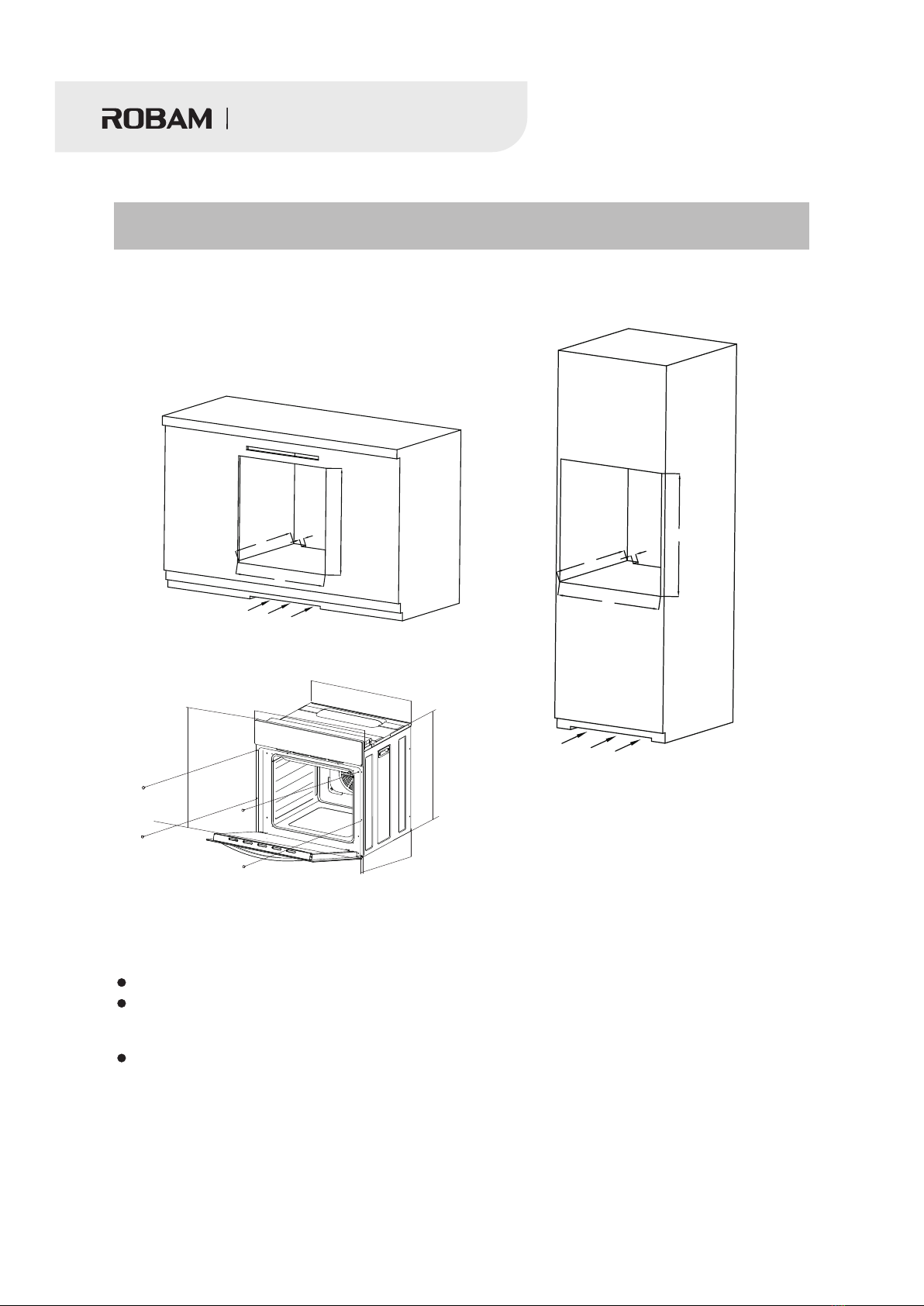

Full insertion hole diagram
Installation Requirements:
The surface where the electric oven is to be placed on should be flat and the air around the electric oven
mounted in the cabinet shall be ventilated well as much as possible. It is recommended that the clamping
plates and fixed plates shall adopt incombustible thermal insulation material.
For easy connection and disconnection of power cord, be sure to disconnect the power supply at any time
after the installation of the oven. a separate 16A or higher socket shall be used, be sure not to connect several
appliances to the same power socket at the same time, and that the socket is grounded safely and effectively.
In case there is any other electrical appliances around, please keep a 100mm or larger mounting distance.
The oven must not be installed behind a decorative door in order to avoid overheating.
Electric Oven
Follow below illustration to set the square hole at the setting position of the cabinet. Insert the electric oven
steadily into the square hole in place. Do not place the oven inclined.
559
554
595
21.5 512
595
564
600
560
40
564
600
560 40

7
Operation Instructions
First use of the electric oven will generate the abnormal odor, due to protective coating on the heating
components at the storage and the coating evaporated after heating up. Thus keep the room in good
ventilation condition and select the fan baking function. Set the max. temperature & working time and heat
up without food to evaporate the coating odor. When operation completes, open the oven door to cool down
so as to secure the good taste for future baking.
After the unit is powered off, if the temperature of the internal components is still too high, the fan will stop
operation after some time, which is helpful to extend the service life of the unit.
Tips: when the electric oven is in use, it is recommended to switch on the the extractor hood.
Introduction to Control Panel
Operation Instructions
Using Methods
Electric Oven
To decrease the numbers
on the digital display
To increase the numbers
on the digital display
Display field
Seconds Icon
MFunction
Timer
Cooking time
Current time
End of cooking time
D
E
F
G
Button1 Button3
M
Button2
D
E
F
G

8
Electric Oven

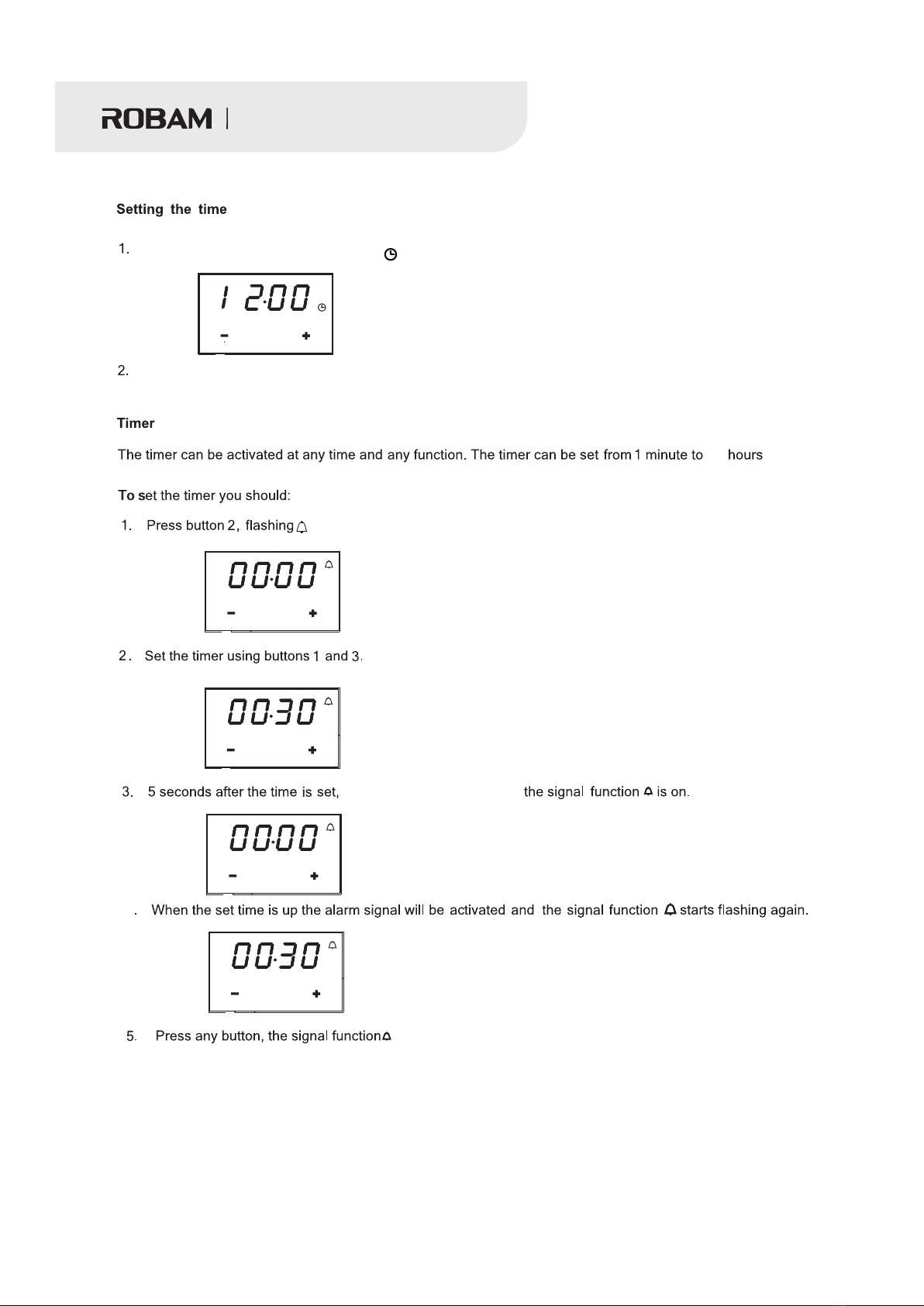

At power on, “12.00",
and flashes.
displayed
.Enter the timer setting.
or directly press the button 2,
The current time can be set with button 1 and 3, 5 secondsafter the time has been set ,the new data
will be saved .
23 and 59 minutes.
your setting is saved.
and alarm signal will go off. Or signal
will be turned off
automatically after 2 minutes.
the alarm
4
1 2 3
M
M
1 2 3
M
1 2 3
M
1 2 3
M
1 2 3

9
Electric Oven

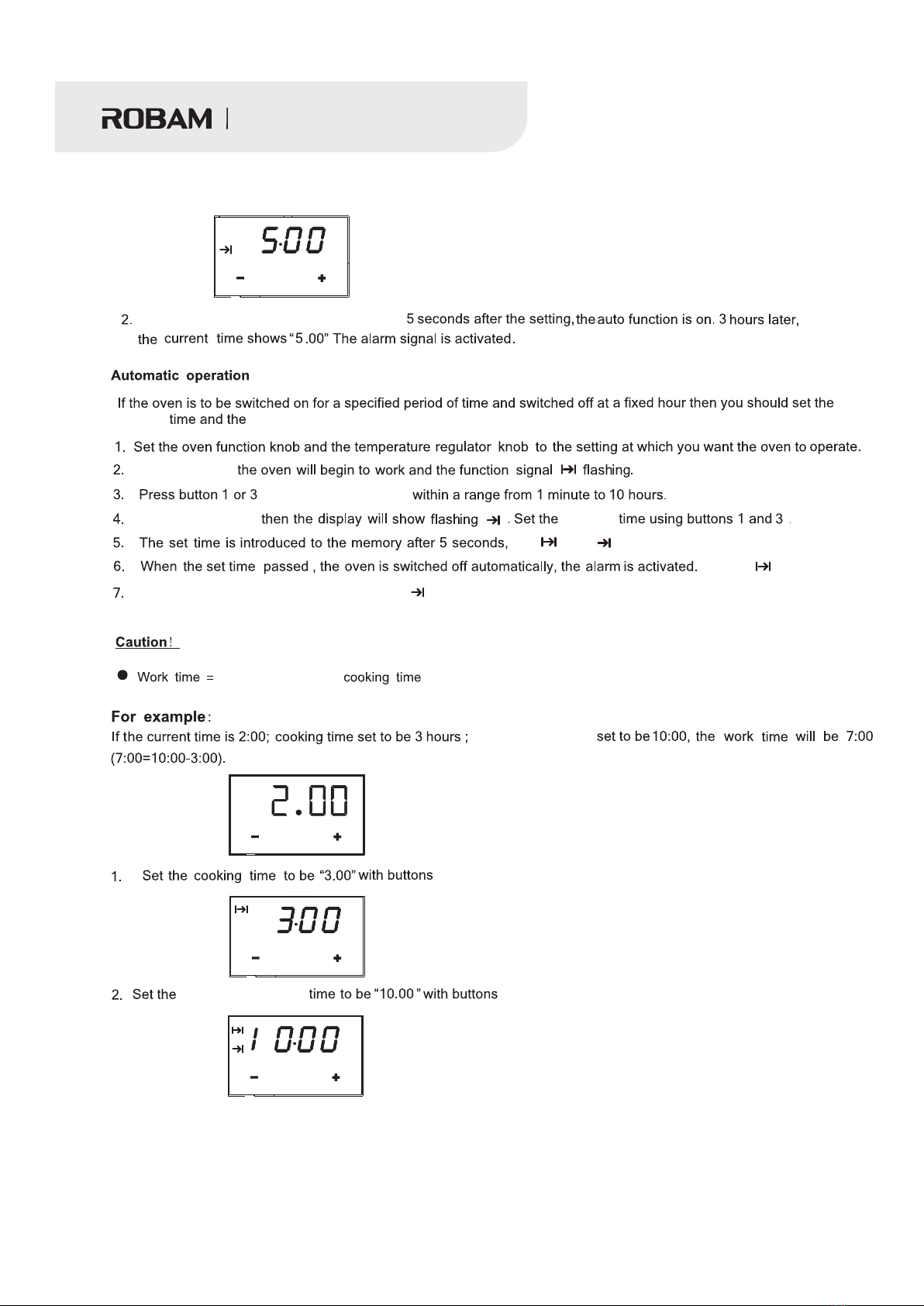

End of cooking time = current time + cooking time
Press any button,the alarm signal and the icon go off,will Or the alarm
after 2 minutes.
turnedsignal will be off automatically
2
Press the function button ,
to adjust the
cooking time,
End of cooking time end of cooking time
end of
end of cooking time
After the auto function be off,the cooking time to 0,end of cooking time and current time remains the same.
want to oven work of 3 hours,end of cooking time 5:00 3:00 5:00
Or press button “M” twice.
end of cooking time
set either the cooking time.
by
M
1 2 3
end
End of cooking time automatically change to 5:00.
end of cooking time
M
1 2 3

10
Electric Oven
Cooking time automatically change to 3:00.
cooking
Press ,button 2
to adjust the cook time,
the and always on.
cooking
And press button 2.
Press any button,the alarm signal and the icon go off,will Or
end of cooking time:
the alarm
after 2 minutes.
turnedsignal will be off automatically
and the will go off.
1 and 3.
1 and 3.
end of cooking time-
1 and 3.
end of cooking time.
M
end of cooking time
1 2 3
M
1 2 3
M
1 2 3
M
1 2 3

11
Electric Oven

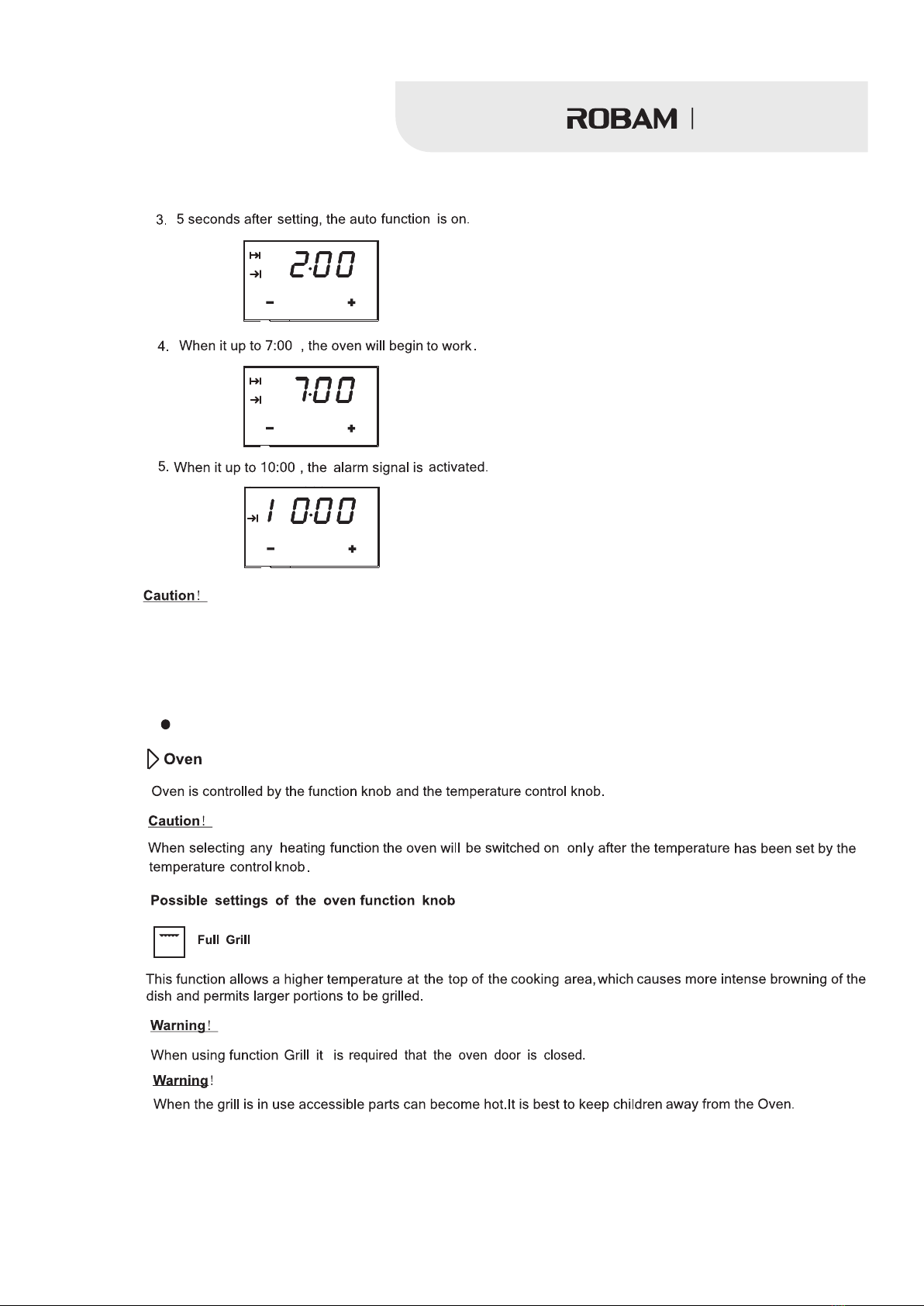

● If the cooking time set to be 0 or the
end of cooking time set to be the current time,the auto function
will be off.
● End of cooking time > current time
+ cooking time <= 10hours
At least more than one minute cooking time, cooking time and end of cooking time must be set.
●
After the auto function be off,the cooking time to 0,end of cooking time and current time remains the same.
The oven is switched off automatically.
M
1 2 3
M
1 2 3
M
1 2 3

12

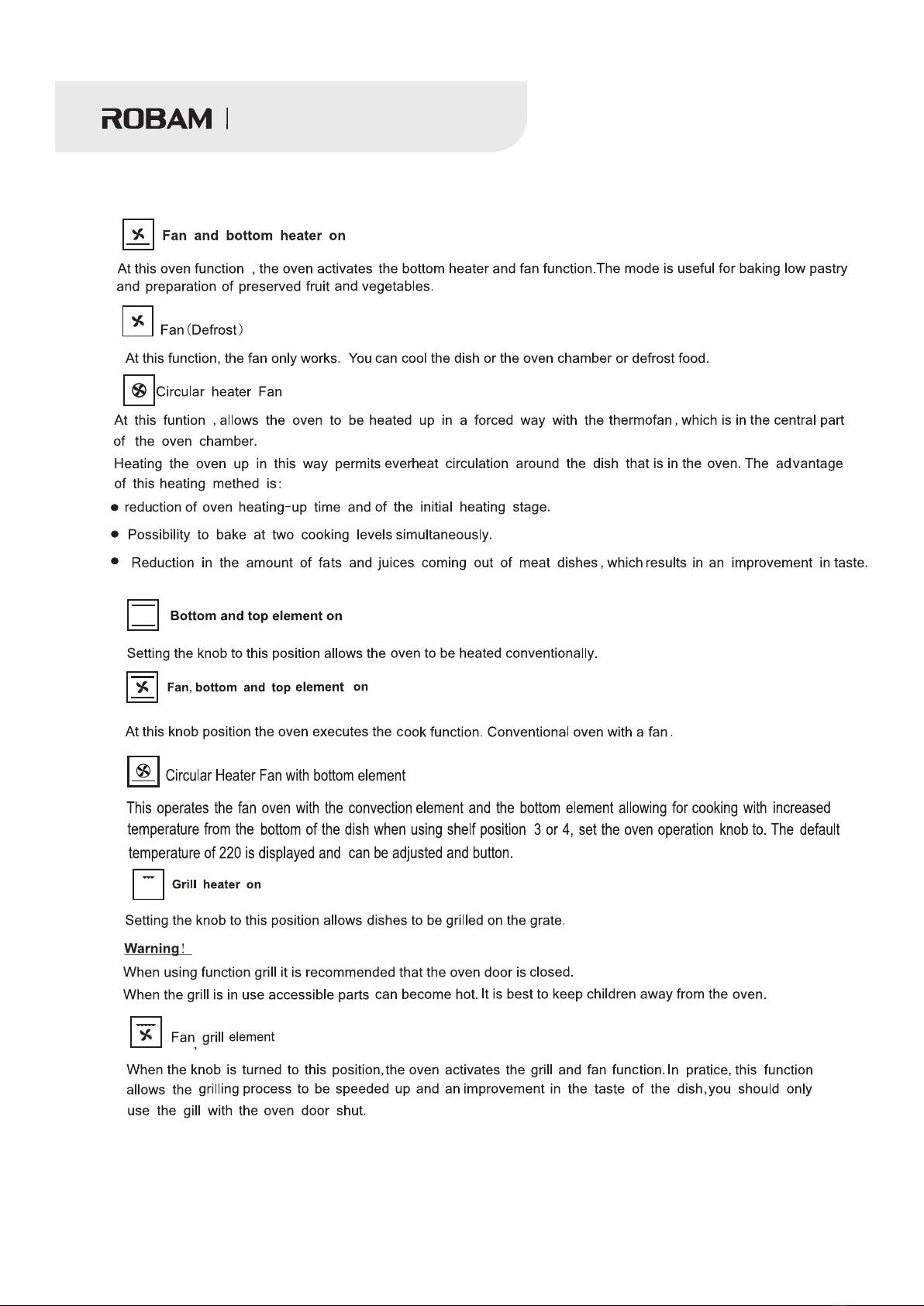

Electric Oven

13
Electric Oven

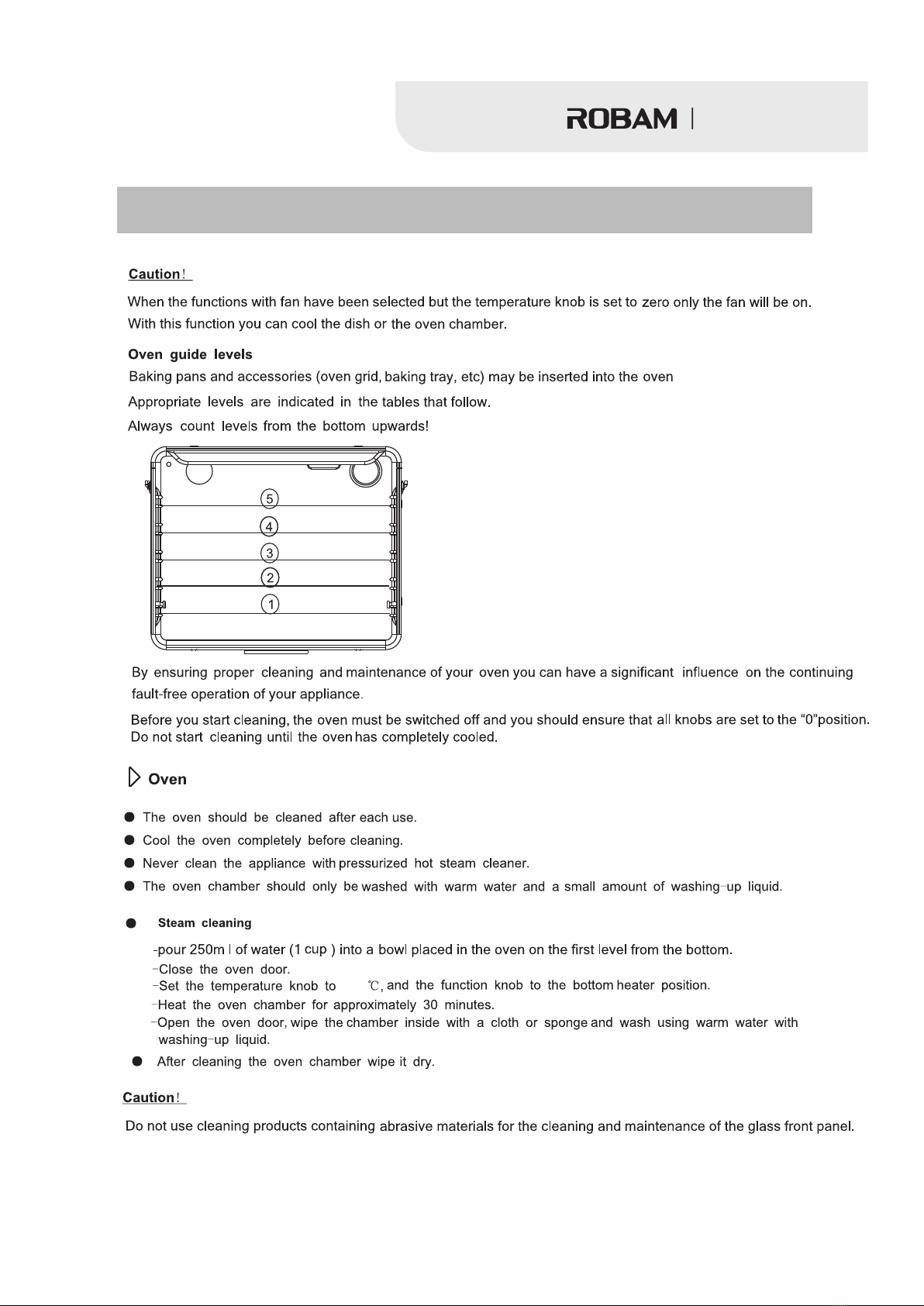

CLEANING AND MAINTENANCE
at 5 shelf position.
100

14
Electric Oven
Changing the Oven Lamp
Before any maintenance is started involving electrical parts, the appliance must be disconnected from the power supply .
If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance.
Changing the bulb
Unscrew the protective cover. We recommend that you wash and dry the glass cover at this point.
Carefully remove the old bulb and
insert the new bulb suitable for high
temperatures (300 C) having the
following specifications: 220-240V,
50Hz, 25W, G9 fitting.
Refit the protective cover.
IMPORTANT
Never use screwdrivers or other utensils to remove the light cover .This could damage the enamel of the
oven or the lampholder . Remove only by hand.
IMPORTANT
Never replace the bulb with bare hands as contamination from your fingers can cause premature failure.
Always use a clean cloth or gloves.
Please note:
The bulb replacement is not covered
by your guarantee


Tilting the hinge safety catches
Door removal

15
Electric Oven
●Switch off all working units of the oven
●Call the service centre
●Some minor faults can be fixed by referring to the instructions given in the table
Knob is
.
Press the symbol and outward the plastic latch that is in the corner at the top of the door. Next take out the glass
from the second blocking mechanism and remove. After cleaning, insert and block the glass panel, and insert in the blocking
mechanism.
“ ”
Install door
OPERATION IN CASE OF EMERGENCY

16
Electric Oven
BACKING IN THE OVEN

17
Electric Oven
Pastry Baking Table
Type of pastry Guide level
(from down
upwards)
Temp(℃) Guide level
(from down
upwards)
Temp(℃) Baking time
(in min.)
Sweet pastry
Raisin cake 2 160-170 2 150-160 55-70
Ring cake 2 160-170 2 150-160 60-70
Tree cake (tart
form)
2 160-170 2 150-160 45-60
Cheese cake
(tart form)
2 180-190 3 160-170 60-80
Fruit cake 2 190-200 3 170-180 50-70
Fruit cake with
icing
2 180-190 3 160-170 60-70
Sponge cake 2 180-190 2 160-170 30-40
Flake cake 3 190-200 3 170-180 25-35
Fruit cake mix
dough
3 180-190 3 160-170 50-70
Cherry cake 3 190-210 3 170-200 30-50
Jelly roll 3 190-200 3 170-180 15-25
Fruit fan 3 160-170 3 150-160 25-35
Plait bun 2 190-210 3 180-210 35-50
Christmas cake 2 180-190 3 170-200 45-70
Apple pie 2 190-210 3 170-200 40-60
Puff paste 2 180-190 3 160-170 40-60
Salted pastry
Bacon roll 2 190-200 3 170-180 45-60
Pizza 2 220-240 3 210-230 30-45
Bread 2 200-220 3 180-210 50-60
Rolls 2 210-230 3 200-220 30-40
Cookies
Caraway roll 3 180-190 3 160-170 15-25
Biscuits 3 180-190 3 160-170 20-30
Danish pastry 3 190-210 3 170-200 20-35
Flaky pastry 3 200-210 3 180-200 20-30
Cream puff 3 190-210 3 170-200 25-45
Deep frozen
pastry
Apple pie,
cheese pie
2 190-210 3 170-200 50-70
Cheese cake 2 190-200 3 170-180 65-85
Pizza 2 210-230 3 200-220 20-30
Chips for oven 2 210-230 3 200-220 20-35
Potato fries for 2 210-230 3 200-220 20-35

18
