Robe Anolis Eminere 1 MC User manual

Version
1
.
2
QR code for user manual

Eminere MC
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 5
3. Installation .................................................................................................................................................................. 5
3.1 Mounting the fixture ............................................................................................................................................ 5
3.2 C-clamps installation ............................................................................................................................................. 6
3.3 Connection to mains ............................................................................................................................................. 7
3.4 The Booster box .................................................................................................................................................. 11
3.5 The Booster box installation ............................................................................................................................... 13
3.6 Jumper cable assembling .................................................................................................................................... 15
4. Software update ....................................................................................................................................................... 18
5. Technical specifications ............................................................................................................................................ 19
6. Cleaning and maintenance ....................................................................................................................................... 22
6.1 Disposing of the product .................................................................................................................................... 24
7. ChangeLog ................................................................................................................................................................ 24

Eminere MC
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR Eminere MC !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Unauthorized modification will void warranty.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before cleaning, servicing or installing.
Make sure the data/power cable is not damaged by sharp edges. Check the fixture and the power cord from time
to time.
Do not install the unit near an open flame.
During operation the housing becomes hot.
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with
a protective earthing connection.
Do not connect this fixture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam from a short distance without suitable protective
eyewear. Do not look at LEDs with magnifiers or similar optical instruments that may concentrate the light
output.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials when the fixture is under operation.

Eminere MC
4
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or
maintenance.
Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons
not qualified to operate the fixture. Most damages are the result of unprofessional operation!
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock etc.
The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m.
Immunity of the equipment is designed according to the standard EN 55035 Electromagnetic compatibility of
multimedia equipment - Immunity requirements
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning for fixtures with Harsh Environment Finish (HEF):
Handle with care!
Avoid any damage to the painted surface.
Damaging the paint may result in corrosion and loss of warranty.

Eminere MC
5
2. Fixture exterior view
3. Installation
3.1 Mounting the fixture
The Eminere MC can be arranged in any orientation on a flat, non-flammable surface by means of two mounting
brackets (5), the LED module (2) can be tilted (+95°/-95°) to get access to mounting brackets (5).
Ensure that the structure to which you are attaching
the unit is secure.
1. Transparent glass cover
2. LED module
3. Output connector
4. Input connector
5. Mounting brackets
6. Aluminium base

Eminere MC
6
3.2 C-clamps installation
1. Remove the mounting bracket (5) from fixture housing by unscrewing two screws (6).
2. Screw the new mounting bracket (9) to the fixture housing by means of two screws (6).
3. Screw the clamp (7) to the mounting bracket by means of the bolt M12x30 (10) with nuts M12 (8).

Eminere MC
7
3.3 Connection to mains
The unit must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulations.
This device falls under class one and must be grounded!
The Eminere MC is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC
power source from 120-277 Volts.
Input - panel connector Output - panel connector
(front view) (front view)
Fixture´s Amphenol connectors are dust and water protected according to IP 67 by mating with related Amphenol
connectors.
They cannot stay disconnected outdoor.
The output panel connector at last fixture in the Eminere MC chain has to always be covered with the water-
tight cap to keep declared IP rating.
The Eminere MC modules should be connected to the E-box which allows power supply of the Eminere MC
modules and their control.
Do not connect (disconnect) Emineres MC to the E-box or Booster box and each other when they are under
voltage!
When you change any setting of the E-box, disconnect the E-box from power and connect it to power again
to activate changes which you have made.
Examples of connection for various versions of the E-box.
Please read the E-box user manual for more information about its setting and connection to Eminere MC modules.
Needed cables are stated in the chapter “Technical information“.
E-box Daisy

Eminere MC
8
E-box Star
E-box Lite

Eminere MC
9
Number of connected Emineres MC to one E-box output depends on a cable length, power voltage,
type of Eminere MC and E-box and operation mode.
The tables below state max. theoretical number of Emineres MC connected to the one LED output of the E-box
without Booster boxes. The following tables apply for the Standard mode of E-boxes.
EMINERE
1
MC
Voltage
Cable length *
120V
190V
230V
277V
10 m
83
131
159
191
20 m
83
131
159
191
30 m
58
131
159
191
50 m
35
88
128
186
70 m
25
63
92
133
100 m
17
44
64
93
200 m
9
22
32
47
EMINERE
2
MC
Voltage
Cable length *
120V
190V
230V
277V
10 m
41
64
78
94
20 m
41
64
78
94
30 m
28
64
78
94
50 m
17
43
63
91
70 m
12
31
45
65
100 m
9
21
31
46
200 m
4
11
16
23
EMINERE
3
MC
Voltage
Cable length *
120V
190V
230V
277V
10 m
28
44
53
64
20 m
28
44
53
64
30 m
19
44
53
64
50 m
12
29
43
62
70 m
8
21
31
44
100 m
6
15
21
31
200 m
3
7
11
16

Eminere MC
10
EMINERE
4
MC
Voltage
Cable length *
120V
190V
230V
277V
10 m
21
33
40
48
20 m
21
33
40
48
30 m
15
33
40
48
50 m
9
22
32
47
70 m
6
16
23
38
100 m
4
11
16
23
200 m
2
5
8
12
* Cable length is a total cable length between E-box and last connected Eminere MC.
Example: Total cable length=L1+L2+L3
Notice for the E-box Star: The tables above state max. total number of Emineres connected to 6 LED outputs
of the E-box Star (or max. number of Emineres MC connected to one output if the rest of outputs is not
connected). The E-box Star has only one power input!

Eminere MC
11
3.4 The Booster box
To compensate a voltage drop in large installation, the Booster boxes have to be connected in the chain of
Emineres MC at every LED output of the E-box.
The following tables give numbers of Emineres MC after which the Booster box has to be installed in the chain of
Emineres MC (at one LED output of the E-box). The following tables apply for the Standard mode of E-boxes.
EMINERE 1
MC
Max. number of Emineres 1 MC= 191
Voltage
Cable
length
120V 190V 230V 277V
10 m 83,166 131 159 -
20 m 83,166 131 159 -
30 m 58,116,174 131 159 -
50 m 35,70,105,140,175 88,176 128 186
70 m 25,50,75,100,125,150,175 63,126,189 92,184 133
100 m 17,34,51,68,85,102,119,
136,153,170,187
44,88,132,176 64,128 93,186
200 m 9,18,27,36,45,54,60,72,81
90,99,108,117,126,135,144
153,162,171,180,189,
22,44,66,88,110,
132,154,176
32,64,96,128,
160
47,94,141,
188
EMINERE 2
MC
Max. number of Emineres 2 MC= 94
Voltage
Cable
length
120V 190V 230V 277V
10 m 41,82 64 78 -
20 m 41,82 64 78 -
30 m 28,56,84 64 78 -
50 m 17,34,51,68,85 43,86 63 91
70 m 12,24,36,48,60,72,84 31,62,93 45,90 65
100 m 9,18,27,36,45,54,60,72,81,
90
21,42,63,84 31,62,93 46,92
200 m 4,8,12,16,20,24,28,32,36
40,44,48,52,56,60,64,68,72
76,80,84,88,92
11,22,33,44,55,
66,77,88
16,32,48,64,80 23,46,69,92

Eminere MC
12
EMINERE 3
MC
Max. number of Emineres 3 MC= 64
Voltage
Cable
length
120V 190V 230V 277V
10 m 28,56 44 53 -
20 m 28,56 44 53 -
30 m 19,38,57 44 53 -
50 m 12,24,36,48,60 29,58 43 62
70 m 8,16,24,32,40,48,56 21,42,63 31.62 44
100 m 6,12,18,24,30,36,42,48,54,
60
15,30,45,60 21,42,63 31,62
200 m 3,6,9,12,15,18,21,24,27,30,
33,36,39,42,45,48,51,54,57
60,63
7,14,21,28,35,42
49,56,63
11,22,33,44,55 16,32,48,
EMINERE 4
MC
Max. number of Emineres 4 MC= 48
Voltage
Cable
length
120V 190V 230V 277V
10 m 21,42 33 40 -
20 m 21,42 33 40 -
30 m 15,30,45 33 40 -
50 m 9,18,27,36,45 22,44 32 47
70 m 6,12,18,24,30,36,42 16,32 23,46 38
100 m 4,8,12,16,20,24,28,32,36,
40,44
11,22,33,44 16,32 23,46
200 m 2,4,6,8,10,12,14,16,18,20,
22.24.26,28,30,32,34,36,38
40,42,44,46
5,10,15,20,25,30
35,40,45
8,16,24,32,40 12,24,36
Example: E-box Daisy, Power supply= 230V, Cable length=70m, fixture=Eminere 2 MC
The Booster box has to be connected after every 45th Eminere 2 MC (fixture 45 and fixture 90) from 94 fixtures.

Eminere MC
13
3.5 The Booster box installation
ALWAYS DISCONNECT THE EMINERES MC FROM MAINS BEFORE
CONNECTING/DISCONNECTING THE BOOSTER BOX.
The Booster box falls under protection class I. Therefore, every Booster box
has to be connected to a mains socket outlet with a protective earthing connection.
1.Unscrew the four screws (1) from the cover (2) on the Booster box to get access to the terminal block (3) and
two mounting holes of diameter of 4.6 mm (4).
2. Screw the Booster box on a non-flammable flat surface and connect cables.
The Cable gland M20x1.5 for Power IN (5) is intended for a cable of a diameter of 7-13mm.
Remove the end cap from the cable gland before passing the cable.
Power connection
L
N
(earth)
Core (EU) Braun Blue Green/yellow
Core (US) Black White Green

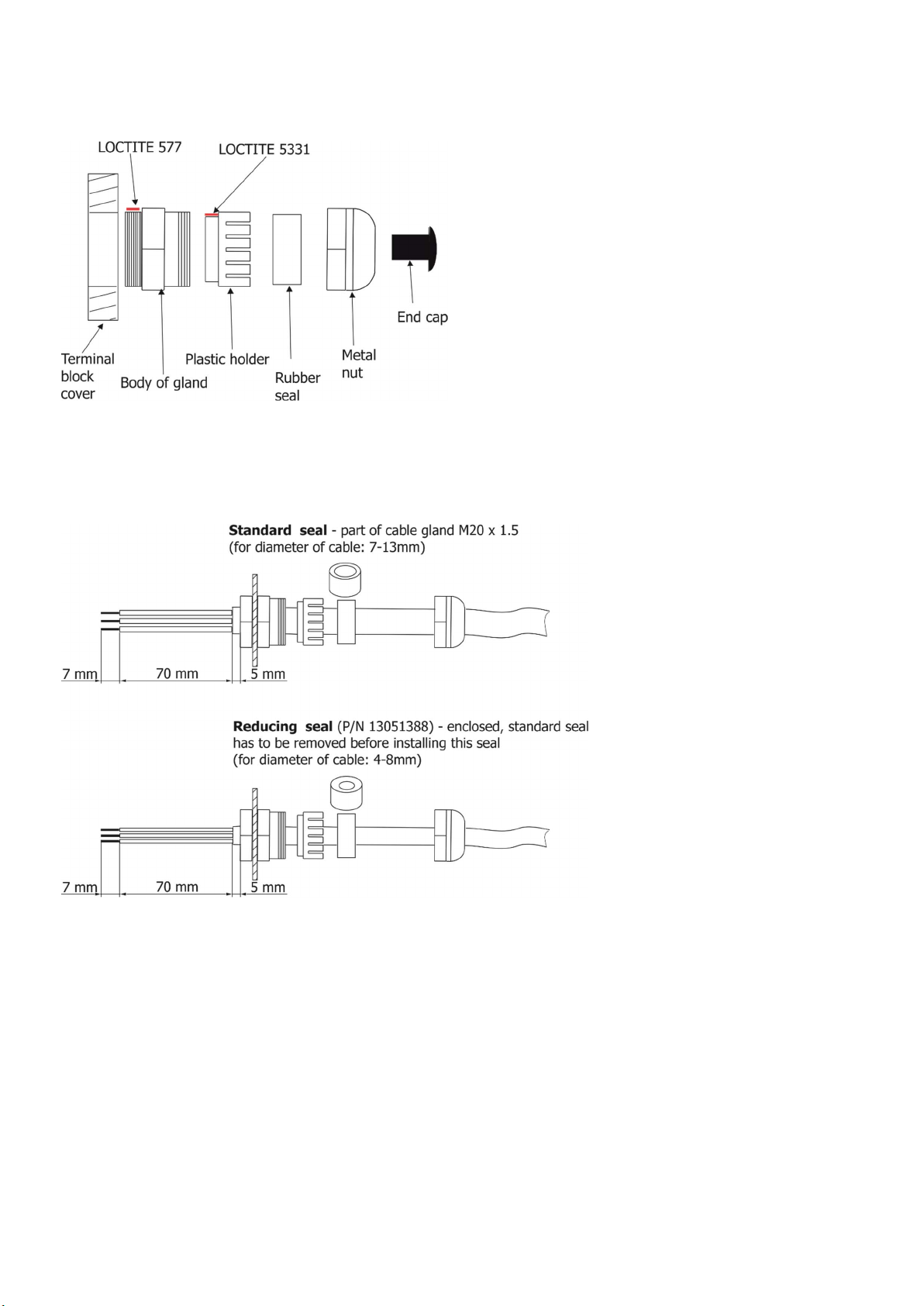

We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable
gland before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on
the thread of the gland body.

Eminere MC
14
Cable gland M20 MS:
The cable gland M20 MS with a standard seal serves for a cable of diameter of 7-13mm, for smaller diameter of
cable (4-8mm) you have to remove the original seal from the cable gland M20 and use the enclosed reducing seal
instead of it. The reducing seal for diameter of cable 4-8mm (P/N 13051388) is enclosed in the Booster box.
3. Screw the cover (2) back on the Booster box.

Eminere MC
15
3.6 Jumper cable assembling
1. Dismantle the connector and slide its parts onto the cable (6).
Use the seal with inner diameter of 14.5 mm for the Anolis cable (P/N 13053138 or P/N 13053139).
The seal with inner diameter of 14.5 mm serves for cable of diameter 10-14.5mm.
The seal with inner diameter of 10 mm serves for cable of diameter 8-10mm.
Parts of the connector
2. Put the seiling circle (2) on the connector with screws (1).
3. Remove insulation from the cable (6) and from individual wires and fasten three terminals on data wires.
CE version
Detail of Sealing
circle (2) placing

Eminere MC
16
US version
3. Put parts of the connector on the cable (6) and connect wires to the connector. First connect power wires (L,N,
Earth) and after that data wires (D+, D-, 0V). Avoid excessive torsion of data wires!
CE version
Male Female
US version
Male Female

Eminere MC
17
4. After connecting wires to the connector, tighten the three data wires (D+,D-, 0V) by means of the cable binder
(7).
6. Screw the clamp ring (3) to the connector (1), insert the seal (4) to the clamp ring (3) and tighten the sealing nut
(5) enough. During the steps DO NOT TWIST the cable (6).
7. Use the same procedure to assemble the connector on the second end of the cable.
IMPORTANT
Do not bend the cable near to the connector, minimum distance for bending is 50mm.

Eminere MC
18
4. Software update
Software update of Eminere MC has to be done by means of the software ROBE Uploader running on PC.
The ROBE Uploader is a software for automatized software update of ROBE fixtures. The ROBE Uploader switches
Emineres MC to the update mode automatically.
Please see https://www.robe.cz/robe-uploader/ for more information.
DMX or Ethernet connection via E-box
If the option Standard is selected from the menu E-box mode and LED modules are connected in series,
the E-box will be updated including connected Eminere MC modules. You have to use the file EminereEbox.lib in
the ROBE Uploader for this operating mode.
If the option Pass-Thr is selected from the menu E-box mode and LED modules are connected in series, you have to
do the following steps to update Emineres MC including the E-box:
1. Set the E-box to the Standard mode and switch it off/on. Only E-box will be shown in the ROBE Uploader.
You have to use the file EminereEbox.lib in the ROBE Uploader for software update of the E-box and
connected LED modules.
2.
After updating, set the E-box to the Pass-Thorough mode and switch it off/on
.
For more information about updating please see the E-box Lite/Daisy/Star user manual.

Eminere MC
19
5. Technical specifications
Power supply
• Electronic auto-ranging
• Input voltage: 120 - 277V AC, 50/60 Hz
• Power consumption:
Eminere 1 MC: 25W
Eminere 2 MC: 45W
Eminere 3 MC: 65W
Eminere 4 MC: 85W
• Inrush current:
Eminere 1 MC: <70A/250µs
Eminere 2 MC: <70A/250µs
Eminere 3 MC: <100A/200µs
Eminere 4 MC: <100A/200µs
Optic
• Light source:
Eminere 1 MC: 4 x high power multi chip LEDs
Eminere 2 MC: 8 x high power multi chip LEDs LEDs
Eminere 3 MC: 12 x high power multi chip LEDs LEDs
Eminere 4 MC: 16 x high power multi chip LEDs LEDs
• Colour variants: RGBW (W=6500K, RGBA, PW (3000K), TW (3000K-6500K)
• Beam Angle:
Symetrical: 9°, 15°, 25°, 35°, 45°, 65°, 100°
Bi-symetrical: 10° x 30°, 30° x 10°, 10° x 60°, 60° x 10°, 15° x 45°, 45° x 15°, 15° x 90°, 90° x 15°,
35°x 60°, 60°x35°, 30°x90°, 90°x 30°
• Projected Lumen Maintenance: L90B10 >90.000 hrs, Ta = 25°C / 77°F
Compatible drivers
• E-box Daisy
1 Output
1 Main power Input
Control: DMX, Art-Net, sACN , W-DMX control, RDM
Pixel control (1px= 1ft)
120-277V Input
Connection via terminal blocks, inlets via grommet
IP67
• E-box Star
6 outputs
1 Main power Input
Control: DMX, Art-Net, sACN , W-DMX control, RDM
Pixel control (1px= 1ft)
120-277V Input
Connection via terminal blocks, inlets via grommet
IP67
• E-box Lite
1 output
1 Main power Input
Control: DMX, W-DMX control, RDM
Pixel control (1px= 1ft)
120-277V Input
Connection via screw terminal blocks, inlets via grommet
IP67

Eminere MC
20
Mounting method
• Via two L-shape brackets
• LED module “tilt” adjustment range: -95°/+95°
Sizes
• Eminere 1 MC (300mm / 1ft)
• Eminere 2 MC (600mm / 2ft)
• Eminere 3 MC (900mm / 3ft)
• Eminere 4 MC (1200mm / 4ft)
Housing
• Aluminium extruded body with die-casted end caps
• Tempered glass
Cooling system
• Convection
Total heat dissipation
• Eminere 1 MC: 61 BTU/h (calculated)
• Eminere 2 MC: 130 BTU/h (calculated)
• Eminere 3 MC: 177 BTU/h (calculated)
• Eminere 4 MC: 228 BTU/h (calculated)
Protection factor
• CE: IP 67
• US: Suitable for wet location
Impact rating
• CE: IK06
Operating ambient temperature range
• -20°C /+40°C (-4°F /+104°F)
Operating temperature
• +67°C @ Ambient +40°C (+153°F @ Ambient +104°F)
Connection
• Input: panel connector Amphenol ABAB-DMQ06000021-IN (P/N13052952)
• Output: panel connector Amphenol ABAB-DAQ06000021 (P/N13052953) + water-tight cap
Weight
•Eminere 1 MC: 2.7 kg (6 lbs)
•Eminere 2 MC: 4.2 kg (9.3 lbs)
•Eminere 3 MC: 6.22 kg (13.7 lbs)
•Eminere 4 MC: 7.9 kg (17.4 lbs)
