Robern CC2440D4ND34TU User manual

1Part no. CB-209-1439 07/13/2022 Craft Series Cabinet
© 2022 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Safety - 2
Tools needed - 3
Parts - 3
Accessories - 4
Dimensions - 5
Recess Mounting - 6
Final Assembly - 7
Use and Maintenance - 9
Warranty - 10
CONTENTS
This instruction manual contains information on how to recess mount the Craft Series cabinet. This series comes in di󰀨erent sizes and
door styles. Refer to the specic model numbers for dimensions.
Read the specic instruction for how your cabinet(s) will be mounted. The cabinets can be surface mounted* or recess mounted.
Save these instructions for future use and reference. An improper installation voids the warranty. Installed cabinets cannot be returned.
If you experience any problems with your cabinet, contact your dealer or Robern directly.
Limited Warranty — One Year Term
* For surface mounting and other installation instructions, see page 4.
GENERAL INFORMATION
CRAFT SERIES CABINET
INSTALLATION INSTRUCTIONS
Important safety instructions - Save these instructions
TM
Scan the QR code
to see the entire
Craft series of
cabinets.
Use the camera app on your
mobile device to look at this and
other QR codes. This will allow
you to quickly access web pages
and other relevant documents.

2Part no. CB-209-1439 07/13/2022 Craft Series Cabinet
© 2022 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
SAFETY
IMPORTANT SAFETY INSTRUCTIONS
DANGER: Read all instructions before using this cabinet.
CAUTION: Maximum shelf load 34lbs/15.4kg
When using an electrical furnishing, basic precautions should always be followed, including the following:
WARNING: To reduce the risk of burns, re, electric shock, or injury to persons:
• Use this furnishing only for its intended use as described in these instructions.
• Do not use attachments not recommended by the manufacturer.
• Never drop or insert any object into any opening.
• Do not use outdoors.
WARNING: Risk of electric shock. Connect this furnishing to a properly grounded circuit only. See Grounding instructions.
GROUNDING INSTRUCTIONS
Electrical option cabinet must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the product.
WARNING: Electrical option cabinet must be wired to a Class A 20 Amp GFCI (Ground Fault Circuit Interrupter) protected circuit when
used in bathrooms and all other locations required by the National Electric Code.
SAVE THESE INSTRUCTIONS

3Part no. CB-209-1439 07/13/2022 Craft Series Cabinet
© 2022 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com

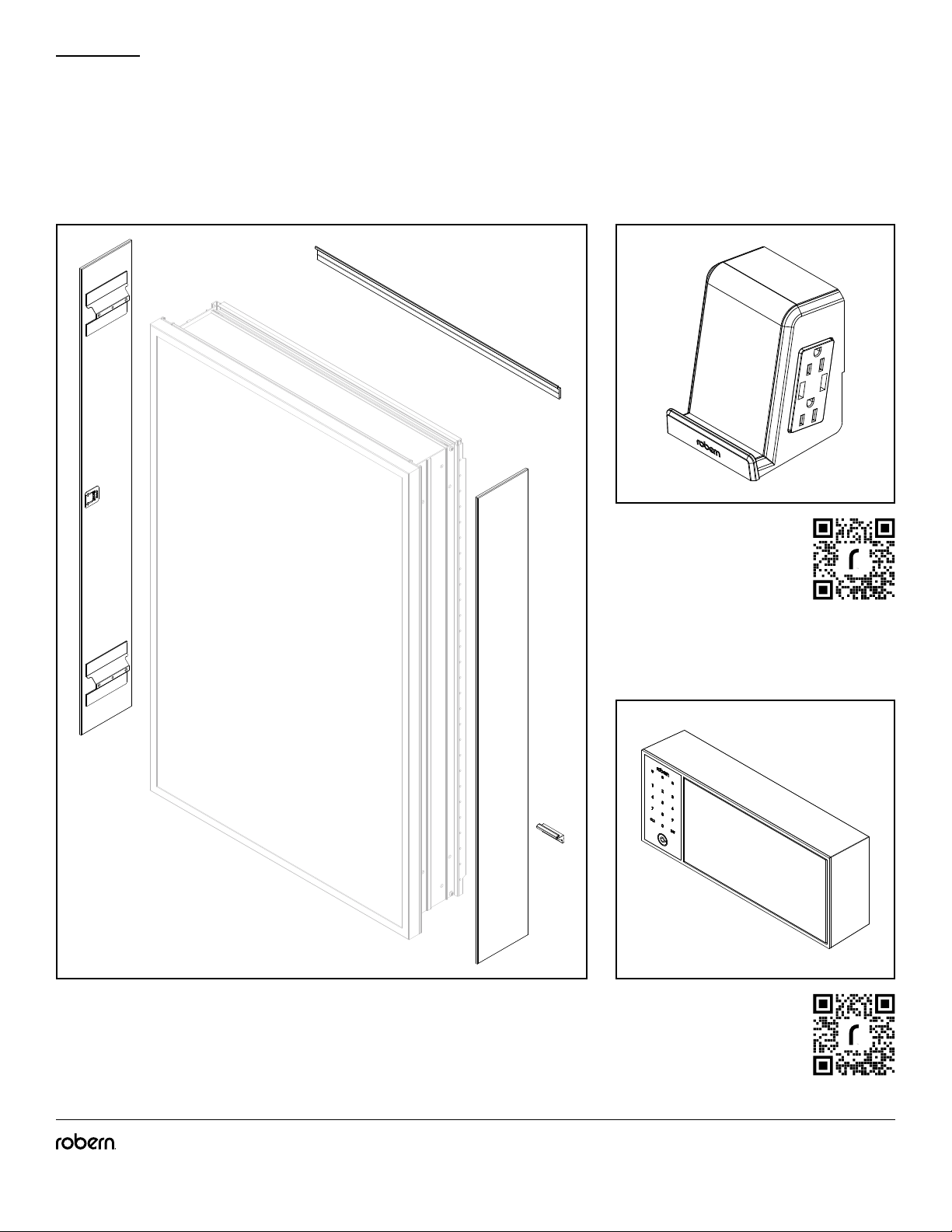

TOOLS NEEDED
PARTS
(3-4) Glass Shelves
[211-1329]
(2) Robern Logo Coverplates
[216-1201] Hardware Bag
[216-1208] Hardware Bag
(1) Craft Series Cabinet
Depending on installation, not all parts will be used.
[211-1376]
(3) Shelf Clips
[211-1377]
(3) Shelf Clips
[SS134]
(10) Hole Plugs
[SS672]
(6) Screw Caps
[SS674]
(6) #10 x 2" Screws
Depending on installation, not all parts will be used.
[211-1376]
(4) Shelf Clips
[211-1377]
(4) Shelf Clips
[SS134]
(10) Hole Plugs
[SS672]
(6) Screw Caps
[SS674]
(6) #10 x 2" Screws

4Part no. CB-209-1439 07/13/2022 Craft Series Cabinet
© 2022 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Scan the available QR codes to learn more about these accessories at Robern.com
ACCESSORIES
[P2SMKITXXD4P]
Surface Mount Kit
XX (Heights available): 30, 40
[P2ELECTRIC*]
Portray Electric Upgrade
TM
For Electric
Upgrade
Instructions:
TM
For Digital
Lock Box
Instructions:
*Craft series cabinet models ending in "TU" include the Portray Electric Upgrade.
[DLB-XX]
IQ Digital Lock Box
XX (Widths available): 20, 24

5Part no. CB-209-1439 07/13/2022 Craft Series Cabinet
© 2022 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com

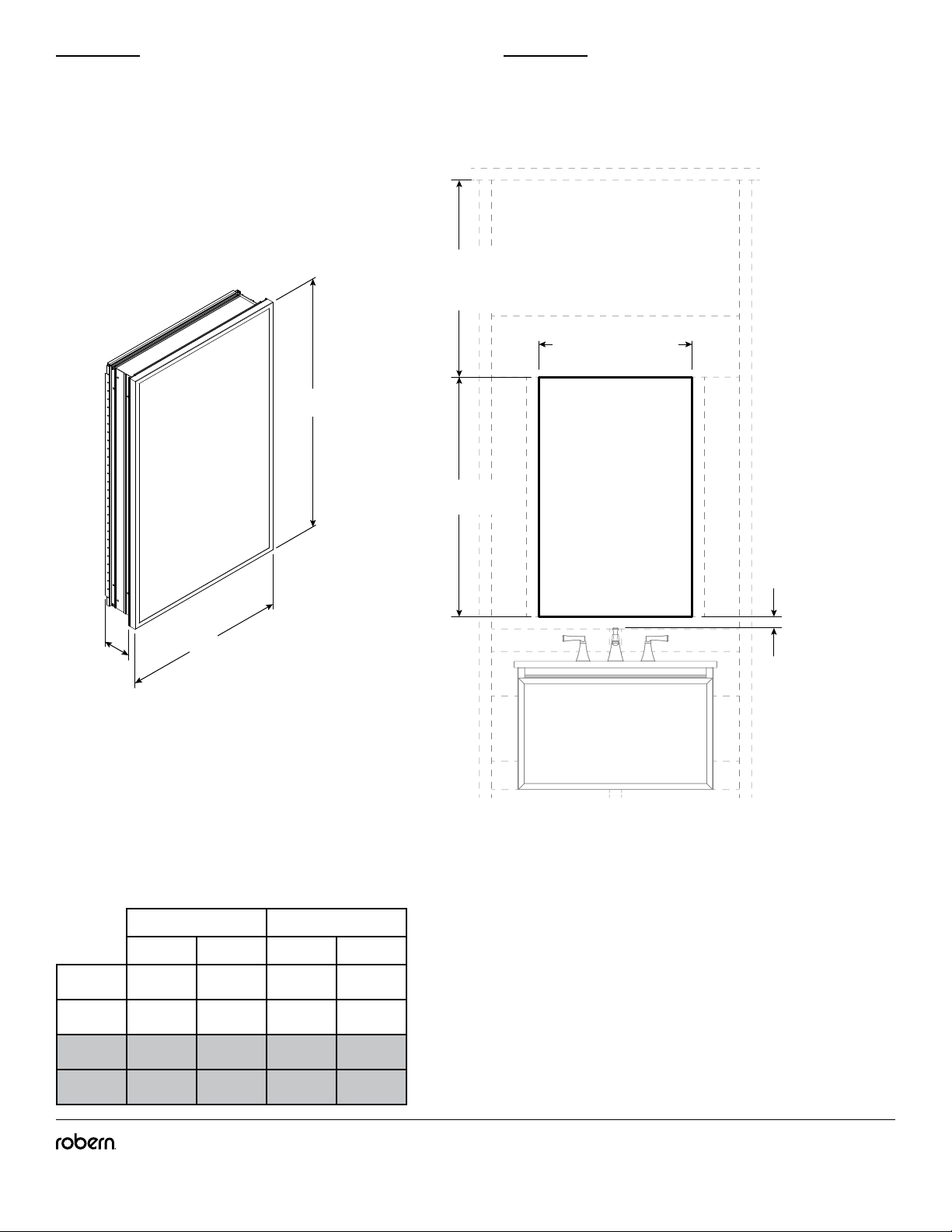

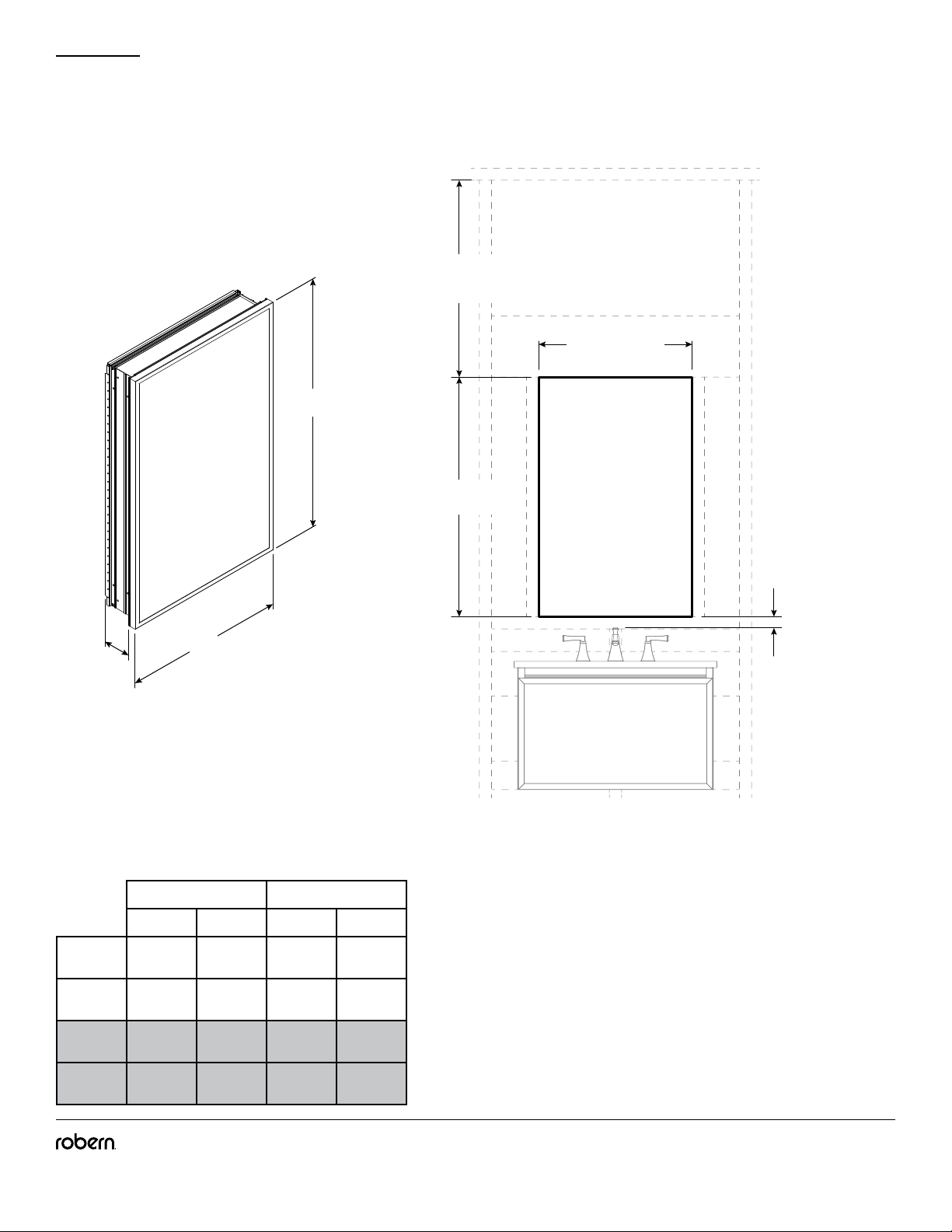

DIMENSIONS
Rough Opening (RO) for recessed installation in chart below.
Number in the column headings below reference the cabinet dimensions from the model number, width and height (WWHH).
3-3/4"
(95 mm)
B
A
Determine overall cabinet dimensions. If recessing cabinet, see chart to determine rough-in dimensions.
1” (25.4 mm)
Minimum RO to
finished ceiling
1” (25.4 mm)
Minimum door
to faucet
Rough Opening:
(A)
Rough Opening:
(B)
Industrial / Thin Frame Round Corner
2030 2440 2034 2444
A19-1/4"
(489 mm)
23-1/4"
(591 mm)
19-1/4"
(489 mm)
23-1/4"
(591 mm)
B30"
(762 mm)
39-3/8"
(1000 mm)
34-1/4"
(870 mm)
43-5/8"
(1108 mm)
RO (A) 18-1/2"
(470 mm)
22-1/2"
(572 mm)
18-1/2"
(470 mm)
22-1/2"
(572 mm)
RO (B) 29-1/4"
(743 mm)
38-5/8"
(982 mm)
29-1/4"
(743 mm)
38-5/8"
(982 mm)
