Robert Juliat DALIS 864 User manual

VALIDATION: 02/05/19
DN41146100
Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : [phone] - fax : [phone] - [email protected]
www.robertjuliat.com
DALIS 864
Firmware V1.00
LED 150 W  FOUR COLOUR MIXING FOOTLIGHT
PROJECTEUR BAIN DE PIED LED 150 W  4 COULEURS
FOOTLIGHT
User's manual: Product information page URL:
Package contents:
Download the user's manual and updates from:
www.robertjuliat.com/ambiance_lighting/dalis864
Quick Start Guide
1 x Dalis 864 1 x Neutrik®powerCON
TRUE1 connector (ref. NACFX-W)

EN
EN - 2 -
GENERAL INSTRUCTIONS
1. Not for residential use.
2. These fixtures must only be serviced by a qualified technician.
3. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives
must be adhered to at all times.
4. This fixture is in compliance with section 17 - Lighting appliance for theatre stages, television, cinema and photograph studios.
Standards NF EN 60598-1 and NF EN 60598-2-17.
5. This fixture is rated as IP20, and is for indoor use only.
FIXTURE
6. Ensure fixture is correctly mounted on an appropriate support.
7. Protection screens must be replaced in the event of any damage, such as cracks or deep scratches,
since these might reduce performance.
8. WARNING: LED source become hot during use. Allow fixture to cool before servicing.
9. Do not tamper with design of fixture nor any of its safety features.
10. Tighten electrical mains cable connections regularly and replace with one of identical specification if damaged.
11. Use only with correct power supply.
12. Do not orientate the fixture towards a source of light (sun, fixture), in particular for LED versions.
VENTILATION
13. Keep well away from flammable material.
14. Not for outdoor use. Do not cover. Do not permit fixture to get wet.
15. To avoid overheating, do not obstruct air vents.
PLEASE NOTE
These products have been built to conform to European standards relating to professional lighting equipment. Any modification
made to our products will void the manufacturers' warranty.
1 User's instructions
2 Installation
Floor installation only
1. + 2. = -5°
3. + 4. = +5°

EN
EN - 3 -
Power input :
Power output:
Data In:
Data Out:
Ethernet:
4 DMX control
3 Electrical / Data connection
①
②
③
④
⑤
• Connector: Neutrik® powerCON TRUE1
• Voltage: 90 Æ264V 50/60Hz
• Power consumption: 140W max
• Connector: Neutrik powerCON TRUE1
Daisy chain:
•230V: 20 units max
•120V: 10 units max
•100V: 8 units max
• Connector: XLR 5-pin
• Protocol: USITT DMX 512-A / RDM
• Connector: XLR 5-pin
• Protocol: USITT DMX 512-A / RDM
• Connector: RJ45
• Protocol: Art-Net / sACN + software update

EN
DMX
address
Mode 1:
Full4groupsmode16b
Mode 2:
Full1groupmode16b
Mode 3:
Full1groupmode8b
Mode 4:
4groupsindividual16bits
1 Dimmer Dimmer - Up Stage Dimmer - Up Stage Dimmer - Up Stage 1
2 Dimmer fine Dimmer fine - Up Stage Red - Up Stage Dimmer fine - Up Stage 1
3 Red - Up Stage 1 Red - Up Stage Green - Up Stage Red - Up Stage 1
4 Red fine - Up Stage 1 Red fine - Up Stage Royal blue - Up Stage Red fine - Up Stage 1
5 Green - Up Stage 1 Green - Up Stage Warm white - Up Stage Green - Up Stage 1
6 Green fine - Up Stage 1 Green fine - Up Stage Dimmer - Down Stage Green fine - Up Stage 1
7 Royal blue - Up Stage 1 Royal blue - Up Stage Red - Down Stage Royal blue - Up Stage 1
8 Royal blue fine - Up Stage 1 Royal blue fine - Up Stage Green - Down Stage Royal blue fine - Up Stage 1
9 Warm white - Up Stage 1 Warm white - Up Stage Royal blue - Down Stage Warm white - Up Stage 1
10 Warm white fine - Up Stage 1 Warm white fine - Up Stage Warm white - Down Stage Warm white fine - Up Stage 1
11 Red - Up Stage 2 Dimmer - Down Stage Strobe duration Dimmer - Up Stage 2
12 Red fine - Up Stage 2 Dimmer fine - Down Stage Strobe speed Dimmer fine - Up Stage 2
13 Green - Up Stage 2 Red - Down Stage Response time Red - Up Stage 2
14 Green fine - Up Stage 2 Red fine - Down Stage Control mode Red fine - Up Stage 2
15 Royal blue - Up Stage 2 Green - Down Stage
Blue position
Green - Up Stage 2
16 Royal blue fine - Up Stage 2 Green fine - Down Stage
Red position
Green fine - Up Stage 2
17 Warm white - Up Stage 2 Royal blue - Down Stage Position Intensity Royal blue - Up Stage 2
18 Warm white fine - Up Stage 2 Royal blue fine - Down Stage Royal blue fine - Up Stage 2
19 Red - Up Stage 3 Warm white - Down Stage Warm white - Up Stage 2
20 Red fine - Up Stage 3 Warm white fine - Down Stage Warm white fine - Up Stage 2
21 Green - Up Stage 3 Strobe duration Dimmer - Up Stage 3
22 Green fine - Up Stage 3 Strobe speed Dimmer fine - Up Stage 3
23 Royal blue - Up Stage 3 Response time Red - Up Stage 3
24 Royal blue fine - Up Stage 3 Control mode Red fine - Up Stage 3
25 Warm white - Up Stage 3
Blue position
Green - Up Stage 3
26 Warm white fine - Up Stage 3
Red position
Green fine - Up Stage 3
27 Red - Up Stage 4 Position Intensity Royal blue - Up Stage 3
28 Red fine - Up Stage 4 Royal blue fine - Up Stage 3
29 Green - Up Stage 4 Warm white - Up Stage 3
30 Green fine - Up Stage 4 Warm white fine - Up Stage 3
31 Royal blue - Up Stage 4 Dimmer - Up Stage 4
32 Royal blue fine - Up Stage 4 Dimmer fine - Up Stage 4
33 Warm white - Up Stage 4 Red - Up Stage 4
34 Warm white fine - Up Stage 4 Red fine - Up Stage 4
35 Red - Down Stage 1 Green - Up Stage 4
36 Red fine - Down Stage 1 Green fine - Up Stage 4
37 Green - Down Stage 1 Royal blue - Up Stage 4
38 Green fine - Down Stage 1 Royal blue fine - Up Stage 4
39 Royal blue - Down Stage 1 Warm white - Up Stage 4
40 Royal blue fine - Down Stage 1 Warm white fine - Up Stage 4
41 Warm white - Down Stage 1 Dimmer - Down Stage 1
42 Warm white fine - Down Stage 1 Dimmer fine - Down Stage 1
43 Red - Down Stage 2 Red - Down Stage 1
44 Red fine - Down Stage 2 Red fine - Down Stage 1
45 Green - Down Stage 2 Green - Down Stage 1
46 Green fine - Down Stage 2 Green fine - Down Stage 1
47 Royal blue - Down Stage 2 Royal blue - Down Stage 1
48 Royal blue fine - Down Stage 2 Royal blue fine - Down Stage 1
49 Warm white - Down Stage 2 Warm white - Down Stage 1
50 Warm white fine - Down Stage 2 Warm white fine - Down Stage 1
51 Red - Down Stage 3 Blue position intensity - 1
52 Red fine - Down Stage 3 Red position intensity - 1
53 Green - Down Stage 3 Dimmer - Down Stage 2
54 Green fine - Down Stage 3 Dimmer fine - Down Stage 2
55 Royal blue - Down Stage 3 Red - Down Stage 2
56 Royal blue fine - Down Stage 3 Red fine - Down Stage 2
57 Warm white - Down Stage 3 Green - Down Stage 2
58 Warm white fine - Down Stage 3 Green fine - Down Stage 2
59 Red - Down Stage 4 Royal blue - Down Stage 2
60 Red fine - Down Stage 4 Royal blue fine - Down Stage 2
61 Green - Down Stage 4 Warm white - Down Stage 2
62 Green fine - Down Stage 4 Warm white fine - Down Stage 2
63 Royal blue - Down Stage 4 Blue position intensity - 2
64 Royal blue fine - Down Stage 4 Red position intensity - 2
65 Warm white - Down Stage 4 Dimmer - Down Stage 3
66 Warm white fine - Down Stage 4 Dimmer fine - Down Stage 3
67
Strobe duration
Red - Down Stage 3
68
Strobe speed
Red fine - Down Stage 3
69
Response time
Green - Down Stage 3
70
Control mode
Green fine - Down Stage 3
71
Blue position
Royal blue - Down Stage 3
72
Red position
Royal blue fine - Down Stage 3
73 Position Intensity Warm white - Down Stage 3
74 Warm white fine - Down Stage 3
75 Blue position intensity - 3
76 Red position intensity - 3
77 Dimmer - Down Stage 4
78 Dimmer fine - Down Stage 4
79 Red - Down Stage 4
80 Red fine - Down Stage 4
81 Green - Down Stage 4
82 Green fine - Down Stage 4
83 Royal blue - Down Stage 4
84 Royal blue fine - Down Stage 4
85 Warm white - Down Stage 4
86 Warm white fine - Down Stage 4
87 Blue position intensity - 4
88 Red position intensity - 4
EN - 4 -

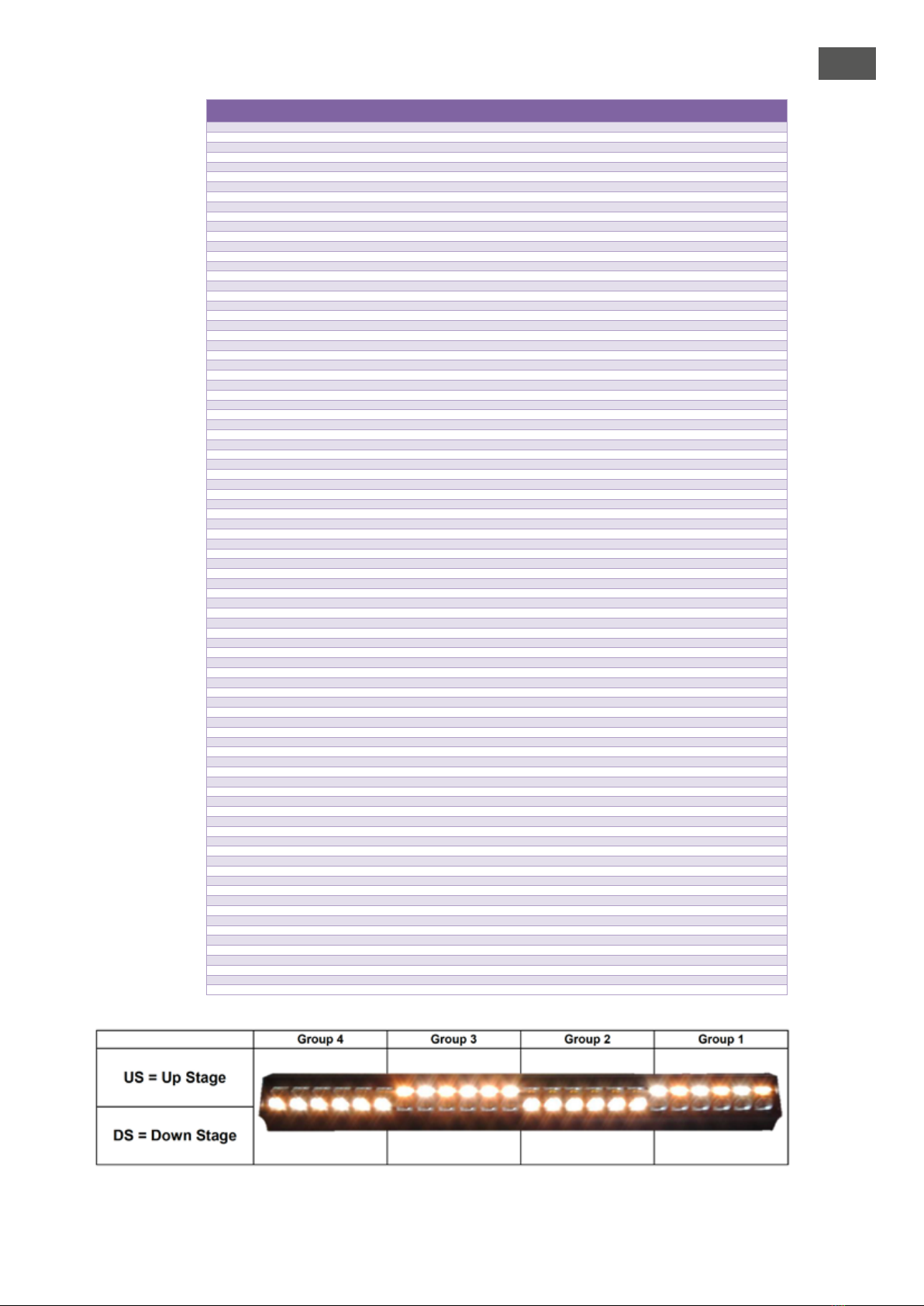

5 DMX chart
