RoboLabs VTP1-075 User manual

Popcorn display warmers
VTP1-075, VTP2-090, VTP2-120, VTP3-120
User manual
Read this manual before use and keep for future reference!
PDF version of this manual is available on www.robolabs.pro

Safety requirements
This is the safety alert symbol. It is used to alert you to potential physical
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
DANGER
•Not grounded equipment can cause electric shock. Power outlet
MUST have proper grounding to avoid electric shock.
•Using excessive water during cleaning can cause short circuit and
electric shock. DO NOT use excessive water or water jet for clean-
ing. DO NOT spill or pour water on electric panels.
•ALWAYS unplug equipment before cleaning or servicing.
•No user serviceable parts inside. DO NOT open electric panel unless
you are qualified for this.
WARNING
•Internal surfaces of the cabinet might be hot. DO NOT touch.
WARNING
•Improper installation, adjustment, alteration, service or mainte-
nance can cause property damage, injury, or death! Read and un-
derstand this manual before use.
•Only instructed personnel is allowed to operate the unit.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
VTP popcorn display warmers user manual 1

Contents
1 Overview 3
1.1 Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Deliveryset.................................. 3
1.3 Design..................................... 4
1.4 Principleofoperation ............................ 4
1.5 Assembing and installation . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.6 Powerrequirements............................. 5
1.7 Ambientconditions ............................. 5
2 Intended use 6
3 Maintenance and cleaning 7
3.1 Dailycleaning ................................ 7
3.2 Conservation................................. 7
4 Quality control check 8
5 Warranty obligations 9
6 Manufacturer details 9
A Dimension drawings 10
VTP popcorn display warmers user manual 2

1 Overview
Popcorn display warmer (hereinafter – "unit") is intended to keep moisture content of
popcorn at reasonable level, and to provide good appearance to the product at sales
point, such as cafes, cinema bars and so on. The unit is intended for professional use
only.
1.1 Technical specifications
Model VTP1-075 VTP2-090 VTP2-120 VTP3-120
Rated volume, liters 157 180 250 250
Rated voltage, V 230 230 230 230
Rated frequency, Hz 50 50 50 50
Rated power, W 650 650 650 650
Dimensions
(LxWxH), cm 75x71x70 90x71x70 120x71x70 120x71x70
Weight, kg 39 46 55 57
1.2 Delivery set
Model VTP1-075 VTP2-090 VTP2-120 VTP3-120
Warmer x1 x1 x1 x1
Divider — x1 x1 x2
Front glass x1 x1 x1 x1
Channel bar x1 x1 x1 x1
Top glass x1 x1 x1 x1
User manual x1 x1 x1 x1
VTP popcorn display warmers user manual 3

1.3 Design
The unit consists of the following main components: Housing (1); Front glass (2);
Front glass channel bar (3); Top glass (4); Divider (5); Controls (6); Crumb tray (7);
Light fixture (8); Air ducts (9); Sliding lid (10):
1.4 Principle of operation
Air inside the cabinet is being heated with internal heating elements. Centrifugal fans
provide air circulation across the whole volume of the cabinet. This helps popcorn
to stay warm and crunchy. Light fixtures illuminates popcorn inside, which helps to
attract customers at the point of sales. Dividers used to arrange storage areas for
dierent kind of popcorn, for example popcorn with oil and salt in one section, and
cheese coated popcorn in the other section. Operator uses slide lid to serve popcorn
and to refill the unit as necessary. All small particles in the product, such as broken
popcorn, un-popped kernels, husk and so on, are screened through the perforated
bottom panel of the cabinet into the crumb tray located below.
1.5 Assembing and installation
•Unpack the unit carefully, check the delivery set.
•Remove protective film from metal surfaces.
•Put the unit on a flat even surface.
•Use a slightly dampen, soft cloth to clean all items, wipe dry immediately.
•Put divider(s) into the unit.
•Put channel bar (3) on the front glass (2), and then insert into the unit.
•Install top glass (4).
VTP popcorn display warmers user manual 4

•Connect unit to the mains (see Power requirements section).
For dimension drawings see Appendix A.
1.6 Power requirements
DANGER
•Power outlet MUST have proper grounding to avoid electric shock.
•Presence of grounding must be checked on regular basis.
•If supply cord damaged, it must be replaced by manufacturer, ser-
vice agent, or qualified persons in order to avoid hazard!
•Connections must be done by qualified electrician ONLY!
Use Schuko type wall outlet to connect the unit. Equipotential bonding wire
(up to 10 sq.mm) shall be connected to screw terminal marked with IEC 5021
sign:
1.7 Ambient conditions
The equipment is designed to be operated at the ambient temperature from +5°C to
+40°C (+41°F to +104°F) and relative humidity not more than 45% at 40°C (104°F)
while using at altitudes not exceeding 1000 m over the sea level. The temperature
decreasing is related to RH increasing, for example, 90% of RH at 20°C (68°F).
VTP popcorn display warmers user manual 5

2 Intended use

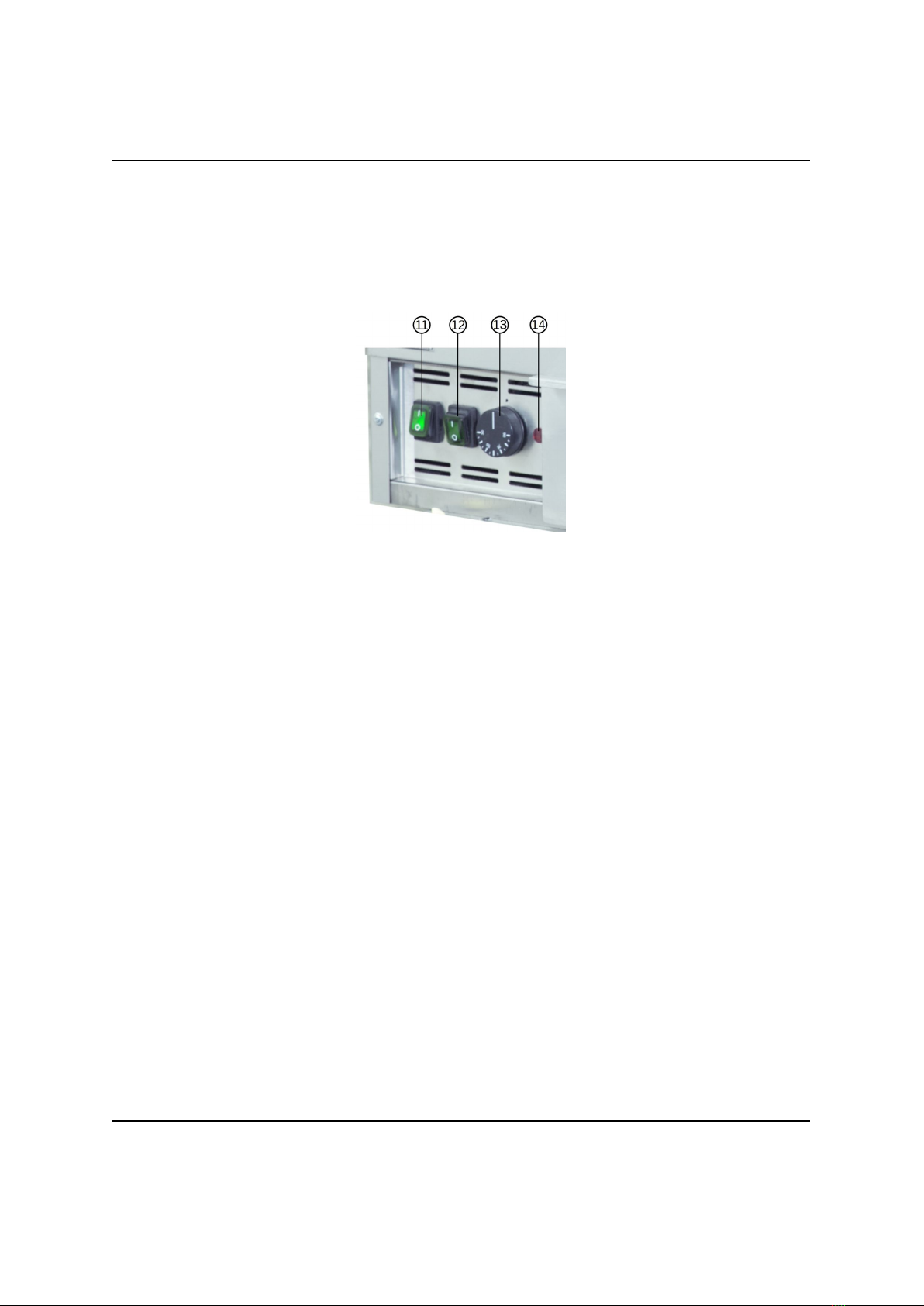

Control panel used to operate the unit. There are following items on the panel: Heat-
ing/Air circulation switch (11); Light fixture switch (12); Thermostat adjusting knob
(13); Heater pilot light (14):
Order of operation
•Open the sliding lid and fill unit with popcorn. Close the lid.
•Set the switches (11) and (12) to ON position.
•Adjust the thermostat adjusting knob (13) in the middle position for salted or
seasoned popcorn (about 50°C). For caramel coated popcorn set the knob at
the minimum (fully counter-clockwise).
•To make a serving of popcorn, open the sliding lid and take popcorn as needed.
•Close the sliding lid.
•To turn the unit o, set switches (11) and (12) to OFF position.
VTP popcorn display warmers user manual 6

3 Maintenance and cleaning
DANGER
•ALWAYS unplug equipment before cleaning or servicing!
•DO NOT use excessive water or water jet for cleaning. DO NOT spill
or pour water on electric panels or parts.
•Keep power cord and plug o the floor and water.
WARNING
•Use only food grade detergents for cleaning.
•DO NOT use aggressive solutions (such as benzin or alcali) for
cleaning.
•DO NOT use sharp items, or abrasives for cleaning stainless steel
surfaces.
The purpose of technical maintenance is to keep the unit operable during the entire
service life. Clean the unit every day.
3.1 Daily cleaning
•Wipe all surfaces and elements with a soft clean cloth, damped with food grade
detergent.
•Wipe all surfaces and elements with a soft clean cloth, damped with water to
remove detergent.
•Wipe dry immediately.
3.2 Conservation
If machine is not used for long time, perform all cleaning procedures.
VTP popcorn display warmers user manual 7

4 Quality control check
——————————————– ——————————————–
Product name Serial no.
The equipment is made with accordance to mandatory
requirements of the state standards, actual technical
documentation, and approved for use.
QC Engineer
STAMP HERE
——————————————– ——————————————–
Signature Full name
——————————————–
DD.MM.YYYY
VTP popcorn display warmers user manual 8

5 Warranty obligations
The manufacturer guarantees trouble-free operation of the equipment during 12 months
from the date of receiving the equipment by a dealer (in accordance with transport
documentation); or, in case of purchase directly through Trapeza LLC, from the date
of purchase, given that terms of using, transportation, and storage are met.
The warranty repair is performed upon presentation of this manual and filled war-
ranty card with the seller’s seal and the date of sale. Technical specifications of the
equipment can be changed by manufacturer at any time due to improvements and/or
other reasons. Technical specifications stated in this document are intended to act
as a reference point, which is necessary to evaluate suitability of the equipment for
the customer’s needs, and are not the subject of warranty policy.
The information stated in this document has been thoroughly checked and con-
sidered as accurate one; nevertheless, the manufacturer is not responsible for any
typographical errors or misprints.
Due to constant improvement of the equipment, technical specifications are sub-
ject to change without prior notice!
6 Manufacturer details
NPO Tvertorgmash LLC
11 Industrialnaya Street, Tver, 170100 Russia
Technical support:
Email: [e-mail]
Phone: [phone]
VTP popcorn display warmers user manual 9

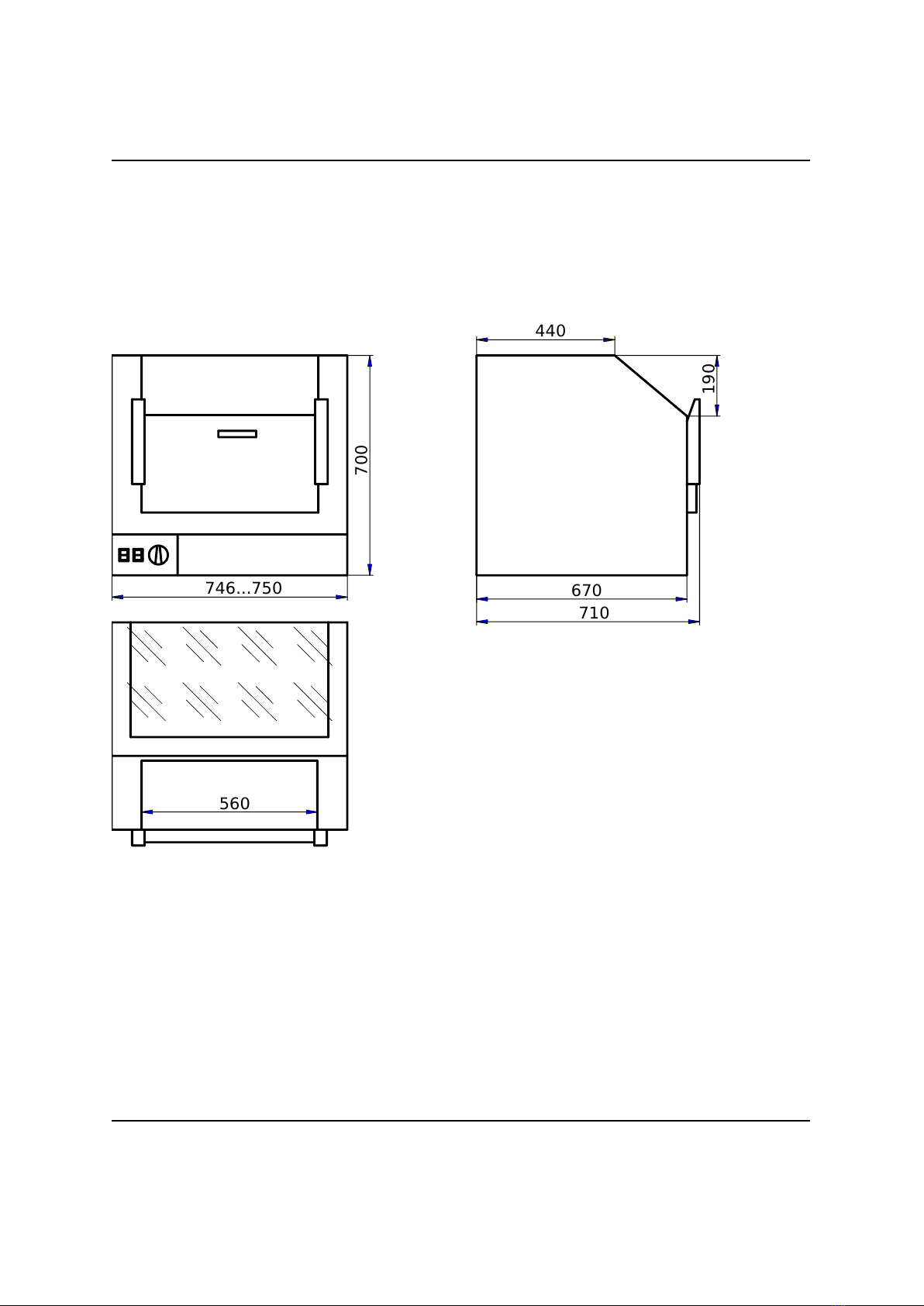

A Dimension drawings
All values in mm (+/- 2 mm tolerance).
VTP1-075
670
710
746...750
700
560
440
190
VTP popcorn display warmers user manual 10

VTP2-090
670
710
896...900
700
590
440
190
150
VTP2-120
670
710
1197...1200
700
820
440
190
A
A-A
160 470 70
60 1080 60
60 1080 60
70300
VTP popcorn display warmers user manual 11

VTP3-120
670
710
1197...1200
700
1000
440
190
A
A-A
160 470 70
60 1080 60
60 1080 60
70300
VTP popcorn display warmers user manual 12
