RoboLabs VTPA-060R User manual

Popcorn display warmers
VTPA-060R, VTPA-060G, VTPA-080G
User manual
Read this manual before use and keep for future reference!
PDF version of this manual is available on www.robolabs.pro

Safety requirements
This is the safety alert symbol. It is used to alert you to potential physical
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
DANGER
•Not grounded equipment can cause electric shock. Power outlet
MUST have proper grounding to avoid electric shock.
•Using excessive water during cleaning can cause short circuit and
electric shock. DO NOT use excessive water or waterjet for clean-
ing. DO NOT spill or pour water on electric panels. ALWAYS discon-
nect machine from the mains before servicing.
•No user serviceable parts inside. DO NOT open electric panel unless
you are qualified for this.
WARNING
•Internal surfaces of the cabinet might be hot. DO NOT touch.
WARNING
•Improper installation, adjustment, alteration, service or mainte-
nance can cause property damage, injury, or death! Read and un-
derstand this manual before use.
•Only instructed personnel is allowed to operate the unit.
VTPA popcorn display warmers user manual 1

Contents
1 Overview 3
1.1 Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Deliveryset.................................. 3
1.3 Design and intended use . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Assembling and installation 5
2.1 Powerrequirements............................. 5
2.2 Ambientconditions ............................. 5
3 Maintenance and cleaning 6
3.1 Cleaningprocedures............................. 6
3.2 Conservation................................. 6
4 Transportation and storage 7
5 Quality control check 7
6 Warranty obligations 8
7 Manufacturer details 8
VTPA popcorn display warmers user manual 2

1 Overview
VTPA series tabletop popcorn display warmers (hereinafter – "unit") are intended to
store popped popcorn at the point of sales. Can be installed on the front line, or wall
adjacent. The unit is intended for professional use only.
1.1 Technical specifications
Model VTP-060R VTP-060G VTP-080G
Capacity 100x46 Oz cup 100x46 Oz cup 210x46 Oz cup
Rated power 1000 W 1000 W 2000 W
Rated voltage 1N AC 230 V 1N AC 230 V 1N AC 230 V
Rated frequency 50 Hz 50 Hz 50 Hz
Dimensions 600x500x750 mm 600x500x750 mm 800x650x1050 mm
Net weight 40 kg 40 kg 60 kg
1.2 Delivery set
Warmer unit x1
Power cord x1
User manual x1
VTPA popcorn display warmers user manual 3

1.3 Design and intended use
The unit is made of stainless steel painted with powder paint (R in article stands for
red, G stands for gray/silver).

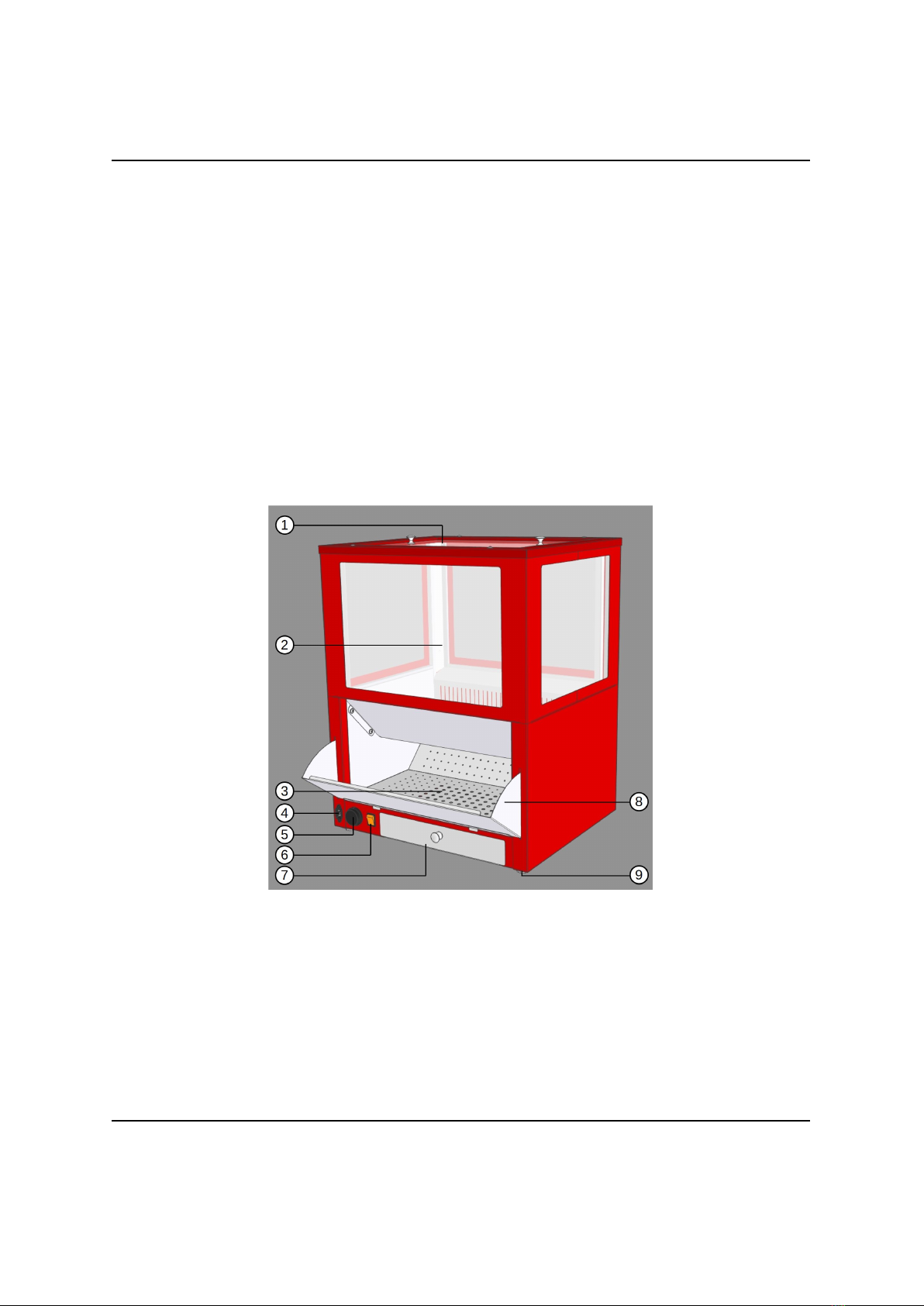

Popcorn cabinet (2) has transparent walls and LED backlight. Top cover (1) pro-
vides easy filling of cabinet. Perforated bottom plate (3) screens un-popped kernels
and small pieces that are collected in the scrap drawer (7). Swinging chute (8) pro-
vides easy access to popcorn. On the front panel there are power cord socket (4),
thermostat knob (5), and main ON/OFF switch (6). Height adjustable legs (9) let to
level the unit on any surface. Heating elements warm air inside the unit. Adjustable
thermostat maintains the temperature inside. Centrifugal fans provide air circula-
tion across the cabinet. Due to equal convection of warm air along both sides, whole
volume is warmed evenly even when cabinet is full.
Intended use
Open the top cover and fill the warmer with popcorn. Close the cover. Set the main
switch to ON position and adjust temperature if required. Set the temperature reg-
ulator roughly in the middle position for salted or seasoned popcorn (about 50°C).
For caramel coated popcorn set at the minimum. To make a serving of popcorn, open
the swinging chute.
VTPA popcorn display warmers user manual 4

2 Assembling and installation
Unpack the machine carefully. Check the delivery set. Remove protective film from
all surfaces. Put the unit on a flat even surface. Adjust the legs height if required.
2.1 Power requirements
DANGER
•Power outlet MUST have proper grounding to avoid electric shock.
•Presence of grounding must be checked on regular basis.
•If supply cord damaged, it must be replaced by manufacturer, ser-
vice agent, or qualified persons in order to avoid hazard!
•Connections must be done by qualified electrician ONLY!
Use Schuko type wall outlet to connect the unit.
Equipotential bonding wire (up to 10 sq.mm) shall be connected to screw
terminal marked with IEC 5021 sign:
2.2 Ambient conditions
The equipment is designed to be operated at the ambient temperature from +5°C to
+40°C (+41°F to +104°F) and relative humidity not more than 45% at 40°C (104°F)
while using at altitudes not exceeding 1000 m over the sea level. The temperature
decreasing is related to RH increasing, for example, 90% of RH at 20°C (68°F).
VTPA popcorn display warmers user manual 5

3 Maintenance and cleaning
DANGER
•ALWAYS disconnect unit before cleaning!
•DO NOT use excessive water or water jet for cleaning. DO NOT spill
or pour water on electric panels.
WARNING
•DO NOT use aggressive solutions, or sharp items, or abrasives for
cleaning.
The purpose of technical maintenance is to keep the unit operable during the entire
service life. Clean the unit every day.
3.1 Cleaning procedures
•Empty the scrap drawer. Wash scrap drawer with warm water and mild soap.
Wipe dry immediately.
•Wipe top cover, inner and outer surfaces of the machine with a cloth or sponge
slightly dampened in soap solution. Wipe dry immediately.
3.2 Conservation
If machine is not used for long time, perform all cleaning procedures.
VTPA popcorn display warmers user manual 6

4 Transportation and storage
The equipment may be transported by any kind of covered vehicle, in accordance with
transportation rules for this kind of vehicle. Ambient temperature during the trans-
portation and storage must be from minus 25°C to +55°C (minus 13°F to +131°F).
5 Quality control check
——————————————– ——————————————–
Product name Serial no.
The equipment is made with accordance to mandatory
requirements of the state standards, actual technical
documentation, and approved for use.
QC Engineer
STAMP HERE
——————————————– ——————————————–
Signature Full name
——————————————–
DD.MM.YYYY
VTPA popcorn display warmers user manual 7

6 Warranty obligations
The manufacturer guarantees trouble-free operation of the equipment during 12 months
from the date of receiving the equipment by a dealer (in accordance with transport
documentation); or, in case of purchase directly through RoboLabs LLC, from the date
of purchase, given that terms of using, transportation, and storage are met.
The warranty repair is performed upon presentation of this manual and filled war-
ranty card with the seller’s seal and the date of sale. Technical specifications of the
equipment can be changed by manufacturer at any time due to improvements and/or
other reasons. Technical specifications stated in this document are intended to act
as a reference point, which is necessary to evaluate suitability of the equipment for
the customer’s needs, and are not the subject of warranty policy.
The information stated in this document has been thoroughly checked and con-
sidered as accurate one; nevertheless, the manufacturer is not responsible for any
typographical errors or misprints.
Due to constant improvement of the equipment, technical specifications are sub-
ject to change without prior notice!
7 Manufacturer details
NPO Tvertorgmash LLC
11 Industrialnaya Street, Tver, 170100 Russia
Technical support:
Email: [e-mail]
Phone: [phone]
