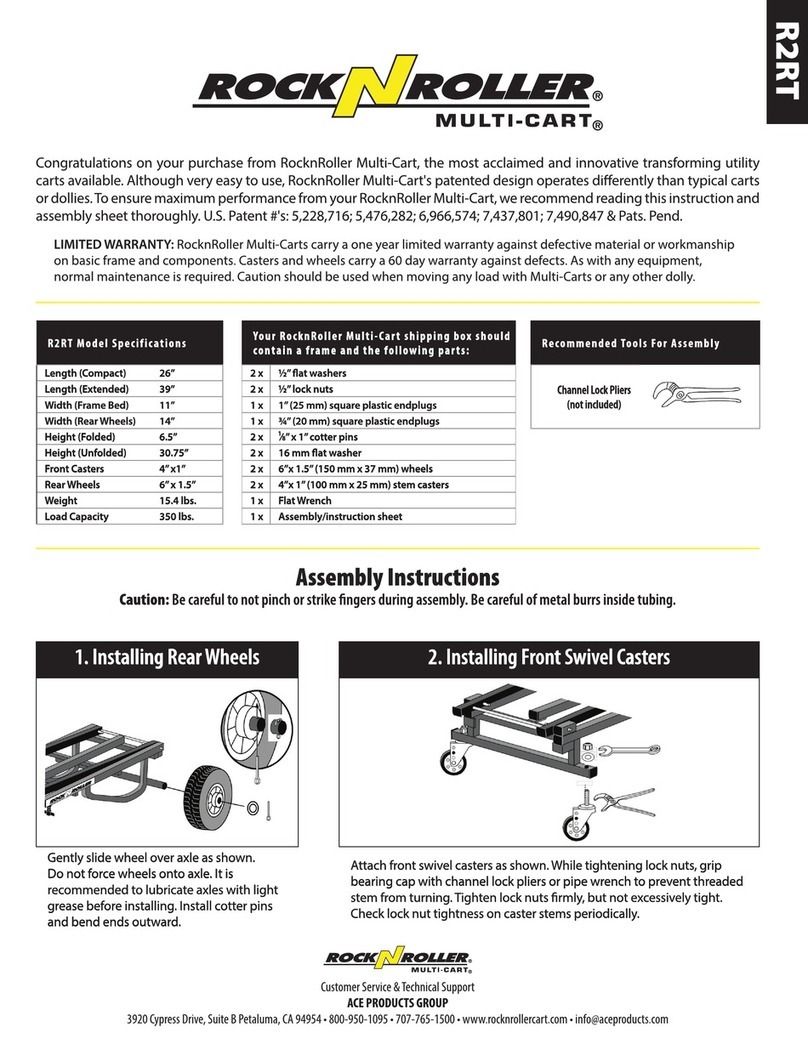

Rock-N-Roller R2RT-RD User manual

R2RT Model Specifications Your RocknRoller Multi-Cart shipping box should
contain a frame and the following parts: Recommended Tools For Assembly
Length (Compact) 26” 2 x ½” at washers
Length (Extended) 39” 2 x ½” lock nuts Channel Lock Pliers
(not included)
Width (Frame Bed) 11” 1 x 1” (25 mm) square plastic endplugs
Width (Rear Wheels) 14” 1 x ¾” (20 mm) square plastic endplugs
Height (Folded) 6.5” 2 x 1⁄8”x 1”cotter pins
Height (Unfolded) 30.75” 2 x 16 mm at washer
Front Casters 4” x1” 2 x 6”x 1.5” (150 mm x 37 mm) wheels
Rear Wheels 6” x 1.5” 2 x 4”x 1” (100 mm x 25 mm) stem casters
Weight 15.4 lbs. 1 x Flat Wrench
Load Capacity 350 lbs. 1 x Assembly/instruction sheet
2 x 530 mm Non-skid Tape
1. Installing Rear Wheels
Gently slide wheel over axle as shown.
Do not force wheels onto axle. It is
recommended to lubricate axles with light
grease before installing. Install cotter pins
and bend ends outward.
2. Installing Front Swivel Casters
Attach front swivel casters as shown. While tightening lock nuts, grip
bearing cap with channel lock pliers or pipe wrench to prevent threaded
stem from turning. Tighten lock nuts rmly, but not excessively tight.
Check lock nut tightness on caster stems periodically.

Extending Frame
Loosen wingbolts 1/4 turn. Step on
rear axle and push in extension
stop button. Pull up on frame as
shown until stop button engages.
Retighten wingbolts.
Raising Foldable Sides
Firmly press down on release cable
while raising other end of foldable
side as shown.
Repeat with other side.
Removable Shelves Solid Deck Cable/headphone
hanger Laptop Shelf Flex Straps
