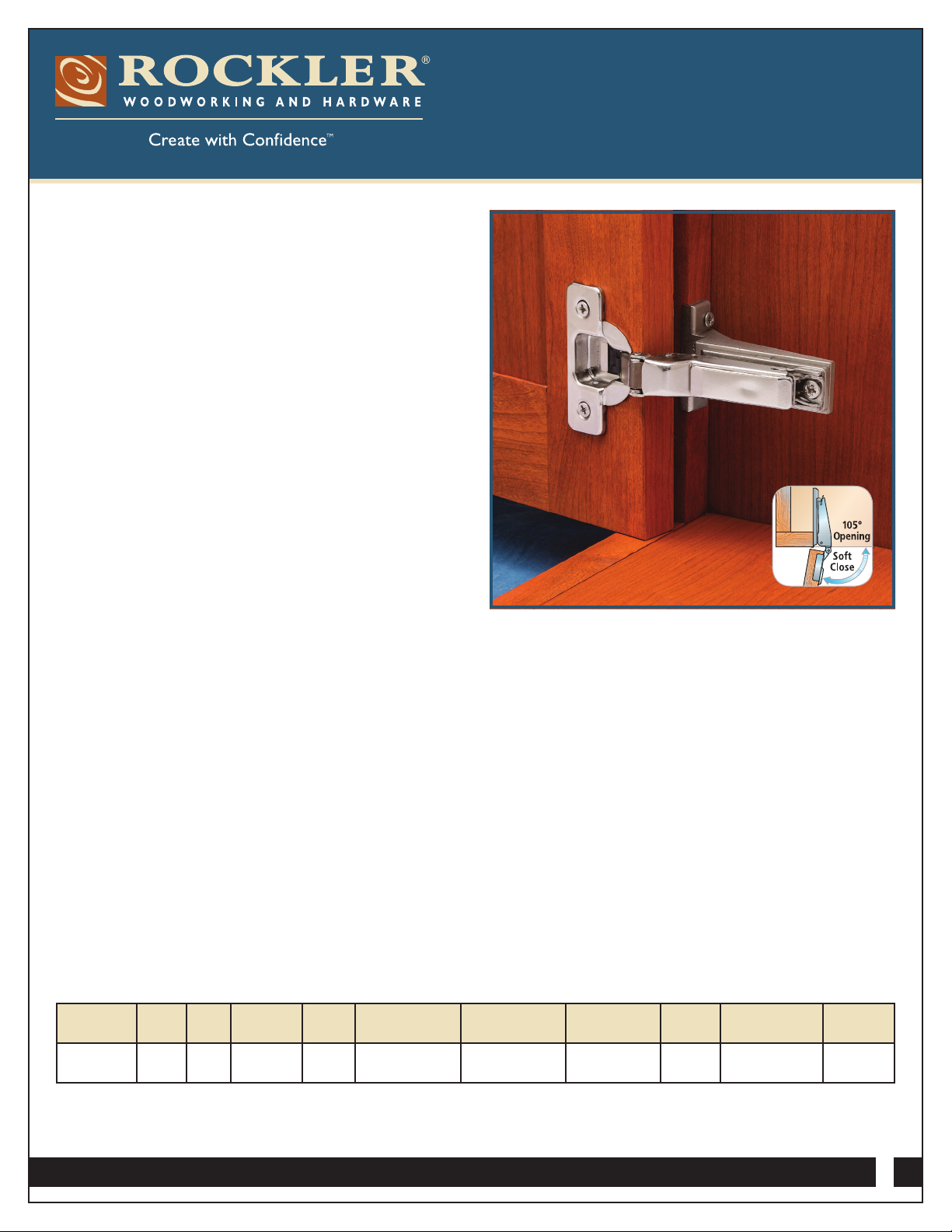

Salice 105° Soft Close Inset
Face Frame Hinge Instructions
Vertical Positioning of Hinges
Although Euro-style concealed hinges allow for vertical
adjustment, the mounting plate must line up with the hinge arm if
the two are to snap together and provide the maximum possible
adjustment range. The easiest way to accomplish this is to mark
aligning horizontal centerlines on both the door and the cabinet
face frame. You need to consider the amount of the door’s overlay
or inset when calculating the centerline positions for the door.
1. For the top hinge, measure down from the top of the cabinet
opening to the desired mounting location (typically 2"-3") and
use a combination square to mark the horizontal centerline
on the back of the face frame. (For the bottom hinge, measure
up from the bottom of the cabinet opening.)
Note: Be sure your hinge positions will provide adequate
clearance for any pullouts.
2. To determine the centerline location on the door, start with
the distance you measured in Step 1 and subtract the amount
of the reveal at that edge.
3. Use the values calculated for the top and bottom hinge
locations in Step 2 and mark the horizontal centerlines on
the back of the door. Compare the distance between the lines
on the face frame with the distance between the lines on the
door to verify.
Installing Hinges
1. Refer to the Door Diagram to mark drilling locations for
the hinge cup holes and mounting screw holes on the door.
2. Using a 35mm Forstner bit, drill a hole 12mm deep for the
hinge cup, taking care to keep the bit as square as possible
to the door.
Note: For fast, easy and accurate location and drilling of
hinge cup holes, we recommend using the JIG IT Deluxe
Concealed Hinge Drilling System (53420, sold separately)
along with a Rockler 35mm Long-Shank Forstner Bit (10117,
sold separately). For those using a drill press, a dedicated
JIG IT setup block is available (58223, sold separately).
3. Drill pilot holes for the screws, taking care not to drill all the
way through the door.
4. Position the hinge cup in the hole and use the included
screws to secure in place.
5. Repeat Steps 2-4 at other hinge location(s).
Installing Mounting Plates
1. Refer to the Face Frame Diagram to mark drilling locations
for the hinge plates on the back of the face frame.
2. Drill pilot holes for the mounting screws, taking care not
to drill all the way through.
Note: For fast, easy and accurate location and drilling of
mounting plate pilot holes, we recommend using the JIG IT
Hinge Plate Template F (58309, sold separately) along
with a Rockler/Insty-Drive #6 Self-Centering Bit (68991,
sold separately).
3. Use the included screws to secure the mounting plates
onto the face frame.
4. Mount the doors by clipping the hinge arms onto the
mounting plates.
Hinge Finish Tab Cup
Diameter
Cup
Depth
Minimum Door
Thickness
Maximum Door
Thickness Adjustments Gap Clip-on
Mounting
Minimum
Reveal
Salice 105°
Long Arm Nickel 4mm 35mm 12mm 15mm (.59") 19mm (.75") 3-way cam 4.6mm Yes NA
Check Rockler.com for updates. If you have further questions, please
contact our Technical Support Department at 1-800-260-9663
or support@rockler.com
55422
