Rockwell Automation Allen-Bradley 1606-XLB60EH User manual

DC Power Supply - 24V, 2.5 A,
60 W, Single-phase Input
Catalog Number 1606-XLB60EH
Reference Manual Original Instructions

2Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
DC Power Supply - 24V, 2.5 A, 60 W, Single-phase Input Reference Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 3
Table of Contents
Terminology and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Catalog Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Input Inrush Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hold-up Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Efficiency and Power Losses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Front Side and User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connection Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Lifetime Expectancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mean Time Between Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety and Protection Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dielectric Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Approvals and Fulfilled Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Physical Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Series Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Operation on Two Phases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Use In a Tightly Sealed Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Prohibited and Unsupported Applications. . . . . . . . . . . . . . . . . . . . . . . . . 20
DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Charging of Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Parallel Use to Increase Output Power . . . . . . . . . . . . . . . . . . . . . . . . . 20
Parallel Use for 1+1 Redundancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Notes:

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 5
Terminology and
Abbreviations
All values in this document are typical values under the following conditions
unless otherwise noted: 230V AC 50 Hz input voltage, 24V 2.5 A output load,
25 °C (77 °F) ambient temperature, and after a 5 minutes run-in time.
Product Overview The 1606-XLB60EH is a DIN rail mountable single-phase input power supply,
which provides a floating, stabilized, and galvanically separated SELV/PELV/
ES1 output voltage.
The output fulfills the requirements for a limited power source according to
NEC CLASS 2.
The device is equipped with push-in terminals, which are optimized for
automated wiring. The mechanically robust housing is made of a high-grade,
reinforced molded material, which permits surrounding temperatures up to
70 °C (158 °F).
The unit is designed as “Class of Protection” II unit and fulfills the safety and
electromagnetic compatibility (EMC) requirements without an input PE
connection. This saves wiring costs.
The 1606-XLB60EH is part of a series of compact, industrial grade DIN rail
power supplies. This series focuses on the essential features that are needed in
present day industrial applications. The excellent cost/performance ratio does
not compromise quality or reliability.
Product features:
•100…240Vwide-rangeinput
• NEC CLASS 2 compliant
• Cost-optimized without compromising quality or reliability
• No PE connection required
• Width only 36 mm (1.42 in.)
• Efficiency up to 91.8%
• Low no-load power losses
• Full power between -10…+60 °C (14…140 °F)
• Push-in terminals
Terms Descriptions
PE The abbreviation for Protective Earth. PE has the same meaning as the symbol.
The symbol for Protective Earth.
Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.
AC 230V A value that is displayed with the AC or DC before the value represents a nominal voltage with standard tolerances (usually ±15%) included. For example, DC 12V
describes a 12V battery disregarding whether it is full (13.7V) or flat (10V).
230V AC A value with the unit (V AC) at the end is a momentary value without any additional
tolerances included.
50 Hz versus 60 Hz As long as not otherwise stated, AC 100V and AC 230V parameters are valid at 50 Hz
mains frequency. AC 120V parameters are valid for 60 Hz mains frequency.
nom Indicates a nominal value.
typ Indicates a typical value.
— (alone in table cell) A dash alone in a table cell indicates that there is no information to be included in that
cell.

6Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Specifications
Catalog Number
Attributes Values Notes
Output voltage nom DC 24V —
Adjustment range 24…28V Factory setting 24.1V
Output current
2.5…2.1 A Below 60 °C (140 °F) ambient
1.9…1.6 A At 70 °C (158 °F) ambient
Derate linearly between 60…70 °C (140…158 °F)
Input voltage AC AC 100…240V ±10%
Mains frequency 50…60 Hz ±6%
Input current AC 1.0 A / 0.6 A At 120 / 230V AC
Power factor 0.55 / 0.47 At 120 / 230V AC
Input inrush current
15 A peak / 36 A peak At 120
/ 230V AC,
40 °C (104 °F), cold start
Efficiency 90.7% / 91.8% At 120 / 230V AC
Losses 6.2 W / 5.4 W At 120 / 230V AC
Hold-up time 24 ms / 113 ms At 120 / 230V AC
Temperature range -10…+70 °C
(14…158 °F) —
Size (W x H x D) 36 x 90 x 91 mm
(1.42 x 3.54 x 3.58 in.) Without DIN rail
Weight 225 g (0.49 lb) —
Catalog Number Description
1606-XLB60BEH Power supply

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 7
AC Input The device is suitable to be supplied from TN, TT, or IT mains networks.
Attributes Values Notes
AC input Nom AC 100…240V —
AC input range Min 90…264V AC Continuous operation
Min 264…300V AC For max 500 ms
Allowed voltage L or N to earth Max 300V AC Continuous according to IEC 60664-1
Input frequency Nom 50…60 Hz ±6%
Turn-on voltage Typ 75V AC Steady-state value, see Figure 1
Shut-down voltage Typ 54V AC Steady-state value, see Figure 1
External input protection
The device is designed, tested, and approved for branch circuits up to 20 A
without additional protection device. If an external fuse is used, do not use
circuit breakers smaller than 6A B- or 4A C-Characteristic. Smaller circuit
breakers may cause a nuisance tripping of the circuit breaker.
Attributes Values Notes
AC 100V AC 120V AC 230V
Input current Typ 1.15 A 1.0 A 0.60 A At 24V, 2.5 A, see Figure 3
Power factor Typ 0.58 0.55 0.47 At 24V, 2.5 A, see Figure 4
Start-up delay Typ 50 ms 50 ms 48 ms See Figure 2
Rise time Typ 18 ms 18 ms 18 ms At 24V, 2.5 A constant current load, 0 mF load capacitance, see Figure 2
Typ 52 ms 52 ms 50 ms At 24V, 2.5 A constant current load, 2 mF load capacitance, see Figure 2
Turn-on overshoot Max 100 mV 100 mV 100 mV See Figure 2

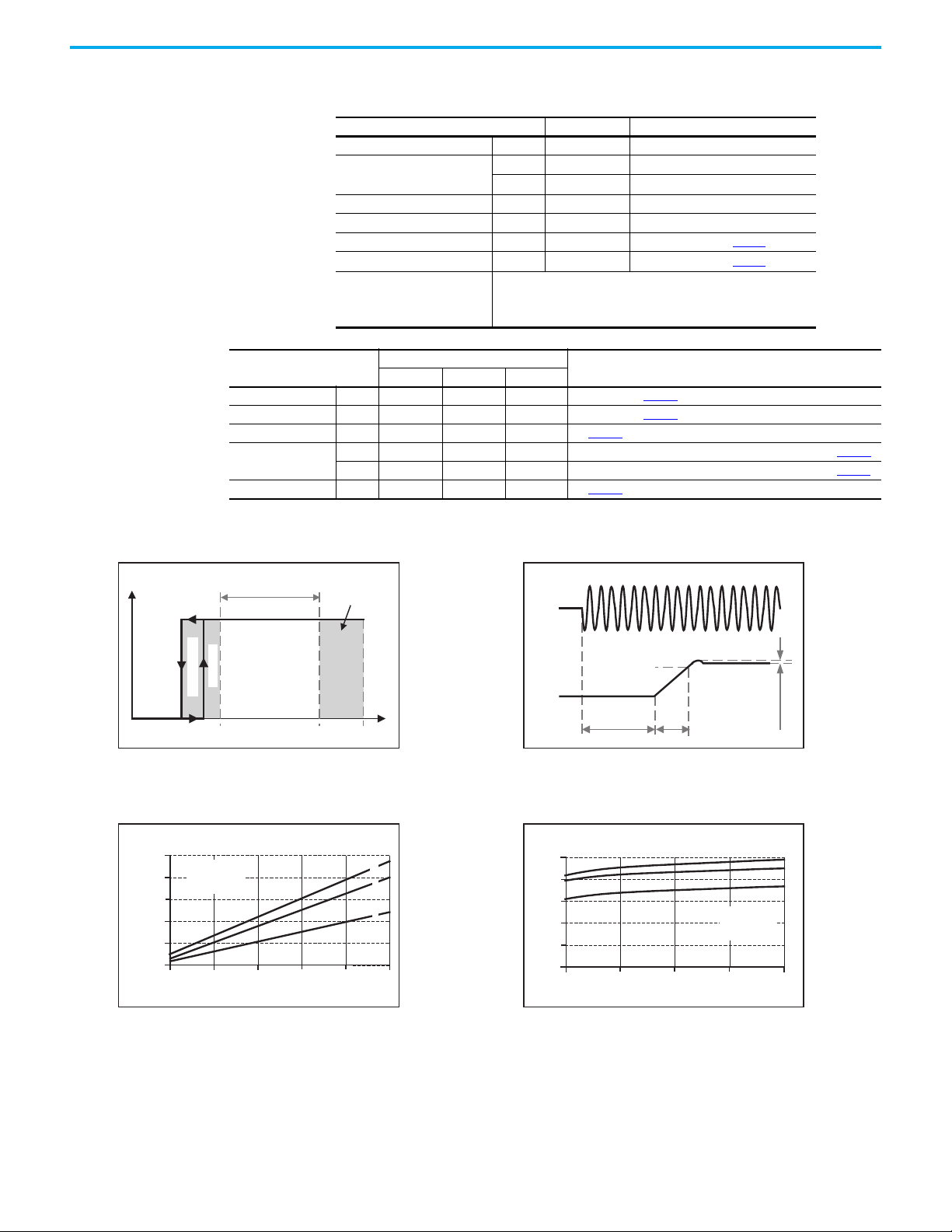

Figure 1 - Input Voltage Range Figure 2 - Turn-on Behavior, Definitions
Turn-on
90V
Rated
input range 500 ms max
VIN
POUT
300V AC
264V
Shut-down
Start-up
delay Rise Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
Figure 3 - Input Current Versus Output Load at 24V Output Voltage Figure 4 - Power Factor Versus Output Load at 24V Output Voltage
2.5 A
0 1.0 1.5
0
0.25
0.5
1.25 A
Input Current, Typ
2.0
Output Current
0.75
1.0
a) 100V AC
b) 120V AC
c) 230V AC b
c
a
0.5
2.5 A
0.5 1.0 1.5
0.1
0.2
2.0
Output Current
0.3
0.4
0.5
0.6
Power Factor, Typ
a: 100V AC
b: 120V AC
c: 230V AC
b
c
a

8Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Input Inrush Current An NTC limits the input inrush current after turn-on of the input voltage. The
inrush current is input voltage and ambient temperature dependent. The
output load has no impact on the inrush current value.
The charging current into EMI suppression capacitors is disregarded in the
first microseconds after switch-on.
Attributes Values Notes
AC 100V AC 120V AC 230V
Inrush current
Typ 12 Apeak 15 Apeak 36 Apeak At 40 °C (104 °F) ambient, cold start
Typ 10 Apeak 12 Apeak 30 Apeak At 25 °C (77 °F) ambient, cold start
Max 15 Apeak 18 Apeak 44 Apeak At 40 °C (104 °F) ambient, cold start
Max 12 Apeak 15 Apeak 36 Apeak At 25 °C (77 °F) ambient, cold start
Inrush energy Max 0.2 A2s0.3A
2s1.4A 2sAt 40 °C (104 °F) ambient, cold start
Figure 5 - Typical Turn-on Behavior at 120V AC and 25 °C (77 °F) Ambient Figure 6 - First Inrush Peak with 2 A/DIV Input Current
Figure 7 - Typical Turn-on Behavior at 230V AC and 25 °C (77 °F) Ambient Figure 8 - First Inrush Peak with 5 A/DIV Input Current

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 9
Output The output provides a SELV/PELV/ES1 rated voltage, which is galvanically
isolated from the input voltage.
The output is electronically protected against no-load, overload, and short
circuit. If there is a protection event, audible noise may occur.
The output is designed to supply any kind of loads, including inductive and
capacitive loads. Capacitive loads should not be larger than 2500 μF with 2.5 A
or 5000 μF with 1.25 A additional current load.

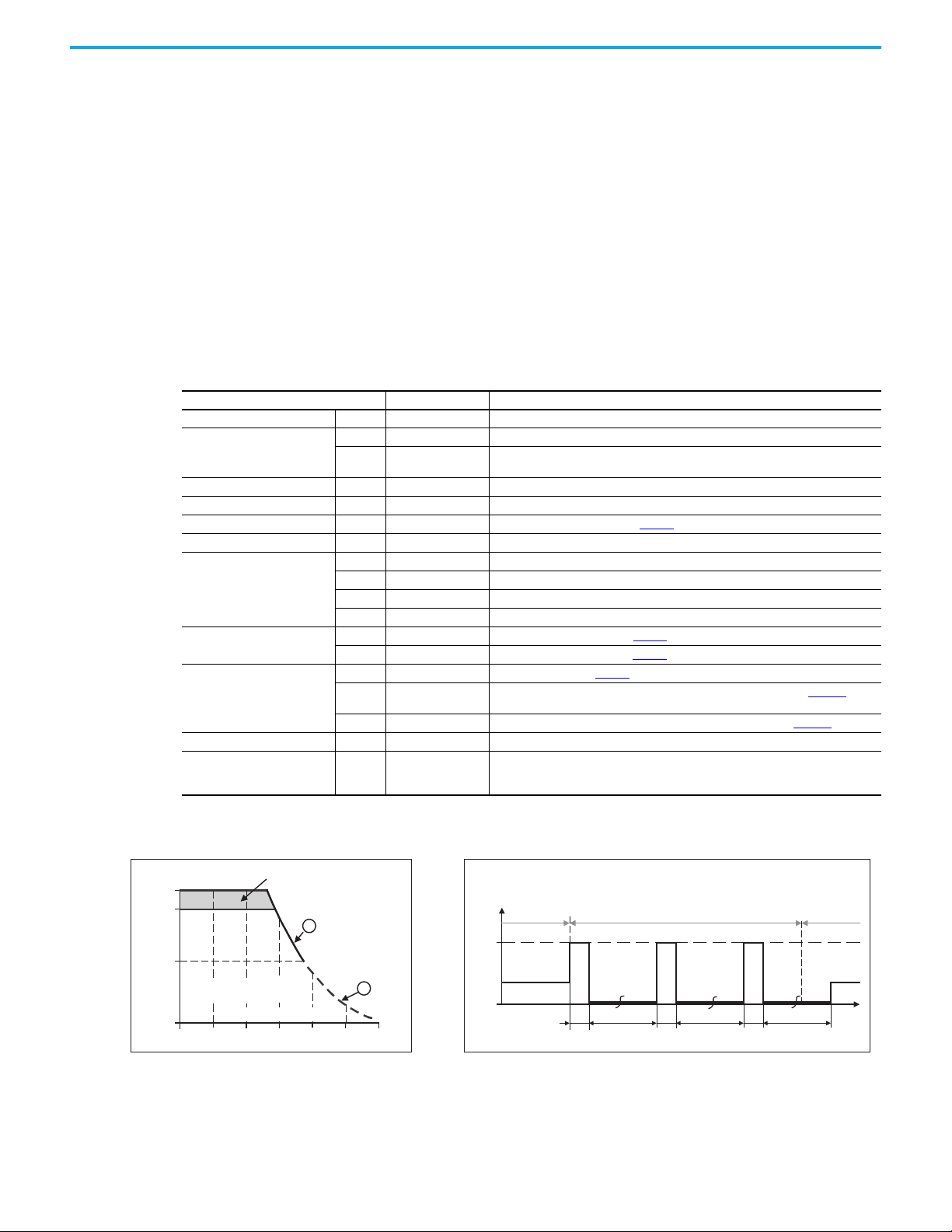

At heavy overloads (when output voltage falls below 14V), the power supply
delivers continuous output current for 25 ms. After this, the output is switched
off for approximately 145 ms before a new start attempt is automatically
performed. This cycle is repeated as long as the overload exists. If the overload
has been cleared, the device operates normally.
Attributes Values Notes
Output voltage Nom DC 24V —
Adjustment range
Min 24…28V Guaranteed value
Max 29.0V This is the max output voltage that can occur at the clockwise end position of the
potentiometer due to tolerances. It is not guaranteed that this value can be achieved.
Factory settings Typ 24.1V ±0.2%, at full load and cold unit
Line regulation Max 10 mV Between 90…300V AC
Load regulation Max 100 mV Between 0…2.5 A, static value, see Figure 9
Ripple and noise voltage Max 100 mVpp Bandwidth 20 Hz…20 MHz, 50 Ω
Output current
Nom 2.5 A At 24V and an ambient temperature below 60 °C (140 °F)
Nom 2.1 A At 24V and 70 °C (158 °F) ambient temperature
Nom 1.9 A At 28V and an ambient temperature below 60 °C (140 °F)
Nom 1.6 A At 28V and 70 °C (158 °F) ambient temperature
Overload behavior — Continuous current Output voltage above 14V DC, see Figure 9
— Intermittent current Output voltage below 14V DC, see Figure 9
Overload/ short-circuit current
Max 4.0 A Continuous current, see Figure 9
Typ 6 A Intermitted current peak value for 25 ms typ, Load impedance 150 mΩ, see Figure 10.
Discharge current of output capacitors is not included.
Max 2.5 A Intermitted current average value (R.M.S.) Load impedance 150 mΩ, see Figure 10.
Output capacitance Typ 900 µF Included inside the power supply
Back-feeding loads Max 35V The unit is resistant and does not show malfunctioning when a load feeds back voltage to the power supply. It does not matter whether the power supply is on or off. The absorbing
energy can be calculated according to the built-in large sized output capacitor.
Figure 9 - Output Voltage Versus Output Current, Typ Figure 10 - Intermittent Current at Short Circuit, Typ
Output Voltage
0
01
14
28V
24
6
A
32 4 5
Adju stment ra nge
Output Current
A
B
A: continuous current
B: intermittent current
Output
Current
0
6 A
145 ms 145 ms
145 ms
25
ms
t
Short -circuit Normal
operation
Normal
operation
25
ms
25
ms

10 Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Hold-up Time The hold-up time is the time during which the output voltage of a power supply
remains within specification following the loss of input power. The hold-up
time is output load dependent. At no load, the hold-up time can be up to
several seconds. The green DC OK status indicator is also on during this time.
Attributes Values Notes
AC 100V AC 120V AC 230V
Hold-up Time
Typ 14 ms 24 ms 113 ms At 24V, 2.5 A
Typ 38 ms 58 ms 230 ms At 24V, 1.25 A
Min 11 ms 19 ms 90 ms At 24V, 2.5 A
Min 30 ms 46 ms 184 ms At 24V, 1.25 A
Figure 11 - Hold-up Time Versus Input Voltage Figure 12 - Shut-down Behavior, Definitions
0
20
40
100
1
20 ms
90 120 155 190 230V AC
Input Voltage
Hold-up Time
60
80
a) 24V 1.25 A typ
b) 24V 1.25 A min
c) 24V 2.5 A typ
d) 24V 2.5 A min
abc
d
- 5%
Hold-up Time
Zero Transition
Output
Voltage
Input
Voltage

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 11
Efficiency and Power
Losses
The average efficiency is an assumption for a typical application where the
power supply is loaded with the following:
• 25% of the nominal load for 25% of the time
• 50% of the nominal load for 25% of the time
• 75% of the nominal load for 25% of the time
• 100% of the nominal load for 25% of the time
Attributes Values Notes
AC 100V AC 120V AC 230V
Efficiency Typ 89.4% 90.7% 91.8% At 24V, 2.5 A (full load)
Average efficiency Typ 89.3% 90.1% 90.7% 25% at 0.68 A, 25% at 1.25 A,
25% at 1.88 A. 25% at 2.5 A
Power losses
Typ 0.3 W 0.3 W 0.4 W At no load
Typ 3.8 W 3.5 W 3.4 W At 24V, 1.25 A (half load)
Typ 7.1 W 6.2 W 5.4 W At 24V, 2.5 A (full load)
Figure 13 - Efficiency Versus Output Current at 24V, Typ Figure 14 - Losses Versus Output Current at 24V, Typ
Eciency
0
82
86
90
80
92%
2.5 A
0.5 1.5 2.0
Output Current
1.0
84
88
a) 230V AC
b) 120V AC
c) 100V AC
b
c
a
Power Losses
0
1
4
0
8 W
2.5 A
0.5 1.5 2.0
Output Current
1.0
2
6b
c
a
3
7
a) 230V AC
b) 120V AC
c) 100V AC
5
Figure 15 - Efficiency Versus Input Voltage at 24V, 2.5 A, Typ Figure 16 - Losses Versus Input Voltage at 24V, 2.5 A, Typ
Eciency
85 120 155 190 225 260V AC
Input Voltage
93%
88
90
92
91
89
87
Power Losses
0
1
2
4
6
7
8 W
85 120 155 190 225 260V AC
Input Voltage
3
5

12 Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Functional Diagram Figure 17 - Functional Diagram
Front Side and User
Elements
Connection Terminals The terminals are IP20 fingersafe constructed and are suitable for field wiring
and factory wiring.
Input
Fuse
&
Input
Filter
Output
Overvoltage
Protection
Input
Rectier
&
Inrush
Limiter
Output
Voltage
Regulator
+
+
-
-
Output
Filter
V
OUT
Power
Converter
L
N
DC-OK
Status
Indicator
Figure 18 - Front Side User Elements
1 Output terminals
Dual terminals for the negative and positive pole. Both poles are
internally connected.
+ Positive output
- Negative (return) output
2 DC OK status indicator (green)
The status indicator is on when the output voltage is above 18V.
3OutputVoltageAdjustment Potentiometer
4 Input terminals
L: Phase (Line) input
N: Neutral conductor input
1
2
3
4
Attributes Descriptions (apply to all terminals)
Type Push-in termination
Solid wire 2.5 mm2max
Stranded wire 2.5 mm2max
Stranded wire with ferrules 1.5 mm2max
American Wire Gauge AWG 24…12
Wire diameter max (including ferrules) 2.3 mm (0.09 in.)
Wire stripping length 10 mm (0.4 in.)
Screwdriver 3 mm (0.12 in.) slotted to open the spring

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 13
Lifetime Expectancy The lifetime expectancies that are shown in the table indicate the minimum
operating hours (service life). The lifetime expectancy of the built-in
electrolytic capacitors determines the lifetime expectancy of the power supply.
Lifetime expectancy is specified in operational hours and is calculated
according to the manufacturer specification of the capacitor.
The manufacturer of the electrolytic capacitors only states a maximum life of
up to 15 years (131,400 h). Any number that exceeds this value is a calculated
theoretical lifetime, which can be used to compare devices.
Mean Time Between Failure Mean Time Between Failure (MTBF) is calculated according to statistical
device failures, and indicates reliability of a device. It is the statistical
representation of the likelihood of a unit to fail and does not necessarily
represent the life of a product. An MTBF value of, for example, 1,000,000 h
means that statistically one unit fails every 100 hours if 10,000 units are
installed in the field. However, it cannot be determined if the failed unit has
been running for 50,000 h or only for 100 h. For these types of units, the Mean
Time To Failure (MTTF) value is the same as the MTBF value.
Electromagnetic
Compatibility
The electromagnetic compatibility (EMC) behavior of the device is designed
for applications in industrial, residential, commercial, and light industrial
environments. The device complies with EN 61000-6-1, EN 61000-6-2,
EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, and EN 61000-3-3.
The device complies with FCC Part 15 rules. Operation is subjected to following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
Attributes Values (in kilohours) Notes
AC 100V AC 120V AC 230V
Lifetime expectancy
115 khr 131 khr 148 khr At 24V, 2.5 A and 40 °C (104 °F)
260 khr 263 khr 263 khr At 24V, 1.25 A and 40 °C (104 °F)
324 khr 370 khr 419 khr At 24V, 2.5 A and 25 °C (77 °F)
734 khr 744 khr 744 khr At 24V, 1.25 A and 25 °C (77 °F)
Attributes Values (in kilohours) Notes
AC 100V AC 120V AC 230V
MTBF SN 29500, IEC 61709 1797 khr 1858 khr 1982 khr At 24V, 2.5 A and 40 °C (104 °F)
3093 khr 3186 khr 3378 khr At 24V, 2.5 A and 25 °C (77 °F)
MTBF MIL HDBK 217F
868 khr 886 khr 803 khr At 24V, 2.5 A, 40 °C (104 °F); Ground Benign GB40(1)
(1) Ground Benign (GB): A non-mobile, temperature and humidity controlled environment that is readily accessible to
maintenance. Includes laboratory instruments and test equipment, medical electronic equipment, business and scientific
computer complexes, and missiles and support silos in ground silos.
1257 khr 1278 khr 1175 khr At 24V, 2.5 A, 25 °C (77 °F); Ground Benign GB25(1)
247 khr 252 khr 247 khr At 24V, 2.5 A, 40 °C (104 °F); Ground Fixed GF40(2)
(2) Ground Fixed (GF): Moderately controlled environments such as installations in permanent racks with adequate cooling air
and possible installation in unheated buildings. Includes permanent installation of air traffic control radar and
communication facilities.
325 khr 331 khr 328 khr At 24V, 2.5 A, 25 °C (77 °F); Ground Fixed GF25(2)

14 Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Do not use this device in an application where both of the following are true:
• The device is used on AC 100V mains with more than 1.9 A load.
• The application is sensitive to short output voltage dips during mains
interruptions, even with a length shorter than 20 ms.
EMC immunity information is provided in the following table.
EMC emission information is provided in the following table.
Switching frequency information is provided in the following table.
Attributes Standards Values Criteria(1)
(1) Criterion A: The device shows normal operation behavior within the defined limits.
Criterion B: The device operates continuously during and after the test. During the test, minor temporary impairments
may occur. If they do occur, the device corrects them.
Criterion C: Temporary loss of function is possible. The device may shut down. If it shuts down, it then restarts by
itself. No damage or hazards for the device occur.
A/C: Criterion A for output current below 1.9 A and Criterion C for output currents above 1.9 A.
Electrostatic discharge EN 61000-4-2 Contact discharge 8 kV Criterion A
Air discharge 8 kV Criterion A
Electromagnetic RF field EN 61000-4-3 80 MHz…6 GHz 10V/m Criterion A
Fast transients (Burst) EN 61000-4-4 Input lines 4 kV Criterion A
Output lines 2 kV Criterion A
Surge voltage on input EN 61000-4-5 L N2kVCriterionA
N / L  Earthed output 4 kV Criterion A
Surge voltage on output EN 61000-4-5
+ -1kVCriterionA
+ (-) Earthed 1 kV CriterionA
- (+) Earthed 1 kV CriterionA
Conducted disturbance EN 61000-4-6 0.15…80 MHz 10V Criterion A
Mains voltage dips EN 61000-4-11
0% of 100V AC 0V AC, 20 ms Criterion A/C
40% of 100V AC 40V AC, 200 ms Criterion C
70% of 100V AC 70V AC, 500 ms Criterion A
0% of 120V AC 0V AC, 20 ms Criterion A
40% of 120V AC 48V AC, 200 ms Criterion C
70% of 120V AC 84V AC, 500 ms Criterion A
0% of 200V AC 0V AC, 20 ms Criterion A
40% of 200V AC 80V AC, 200 ms Criterion A
70% of 200V AC 140V AC, 500 ms Criterion A
Voltage interruptions EN 61000-4-11 0V 5000 ms Criterion C
Powerful transients VDE 0160 Over entire load range 750V, 1.3 ms Criterion A
Attributes Standards Notes
Conducted emission input lines EN 55011, EN 55022, FCC Part 15, CISPR 11, CISPR 22 Class B
Conducted emission output lines IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Limits for local DC power networks fulfilled.
Radiated emission EN 55011, EN 55022, CISPR 11, CISPR 22 Class B
Harmonic input current EN 61000-3-2 Fulfilled (Class A)
Voltage fluctuations, flicker EN 61000-3-3 Fulfilled, tested with non-pulsing constant current loads.
Type of Switching
Frequency Value Notes
Main converter 40…140 kHz Dependent on input voltage and output load

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 15

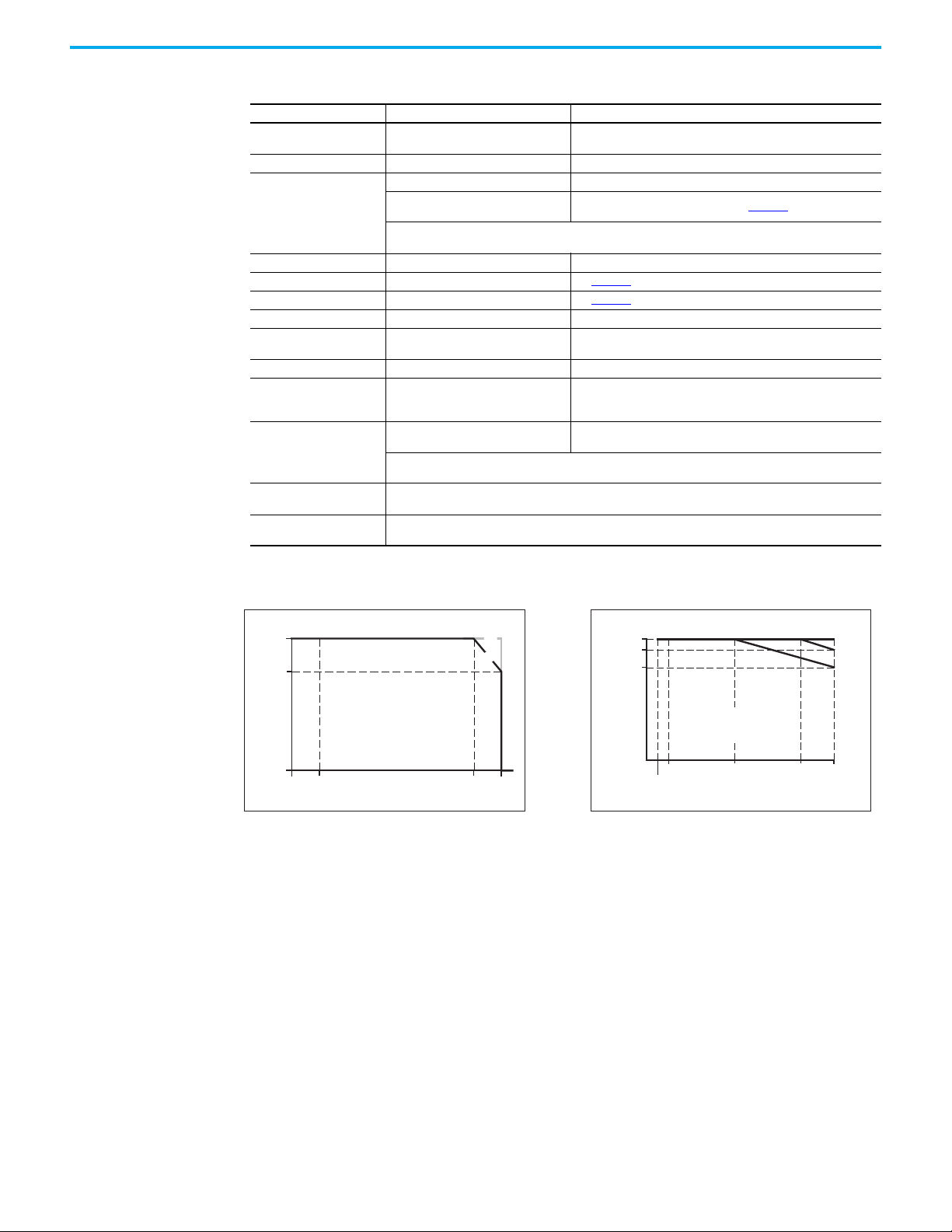

Environment
Attributes Values Notes
Operational temperature -10…+70 °C (14…158 °F) The operational temperature is the ambient or surrounding temperature
and is defined as the air temperature 2 cm (0.79 in.) below the device.
Storage temperature -40…+85 °C (-40…+185 °F) For storage and transportation
Output derating
0.06 A/1 °C (0.06 A/1.8 °F) Between 60…70 °C (140…158 °F)
0.15 A/1000 m (0.15 A/3281 ft) or
5 °C/1000 m (9 °F/3281 ft) For altitudes above 2000 m (6562 ft), see Figure 20
Hardware does not control the derating. You must take this into consideration to stay below the derated current
limits to help prevent overloading the unit.
Humidity 5…95% r.H. According to IEC 60068-2-30 No condensation allowed.
Atmospheric pressure 110…54 kPa See Figure 20 for details
Altitude Up to 5000 m (16,404 ft) See Figure 20 for details
Overvoltage category II According to IEC 60664-1, for altitudes up to 5000 m (16,404 ft)
Impulse withstand voltage 4 kV
(according to overvoltage category III) Input to PE According to IEC 60664-1, for altitudes up to 2000 m (6562 ft)
Degree of pollution 2 According to IEC 60664-1, non-conductive
Vibration sinusoidal 2…17.8 Hz: ±1.6 mm (0.063 in.) 17.8…500 Hz: 2 g
2 hours / axis According to IEC 60068-2-6
Shock
30 g 6 ms, 20 g 11 ms
3 bumps
/ direction 18 bumps intotal
According to IEC 60068-2-27
Shock and vibration are tested in combination with DIN rails according to EN 60715 with a height of 15 mm (0.59 in.)
and a thickness of 1.3 mm (0.05 in.).
LABS compatibility As a rule, only non-silicon precipitating materials are used. The unit conforms to the LABS criteria and is suitable for
use in paint shops.
Corrosive gases Compliant to ISA-71.04-1985, Severity Level G3 and IEC 60068-2-60 Test Ke Method 4 for a service life of 10 years min in
these environments.
Figure 19 - Output Power Versus Ambient Temperature Figure 20 - Output Power Versus Altitude
Allowed Output Current at 24V
0
-10 0 +70 °C
1.9 A
2.5 A
+60
B
A
Ambient Temperature
A... continuous
B... short term (300 s max)
2000 5000 m
2.05 A
2.35 A
2.5 A
Altitude
Allowed Output Current at 24V
B
C
A... T amb < 60 °C
B... T amb < 50 °C
C... T amb < 45 °C
A
AP
(1)
80 54 kPa 110
0
(1) Atmospheric pressure
4000
62

16 Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Safety and Protection
Features
Dielectric Strength The output voltage is floating and has no ohmic connection to the ground.
A double or reinforced insulation insulates the output to the input.
The manufacturer conducts type and routine tests. Field tests may be
conducted in the field using the appropriate test equipment, which applies the
voltage with a slow ramp (2 s up and 2 s down). Connect all phase-terminals
together and all output poles before conducting the test. When testing, set the
cutoff current settings to the value in the following table.
It is recommended that either the + pole or the – pole shall be connected to the
protective earth system. This helps to avoid situations in which a load starts
unexpectedly or cannot be switched off when unnoticed earth faults occur.
Figure 21 - Dielectric Strength
Attributes Values Notes
Isolation resistance Min 500 MΩ At delivered condition between input and output, measured
with 500V DC
Output overvoltage protection
Typ 30.5V DC —
Max 32V DC —
—If there is an internal anomaly,a redundant circuitlimits the maximum output voltage to
32V. The output shuts down. Toattempt a restart,turntheinput power off for at least 90 s.
Class of protection — II According to IEC 61140
Degree of ingress protection — IP20 According to EN/IEC 60529
Over-temperature protection — Not included —
Input transient protection — Metal Oxide Varistor
(MOV) For protection values, see Electromagnetic Compatibility on
page 13.
Internal input fuse — Included Non-user-replaceable, slow-blow, high-braking capacity fuse
Touch current (leakage current)
Typ 40 µA / 80 µA At 100V AC, 50 Hz, TN-,TT-mains / IT-mains
Typ 60 µA / 120 µA At 120V AC, 60 Hz, TN-,TT-mains / IT-mains
Typ 100 µA / 200 µA At 230V AC, 50 Hz, TN-,TT-mains / IT-mains
Max 60 µA / 100 µA At 110V AC, 50 Hz, TN-,TT-mains / IT-mains
Max 80 µA / 150 µA At 132V AC, 60 Hz, TN-,TT-mains / IT-mains
Max 140 µA / 260 µA At 264V AC, 50 Hz, TN-,TT-mains / IT-mains
Test or Setting Time A
Type test 60 s 3000V AC
Routine test 5 s 2500V AC
Field test 5 s 2000V AC
Cutoff current setting for field test — > 2 mA
A
N
L
Input Output
-
+

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 17
Approvals and Fulfilled
Standards
Regulatory Compliance
Approval or Standard Names Approval or Standard Symbols Notes
IEC 61010
CB Scheme Certificate
IEC 61010-2-201 Electrical Equipment for Measurement, Control,
and Laboratory Use - Particular requirements for control
equipment
IEC 62368
CB Scheme Certificate
IEC 62368-1 Audio/video, information, and communication
technology equipment - Safety requirements
Output safety level: ES1
UL 61010-2-201
(former UL 508)
UL Certificate
Listed equipment for category NMTR - UL 61010-2-201 Electrical
Equipment for Measurement, Control, and Laboratory Use -
Particular requirements for control equipment
Applicable for US and Canada
E-File: E56639
NEC CLASS 2
UL Certificate
NEC CLASS 2 - Limited Power Source
Listed in the UL 61010-2-201 approval report, investigated
according to UL 1310
Ind. Cont. Eq.
NEC CLASS 2
Regulation Names Regulation Symbols Notes
CE
EU Declaration of Conformity
Trade conformity assessment for Europe
The CE marking indicates conformance with the following
European regulations:
–RoHSdirective
–EMCDirective
– Low Voltage Directive (LVD)
REACH Directive Manufacturer Statement EU-Regulation regarding the Registration, Evaluation,
Authorization, and Restriction of Chemicals
WEEE Directive Manufacturer Statement
EU-Directive on Waste Electrical and Electronic Equipment
RoHS (China RoHS 2)
Manufacturer Statement
Administrative Measures for the Restriction of the Use of
Hazardous Substances in Electrical and Electronic Products
25 years
EAC EAC Certificate EAC Eurasian Conformity - Registration Russia, Kazakhstan, and
Belarus

18 Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Physical Dimensions and
Weight Attributes Values and Descriptions
Width 36 mm ( 1.42 in.)
Height 90 mm ( 3.54 in.)
Depth 91 mm ( 3.58 in.) TheDIN railheight must beadded totheunit depth tocalculate thetotal required
installation depth.
Weight 220 g (0.49 lb)
DIN rail Use 35 mm (1.38 in.) DIN rails according to EN 60715 or EN 50022 with a height of 7.5 mm
(0.295 in.) or 15 mm (0.59 in.).
Housing material High-grade polycarbonate/ ABS blend material
Installation clearances
Keep the following min installation clearances:
• 40 mm (1.57 in.) on the top
• 20 mm (0.79 in.) on the bottom
• 0 mm (0 in.) on the left side
• 0 mm (0 in.) on the right side
• Increase the side clearances from 0 mm (0 in.) to 15 mm (0.59 in.) if the adjacent
device is a heat source.
Penetration protection Small parts like screws and nuts with a diameter larger than 4.2 mm (0.165 in.).

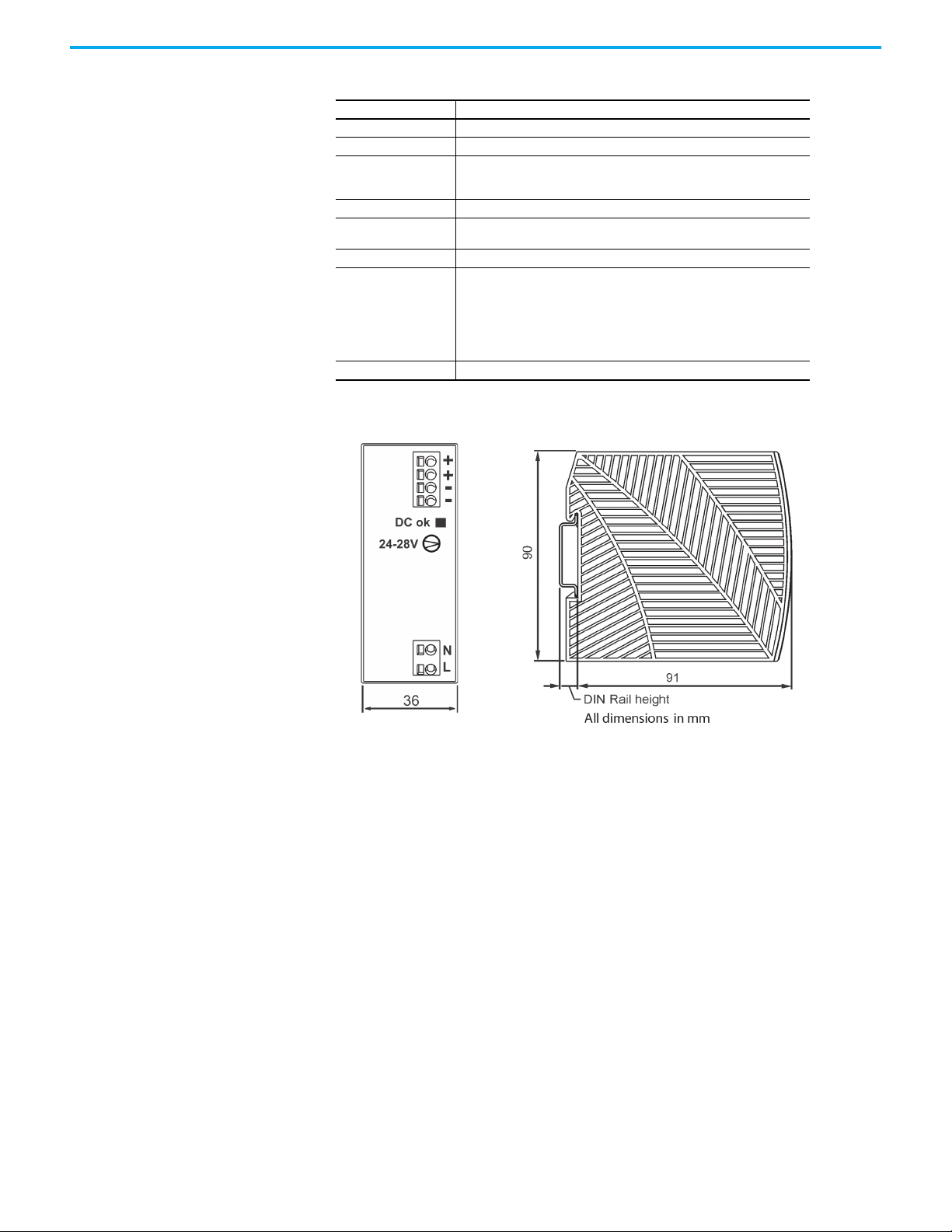

Figure 22 - Front View Figure 23 - Side View
All dimensions in mm

Rockwell Automation Publication 1606-RM118A-EN-P - July 2020 19
Series Operation Devices of the same type can be connected in series for higher output voltages.
It is possible to connect as many units in series as needed, providing the sum
of the output voltage does not exceed 150V DC. Voltages with a potential above
60V DC must be installed with a protection against touching.
Avoid return voltage (for example, from a decelerating motor or battery) which
is applied to the output terminals.
Keep an installation clearance of 15 mm (0.59 in.) (left / right) between two
power supplies and avoid installing the power supplies on top of each other.
Leakage current, EMI, inrush current, and harmonics increase when using
multiple devices.

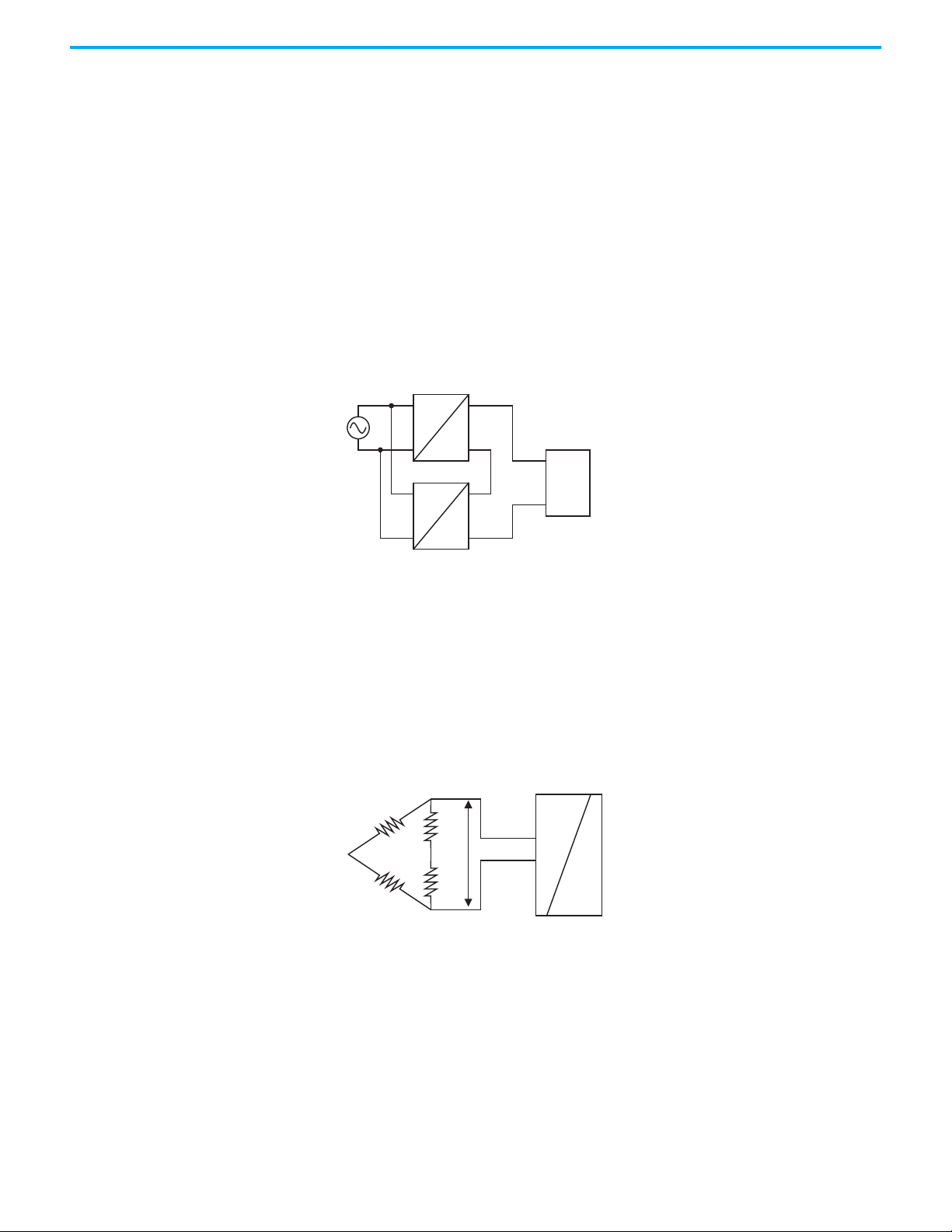

Figure 24 - Series Operation
Operation on Two Phases The power supply can also be used on two-phases of a three-phase-system.
Such a phase-to-phase connection is allowed as long as the supplying voltage is
below 240V+10%.
Ensure that the wire, which is connected to the N-terminal, is appropriately
fused.
Figure 25 - Operation on Two Phases
Unit A
Input
Output
Unit B
-
+
-
+
Load
+
-
Input
Output
240V
+10%
max
L2
L1
L3
L
N
Power Supply
AC
DC

20 Rockwell Automation Publication 1606-RM118A-EN-P - July 2020
Use In a Tightly Sealed
Enclosure
When the device is installed in a tightly sealed enclosure, the temperature
inside the enclosure is higher than outside. In such situations, the inside
temperature defines the ambient temperature for the device.
In the following test setup, the device is placed in the middle of the box, no
other heat-producing items are inside the box. The load is placed outside the
box.
The temperature sensor inside the box is placed in the middle of the right side
of the power supply with a distance of 1 cm (0.39 in.). The following
measurement results can be used as a reference to estimate the temperature
rise inside the enclosure.
Prohibited and Unsupported
Applications
This section covers applications in which the 1606-XLB60EH power supply is
either prohibited or not recommended.
DC Input
Do not operate this power supply with DC input voltage.
Charging of Batteries
Do not use the power supply for the charging of batteries.
Parallel Use to Increase Output Power
Do not parallel devices for higher output currents.
Parallel Use for 1+1 Redundancy
We recommend that you not use this power supply for 1+1 redundancy,
because it does not have a DC OK monitoring function.
Attributes Values
Case A Case B
Enclosure size
110 x 180 x 165 mm
(4.33 x 7.09 x 6.50 in.)
Rittal Typ IP66 Box
PK 9516 100, plastic
110 x 180 x 165 mm
(4.33 x 7.09 x 6.50 in.)
Rittal Typ IP66 Box
PK 9516 100, plastic
Input voltage 230V AC 230V AC
Load 24V, 2.0 A (=80%) 24V, 2.5 A; (=100%)
Temperature inside the box 28.6 °C (83.48 °F) 30.2 °C (86.36 °F)
Temperature outside the box 21.0 °C (69.80 °F) 21.0 °C (69.80 °F)
Temperature rise 7.6 K (13.68 °F) 9.2 K (16.56 °F)
