Rocstor ARCTICROC 4T User manual

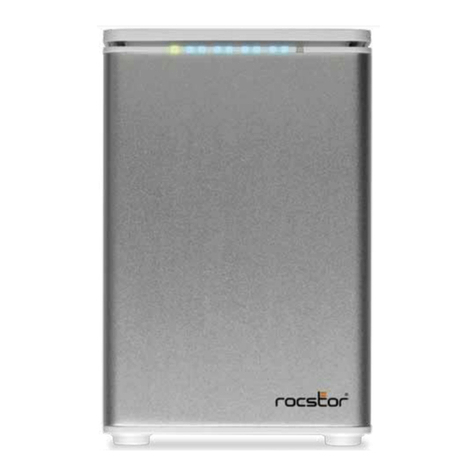

ARCTICROC 4T
4 Bay, Tower RAID System
eSATA, FireWire 800, FireWire 400 and USB Ports
The Arccroc is a highly versale RAID system that is available in a 4-Bay
Tower model with up to 12 Terabytes of disk storage. The drives are
Hot-Swappable, with transfer speeds of 3 Gbits/s to and from the host.
ARCTICROC is also compable with both Windows® and Macintosh®
Operang Systems.
STREAMLINES YOUR DATA STORAGE MANAGEMENT!
Speed and massive storage capacity are typically cited as the chief benefits of
RAID storage management. Real-me redundant backup of data and fault
tolerance make RAID a crical part of any enterprise, regardless of size.
Commercial enterprises that fail to employ (or use) RAID or disk mirroring can
face large costs in the event of disk failure. Upon careful analysis, potenal
adopters of RAID technology will discover that the greatest cost of disk failure
is the accumulated long term loss of data and subsequently loss of me and
money. Designed for professional users and the enterprise sector, the newly
released 4-Bay Arccroc Tower RAID systems helps prevent data loss and
streamlines storage management.
ARCTICROC COMBO TOWER RAID SYSTEMS
The RAID 5 mode provides a fault tolerance feature. It requires a minimum of
3 drives in an array. In case one of the disks fails, the malfunconing disk can
be replaced with a new one. The source data can then be reconstructed back
through parity calculaon. RAID 0+1 mode stripes the data first and then
mirrors the data. It provides another mode to achieve higher performance
and data security.
Using this RAID system is as easy and familiar as using a single bay external
enclosure. The need for soware GUI installaon is eliminated. Onboard LED
indicators keep you apprised of system, connecon, and HDD status while the
user-friendly HDD tray design makes HDD hot-swapping effortless from the
top end.
Two fans blow air through the hard disk drives to dramacally enhance
internal air flow and efficiently cool the high speed SATA hard drives within
the system.
Daisy-chain
Capability Warranty
All necessary
cables Included
Excellent Heat
Dissipation
Faned
Enclosure
Speeds up to
3Gbit/sec
HD Spin-Down
Support

FireWire 800
FireWire 800
FireWire 400
Power Outlet
USB 2.0
eSATA
Power Switch
RAID/HD Switches
SPECIAL FEATURES:
• Provides flexible connecons including eSATA, USB 2.0, 1394b and 1394a ports.
• Hard Drives are hot-pluggable.
• Simplifies HDD installaon: effortless HDD hot-swapping.
• Configures RAID modes via mode switch: no IT experse required.
• Simplifies RAID management: no soware installaon required.
• Allows hardware RAID mode sengs for effecve storage management.
• RAID 0 (Striping), RAID 1 (Mirroring), RAID 5, RAID 5+HotSpare, RAID 0+1
• Ensures data integrity with redundant backup capability.
• Maximizes airflow with silent fans.
ARCTICROC 4T
4 Bay, Tower RAID System
eSATA, FireWire 800, FireWire 400 and USB Ports
MINIMUM SYSTEM REQUIREMENTS:
Mac and PC:
eSATA or
FireWire 800 (1394b IEEE) or
FireWire 400 (1394a IEEE) or
USB 2.0 (1.1) port(s.)
Mac: PowerPC or Intel Core Duo processor
PC: 266Mhz or faster Intel or equivalent processor
Recommended Memory: 512MB RAM
OS Requirements
Mac: PowerPC or Intel processor running Mac OS 9, X, (Snow) Leopard
PC: Microso® Windows 2000, Me, XP, Vista, or Windows 7.
FireWire 800
(9 to 9 pin) Cable
USB Cable eSATA Cable
Power Cord
PACKAGE CONTENTS:
Interface
USB 2.0 port x 1 up to 480MB/s,
FireWire 800 (1394b) x 1 up to 800MB/s,
FireWire 400 (1394a) x 1 up to 400MB/s
eSATA x 1 up to 3GB/s
Rotaonal Speed
7200 RPM
RAID Supported
RAID 0 (Striping), RAID 1 (Mirroring), RAID 5,
RAID 5+HotSpare, RAID 0+1
Capacity
2TB, 4TB, 6TB, 8TB, 12TB
Dimensions (LxWxH)
8.3" x 5.4" x 8.4" (210 x 138 x 213 mm)
Weight
Without HDD 5.0 Lbs (2.3 Kgs)
With 4xHDD’s 8.4 Lbs (3.8 Kgs)
Power Requirement
AC outlet via Adaptor
FAN
Two quiet fans
Warranty
2 year limited warranty,
Unlimited toll-free telephone tech support
ARCTICROC 4T SPECS
Quick Installaon
Guide
Quick Installation Guide
ARCTICROC4T
4-BayRAID System
4 Handles &
16 HDD Screws
Arccroc 4T
FireWire 400
(6 to 6 pin) Cable
FireWire 800
Capacity Disclaimer: Actual accessible hard drive capacity will indicate up to 10% lower than stated under different
Operang Systems and formang. Therefore, a 500GB capacity drive will show up as a 450GB drive (approximately.)
© 2011, Rocstorage, Inc.
Rocstor, Rocsecure and Rocpower are registered trademarks of Rocstorage, Inc. "store your future," "secure your future,"
“store your power” and “power your future” are the slogan marks of Rocstorage, Inc.
Apple, the Apple logo, Mac, Power Macintosh, FireWire, and Mac Pro, Leopard … are trademarks of Apple Computer, Inc.
Microso®, MS-DOS, Windows® CE, Windows® NT, Windows® 98, So Windows®, Vista, Windows® 7 … are registered
trademarks of Microso® Corporaon.
All other names are trademarks of their respecve companies in the United States and other countries. © 2000 – 2011
Designed/integrated/assembled in USA using domesc and/or foreign components.
Enclosure (without Hard Drive) is Made in China.
